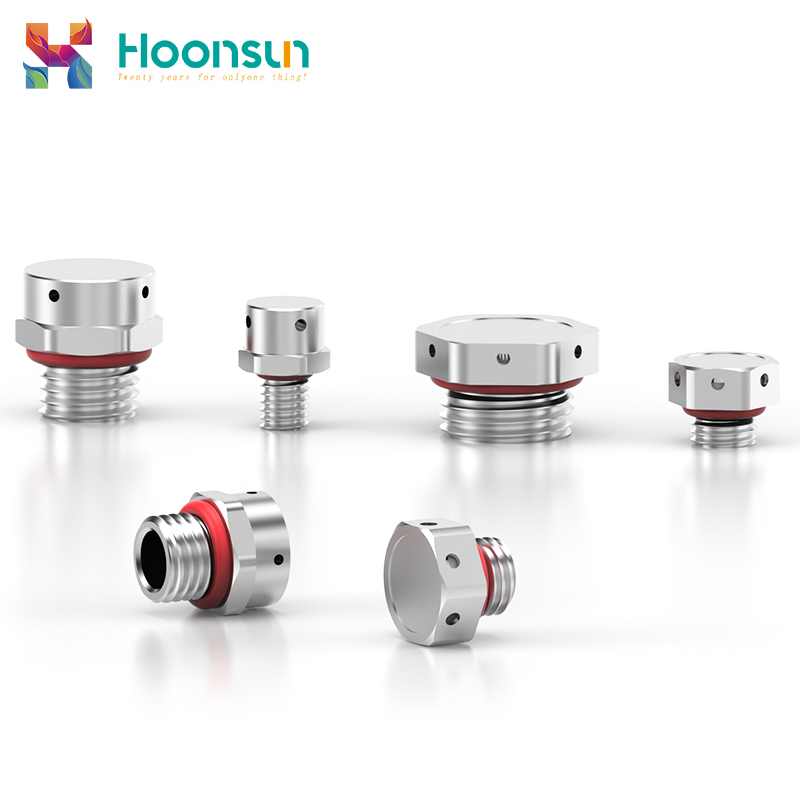

Stainless Steel Vent Plug with IP68 and UL
It features a corrosion-resistant stainless steel structure. The Stainless Steel Vent Plug can ensure reliable pressure balance and IP68 waterproof industrial applications.
Certified for Global Markets：
- Fitting Material Stainless steel 304
- Color Metallic color

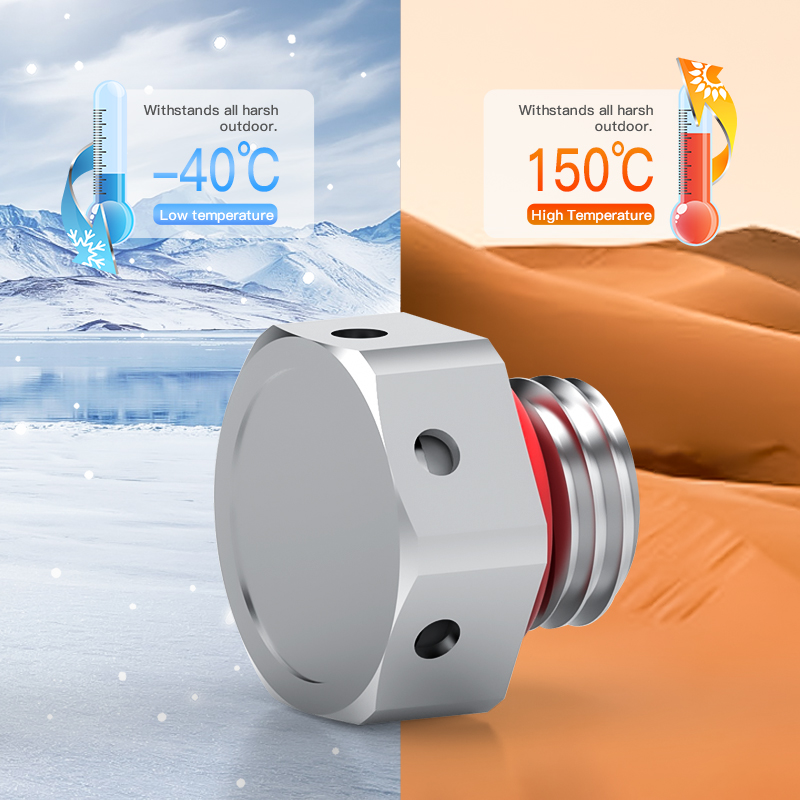

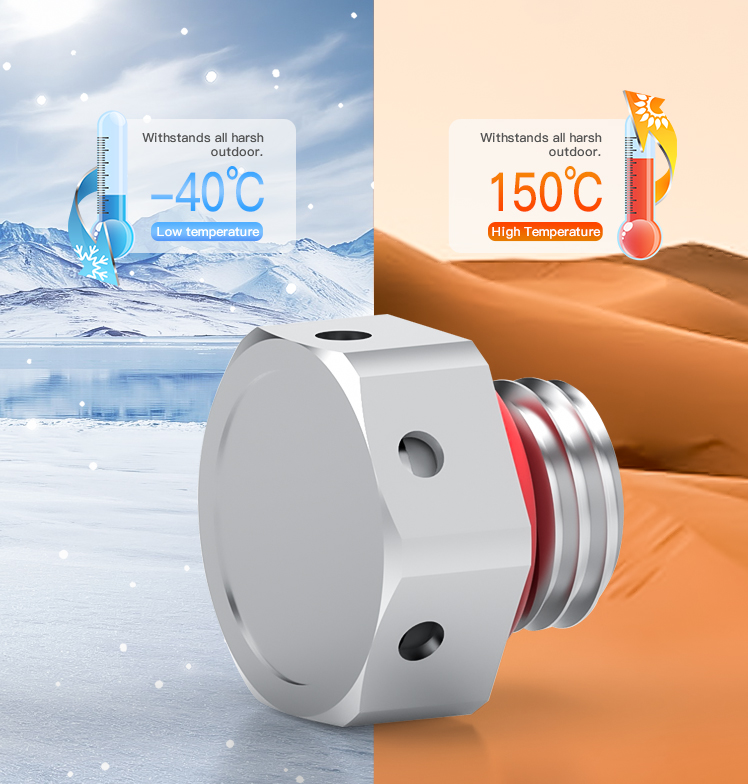

- Temperature resistance -40℃~+150℃
- Moisture permeability >5000g/24H.M2
- Resistant to fine water pressure ≥100mbar for 30min
- Product characteristics Dustproof, hydrophobic, breathable, heat dissipation, oil proof
- Air permeability ≥1.2L/min/c m@70mbar(customizable)
Product Highlights
◆Constructed from high-quality stainless steel for superior corrosion resistance
◆IP68 certified for complete protection against water and dust ingress
◆UL recognized for safety and reliability
◆Specialized breather membrane enables air pressure equalization
◆Robust design withstands impact, vibration, and extreme temperatures
◆Compact, threaded design for easy installation

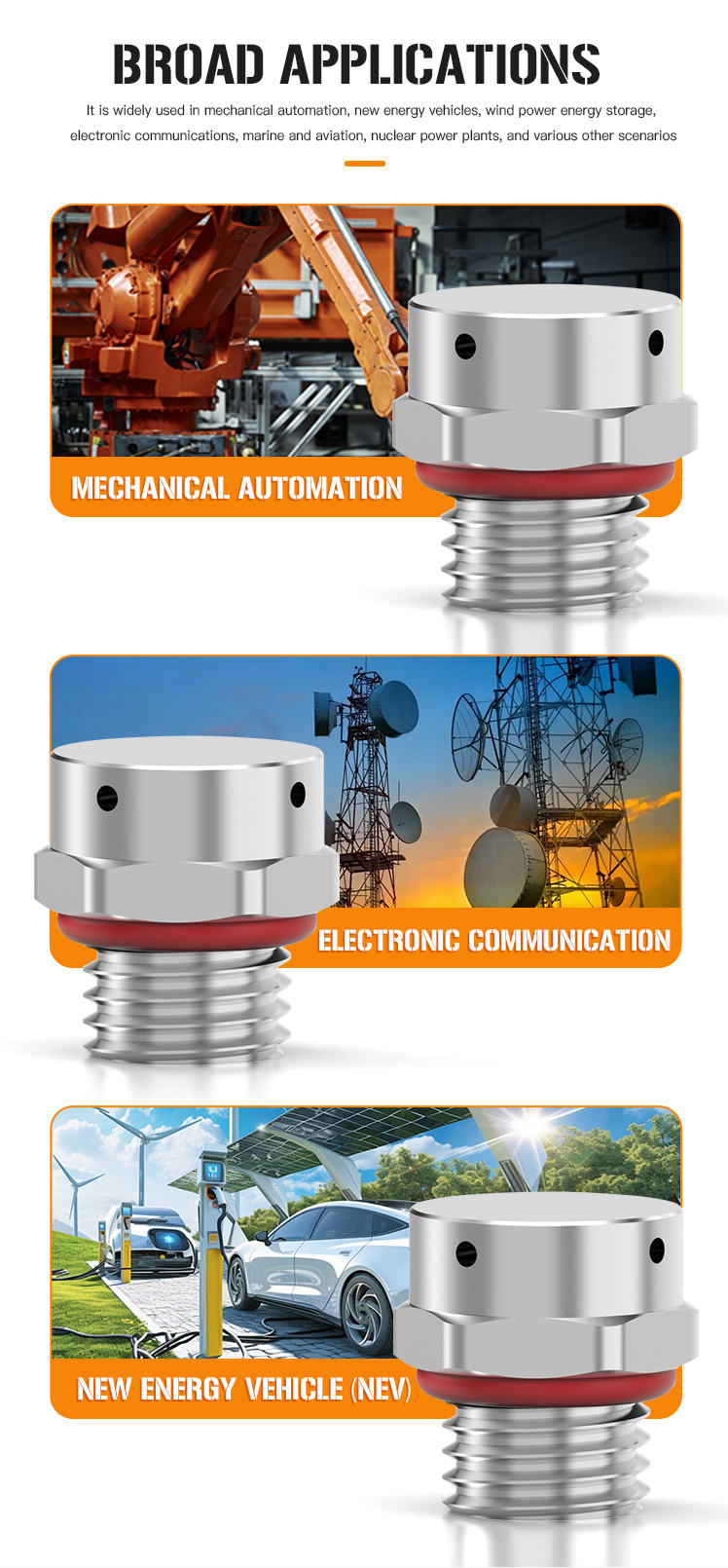

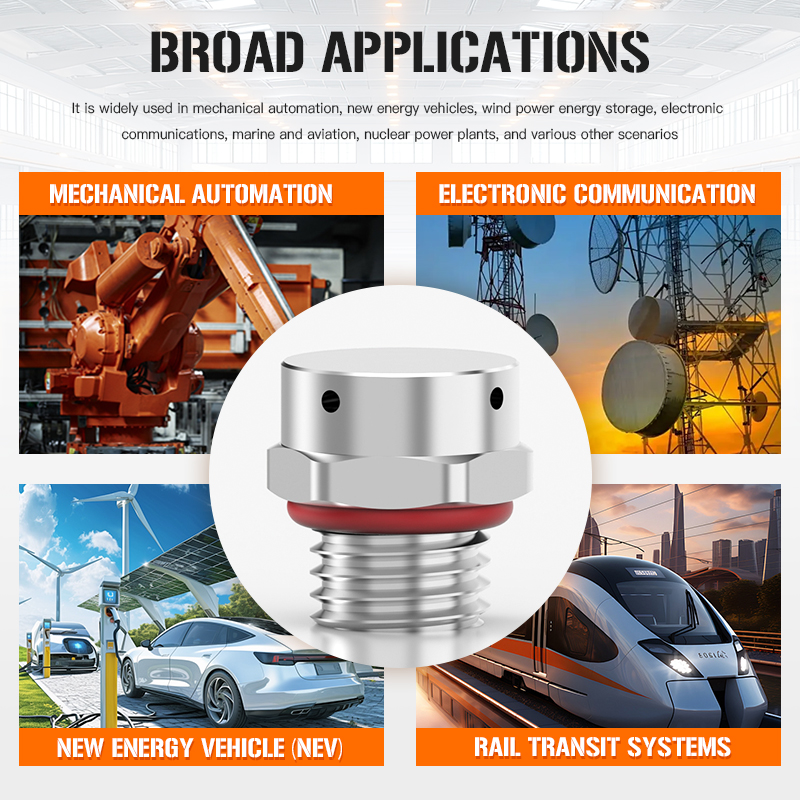

Applications
◇Electrical enclosures and control boxes
◇Outdoor lighting fixtures
◇Communication and telecommunications equipment
◇Industrial machinery and automation systems
◇Marine and offshore applications
◇Other sealed systems requiring pressure balance and contaminant protection
Key Benefits
◆Ensures long-term reliability in harsh environments (outdoor, marine, chemical)
◆Prevents internal pressure buildup and condensation
◆Protects sensitive components from moisture, dust, and contaminants
◆Reduces maintenance needs and extends equipment service life
◆Maintains system integrity under extreme operating conditions

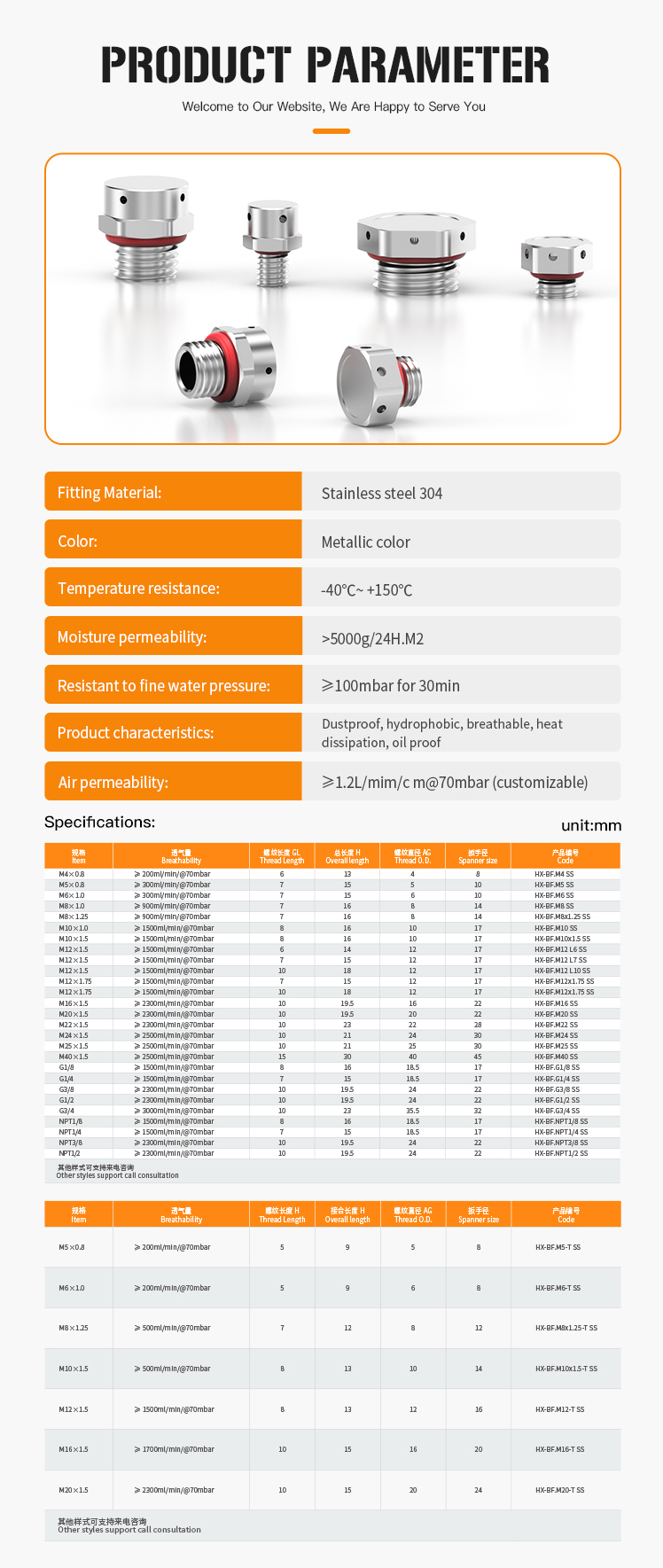

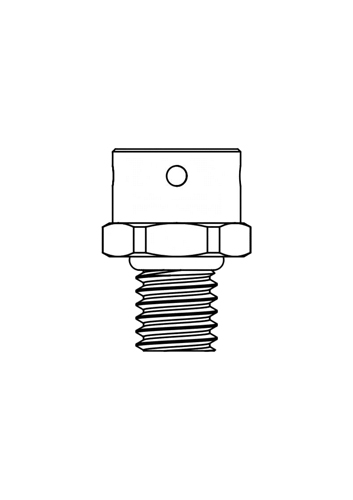

unit:mm
|
Item |
Breathability |
GL Thread Length |
H Overall length |
AG Threado.D. |
Spannersize |
Code |
|
M4×0.8 |
≥200ml/min/@70mbar |
6 |
13 |
4 |
8 |
HX-BF.M4 SS |
|
M5×0.8 |
≥300ml/min/@70mbar |
7 |
15 |
5 |
10 |
HX-BF.M5 SS |
|
M6×1.0 |
≥300ml/min/@70mbar |
7 |
15 |
6 |
10 |
HX-BF.M6 SS |
|
M8×1.0 |
≥900ml/min/@70mbar |
7 |
16 |
8 |
14 |
HX-BF.M8 SS |
|
M8×1.25 |
≥900ml/min/@70mbar |
7 |
16 |
8 |
14 |
HX-BF.M8×1.25 SS |
|
M10×1.0 |
≥1500ml/min/@70mbar |
8 |
16 |
10 |
17 |
HX-BF.M10 SS |
|
M10×1.5 |
≥1500ml/min/@70mbar |
8 |
16 |
10 |
17 |
HX-BF.M10×1.5 SS |
|
M12×1.5 |
≥1500ml/min/@70mbar |
6 |
14 |
12 |
17 |
HX-BF.M12 L6 SS |
|
M12×1.5 |
≥1500ml/min/@70mbar |
7 |
15 |
12 |
17 |
HX-BF.M12 L7 SS |
|
M12×1.5 |
≥1500ml/min/@70mbar |
10 |
18 |
12 |
17 |
HX-BF.M12 L10 SS |
|
M12×1.75 |
≥1500ml/min/@70mbar |
7 |
15 |
12 |
17 |
HX-BF.M12×1.75 SS |
|
M12×1.75 |
≥1500ml/min/@70mbar |
10 |
18 |
12 |
17 |
HX-BF.M12×1.75 SS |
|
M16×1.5 |
≥2300ml/min/@70mbar |
10 |
19.5 |
16 |
22 |
HX-BF.M16 SS |
|
M20×1.5 |
≥2300ml/min/@70mbar |
10 |
19.5 |
20 |
22 |
HX-BF.M20 SS |
|
M22×1.5 |
≥2300ml/min/@70mbar |
10 |
23 |
22 |
28 |
HX-BF.M22 SS |
|
M24×1.5 |
≥2500ml/min/@70mbar |
10 |
21 |
24 |
30 |
HX-BF.M24 SS |
|
M25×1.5 |
≥2500ml/min/@70mbar |
10 |
21 |
25 |
30 |
HX-BF.M25 SS |
|
M40×1.5 |
≥2500ml/min/@70mbar |
15 |
30 |
40 |
45 |
HX-BF.M40 SS |
|
G1/8 |
≥1500ml/min/@70mbar |
8 |
16 |
18.5 |
17 |
HX-BF.G1/8 SS |
|
G1/4 |
≥1500ml/min/@70mbar |
7 |
15 |
18.5 |
17 |
HX-BF.G1/4 SS |
|
G3/8 |
≥2300ml/min/@70mbar |
10 |
19.5 |
24 |
22 |
HX-BF.G3/8 SS |
|
G1/2 |
≥2300ml/min/@70mbar |
10 |
19.5 |
24 |
22 |
HX-BF.G1/2 SS |
|
G3/4 |
≥3000ml/min/@70mbar |
10 |
23 |
35.5 |
32 |
HX-BF.G3/4 SS |
|
NPT1/8 |
≥1500ml/min/@70mbar |
8 |
16 |
18.5 |
17 |
HX-BF.NPT1/8 SS |
|
NPT1/4 |
≥1500ml/min/@70mbar |
7 |
15 |
18.5 |
17 |
HX-BF.NPT1/4 SS |
|
NPT3/8 |
≥2300ml/min/@70mbar |
10 |
19.5 |
24 |
22 |
HX-BF.NPT3/8 SS |
|
NPT1/2 |
≥2300ml/min/@70mbar |
10 |
19.5 |
24 |
22 |
HX-BF.NPT1/2 SS |
|
other styles support call consultation |
||||||
|
Item |
Breathability |
H Thread Length |
H Overall length |
AG Thread O.D. |
Spanner size |
Code |
|
M5×0.8 |
≥200ml/min/@70mbar |
5 |
9 |
5 |
8 |
HX-BF.M5-T SS |
|
M6×1.0 |
≥200ml/min/@70mbar |
5 |
9 |
6 |
8 |
HX-BF.M6-T SS |
|
M8×1.25 |
≥500ml/min/@70mbar |
7 |
12 |
8 |
12 |
HX-BF.M8×1.25-T SS |
|
M10×1.5 |
≥500ml/min/@70mbar |
8 |
13 |
10 |
14 |
HX-BF.M10×1.5-T SS |
|
M12×1.5 |
≥1500ml/min/@70mbar |
8 |
13 |
12 |
16 |
HX-BF.M12-T SS |
|
M16×1.5 |
≥1700ml/min/@70mbar |
10 |
15 |
16 |
20 |
HX-BF.M16-T SS |
|
M20×1.5 |
≥2300ml/min/@70mbar |
10 |
15 |
20 |
24 |
HX-BF.M20-T SS |
|
Other styles support call consultation |
||||||
