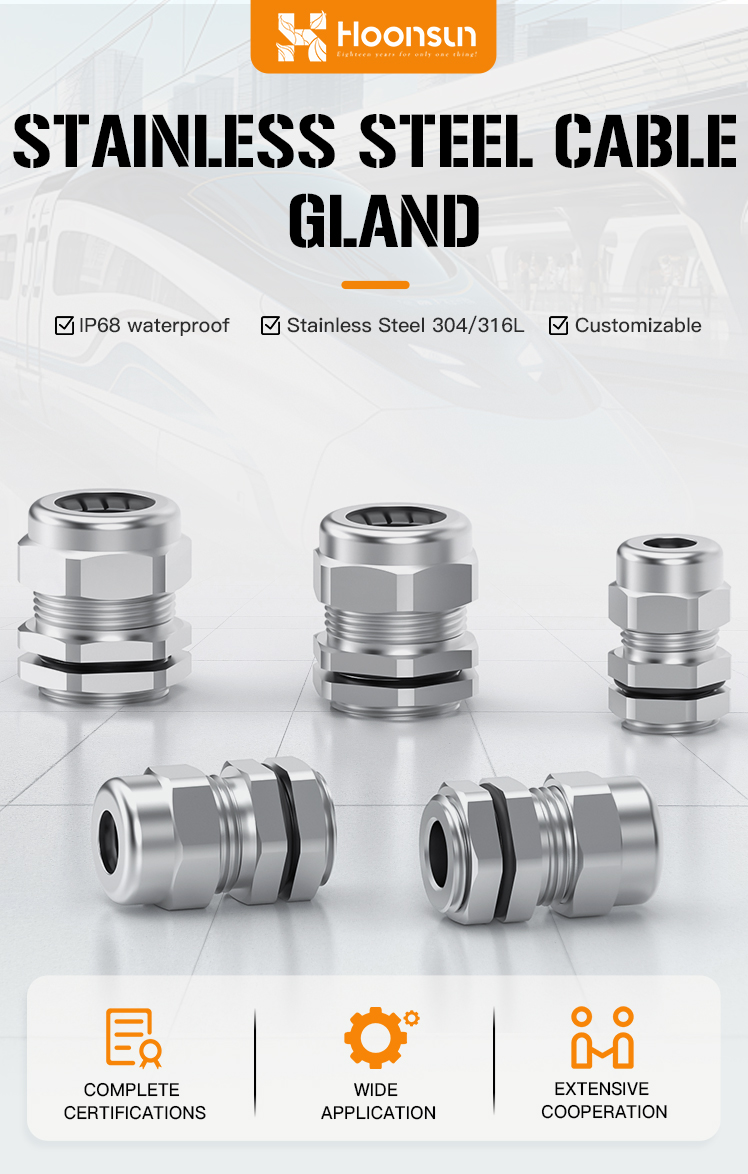

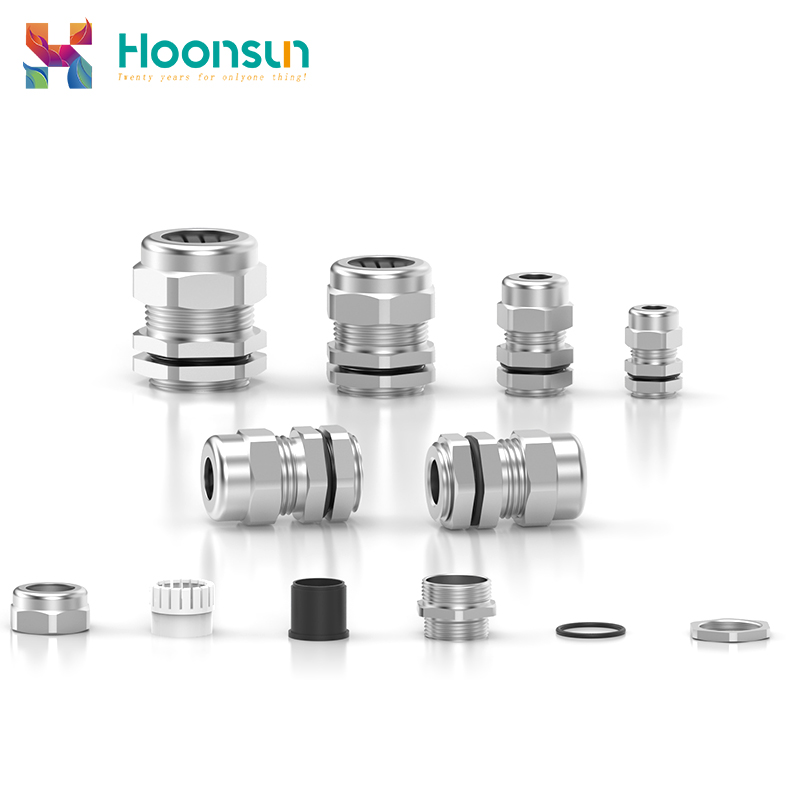

Stainless Steel Cable Gland with IP68 Waterproof and UL certificate
Durable stainless steel cable gland offering corrosion resistance, waterproof sealing, and long service life.
Certified for Global Markets：

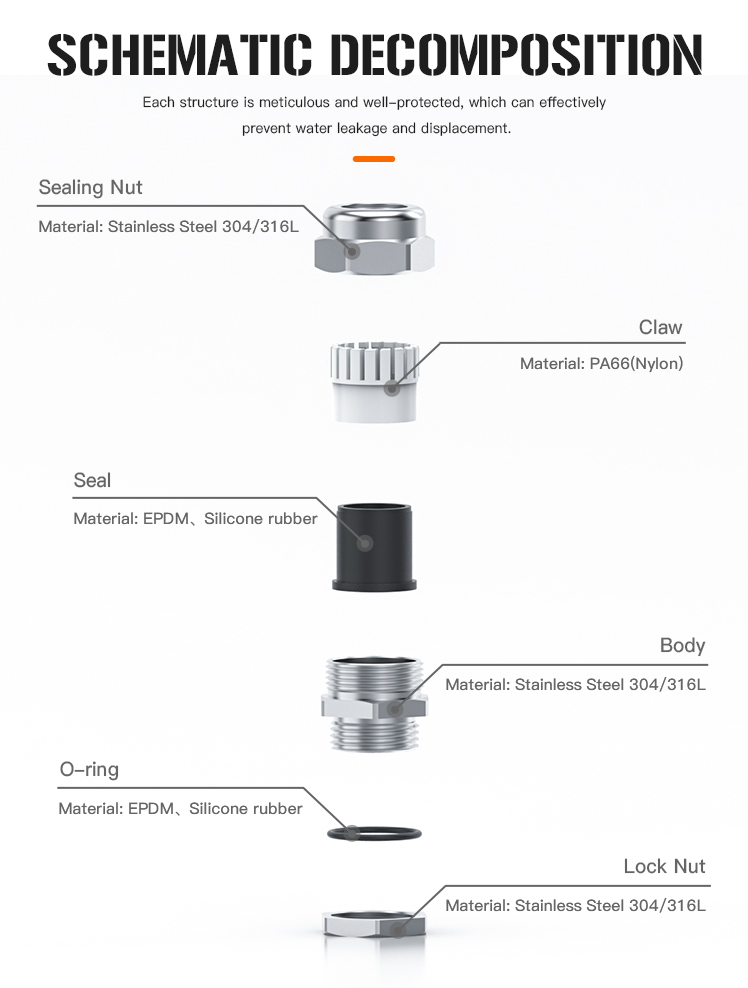

- Fitting Material Stainless Steel 304/316L
- Material For Clamping Jaws PA66(Nylon),UL94-V2
- Material For Sealing Components EPDM、Silicone rubber
- O-ring Material EPDM、Silicone rubber
- Protection Degree IP68-10 bar
- Temperature Static state:-40 to 100℃,Short time to 120℃ Dynamic state:-20℃ to 80℃,Short time to 100℃
Product Highlights
◆Superior Corrosion Resistance
Made of 304 or 316 stainless steel, ensuring excellent resistance to moisture, salt, and chemicals — perfect for marine, chemical, and outdoor environments.
◆Strong and Reliable
High mechanical strength prevents cable loosening under vibration or pressure, providing long-lasting stability.
◆IP68 Waterproof Protection
Fully sealed against water, dust, and oil, ideal for electrical panels, junction boxes, and outdoor installations.

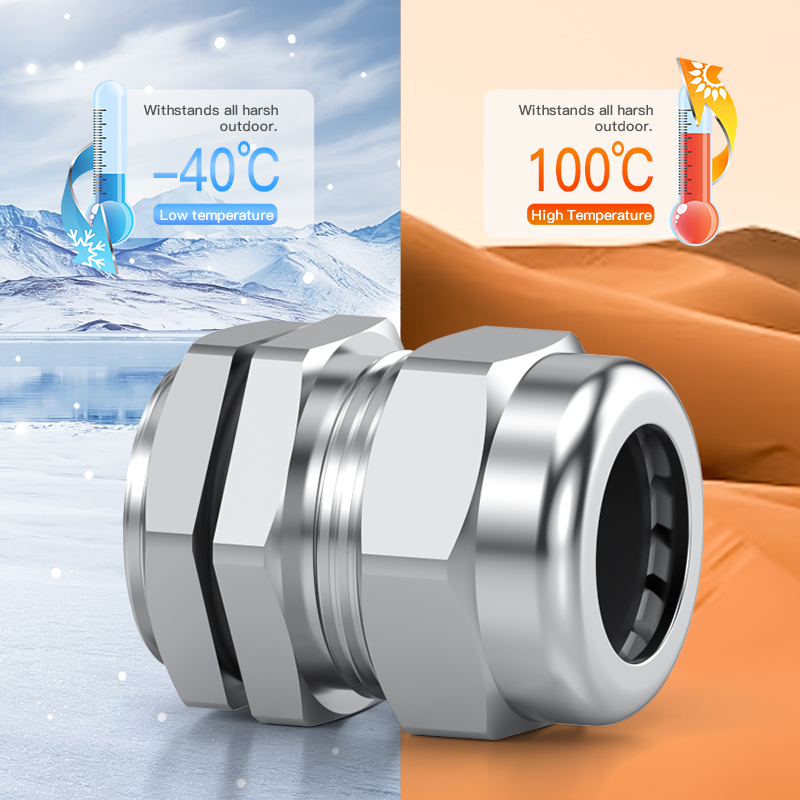

◆Wide Temperature Range
Performs reliably between -40°C and +120°C, suitable for extreme environments.
◆Easy Installation
Available in PG, NPT, and Metric threads, with rubber or silicone seals for secure, simple installation.
◆Explosion-Proof Options
ROHS-certified versions available for hazardous or explosive areas.
◆Long Lifespan
Corrosion-resistant material ensures minimal maintenance and long service life.
Applications
◇Power Systems - Ensures safe and reliable connections in electrical distribution and control equipment.
◇Marine & Offshore - Withstands harsh saltwater conditions to protect vital shipboard and offshore rig wiring.
◇Petrochemical Plants - Resists corrosive chemicals and gases, ensuring safety in hazardous environments.
◇Industrial Automation - Protects sensitive sensor and controller connections from dust, moisture, and oil on production lines.
◇Communication Cabinets - Maintains the integrity of signal transmission for both indoor and outdoor telecommunication infrastructure.
◇Outdoor Lighting - Provides a durable seal for street lights, landscape lighting, and architectural illuminations against rain and temperature changes.
◇Transportation Equipment - Secures cable connections in railways, electric vehicles, and traffic control systems against vibration and weather.
◇Renewable Energy - Offers superior protection for wiring in solar panel installations and wind turbine control systems.
Key Benefits
◆High strength & corrosion resistance
◆IP68 waterproof & dustproof
◆Heat & cold resistant
◆Easy to install, maintenance-free
◆Global certification: CE, UL, RoHS

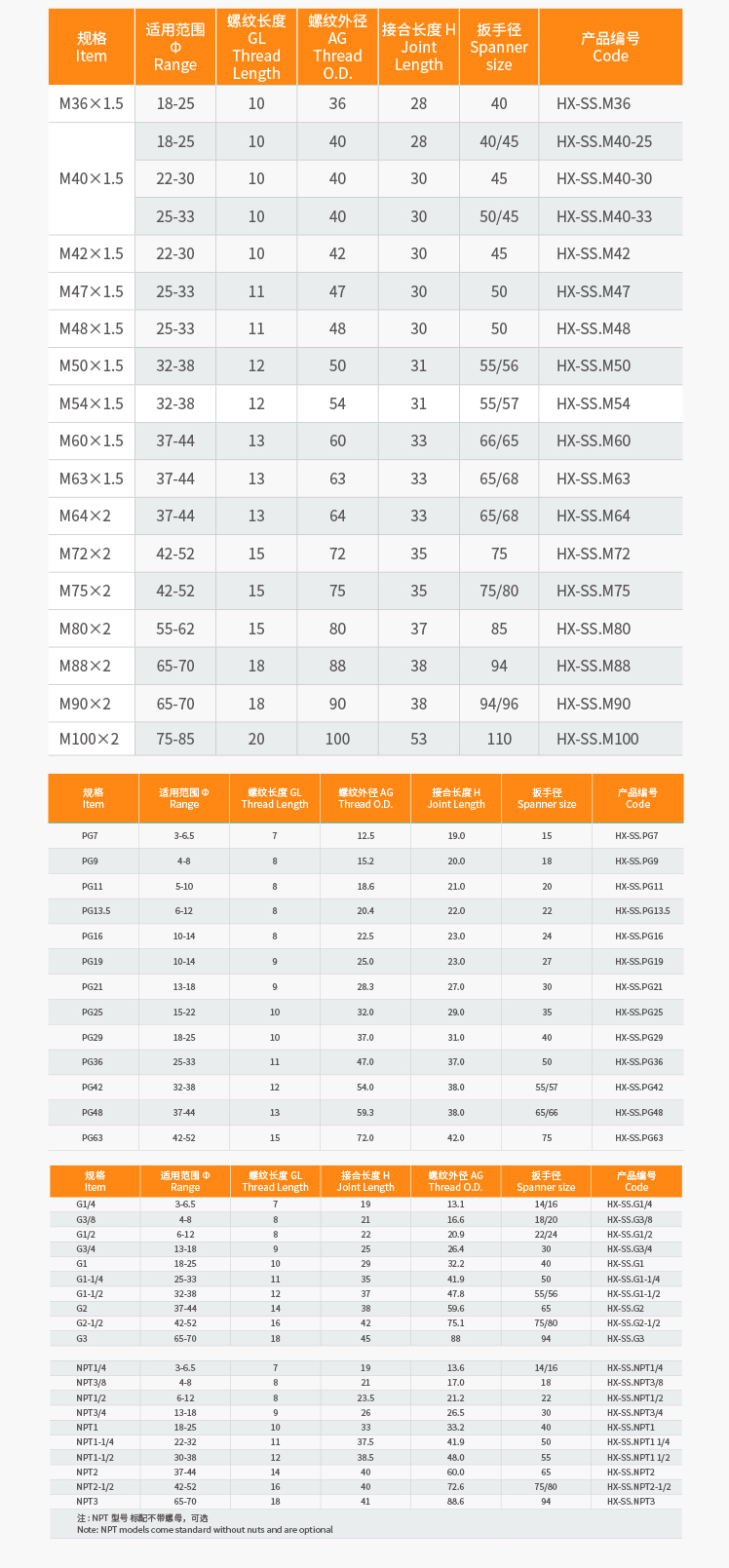

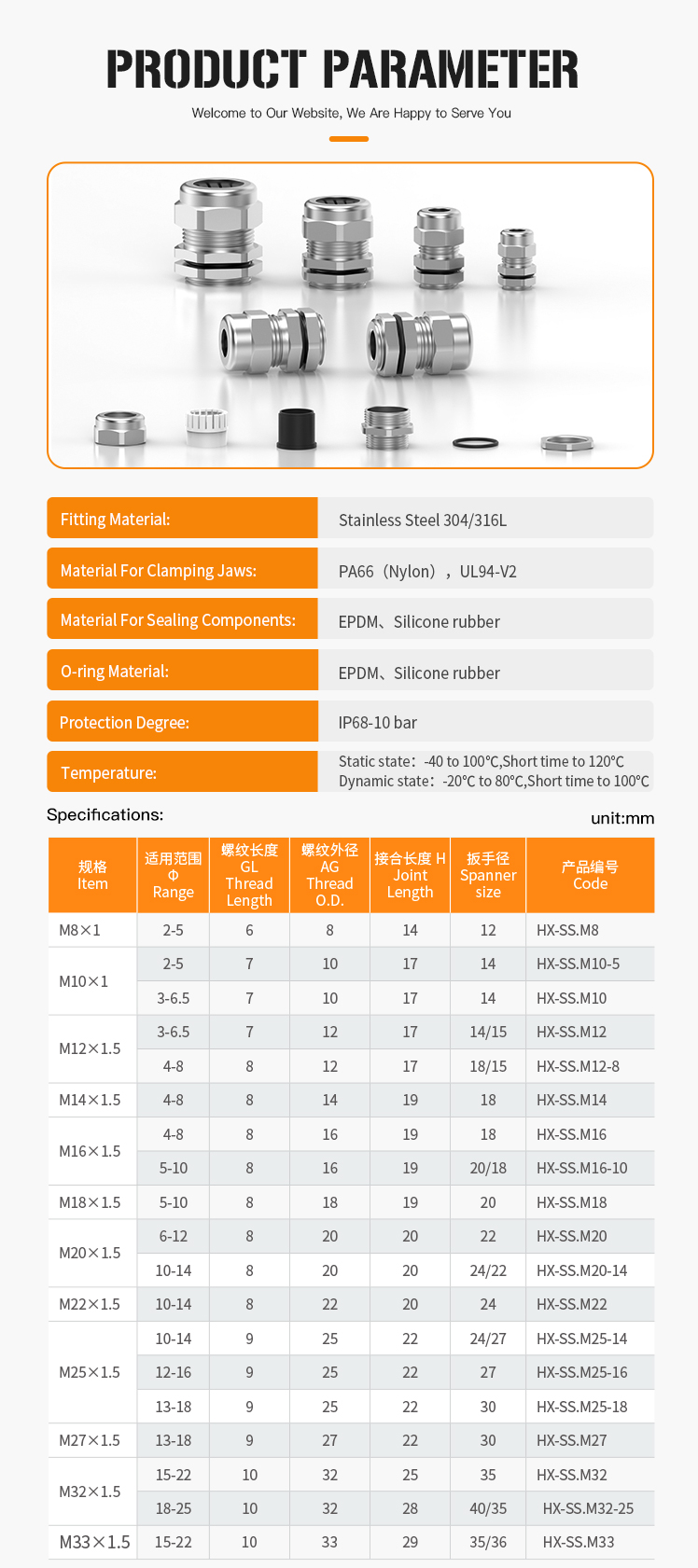

unit:mm
|

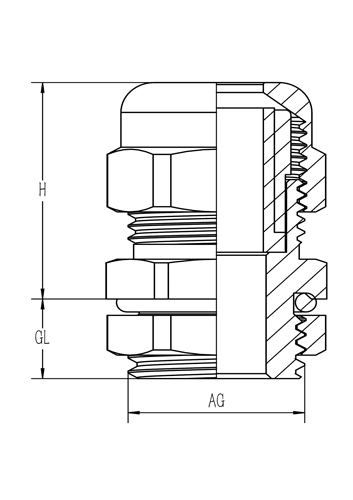

Item |
Range |
GL Thread Length |
AG Thread 0.D. |
H Joint Length |
Spanner size |
Code |
|
M8×1 |
2-5 |
6 |
8 |
14 |
12 |
HX-SS.M8 |
|
M10×1 |
2-5 |
7 |
10 |
17 |
14 |
HX-SS.M10-5 |
|
3-6.5 |
7 |
10 |
17 |
14 |
HX-SS.M10 |
|
|
M12×1.5 |
3-6.5 |
7 |
12 |
17 |
14/15 |
HX-SS.M12 |
|
4-8 |
8 |
12 |
17 |
18/15 |
HX-SS.M12-8 |
|
|
M14×1.5 |
4-8 |
8 |
14 |
19 |
18 |
HX-SS.M14 |
|
M16×1.5 |
4-8 |
8 |
16 |
19 |
18 |
HX-SS.M16 |
|
5-10 |
8 |
16 |
19 |
20/18 |
HX-SS.M16-10 |
|
|
M18×1.5 |
5-10 |
8 |
18 |
19 |
20 |
HX-SS.M18 |
|
M20×1.5 |
6-12 |
8 |
20 |
20 |
22 |
HX-SS.M20 |
|
10-14 |
8 |
20 |
20 |
24/22 |
HX-SS.M20-14 |
|
|
M22×1.5 |
10-14 |
8 |
22 |
20 |
24 |
HX-SS.M22 |
|
M25×1.5 |
10-14 |
9 |
25 |
22 |
24/27 |
HX-SS.M25-14 |
|
12-16 |
9 |
25 |
22 |
27 |
HX-SS.M25-16 |
|
|
13-18 |
9 |
25 |
22 |
30 |
HX-SS.M25-18 |
|
|
M27×1.5 |
13-18 |
9 |
27 |
22 |
30 |
HX-SS.M27 |
|
M32×1.5 |
15-22 |
10 |
32 |
25 |
35 |
HX-SS.M32 |
|
18-25 |
10 |
32 |
28 |
40/35 |
HX-SS.M32-25 |
|
|
M33×1.5 |
15-22 |
10 |
33 |
29 |
35/36 |
HX-SS.M33 |
|
Item |
Range |
GL Thread Length |
AG Thread O.D. |
H Joint Length |
Spanner size |
Code |
|
M36×1.5 |
18-25 |
10 |
36 |
28 |
40 |
HX-SS.M36 |
|
M40×1.5 |
18-25 |
10 |
40 |
28 |
40/45 |
HX-SS.M40-25 |
|
22-30 |
10 |
40 |
30 |
45 |
HX-SS.M40-30 |
|
|
25-33 |
10 |
40 |
30 |
50/45 |
HX-SS.M40-33 |
|
|
M42×1.5 |
22-30 |
10 |
42 |
30 |
45 |
HX-SS.M42 |
|
M47×1.5 |
25-33 |
11 |
47 |
30 |
50 |
HX-SS.M47 |
|
M48×1.5 |
25-33 |
11 |
48 |
30 |
50 |
HX-SS.M48 |
|
M50×1.5 |
32-38 |
12 |
50 |
31 |
55/56 |
HX-SS.M50 |
|
M54×1.5 |
32-38 |
12 |
54 |
31 |
55/57 |
HX-SS.M54 |
|
M60×1.5 |
37-44 |
13 |
60 |
33 |
66/65 |
HX-SS.M60 |
|
M63×1.5 |
37-44 |
13 |
63 |
33 |
65/68 |
HX-SS.M63 |
|
M64×2 |
37-44 |
13 |
64 |
33 |
65/68 |
HX-SS.M64 |
|
M72×2 |
42-52 |
15 |
72 |
35 |
75 |
HX-SS.M72 |
|
M75×2 |
42-52 |
15 |
75 |
35 |
75/80 |
HX-SS.M75 |
|
M80×2 |
55-62 |
15 |
80 |
37 |
85 |
HX-SS.M80 |
|
M88×2 |
65-70 |
18 |
88 |
38 |
94 |
HX-SS.M88 |
|
M90×2 |
65-70 |
18 |
90 |
38 |
94/96 |
HX-SS.M90 |
|
M100×2 |
75-85 |
20 |
100 |
53 |
110 |
HX-SS.M100 |
|
Item |
Range |
GL Thread Length |
AG Thread O.D. |
H Joint Length |
Spanner size |
Code |
|
PG7 |
3-6.5 |
7 |
12.5 |
19.0 |
15 |
HX-SS.PG7 |
|
PG9 |
4-8 |
8 |
15.2 |
20.0 |
18 |
HX-SS.PG9 |
|
PG11 |
5-10 |
8 |
18.6 |
21.0 |
20 |
HX-SS.PG11 |
|
PG13.5 |
6-12 |
8 |
20.4 |
22.0 |
22 |
HX-SS.PG13.5 |
|
PG16 |
10-14 |
8 |
22.5 |
23.0 |
24 |
HX-SS.PG16 |
|
PG19 |
10-14 |
9 |
25.0 |
23.0 |
27 |
HX-SS.PG19 |
|
PG21 |
13-18 |
9 |
28.3 |
27.0 |
30 |
HX-SS.PG21 |
|
PG25 |
15-22 |
10 |
32.0 |
29.0 |
35 |
HX-SS.PG25 |
|
PG29 |
18-25 |
10 |
37.0 |
31.0 |
40 |
HX-SS.PG29 |
|
PG36 |
25-33 |
11 |
47.0 |
37.0 |
50 |
HX-SS.PG36 |
|
PG42 |
32-38 |
12 |
54.0 |
38.0 |
55/57 |
HX-SS.PG42 |
|
PG48 |
37-44 |
13 |
59.3 |
38.0 |
65/66 |
HX-SS.PG48 |
|
PG63 |
42-52 |
15 |
72.0 |
42.0 |
75 |
HX-SS.PG63 |
|
Item |
Range |
GL Thread Length |
AG Thread O.D. |
H Joint Length |
Spanner size |
Code |
|
G1/4 |
3-6.5 |
7 |
19 |
13.1 |
14/16 |
HX-SS.G14 |
|
G3/8 |
48 |
8 |
21 |
16.6 |
18/20 |
HX-SS.G3/8 |
|
G1/2 |
45820 |
8 |
22 |
20.9 |
22/24 |
HX-SS.G1/2 |
|
G3/4 |
13-18 |
9 |
25 |
26.4 |
30 |
HX-SS.G3/4 |
|
G1 |
18-25 |
10 |
29 |
32.2 |
40 |
HX-SS.G1 |
|
G1-1/4 |
25-33 |
11 |
35 |
41.9 |
50 |
HX-SS.G1-1/4 |
|
G1-1/2 |
32-38 |
12 |
37 |
47.8 |
55/56 |
HX-SS.G1-1/2 |
|
G2 |
37-44 |
14 |
38 |
59.6 |
65 |
HX-SS.G2 |
|
G2-1/2 |
42-52 |
16 |
42 |
75.1 |
75/80 |
HX-SS.G2-1/2 |
|
G3 |
65-70 |
18 |
45 |
88 |
94 |
HX-SS.G3 |
|
NPT1/4 |
3-6.5 |
7 |
19 |
13.6 |
14/16 |
HX-SS.NPT1/4 |
|
NPT3/8 |
4-8 |
8 |
21 |
17.0 |
18 |
HX-SS.NPT3/8 |
|
NPT1/2 |
6-12 |
8 |
23.5 |
21.2 |
22 |
HX-SS.NPT1/2 |
|
NPT3/4 |
13-18 |
9 |
26 |
26.5 |
30 |
HX-SS.NPT3/4 |
|
NPT1 |
18-25 |
10 |
33 |
33.2 |
40 |
HX-SS.NPT1 |
|
NPT1-1/4 |
22-32 |
11 |
37.5 |
41.9 |
50 |
HX-SS.NPT1 1/4 |
|
NPT1-1/2 |
30-38 |
12 |
38.5 |
48.0 |
55 |
HX-SS.NPT1 1/2 |
|
NPT2 |
37-44 |
14 |
40 |
60.0 |
65 |
HX-SS.NPT2 |
|
NPT2-1/2 |
42-52 |
16 |
40 |
72.6 |
75/80 |
HX-SS.NPT2-1/2 |
|
NPT3 |
65-70 |
18 |
41 |
88.6 |
94 |
HX-SS.NPT3 |
|
Note:NPT models come standard without nuts and are optional |
||||||
