Single Compression Type Cable Gland Rated IP68 and UL Listed
The Single Compression Type Cable Gland is designed for long-term use in corrosive marine environments. Its sealing performance is durable and reliable, and it can maintain excellent waterproofing properties for an extended period.
Certified for Global Markets：

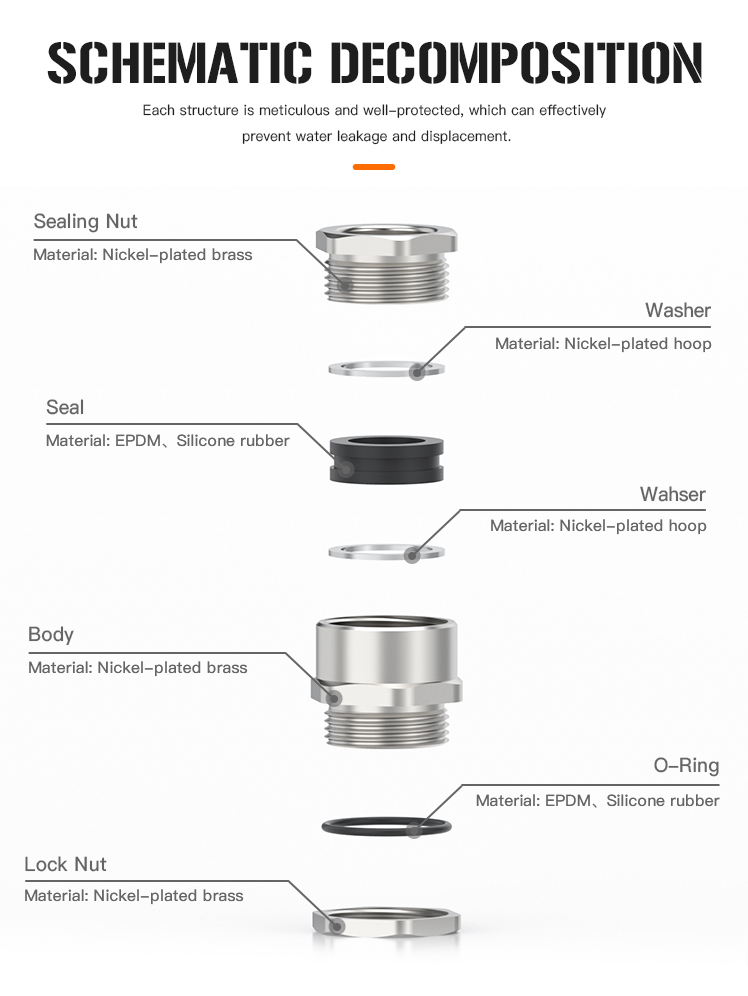

- Fitting Material Nickel-plated brass
- Material For Sealing Components EPDM、Silicone rubber
- O-ring Material EPDM、Silicone rubber
- Metal Washer Nickel-plated hoop

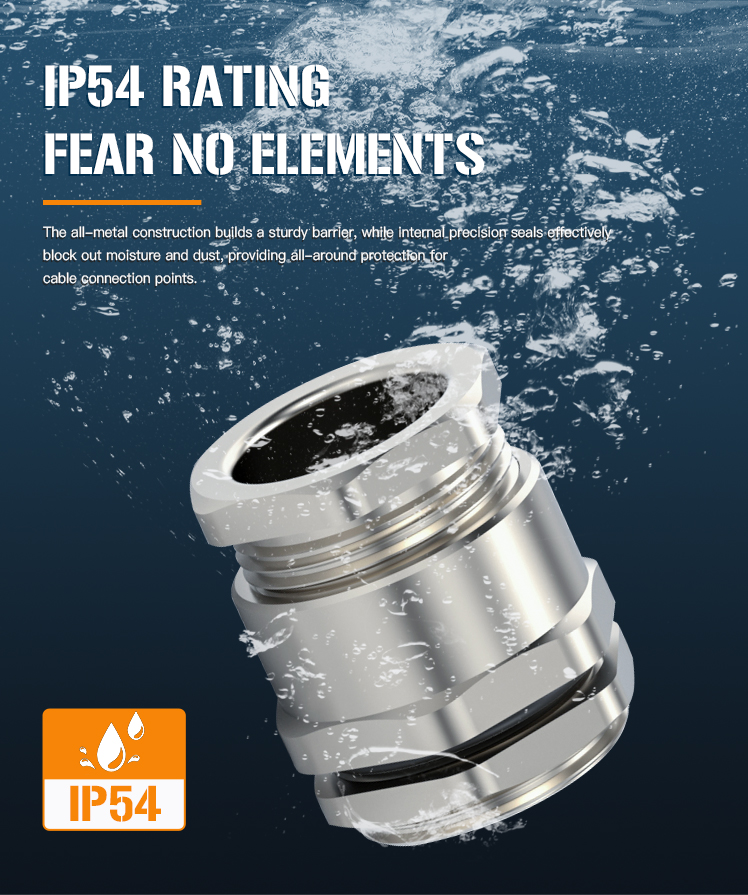

- Protection Degree IP54
- Temperature Static state:-40 to 100℃,Short time to 120℃ Dynamic state:-20℃ to 80℃,Short time to 100℃
Product Highlights
◆Effortless Single-Step Installation
Integrated one-piece design requires just a single compression action to secure and seal the cable, significantly cutting down installation time and labor.
◆Robust Seal & Superior Strain Relief
The compression mechanism creates uniform, 360-degree grip and pressure on the cable, ensuring a reliable seal and exceptional pull-out resistance for long-term connection integrity.
◆Broad Cable & Thread Compatibility
Features an optimized design for precise adaptation to a wide range of standard cable diameters and popular thread types, offering strong versatility for diverse industrial applications.
◆Durability in Demanding Conditions
Through meticulous design, it can maintain its performance and connection security even in environments with high vibration, corrosion risks and other complex factors.
◆Cost-Effective & Streamlined Design
A simplified construction with minimal components enhances reliability, reduces potential failure points, and provides an optimal balance of performance and economy for volume deployments.
Applications
◇Ship electrical control systems
◇Offshore oil platforms
◇Marine lighting and navigation equipment
◇Ship communication systems
◇Port and dockside power systems
Key Benefits
◆316 stainless steel, anti-corrosion & rustproof
◆IP68 waterproof and dustproof
◆Vibration-resistant & flame-retardant
◆Works in harsh saltwater environments
◆Complies with CE, UL, and marine standards
unit:mm
|
Item |
Thread |
Range |
GL Thread Length |
AG Thread O.D. |
H Joint Length |
Spanner size |
Code |
|
DCG7 |
PG7 |
5-6.5 |
5.0 |
12.5 |
16.5 |
14/15 |
HX-DCG7 |
|
DCG9 |
PG9 |
6-8 |
6.2 |
15.2 |
17.5 |
16/18 |
HX-DCG9 |
|
DCG11 |
PG11 |
8-11 |
6.5 |
18.6 |
17.5 |
20/21 |
HX-DCG11 |
|
DCG13.5 |
PG13.5 |
9-11.5 |
7.5 |
20.4 |
20.5 |
22/23 |
HX-DCG13.5 |
|
DCG16 |
PG16 |
11-14 |
8.0 |
22.5 |
22.2 |
24/26 |
HX-DCG16 |
|
DCG21 |
PG21 |
15-17.5 |
8.0 |
28.3 |
23.5 |
30/32 |
HX-DCG21 |
|
DCG29 |
PG29 |
20-23 |
8.0 |
37.0 |
25.5 |
40/41 |
HX-DCG29 |
|
DCG36 |
PG36 |
29-31 |
10.0 |
47.0 |
29.0 |
50/52 |
HX-DCG36 |
|
DCG42 |
PG42 |
32-38 |
11.0 |
54.0 |
33.0 |
57/57 |
HX-DCG42 |
|
DCG48 |
PG48 |
37-44 |
12.0 |
59.3 |
34.0 |
64/64 |
HX-DCG48 |
