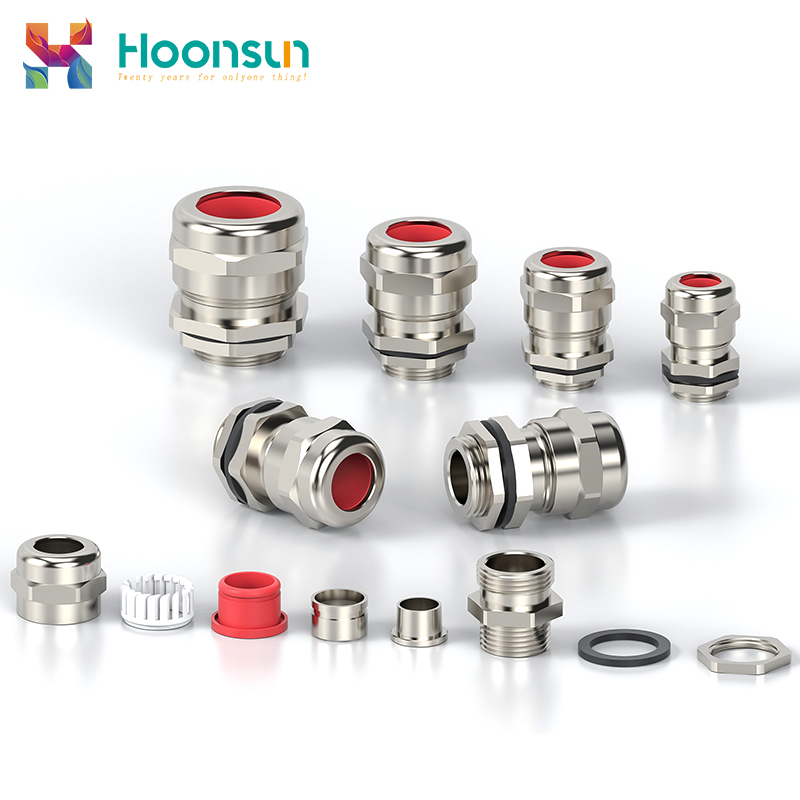

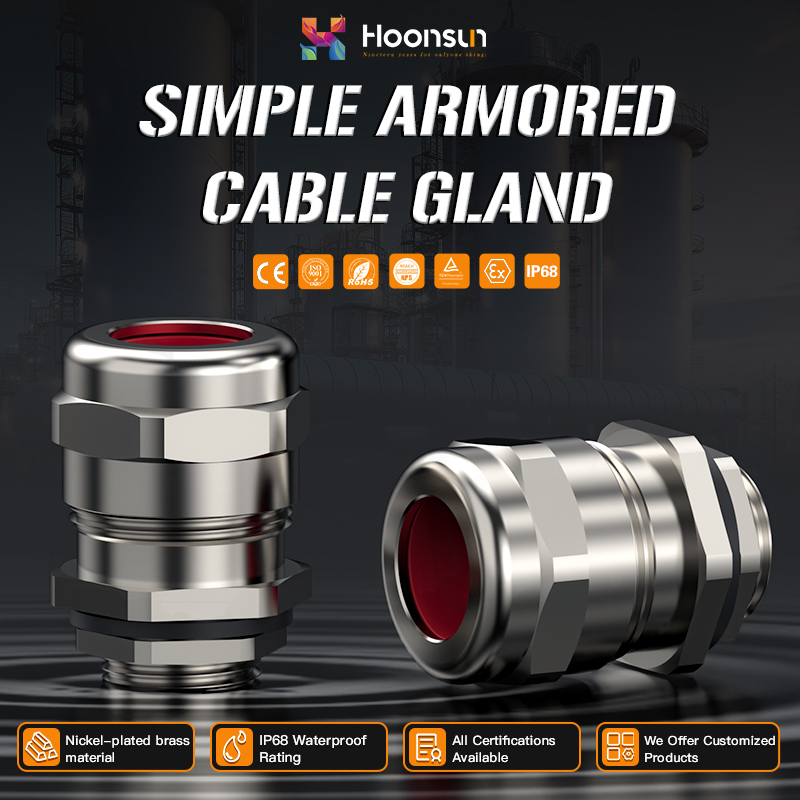

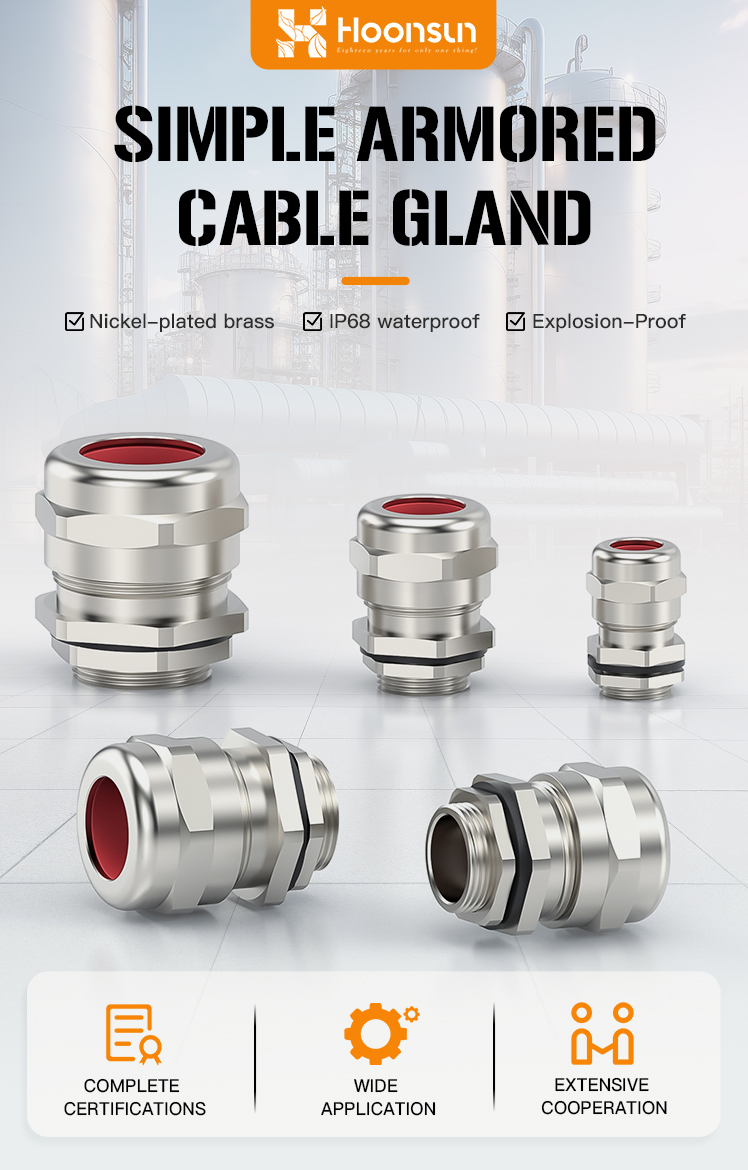

Simple Armored Cable Gland with Dual IP68 and UL Certification
By using our Simple Armored Cable Gland, you can achieve a quick and manual installation, while providing reliable protection. This product is also double-certified in accordance with both IP68 and UL standards.
Certified for Global Markets：

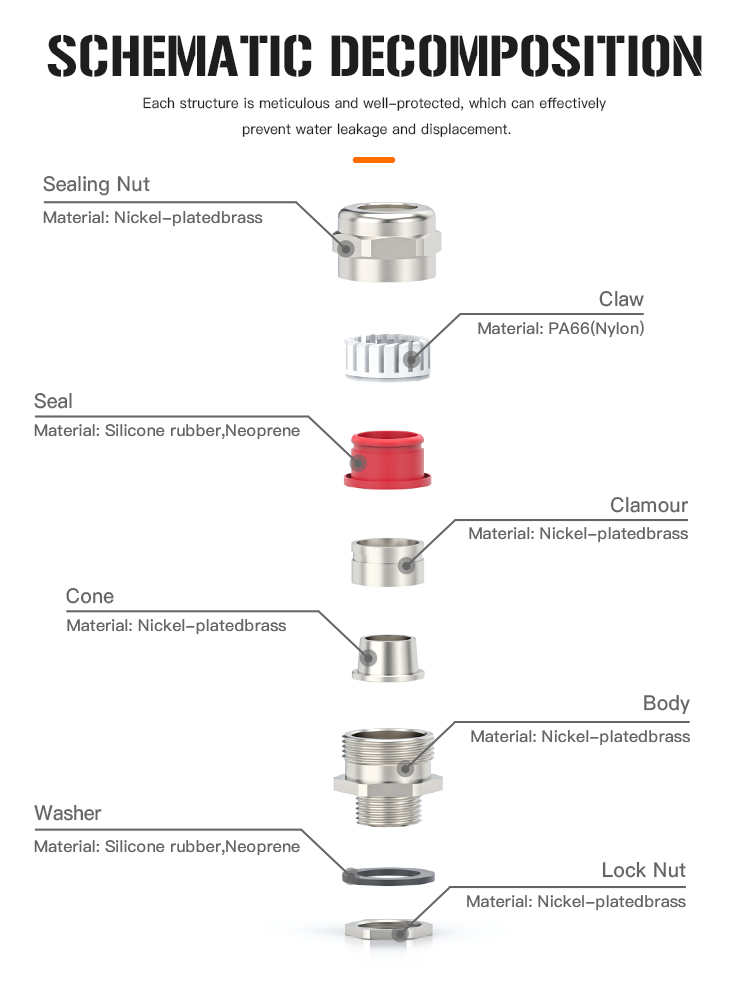

- Fitting Material Brass/SS304/SS316L
- Surface Treatment Nickel plated,Passivation
- Material For Sealing Components Silicone rubber,Neoprene
- Explosion-proof Exd IIC Gb
- Flame Retardant Degree UL94-V0

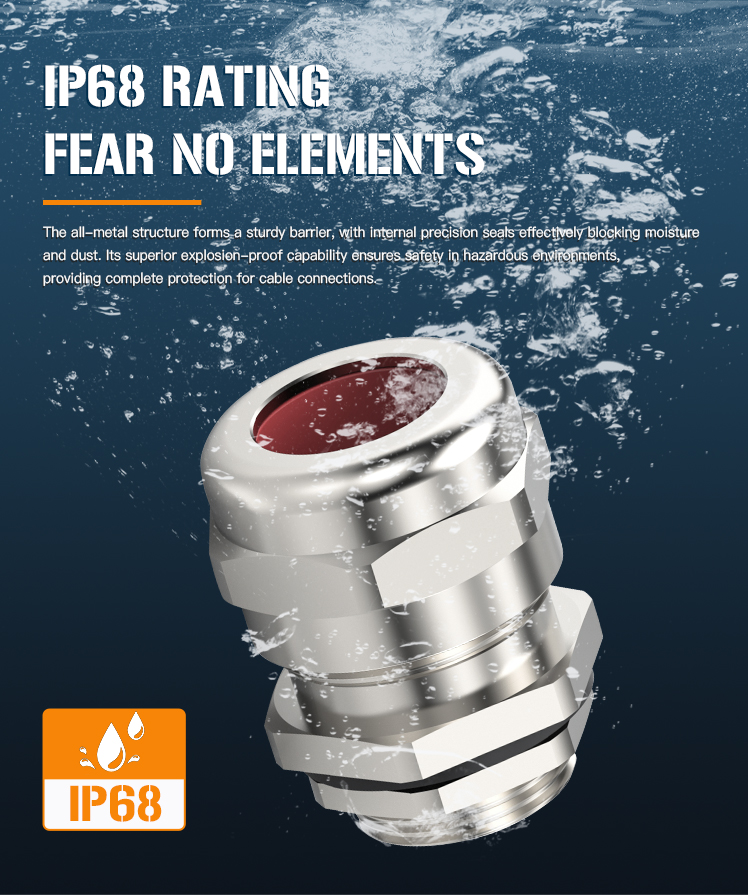

- Protection Degree IP68-10 bar

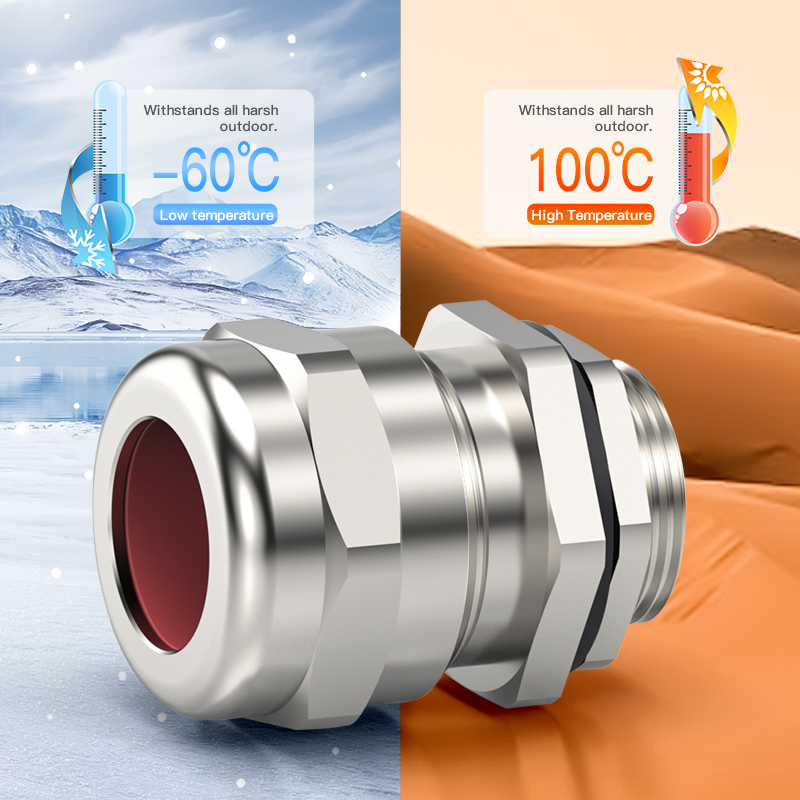

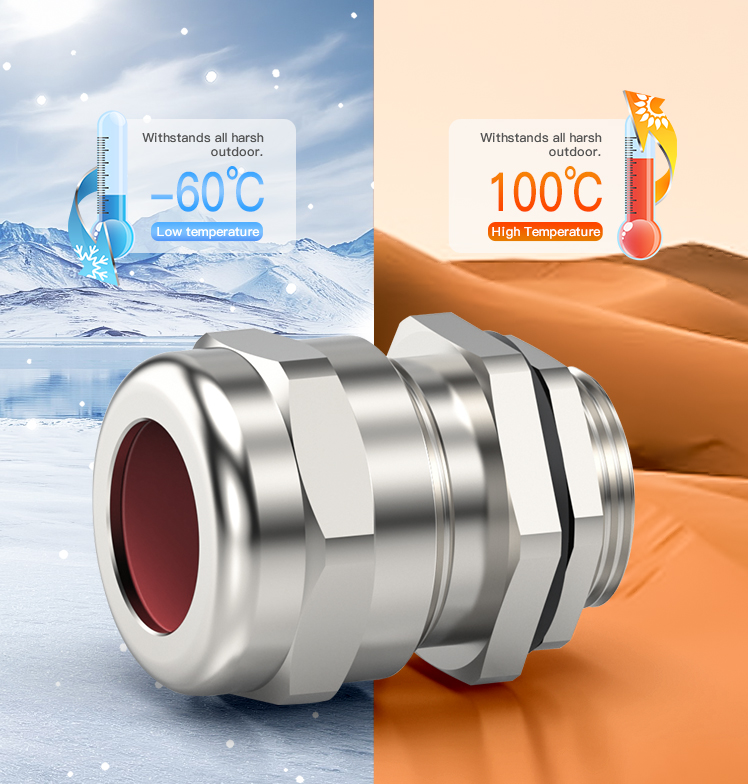

- Temperature Static state:-60 to 100℃,Short time to 120℃ Dynamic state:-20℃ to 80℃,Short time to 100℃
- Applicable cable type Armored cable
Product Highlights
◆Hand-Tightened Assembly
Requires no special tools for fast and efficient installation.
◆Armored Cable Locking
Securely grips the armor layer to resist pull and vibration forces.
◆Dual Certification
Independently certified for both IP68 water immersion and UL safety requirements.
Applications
◇General industrial control panel and mechanical wiring installation.
◇Projects that focus on cost control need to adopt reliable and certified cable connection methods.
◇Outdoor lighting fixtures, water treatment systems, and outdoor junction boxes.
◇Conveyor systems, HVAC equipment, and other vibration-prone machinery.
◇In petrochemical plants and mining operations, the requirement for sealing performance is extremely strict.
Key Benefits
◆Saves Time & Labor
Streamlined installation process reduces overall construction time.
◆Enhanced Mechanical Security
Prevents joint loosening for stable, long-lasting connections.
◆Essential Environmental Sealing
Effectively blocks out dust and moisture to protect internal components.

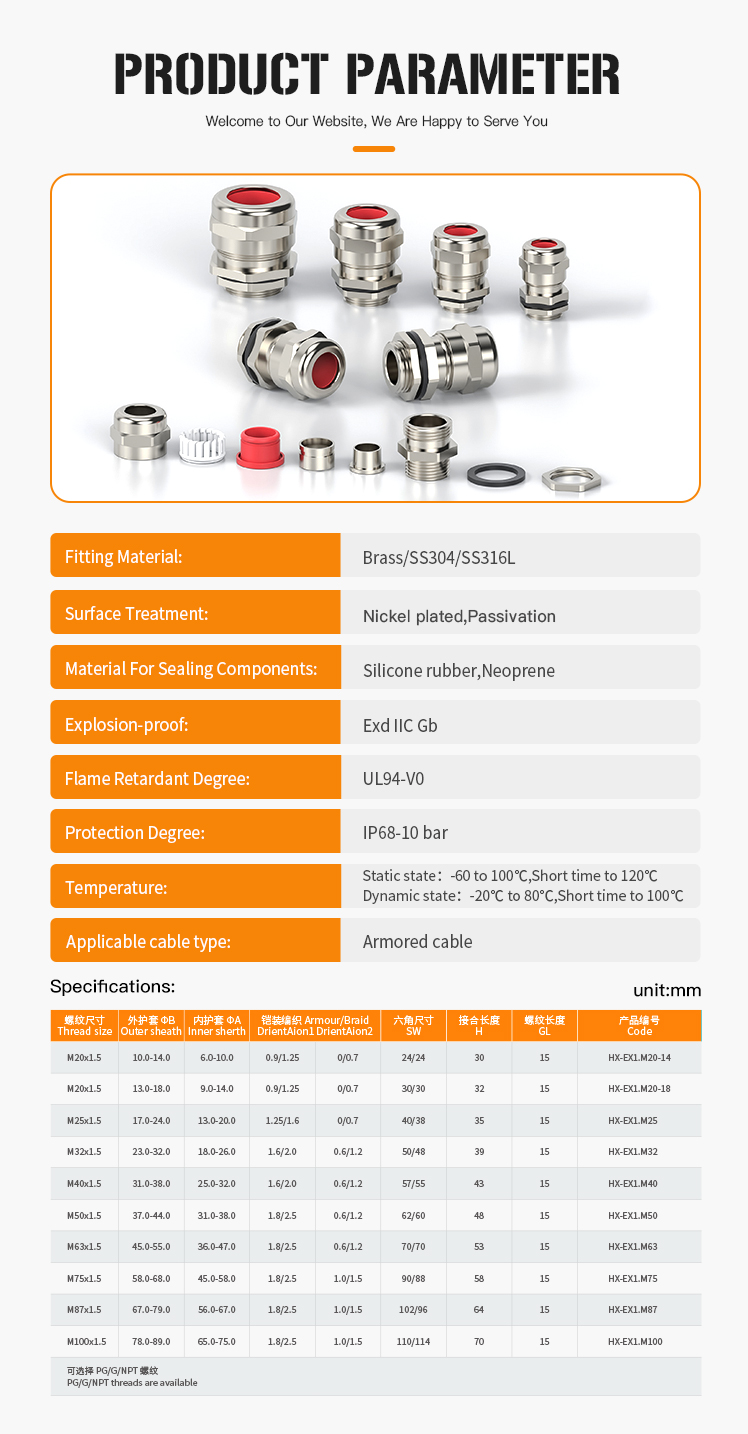

unit:mm
|
Thread size |
B Outer sheath |
A Inner sherth |
Armour/Braid |
SW |
H |
GL |
Code |
|
|
M20x1.5 |
10.0-14.0 |
6.0-10.0 |
0.9/1.25 |
0/0.7 |
24/24 |
30 |
15 |
HX-EX1.M20-14 |
|
M20x1.5 |
13.0-18.0 |
9.0-14.0 |
0.9/1.25 |
0/0.7 |
30/30 |
32 |
15 |
HX-EX1.M20-18 |
|
M25x1.5 |
17.0-24.0 |
13.0-20.0 |
1.25/1.6 |
0/0.7 |
40/38 |
35 |
15 |
HX-EX1.M25 |
|
M32X1.5 |
23.0-32.0 |
18.0-26.0 |
1.6/2.0 |
0.6/1.2 |
50/48 |
39 |
15 |
HX-EX1.M32 |
|
M40X1.5 |
31.0-38.0 |
25.0-32.0 |
1.6/2.0 |
0.6/1.2 |
57/55 |
43 |
15 |
HX-EX1.M40 |
|
M50x1.5 |
37.0-44.0 |
31.0-38.0 |
1.8/2.5 |
0.6/1.2 |
62/60 |
48 |
15 |
HX-EX1.M50 |
|
M63x1.5 |
45.0-55.0 |
36.0-47.0 |
1.8/2.5 |
0.6/1.2 |
70/70 |
53 |
15 |
HX-EX1.M63 |
|
M75x1.5 |
58.0-68.0 |
45.0-58.0 |
1.8/2.5 |
1.0/1.5 |
90/88 |
58 |
15 |
HX-EX1.M75 |
|
M87X1.5 |
67.0-79.0 |
56.0-67.0 |
1.8/2.5 |
1.0/1.5 |
102/96 |
64 |
15 |
HX-EX1.M87 |
|
M100x1.5 |
78.0-89.0 |
65.0-75.0 |
1.8/2.5 |
1.0/1.5 |
110/114 |
70 |
15 |
HX-EX1.M100 |
|
PG/G/NPT threads are available |
||||||||
