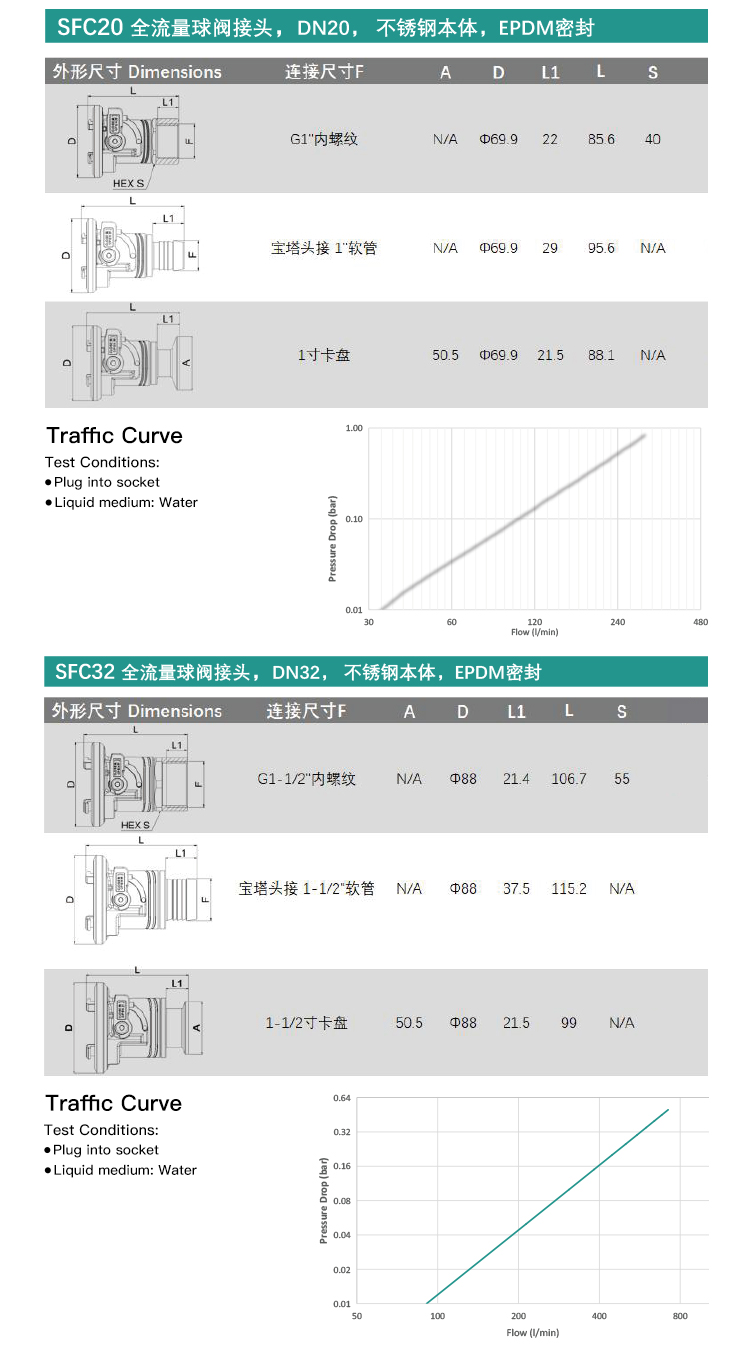

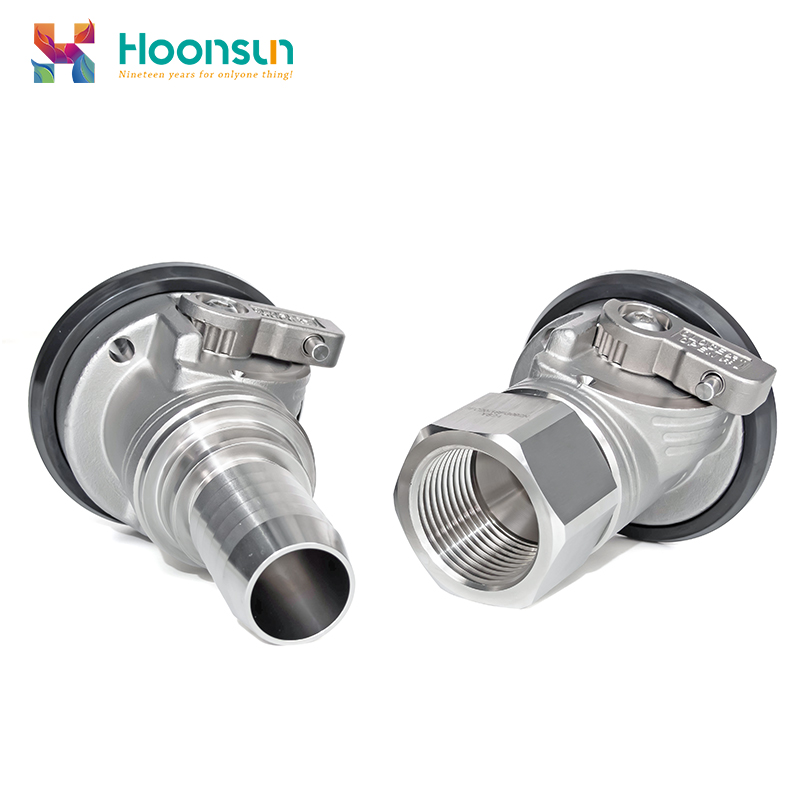

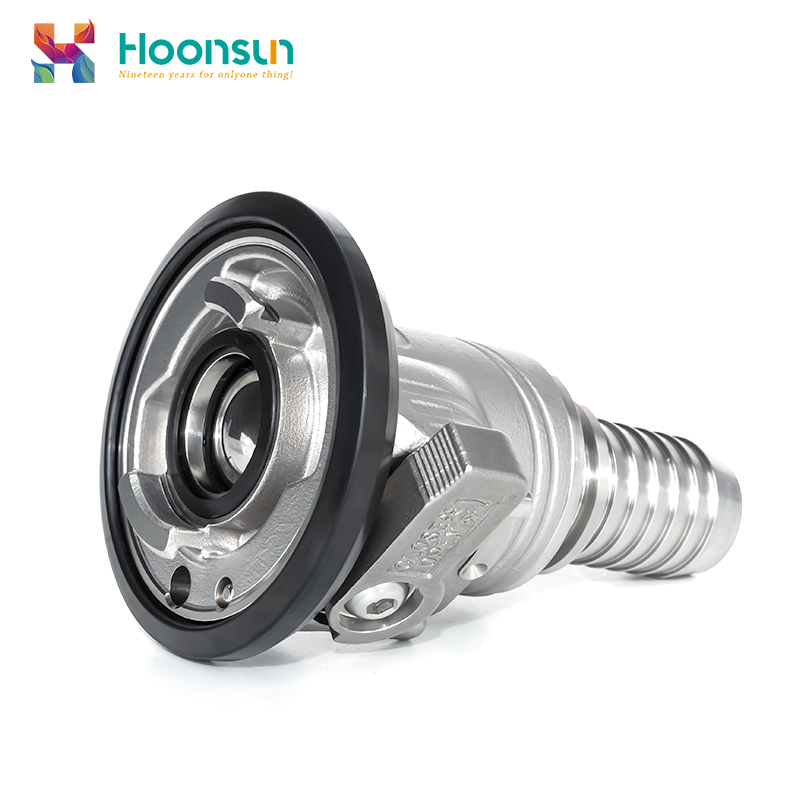

SFC20-1SCH252N-SFC20-1SFG092N

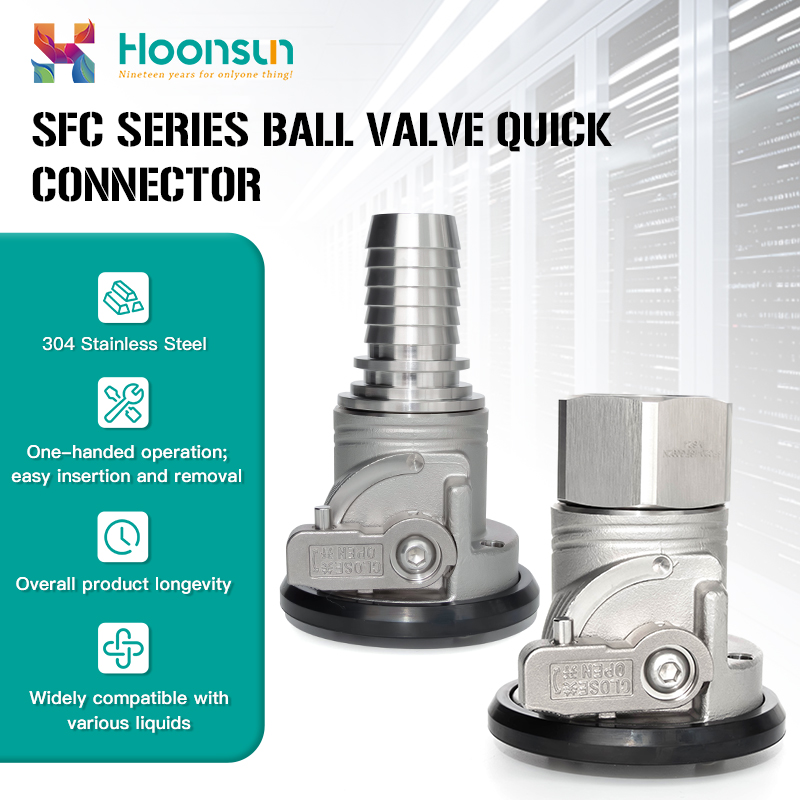

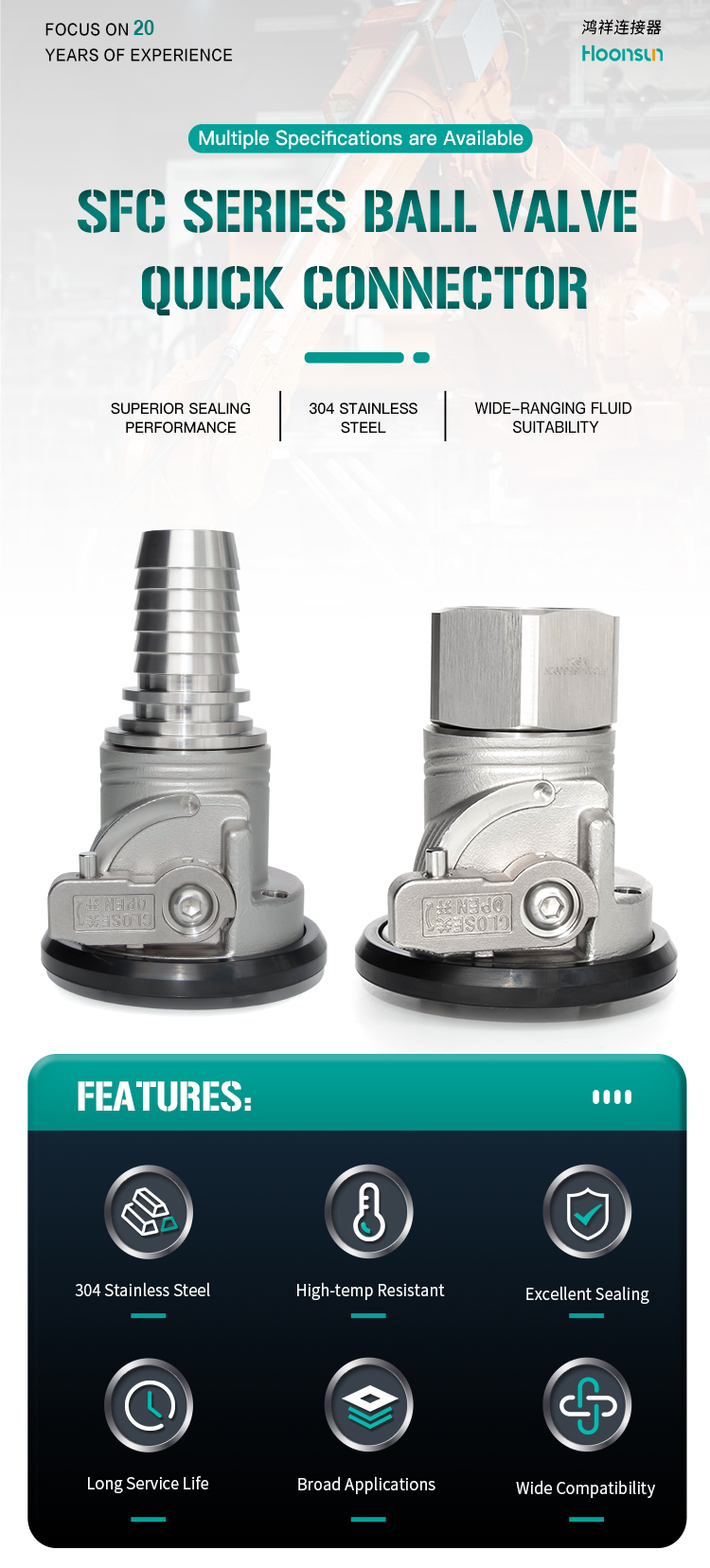

Core Features

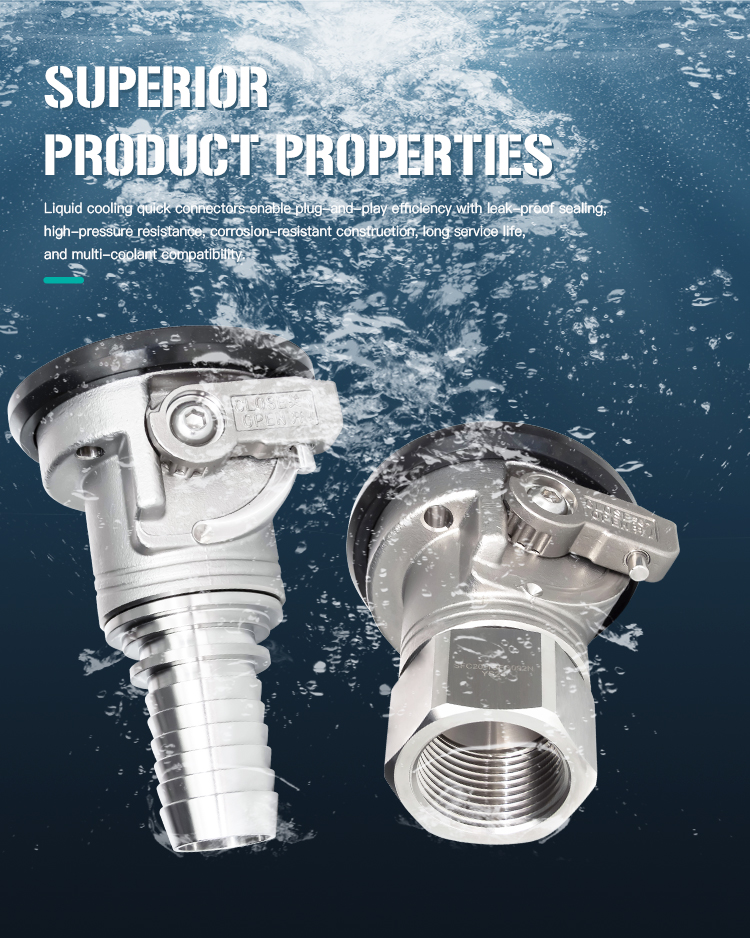

✅ 304 Stainless Steel Construction: Excellent corrosion resistance for industrial and outdoor environments

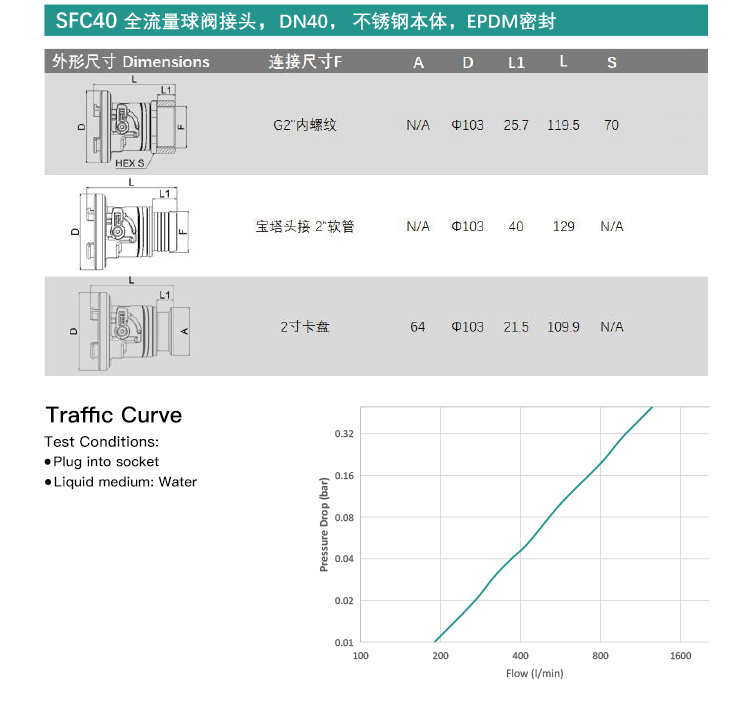

✅ Full-Flow Ball Valve Design: Minimal pressure drop, supporting high flow rates up to 1600 L/min

✅ Superior Sealing Performance: EPDM seals (FKM optional) ensure zero leakage under rated pressure

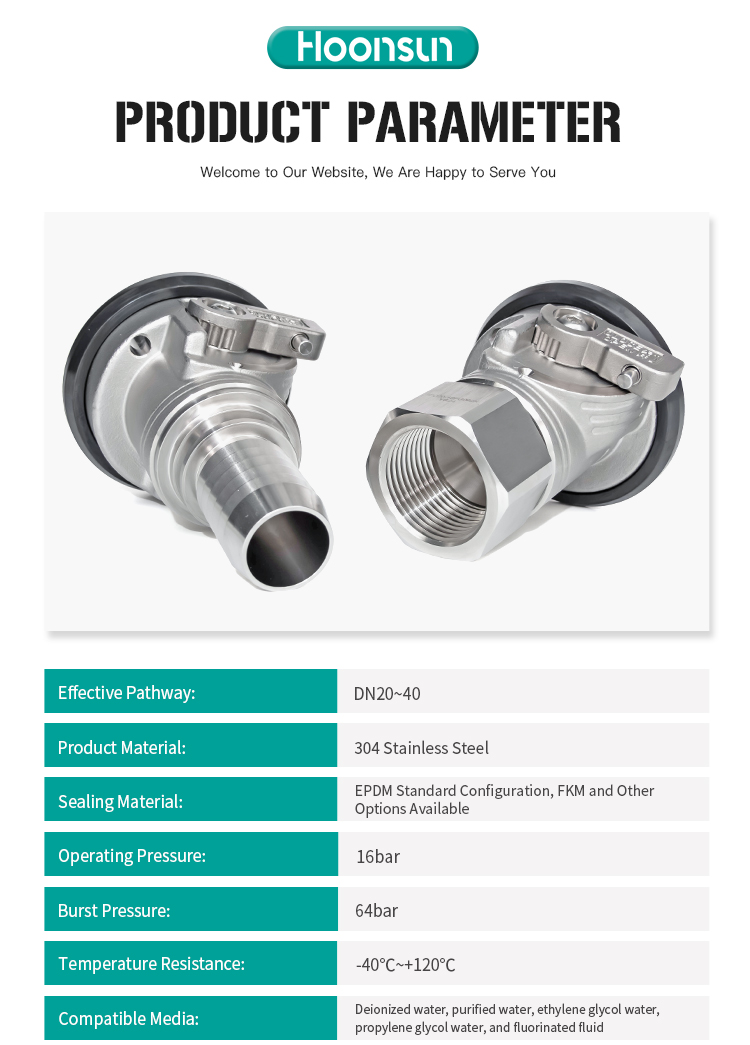

✅ Wide Operating Range: -40°C to 120°C temperature resistance, 16 bar working pressure

✅ Multi-Connection Compatibility: Female thread, hose barb, and tri-clamp options for versatile integration

✅ Harsh Environment Ready: Dust-proof, salt-proof, and resistant to acids, alkalis, and common solvents

✅ Plug-and-Play Operation: Quick, tool-free connection and disconnection for maintenance

✅ Long Service Life: Robust construction and precision engineering for continuous use

Application Fields

● Data Center & HPC Liquid Cooling: High-flow cooling for servers, racks, and supercomputers

● New Energy Charging Piles: Thermal management systems for EV charging infrastructure

● Industrial Laser Equipment: High-power laser cooling and fluid transfer

● Medical Equipment: MRI machines, diagnostic devices, and precision instrument cooling

● Photovoltaic Inverters: Outdoor solar and wind power electronic cooling systems

● Industrial Fluid Handling: Chemical processing, water treatment, and general industrial applications

● Outdoor Harsh Environments: Dust, salt, and corrosion-resistant performance for field equipment

Installation Process

1.Preparation: Ensure the connector and mating components are clean, free of debris, and undamaged. Depressurize the fluid system before installation.

2.Connection: Align the connector with the mating socket, then push until a secure lock is achieved. The ball valve will automatically open upon full engagement.

3.Verification: Perform a pressure test to confirm no leaks before bringing the system online.

4.Disconnection: Depressurize the system, then simply pull the connector out of the socket. The ball valve will automatically close to prevent fluid loss.

⚠️ Safety Note: Never connect or disconnect the coupling while the system is under pressure. Protect the sealing surface from scratches to maintain leak-proof performance.

FAQ

1.What is the key advantage of the SFC series over standard quick connectors?
The SFC series features a full-flow ball valve design, providing significantly higher flow rates and lower pressure drop compared to conventional connectors, making it ideal for large-scale cooling systems.

2.Are different sealing materials available?
Yes. Standard EPDM seals are suitable for water and glycol solutions. FKM seals are available for high-temperature or chemically aggressive fluids.

3.What fluids can the SFC connectors handle?
They are compatible with most common liquid cooling media, including deionized water, glycol mixtures, industrial oils, and fluorinated fluids.

4.What is the maximum working pressure and temperature?
Rated working pressure is 16 bar (burst pressure 64 bar), with an operating temperature range of -40°C to 120°C.

5.Can these connectors be used outdoors or in harsh environments?
Absolutely. The 304 stainless steel construction provides excellent resistance to corrosion, salt spray, and extreme temperatures, making them suitable for outdoor and industrial applications.

6.Do I need tools to install or remove them?
No. The plug-and-play design allows for tool-free connection and disconnection, simplifying maintenance and installation.

7.Is customization available for specific applications?
Yes. We offer custom connection types, seal materials, and specifications to meet unique system requirements.

8.What is the typical service life?
With proper installation and maintenance, the 304 stainless steel body and high-quality seals ensure a long service life, even in continuous operation.
