Right Angle Union for Flexible Pipe with UL and IP68
The Right Angle Union for Flexible Pipe features a 90° anti-bending design with UL certification and IP68 protection, ensuring durable, waterproof cable management for dynamic industrial applications.
Certified for Global Markets：
- Fitting Material PA6/PA66(Nylon)

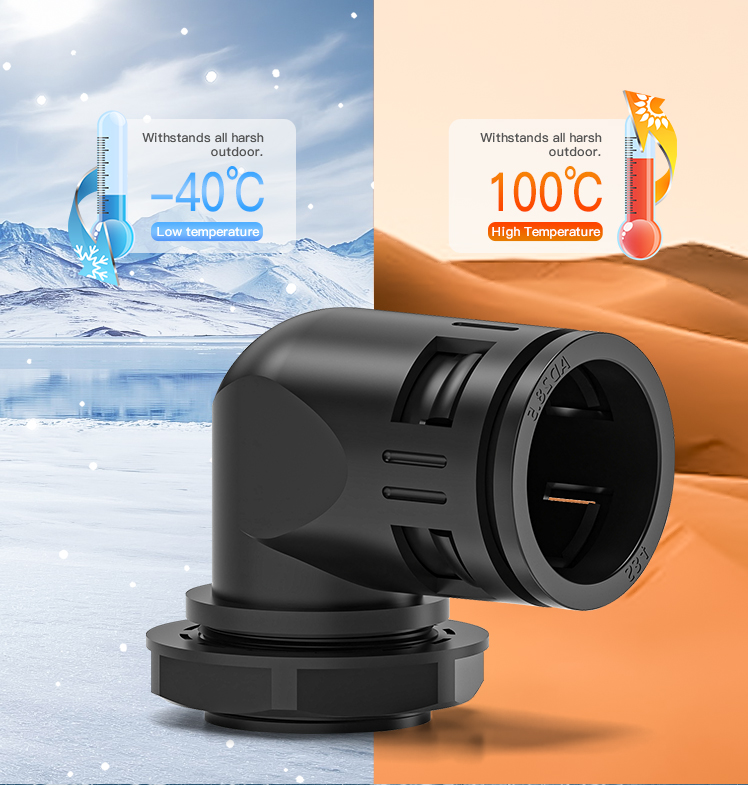

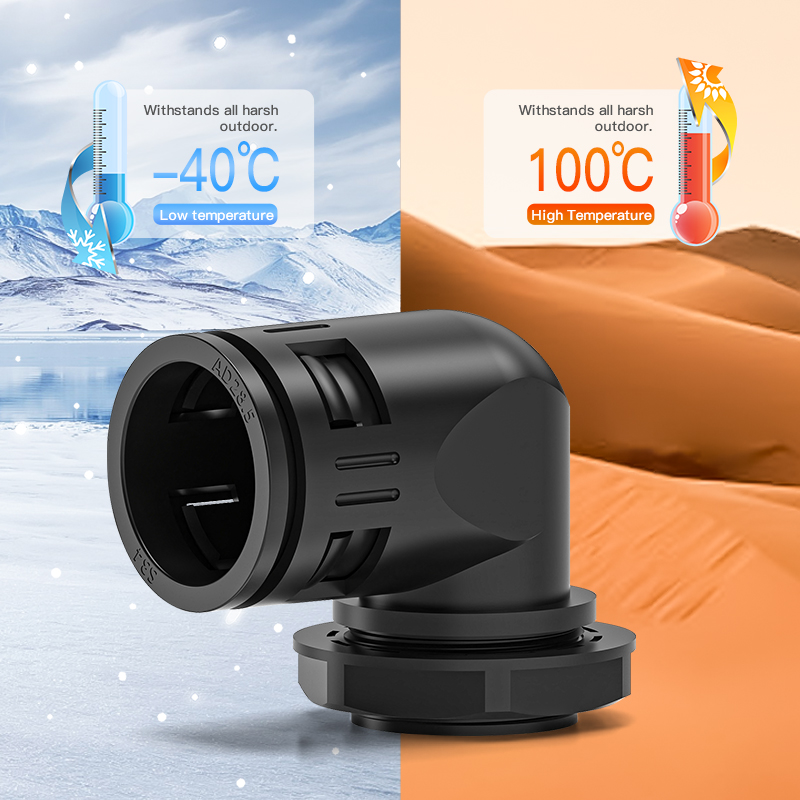

- Temperature Static state:-40 to 100℃,Short time to 120℃ Dynamic state:-20℃ to 80℃,Short time to 100℃
- Color customization Grey,Black,other color customized
Product Highlights
◆UL-Listed & IP68-Rated Connector
Certified for ultimate safety and complete dust/waterproof protection.
◆90° Right-Angle Anti-Bending Design
Prevents cable kinking and stress in tight spaces.
◆Quick-Lock, Tool-Free Installation
Saves time and labor for secure, vibration-proof connections.
◆Superior Material Engineering

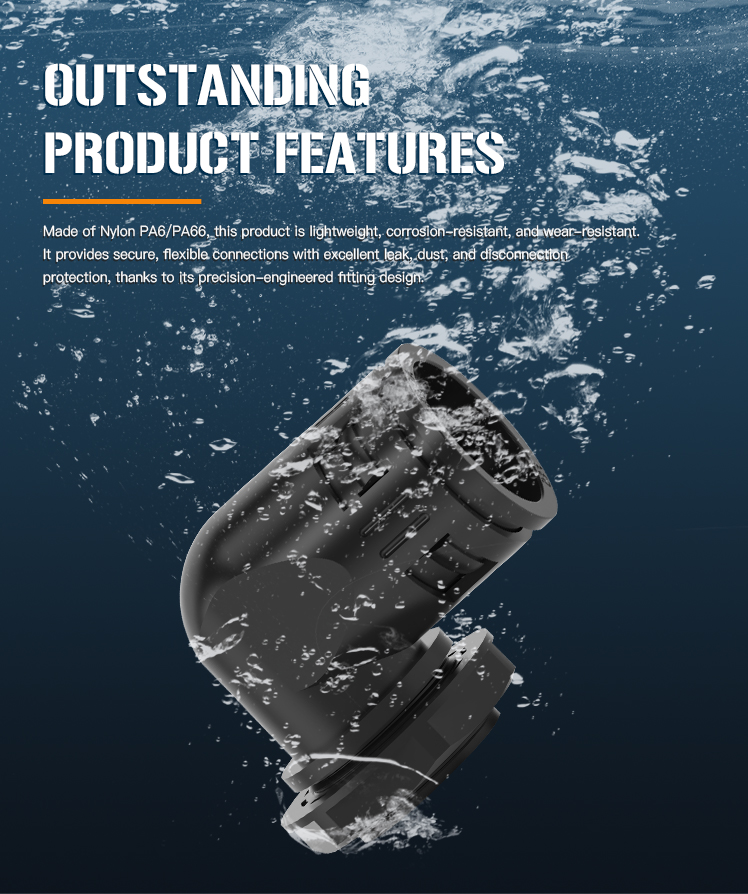

Made of flame-retardant, high-strength PA66 Nylon for durability.
◆Global Thread Compatibility
Available in Metric, PG, and NPT threads to fit worldwide equipment.
◆Ideal for Dynamic Motion
Built for high-movement applications in robotics and automation.
Applications
◇Industrial Robotics & Automation Cells - Ensures reliable cable management in continuous-motion arms and gantries.
◇CNC Machinery & Automotive Manufacturing - Protects cables from oil, coolant, and repetitive vibration.
◇Electrical Enclosures & Control Panels - Provides strain relief and secure entry/exit for conduits.
◇Sensitive & Harsh Environments - Safeguards connections in wash-down areas or dusty production floors.
◇Packaging, Material Handling, and Assembly Systems - Maintains integrity in high-cycle, dynamic operations.
Key Benefits
◆Maximize Cable Service Life
The anti-bending design drastically reduces failure points, lowering maintenance costs and downtime.
◆Ensure Uninterrupted Operation
IP68 sealing and vibration resistance prevent failures caused by contaminants and movement.
◆Accelerate Installation & Maintenance
The quick-connect design slashes project time and simplifies future modifications.
◆Meet Global Compliance with Confidence
UL, CE, and RoHS certifications ensure your products meet international market requirements.
◆Enhance System Reliability
The robust nylon construction resists impact, chemicals, and UV exposure for long-term performance.

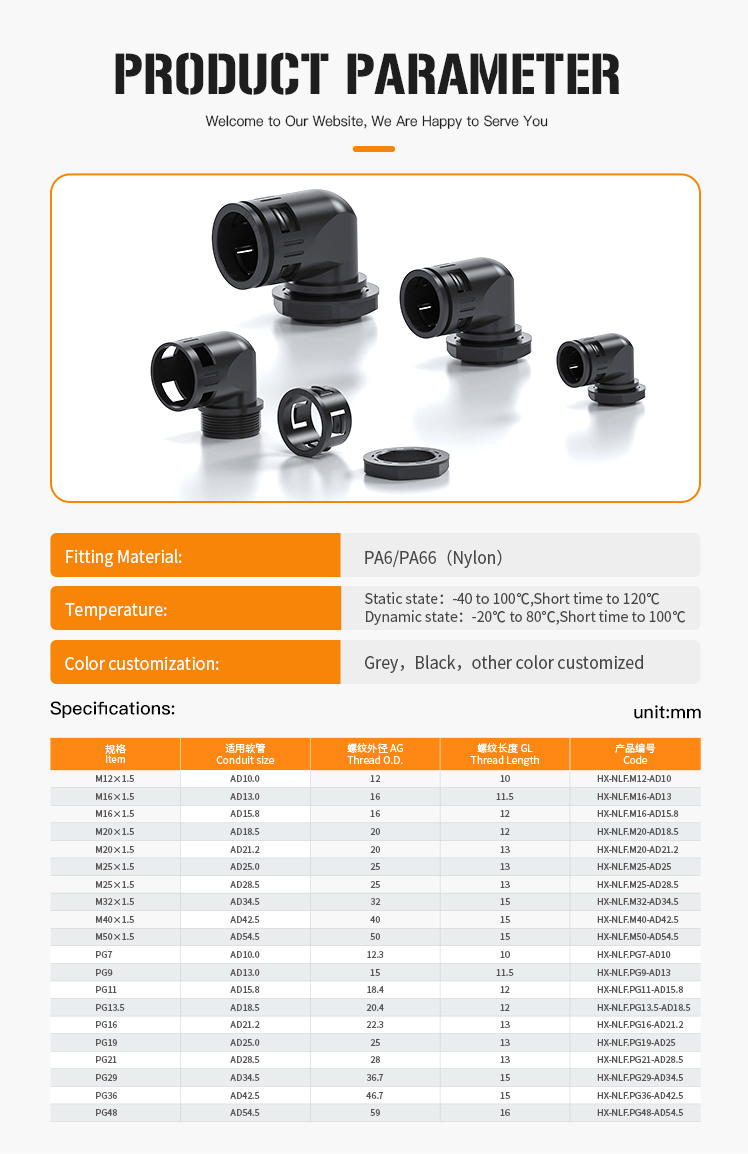

unit:mm
|
Item |
Conduit size |
AG Thread O.D. |
GL Thread Length |
Code |
|
M12×1.5 |
AD10.0 |
12 |
10 |
HX-NLF.M12-AD10 |
|
M16×1.5 |
AD13.0 |
16 |
11.5 |
HX-NLF.M16-AD13 |
|
M16×1.5 |
AD15.8 |
16 |
12 |
HX-NLF.M16-AD15.8 |
|
M20×1.5 |
AD18.5 |
20 |
12 |
HX-NLF.M20-AD18.5 |
|
M20×1.5 |
AD21.2 |
20 |
13 |
HX-NLF.M20-AD21.2 |
|
M25×1.5 |
AD25.0 |
25 |
13 |
HX-NLF.M25-AD25 |
|
M25×1.5 |
AD28.5 |
25 |
13 |
HX-NLF.M25-AD28.5 |
|
M32×1.5 |
AD34.5 |
32 |
15 |
HX-NLF.M32-AD34.5 |
|
M40×1.5 |
AD42.5 |
40 |
15 |
HX-NLF.M40-AD42.5 |
|
M50×1.5 |
AD54.5 |
50 |
15 |
HX-NLF.M50-AD54.5 |
|
PG7 |
AD10.0 |
12.3 |
10 |
HX-NLF.PG7-AD10 |
|
PG9 |
AD13.0 |
15 |
11.5 |
HX-NLF.PG9-AD13 |
|
PG11 |
AD15.8 |
18.4 |
12 |
HX-NLF.PG11-AD15.8 |
|
PG13.5 |
AD18.5 |
20.4 |
12 |
HX-NLF.PG13.5-AD18.5 |
|
PG16 |
AD21.2 |
22.3 |
13 |
HX-NLF.PG16-AD21.2 |
|
PG19 |
AD25.0 |
25 |
13 |
HX-NLF.PG19-AD25 |
|
PG21 |
AD28.5 |
28 |
13 |
HX-NLF.PG21-AD28.5 |
|
PG29 |
AD34.5 |
36.7 |
15 |
HX-NLF.PG29-AD34.5 |
|
PG36 |
AD42.5 |
46.7 |
15 |
HX-NLF.PG36-AD42.5 |
|
PG48 |
AD54.5 |
59 |
16 |
HX-NLF.PG48-AD54.5 |
