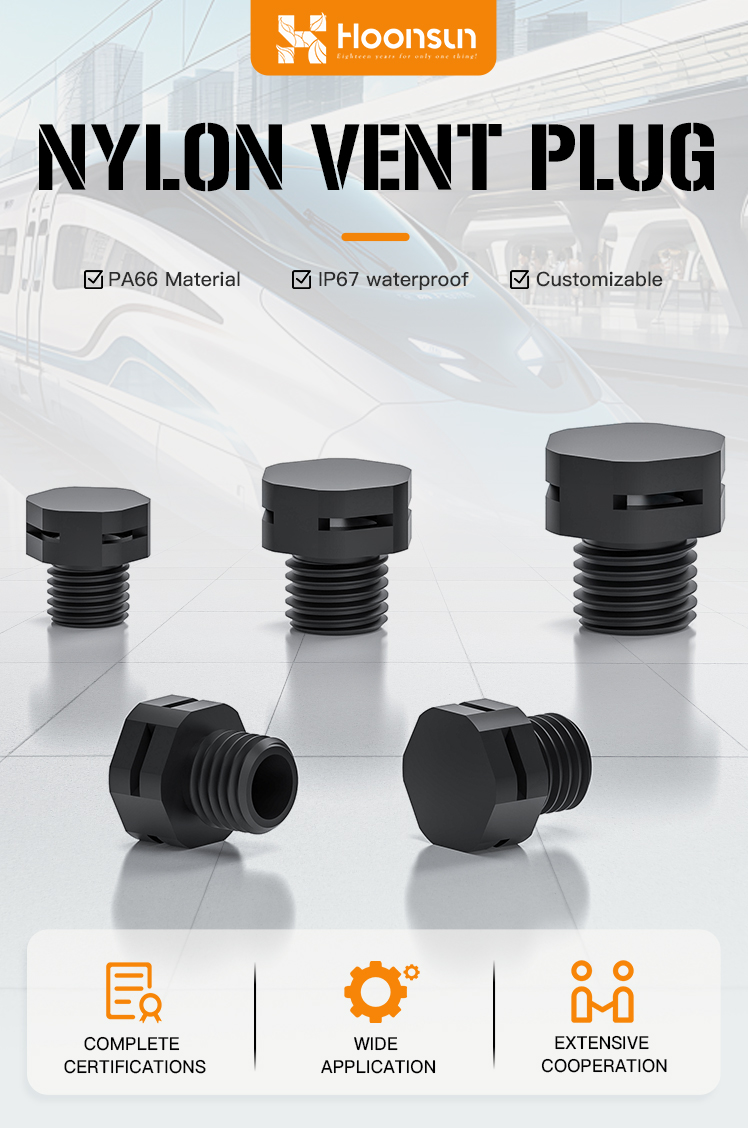

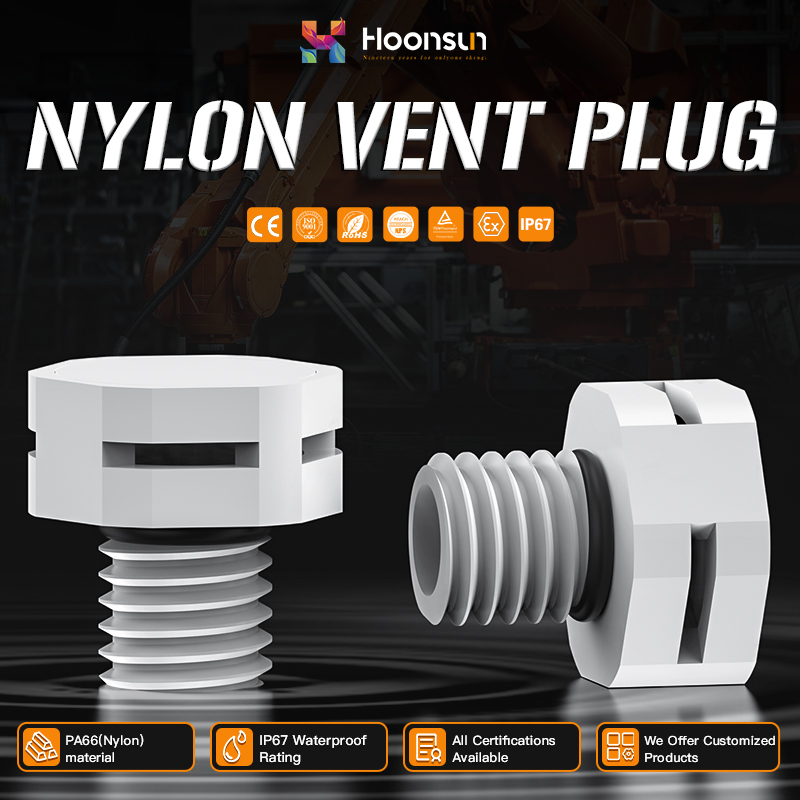

Nylon Vent Plug with Waterproof IP68 and UL Certification
Designed with a breathable membrane, the UL-certified Nylon Vent Plug provides IP68 waterproof performance to safeguard sensitive equipment in harsh environments.
Certified for Global Markets：
- Fitting Material PA66
- Color White, Gray, Black

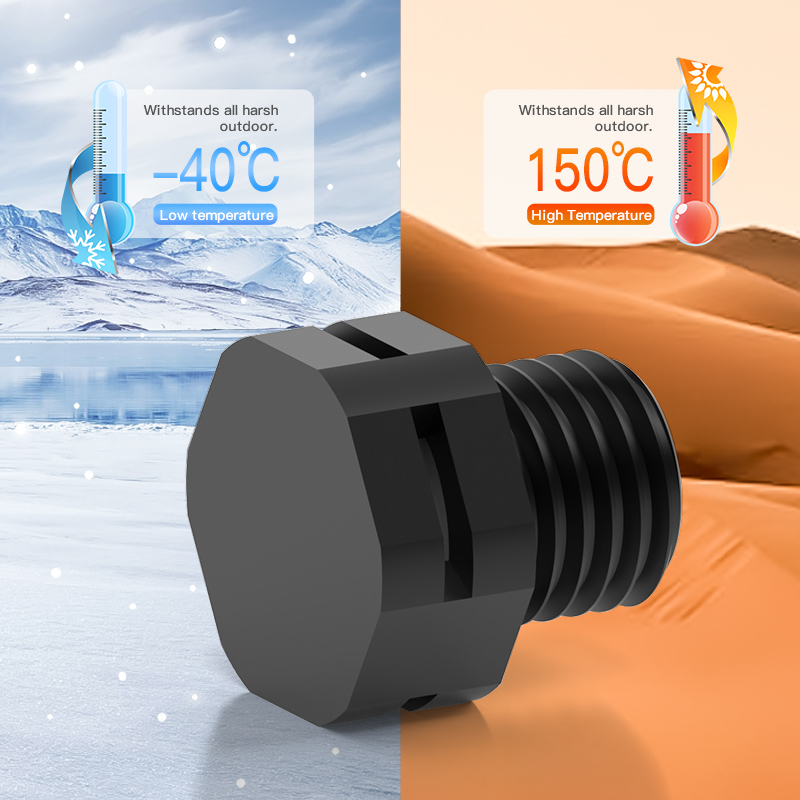

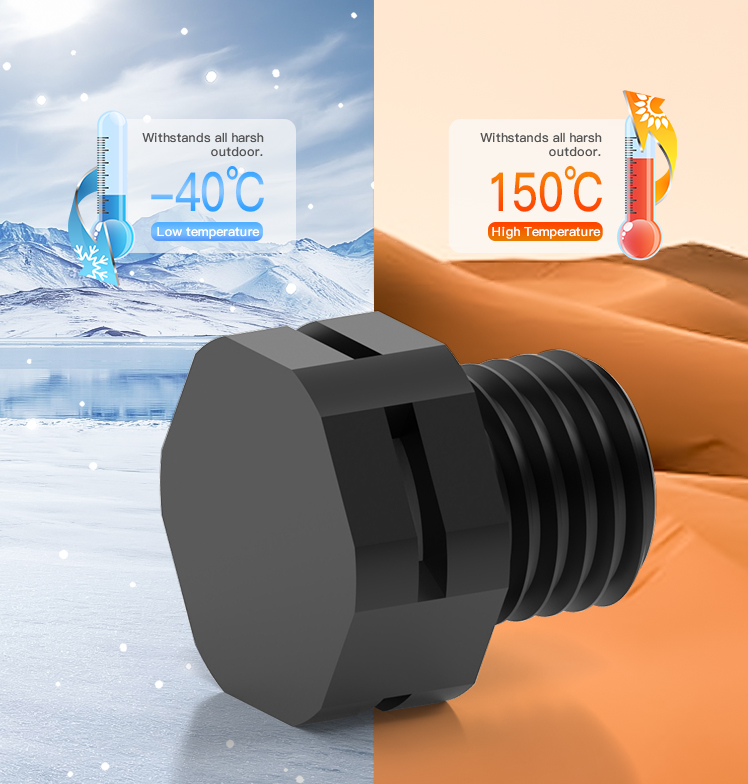

- Temperature resistance -40℃~+150℃
- Moisture permeability >5000g/24H.M2
- Resistant to fine water pressure ≥100mbar for 30min
- Product characteristics Dustproof, hydrophobic, breathable, heat dissipation, oil proof
- Air permeability ≥1.2L/min/c m@70mbar(customizable)
Product Highlights
◆Crafted from flame-retardant PA66 nylon for lightweight durability and excellent mechanical strength.

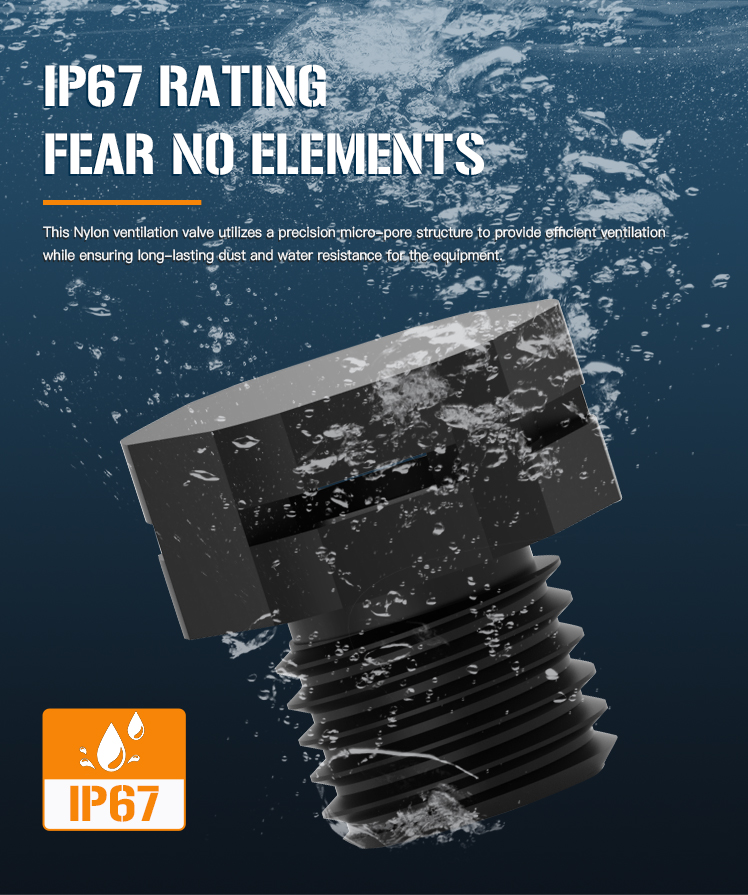

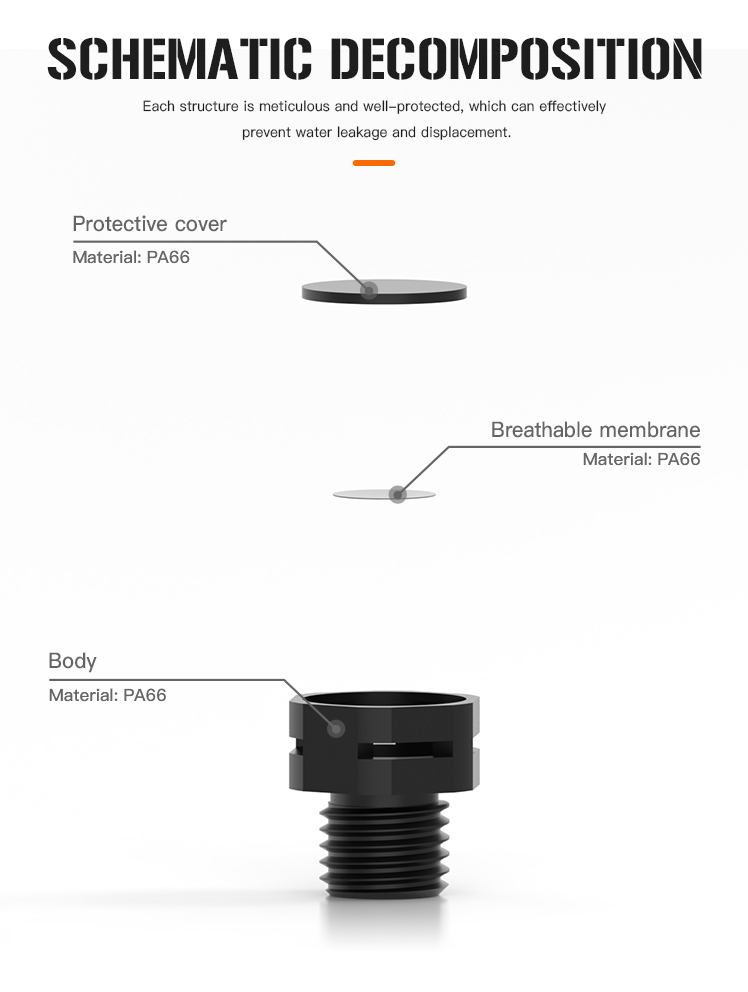

◆Features a breathable, waterproof ePTFE membrane, providing reliable IP68 protection against water and dust ingress.
◆Holds UL, CE, and RoHS certifications, ensuring international safety and environmental standards.
◆Offers UV resistance and anti-aging properties for long-term reliability in harsh conditions.

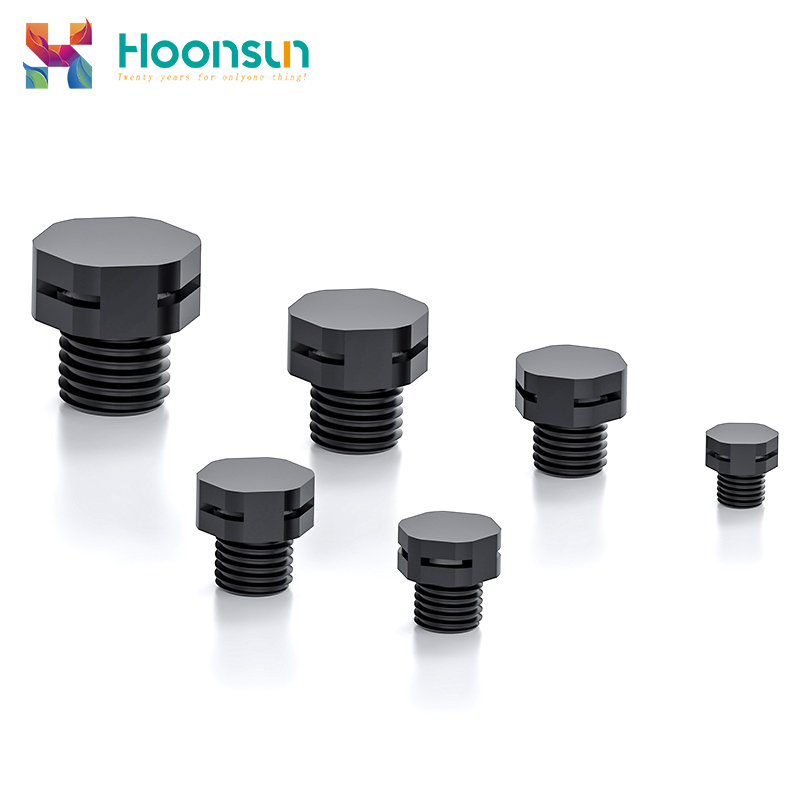

◆Available in both Metric and PG thread types for versatile and easy installation.
Applications
◇Ideal for outdoor control boxes and cabinets to manage internal pressure and humidity.
◇Perfect for protecting LED lighting systems from condensation and corrosion.
◇Essential for sensors and communication devices in industrial or outdoor settings.
◇Safeguards sensitive electronics in automotive, marine, and telecommunications equipment.
Key Benefits
◆Effectively equalizes pressure and prevents condensation, significantly extending equipment lifespan.
◆The robust IP68 rating ensures superior protection, maintaining enclosure integrity.
◆Its compact, chemical-resistant design offers a cost-effective, maintenance-free solution.
◆Enhances system reliability by preventing moisture-related failures and component damage.

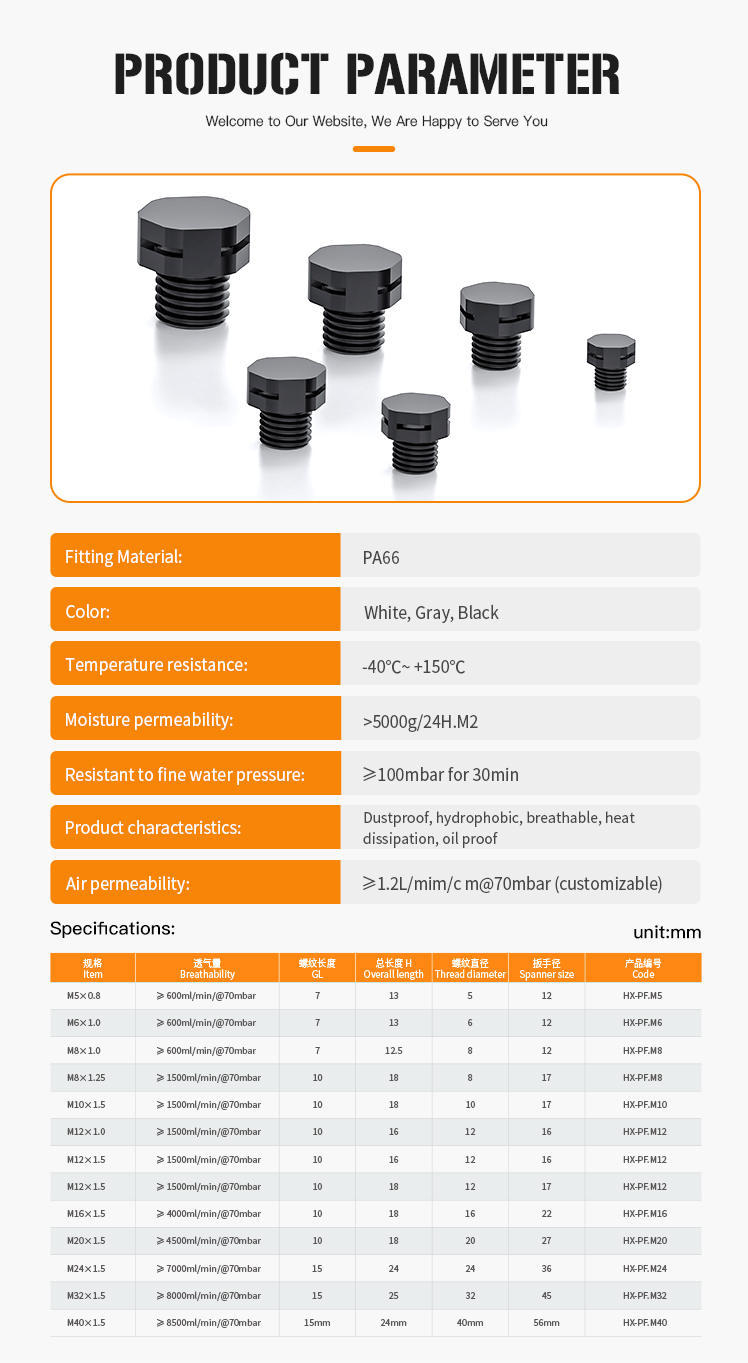

unit:mm
|
Item |
Breathability |
GL |
H Overall length |
Thread diameter |
Spanner size |
Code |
|
M5×0.8 |
≥600ml/min/@70mbar |
7 |
13 |
5 |
12 |
HX-PF.M5 |
|
M6×1.0 |
≥600ml/min/@70mbar |
7 |
13 |
6 |
12 |
HX-PF.M6 |
|
M8×1.0 |
≥600ml/min/@70mbar |
7 |
12.5 |
8 |
12 |
HX-PF.M8 |
|
M8×1.25 |
≥1500ml/min/@70mbar |
10 |
18 |
8 |
17 |
HX-PF.M8 |
|
M10×1.5 |
≥1500ml/min/@70mbar |
10 |
18 |
10 |
17 |
HX-PF.M10 |
|
M12×1.0 |
≥1500ml/min/@70mbar |
10 |
16 |
12 |
16 |
HX-PF.M12 |
|
M12×1.5 |
≥1500ml/min/@70mbar |
10 |
16 |
12 |
16 |
HX-PF.M12 |
|
M12×1.5 |
≥1500ml/min/@70mbar |
10 |
18 |
12 |
17 |
HX-PF.M12 |
|
M16×1.5 |
≥4000ml/min/@70mbar |
10 |
18 |
16 |
22 |
HX-PF.M16 |
|
M20×1.5 |
≥4500ml/min/@70mbar |
10 |
18 |
20 |
27 |
HX-PF.M20 |
|
M24×1.5 |
≥7000ml/min/@70mbar |
15 |
24 |
24 |
36 |
HX-PF.M24 |
|
M32×1.5 |
≥8000ml/min/@70mbar |
15 |
25 |
32 |
45 |
HX-PF.M32 |
|
M40×1.5 |
≥8500ml/min/@70mbar |
15mm |
24mm |
40mm |
56mm |
HX-PF.M40 |
