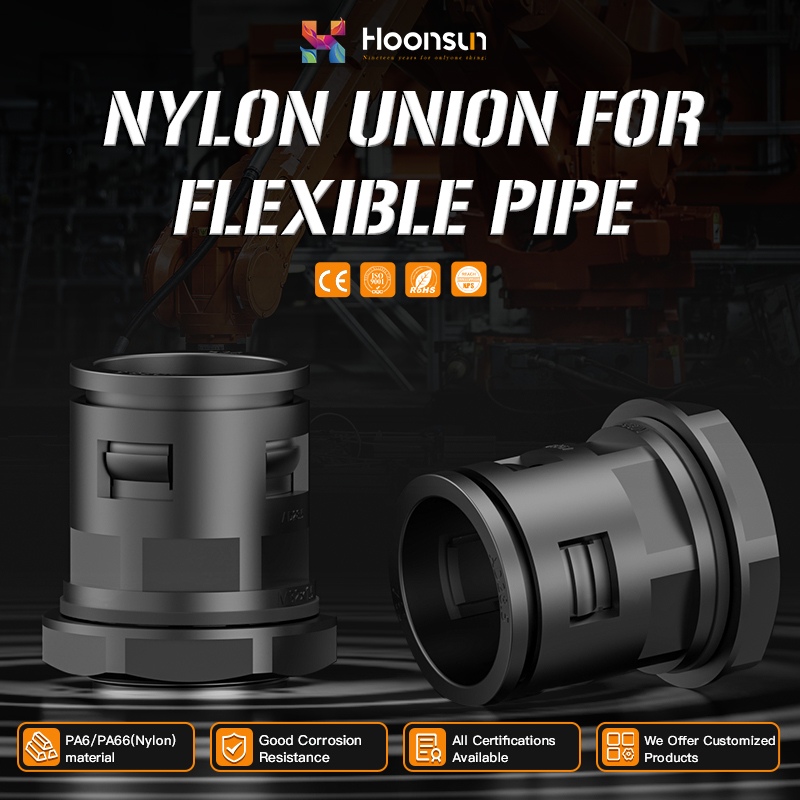

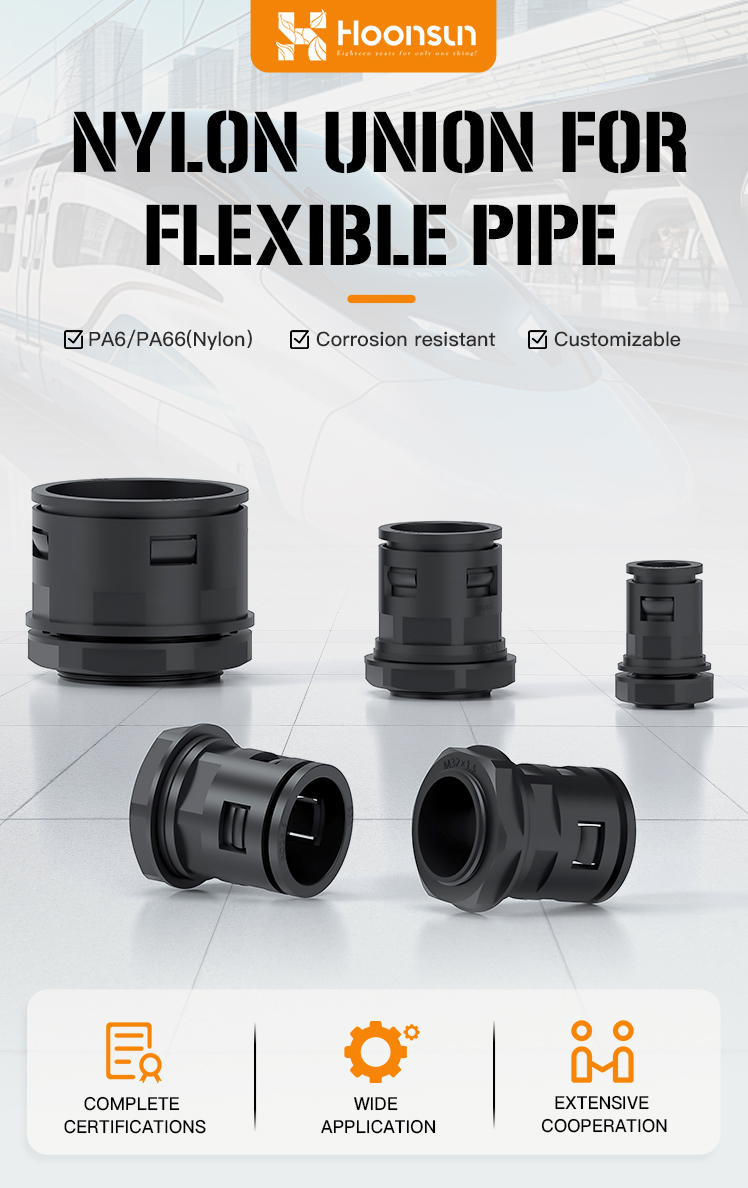

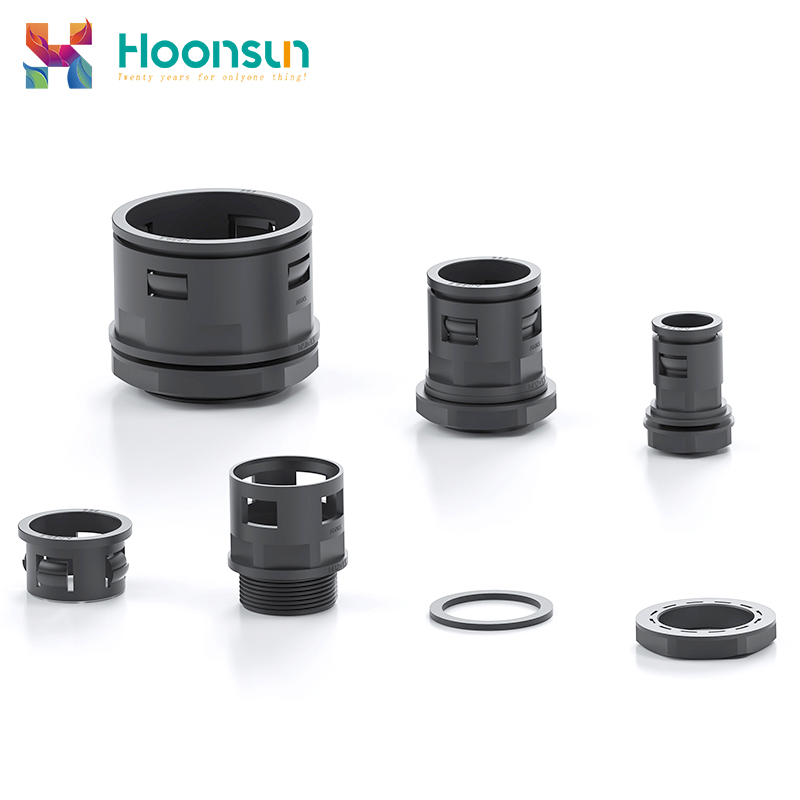

Nylon Union for Flexible Pipe with IP68 and UL
The Nylon Union for Flexible Pipe offers a lightweight, durable, and corrosion-resistant connection solution, featuring IP68 waterproofing and UL certification for reliable performance in demanding environments.
Certified for Global Markets：
- Fitting Material PA66(Nylon)

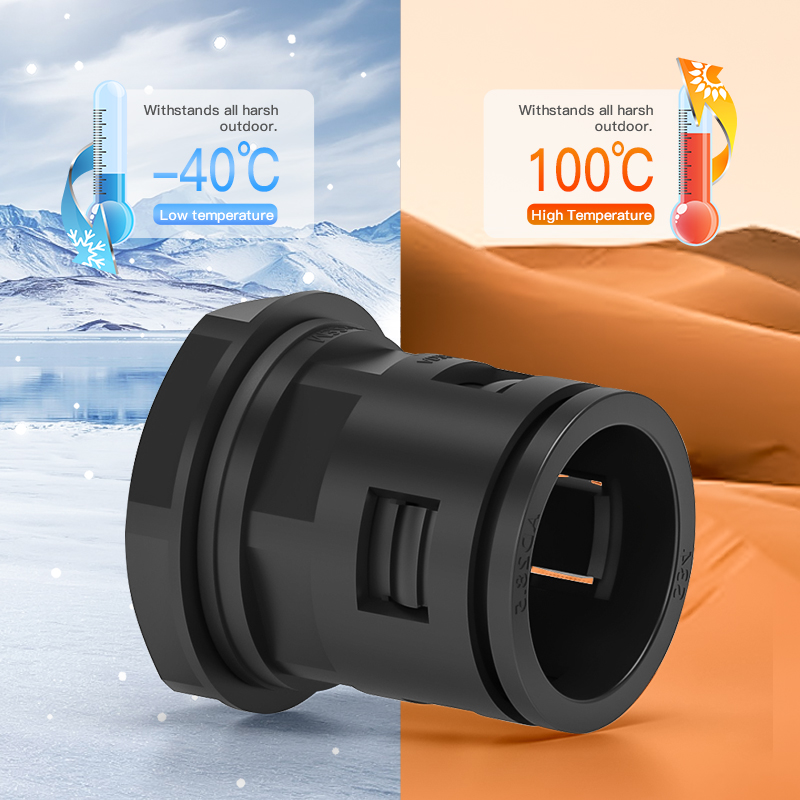

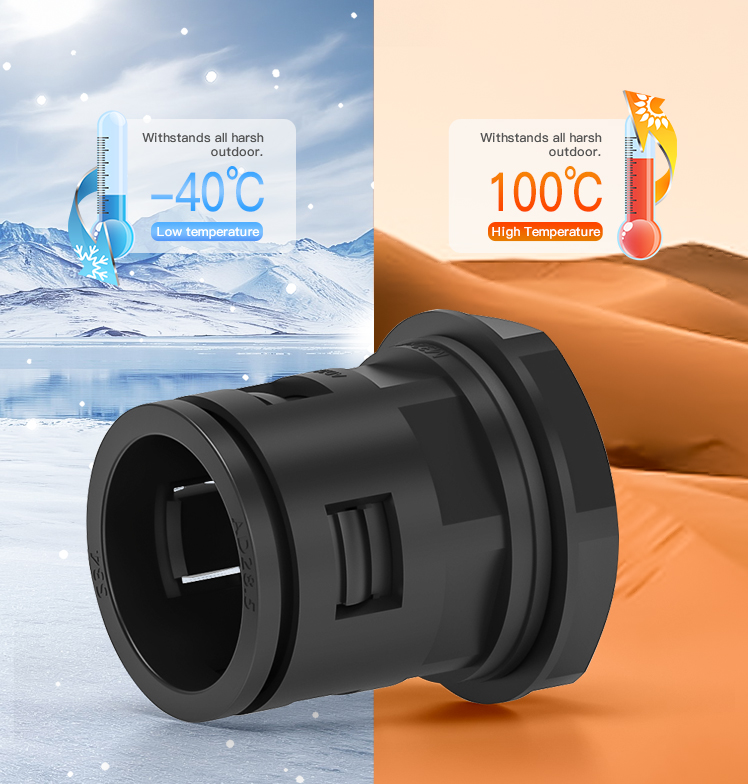

- Temperature Static state:-40 to 100℃,Short time to 120℃ Dynamic state:-20℃ to 80℃,Short time to 100℃
- Color customization Grey,Black,other color customized
Product Highlights
◆Premium materials
Made of high-quality nylon (PA), lightweight and durable.
◆Superior performance
It has IP68 waterproof and dustproof performance and is UL certified, making it safe and reliable.
◆Strong compatibility
Suitable for protecting cables, air lines and fluid media.
◆Easy to install
Easy to cut and connect, compatible with a variety of connectors and cable glands.

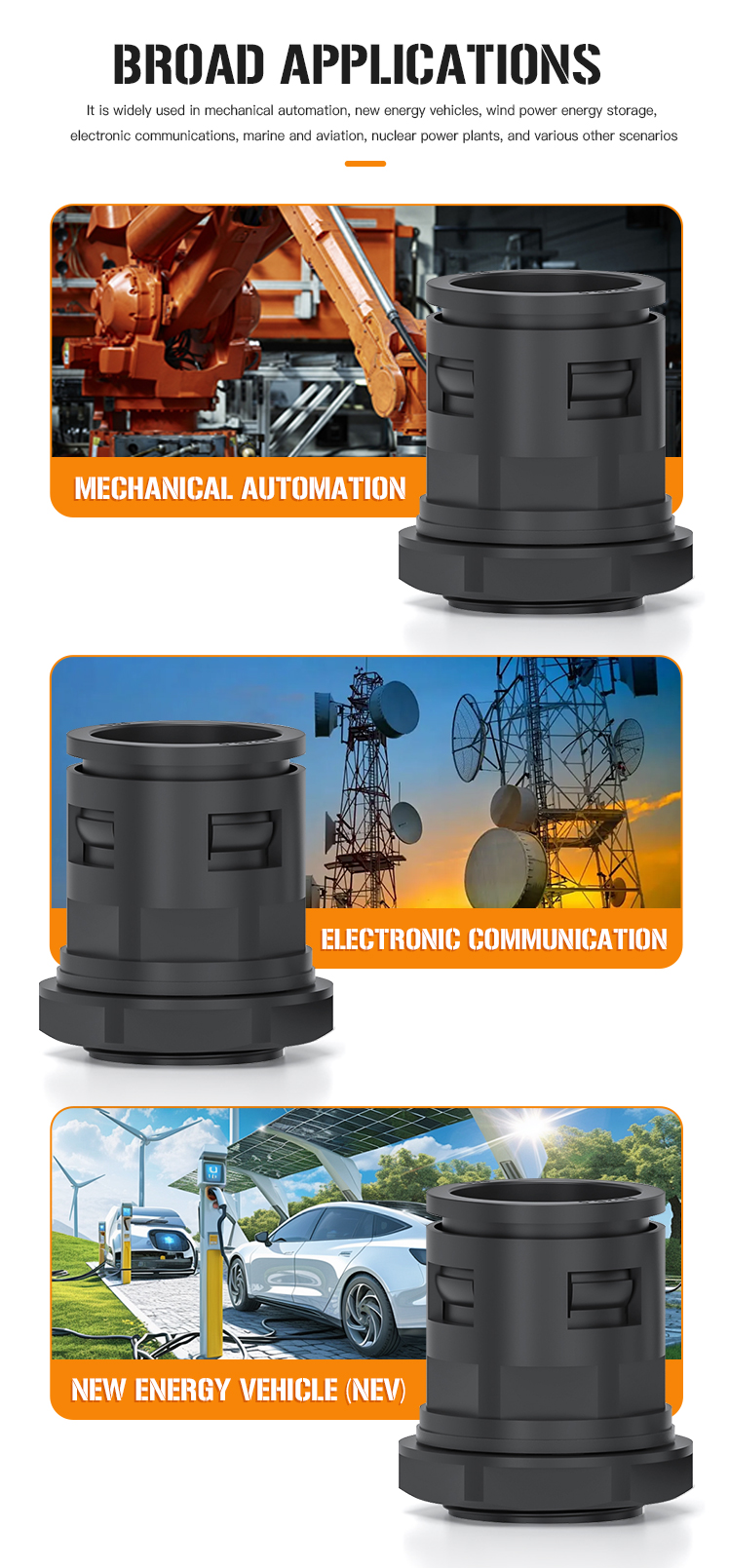

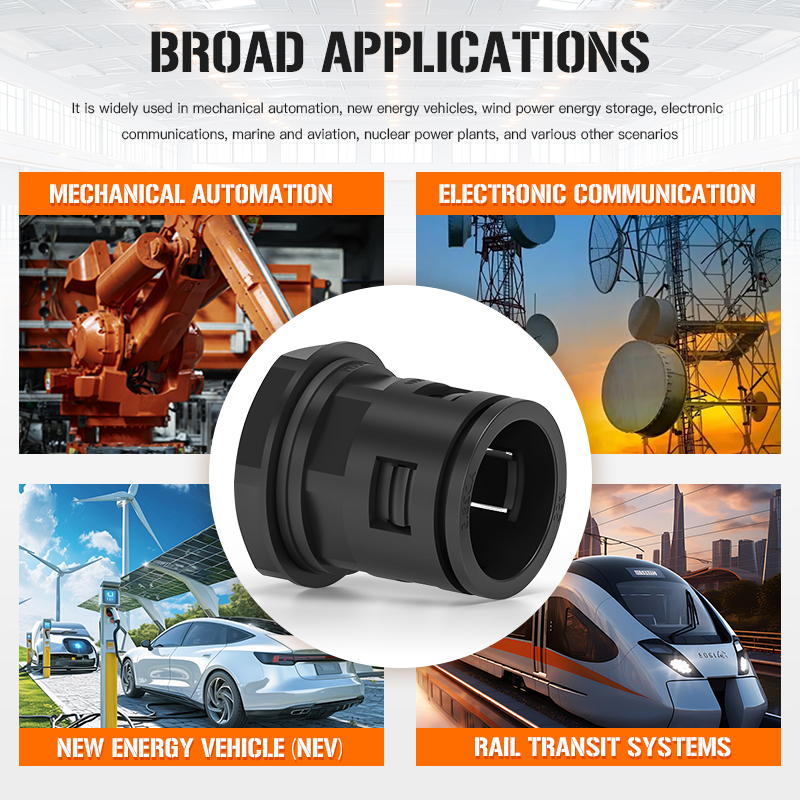

Applications
◇Automotive industry - Power lines, fluid lines, and protective cables used in vehicles.
◇Mechanical equipment - Suitable for factory automation systems, power transmission, and other scenarios.
◇Electronic and electrical appliances - Provides lightweight and robust protection for cables and lines.
◇Wide range of industries - Suitable for harsh industrial environments and everyday applications requiring corrosion and chemical resistance.
Key Benefits
◆Lightweight yet robust
Lighter than metal or rubber hoses, yet with high mechanical strength, capable of withstanding high pressure without deformation.
◆Excellent flexibility
It is easy to bend and will not crack, making it ideal for compact or curved installation spaces.
◆High durability
It has excellent wear resistance and impact resistance, making it suitable for environments with frequent movement or vibration.
◆Excellent resistance
Resistant to corrosion, oil and most chemicals, ensuring a long service life in harsh environments.
◆Wide temperature range
It can maintain strength and flexibility in high and low temperature environments, and its performance is stable.
◆Cost-effective
More cost-effective than metal hoses, with a longer lifespan and lower maintenance requirements.

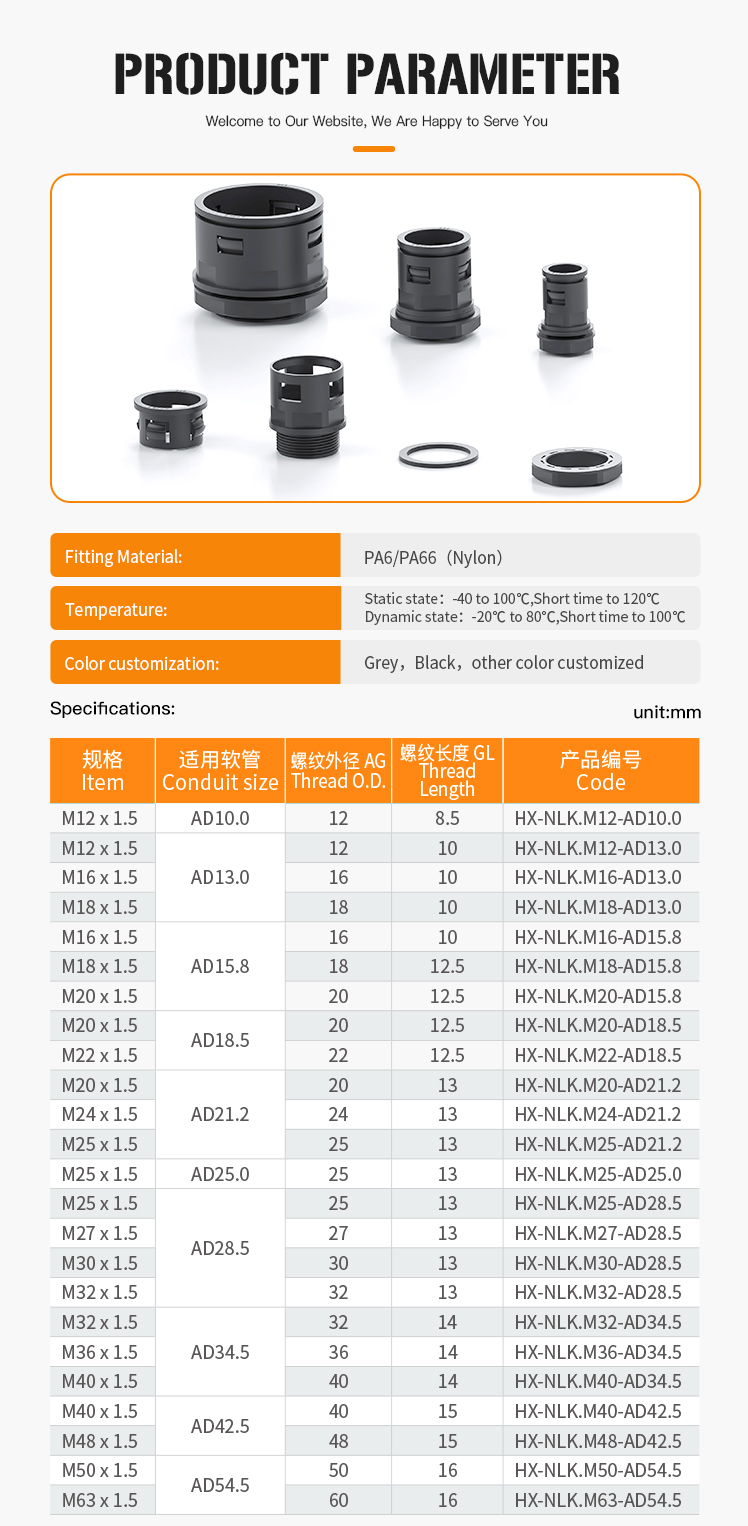

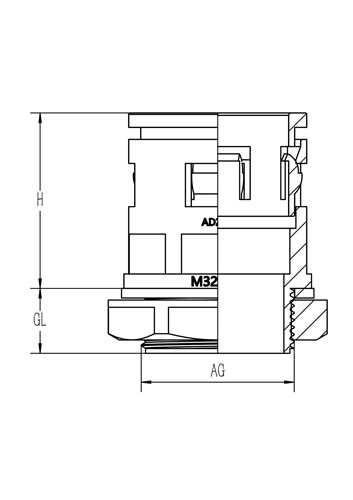

unit:mm
|
Item |
Conduit size |
AG Thread O.D |
GL Thread Length |
Code |
|
M12x1.5 |
AD10.0 |
12 |
8.5 |
HX-NLK.M12-AD10.0 |
|
M12x1.5 |
AD13.0 |
12 |
10 |
HX-NLK.M12-AD13.0 |
|
M16x1.5 |
16 |
10 |
HX-NLK.M16-AD13.0 |
|
|
M18×1.5 |
18 |
10 |
HX-NLK.M18-AD13.0 |
|
|
M16×1.5 |
AD15.8 |
16 |
10 |
HX-NLK.M16-AD15.8 |
|
M18×1.5 |
18 |
12.5 |
HX-NLK.M18-AD15.8 |
|
|
M20x1.5 |
20 |
12.5 |
HX-NLK.M20-AD15.8 |
|
|
M20×1.5 |
AD18.5 |
20 |
12.5 |
HX-NLK.M20-AD18.5 |
|
M22×1.5 |
22 |
12.5 |
HX-NLK.M22-AD18.5 |
|
|
M20×1.5 |
AD21.2 |
20 |
13 |
HX-NLK.M20-AD21.2 |
|
M24x1.5 |
24 |
13 |
HX-NLK.M24-AD21.2 |
|
|
M25x1.5 |
25 |
13 |
HX-NLK.M25-AD21.2 |
|
|
M25×1.5 |
AD25.0 |
25 |
13 |
HX-NLK.M25-AD25.0 |
|
M25×1.5 |
AD28.5 |
25 |
13 |
HX-NLK.M25-AD28.5 |
|
M27x1.5 |
27 |
13 |
HX-NLK.M27-AD28.5 |
|
|
M30x1.5 |
30 |
13 |
HX-NLK.M30-AD28.5 |
|
|
M32x1.5 |
32 |
13 |
HX-NLK.M32-AD28.5 |
|
|
M32x1.5 |
AD34.5 |
32 |
14 |
HX-NLK.M32-AD34.5 |
|
M36×1.5 |
36 |
14 |
HX-NLK.M36-AD34.5 |
|
|
M40×1.5 |
40 |
14 |
HX-NLK.M40-AD34.5 |
|
|
M40x1.5 |
AD42.5 |
40 |
15 |
HX-NLK.M40-AD42.5 |
|
M48x1.5 |
48 |
15 |
HX-NLK.M48-AD42.5 |
|
|
M50x1.5 |
AD54.5 |
50 |
16 |
HX-NLK.M50-AD54.5 |
|
M63x1.5 |
60 |
16 |
HX-NLK.M63-AD54.5 |
|

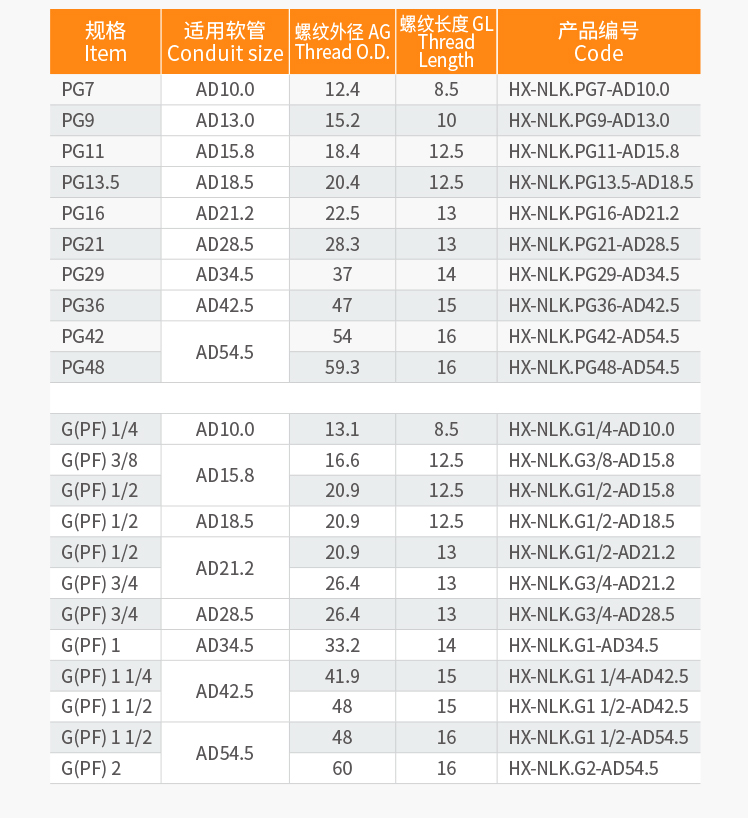

Item |
Conduit size |
AG Thread O.D |
GL Thread Length |
Code |
|
PG7 |
AD10.0 |
12.4 |
8.5 |
HX-NLK.PG7-AD10.0 |
|
PG9 |
AD13.0 |
15.2 |
10 |
HX-NLK.PG9-AD13.0 |
|
PG11 |
AD15.8 |
18.4 |
12.5 |
HX-NLK.PG11-AD15.8 |
|
PG13.5 |
AD18.5 |
20.4 |
12.5 |
HX-NLK.PG13.5-AD18.5 |
|
PG16 |
AD21.2 |
22.5 |
13 |
HX-NLK.PG16-AD21.2 |
|
PG21 |
AD28.5 |
28.3 |
13 |
HX-NLK.PG21-AD28.5 |
|
PG29 |
AD34.5 |
37 |
14 |
HX-NLK.PG29-AD34.5 |
|
PG36 |
AD42.5 |
47 |
15 |
HX-NLK.PG36-AD42.5 |
|
PG42 |
AD54.5 |
54 |
16 |
HX-NLK.PG42-AD54.5 |
|
PG48 |
59.3 |
16 |
HX-NLK.PG48-AD54.5 |
|
Item |
Conduit size |
AG Thread O.D |
GL Thread Length |
Code |
|
G(PF)1/4 |
AD10.0 |
13.1 |
8.5 |
HX-NLK.G1/4-AD10.0 |
|
G(PF)3/8 |
AD15.8 |
16.6 |
12.5 |
HX-NLK.G3/8-AD15.8 |
|
G(PF)1/2 |
20.9 |
12.5 |
HX-NLK.G1/2-AD15.8 |
|
|
G(PF)1/2 |
AD18.5 |
20.9 |
12.5 |
HX-NLK.G1/2-AD18.5 |
|
G(PF)1/2 |
AD21.2 |
20.9 |
13 |
HX-NLK.G1/2-AD21.2 |
|
G(PF)3/4 |
26.4 |
13 |
HX-NLK.G3/4-AD21.2 |
|
|
G(PF)3/4 |
AD28.5 |
26.4 |
13 |
HX-NLK.G3/4-AD28.5 |
|
G(PF)1 |
AD34.5 |
33.2 |
14 |
HX-NLK.G1-AD34.5 |
|
G(PF)1 1/4 |
AD42.5 |
41.9 |
15 |
HX-NLK.G1 1/4-AD42.5 |
|
G(PF)1 1/2 |
48 |
15 |
HX-NLK.G1 1/2-AD42.5 |
|
|
G(PF)1 1/2 |
AD54.5 |
48 |
16 |
HX-NLK.G1 1/2-AD54.5 |
|
G(PF)2 |
60 |
16 |
HX-NLK.G2-AD54.5 |
