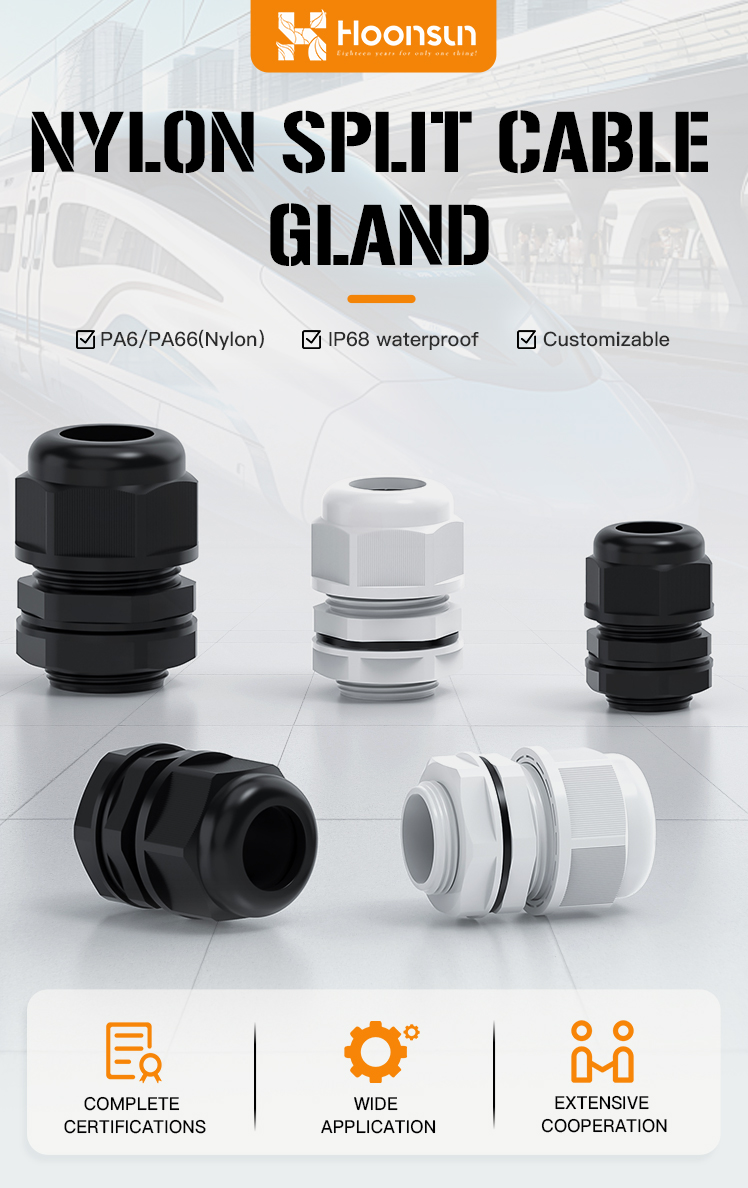

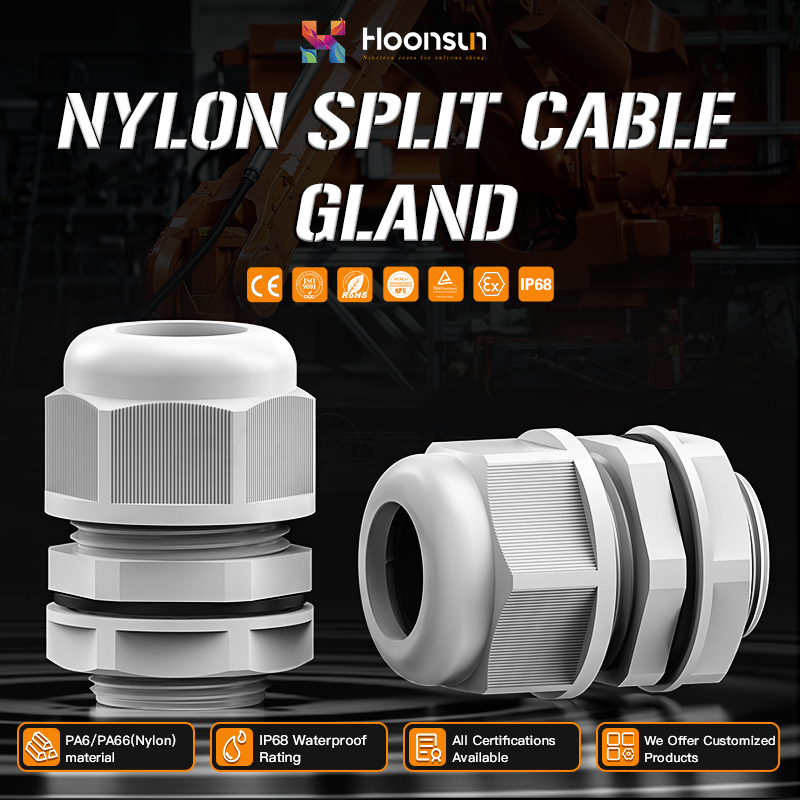

Nylon Split Cable Gland with IP68 and UL
The Nylon Split Cable Gland enables convenient installation on pre-connector cables and provides durable, waterproof and dustproof protection in harsh environments.
Certified for Global Markets：

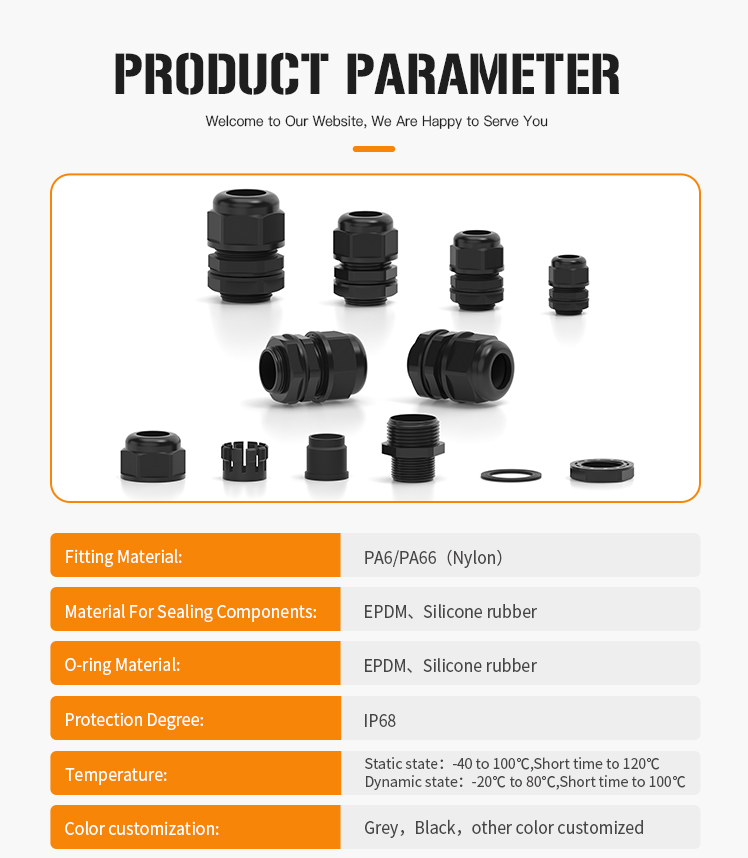

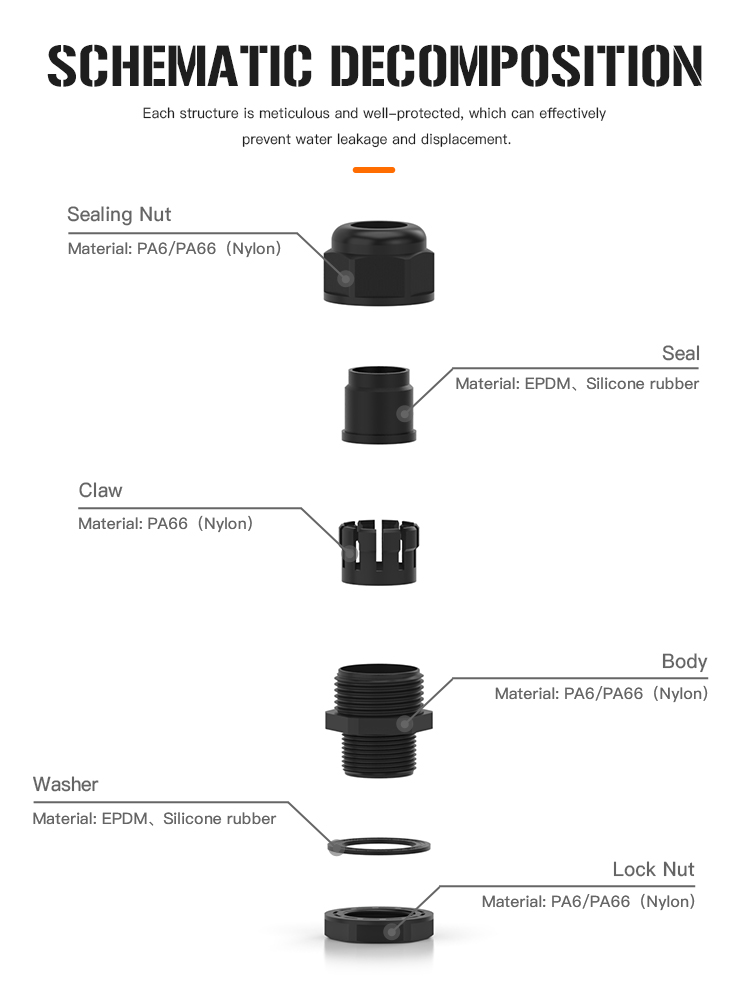

- Fitting Material PA6/PA66(Nylon)
- Material For Clamping Jaws PA66(Nylon),UL94-V2
- Material For Sealing Components EPDM、Silicone rubber
- O-ring Material EPDM、Silicone rubber
- Protection Degree IP68

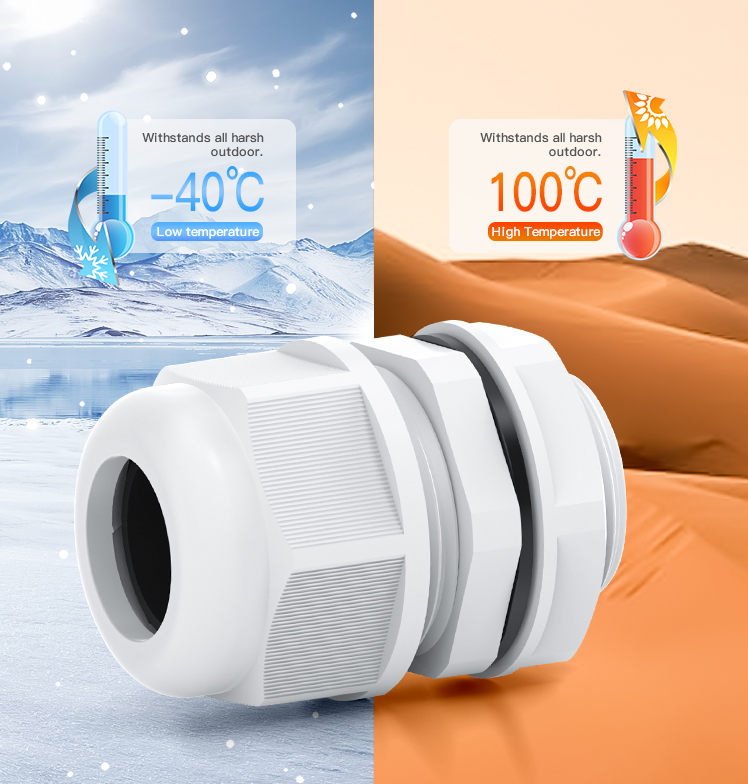

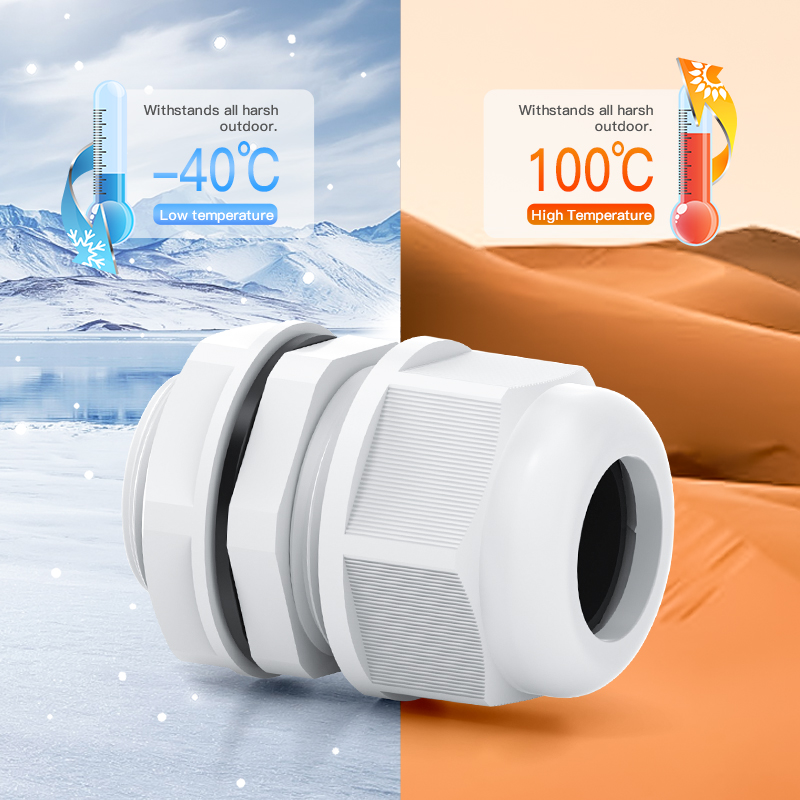

- Temperature Static state:-40 to 100℃,Short time to 120℃ Dynamic state:-20℃ to 80℃,Short time to 100℃
- Color customization Grey,Black,other color customized
Product Highlights
◆Innovative split-body design for easy installation/removal around pre-terminated cables.
◆Made from high-grade PA66 nylon, offering mechanical strength, flexibility, and durability.

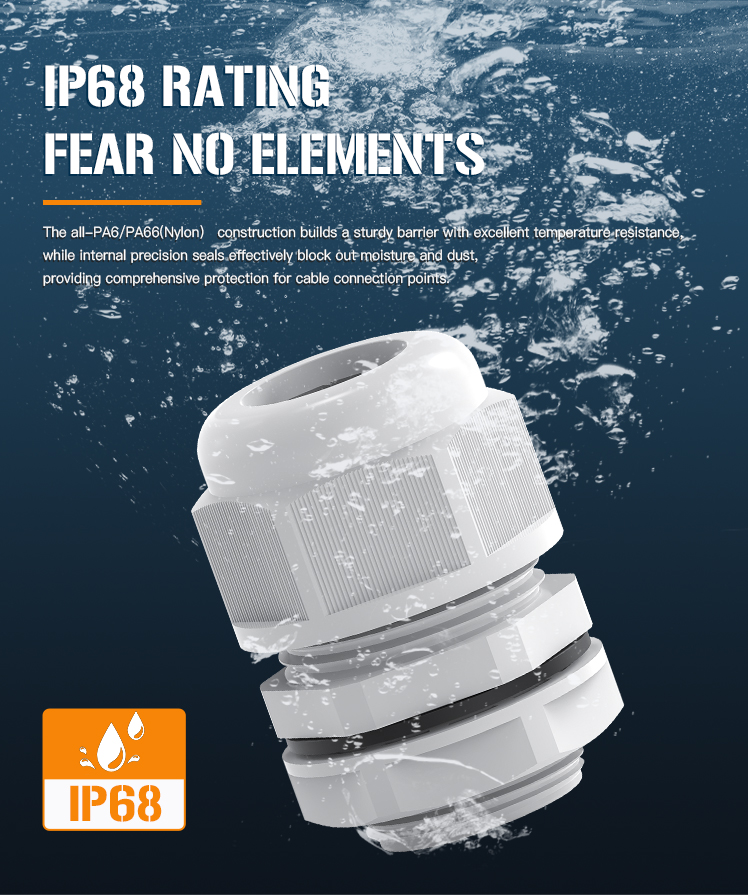

◆Provides a secure IP68-rated seal against water, dust, oil, and other contaminants.
◆Lightweight, tough, and features excellent impact resistance, UV stability, and corrosion protection.
◆Available in PG, NPT, and Metric thread types for international compatibility.
◆Complies with CE, RoHS, and UL standards.
Applications
◇Automation Systems
◇Control Cabinets
◇Robotics
◇Renewable Energy
◇Communication Equipment
Key Benefits
◆Split design for pre-terminated cable installation
◆Made from flame-retardant PA66 nylon
◆IP68 waterproof and dustproof protection
◆Quick installation and strong strain relief
◆UV and corrosion resistant
◆CE / UL / RoHS certified

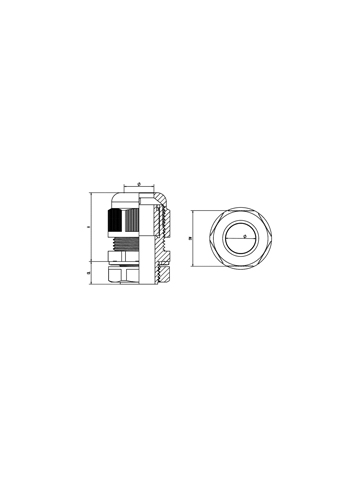

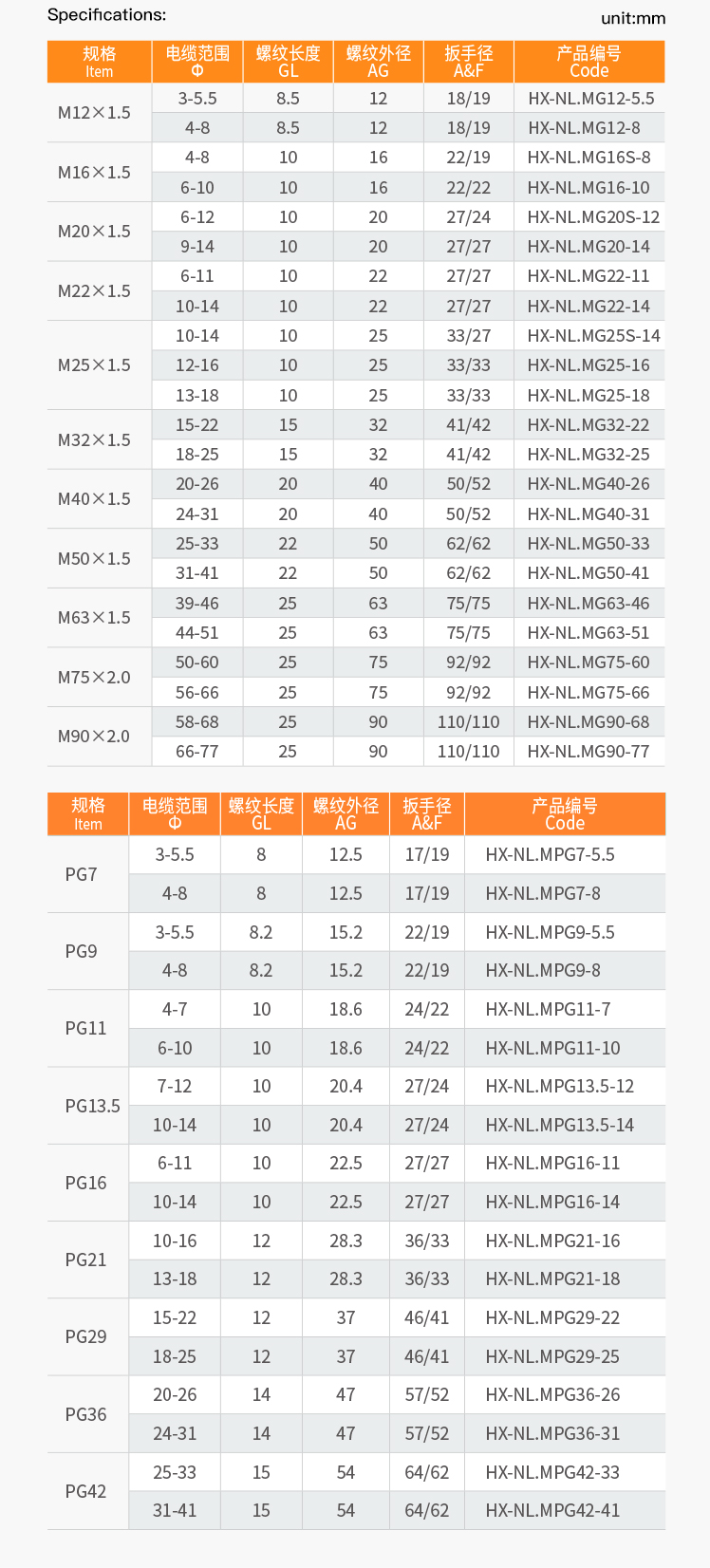

unit:mm
|
Item |
Cable Range |
GL Thread Length |
AG Thread O.D. |
A&F Spanner size |
Code |
|
M12×1.5 |
3-5.5 |
8.5 |
12 |
18/19 |
HX-NL.MG12-5.5 |
|
4-8 |
8.5 |
12 |
18/19 |
HX-NL.MG12-8 |
|
|
M16×1.5 |
4-8 |
10 |
16 |
22/19 |
HX-NL.MG16S-8 |
|
6-10 |
10 |
16 |
22/22 |
HX-NL.MG16-10 |
|
|
M20×1.5 |
6-12 |
10 |
20 |
27/24 |
HX-NL.MG20S-12 |
|
9-14 |
10 |
20 |
27/27 |
HX-NL.MG20-14 |
|
|
M22×1.5 |
6-11 |
10 |
22 |
27/27 |
HX-NL.MG22-11 |
|
10-14 |
10 |
22 |
27/27 |
HX-NL.MG22-14 |
|
|
M25×1.5 |
10-14 |
10 |
25 |
33/27 |
HX-NL.MG25S-14 |
|
12-16 |
10 |
25 |
33/33 |
HX-NL.MG25-16 |
|
|
13-18 |
10 |
25 |
33/33 |
HX-NL.MG25-18 |
|
|
M32×1.5 |
15-22 |
15 |
32 |
41/42 |
HX-NL.MG32-22 |
|
18-25 |
15 |
32 |
41/42 |
HX-NL.MG32-25 |
|
|
M40×1.5 |
20-26 |
20 |
40 |
50/52 |
HX-NL.MG40-26 |
|
24-31 |
20 |
40 |
50/52 |
HX-NL.MG40-31 |
|
|
M50×1.5 |
25-33 |
22 |
50 |
62/62 |
HX-NL.MG50-33 |
|
31-41 |
22 |
50 |
62/62 |
HX-NL.MG50-41 |
|
|
M63×1.5 |
39-46 |
25 |
63 |
75/75 |
HX-NL.MG63-46 |
|
44-51 |
25 |
63 |
75/75 |
HX-NL.MG63-51 |
|
|
M75×2.0 |
50-60 |
25 |
75 |
92/92 |
HX-NL.MG75-60 |
|
56-66 |
25 |
75 |
92/92 |
HX-NL.MG75-66 |
|
|
M90×2.0 |
58-68 |
25 |
90 |
110/110 |
HX-NL.MG90-68 |
|
66-77 |
25 |
90 |
110/110 |
HX-NL.MG90-77 |
|
Item |
Cable Range |
GL Thread Length |
AG Thread O.D. |
A&F Spanner size |
Code |
|
PG7 |
3-5.5 |
8 |
12.5 |
17/19 |
HX-NL.MPG7-5.5 |
|
4-8 |
8 |
12.5 |
17/19 |
HX-NL.MPG7-8 |
|
|
PG9 |
3-5.5 |
8.2 |
15.2 |
22/19 |
HX-NL.MPG9-5.5 |
|
4-8 |
8.2 |
15.2 |
22/19 |
HX-NL.MPG9-8 |
|
|
PG11 |
4-7 |
10 |
18.6 |
24/22 |
HX-NL.MPG11-7 |
|
6-10 |
10 |
18.6 |
24/22 |
HX-NL.MPG11-10 |
|
|
PG13.5 |
7-12 |
10 |
20.4 |
27/24 |
HX-NL.MPG13.5-12 |
|
10-14 |
10 |
20.4 |
27/24 |
HX-NL.MPG13.5-14 |
|
|
PG16 |
6-11 |
10 |
22.5 |
27/27 |
HX-NL.MPG16-11 |
|
10-14 |
10 |
22.5 |
27/27 |
HX-NL.MPG16-14 |
|
|
PG21 |
10-16 |
12 |
28.3 |
36/33 |
HX-NL.MPG21-16 |
|
13-18 |
12 |
28.3 |
36/33 |
HX-NL.MPG21-18 |
|
|
PG29 |
15-22 |
12 |
37 |
46/41 |
HX-NL.MPG29-22 |
|
18-25 |
12 |
37 |
46/41 |
HX-NL.MPG29-25 |
|
|
PG36 |
20-26 |
14 |
47 |
57/52 |
HX-NL.MPG36-26 |
|
24-31 |
14 |
47 |
57/52 |
HX-NL.MPG36-31 |
|
|
PG42 |
25-33 |
15 |
54 |
64/62 |
HX-NL.MPG42-33 |
|
31-41 |
15 |
54 |
64/62 |
HX-NL.MPG42-41 |
