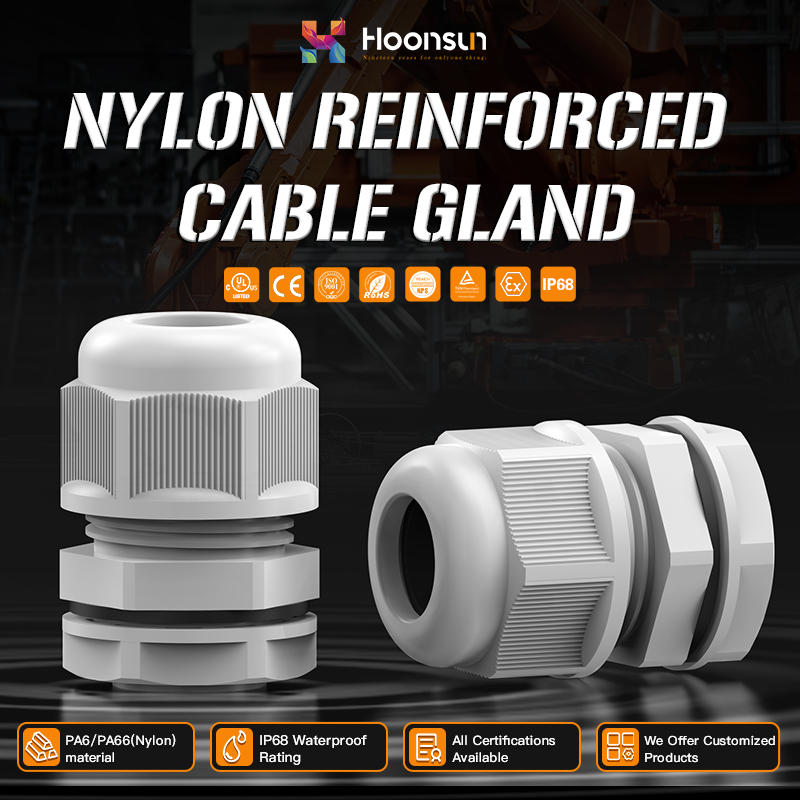

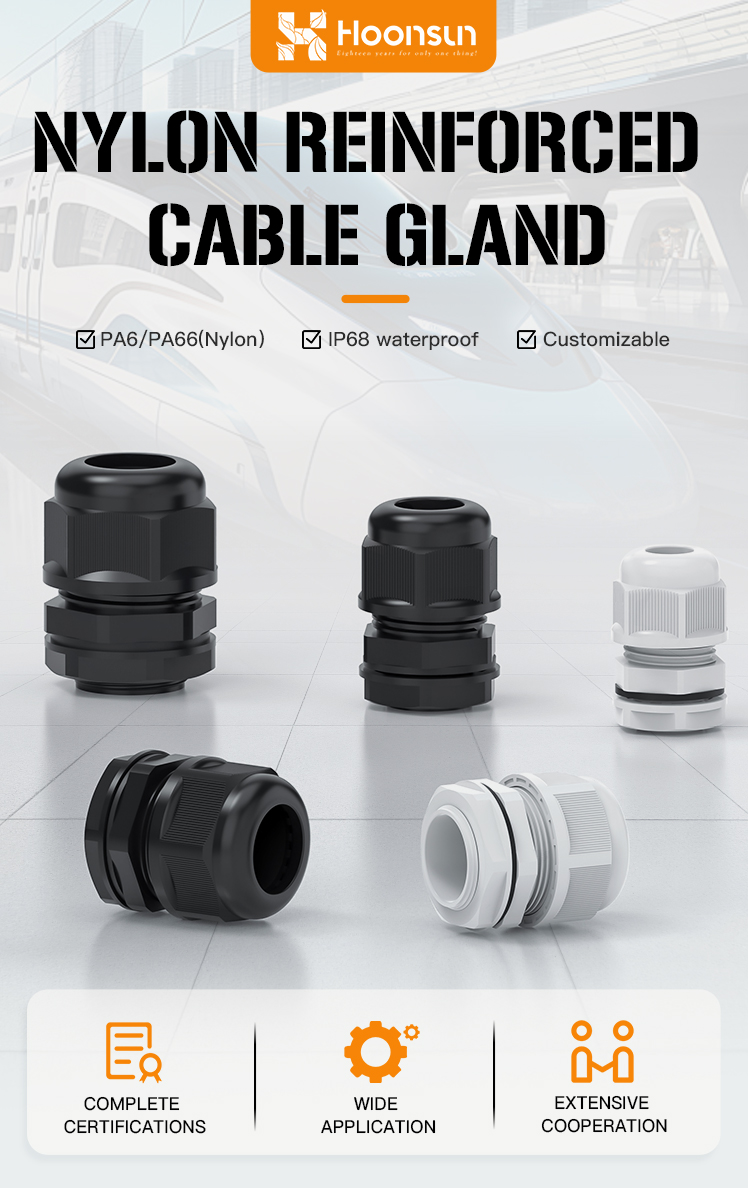

Nylon Reinforced Cable Gland with UL and IP68
Constructed with reinforced nylon, the Nylon Reinforced Cable Gland offers an IP68-rated, reliable seal, effectively preventing water and dust intrusion. Its robust material also boasts flame-retardant properties, making it suitable for extreme temperature environments, and is available in a variety of custom colors.
Certified for Global Markets：
- Fittng Material PA66(Nylon)
- Material For Sealing Components EPDM、Silicone rubber
- O-ring Material EPDM、Silicone rubber
- Protection Degree IP68

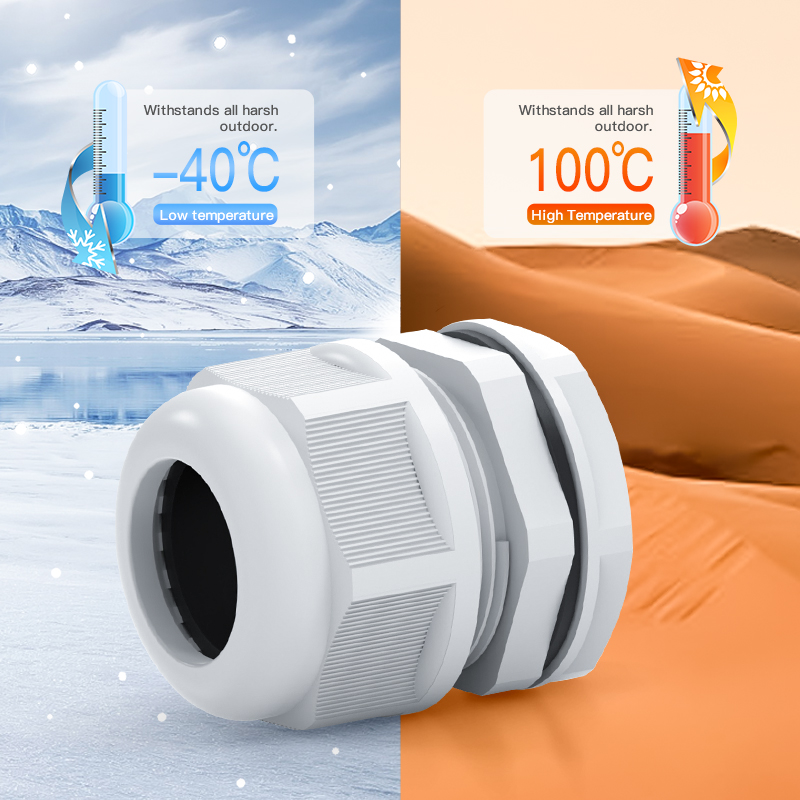

- Temperature Static state:-40 to 100℃,Short time to 120℃ Dynamic state:-20℃ to 80℃,Short time to 100℃
- Color customization Grey,Black,other color customized
Product Highlights
◆Material & Certification
Made of PA66 nylon (UL94-V2), compliant with CE, ROHS, and rated IP68.
◆Components

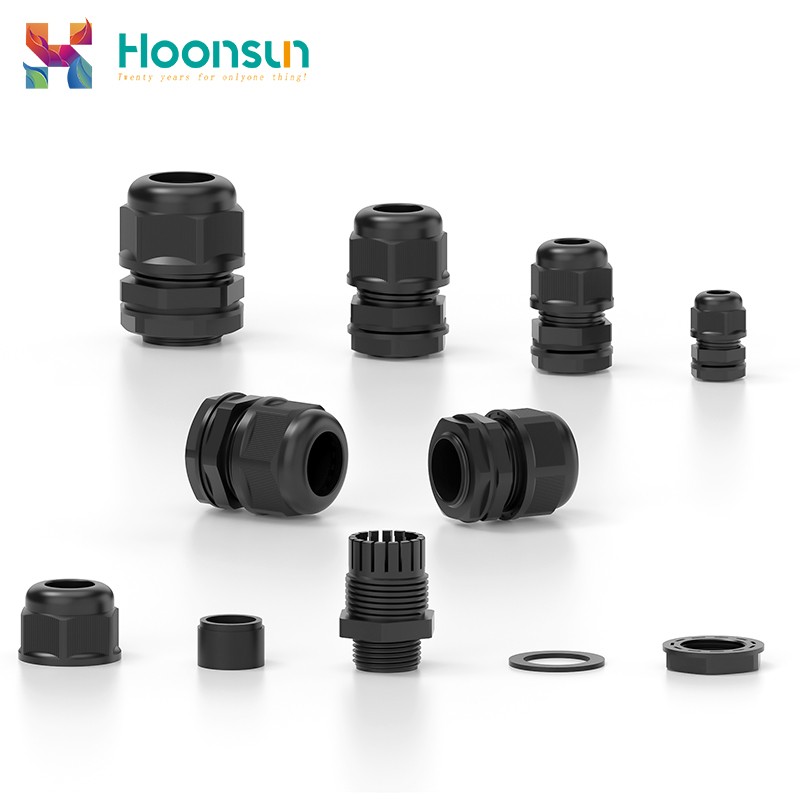

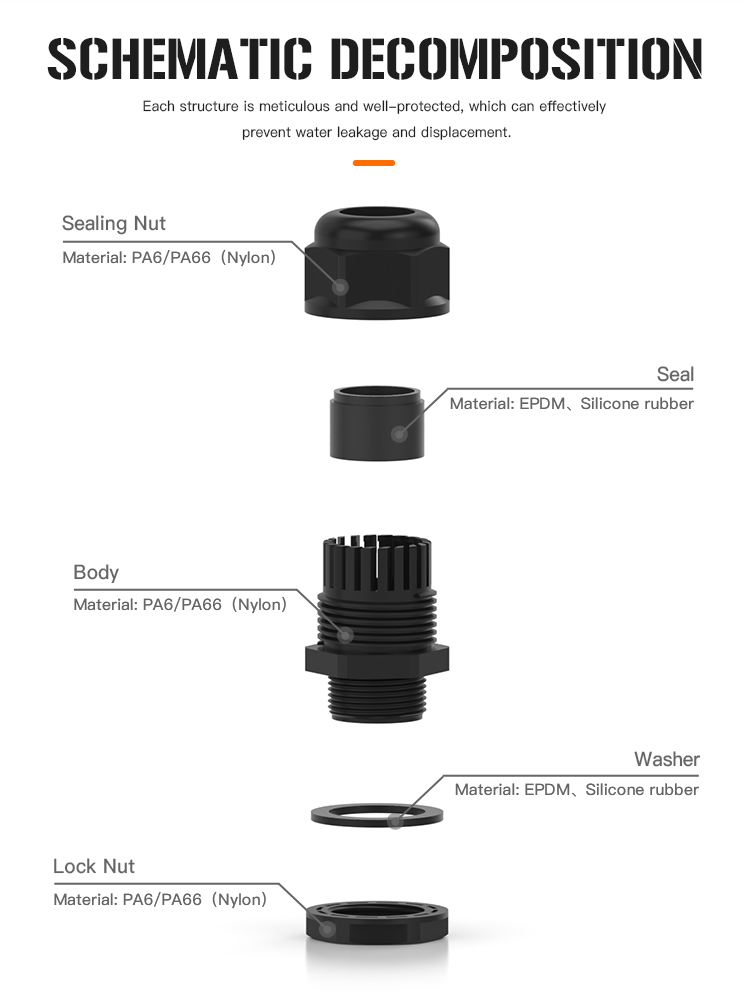

Consists of Sealing Nut, Seal, Body, Washer, and Lock Nut.

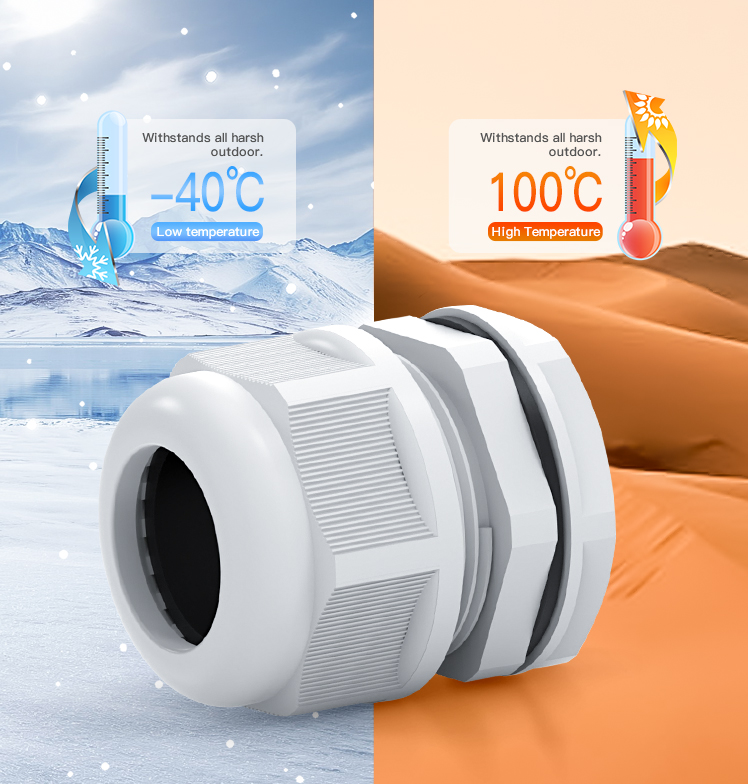

◆Temperature Range
Static: -40℃ to 100℃ (short time up to 120℃); Dynamic: -20℃ to 80℃ (short time up to 100℃).
◆Customization
Available in grey, black, and other colors.

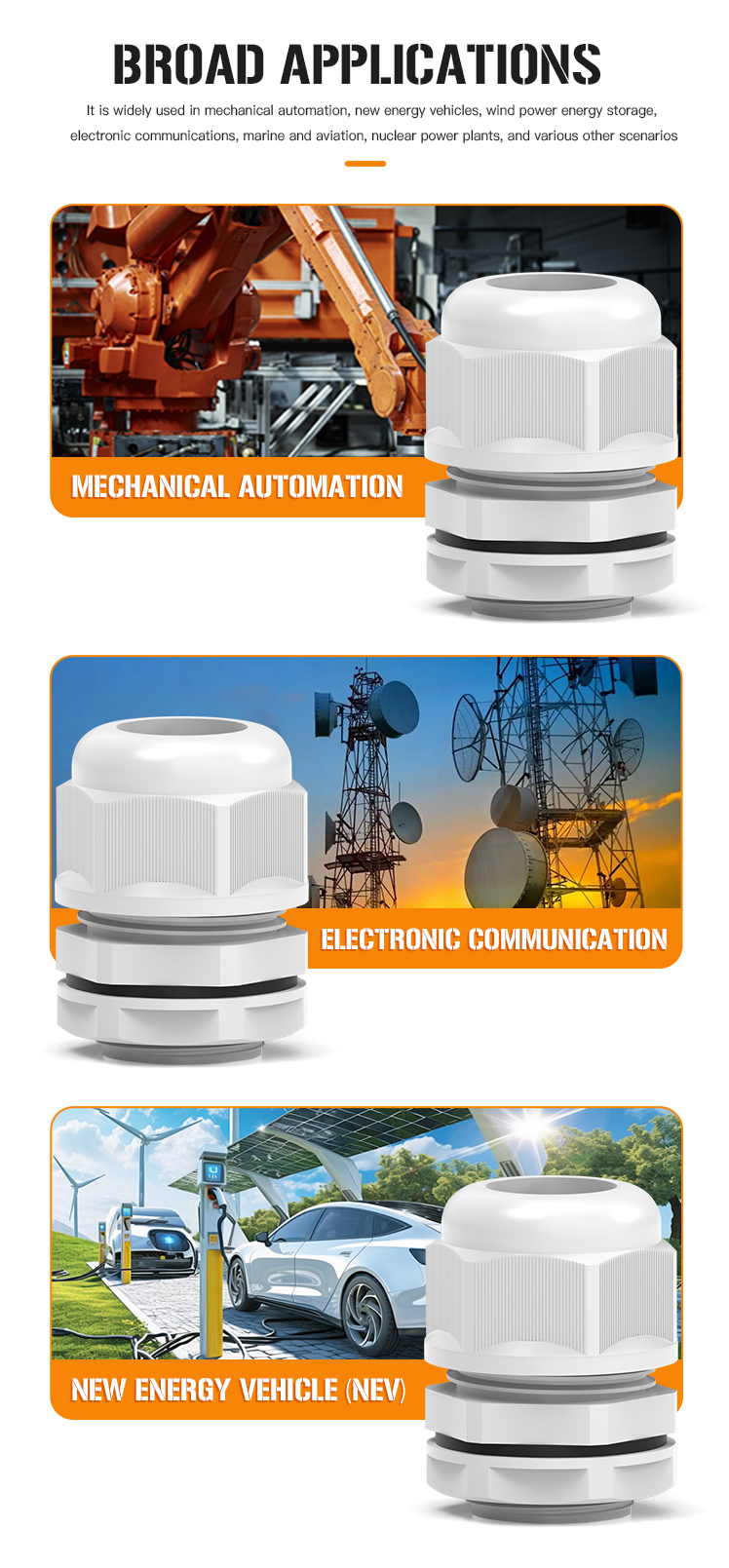

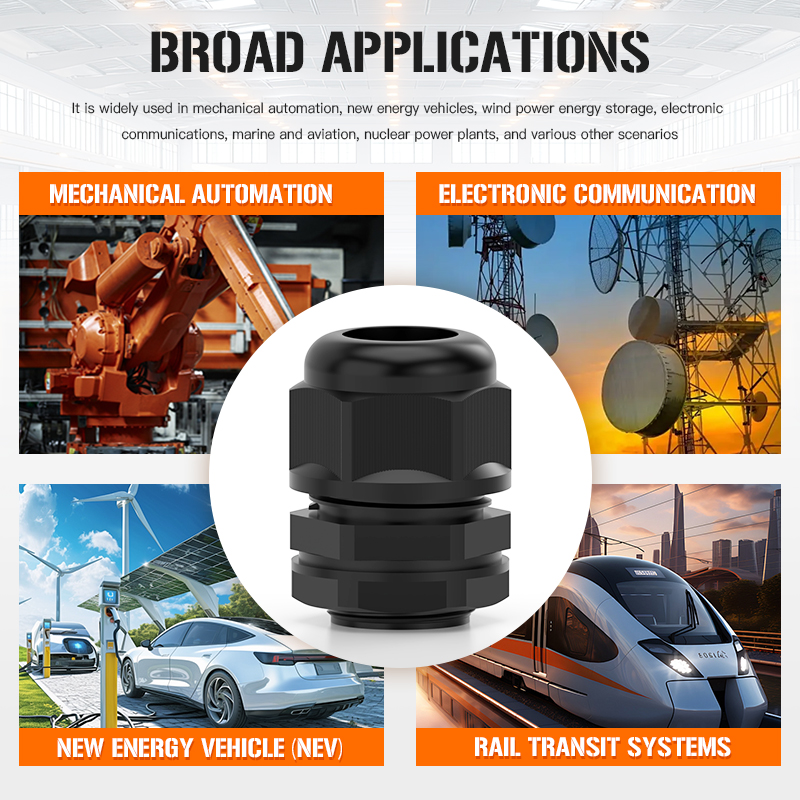

Applications
Key Benefits

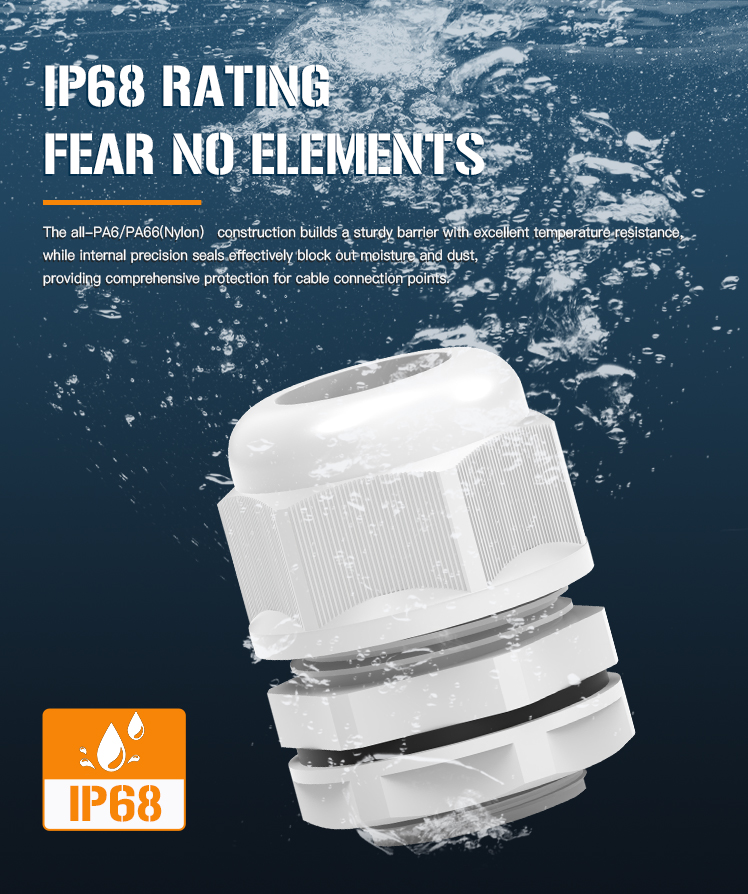

◆High Protection (IP68)
Ensures effective resistance against water and dust ingress.
◆Durable Material (Nylon PA66)
Offers strength and longevity, with UL94-V2 flame retardancy for added safety.
◆Versatile Temperature Adaptability
Performs well in both static and dynamic temperature conditions, suitable for diverse operating environments.
◆Customizable
Color options meet specific project or aesthetic requirements.
◆Reliable Sealing
Uses EPDM and Silicone rubber seals/O-rings for robust hermetic sealing.

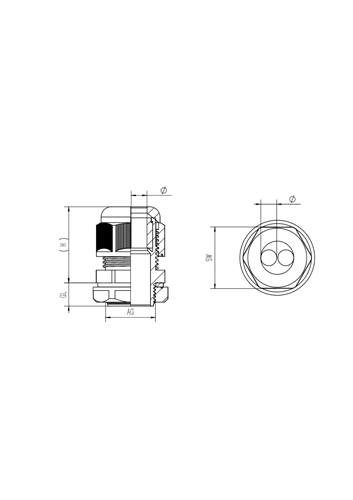

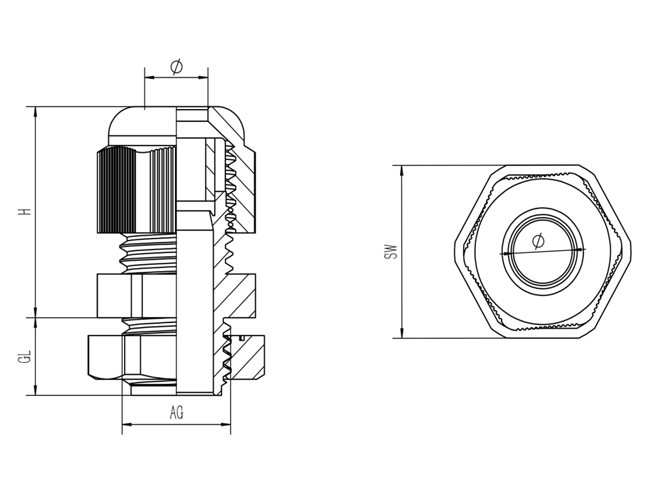

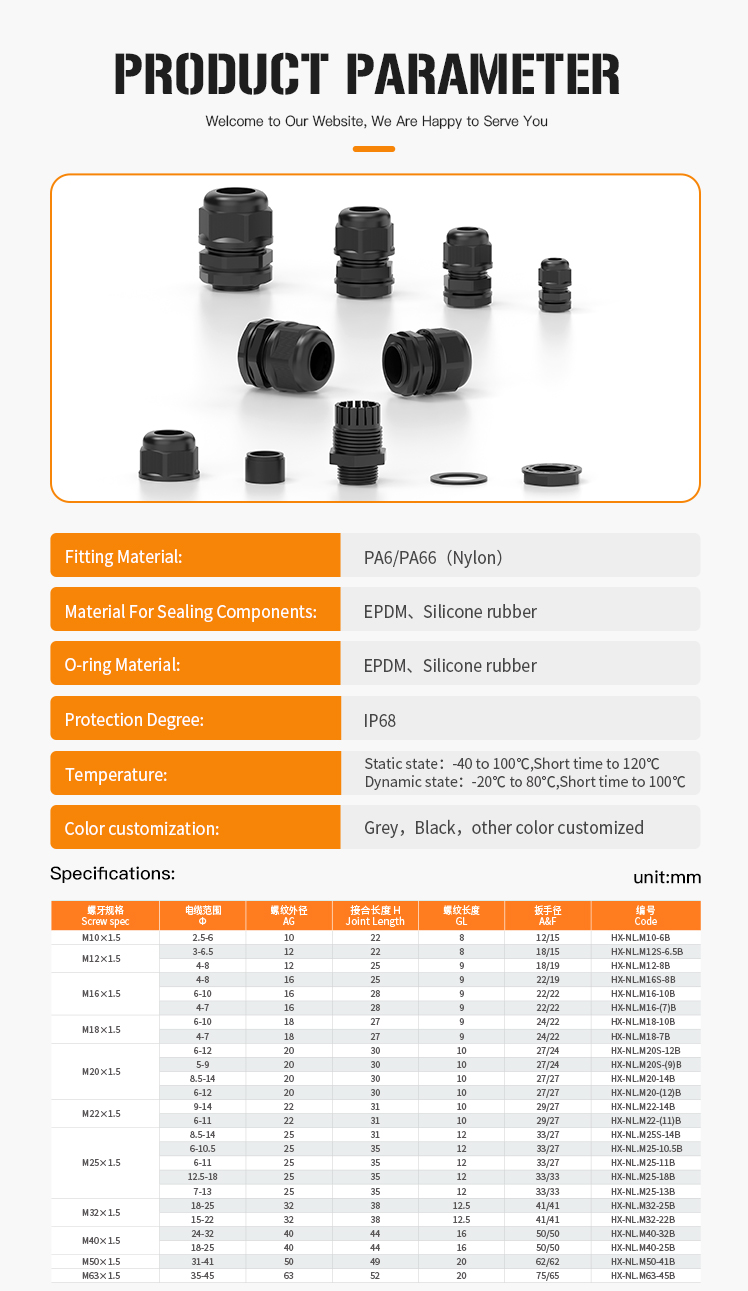

unit:mm
|
Code |
Scope of application |
AG Thread size |
GL Length of Thread |
SW Torque wrench size |
|
HX-NL.M12-6.5 |
3-6.5 |
M12*1.5 |
9 |
18/16 |
|
Screw spec |
Cable Range |
AG Thread O.D. |
H Joint Length |
GL Thread Length |
A&F Spanner size |
Code |
|
M10×1.5 |
2.5-6 |
10 |
22 |
8 |
12/15 |
HX-NL.M10-6B |
|
M12×1.5 |
3-6.5 |
12 |
22 |
8 |
18/15 |
HX-NL.M12S-6.5B |
|
4-8 |
12 |
25 |
9 |
18/19 |
HX-NL.M12-8B |
|
|
M16×1.5 |
4-8 |
16 |
25 |
9 |
22/19 |
HX-NL.M16S-8B |
|
6-10 |
16 |
28 |
9 |
22/22 |
HX-NL.M16-10B |
|
|
4-7 |
16 |
28 |
9 |
22/22 |
HX-NL.M16-(7)B |
|
|
M18×1.5 |
6-10 |
18 |
27 |
9 |
24/22 |
HX-NL.M18-10B |
|
4-7 |
18 |
27 |
9 |
24/22 |
HX-NL.M18-7B |
|
|
M20×1.5 |
6-12 |
20 |
30 |
10 |
27/24 |
HX-NL.M20S-12B |
|
5-9 |
20 |
30 |
10 |
27/24 |
HX-NL.M20S-(9)B |
|
|
8.5-14 |
20 |
30 |
10 |
27/27 |
HX-NL.M20-14B |
|
|
6-12 |
20 |
30 |
10 |
27/27 |
HX-NL.M20-(12)B |
|
|
M22×1.5 |
9-14 |
22 |
31 |
10 |
29/27 |
HX-NL.M22-14B |
|
6-11 |
22 |
31 |
10 |
29/27 |
HX-NL.M22-(11)B |
|
|
M25×1.5 |
8.5-14 |
25 |
31 |
12 |
33/27 |
HX-NL.M25S-14B |
|
6-10.5 |
25 |
35 |
12 |
33/27 |
HX-NL.M25-10.5B |
|
|
6-11 |
25 |
35 |
12 |
33/27 |
HX-NL.M25-11B |
|
|
12.5-18 |
25 |
35 |
12 |
33/33 |
HX-NL.M25-18B |
|
|
7-13 |
25 |
35 |
12 |
33/33 |
HX-NL.M25-13B |
|
|
M32×1.5 |
18-25 |
32 |
38 |
12.5 |
41/41 |
HX-NL.M32-25B |
|
15-22 |
32 |
38 |
12.5 |
41/41 |
HX-NL.M32-22B |
|
|
M40×1.5 |
24-32 |
40 |
44 |
16 |
50/50 |
HX-NL.M40-32B |
|
18-25 |
40 |
44 |
16 |
50/50 |
HX-NL.M40-25B |
|
|
M50×1.5 |
31-41 |
50 |
49 |
20 |
62/62 |
HX-NL.M50-41B |
|
M63×1.5 |
35-45 |
63 |
52 |
20 |
75/65 |
HX-NL.M63-45B |
|

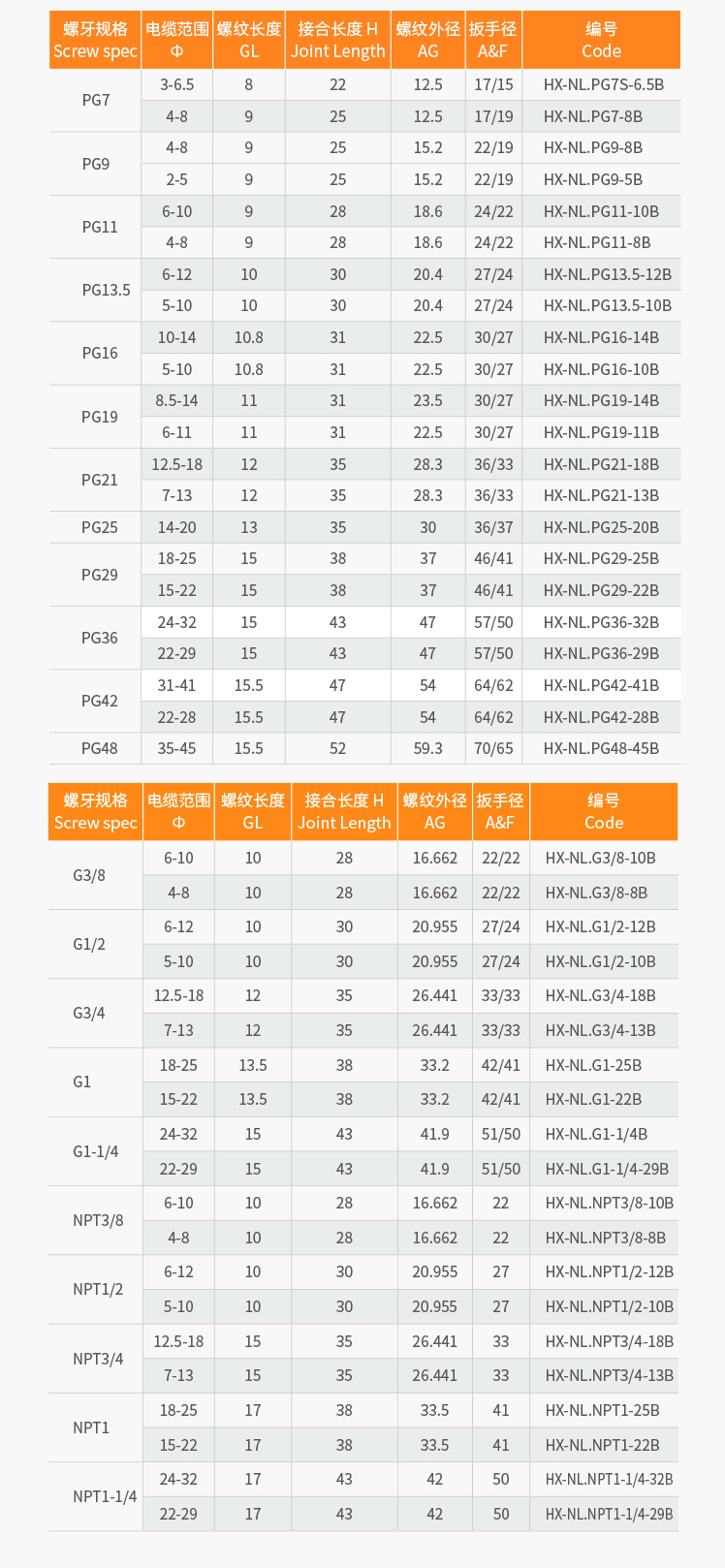

Screw spec |
Cable Range |
GL Thread Length |
H Joint Length |
AG Thread O.D. |
A&F Spanner size |
Code |
|
PG7 |
3-6.5 |
8 |
22 |
12.5 |
17/15 |
HX-NL.PG7S-6.5B |
|
4-8 |
9 |
25 |
12.5 |
17/19 |
HX-NL.PG7-8B |
|
|
PG9 |
4-8 |
9 |
25 |
15.2 |
22/19 |
HX-NL.PG9-8B |
|
2-5 |
9 |
25 |
15.2 |
22/19 |
HX-NL.PG9-5B |
|
|
PG11 |
6-10 |
9 |
28 |
18.6 |
24/22 |
HX-NL.PG11-10B |
|
4-8 |
9 |
28 |
18.6 |
24/22 |
HX-NL.PG11-8B |
|
|
PG13.5 |
6-12 |
10 |
30 |
20.4 |
27/24 |
HX-NL.PG13.5-12B |
|
5-10 |
10 |
30 |
20.4 |
27/24 |
HX-NL.PG13.5-10B |
|
|
PG16 |
10-14 |
10.8 |
31 |
22.5 |
30/27 |
HX-NL.PG16-14B |
|
5-10 |
10.8 |
31 |
22.5 |
30/27 |
HX-NL.PG16-10B |
|
|
PG19 |
8.5-14 |
11 |
31 |
23.5 |
30/27 |
HX-NL.PG19-14B |
|
6-11 |
11 |
31 |
22.5 |
30/27 |
HX-NL.PG19-11B |
|
|
PG21 |
12.5-18 |
12 |
35 |
28.3 |
36/33 |
HX-NL.PG21-18B |
|
7-13 |
12 |
35 |
28.3 |
36/33 |
HX-NL.PG21-13B |
|
|
PG25 |
14-20 |
13 |
35 |
30 |
36/37 |
HX-NL.PG25-20B |
|
PG29 |
18-25 |
15 |
38 |
37 |
46/41 |
HX-NL.PG29-25B |
|
15-22 |
15 |
38 |
37 |
46/41 |
HX-NL.PG29-22B |
|
|
PG36 |
24-32 |
15 |
43 |
47 |
57/50 |
HX-NL.PG36-32B |
|
22-29 |
15 |
43 |
47 |
57/50 |
HX-NL.PG36-29B |
|
|
PG42 |
31-41 |
15.5 |
47 |
54 |
64/62 |
HX-NL.PG42-41B |
|
22-28 |
15.5 |
47 |
54 |
64/62 |
HX-NL.PG42-28B |
|
|
PG48 |
35-45 |
15.5 |
52 |
59.3 |
70/65 |
HX-NL.PG48-45B |
|
Screw spec |
Cable Range |
GL Thread Length |
H Joint Length |
AG Thread O.D. |
A&F Spanner size |
Code |
|
G3/8 |
6-10 |
10 |
28 |
16.662 |
22/22 |
HX-NL.G3/8-10B |
|
4-8 |
10 |
28 |
16.662 |
22/22 |
HX-NL.G3/8-8B |
|
|
G1/2 |
6-12 |
10 |
30 |
20.955 |
27/24 |
HX-NL.G1/2-12B |
|
5-10 |
10 |
30 |
20.955 |
27/24 |
HX-NL.G1/2-10B |
|
|
G3/4 |
12.5-18 |
12 |
35 |
26.441 |
33/33 |
HX-NL.G3/4-18B |
|
7-13 |
12 |
35 |
26.441 |
33/33 |
HX-NL.G3/4-13B |
|
|
G1 |
18-25 |
13.5 |
38 |
33.2 |
42/41 |
HX-NL.G1-25B |
|
15-22 |
13.5 |
38 |
33.2 |
42/41 |
HX-NL.G1-22B |
|
|
G1-1/4 |
24-32 |
15 |
43 |
41.9 |
51/50 |
HX-NL.G1-1/4B |
|
22-29 |
15 |
43 |
41.9 |
51/50 |
HX-NL.G1-1/4-29B |
|
|
NPT3/8 |
6-10 |
10 |
28 |
16.662 |
22 |
HX-NL.NPT3/8-10B |
|
4-8 |
10 |
28 |
16.662 |
22 |
HX-NL.NPT3/8-8B |
|
|
NPT1/2 |
6-12 |
10 |
30 |
20.955 |
27 |
HX-NL.NPT1/2-12B |
|
5-10 |
10 |
30 |
20.955 |
27 |
HX-NL.NPT1/2-10B |
|
|
NPT3/4 |
12.5-18 |
15 |
35 |
26.441 |
33 |
HX-NL.NPT3/4-18B |
|
7-13 |
15 |
35 |
26.441 |
33 |
HX-NL.NPT3/4-13B |
|
|
NPT1 |
18-25 |
17 |
38 |
33.5 |
41 |
HX-NL.NPT1-25B |
|
15-22 |
17 |
38 |
33.5 |
41 |
HX-NL.NPT1-22B |
|
|
NPT1-1/4 |
24-32 |
17 |
43 |
42 |
50 |
HX-NL.NPT1-1/4-32B |
|
22-29 |
17 |
43 |
42 |
50 |
HX-NL.NPT1-1/4-29B |
