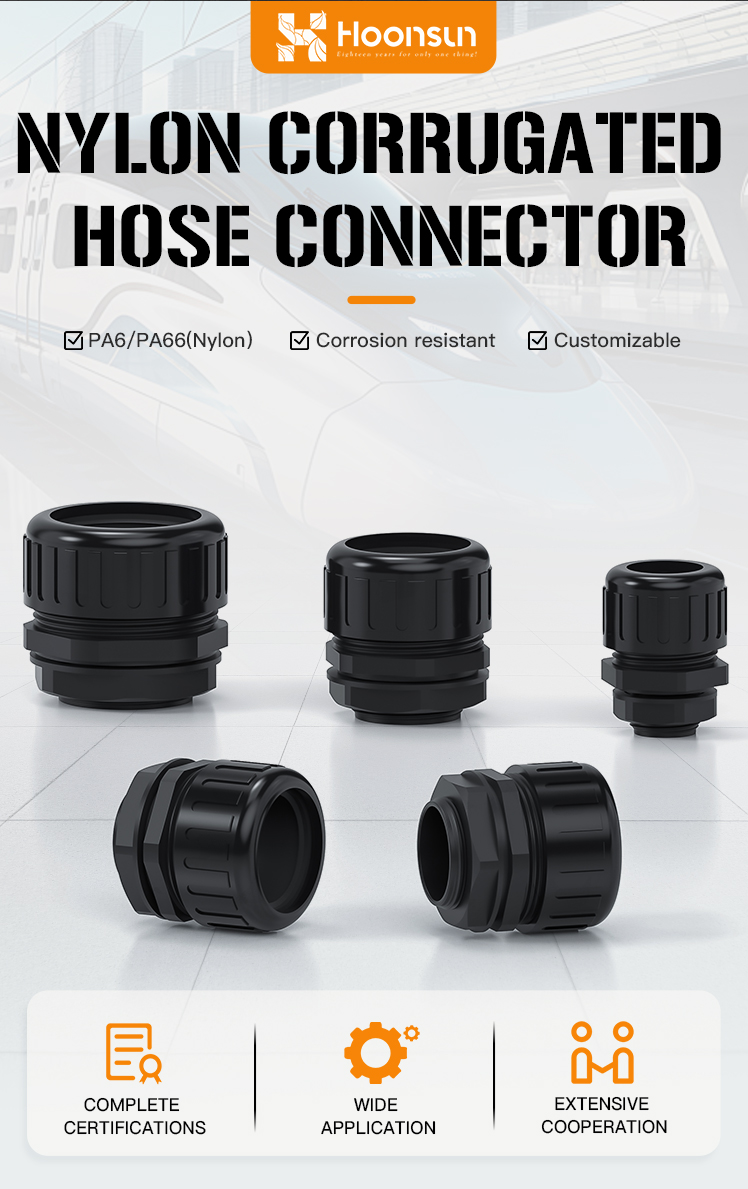

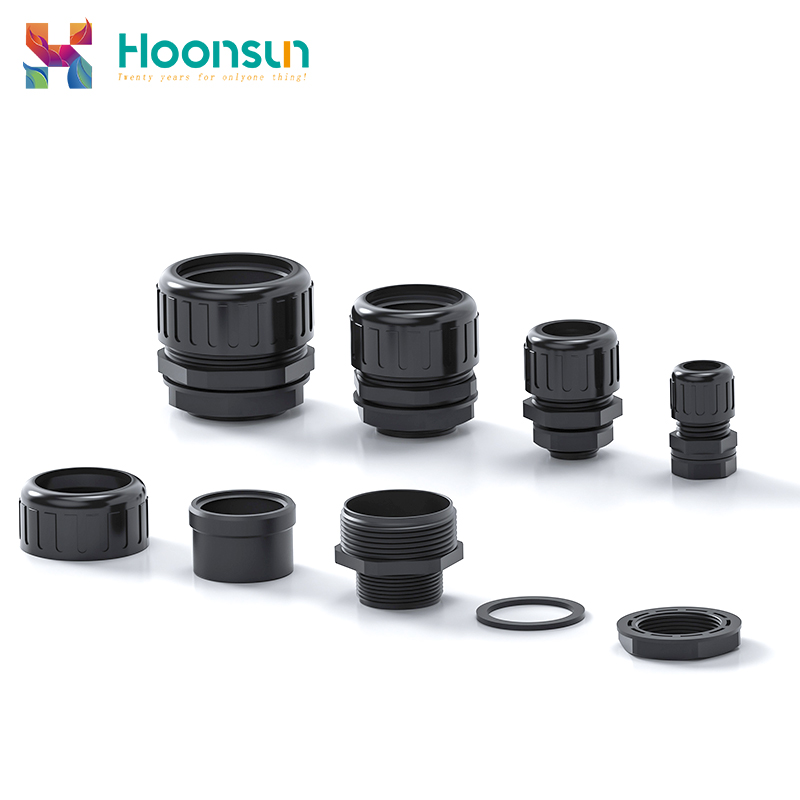

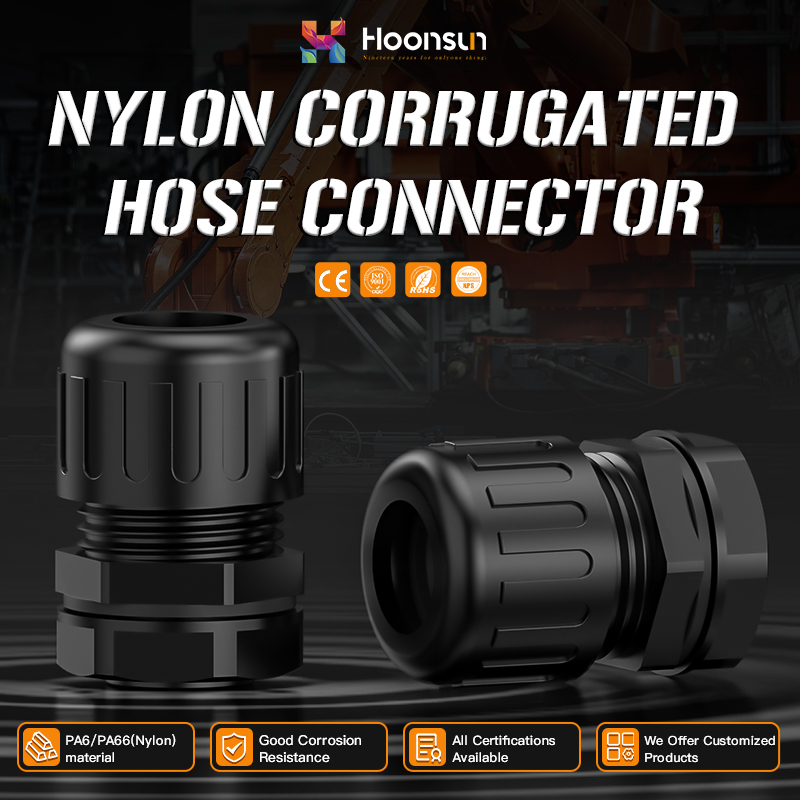

Nylon Corrugated Cable Gland with UL and IP68
Nylon Corrugated Cable Gland ensures universal compatibility and secure locking for corrugated pipes, featuring corrosion-resistant nylon construction and tool-free installation for efficient wiring.
Certified for Global Markets：

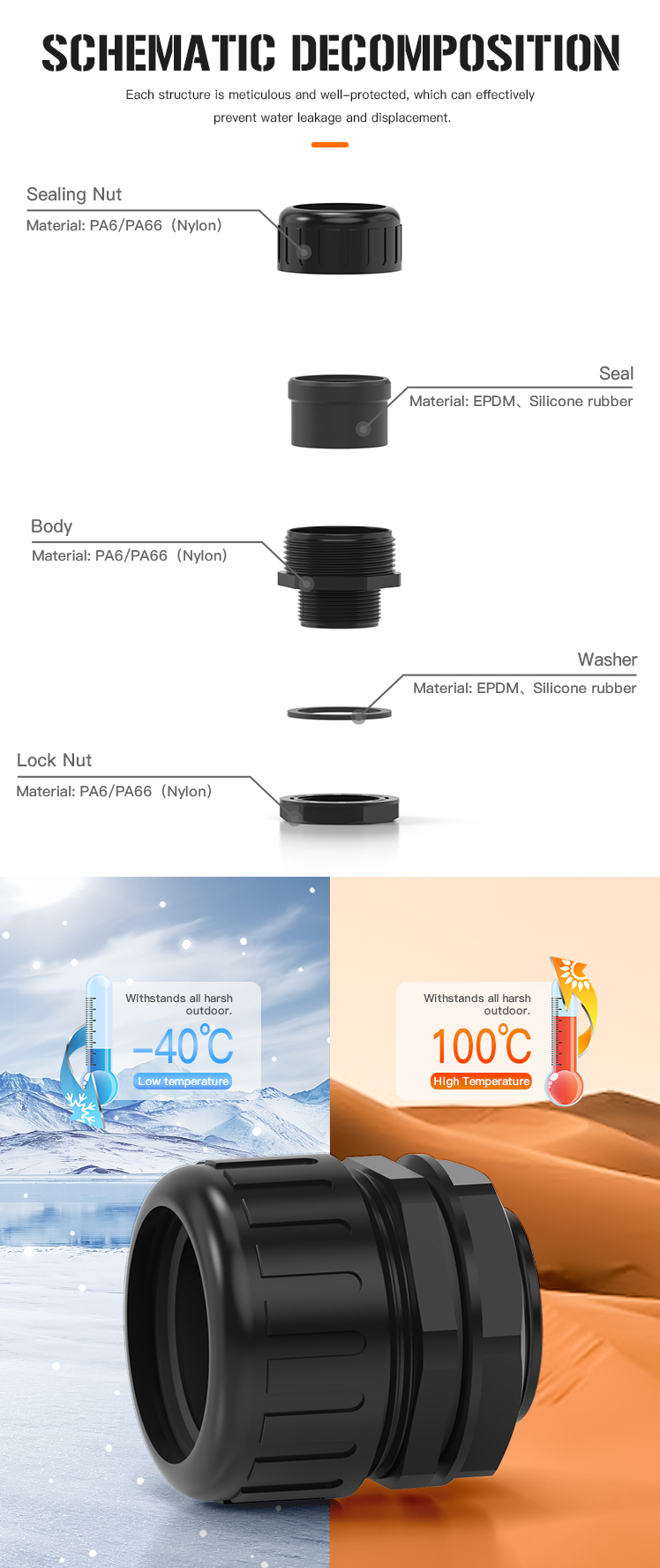

- Fitting Material PA6/PA66(Nylon)
- Material For Sealing Components EPDM、Silicone rubber

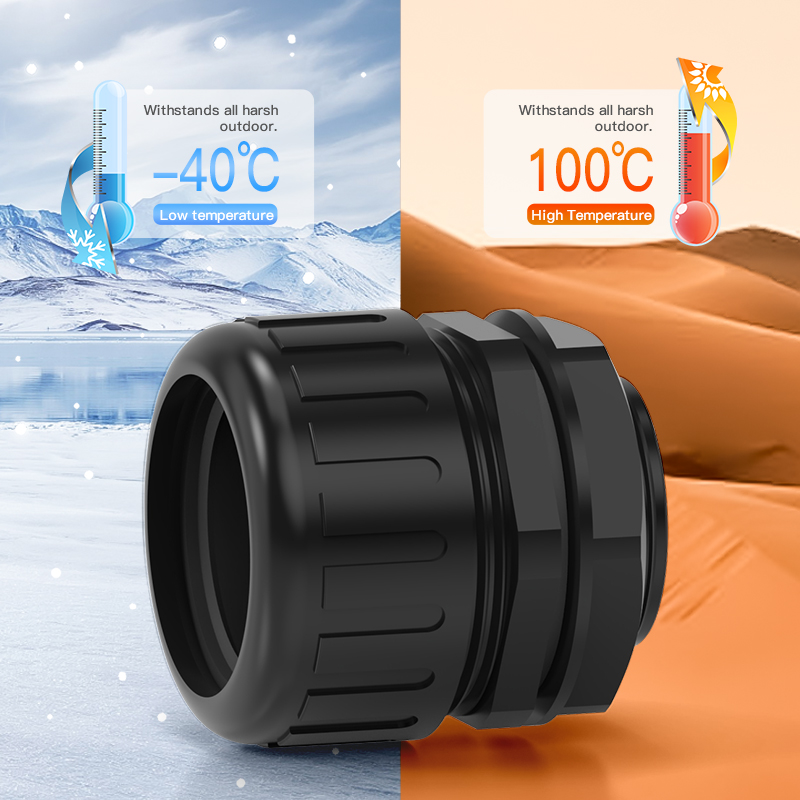

- Temperature Static state:-40 to 100℃,Short time to 120℃ Dynamic state:-20℃ to 80℃,Short time to 100℃
- Color customization Grey,Black,other color customized
Product Highlights
◆Dedicated adaptation to corrugated pipes with a special locking structure for a tight fit
◆Made of high-quality nylon, offering lightweight and cost-effective performance
◆Built-in sealing ring design ensuring reliable IP68/IP65 protection
◆Streamlined structure for convenient, tool-free installation

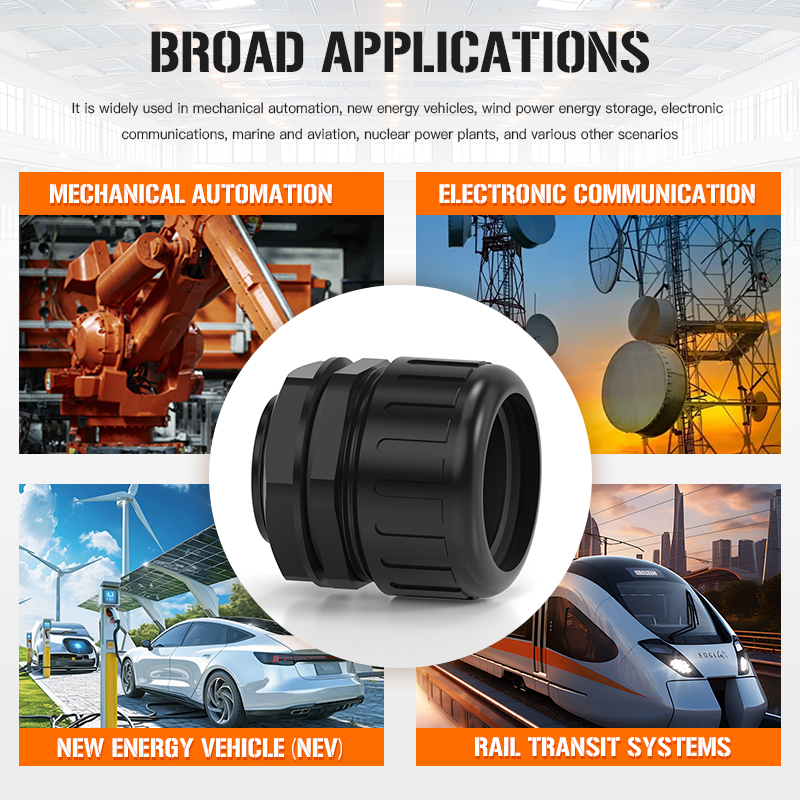

Applications
◇Indoor and outdoor general industrial environments
◇Flexible wiring needs using nylon corrugated pipes
◇Scenarios requiring batch wiring efficiency

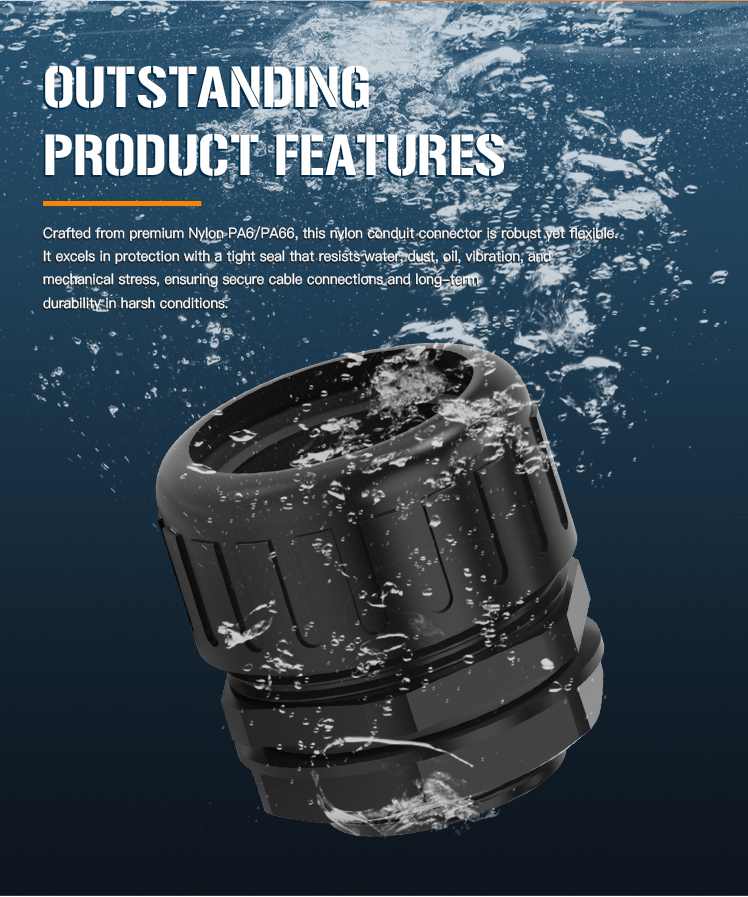

Key Benefits
◆Prevents pipe detachment or displacement while maintaining flexibility
◆Anti-aging, impact-resistant, and durable for long-term use
◆Effectively dustproof, waterproof, and resistant to mild oil stains
◆Compatible with various inner diameter specifications for versatile use

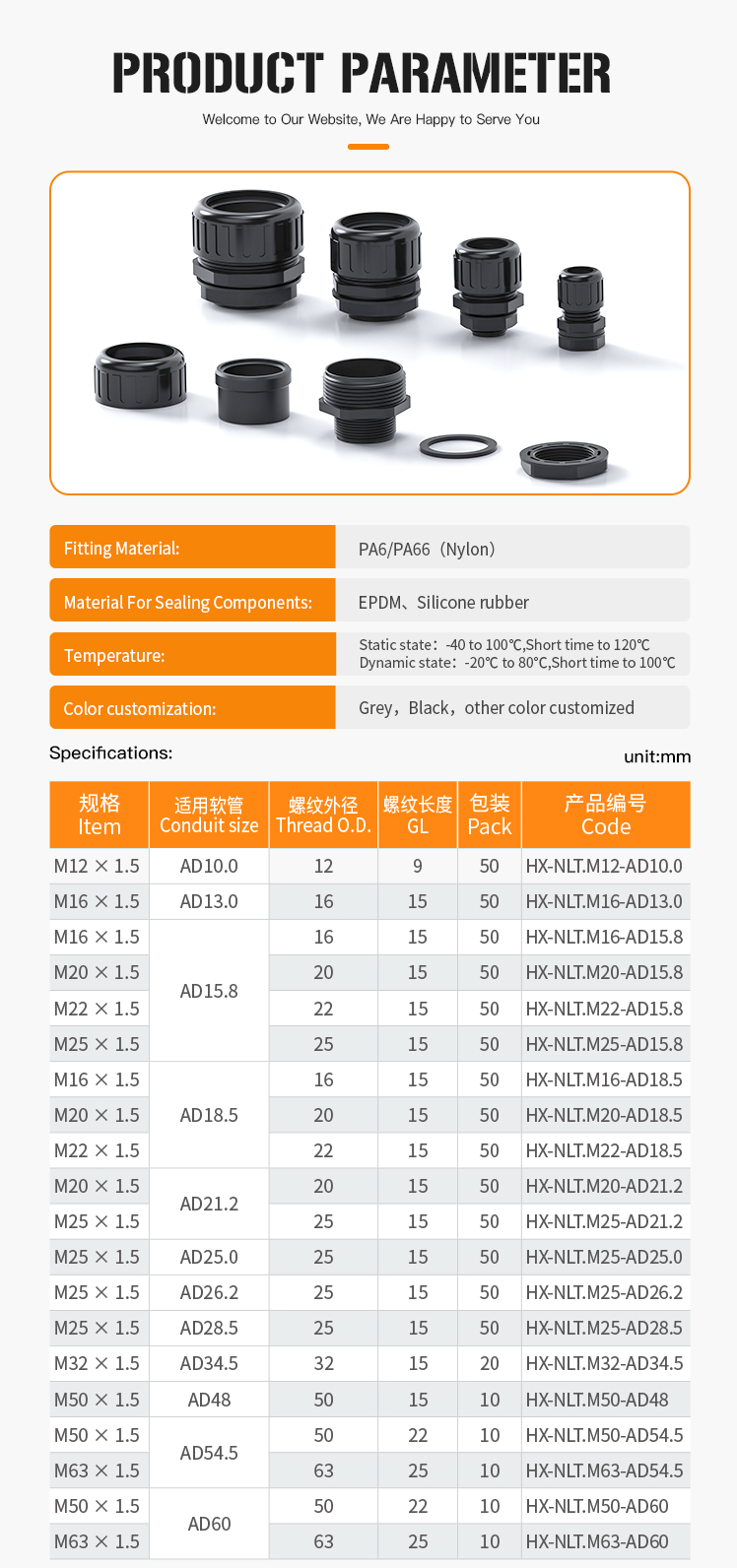

unit:mm
|
Item |
Conduit size |
Thread O.D. |
GL |
Pack |
Code |
|
M12×1.5 |
AD10.0 |
12 |
9 |
50 |
HX-NLT.M12-AD10.0 |
|
M16×1.5 |
AD13.0 |
16 |
15 |
50 |
HX-NLT.M16-AD13.0 |
|
M16×1.5 |
AD15.8 |
16 |
15 |
50 |
HX-NLT.M16-AD15.8 |
|
M20×1.5 |
20 |
15 |
50 |
HX-NLT.M20-AD15.8 |
|
|
M22×1.5 |
22 |
15 |
50 |
HX-NLT.M22-AD15.8 |
|
|
M25×1.5 |
25 |
15 |
50 |
HX-NLT.M25-AD15.8 |
|
|
M16×1.5 |
AD18.5 |
16 |
15 |
50 |
HX-NLT.M16-AD18.5 |
|
M20×1.5 |
20 |
15 |
50 |
HX-NLT.M20-AD18.5 |
|
|
M22×1.5 |
22 |
15 |
50 |
HX-NLT.M22-AD18.5 |
|
|
M20×1.5 |
AD21.2 |
20 |
15 |
50 |
HX-NLT.M20-AD21.2 |
|
M25×1.5 |
25 |
15 |
50 |
HX-NLT.M25-AD21.2 |
|
|
M25×1.5 |
AD25.0 |
25 |
15 |
50 |
HX-NLT.M25-AD25.0 |
|
M25×1.5 |
AD26.2 |
25 |
15 |
50 |
HX-NLT.M25-AD26.2 |
|
M25×1.5 |
AD28.5 |
25 |
15 |
50 |
HX-NLT.M25-AD28.5 |
|
M32×1.5 |
AD34.5 |
32 |
15 |
20 |
HX-NLT.M32-AD34.5 |
|
M50×1.5 |
AD48 |
50 |
15 |
10 |
HX-NLT.M50-AD48 |
|
M50×1.5 |
AD54.5 |
50 |
22 |
10 |
HX-NLT.M50-AD54.5 |
|
M63×1.5 |
63 |
25 |
10 |
HX-NLT.M63-AD54.5 |
|
|
M50×1.5 |
AD60 |
50 |
22 |
10 |
HX-NLT.M50-AD60 |
|
M63×1.5 |
63 |
25 |
10 |
HX-NLT.M63-AD60 |
|

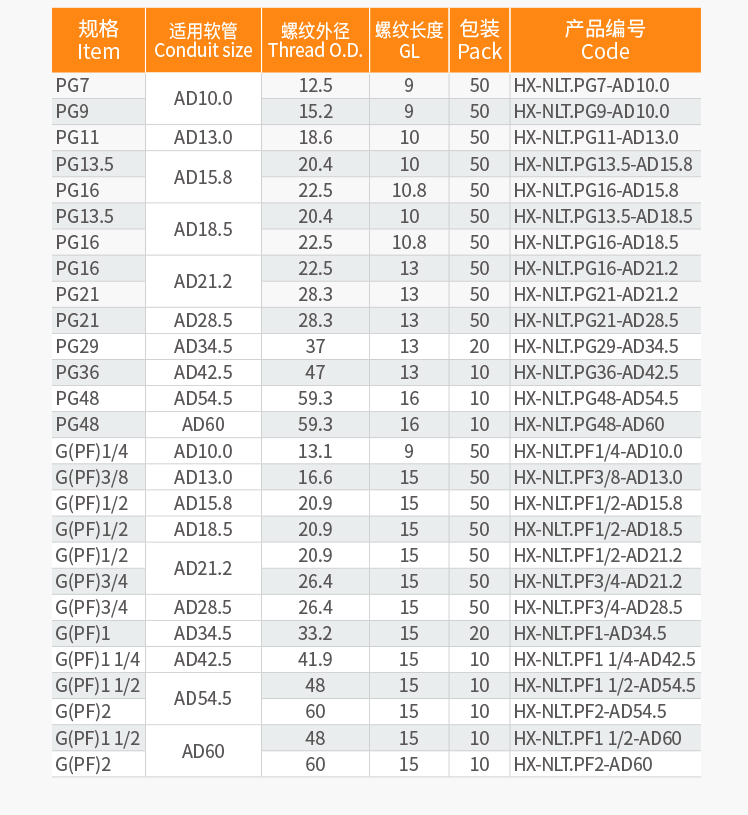

Item |
Conduit size |
Thread O.D. |
GL |
Pack |
Code |
|
PG7 |
AD10.0 |
12.5 |
9 |
50 |
HX-NLT.PG7-AD10.0 |
|
PG9 |
15.2 |
9 |
50 |
HX-NLT.PG9-AD10.0 |
|
|
PG11 |
AD13.0 |
18.6 |
10 |
50 |
HX-NLT.PG11-AD13.0 |
|
PG13.5 |
AD15.8 |
20.4 |
10 |
50 |
HX-NLT.PG13.5-AD15.8 |
|
PG16 |
22.5 |
10.8 |
50 |
HX-NLT.PG16-AD15.8 |
|
|
PG13.5 |
AD18.5 |
20.4 |
10 |
50 |
HX-NLT.PG13.5-AD18.5 |
|
PG16 |
22.5 |
10.8 |
50 |
HX-NLT.PG16-AD18.5 |
|
|
PG16 |
AD21.2 |
22.5 |
13 |
50 |
HX-NLT.PG16-AD21.2 |
|
PG21 |
28.3 |
13 |
50 |
HX-NLT.PG21-AD21.2 |
|
|
PG21 |
AD28.5 |
28.3 |
13 |
50 |
HX-NLT.PG21-AD28.5 |
|
PG29 |
AD34.5 |
37 |
13 |
20 |
HX-NLT.PG29-AD34.5 |
|
PG36 |
AD42.5 |
47 |
13 |
10 |
HX-NLT.PG36-AD42.5 |
|
PG48 |
AD54.5 |
59.3 |
16 |
10 |
HX-NLT.PG48-AD54.5 |
|
PG48 |
AD60 |
59.3 |
16 |
10 |
HX-NLT.PG48-AD60 |
|
G(PF)1/4 |
AD10.0 |
13.1 |
9 |
50 |
HX-NLT.PF1/4-AD10.0 |
|
G(PF)3/8 |
AD13.0 |
16.6 |
15 |
50 |
HX-NLT.PF3/8-AD13.0 |
|
G(PF)1/2 |
AD15.8 |
20.9 |
15 |
50 |
HX-NLT.PF1/2-AD15.8 |
|
G(PF)1/2 |
AD18.5 |
20.9 |
15 |
50 |
HX-NLT.PF1/2-AD18.5 |
|
G(PF)1/2 |
AD21.2 |
20.9 |
15 |
50 |
HX-NLT.PF1/2-AD21.2 |
|
G(PF)3/4 |
26.4 |
15 |
50 |
HX-NLT.PF3/4-AD21.2 |
|
|
G(PF)3/4 |
AD28.5 |
26.4 |
15 |
50 |
HX-NLT.PF3/4-AD28.5 |
|
G(PF)1 |
AD34.5 |
33.2 |
15 |
20 |
HX-NLT.PF1-AD34.5 |
|
G(PF)1 1/4 |
AD42.5 |
41.9 |
15 |
10 |
HX-NLT.PF1 1/4-AD42.5 |
|
G(PF)1 1/2 |
AD54.5 |
48 |
15 |
10 |
HX-NLT.PF1 1/2-AD54.5 |
|
G(PF)2 |
60 |
15 |
10 |
HX-NLT.PF2-AD54.5 |
|
|
G(PF)1 1/2 |
AD60 |
48 |
15 |
10 |
HX-NLT.PF1 1/2-AD60 |
|
G(PF)2 |
60 |
15 |
10 |
HX-NLT.PF2-AD60 |
