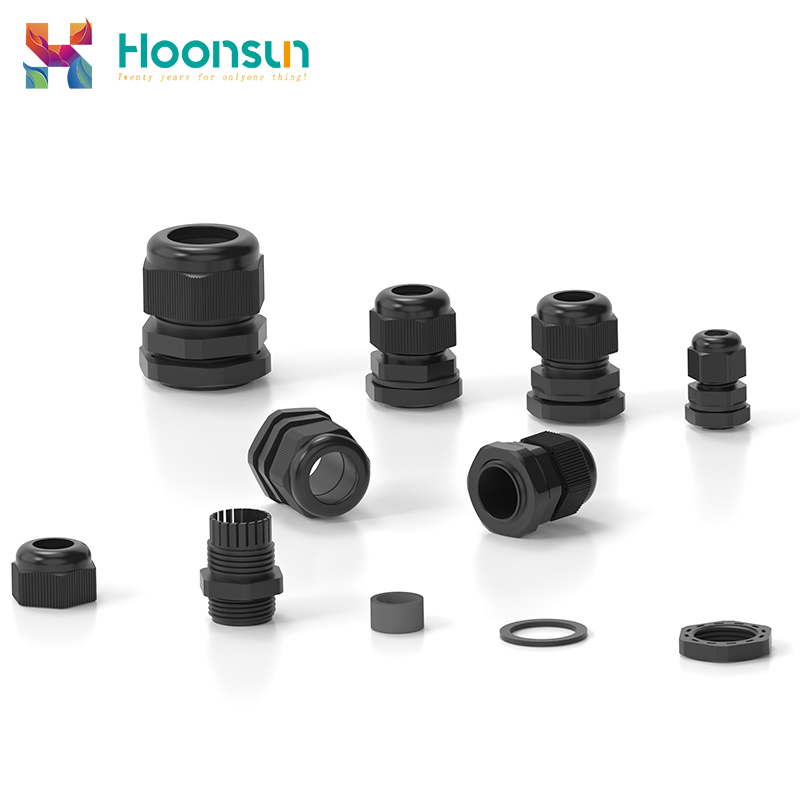

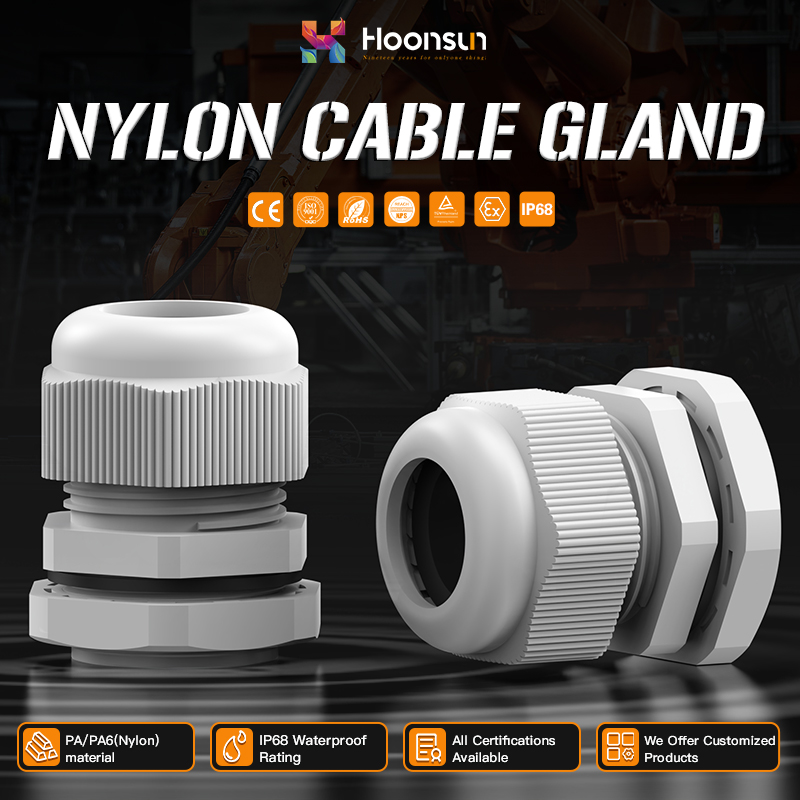

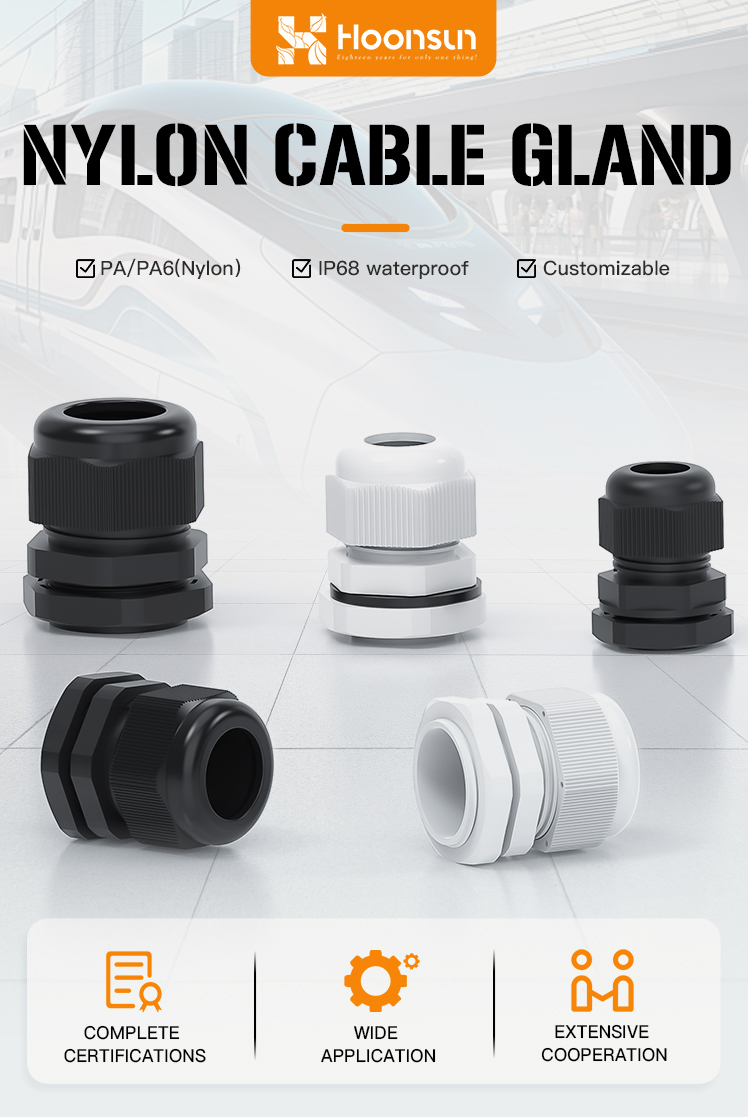

Nylon Cable Gland with IP68 and UL
The Nylon Cable Gland, an economical sealing component, offers outstanding safety, corrosion resistance and reliable cable sealing performance in electrical applications.
Certified for Global Markets：

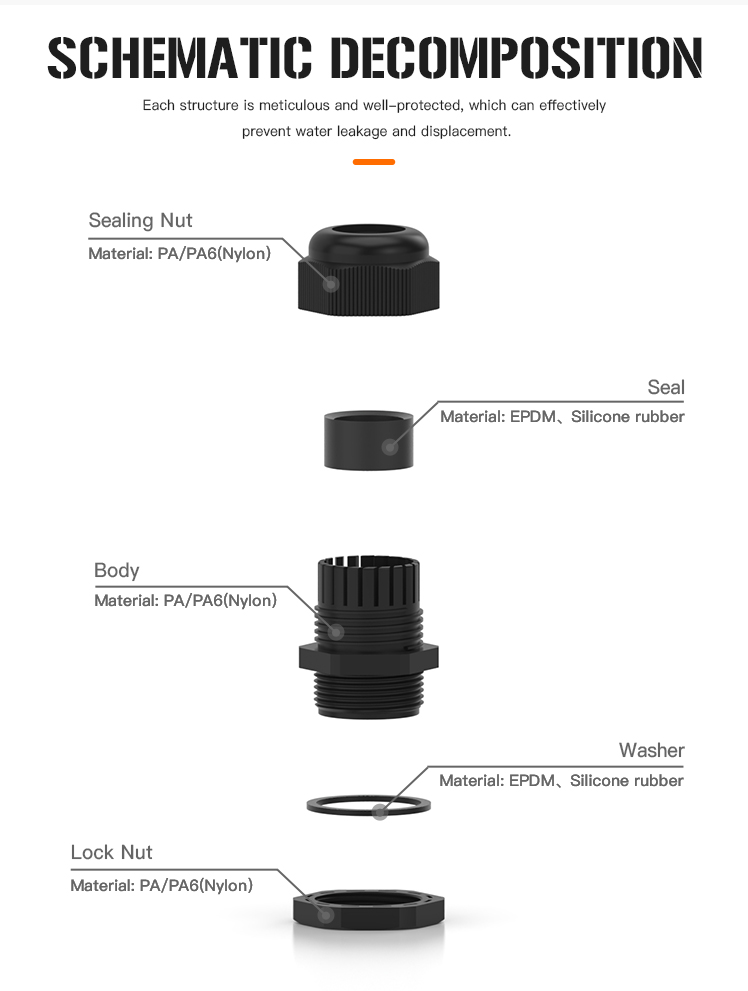

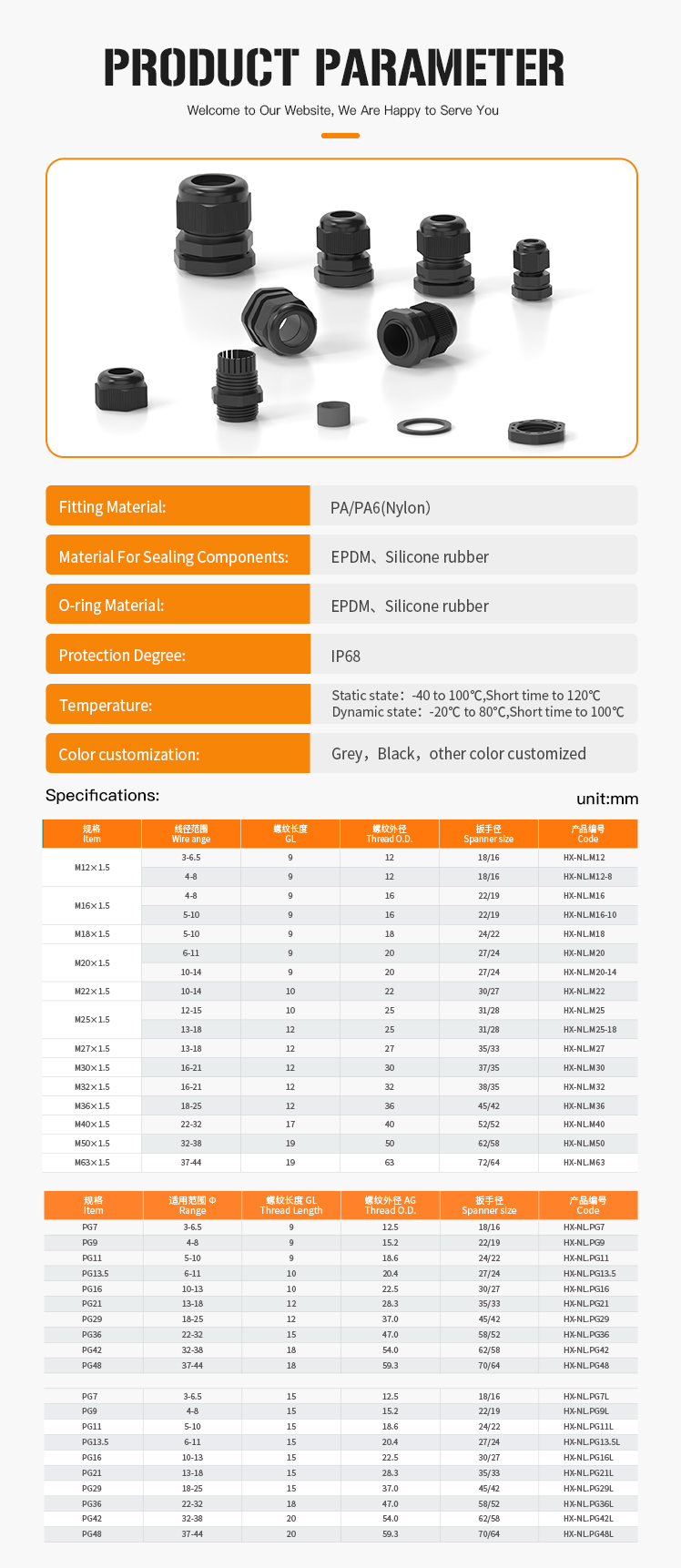

- Fitting Material PA/PA6(Nylon)
- Material For Sealing Components EPDM、Silicone rubber
- O-ring Material EPDM、Silicone rubber
- Protection Degree IP68

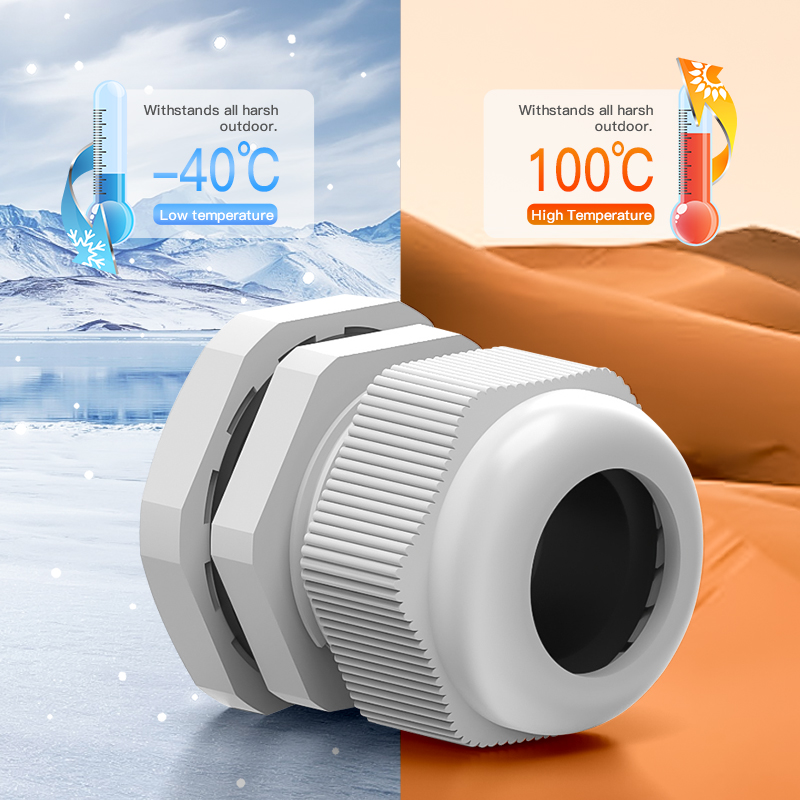

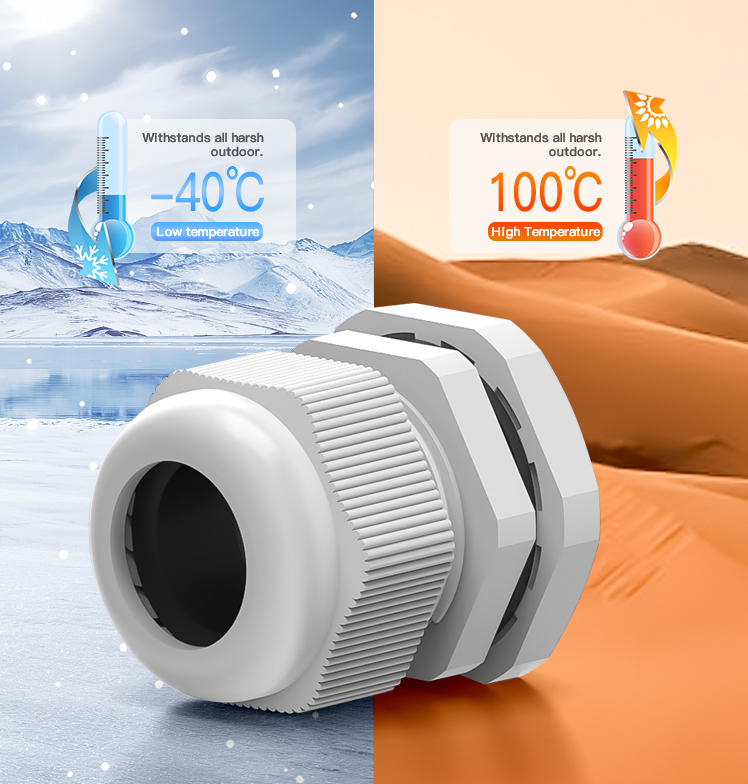

- Temperature Static state:-40 to 100℃,Short time to 120℃ Dynamic state:-20℃ to 80℃,Short time to 100℃
- Color customization Grey,Black,other color customized
Product Highlights
◆Made from durable nylon, offering excellent sealing, strain relief, and insulation
◆Lightweight yet strong, resistant to pulling, twisting, and vibration

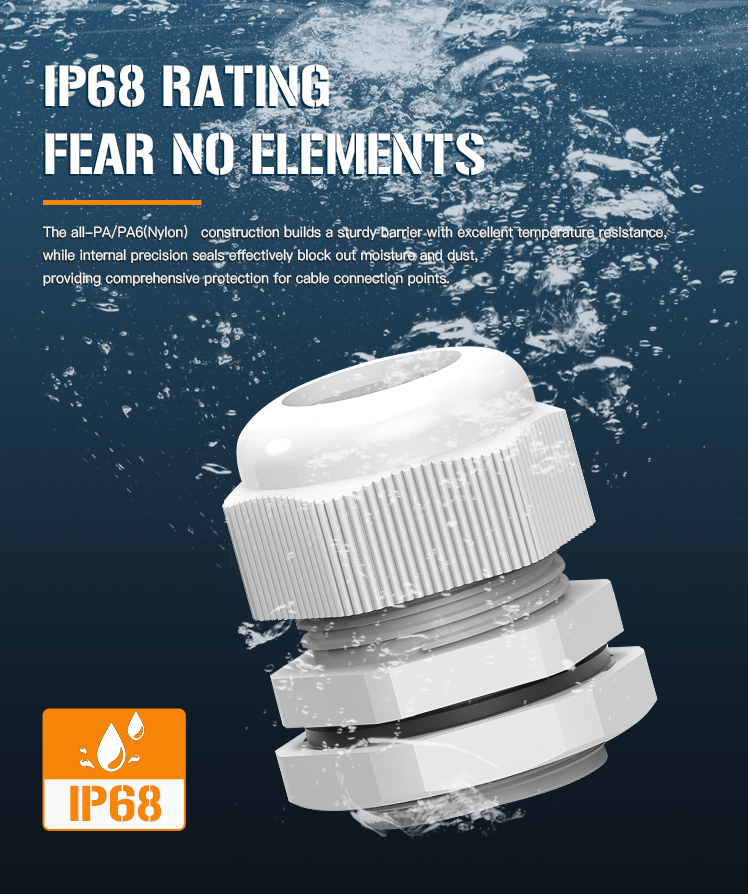

◆IP68-rated for superior waterproof and dustproof performance
◆UL-certified for safety and reliability
◆Non-conductive material ensures electrical safety
◆Resistant to corrosion, acids, oils, and most chemicals
◆Easy to install and remove without special tools
Applications
◇Electrical panels and equipment
◇Machinery and industrial control systems
◇Communication and data transmission systems
◇Outdoor or humid environments
◇Factories, marine settings, and harsh working conditions
Key Benefits
◆Safe and reliable cable protection with excellent insulation performance
◆With powerful performance, it maintains consistent performance even in harsh environments.
◆This is an economical and cost-effective solution with low maintenance costs.
◆The design of the Nylon Cable Gland is flexible and can accommodate various sizes of cables.
◆Compared with metal products, this product is lighter, more durable and has a lower cost.

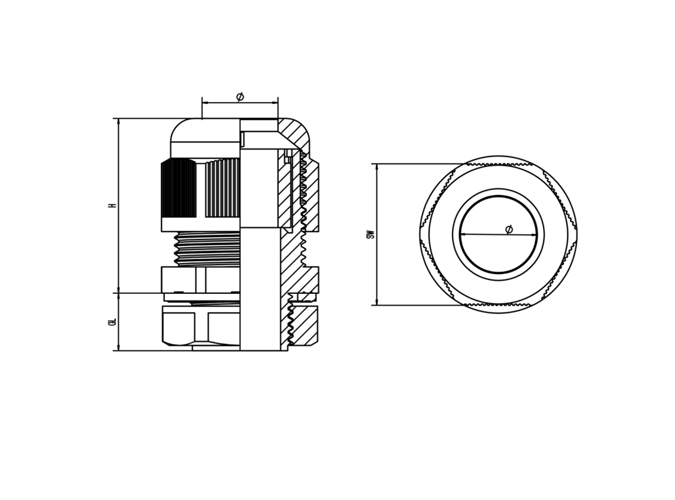

unit:mm
|
Code |
Scope of application |
AG Thread size |
GL Length of thread |
SW Torque wrench size |
|
HX-NL.M12-6.5B |
3-6.5 |
M12*1.5 |
8 |
18/15 |
|
Item |
Wire ange |
GL |
Thread O.D. |
Spanner size |
Code |
|
M12×1.5 |
3-6.5 |
9 |
12 |
18/16 |
HX-NL.M12 |
|
4-8 |
9 |
12 |
18/16 |
HX-NL.M12-8 |
|
|
M16×1.5 |
4-8 |
9 |
16 |
22/19 |
HX-NL.M16 |
|
5-10 |
9 |
16 |
22/19 |
HX-NL.M16-10 |
|
|
M18×1.5 |
5-10 |
9 |
18 |
24/22 |
HX-NL.M18 |
|
M20×1.5 |
6-11 |
9 |
20 |
27/24 |
HX-NL.M20 |
|
10-14 |
9 |
20 |
27/24 |
HX-NL.M20-14 |
|
|
M22×1.5 |
10-14 |
10 |
22 |
30/27 |
HX-NL.M22 |
|
M25×1.5 |
12-15 |
10 |
25 |
31/28 |
HX-NL.M25 |
|
13-18 |
12 |
25 |
31/28 |
HX-NL.M25-18 |
|
|
M27×1.5 |
13-18 |
12 |
27 |
35/33 |
HX-NL.M27 |
|
M30×1.5 |
16-21 |
12 |
30 |
37/35 |
HX-NL.M30 |
|
M32×1.5 |
16-21 |
12 |
32 |
38/35 |
HX-NL.M32 |
|
M36×1.5 |
18-25 |
12 |
36 |
45/42 |
HX-NL.M36 |
|
M40×1.5 |
22-32 |
17 |
40 |
52/52 |
HX-NL.M40 |
|
M50×1.5 |
32-38 |
19 |
50 |
62/58 |
HX-NL.M50 |
|
M63×1.5 |
37-44 |
19 |
63 |
72/64 |
HX-NL.M63 |
