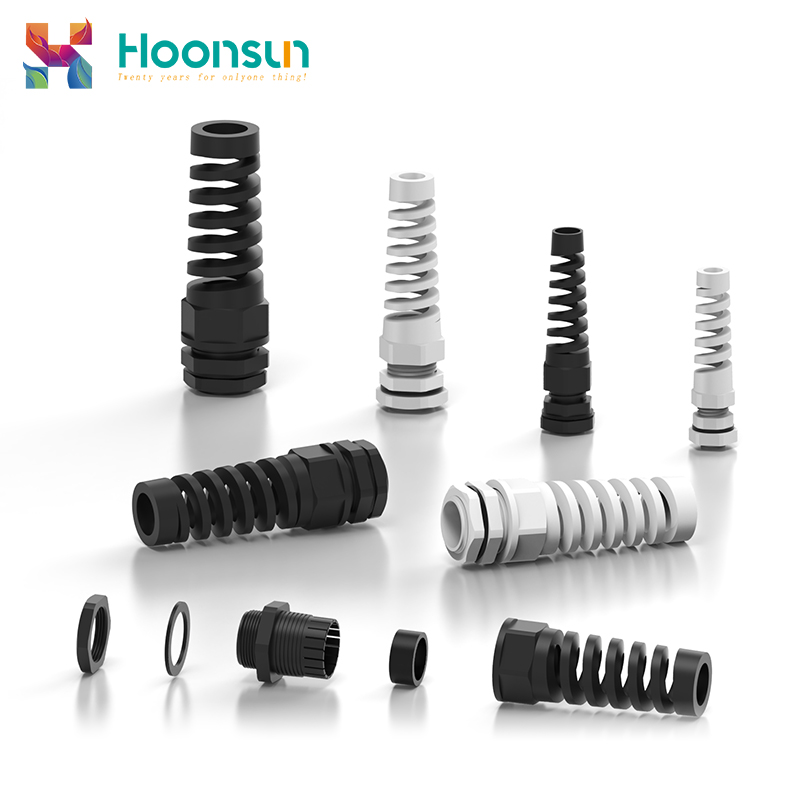

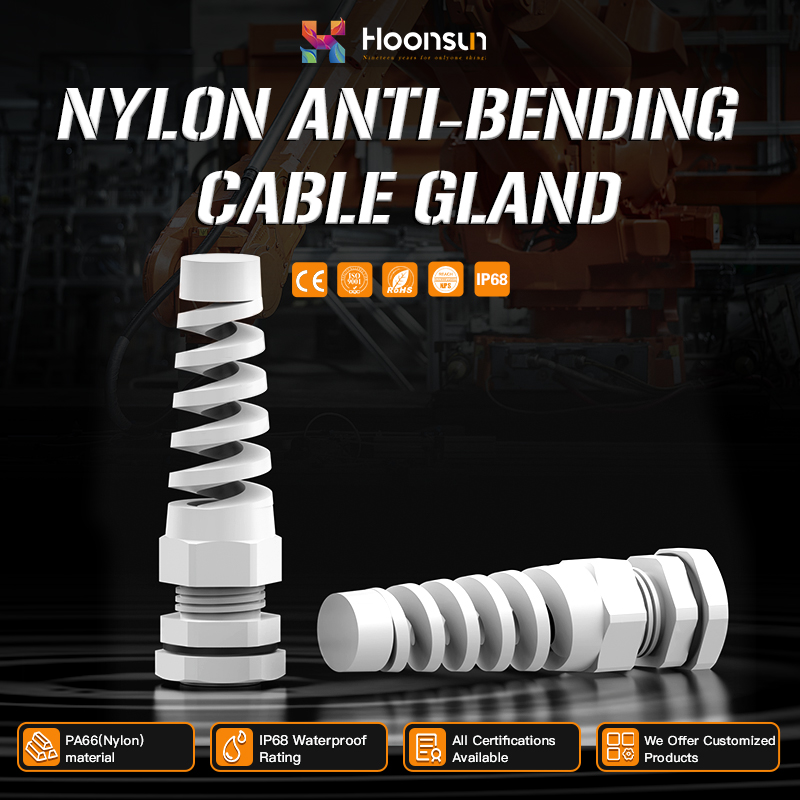

Nylon Anti-Bending Cable Gland Rated IP68 and UL Listed
The Nylon Anti-Bending Cable Gland features an integrated structure to prevent cable damage from over-bending, offering IP68 protection, UL listing, and durable nylon construction.
Certified for Global Markets：
- Fitting Material PA66 (Nylon)
- Material For Sealing Components EPDM、Silicone rubber
- O-ring Material EPDM、Silicone rubber
- Protection Degree IP68

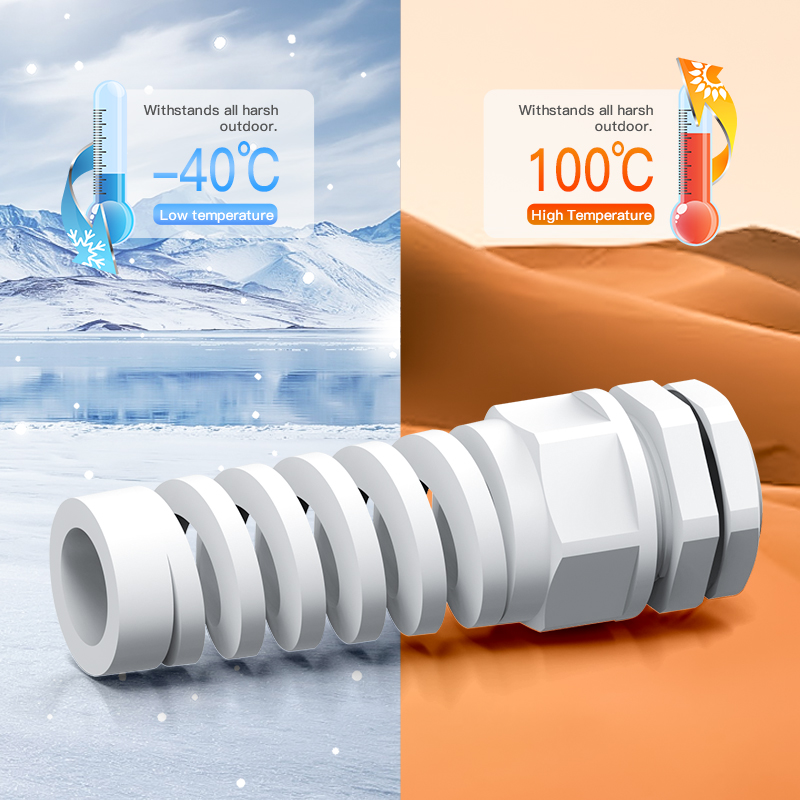

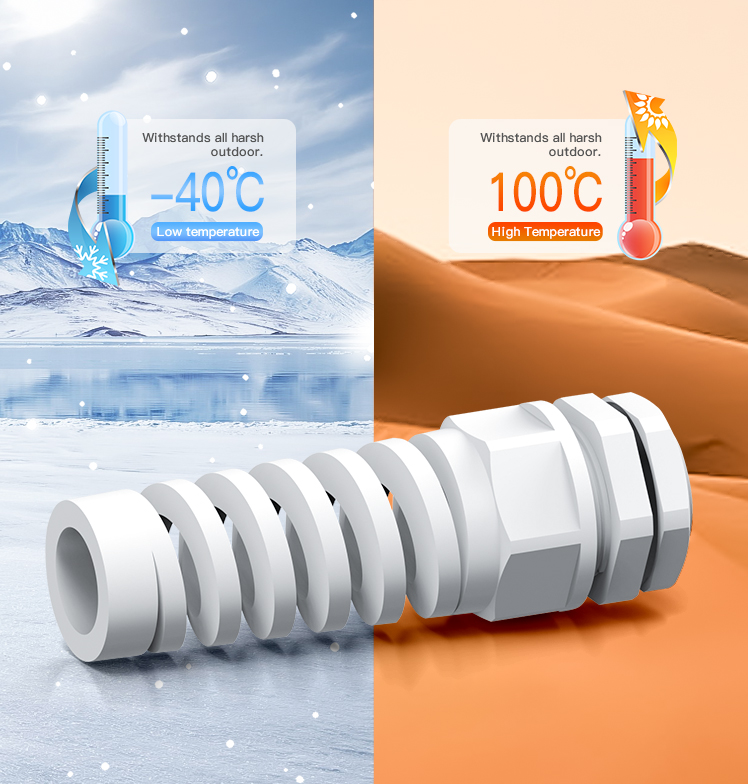

- Temperature Min-40℃, Max100℃,Short-time120℃
- Color customization Grey,Black,other color customized
Product Highlights

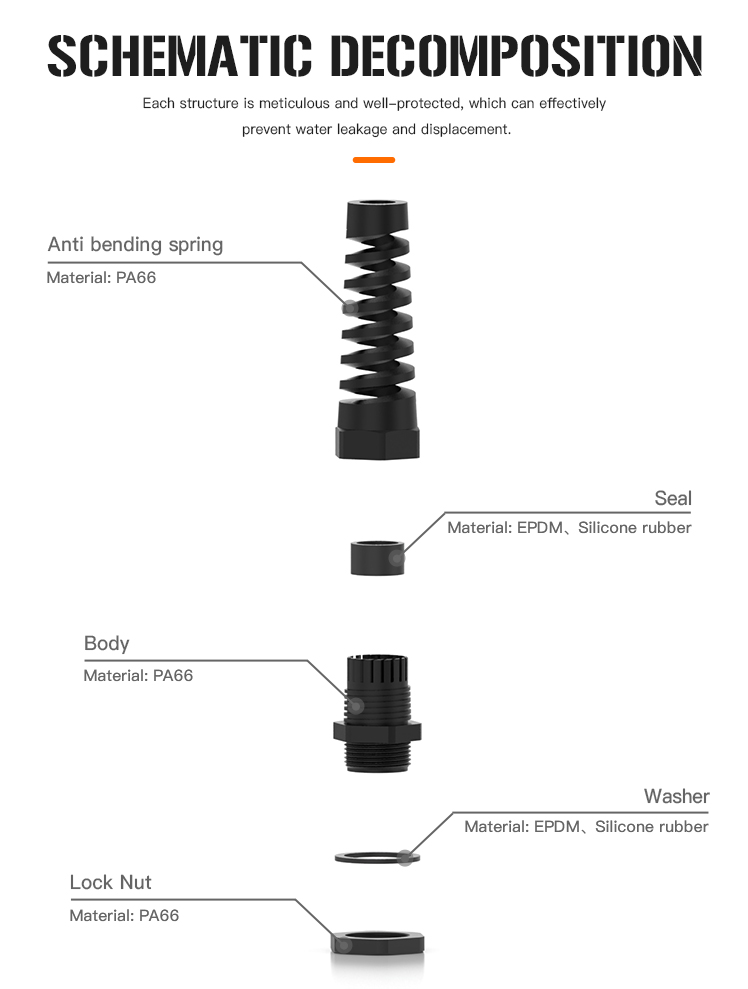

◆Core Anti-Bending Design
Features an integrated anti-bending structure that effectively limits the cable's bending radius at the joint. This key design is crucial for preventing core wire breakage and insulation layer damage caused by excessive bending, thereby significantly extending the overall service life of the connected cable.
◆Robust Nylon Construction
Manufactured from high-quality nylon material, this cable gland is not only lightweight and cost-effective but also offers excellent resistance to corrosion, aging, and deformation. This makes it a durable and reliable choice for long-term use.

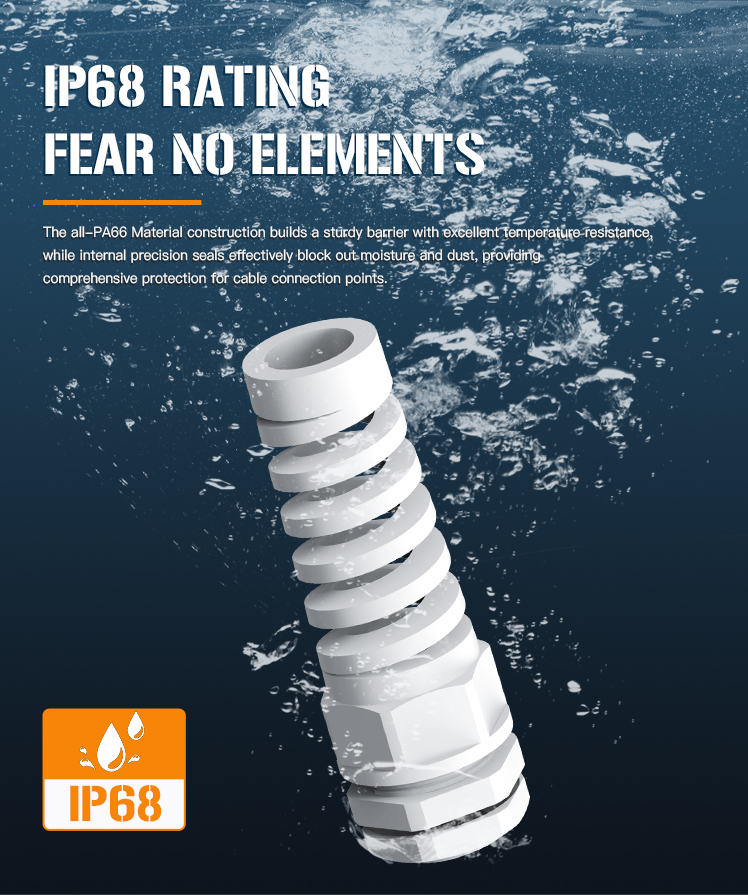

◆Effective Sealing Performance
Provides a solid IP68 protection rating, ensuring complete dust-tightness and the ability to withstand continuous submersion in water under specified conditions. It effectively seals out dust, moisture, and mild oil splashes, guaranteeing a stable and protected connection for cable entries.
◆UL Listed Compliance
The product is UL Listed, confirming it has undergone rigorous independent testing for safety. This provides an additional layer of trust and assurance for users and is often a requirement for projects and installations in North America.
Applications
This versatile nylon cable gland is ideally suited for a wide range of indoor and outdoor applications where reliable cable protection and sealing are required. It is commonly used in industrial control systems, electrical cabinets, machinery equipment, outdoor lighting, and automation technology. It is perfect for general environments in settings such as factories, manufacturing plants, and infrastructure projects that require protection against dust, water, and mechanical stress like cable bending.
Key Benefits
◆Enhanced Cable Durability
The specialized anti-bending design directly prevents one of the most common points of cable failure, reducing maintenance needs and replacement costs by protecting against wire breakage.
◆Superior Environmental Protection
With an IP68 rating, it offers peace of mind by creating a highly secure seal that guards against harsh elements like dust and water ingress, even in demanding conditions.
◆Long-Term Reliability & Cost Savings
The high-quality nylon material ensures the gland itself withstands environmental challenges without corroding or degrading, offering a great balance of performance and cost-effectiveness over its long service life.
◆Quick and Easy Installation
Its compact and user-friendly design allows for fast, tool-free installation by hand. This simplifies the wiring process, saves valuable time on the job, and is highly efficient for batch wiring scenarios and large-scale projects.

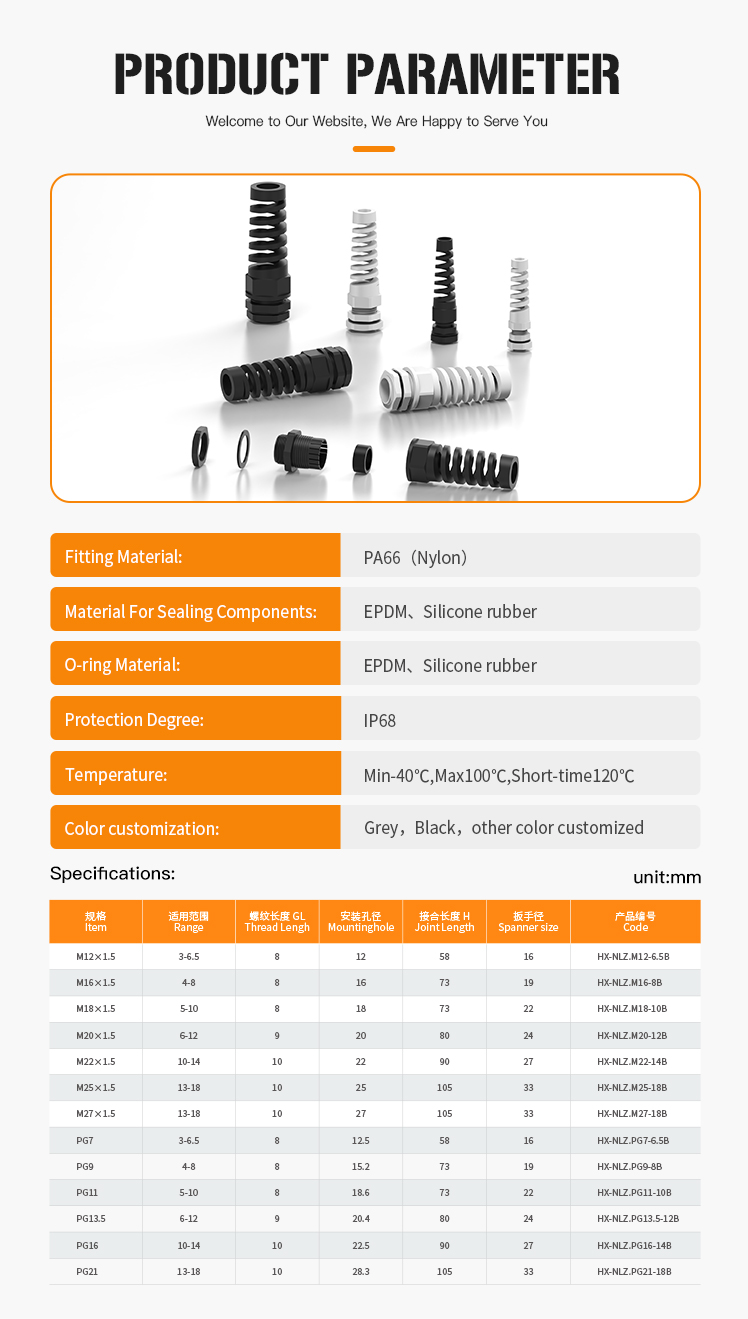

unit:mm
|
Item |
Range |
GL Thread Lengh |
Mountinghole |
H Joint Length |
Spanner size |
Code |
|
M12×1.5 |
3-6.5 |
8 |
12 |
58 |
16 |
HX-NLZ.M12-6.5B |
|
M16×1.5 |
4-8 |
8 |
16 |
73 |
19 |
HX-NLZ.M16-8B |
|
M18×1.5 |
5-10 |
8 |
18 |
73 |
22 |
HX-NLZ.M18-10B |
|
M20×1.5 |
6-12 |
9 |
20 |
80 |
24 |
HX-NLZ.M20-12B |
|
M22×1.5 |
10-14 |
10 |
22 |
90 |
27 |
HX-NLZ.M22-14B |
|
M25×1.5 |
13-18 |
10 |
25 |
105 |
33 |
HX-NLZ.M25-18B |
|
M27×1.5 |
13-18 |
10 |
27 |
105 |
33 |
HX-NLZ.M27-18B |
|
PG7 |
3-6.5 |
8 |
12.5 |
58 |
16 |
HX-NLZ.PG7-6.5B |
|
PG9 |
4-8 |
8 |
15.2 |
73 |
19 |
HX-NLZ.PG9-8B |
|
PG11 |
5-10 |
8 |
18.6 |
73 |
22 |
HX-NLZ.PG11-10B |
|
PG13.5 |
6-12 |
9 |
20.4 |
80 |
24 |
HX-NLZ.PG13.5-12B |
|
PG16 |
10-14 |
10 |
22.5 |
90 |
27 |
HX-NLZ.PG16-14B |
|
PG21 |
13-18 |
10 |
28.3 |
105 |
33 |
HX-NLZ.PG21-18B |
