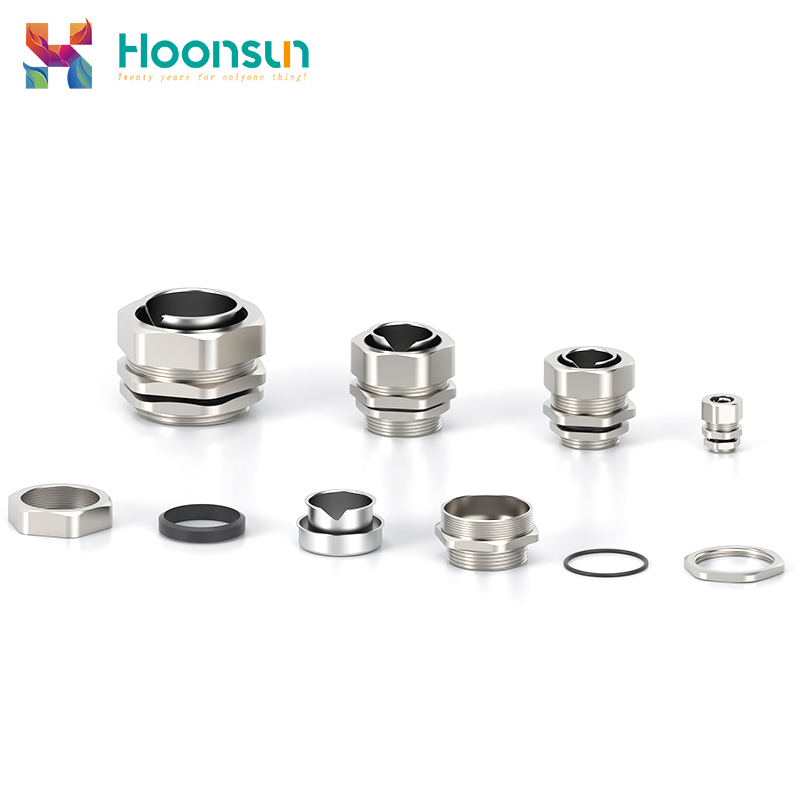

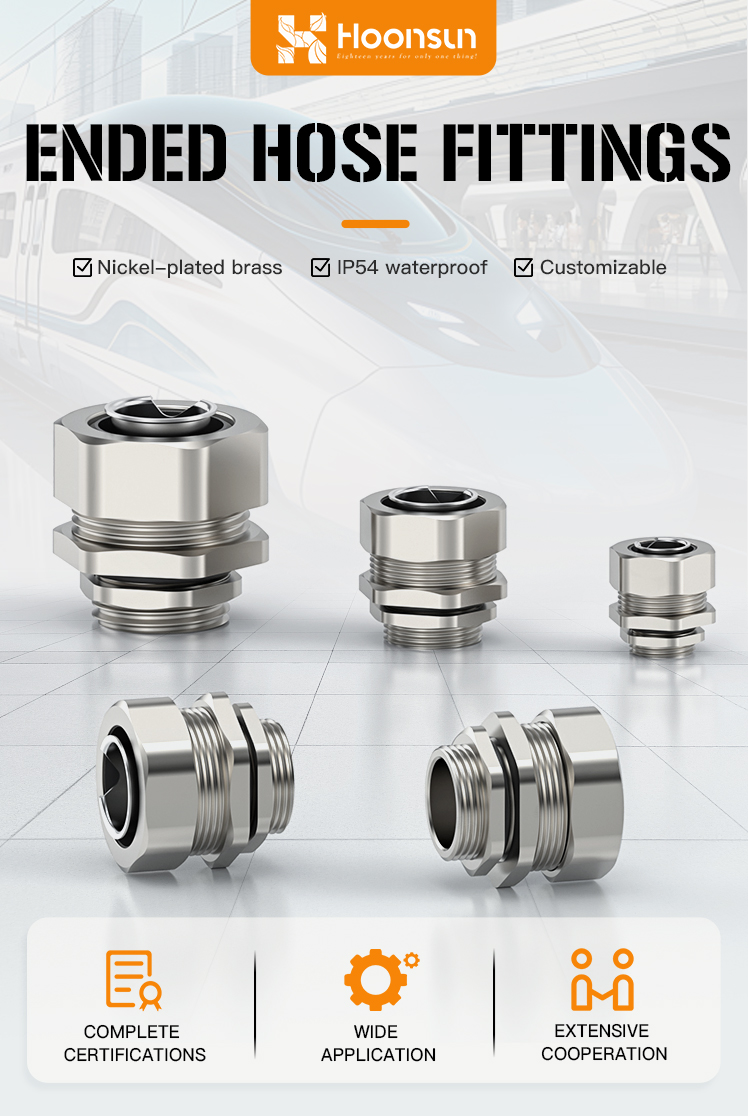

Nickel-plated brass Hose cable gland
Nickel-plated brass Hose cable gland is a versatile and reliable metal hose product that is widely used in various industrial systems.
Certified for Global Markets：

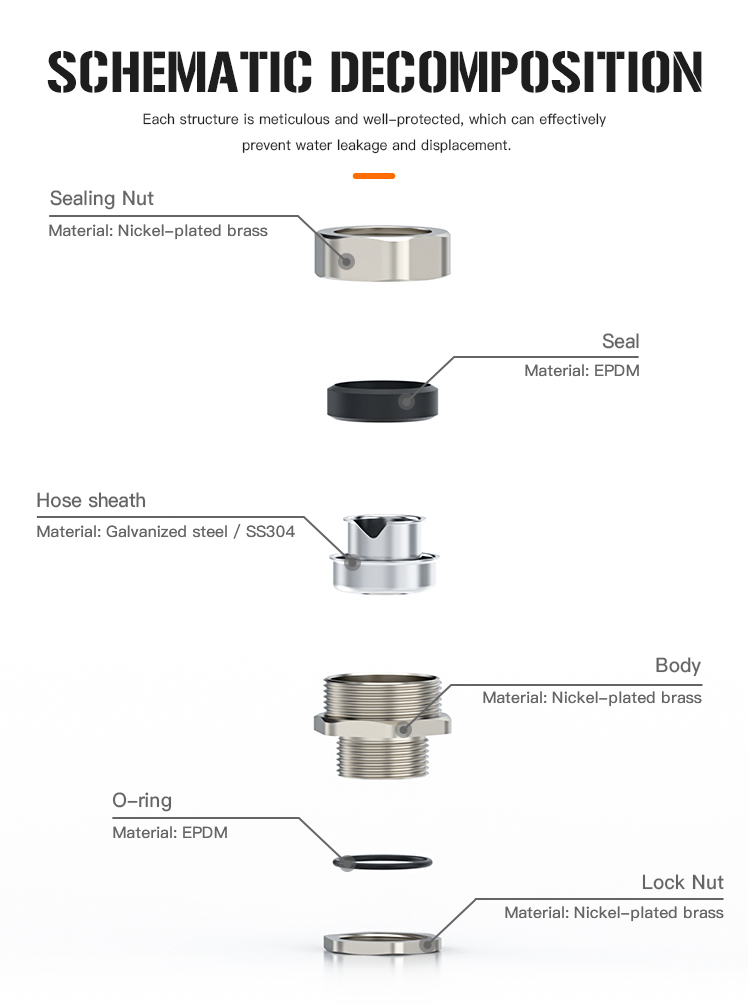

- Fitting Material Nickel-plated brass/SS304/SS316L
- Material For Sealing Components EPDM
- O-ring Material EPDM
- Ferrule Material Galvanized steel/SS304
- Protection Degree IP54
- Temperature -40℃~105℃
Product Highlights
◆Made from high-quality stainless steel or other corrosion-resistant metals.
◆Features a corrugated design for excellent flexibility.
◆Comes with IP68 and UL certificates, ensuring high standards of safety and reliability.
◆Offers a leak-proof design for secure operation.
Applications
◇Chemical and Petrochemical Plants for transferring aggressive acids, alkalis, and solvents, as well as connecting critical oil and gas pipelines and loading arms.
◇HVAC and Plumbing Systems to efficiently circulate refrigerants, handle hot water lines, and connect pumps while absorbing vibration and compensating for movement.
◇Power Stations and Refineries to reliably manage high pressure steam lines, fuel transfer systems, and exhaust conduits under extreme operating conditions.
◇Food and Pharmaceutical Manufacturing for transporting sensitive ingredients and clean in place steam, meeting stringent hygiene standards with their corrosion resistant surfaces.
◇Automotive and Aerospace Industries serving in durable exhaust assemblies, efficient fuel and brake lines, and vital hydraulic systems on board vehicles and aircraft.
Key Benefits
◆Durable & Long-Lasting
Resists heat, pressure, and corrosion, reducing replacement costs and downtime.
◆Excellent Heat & Pressure Resistance
Performs reliably in extreme temperatures and under high pressure.
◆Flexible & Easy to Install
Bends easily for simple installation in tight spaces and absorbs vibration.
◆Safe & Leak-Proof
Prevents cracks and bursts, ensuring safe transport of hazardous materials and reducing environmental risks.

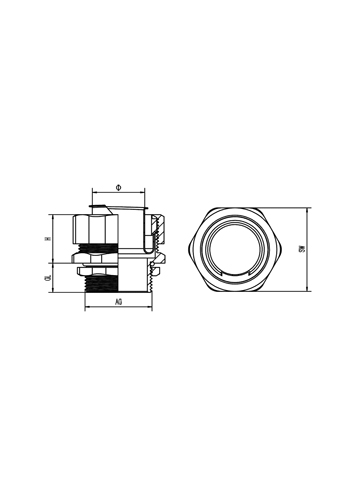

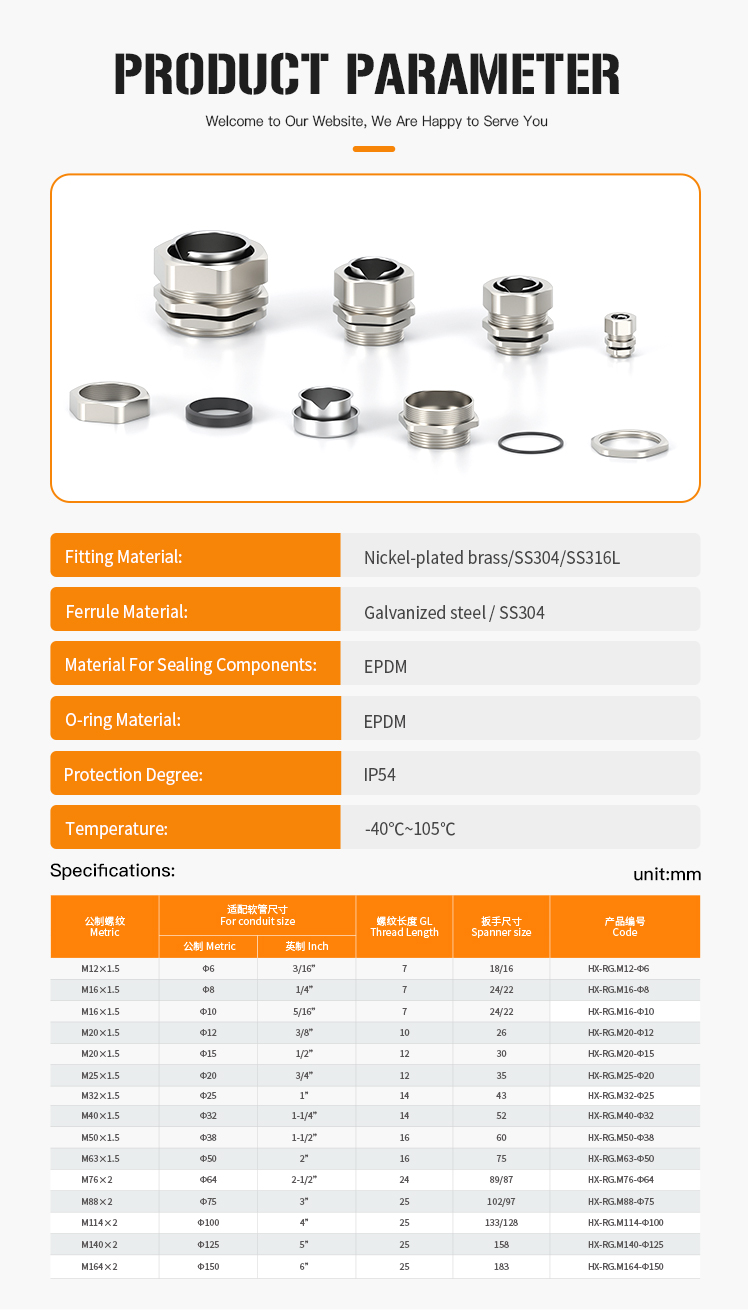

unit:mm
|
Metric |
For conduit size |
GL Thread Length |
Spanner size |
Code |
|
|
Metric |
Inch |
||||
|
M12×1.5 |
φ6 |
3/16" |
7 |
18/16 |
HX-RG.M12-φ6 |
|
M16×1.5 |
φ8 |
1/4” |
7 |
24/22 |
HX-RG.M16-φ8 |
|
M16×1.5 |
φ10 |
5/16” |
7 |
24/22 |
HX-RG.M16-φ10 |
|
M20×1.5 |
φ12 |
3/8” |
10 |
26 |
HX-RG.M20-φ12 |
|
M20×1.5 |
φ15 |
1/2” |
12 |
30 |
HX-RG.M20-φ15 |
|
M25×1.5 |
φ20 |
3/4” |
12 |
35 |
HX-RG.M25-φ20 |
|
M32×1.5 |
φ25 |
1” |
14 |
43 |
HX-RG.M32-φ25 |
|
M40×1.5 |
φ32 |
1-1/4” |
14 |
52 |
HX-RG.M40-φ32 |
|
M50×1.5 |
φ38 |
1-1/2” |
16 |
60 |
HX-RG.M50-φ38 |
|
M63×1.5 |
φ50 |
2” |
16 |
75 |
HX-RG.M63-φ50 |
|
M76×2 |
φ64 |
2-1/2” |
24 |
89/87 |
HX-RG.M76-φ64 |
|
M88×2 |
φ75 |
3" |
25 |
102/97 |
HX-RG.M88-φ75 |
|
M114×2 |
φ100 |
4” |
25 |
133/128 |
HX-RG.M114-φ100 |
|
M140×2 |
φ125 |
5" |
25 |
158 |
HX-RG.M140-φ125 |
|
M164×2 |
φ150 |
6" |
25 |
183 |
HX-RG.M164-φ150 |
