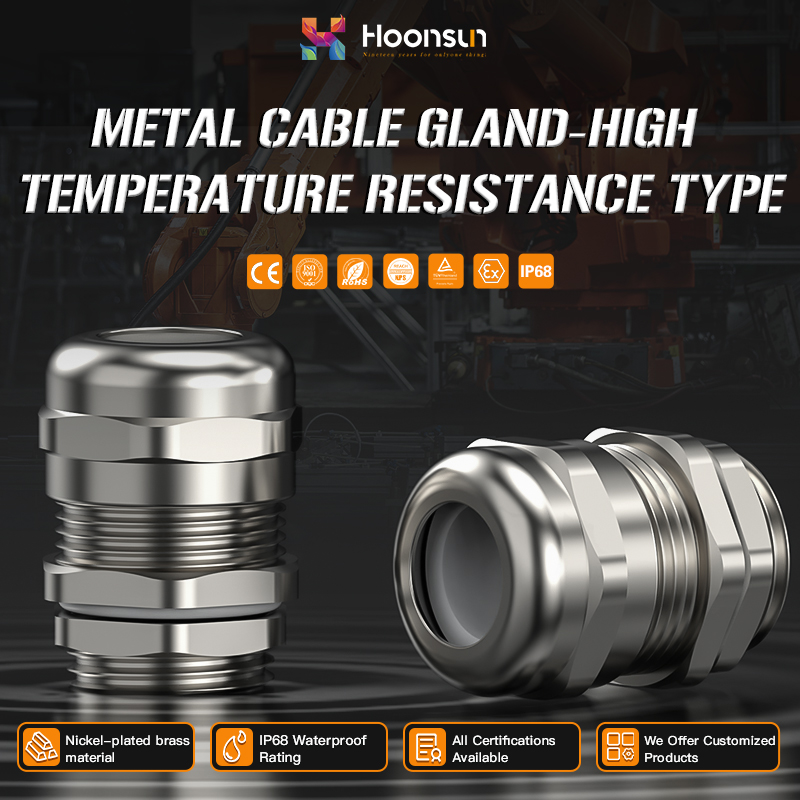

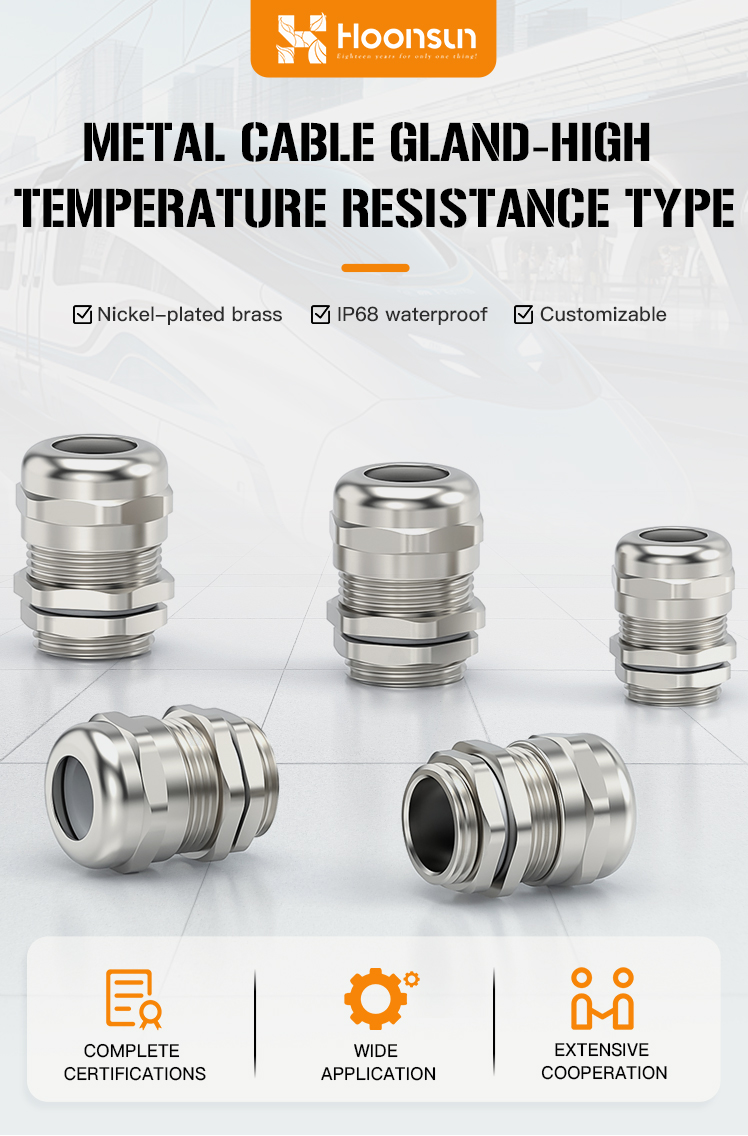

NGS High Temperature Resistance Metal Cable Gland with UL and IP68
The NGS High Temperature Resistance Metal Cable Gland is made of 316 stainless steel and can be used in an extreme temperature range of -60℃ to +250℃.
Certified for Global Markets：

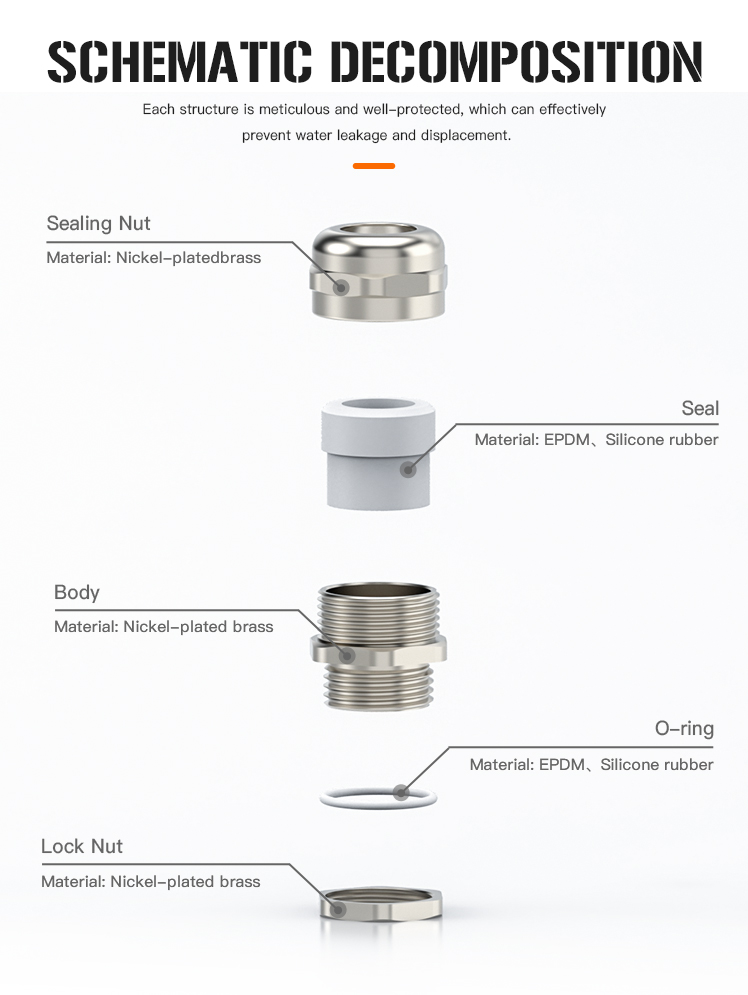

- Fitting Material Nickel-platedbrass
- Material For Sealing Components EPDM、Silicone rubber
- O-ring Material EPDM、Silicone rubberr
- Protection Degree IP68-10 bar
- Temperature Static state:-60 to 250℃
Product Highlights

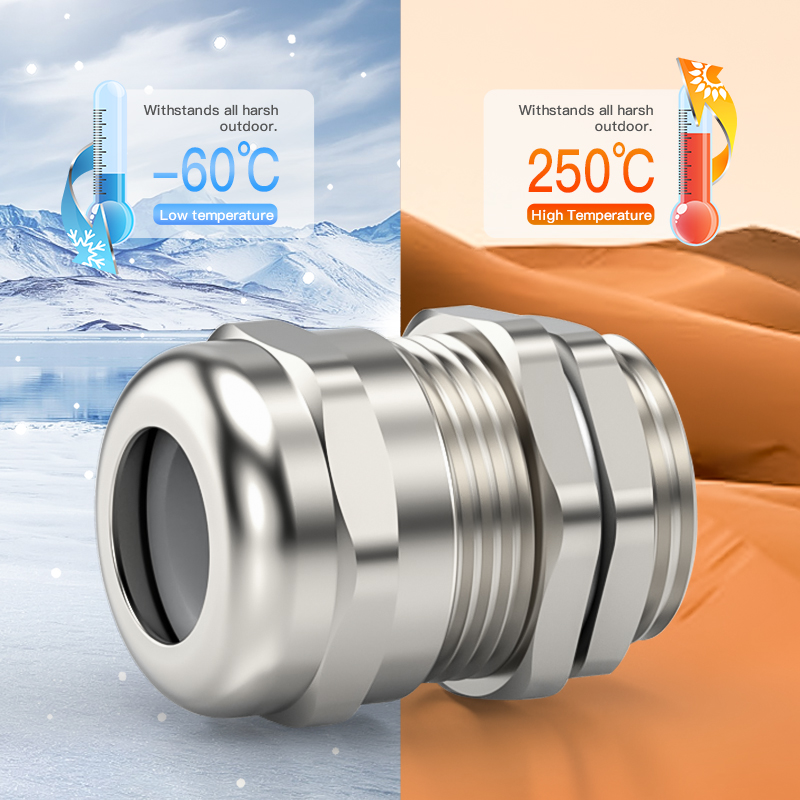

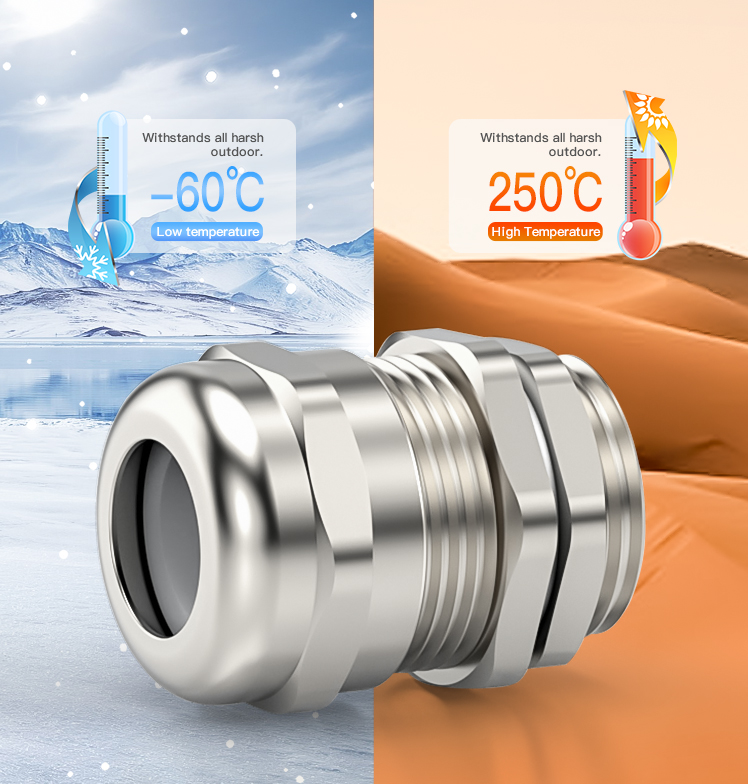

◆Exceptional high-temperature performance, reliably operating from -60°C to +250°C
◆Constructed from 316 stainless steel with specialized heat-resistant seals (silicone or fluororubber)

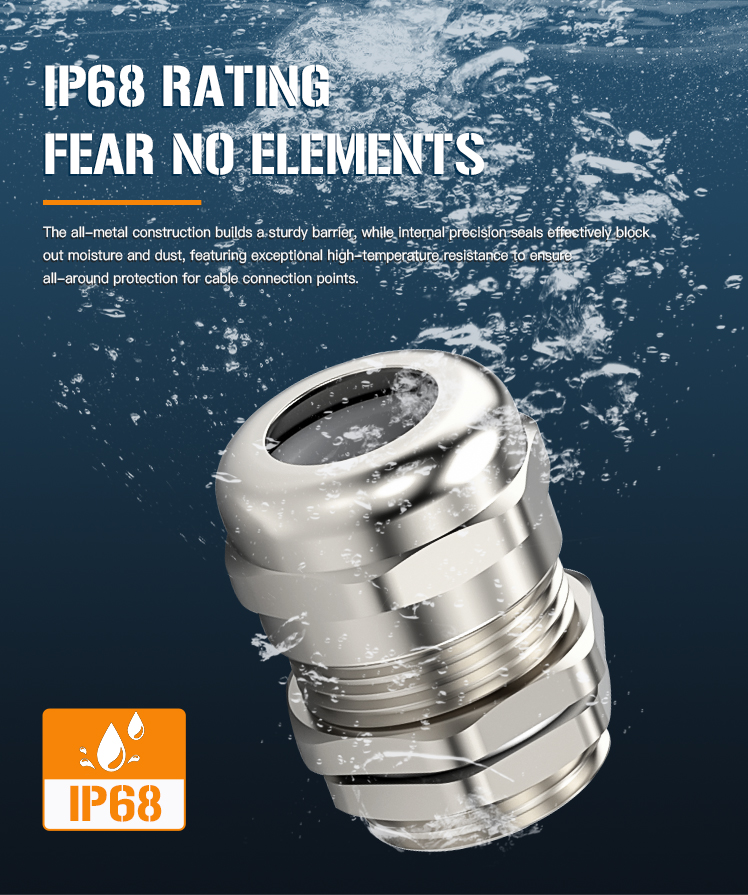

◆IP68-rated protection against dust, oil, and steam ingress
◆Supports PG, NPT, and Metric threads for easy global installation
◆Fully complies with IEC and CE standards
Applications
◇Industrial Furnaces - Provides reliable sealing in high-heat industrial thermal processing environments.
◇Metallurgical Systems - Withstands the extreme temperatures and harsh conditions of metal processing and handling equipment.
◇Energy Plants - Ensures connection integrity and safety in power generation and distribution facilities.
◇High-Heat Automation Equipment - Protects cable connections in automated machinery operating under continuous thermal stress.
Key Benefits
◆Maintains sealing integrity under continuous high-temperature operation
◆Offers thermal stability, corrosion resistance, and mechanical durability
◆Resists oxidation and thermal expansion for extended service life
◆Ensures electrical safety and reliability with minimal maintenance
◆Provides a professional-grade sealing solution for extreme thermal conditions

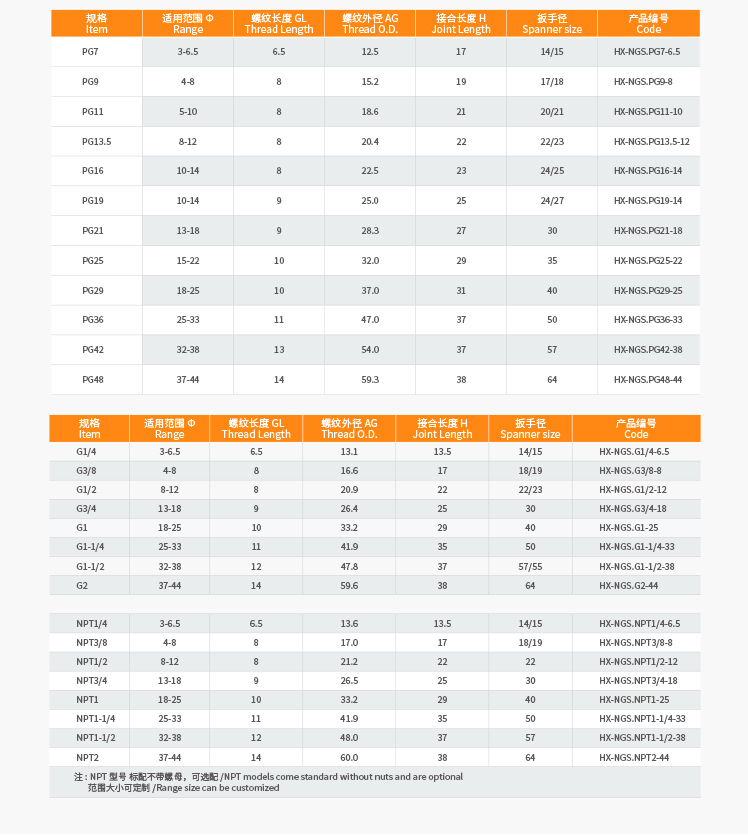

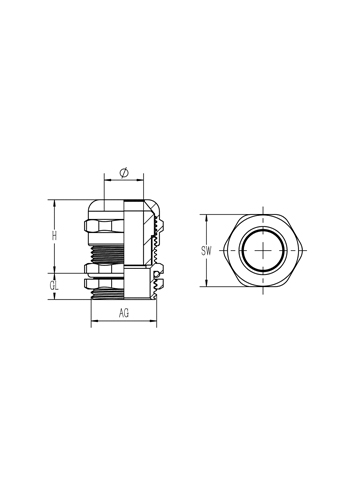

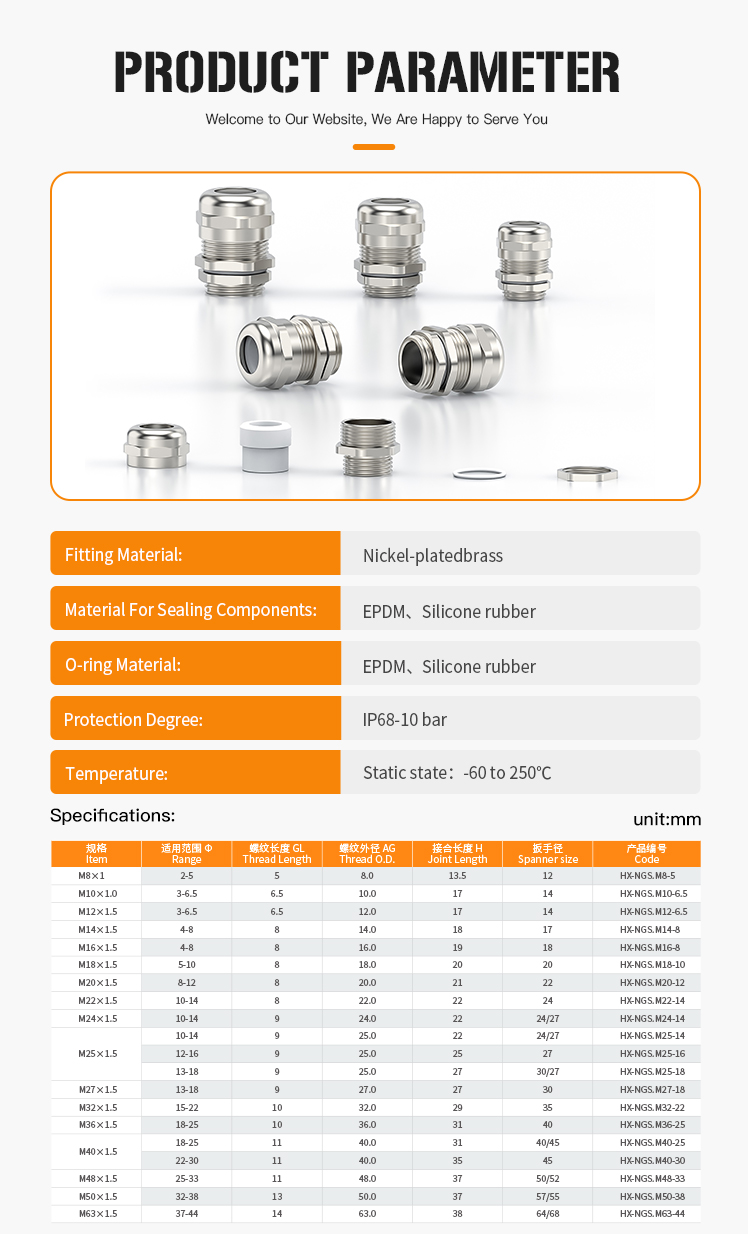

unit:mm
|
Item |
Range |
GL Thread Length |
AG Thread O.D. |
H Joint Length |
Spanner size |
Code |
|
M8×1 |
2-5 |
5 |
8.0 |
13.5 |
12 |
HX-NGS.M8-5 |
|
M10×1.0 |
3-6.5 |
6.5 |
10.0 |
17 |
14 |
HX-NGS.M10-6.5 |
|
M12×1.5 |
3-6.5 |
6.5 |
12.0 |
17 |
14 |
HX-NGS.M12-6.5 |
|
M14×1.5 |
4-8 |
8 |
14.0 |
18 |
17 |
HX-NGS.M14-8 |
|
M16×1.5 |
4-8 |
8 |
16.0 |
19 |
18 |
HX-NGS.M16-8 |
|
M18×1.5 |
5-10 |
8 |
18.0 |
20 |
20 |
HX-NGS.M18-10 |
|
M20×1.5 |
8-12 |
8 |
20.0 |
21 |
22 |
HX-NGS.M20-12 |
|
M22×1.5 |
10-14 |
8 |
22.0 |
22 |
24 |
HX-NGS.M22-14 |
|
M24×1.5 |
10-14 |
9 |
24.0 |
22 |
24/27 |
HX-NGS.M24-14 |
|
M25×1.5 |
10-14 |
9 |
25.0 |
22 |
24/27 |
HX-NGS.M25-14 |
|
12-16 |
9 |
25.0 |
25 |
27 |
HX-NGS.M25-16 |
|
|
13-18 |
9 |
25.0 |
27 |
30/27 |
HX-NGS.M25-18 |
|
|
M27×1.5 |
13-18 |
9 |
27.0 |
27 |
30 |
HX-NGS.M27-18 |
|
M32×1.5 |
15-22 |
10 |
32.0 |
29 |
35 |
HX-NGS.M32-22 |
|
M36×1.5 |
18-25 |
10 |
36.0 |
31 |
40 |
HX-NGS.M36-25 |
|
M40×1.5 |
18-25 |
11 |
40.0 |
31 |
40/45 |
HX-NGS.M40-25 |
|
22-30 |
11 |
40.0 |
35 |
45 |
HX-NGS.M40-30 |
|
|
M48×1.5 |
25-33 |
11 |
48.0 |
37 |
50/52 |
HX-NGS.M48-33 |
|
M50×1.5 |
32-38 |
13 |
50.0 |
37 |
57/55 |
HX-NGS.M50-38 |
|
M63×1.5 |
37-44 |
14 |
63.0 |
38 |
64/68 |
HX-NGS.M63-44 |
