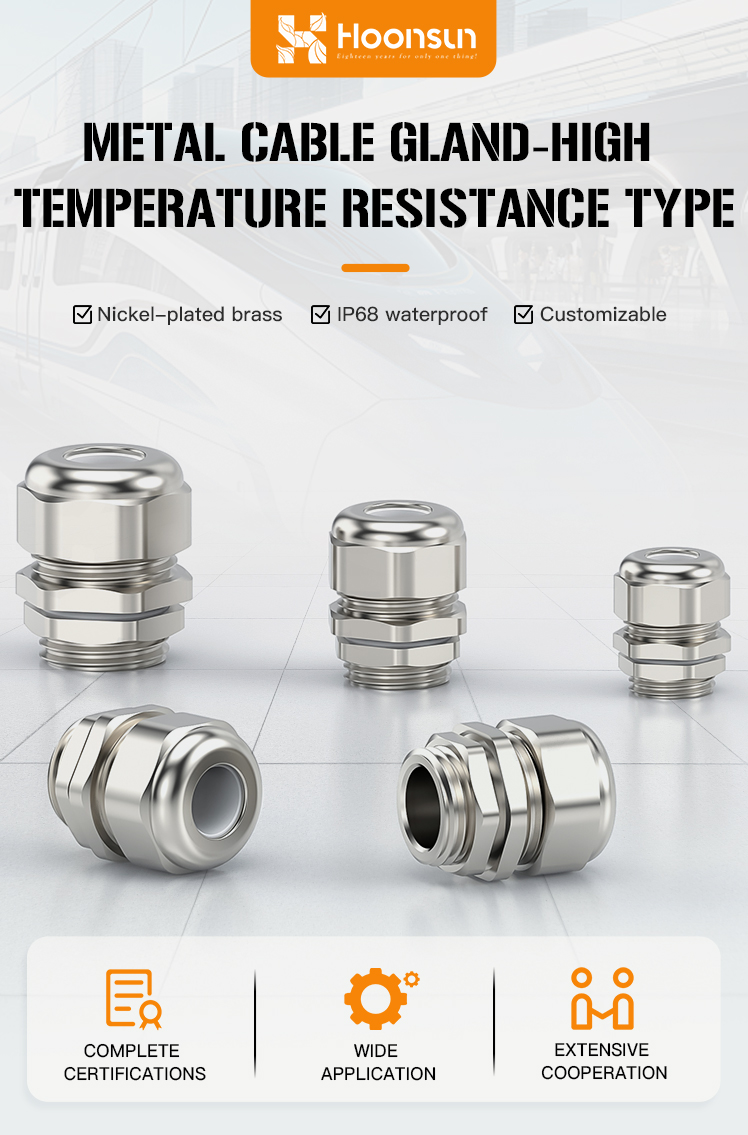

NG High Temperature Resistance Metal Cable Gland with UL and IP68
The NG High Temperature Resistance Metal Cable Gland features dust-proof, water-proof and oil-proof functions. It is suitable for cable connections in harsh environments such as those in metallurgy and chemical industries, ensuring a stable and reliable connection.
Certified for Global Markets：

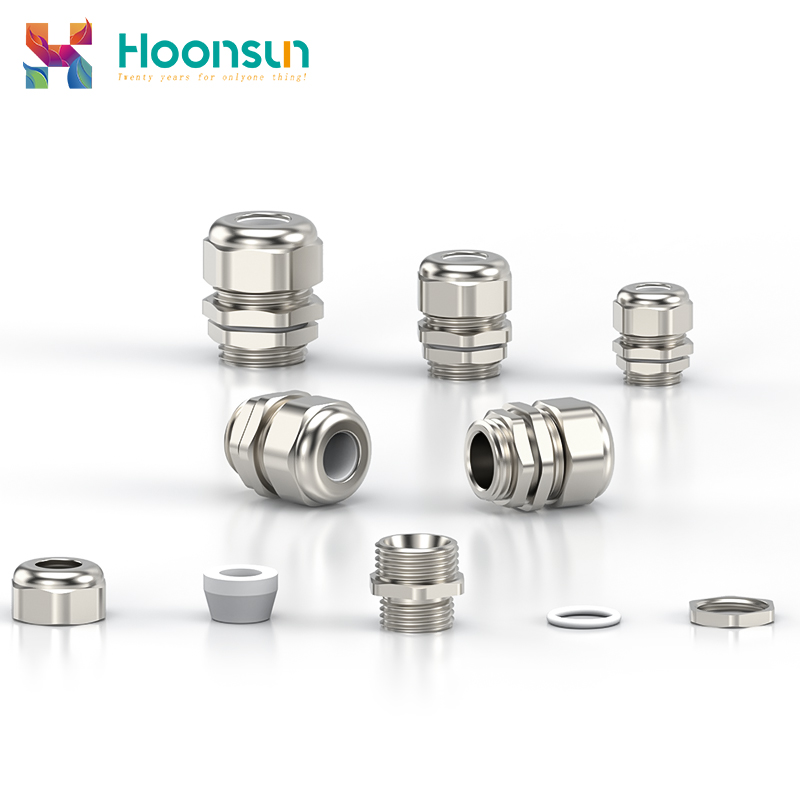

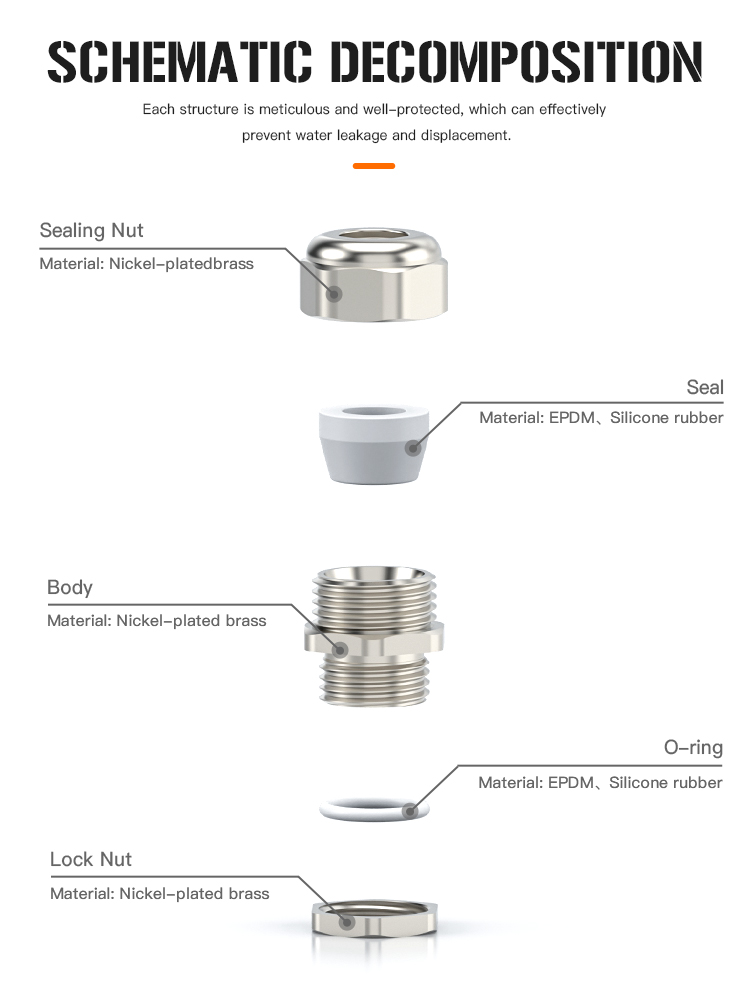

- Fitting Material Nickel-platedbrass
- Material For Sealing Components EPDM、Silicone rubber
- O-ring Material EPDM、Silicone rubber
- Protection Degree IP68-10 bar
- Temperature Static state:-60 to 250℃
Product Highlights
◆Excellent high-temperature resistance, utilizing special materials and seals capable of long-term operation in -60℃ to 250℃ environments without aging or deformation.
◆IP68+ protection rating, providing dustproof, waterproof, and oilproof performance for harsh high-temperature environments.
◆High-strength clamping structure ensures strong resistance to tensile force, vibration, and impact, preventing loosening or disconnection.
◆Compatible with various cable specifications and thread standards, ensuring easy installation and versatile use.
Applications
◇The NG High Temperature Resistance Metal Cable Gland is suitable for extremely hot and demanding environments, such as in the metallurgy, chemical, boiler and power industries.
◇It is highly suitable for cable connection scenarios in high-temperature equipment in various industries such as new energy and industrial manufacturing.
Key Benefits
◆Stable performance under extreme temperatures, ensuring safety and durability of internal core wires and signal transmission.
◆Reliable protection against environmental challenges, including dust, water, and oil.
◆Secure and durable connections that resist thermal expansion and contraction in high-temperature conditions.
◆Versatile compatibility and ease of installation for broad industrial application.

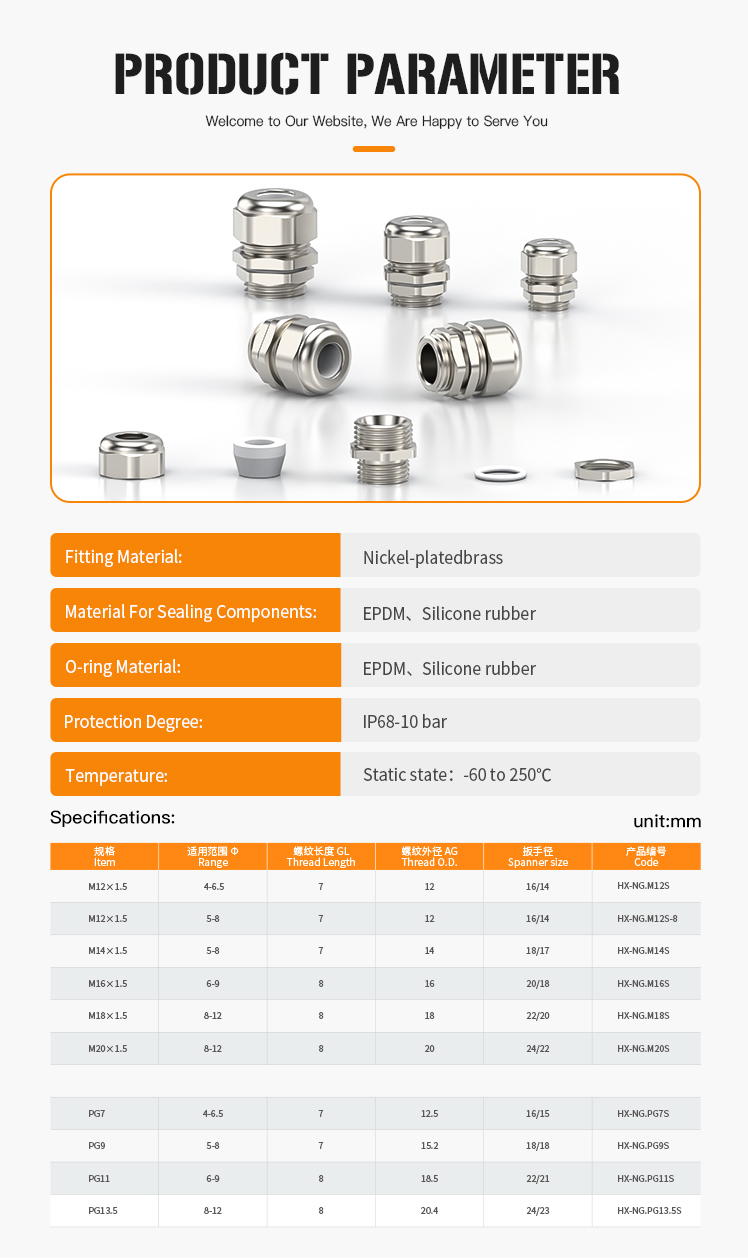

unit:mm
|
Item |
Range |

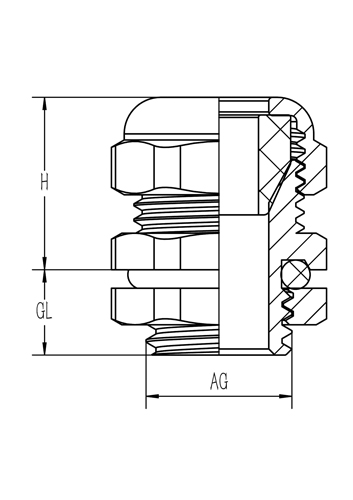

GL Thread Length |
AG Thread O.D. |
Spanner size |
Code |
|
M12×1.5 |
4-6.5 |
7 |
12 |
16/14 |
HX-NG.M12S |
|
M12×1.5 |
5-8 |
7 |
12 |
16/14 |
HX-NG.M12S-8 |
|
M14×1.5 |
5-8 |
7 |
14 |
18/17 |
HX-NG.M14S |
|
M16×1.5 |
6-9 |
8 |
16 |
20/18 |
HX-NG.M16S |
|
M18×1.5 |
8-12 |
8 |
18 |
22/20 |
HX-NG.M18S |
|
M20×1.5 |
8-12 |
8 |
20 |
24/22 |
HX-NG.M20S |
|
PG7 |
4-6.5 |
7 |
12.5 |
16/15 |
HX-NG.PG7S |
|
PG9 |
5-8 |
7 |
15.2 |
18/18 |
HX-NG.PG9S |
|
PG11 |
6-9 |
8 |
18.5 |
22/21 |
HX-NG.PG11S |
|
PG13.5 |
8-12 |
8 |
20.4 |
24/23 |
HX-NG.PG13.5S |
