What are the parts of a complete stainless steel cable gland assembly?
2026-06-12
When you install a cable gland, you don’t just use one part — you rely on a full set of components working together. Each piece plays a critical role in creating a secure, watertight, and vibration-resistant connection. In this guide, we break down the parts of a complete Stainless Steel Cable Gland assembly and how they work.

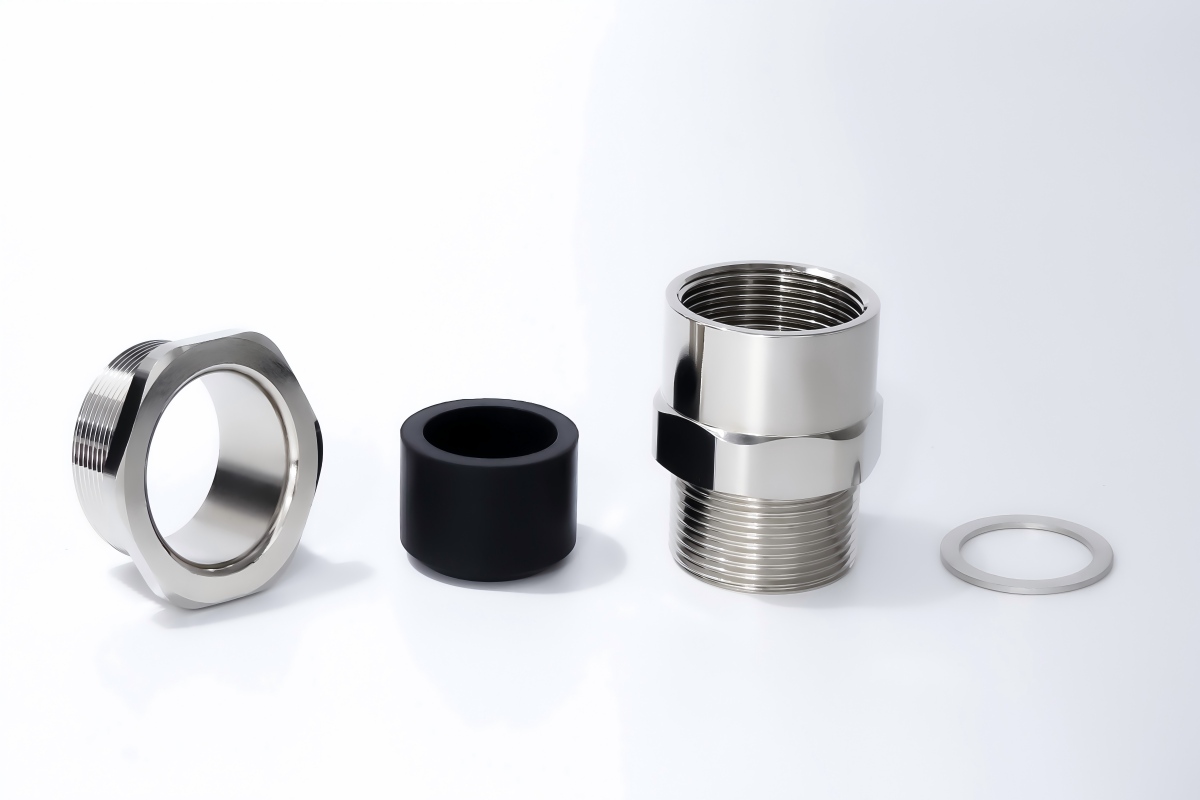

1. Core Components of a Stainless Steel Cable Gland
A standard assembly includes four essential parts:
Gland Body
The main threaded metal housing that attaches to the enclosure.
Lock Nut
Secures the gland body firmly to the panel, preventing loosening.
Sealing Insert
(Rubber/O-Ring): Clamps around the cable to block moisture and dust.
Washer
Backing Seal: Spreads pressure evenly and adds extra sealing against the enclosure.
Together, these parts create the IP rating and mechanical strength you need for industrial environments.
2. How Each Part Works in the Assembly
➔
The gland body provides the mounting interface for the cable to pass through.
➔
The lock nut ensures the gland stays tight, even under vibration or temperature changes.
➔
The rubber insert compresses evenly around the cable jacket to maintain the IP seal.
➔
The washer prevents metal-to-metal contact damage and improves enclosure surface sealing.
Even one missing or poorly fitting part can compromise the entire gland’s performance.
- Corrosion resistance: Ideal for outdoor, marine, and chemical-exposed environments.
- Mechanical strength: Handles heavy-duty applications without cracking or deforming.
- Long service life: Resists rust and oxidation, reducing maintenance and replacement costs.
Combined with the right rubber insert, stainless steel glands deliver both durability and reliable sealing.
FAQ
QCan I replace just one part of a cable gland instead of the whole assembly?
A: In most cases, yes — as long as the replacement part matches the thread size and cable range. However, mixing different brands or sizes may compromise the IP rating, so factory-matched parts are recommended.
QDo all stainless Steel Cable Glands include the same parts?
A: No. Some specialized glands (like double-seal or explosion-proof types) include extra components. Always check the manufacturer’s drawing to confirm the full parts list before installation.
Q How do I know which rubber insert fits my cable size?
A: The insert must match the cable’s outer diameter range specified by the gland. Using the wrong size will either fail to seal properly or risk damaging the cable jacket.
