Stainless Steel Cable Glands: The Safety Guardians of Industrial Connections
2026-01-08
Stainless Steel Cable Glands: The Safety Guardians of Industrial Connections
In modern industrial production and equipment operation, the safety and reliability of cable connections are of paramount importance. The Stainless Steel Cable Glands manufactured by Zhejiang HONSUN Connector Co., Ltd. have become indispensable key components in the field of industrial connections, thanks to their exceptional performance and wide range of applications.
Product Overview

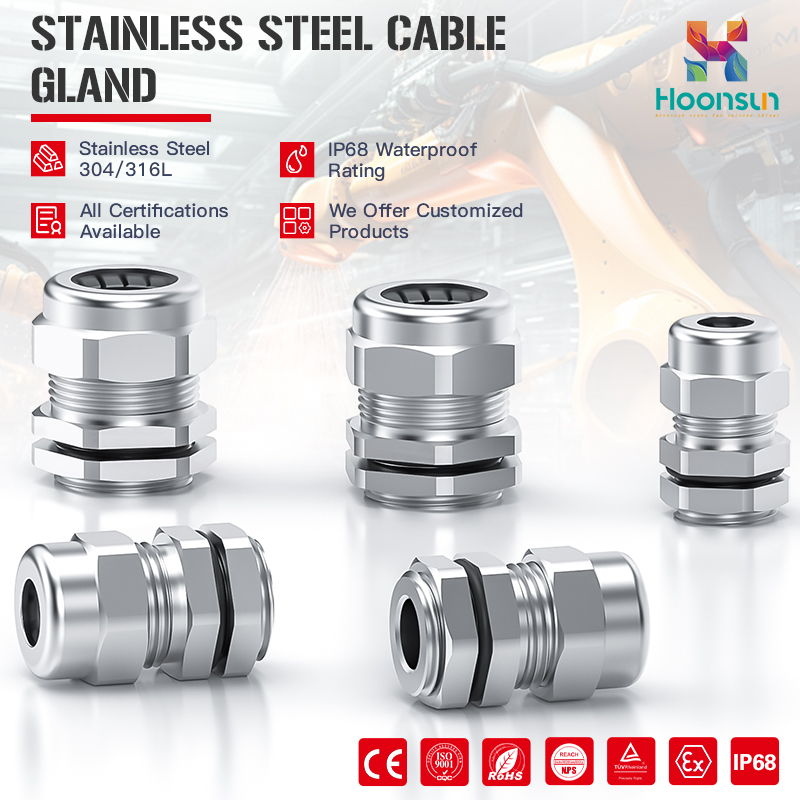

Stainless Steel Cable Glands are crafted from high-quality 304 stainless steel and feature an internal core made of nylon PA66 and sealing components made of nitrile rubber, forming a comprehensive cable connection protection system. With a protection rating of IP68-10Bar, these glands effectively resist water, dust, salt, acids, alkalis, and other harsh elements. The operating temperature range extends from -40°C to +100°C, with short-term tolerance up to +120°C, making them suitable for use in various extreme environments.
Core Technical Advantages
1. Triple-Layer Sealing Protection

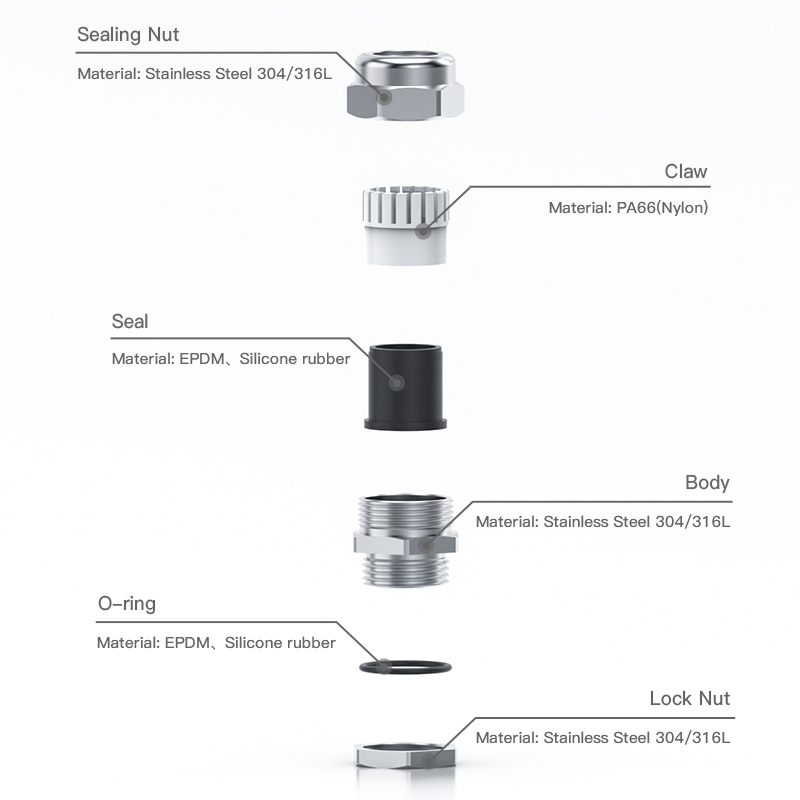

The product employs a unique design where the clamping jaws interlock with the sealing components, complemented by an O-ring and a threaded compression nut, forming a triple-layer sealing structure. This design not only ensures a secure cable hold but also delivers outstanding sealing performance, maintaining a complete seal even under 10Bar water pressure.
2. Exceptional Tensile Strength
The specialized structural design provides a wide clamping range and superior tensile strength. In high-vibration applications such as rail transit and wind power generation, these glands ensure stable cable connections under external pulling forces, effectively preventing loosening or disconnection due to vibrations.
3. Explosion-Proof Safety Certifications
The product adheres to German DIN production standards and complies with European EN and ATEX standards, with comprehensive explosion-proof certifications. It is suitable for industries with stringent safety requirements, such as explosion-proof electrical equipment, petrochemicals, and chemical plants, providing reliable electrical connections in hazardous environments.
4. Electromagnetic Compatibility Design
A specialized design guides electromagnetic waves to the ground line, dispersing sources of electromagnetic interference. This feature ensures stable equipment operation in complex electromagnetic environments, preventing signal transmission issues caused by electromagnetic interference.
Application Scenarios
Rail Transit Sector
In high-speed rail, subway, and other rail transit systems, stainless steel cable glands are widely used in critical areas such as traction systems, air conditioning systems, and sensor systems. Their excellent vibration resistance and sealing performance ensure the safety of electrical connections during high-speed train operations.
New Energy Industry
Core components of new energy vehicles, such as motors, electronic controls, and batteries, place extremely high demands on the reliability and safety of cable connections. Stainless steel cable glands can withstand harsh conditions like high temperatures and vibrations, safeguarding the safe operation of new energy vehicles.
Power Systems
Wind and solar power generation equipment are often installed outdoors and exposed to extreme weather conditions such as wind, sun, rain, and snow. The weather resistance and protective performance of stainless steel cable glands ensure the stable operation of power generation equipment under various climatic conditions.
Industrial Manufacturing
Industrial fields such as automated assembly lines, petrochemicals, and shipboard electrical systems have strict requirements for the explosion-proof, corrosion-resistant, and dustproof performance of cable glands. With their comprehensive performance advantages, stainless steel cable glands have become the preferred choice in these industries.
Installation and Maintenance
Installation Guidelines
- Select the Correct Specification: Choose the appropriate gland size based on the cable diameter and type.
- Prepare the Cable: Ensure the cable jacket is undamaged and free of debris before threading it through.
- Secure and Seal: Use tools to tighten the compression nut, ensuring the clamping jaws firmly grip the cable for a secure and sealed connection.
- Finalize the Connection: Connect the other end of the gland to the equipment enclosure or another cable connection point, ensuring a firm and secure attachment.
Maintenance Recommendations
- Regularly inspect the sealing performance of the gland and replace it promptly if aging or damage is detected.
- For cables with metallic shielding, ensure the ground wire is reliably welded.
- Prevent moisture and water from seeping into the gland interior. If necessary, install protective conduits or enclosures.
Quality Certifications
The product is certified under the ISO9001 and IATF16949 quality management systems, as well as multiple international certifications including UL, CE, ROHS, RECAH, TUV, ATEX, and IP68, ensuring trusted quality.
Conclusion
As a critical component in industrial connections, the performance of stainless steel cable glands directly impacts the safe operation of entire systems. Leveraging years of technical expertise and strict quality control, Zhejiang HONSUN Connector Co., Ltd. provides customers with high-quality, highly reliable cable connection solutions. Whether in rail transit, new energy, power systems, or industrial manufacturing, stainless steel cable glands deliver safe and reliable connection protection for your equipment.
Choose HONSUN—choose safety and reliability!
