[Science Popularization]What exactly is a cable gland?

[Science Popularization] Beside machine tools in factory workshops, inside equipment cabinets of new energy power plants, and in the tunnel wiring of urban rail transit, there is a seemingly inconspicuous "small part" that silently undertakes the important mission of ensuring the safe operation of cables—this is the cable gland. Many people are unfamiliar with this name, but it is an indispensable "safety guardian" in the wiring system. Today, let's unveil the mystery of the cable gland and see just how powerful this "small accessory" really is.

Basic Understanding: What exactly is a cable gland?

Simply put, a cable gland is a connecting accessory installed at the interface between a cable and equipment. Its main purpose is to fix the cable to the equipment casing and to seal and protect the interface. Its core function is "fixation + protection," preventing the cable from falling off the equipment due to external pulling or vibration, while also blocking harmful substances such as dust, moisture, and oil from entering the equipment. It also provides auxiliary functions such as grounding and shielding against electromagnetic interference.

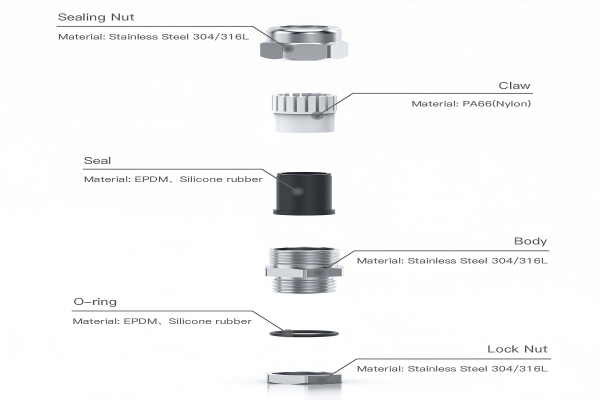

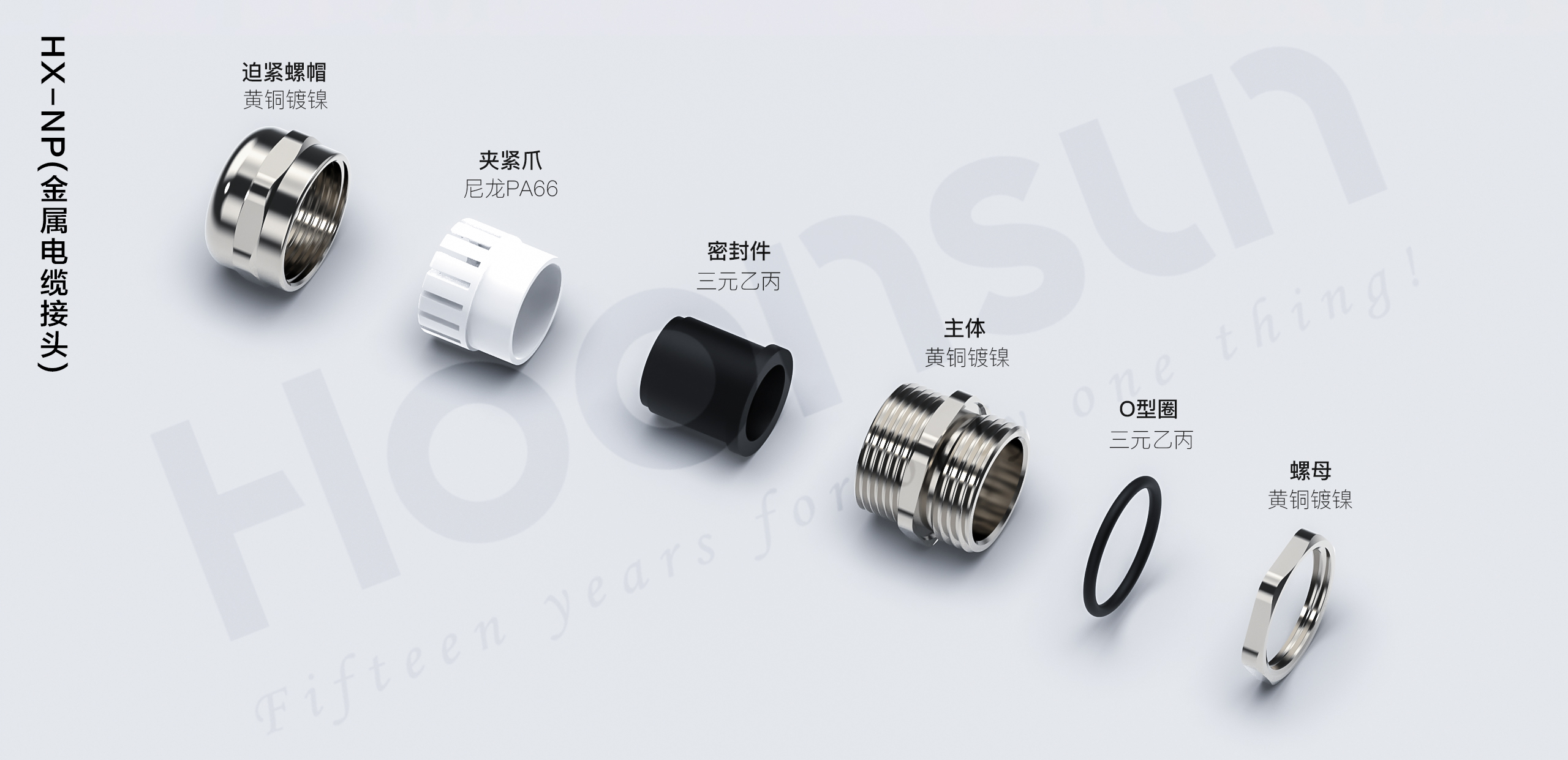

Structurally, a common cable gland usually consists of a locking nut, a seal, a body, and a clamping component. After the cable passes through the cable retainer body, tightening the locking nut and clamping parts secures the cable firmly. Simultaneously, the sealing element tightly adheres to both the cable and the equipment casing, forming a reliable protective barrier. Despite its simple structure, its design precision directly affects the protective effect and service life.

Core Function: More Than Just "Fixing"

The cable retainer's function extends far beyond simply "fixing cables." It's a versatile device integrating multiple protective capabilities. First and foremost is sealing protection, its core function. Depending on the application, cable retainers offer protection ratings ranging from IP54 (splash and dust protection) to IP68 (long-term immersion at depths up to 1.5 meters), meeting the needs of various environments from ordinary workshops to deep-sea operations. For example, in food processing workshops, cable retainers need to achieve an IP67 rating or higher to prevent moisture and oil from entering the equipment and contaminating food.

Secondly, it provides mechanical protection. Cables in industrial environments are frequently subjected to external forces such as pulling, collisions, and vibrations. cable glands, through their robust locking structure, securely connect cables to equipment, preventing damage to cable joints due to stress and avoiding signal transmission interruptions or circuit failures. In environments with severe vibrations, such as mines and metallurgical plants, specialized vibration-damping cable glands are indispensable.

Furthermore, grounding and shielding are also important functions of cable glands. In environments with electromagnetic interference, such as communication base stations and data centers, Metal Cable Glands can connect the cable's shielding layer to the equipment casing, forming an effective grounding loop, reducing the impact of electromagnetic interference on signal transmission, and ensuring stable equipment operation. In flammable and explosive environments, some special cable glands can also provide explosion protection, preventing electrical sparks from causing safety accidents.

Common Classifications: Material Determines Applicable Scenarios

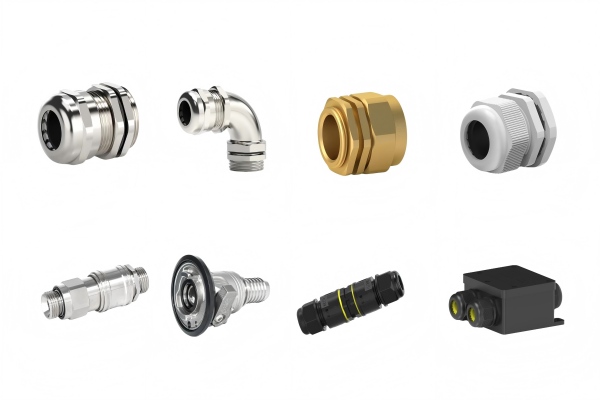

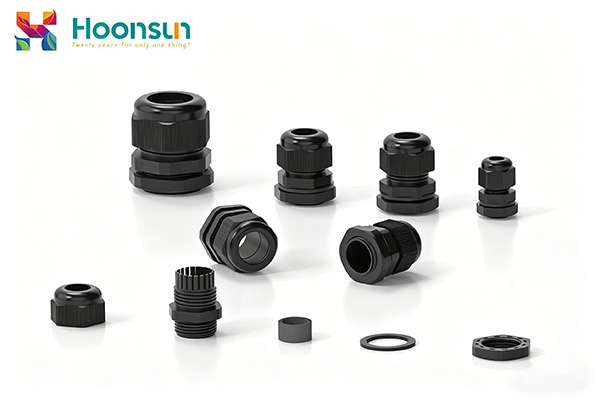

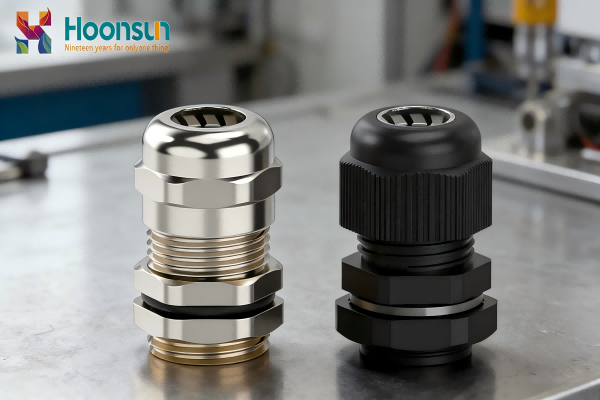

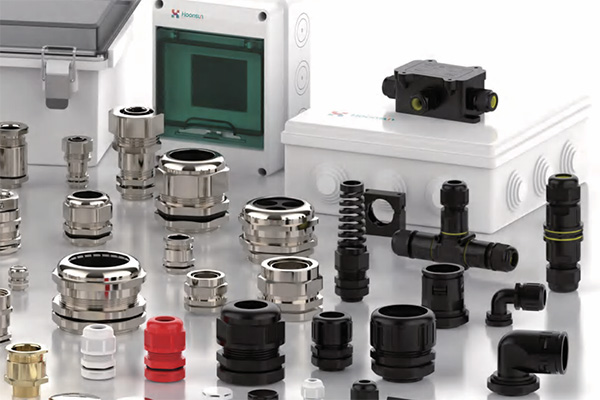

Based on different materials, cable glands can be divided into various types, the most common being metal cable glands and Plastic Cable Glands. Metal cable glands are typically made of brass, stainless steel, zinc alloy, etc., offering advantages such as pressure resistance, corrosion resistance, and high-temperature resistance. They provide higher protection levels and longer service life, making them suitable for mid-to-high-end applications in new energy, rail transportation, and marine engineering. Plastic Cable Glands, on the other hand, are made of nylon, polycarbonate, etc., offering lower cost and lighter weight, making them suitable for general industrial equipment, household appliances, and other applications with lower protection requirements.

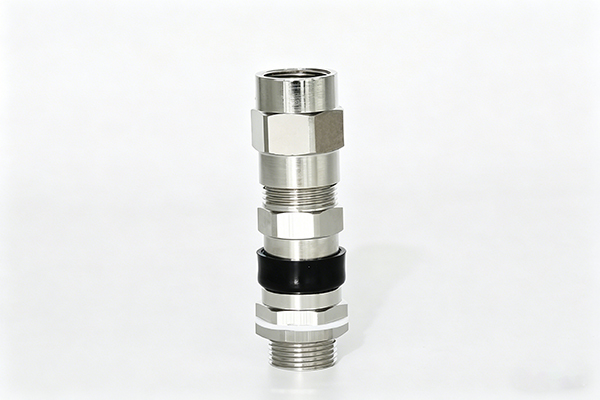

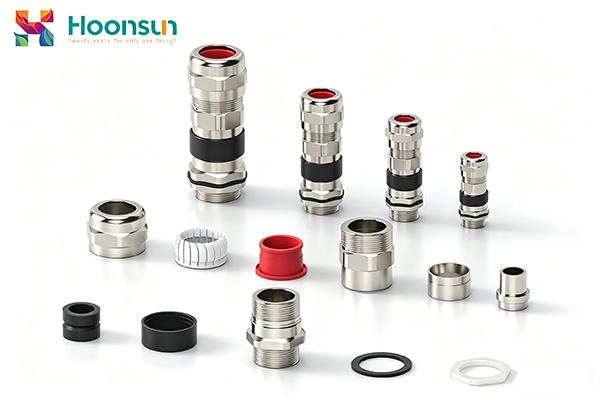

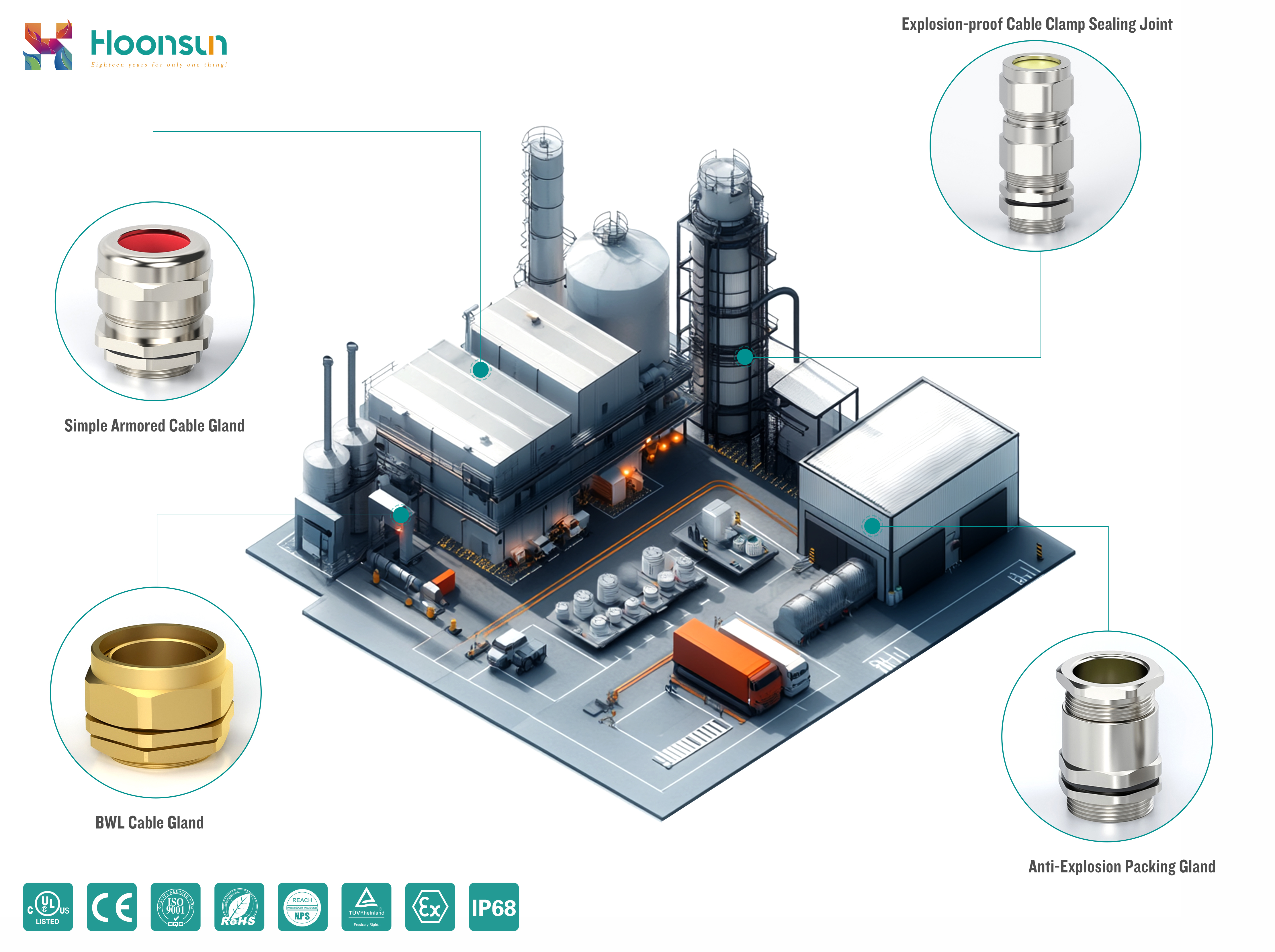

Besides classification by material, cable glands can also be categorized by cable type and installation method: ordinary cable glands, explosion-proof cable glands, waterproof cable glands, and miniature cable glands. Different types of clamps are designed for different application needs. For example, explosion-proof cable glands are suitable for flammable and explosive environments such as chemical and oil/gas environments, while miniature cable glands are suitable for space-constrained applications such as precision electronic equipment.

Key Selection Points: Choosing the Right One Ensures Comprehensive Protection

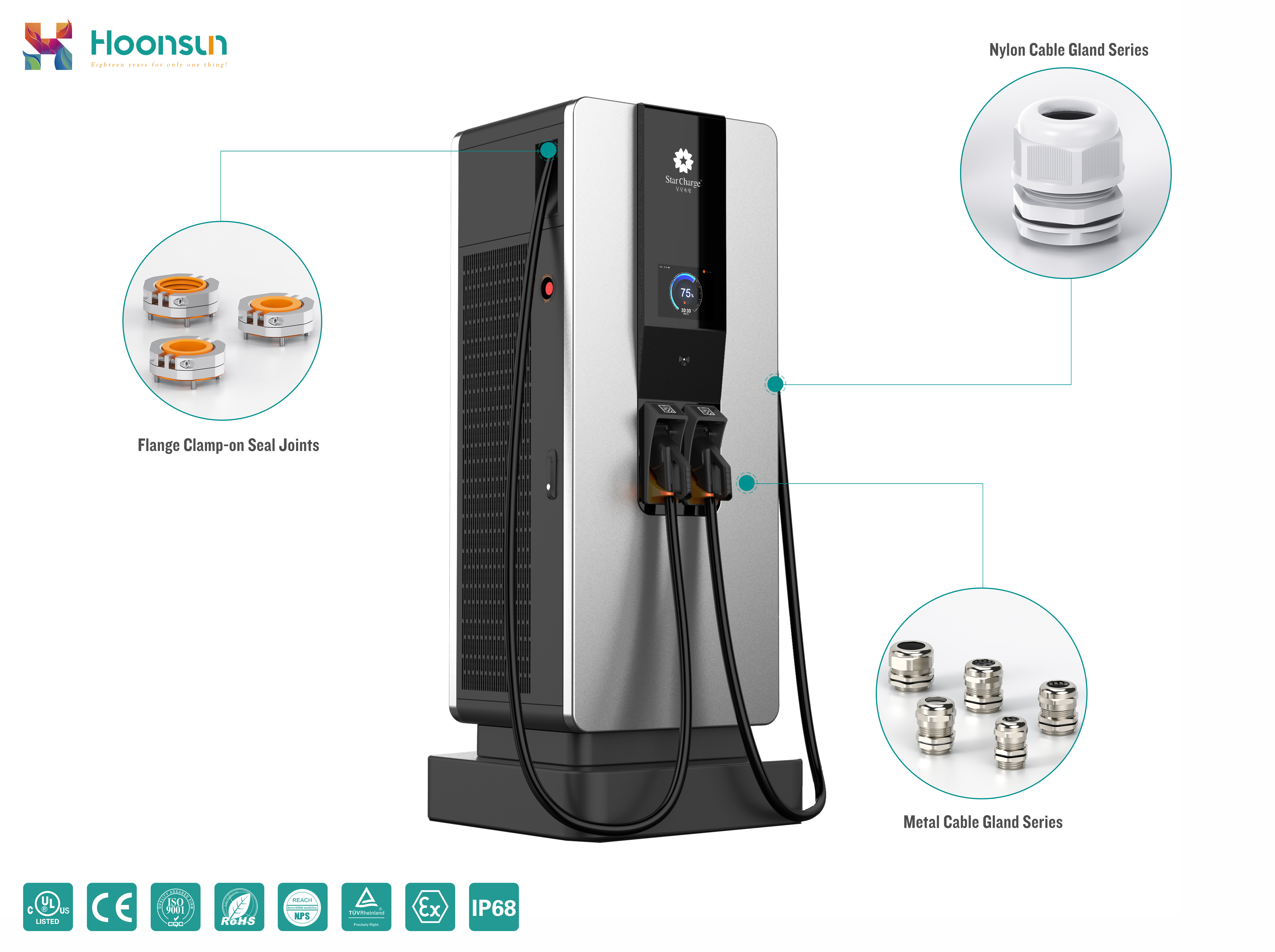

How to choose the right cable gland? The key is to grasp three core elements. First, the protection level. The appropriate protection level should be selected based on factors such as humidity, dust concentration, and the presence of corrosive media in the operating environment. For example, outdoor charging stations must use waterproof cable glands with an IP67 rating or higher. Secondly, cable specifications are crucial; the inner diameter of the cable gland must match the outer diameter of the cable. A gland that is too large or too small will affect the sealing and securing effect, so the cable diameter parameter must be accurately checked during purchase. Thirdly, the material must match the application environment. In coastal areas, corrosion-resistant stainless steel should be chosen; in high-temperature environments, high-temperature resistant special plastics or metals should be selected; and in flammable and explosive environments, explosion-proof certified products are mandatory.

Conclusion: Small Accessories Support Great Safety

As the "invisible guardian" of cabling systems, cable glands, though small and inexpensive, are a key component ensuring the safe operation of equipment. From household appliances to industrial equipment, from ground-based applications to deep-sea and high-altitude environments, they are ubiquitous. With the development of industrial intelligence and new energy fields, the requirements for the protection level and compatibility of cable glands are constantly increasing. In the future, they will be upgraded towards miniaturization, integration, and higher protection levels, continuing to safeguard the safe operation of various industries.
