Metal vs. Nylon Standard cable glands: How to Choose the Right One?

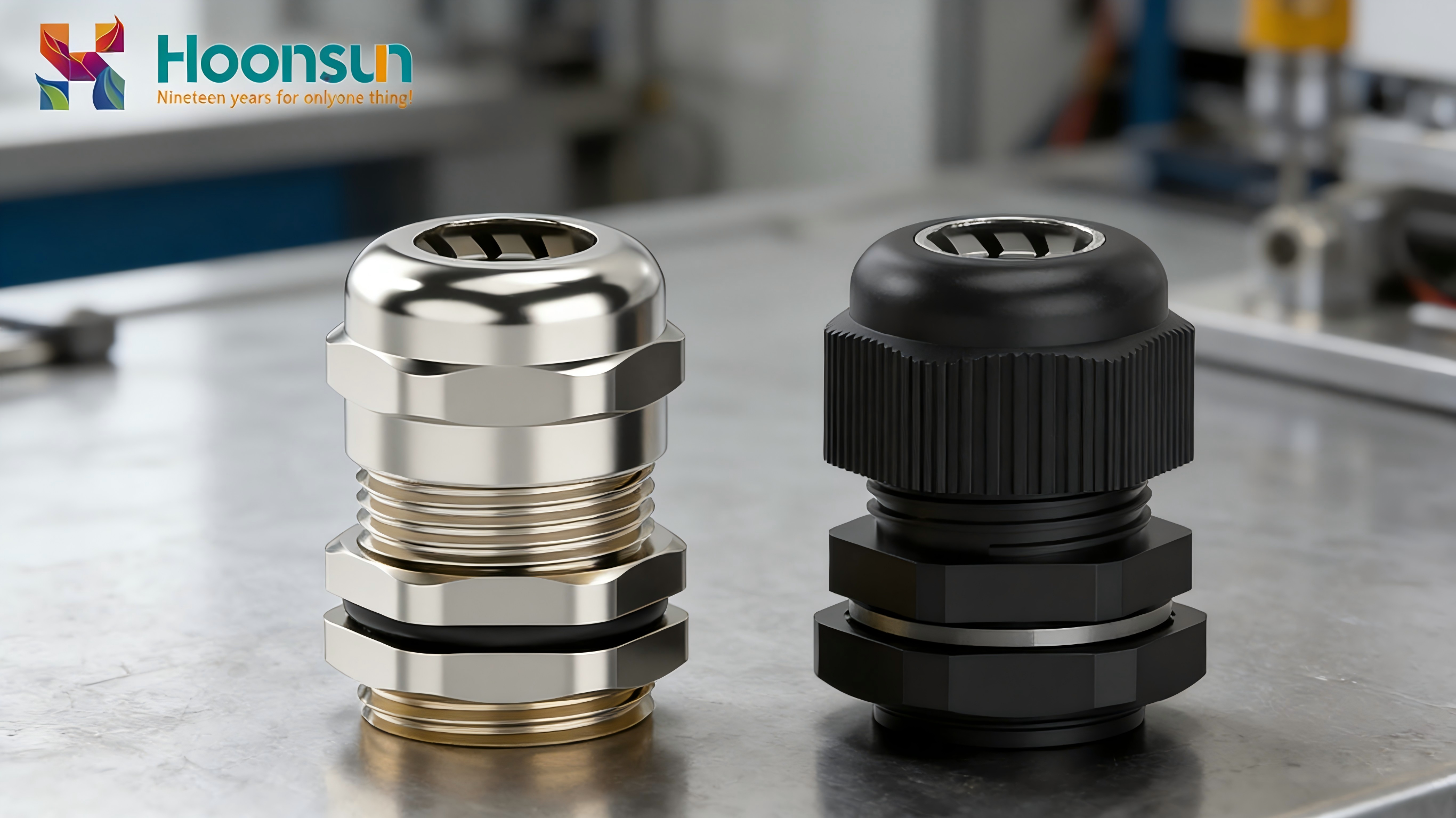

In industrial connection applications, cable glands are small but critical components that ensure stable equipment operation. As a company focused on cable connection solutions, Zhejiang Hongxiang Connector Co., Ltd. offers two mainstream standard products: Metal Standard cable glands (Brass Nickel-Plated) and Nylon Standard cable glands (PA66). They look similar and both achieve IP68 protection, but their material properties determine different advantages and suitable applications.
The following comprehensive comparison – from core performance and benefits to application scenarios – will help you make the right choice.
1. Material & Basic Performance: Fundamental Differences Define the Application Boundary
| Feature | Metal Standard cable gland (Brass Nickel-Plated) | Nylon Standard cable gland (PA66) |
| Body Material | High-quality H62 brass, precision nickel-plated surface | New environmentally friendly PA66 nylon (engineering plastic) |
| Key Characteristics | High mechanical strength, good electrical/thermal conductivity, wide temperature range, vibration & wear resistant | Lightweight, insulating, acid/alkali resistant, no electromagnetic interference, cost-effective |
| Protection Rating | IP68 (dust-tight & waterproof) | IP68 (dust-tight & waterproof) |

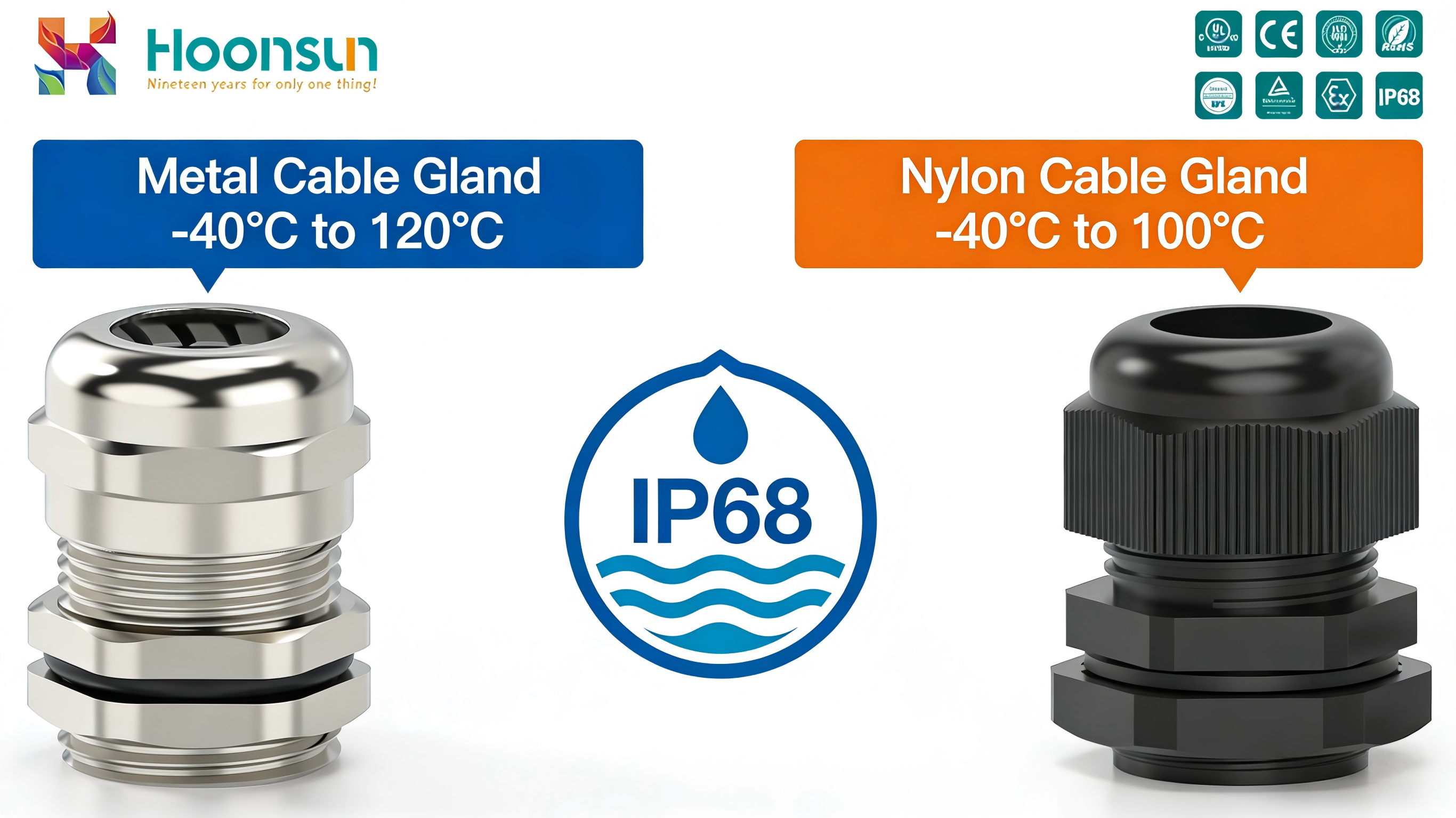

| Operating Temperature | -40°C ~ 120°C (short-term 150°C) | -40°C ~ 100°C (short-term 120°C) |
| Mechanical Strength | High tensile/compressive strength; sturdy threads; resists thread stripping/deformation after repeated assembly/disassembly | Meets standard operating conditions; good torsion & impact resistance, but lower ultimate load than metal |
2. Core Advantages Compared: Each Excels in Different Needs
Metal Standard Cable Gland – Rugged & Reliable, First Choice for Harsh Conditions
Superior Mechanical Performance
Tensile strength up to 200–400MPa; impact & vibration resistant; ideal for long-term vibration scenarios (machine tools, ships, construction machinery). Wear-resistant threads maintain performance after repeated maintenance.
Excellent Conductivity & Heat Dissipation + Electromagnetic Shielding
Brass provides outstanding electrical/thermal conductivity – fast heat dissipation and reliable grounding. The metal housing offers built-in EMC shielding, eliminating signal interference – perfect for precision electronics, industrial control, and shielded cable systems.
High-Temperature & Aging Resistance
Withstands higher temperatures and long-term outdoor aging; suitable for high-temperature equipment, long-term outdoor use, and high-power cable applications.
High Corrosion Resistance & Durability
Nickel plating enhances salt spray and oxidation resistance; suitable for humid, moderate-corrosion environments; service life far exceeds nylon.
Nylon Standard Cable Gland – Lightweight & Insulating, Best Value
Excellent Insulation, No EMI
PA66 nylon is an outstanding insulator – non-conductive, no eddy currents, no signal interference; ideal for precision instruments, electronic equipment, and weak-current systems, preventing leakage and signal loss.
Lightweight, Corrosion Resistant, Easy Installation
Weight only about 1/4 of metal, reducing equipment load; resistant to weak acids/alkalis, oils, salt spray; never rusts in humid environments. Anti-slip design enables tool-free quick installation, improving work efficiency.
Obvious Cost Advantage
Injection molded with low material cost; more affordable than metal for the same specifications; ideal for large-scale, budget-limited projects.
Stable Weather Resistance, Suitable for Standard Conditions
Reliable sealing from -40°C to 100°C; suitable for indoor/outdoor standard environments; does not become brittle or deform with long-term use.
3. Application Scenarios: Match by Requirement, Avoid Mistakes
| Recommended Scenarios | Metal Standard cable gland | Nylon Standard cable gland |
| Heavy Industry / Strong Vibration | Machine tools, construction machinery, ships, mining equipment | — |
| Electrical / Explosion Proof / Grounding | Power equipment, explosion-proof control cabinets, energy storage, high-power systems requiring grounding | — |
| High Temperature / Outdoor / Long-term Aging | Outdoor distribution boxes, PV/wind power, high-temperature equipment, long-term outdoor installations | — |
| EMC Shielding / Precision Signals | Industrial controls, instrumentation, communication cabinets, shielded cable connections | — |
| High-end Projects / Long-term Reliability | Aircraft carrier support, rail transit, Yutong Bus, ABB, etc. | — |
| Electronics / Weak Current / Precision Instruments | — | Home appliances, instruments, automation equipment, PCB control boxes |
| Insulation Priority / No Interference | — | Medical equipment, lighting fixtures, weak-current systems, sensor lines |
| Humid / Mild Corrosion / Lightweight | — | Food machinery, packaging equipment, standard outdoor enclosures, high-altitude equipment |
| High Volume / Cost Sensitive | — | General equipment assembly, small/medium projects, batch equipment |
| Fast Installation / Easy Maintenance | — | Decoration projects, temporary wiring, equipment retrofitting |
4. Hongxiang Connector: Quality Assured, Selection Made Easy
As a national high-tech enterprise, Hongxiang’s standard cable glands carry ISO9001, CE, RoHS, IP68 and other authoritative certifications. The metal gland also has ATEX explosion-proof and UL certifications. With annual capacity exceeding 20 million pieces, Hongxiang serves leading companies such as Yutong, Philips, and ABB, and has even participated in the “Liaoning” aircraft carrier project.
5. Frequently Asked Questions (FAQ)
Q1: Both metal and Nylon Glands achieve IP68. Is the waterproof performance exactly the same? A: Yes, both can pass IP68 tests (1.5m water depth for 30 minutes) under factory conditions. However, long-term waterproof reliability depends on material aging: metal glands retain seal life better under high temperature and UV exposure; nylon glands are equally stable in standard environments, but for long-term outdoor use we recommend UV-stabilized PA66.
Q2: Will metal glands rust? A: Hongxiang metal glands use H62 brass with precision nickel plating, offering strong salt spray and oxidation resistance. However, if the plating is severely scratched or the gland is exposed to strong acids/alkalis for long periods, the brass may still discolor. For extreme corrosive environments, consider stainless steel glands or nylon glands.
Q3: Can nylon glands be used outdoors? A: Yes. PA66 has good weather resistance with an operating range of -40°C to 100°C, covering most outdoor environments. However, long-term strong UV exposure can cause material aging. For outdoor use, we recommend UV-stabilized nylon glands (available from Hongxiang).
Q4: When must I choose a metal gland? A: A metal gland is strongly recommended if any of the following conditions apply:
① The equipment requires grounding;
② There is EMI concern or EMC shielding is needed;
③ Ambient temperature continuously exceeds 100°C;
④ The equipment experiences strong vibration or shock;
⑤ Explosion-proof certification (ATEX) is required.
Q5: Can nylon glands replace metal glands in hazardous (explosion-proof) areas? A: No. Explosion-proof areas must use certified metal cable glands (e.g., Hongxiang ATEX series). Nylon glands are not explosion-proof and must never be used as a substitute.
Q6: How do I select the correct thread size? A: Hongxiang standard glands are available in metric (M), NPT, PG, G and other thread standards. When selecting, confirm the equipment’s mounting hole thread and the cable outer diameter range. You may also provide drawings and let our technical team assist with matching.
Q7: What is the approximate price difference between the two types? A: For the same specification, nylon glands typically cost 1/3 to 1/2 of metal glands. The exact difference depends on size and order quantity. Please contact Hongxiang sales for a real-time quote.
Q8: Can you produce non-standard colors or lengths? A: Yes. Hongxiang supports customisation based on drawings or samples, including special plating for metal glands, custom colours for nylon glands (e.g., grey, black, blue), and extended thread lengths. Contact our sales team for details.
Summary
Need high strength, high temperature resistance, conductivity/grounding, EMC shielding, long-term reliability → Choose Metal Standard Cable Gland
Need insulation, no interference, light weight, corrosion resistance, cost-effectiveness, fast installation → Choose Nylon Standard Cable Gland
There is no absolute “better” – only “more suitable.” Hongxiang Connector offers customisation based on drawings or samples, covering all specifications and application needs, providing safe and stable connection solutions for your equipment.
