How to Keep Stable IP68 Sealing for PA66 Nylon Cable Glands?
Many IP68-rated glands still suffer from leakage, cracking and loose cables after installation.
This practical guide will help you avoid common on-site failures.
How to Pick the Right Nylon Cable Gland?
Match clamping range with actual cable OD
Measure cable outer diameter first instead of only checking thread size.
An M20 nylon gland only works for cables between 12 mm and 16 mm.
Improper size will damage rubber seals and break waterproof performance.
Distinguish M Metric Thread and PG Thread
M and PG thread standards cannot be interchanged.
Mismatched threads leave gaps on cabinet holes and ruin IP68 protection.
Choose virgin PA66 material against outdoor aging
Quality glands use UV-stabilized flame-retardant PA66 plastic.
Recycled plastic will crack quickly under long-term sunlight.
Black glands perform much better outdoors than white ones.
3 Installation Rules to Protect IP68 Performance
Do not over-tighten
Nylon is brittle. Hand tighten plus an extra 1/4 turn only.
Over-torque creates invisible cracks leading to water seepage.
Keep EPDM gaskets flat and intact
Twisted or damaged rubber inserts will form water channels.
Always check seal condition before assembly.
Tighten lock nut evenly
Uneven force tilts the gland and creates panel gaps.
Tilting is the top hidden cause of cabinet water ingress.
Suitable & Unsuitable Application Scenarios
Best Use Cases
Indoor cabinets, outdoor EV chargers, general automation wiring.

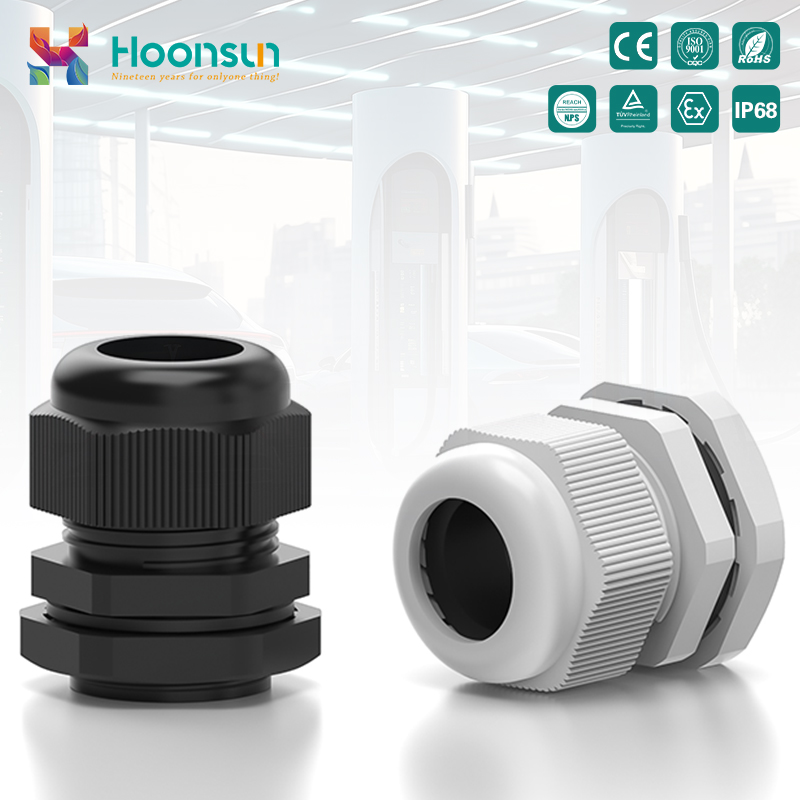

Black & white colors match equipment shells well for OEM bulk orders.
Never Use Under These Conditions
ATEX explosive zones: Nylon cannot release static electricity.
Coastal salt spray or corrosive chemical environments.
High-vibration equipment prone to thread slipping.
FAQ
Q1 Can IP68 nylon glands stay permanently underwater?
A: They handle temporary immersion well. Long-term submergence needs reinforced thick-seal models.
Q2 Nylon or brass cable gland?
A: Choose PA66 nylon for regular EV projects to control cost.
Use EMC brass glands for explosion-proof, offshore and anti-interference projects.
Q3 Why does water still leak after installation?
A: Most leakage comes from mismatched cable size or distorted gaskets, not product defects.
Q4 Is RoHS compulsory for EU export?
A: Yes. RoHS 2.0 is mandatory for all electrical plastic fittings to pass customs.
Conclusion
Reliable IP68 sealing depends on proper sizing, standardized installation and correct working conditions.
Hoonsun provides full-series M/PG Nylon Cable Glands with CE, RoHS and IP68 certifications.
We support bulk OEM orders for global new energy and automation customers.
Send your cable specs, and we will recommend the perfect model.
