When working in environments prone to danger, such as oil refineries, gas plants, or chemical plants, safety is the most important aspect of these types of locations. Electrical safety devices are critical components for ensuring the safety of these settings. An example of such a device is an Explosion-proof cable gland, which is designed to securely attach, seal, and protect electrical cables in high-risk locations with the potential for catastrophic explosions. This article will help you understand everything about explosion-proof cable glands, including their function, how to select the appropriate cable gland, and tips on installing them correctly.
Why Are Cable Glands Used?
There are a number of reasons for using a cable gland to create an electrical system. The main purpose of the cable gland is to anchor and connect the cables to equipment so that the cables cannot be pulled off the equipment and dislodged or disconnected from it. In hazardous environments, anExplosion-proof cable gland is used to prevent flammable gas, vapor, or dust from causing an explosion or fire through the electrical cable system.
Explosion-proof cable glands are intentionally designed for use in very high-risk industrial settings. If an explosion were to occur in one of these facilities, the consequences could be catastrophic. The purpose of an explosion-proof cable gland is to contain any potential explosion within the equipment itself and prevent propagation into the ambient air. As a result, explosion-proof cable glands must be tested and certified under standards such asATEX or IECEx to ensure they meet the required safety requirements.
ATEX/IECEx Explosion-Proof Cable Gland Features
The primary purpose of ATEX/IECEx certifications is to confirm that explosion-proof cable glands can be safely used as a component of electrical equipment in potentially explosive locations. Here are some features to look for when selecting anATEx Cable Gland:

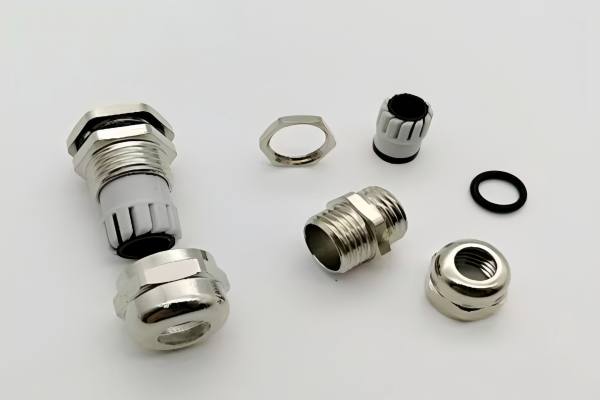

- High sealing performance: Ensures no entry or escape of gas, vapor, or dust from the equipment.
- Corrosion resistance:The majority of Atex Cable Glands are made from materials such as stainless steel, brass, and/or nickel-plated brass, enabling them to withstand extreme environmental conditions.
- IP68 waterproof and dustproof ratings: Look for IP68-rated waterproof connectors to withstand prolonged exposure to wet or dusty environments.
- Support for armoured cables:ATEX flameproof cable glands provide additional layers of protection specific to armoured cable use.

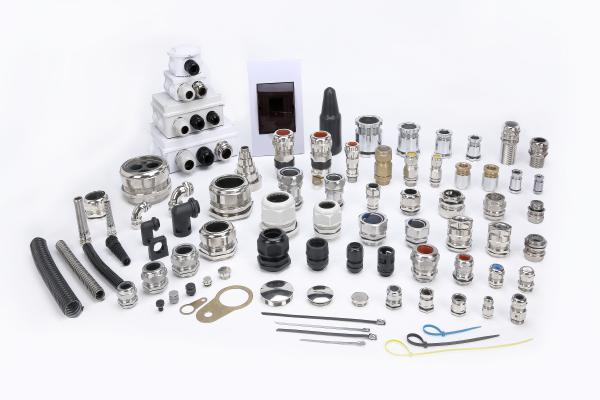

How to Choose the Right Explosion-Protected Cable Gland
Choosing the proper cable gland will be important for both safety and performance of the application. Some key considerations include:
1. Material
For environments with corrosive properties, it is advisable to choose a stainless steel or nickel-plated brass cable gland to ensure durability. While non-metallic cable glands exist, they are typically limited to applications where corrosion resistance or exposure to high temperatures is not a critical factor.
2. Size
Determining what size of cable gland to use depends on the size of the cable. Always use a cable-to-gland size chart to ensure you make the correct size choice to prevent gaps between the cable gland and the cable that might compromise safety and performance.
3. Environment
When selecting your cable glands, consider factors such as temperature extremes, moisture levels, chemical exposure, and the likelihood of mechanical stress. This will ensure you choose the best waterproof gland connectors or other designs tailored for your specific needs.
How to Install and Maintain Explosion-Proof Cable Glands
What Are the Proper Procedures for Installing and Torqueing an Explosion-Proof Cable Gland?
It is essential that cable glands are installed correctly. Always follow the manufacturer's instructions for proper installation. Use the recommended torque settings to ensure that the cable gland provides a secure, gas-tight seal. A calibrated torque wrench should be used to avoid over-tightening, which can damage the cable gland, or under-tightening, which could allow gas or moisture to leak into the connection.
Are Explosion-Proof Cable Glands Reusable After They Have Been Taken Apart?
Explosion-proof cable glands are typically designed for one-time use. Reusing them may compromise their integrity and sealing capabilities. However, some manufacturers offer reusable explosion-proof cable glands. Always consult the manufacturer’s guidelines to verify whether reuse is permitted.

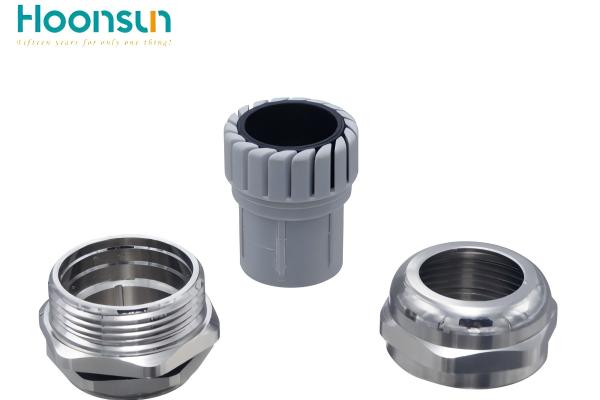

Which Materials Are Good for Use in Corrosion-Resistant Explosion-Proof Cable Glands?

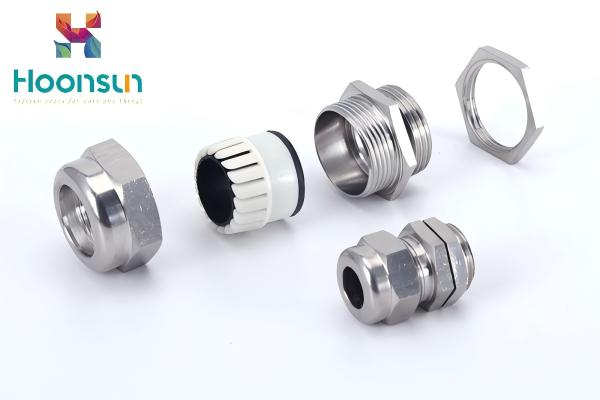

Stainless steel or nickel-plated brass are highly recommended for corrosion resistance, offering protection against rust and chemical damage. For marine or offshore applications, marine-grade stainless steel (such as 316L) should be preferred for maximum durability.
Uses for Explosion-Proof Cable Glands
Explosion-proof cable glands are used in numerous industries for applications in hazardous locations. Examples include:
1. Oil & Gas: Used to secure both armoured and unarmoured cables in refineries, petrochemical plants, and offshore platforms.
2. Industrial Facilities: Frequently utilized in the production of chemicals or combustible materials (such as in chemical plants) to ensure safe electrical installations.
3. Food and Beverage: Commonly used in clean environments with high hygiene standards, particularly in facilities handling powdered substances.
Why Is an IP68 Explosion-Proof Cable Gland a Game-Changer?
The IP68-rated Explosion-proof cable gland is an extremely durable and reliable protective device for shielding cable connections against water damage, dust, or chemical attack in harsh environments. These glands ensure the reliability of electrical systems by eliminating moisture ingress, which could otherwise lead to electrical failures or short circuits, making them indispensable in challenging conditions.
What Is Cable Glanding & Termination?
Cable glanding and termination refer to preparing, assembling, and securing cables to electrical equipment. This process includes stripping insulation from the cable, properly attaching cable glands, and ensuring all seals and connections are gas-tight. Proper cable glanding and termination are especially crucial in hazardous zones, where even minor faults can result in serious incidents.
Cable glanding and termination also enhance safety by forming a secure bond between the cable and the gland, eliminating risks such as accidental disconnects, spark generation, or fire hazards.
Conclusion
Choosing the right Explosion-proof cable gland is critical for remaining safe while working in hazardous environments. Whether you are in the oil and gas sector, a chemical plant, or another high-risk area, you can feel confident in selecting ATEX/IECEx-certified, corrosion-resistant, IP68 waterproof explosion-proof cable glands for optimal protection. By following best practices for installation and selecting the right materials, you can ensure long-term safety and performance for your electrical systems.
If you have further questions about what cable gland size to choose, improving your cable gland connectors, or need help with installation, feel free to contact experts for tailored advice based on your specific project needs.
