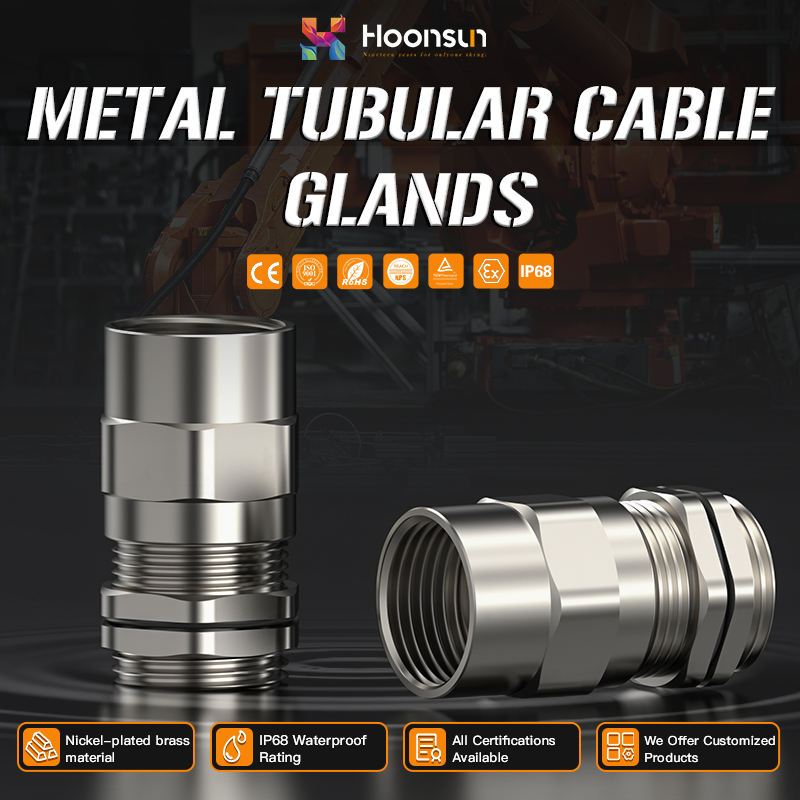

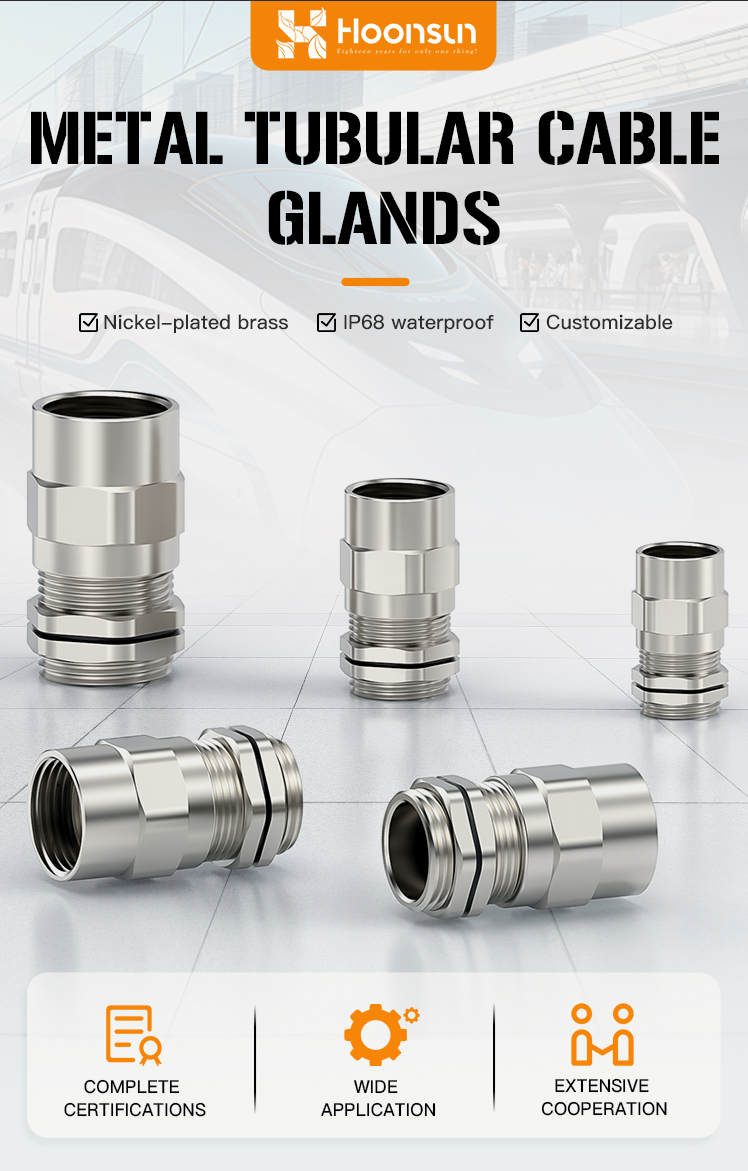

Metal Tubular Cable Gland with IP68 Rating and UL Listing
Engineered for demanding environments, this Metal Tubular Cable Gland provides IP68 waterproof/dustproof protection and UL Listed reliability for secure cable connections in industrial applications.
Certified for Global Markets：

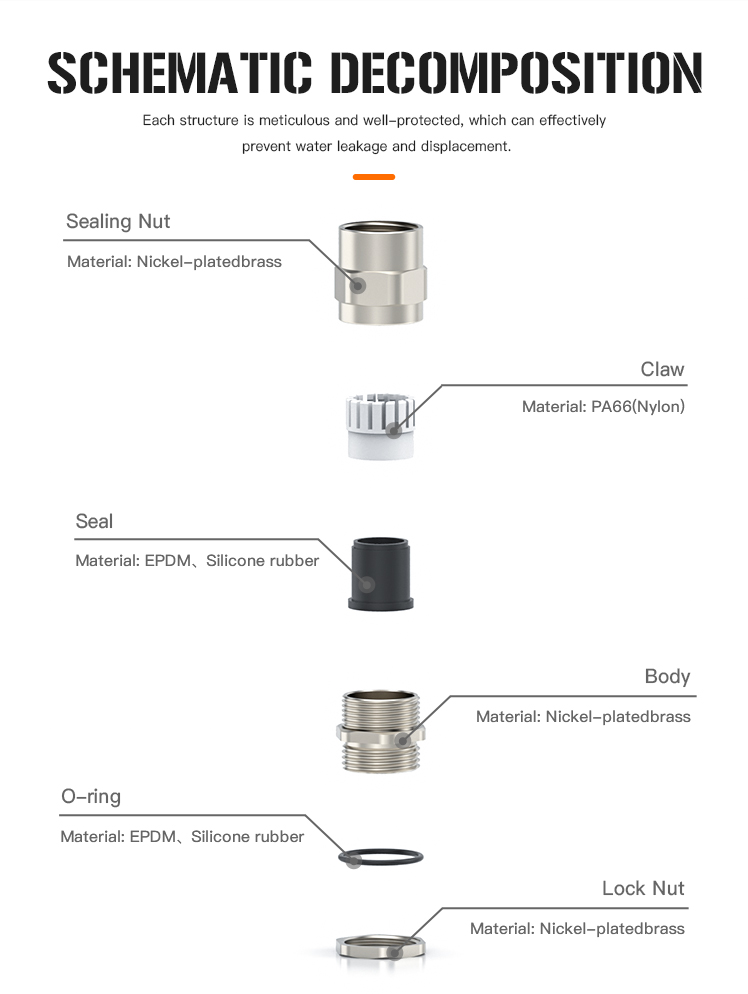

- Fitting Material Nickel-platedbrass
- Material For Clamping Jaws PA66(Nylon),UL94-V2
- Material For Sealing Components EPDM、Silicone rubber
- O-ring Material EPDM、Silicone rubber
- Protection Degree IP68-10 bar

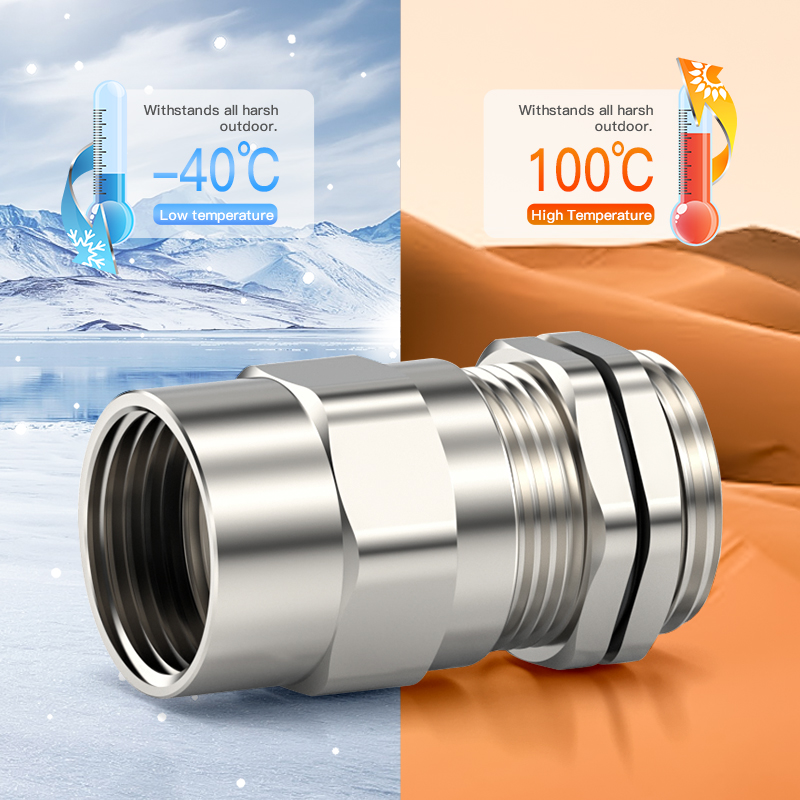

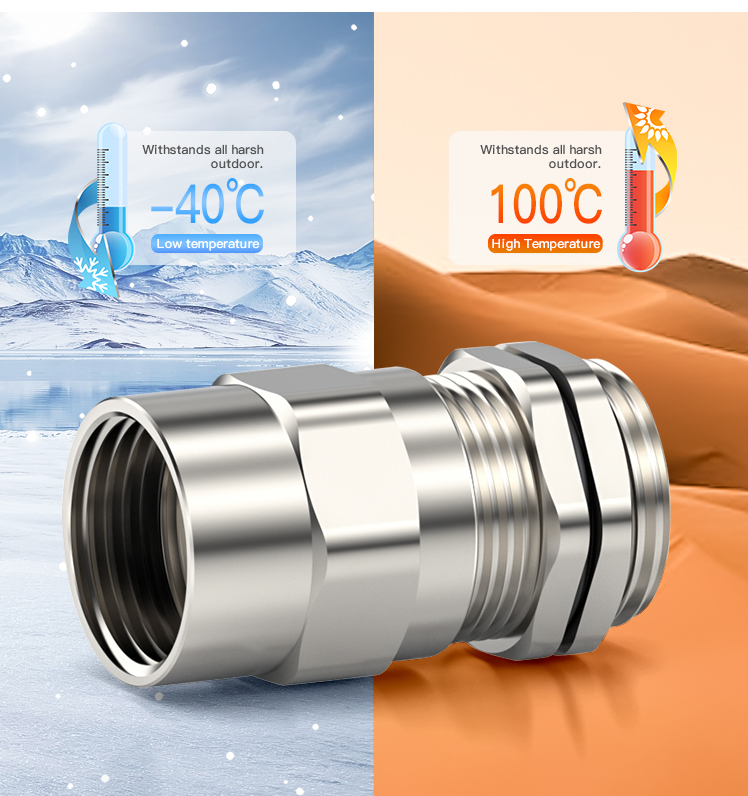

- Temperature Static state:-40 to 100℃,Short time to 120℃ Dynamic state:-20℃ to 80℃,Short time to 100℃
Product Highlights
◆Engineered for demanding industrial environments, providing superior protection and reliable cable management.
◆Designed for use with metal conduits or armored cables, ensuring a secure mechanical and electrical connection between the cable and equipment housing.
◆Constructed from nickel-plated brass or stainless steel, offering high tensile strength, excellent corrosion resistance, and long-term durability.

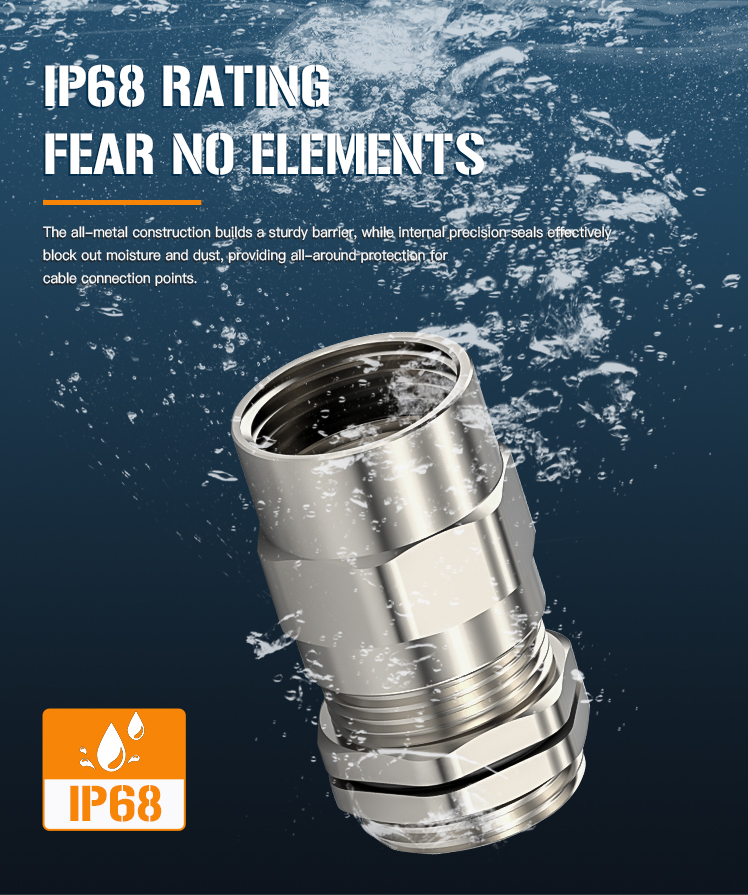

◆Features precision-threaded structure and sealing ring for IP68-rated waterproof and dustproof protection.
◆Provides effective EMC shielding performance to minimize electromagnetic interference.
◆Available in PG, NPT, and Metric thread types to meet global industrial standards.
Applications

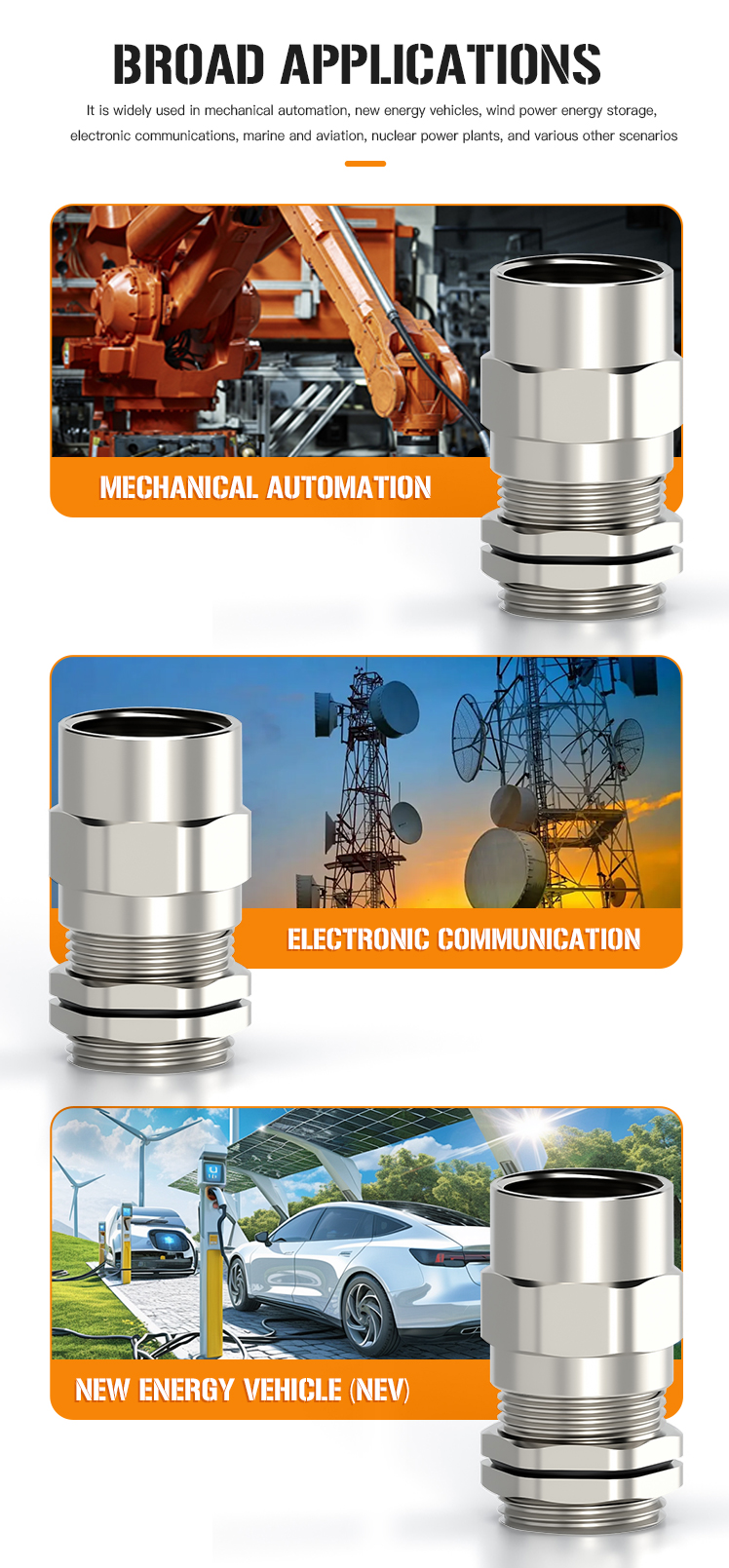

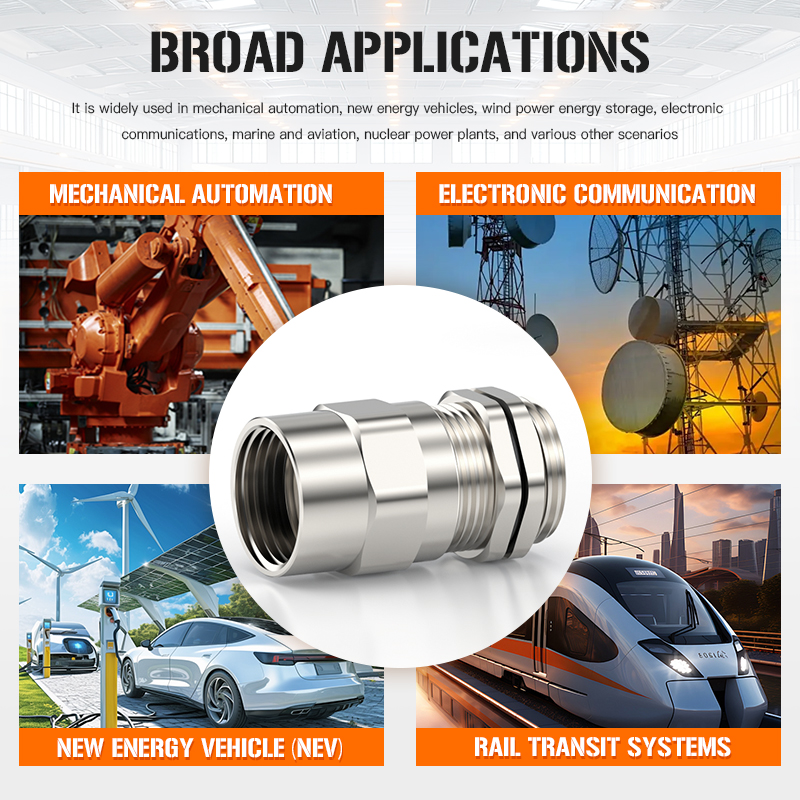

◇Suitable for automation systems, power distribution, machinery, marine, and rail applications.
◇Ideal for environments requiring protection against oil, moisture, and mechanical stress.
Key Benefits
◆Prevents cable twisting and pull-out with its conduit-compatible design.
◆Ensures stable electrical operation through superior shielding and secure connections.
◆Represents a professional, high-reliability solution for heavy-duty cable protection and connection.

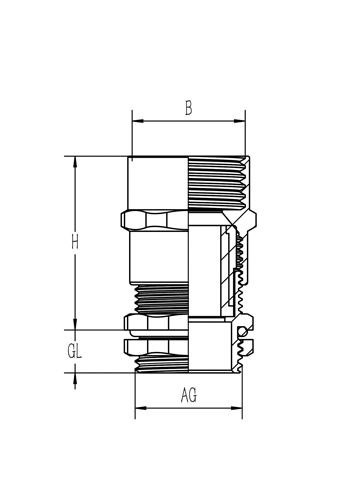

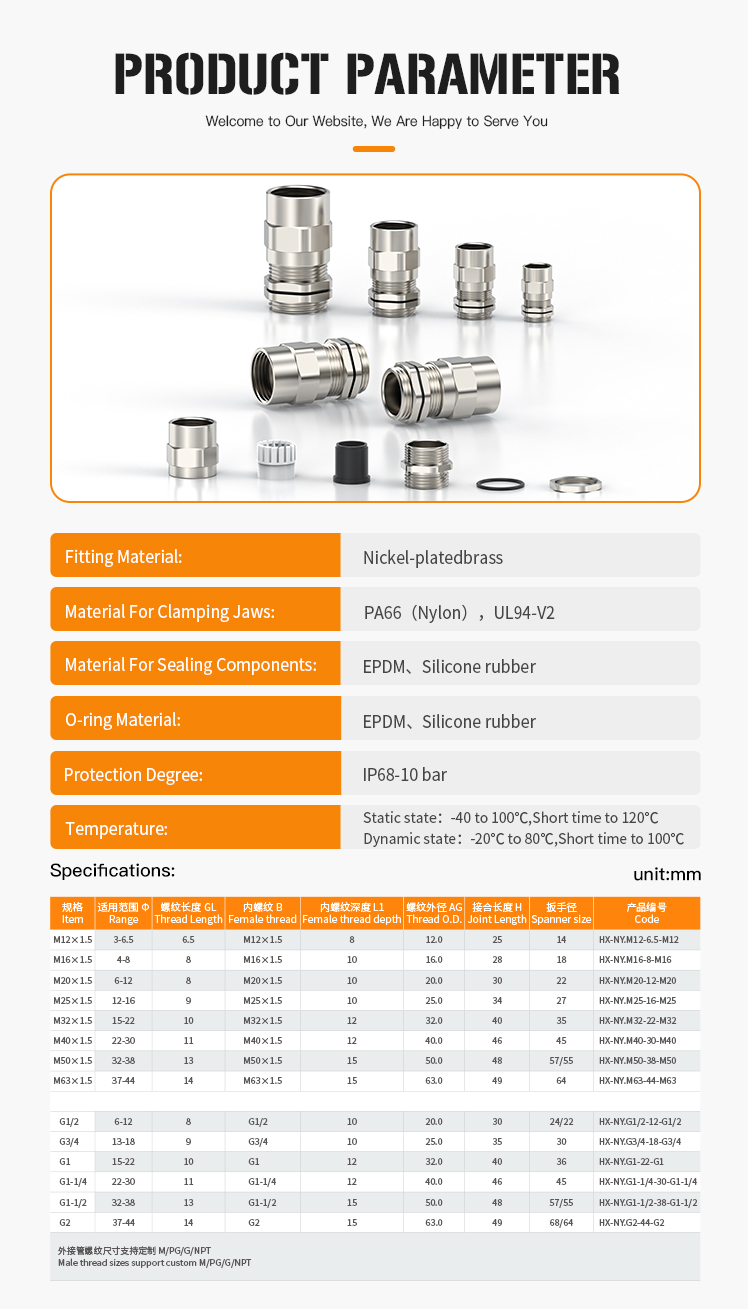

unit:mm
|
Item |
Range |
GL Thread Length |
B Female thread |
L1 Female thread depth |
AG Thread O.D |
H Joint Length |
Spanner size |
Code |
|
M12×1.5 |
3-6.5 |
6.5 |
M12×1.5 |
8 |
12.0 |
25 |
14 |
HX-NY.M12-6.5-M12 |
|
M16×1.5 |
4-8 |
8 |
M16×1.5 |
10 |
16.0 |
28 |
18 |
HX-NY.M16-8-M16 |
|
M20×1.5 |
6-12 |
8 |
M20×1.5 |
10 |
20.0 |
30 |
22 |
HX-NY.M20-12-M20 |
|
M25×1.5 |
12-16 |
9 |
M25×1.5 |
10 |
25.0 |
34 |
27 |
HX-NY.M25-16-M25 |
|
M32×1.5 |
15-22 |
10 |
M32×1.5 |
12 |
32.0 |
40 |
35 |
HX-NY.M32-22-M32 |
|
M40×1.5 |
22-30 |
11 |
M40×1.5 |
12 |
40.0 |
46 |
45 |
HX-NY.M40-30-M40 |
|
M50×1.5 |
32-38 |
13 |
M50×1.5 |
15 |
50.0 |
48 |
57/55 |
HX-NY.M50-38-M50 |
|
M63×1.5 |
37-44 |
14 |
M63×1.5 |
15 |
63.0 |
49 |
64 |
HX-NY.M63-44-M63 |
|
G1/2 |
6-12 |
8 |
G1/2 |
10 |
20.0 |
30 |
24/22 |
HX-NY.G1/2-12-G1/2 |
|
G3/4 |
13-18 |
9 |
G3/4 |
10 |
25.0 |
35 |
30 |
HX-NY.G3/4-18-G3/4 |
|
G1 |
15-22 |
10 |
G1 |
12 |
32.0 |
40 |
36 |
HX-NY.G1-22-G1 |
|
G1-1/4 |
22-30 |
11 |
G1-1/4 |
12 |
40.0 |
46 |
45 |
HX-NY.G1-1/4-30-G1-1/4 |
|
G1-1/2 |
32-38 |
13 |
G1-1/2 |
15 |
50.0 |
48 |
57/55 |
HX-NY.G1-1/2-38-G1-1/2 |
|
G2 |
37-44 |
14 |
G2 |
15 |
63.0 |
49 |
68/64 |
HX-NY.G2-44-G2 |
|
Male thread sizes support custom M/PG/G/NPT |
||||||||
