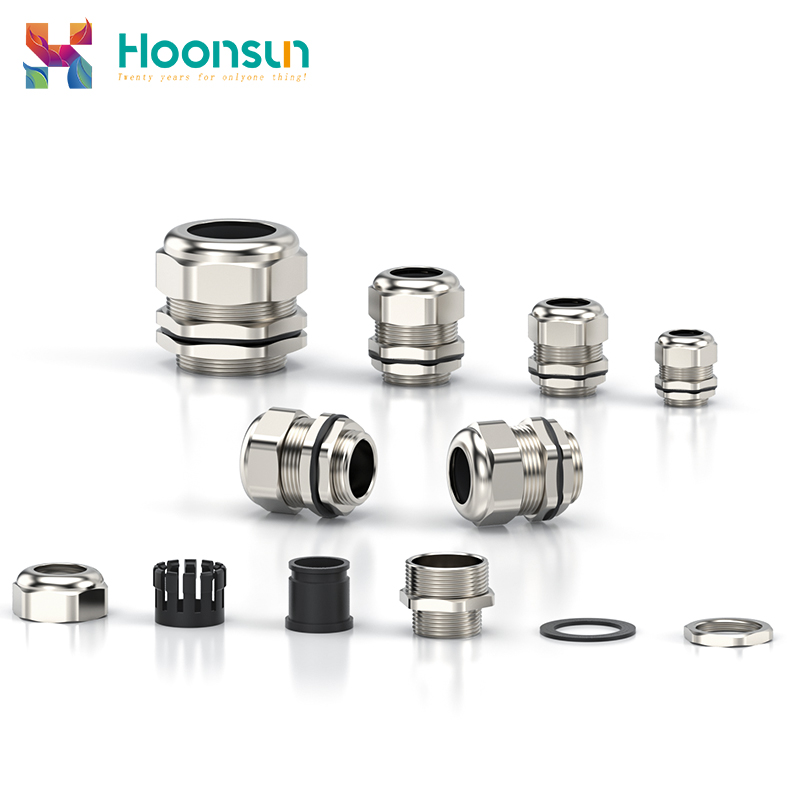

Metal Cable Gland Strengthened Type with UL and IP68
The Metal Cable Gland Strengthened Type, which is certified by UL and IP68, can ensure stable and reliable connections in harsh industrial and outdoor environments.
Certified for Global Markets：

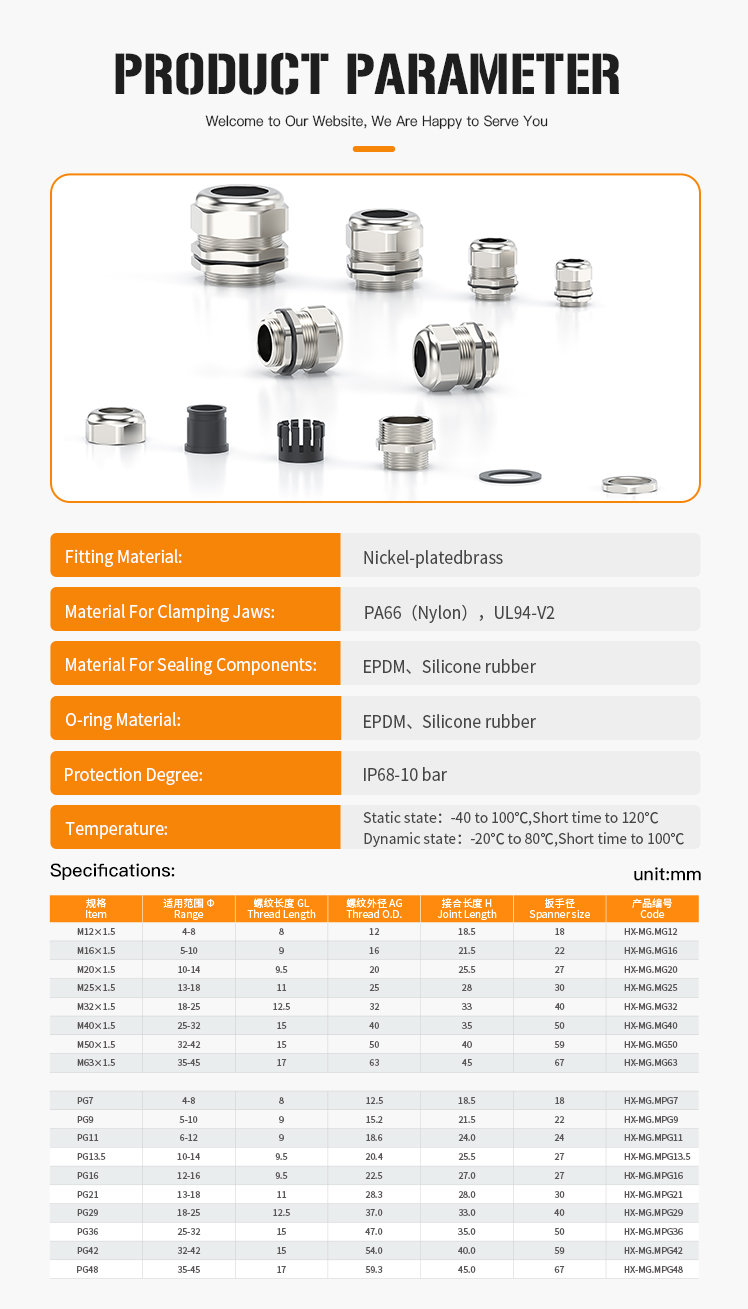

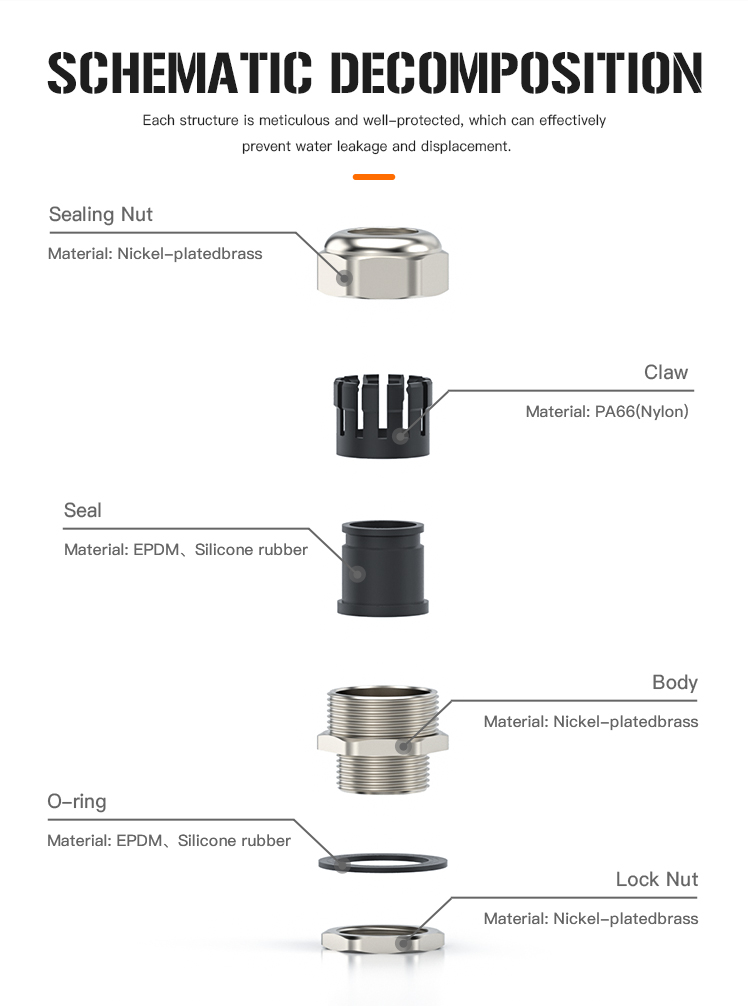

- Fitting Material Nickel-platedbrass
- Material For Clamping Jaws IPA66(Nylon),UL94-V2
- Material For Sealing Components EPDM、Silicone rubber
- O-ring Material EPDM、Silicone rubber
- Protection Degree IP68-10 bar

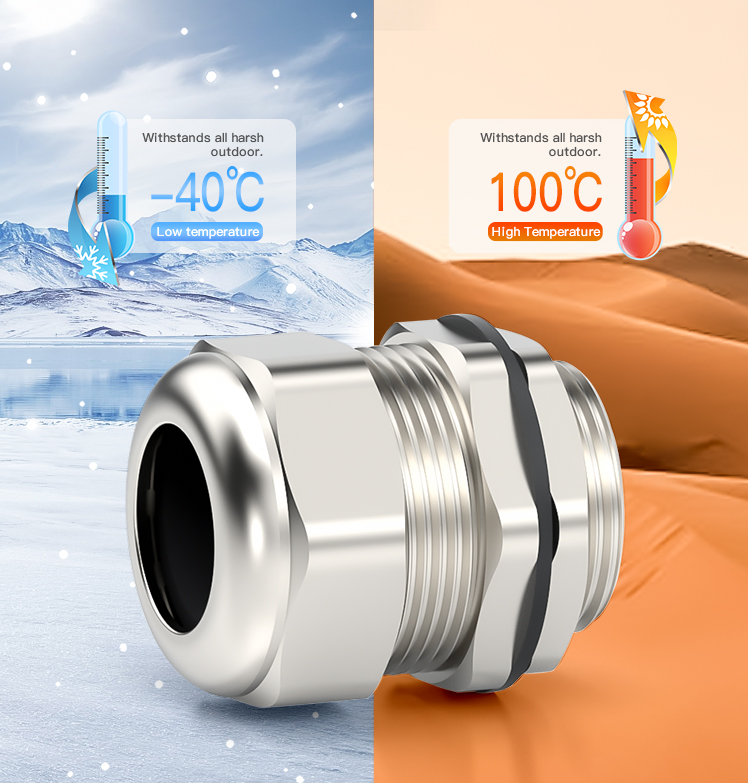

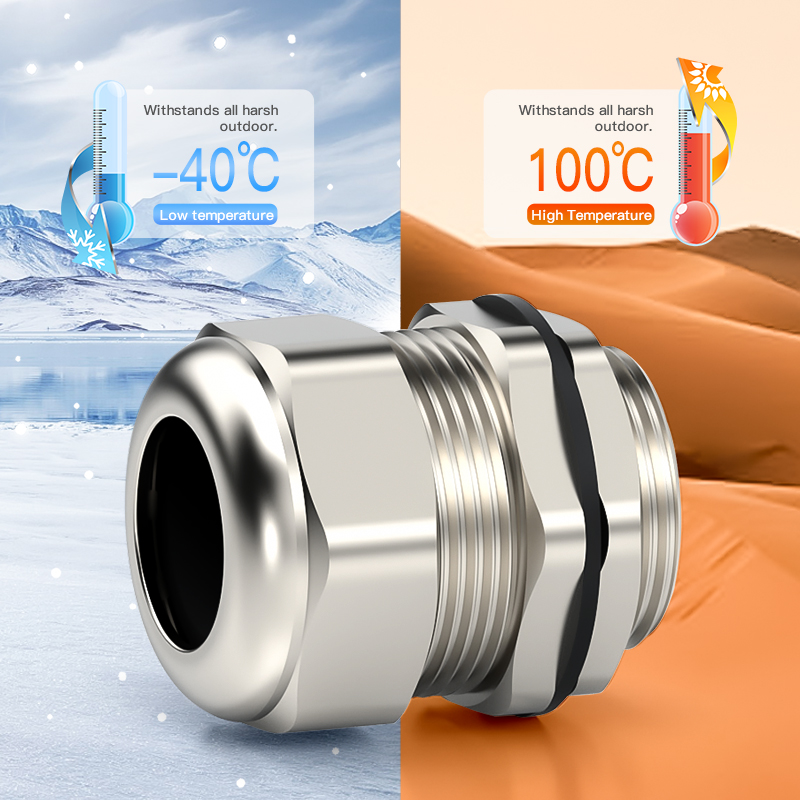

- Temperature Static state:-40 to 100℃,Short time to 120℃ Dynamic state:-20℃ to 80℃,Short time to 100℃
Product Highlights
◆Comprehensive Structural Reinforcement
Both the main body and clamping components adopt thickened, high-strength materials, significantly improving overall mechanical performance and enabling resistance to greater external impact.

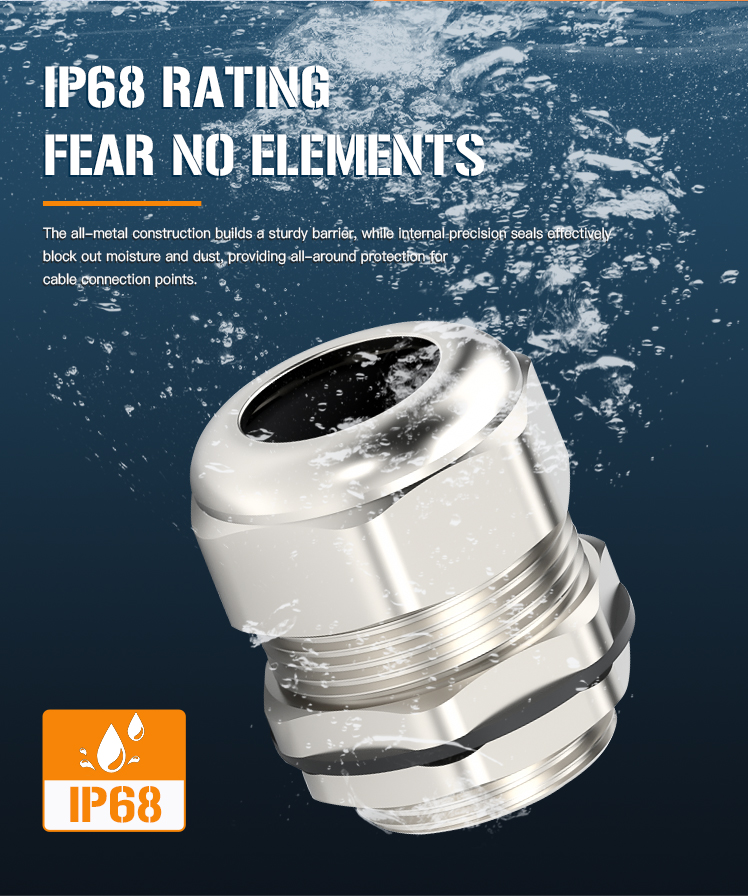

◆Upgraded Protection Level
Optimized sealing structure with an IP68+ protection rating, enhancing dustproof, waterproof, oilproof, and corrosion-resistant capabilities for harsh working conditions.
◆Extremely Secure Connection
Upgraded dual clamping design, featuring excellent tensile, anti-vibration, and anti-torque performance to effectively prevent cable loosening and ensure long-term stable use.
◆Wide Application Compatibility
Compatible with various cable specifications and thread standards (PG, NPT, and Metric threads), easy to install, and widely used in high-intensity scenarios.
Applications
◇Heavy machinery, power distribution systems, and automation equipment
◇Outdoor installations exposed to extreme conditions
◇Rail systems, marine environments, and industrial control panels
◇Mining, shipping, and outdoor engineering applications
Key Benefits
◆Exceptional durability and stability for demanding industrial and outdoor use
◆Outstanding mechanical strength, impact resistance, and corrosion protection
◆Reliable cable retention under continuous vibration and mechanical stress
◆Tight IP68 seal preventing water, oil, or dust ingress
◆Robust design minimizing deformation under high torque, providing excellent strain relief and long-term sealing integrity
◆Ensures system safety and reliability for years of operation

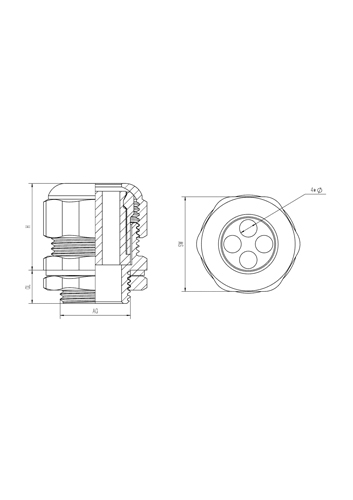

unit:mm
|
Item |
Range |
GL Thread Length |
AG Thread O.D. |
H Joint Length |
Spanner size |
Code |
|
M12×1.5 |
4-8 |
8 |
12 |
18.5 |
18 |
HX-MG.MG12 |
|
M16×1.5 |
5-10 |
9 |
16 |
21.5 |
22 |
HX-MG.MG16 |
|
M20×1.5 |
10-14 |
9.5 |
20 |
25.5 |
27 |
HX-MG.MG20 |
|
M25×1.5 |
13-18 |
11 |
25 |
28 |
30 |
HX-MG.MG25 |
|
M32×1.5 |
18-25 |
12.5 |
32 |
33 |
40 |
HX-MG.MG32 |
|
M40×1.5 |
25-32 |
15 |
40 |
35 |
50 |
HX-MG.MG40 |
|
M50×1.5 |
32-42 |
15 |
50 |
40 |
59 |
HX-MG.MG50 |
|
M63×1.5 |
35-45 |
17 |
63 |
45 |
67 |
HX-MG.MG63 |
|
PG7 |
4-8 |
8 |
12.5 |
18.5 |
18 |
HX-MG.MPG7 |
|
PG9 |
5-10 |
9 |
15.2 |
21.5 |
22 |
HX-MG.MPG9 |
|
PG11 |
6-12 |
9 |
18.6 |
24.0 |
24 |
HX-MG.MPG11 |
|
PG13.5 |
10-14 |
9.5 |
20.4 |
25.5 |
27 |
HX-MG.MPG13.5 |
|
PG16 |
12-16 |
9.5 |
22.5 |
27.0 |
27 |
HX-MG.MPG16 |
|
PG21 |
13-18 |
11 |
28.3 |
28.0 |
30 |
HX-MG.MPG21 |
|
PG29 |
18-25 |
12.5 |
37.0 |
33.0 |
40 |
HX-MG.MPG29 |
|
PG36 |
25-32 |
15 |
47.0 |
35.0 |
50 |
HX-MG.MPG36 |
|
PG42 |
32-42 |
15 |
54.0 |
40.0 |
59 |
HX-MG.MPG42 |
|
PG48 |
35-45 |
17 |
59.3 |
45.0 |
67 |
HX-MG.MPG48 |
