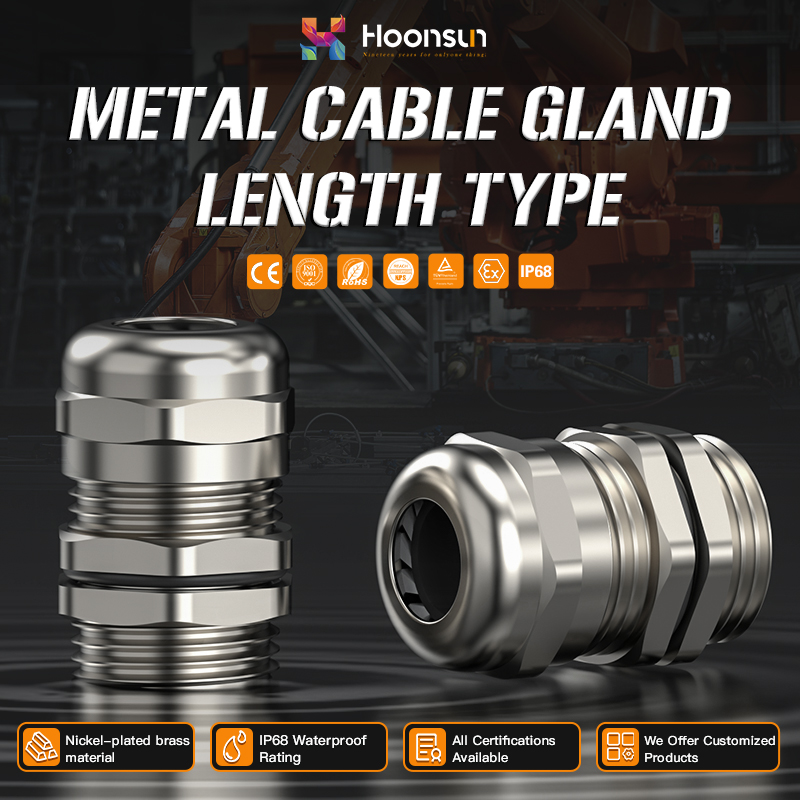

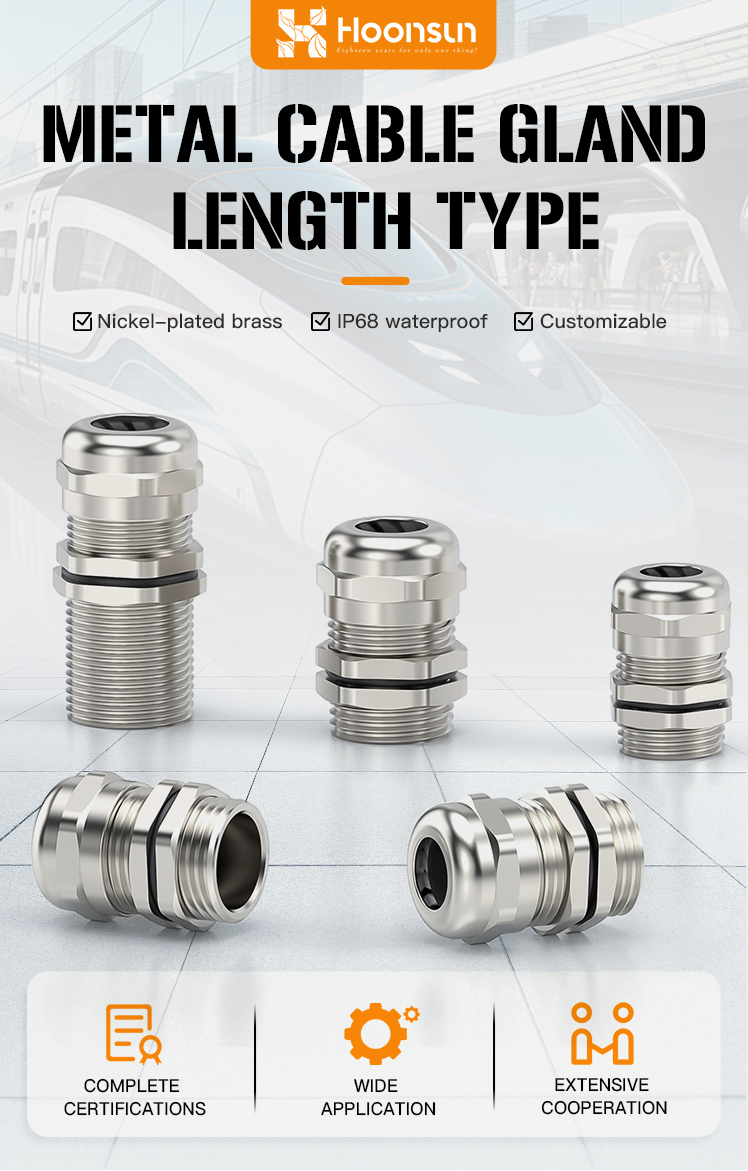

Metal Cable Gland Length Type with UL and IP68
The Metal Cable Gland Length Type with UL and IP68 certifications offers a stable and waterproof sealing effect for thick or double-layer protective enclosures used in harsh industrial environments.
Certified for Global Markets：

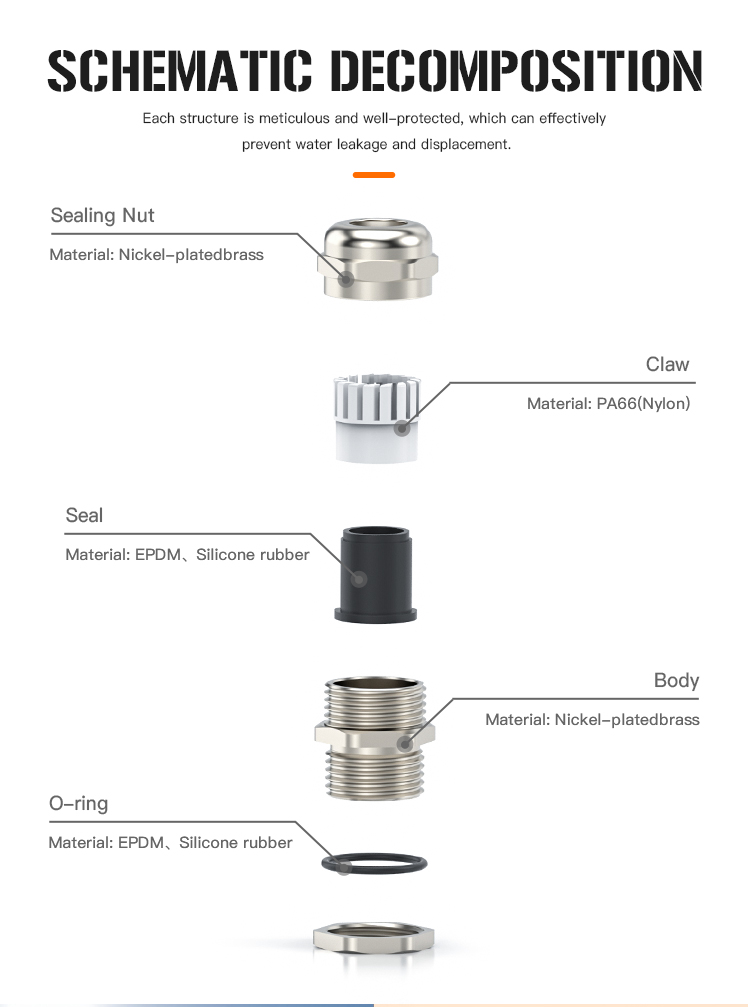

- Fitting Material Nickel-platedbrass
- Material For Clamping Jaws IPA66(Nylon),UL94-V2
- Material For Sealing Components EPDM、Silicone rubber
- O-ring Material EPDM、Silicone rubber
- Protection Degree IP68-10 bar

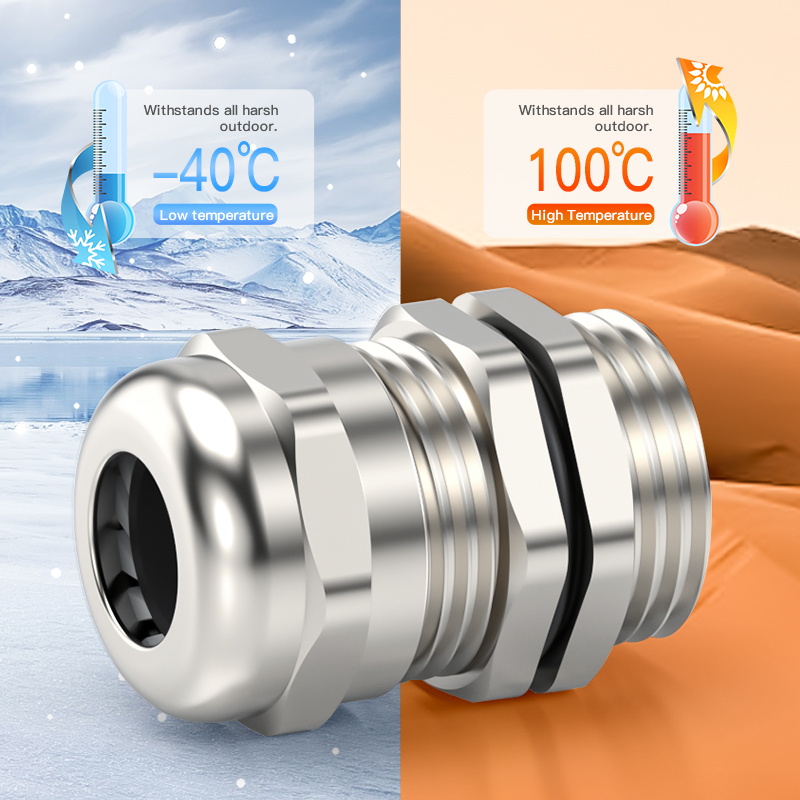

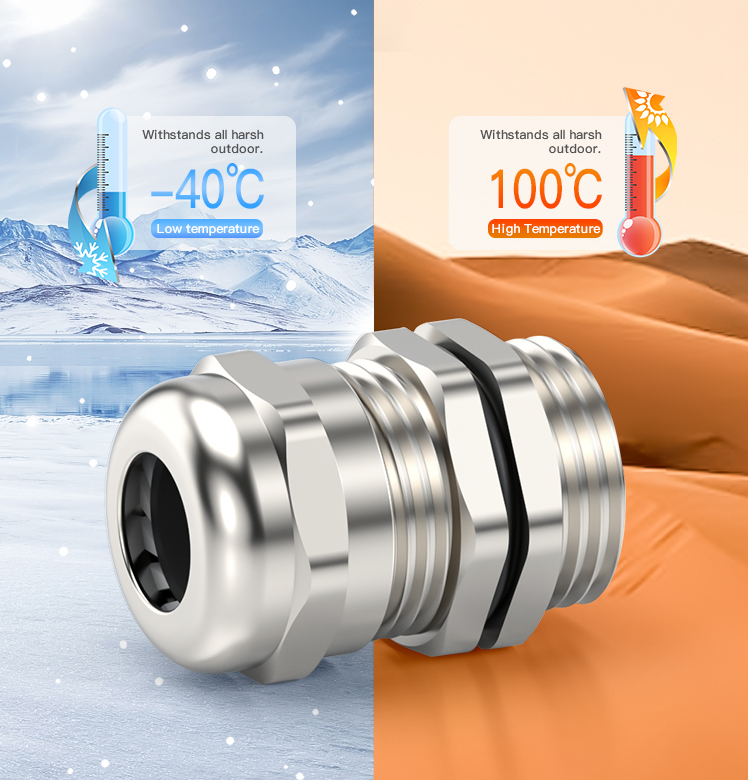

- Temperature Static state:-40 to 100℃,Short time to 120℃ Dynamic state:-20℃ to 80℃,Short time to 100℃
Product Highlights
◆Extended Body for Special Scenarios
Longer main body than conventional models, enabling penetration into deep-cavity equipment or thick-walled cabinets. Suitable for long-distance cable penetration installation, avoiding excessive cable bending.
◆Full-Length Enhanced Protection
The extended section maintains a complete sealing structure with IP65+ protection rating, providing full-length dustproof, waterproof, and oil-proof performance, adaptable to harsh environments like damp and dusty areas.
◆Secure Connection with Strong Anti-Disturbance
Equipped with high-strength clamping components and an anti-slip structure, featuring excellent tensile and anti-vibration performance to prevent loosening caused by long-term use or external forces.
◆Wide Compatibility & Easy Installation
Compatible with various cable specifications and thread standards (PG, NPT, and Metric), allowing quick manual assembly. Suitable for special wiring scenarios such as deep-cavity equipment, outdoor cabinets, and thick-walled distribution boxes.
Applications
◇Deep junction boxes, armored cable fittings, or control panels with insulated barriers.
◇Power systems, marine installations, automation equipment, and heavy machinery.
◇Complex cable routing and thick-panel enclosures in harsh industrial environments.
◇Special wiring scenarios such as deep-cavity equipment, outdoor cabinets, and thick-walled distribution boxes.
Key Benefits
◆Secure and Watertight Seal
Designed for installations requiring longer thread engagement, providing a reliable seal through thick or double-layered enclosure walls.
◆Durability and Corrosion Resistance
Manufactured from high-quality nickel-plated brass or stainless steel, offering excellent corrosion resistance and long-term mechanical stability.

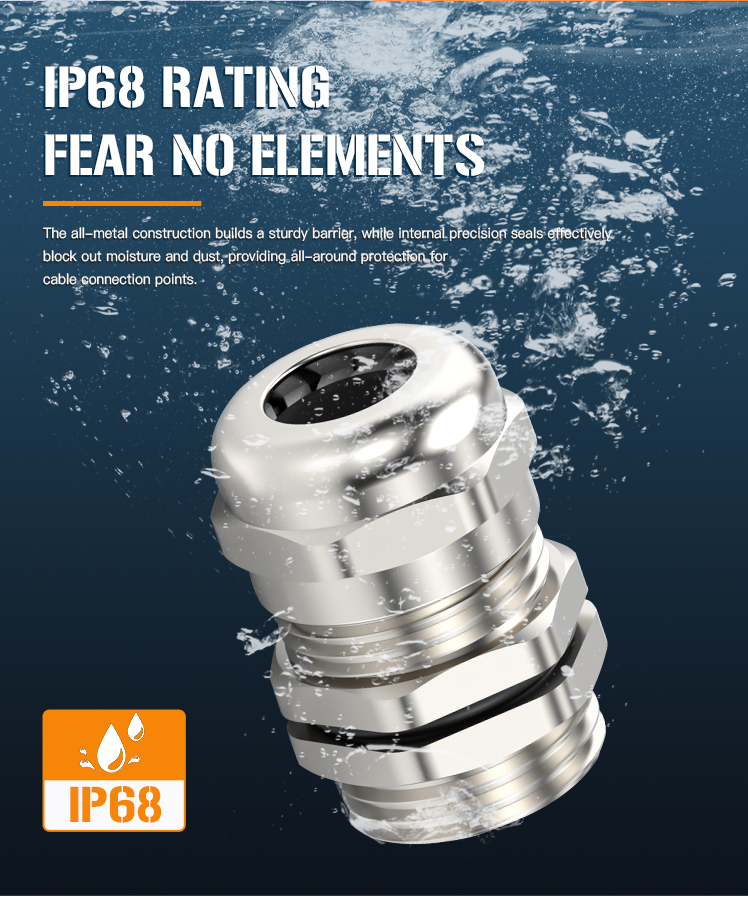

◆IP68 Waterproof and Dustproof Protection
Precision-machined threads and advanced sealing rings ensure maximum protection against moisture, oil, and environmental exposure.
◆Strain Relief and Electrical Continuity
Maintains excellent strain relief and grounding, ideal for demanding applications.
◆Compliance with International Standards
Complies with CE, UL, and RoHS, ensuring a durable and reliable solution for professional-grade cable protection.

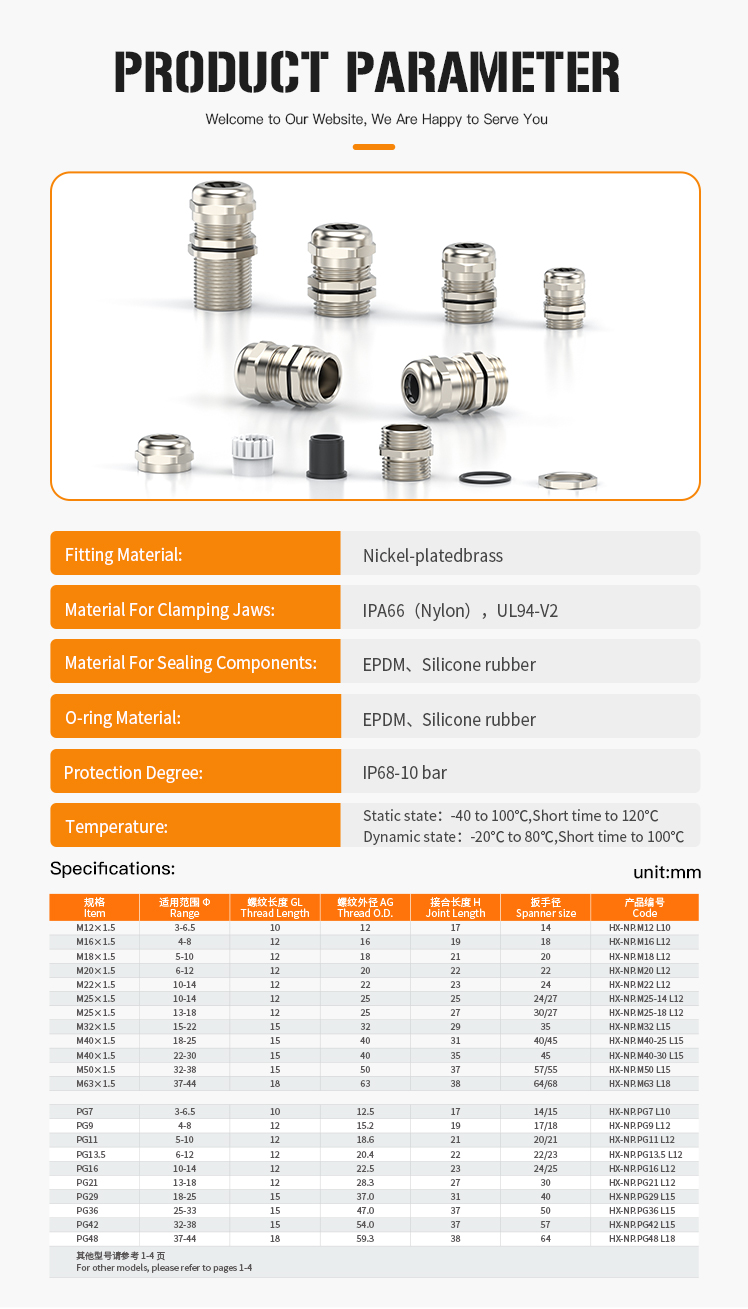

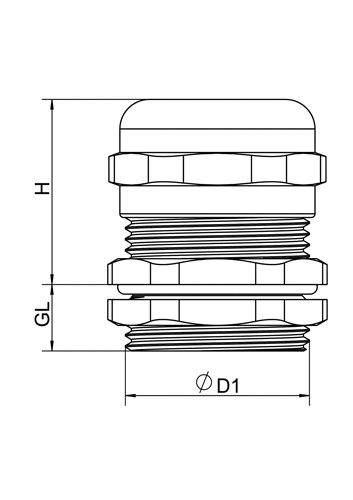

unit:mm
|
Item |
Range |
GL Thread Length |
AG Thread O.D. |
H Joint Length |
Spanner size |
Code |
|
M12×1.5 |
3-6.5 |
10 |
12 |
17 |
14 |
HX-NP.M12 L10 |
|
M16×1.5 |
4-8 |
12 |
16 |
19 |
18 |
HX-NP.M16 L12 |
|
M18×1.5 |
5-10 |
12 |
18 |
21 |
20 |
HX-NP.M18 L12 |
|
M20×1.5 |
6-12 |
12 |
20 |
22 |
22 |
HX-NP.M20 L12 |
|
M22×1.5 |
10-14 |
12 |
22 |
23 |
24 |
HX-NP.M22 L12 |
|
M25×1.5 |
10-14 |
12 |
25 |
25 |
24/27 |
HX-NP.M25-14 L12 |
|
M25×1.5 |
13-18 |
12 |
25 |
27 |
30/27 |
HX-NP.M25-18 L12 |
|
M32×1.5 |
15-22 |
15 |
32 |
29 |
35 |
HX-NP.M32 L15 |
|
M40×1.5 |
18-25 |
15 |
40 |
31 |
40/45 |
HX-NP.M40-25 L15 |
|
M40×1.5 |
22-30 |
15 |
40 |
35 |
45 |
HX-NP.M40-30 L15 |
|
M50×1.5 |
32-38 |
15 |
50 |
37 |
57/55 |
HX-NP.M50 L15 |
|
M63×1.5 |
37-44 |
18 |
63 |
38 |
64/68 |
HX-NP.M63 L18 |
|
PG7 |
3-6.5 |
10 |
12.5 |
17 |
14/15 |
HX-NP.PG7 L10 |
|
PG9 |
4-8 |
12 |
15.2 |
19 |
17/18 |
HX-NP.PG9 L12 |
|
PG11 |
5-10 |
12 |
18.6 |
21 |
20/21 |
HX-NP.PG11 L12 |
|
PG13.5 |
6-12 |
12 |
20.4 |
22 |
22/23 |
HX-NP.PG13.5 L12 |
|
PG16 |
10-14 |
12 |
22.5 |
23 |
24/25 |
HX-NP.PG16 L12 |
|
PG21 |
13-18 |
12 |
28.3 |
27 |
30 |
HX-NP.PG21 L12 |
|
PG29 |
18-25 |
15 |
37.0 |
31 |
40 |
HX-NP.PG29 L15 |
|
PG36 |
25-33 |
15 |
47.0 |
37 |
50 |
HX-NP.PG36 L15 |
|
PG42 |
32-38 |
15 |
54.0 |
37 |
57 |
HX-NP.PG42 L15 |
|
PG48 |
37-44 |
18 |
59.3 |
38 |
64 |
HX-NP.PG48 L18 |
