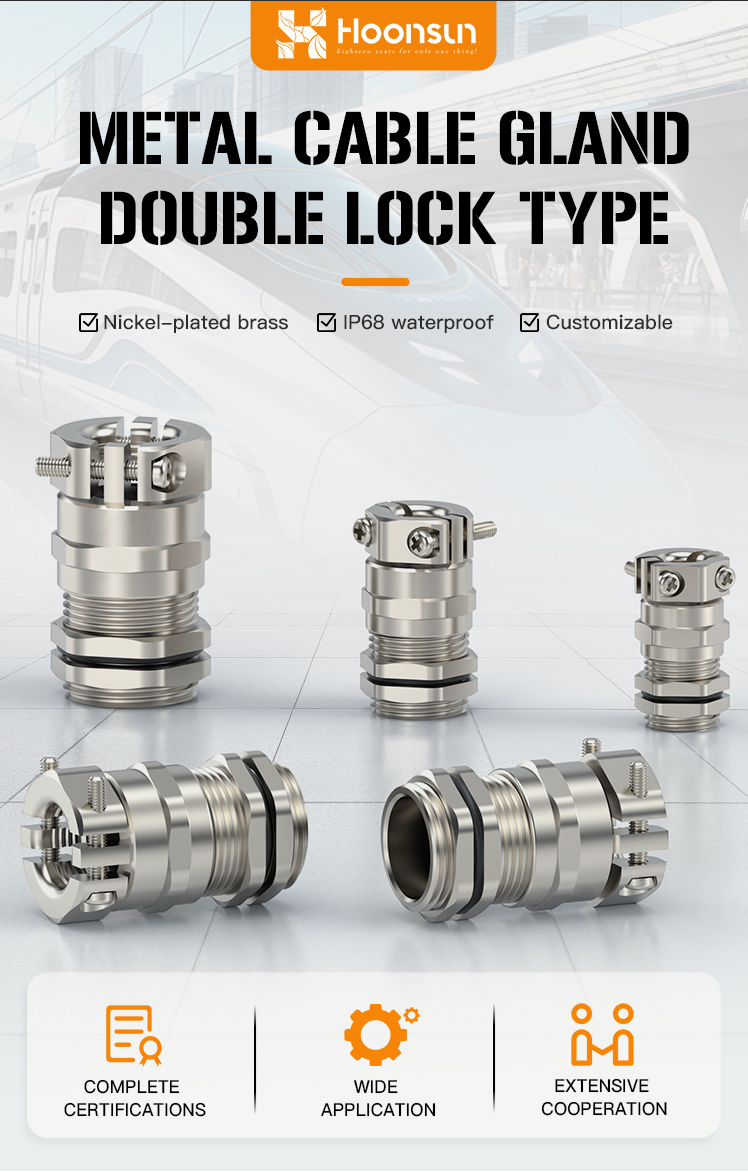

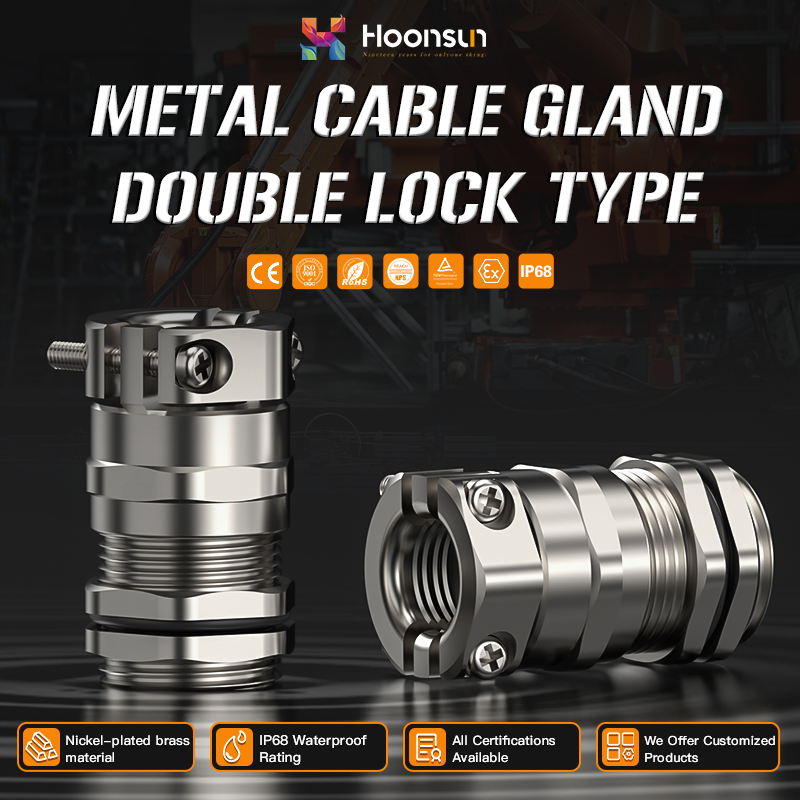

Metal Cable Gland Double Lock Type with IP68 and UL
Our Metal Cable Gland Double Lock Type provides superior anti-loosening performance with its dual-locking mechanism, offering the ultimate protection for cables in high-vibration and harsh industrial environments with an IP68 rating.
Certified for Global Markets：

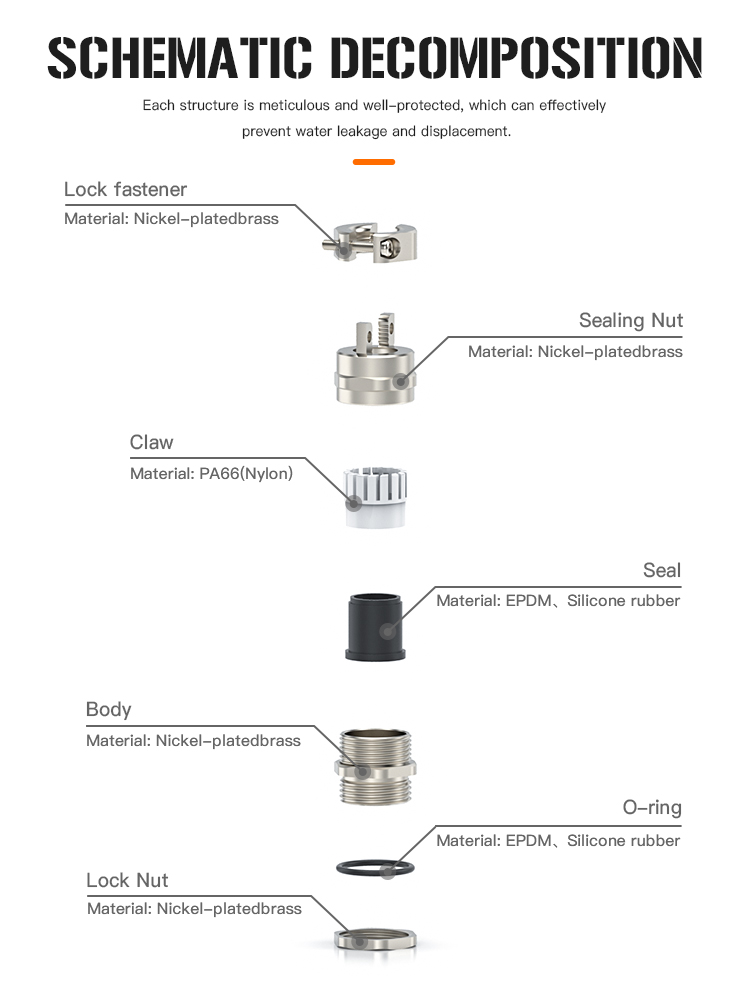

- Fitting Material Nickel-platedbrass
- Material For Clamping Jaws PA66(Nylon),UL94-V2
- Material For Sealing Components EPDM、Silicone rubber
- O-ring Material EPDM、Silicone rubber
- Protection Degree IP68-10 bar

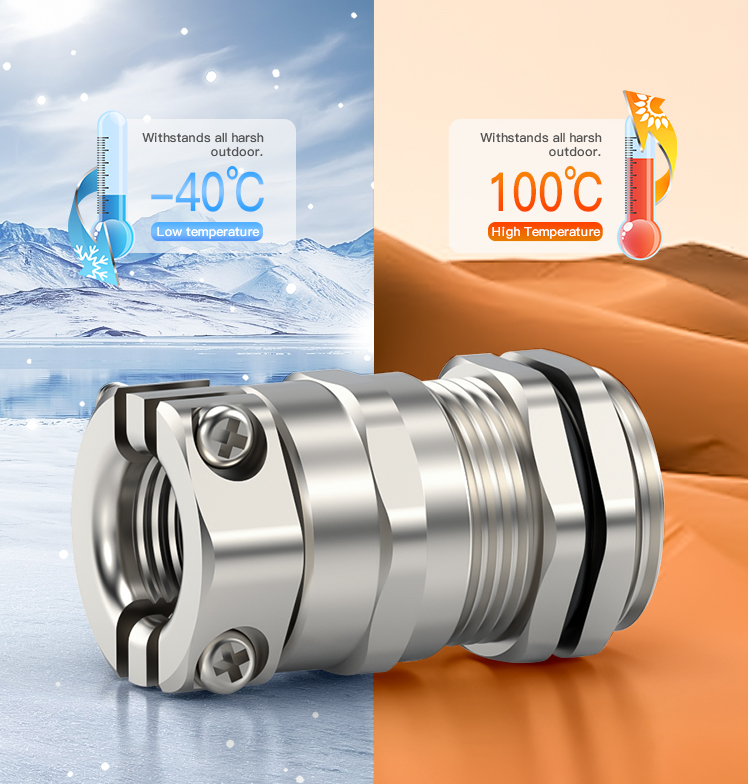

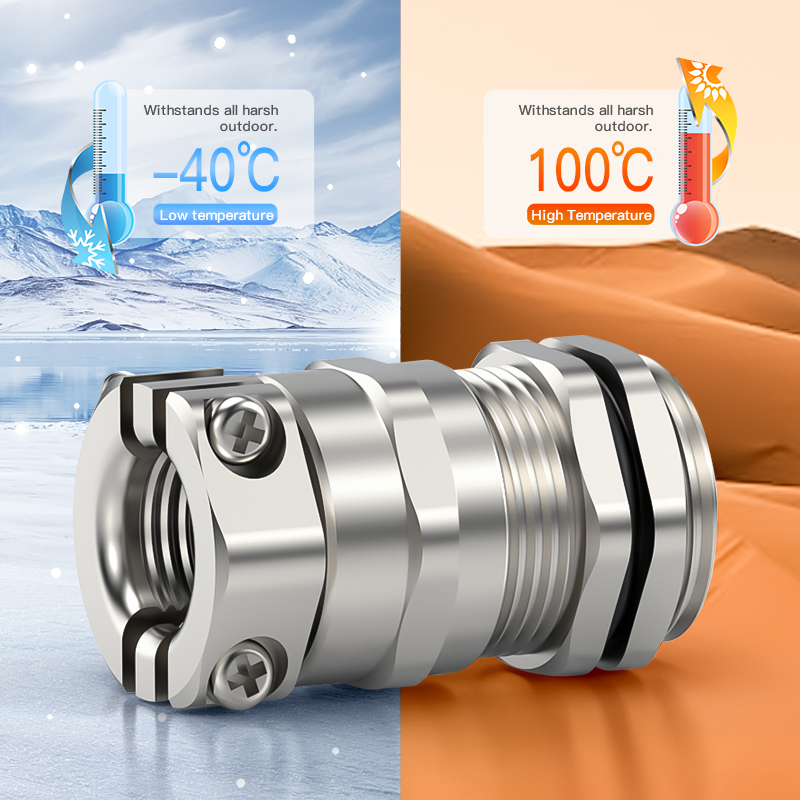

- Temperature Static state:-40 to 100℃,Short time to 120℃ Dynamic state:-20℃ to 80℃,Short time to 100℃
- Application features It is suitable for occasions where there are special requirements for cable sealing and tensile resistance
Product Highlights
◆Double-locking structure (thread + ferrule or dual-thread) for superior anti-loosening performance under vibration and pulling
◆High-quality metal housing with excellent mechanical strength, impact/corrosion resistance, and high-temperature durability

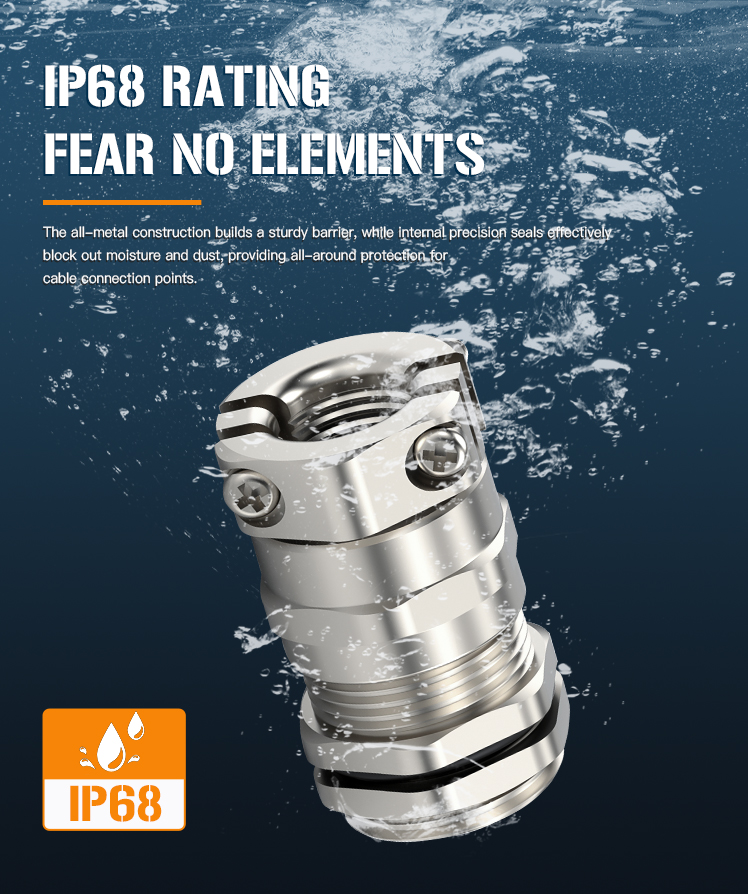

◆IP68-rated sealing, ensuring dustproof, waterproof, and oil-proof protection in harsh conditions
◆Compact design, easy to install manually or with basic tools, compatible with multiple cable specifications
Applications
◇Outdoor and heavy industrial environments
◇High-vibration machinery and equipment
◇Wiring systems requiring robust dust/water/oil resistance
◇Harsh conditions in manufacturing, energy, and infrastructure sectors
Key Benefits
◆Enhanced connection stability under extreme vibration and tension
◆Long service life with resistance to wear, corrosion, and impact
◆Reliable sealing prevents leakage and protects internal components
◆Easy installation improves efficiency while ensuring secure cable connections

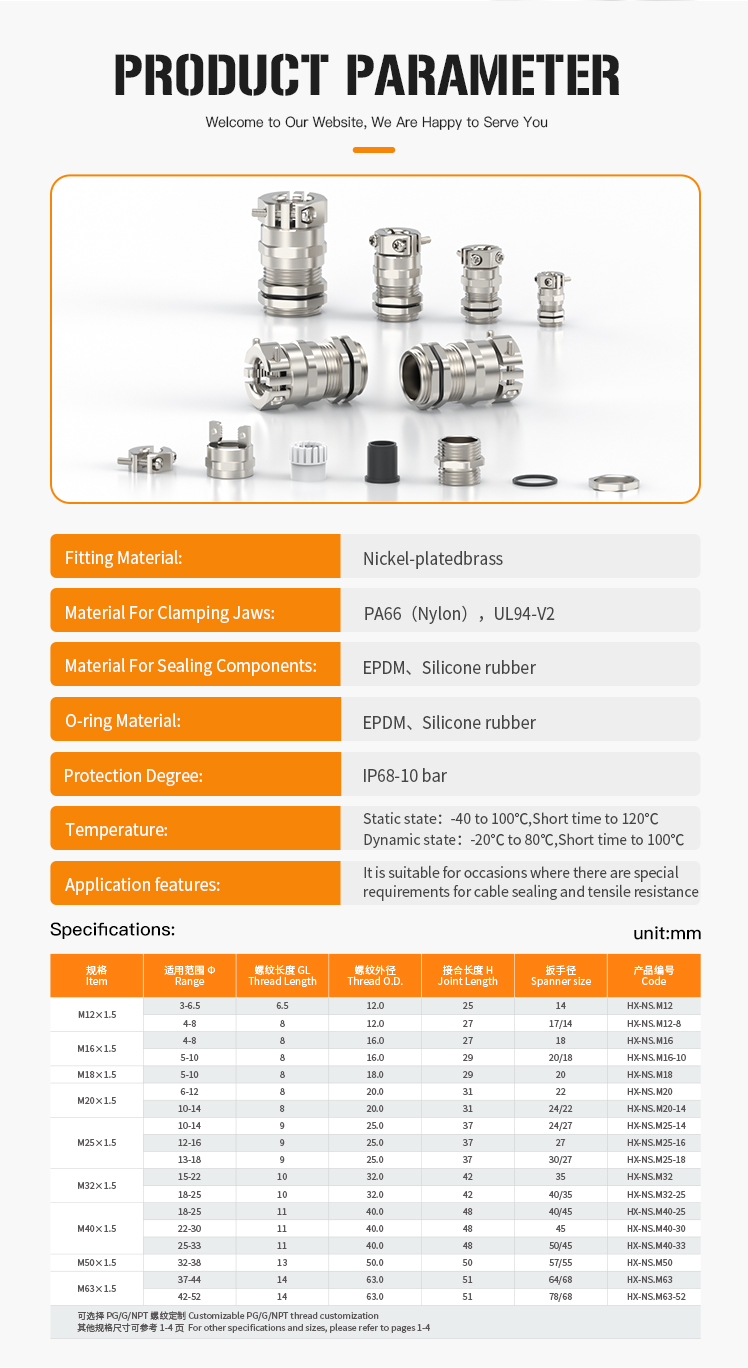

unit:mm
|
Item |
Range |
GL Thread Length |
Thread O.D. |
H Joint Length |
Spanner size |
Code |
|
M12×1.5 |
3-6.5 |
6.5 |
12.0 |
25 |
14 |
HX-NS.M12 |
|
4-8 |
8 |
12.0 |
27 |
17/14 |
HX-NS.M12-8 |
|
|
M16×1.5 |
4-8 |
8 |
16.0 |
27 |
18 |
HX-NS.M16 |
|
5-10 |
8 |
16.0 |
29 |
20/18 |
HX-NS.M16-10 |
|
|
M18×1.5 |
5-10 |
8 |
18.0 |
29 |
22 |
HX-NS.M18 |
|
M20×1.5 |
6-12 |
8 |
20.0 |
31 |
22 |
HX-NS.M20 |
|
10-14 |
8 |
20.0 |
31 |
24/22 |
HX-NS.M20-14 |
|
|
M25×1.5 |
10-14 |
9 |
25.0 |
37 |
24/27 |
HX-NS.M25-14 |
|
12-16 |
9 |
25.0 |
37 |
27 |
HX-NS.M25-16 |
|
|
13-18 |
9 |
25.0 |
37 |
30/27 |
HX-NS.M25-18 |
|
|
M32×1.5 |
15-22 |
10 |
32.0 |
42 |
35 |
HX-NS.M32 |
|
18-25 |
10 |
32.0 |
42 |
40/35 |
HX-NS.M32-25 |
|
|
M40×1.5 |
18-25 |
11 |
40.0 |
48 |
40/45 |
HX-NS.M40-25 |
|
22-30 |
11 |
40.0 |
48 |
45 |
HX-NS.M40-30 |
|
|
25-33 |
11 |
40.0 |
48 |
50/45 |
HX-NS.M40-33 |
|
|
M50×1.5 |
32-38 |
13 |
50.0 |
50 |
57/55 |
HX-NS.M50 |
|
M63×1.5 |
37-44 |
14 |
63.0 |
51 |
64/68 |
HX-NS.M63 |
|
42-52 |
14 |
63.0 |
51 |
78/68 |
HX-NS.M63-52 |
|
|
Customlzable PG/G/NPT thread customlzation |
||||||
