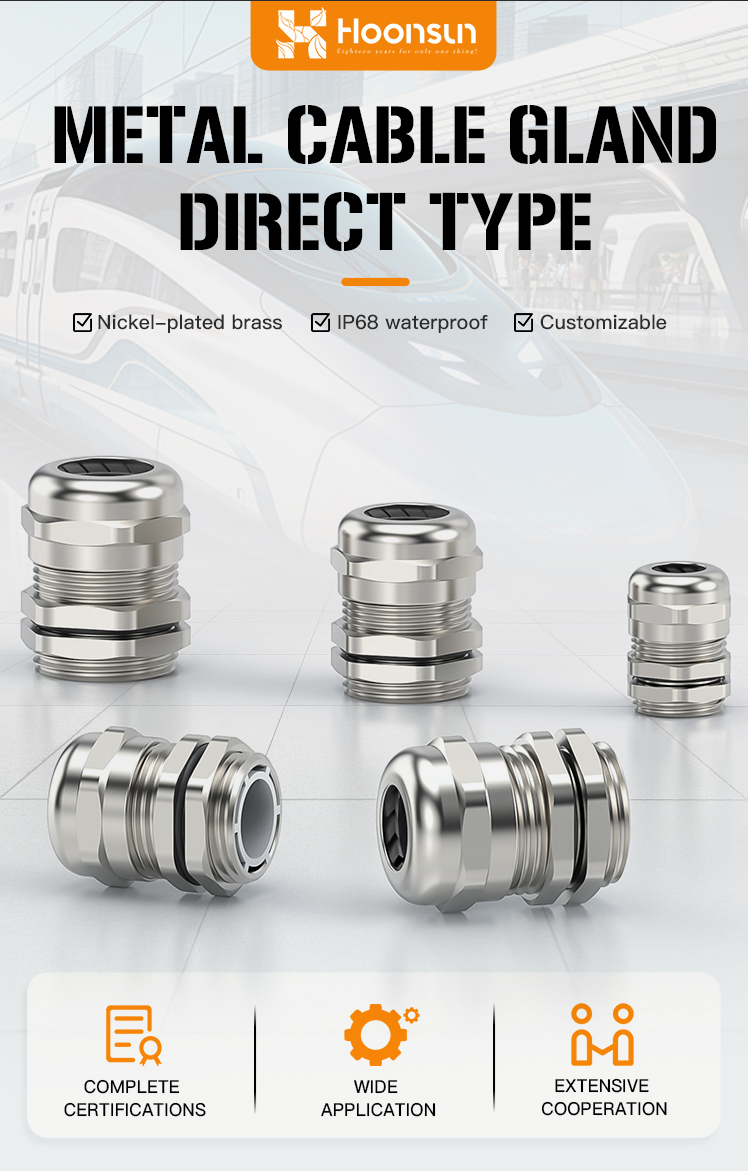

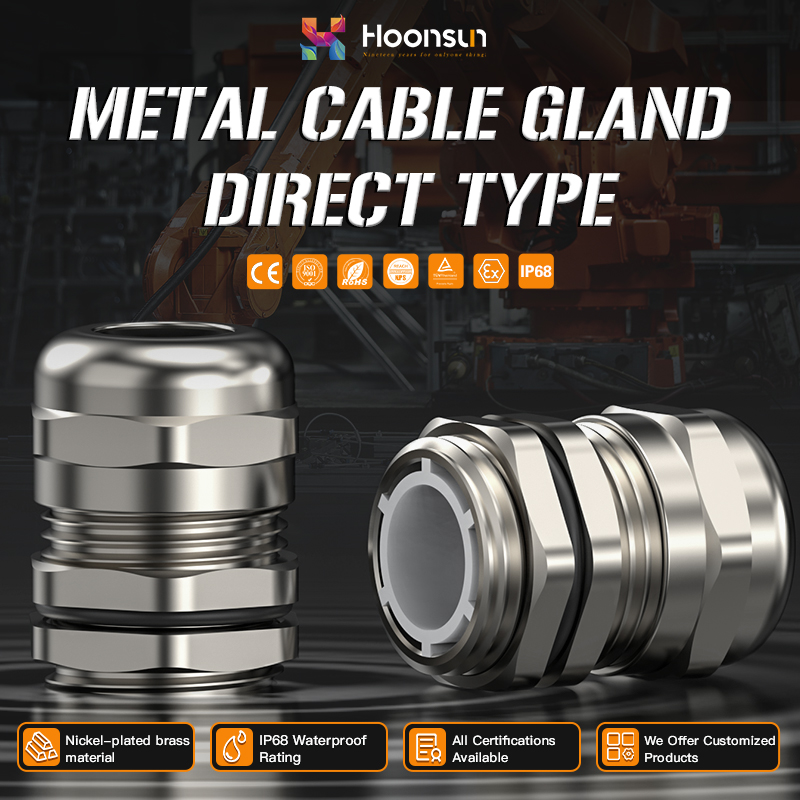

Metal Cable Gland Direct Type with IP68 and UL
Metal Cable Gland Direct type provides sealed, strain-relief cable entry with IP68 protection and UL certification for industrial applications.
Certified for Global Markets：

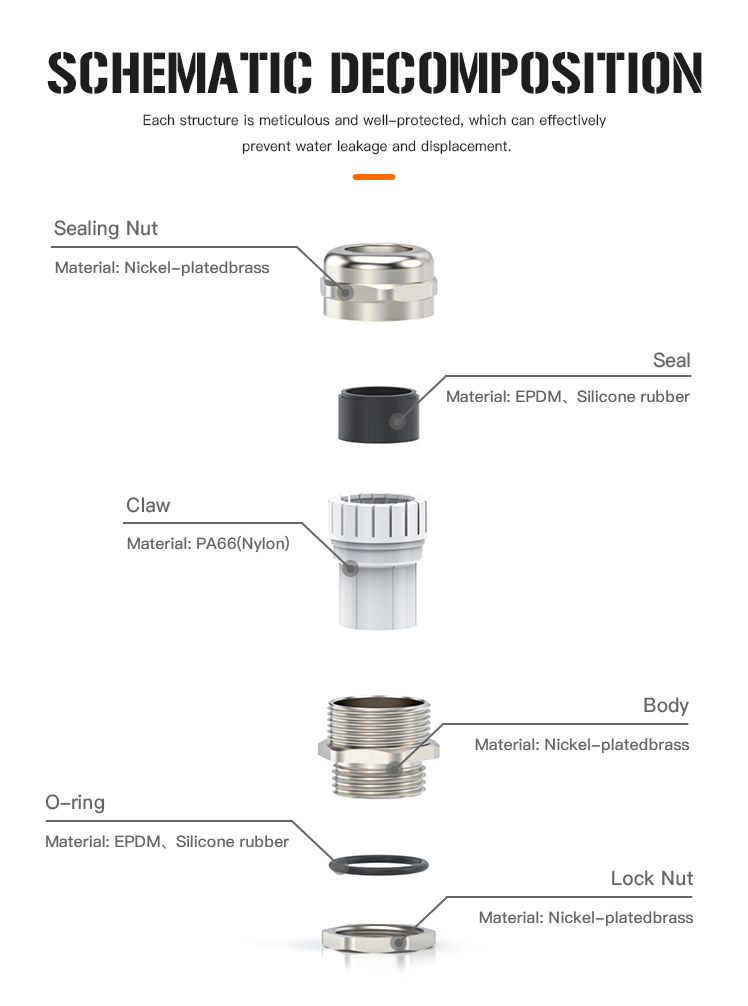

- Fitting Material Nickel-platedbrass
- Material For Clamping Jaws PA66(Nylon),UL94-V2
- Material For Sealing Components EPDM、Silicone rubber
- O-ring Material EPDM、Silicone rubber
- Protection Degree IP68-10 bar

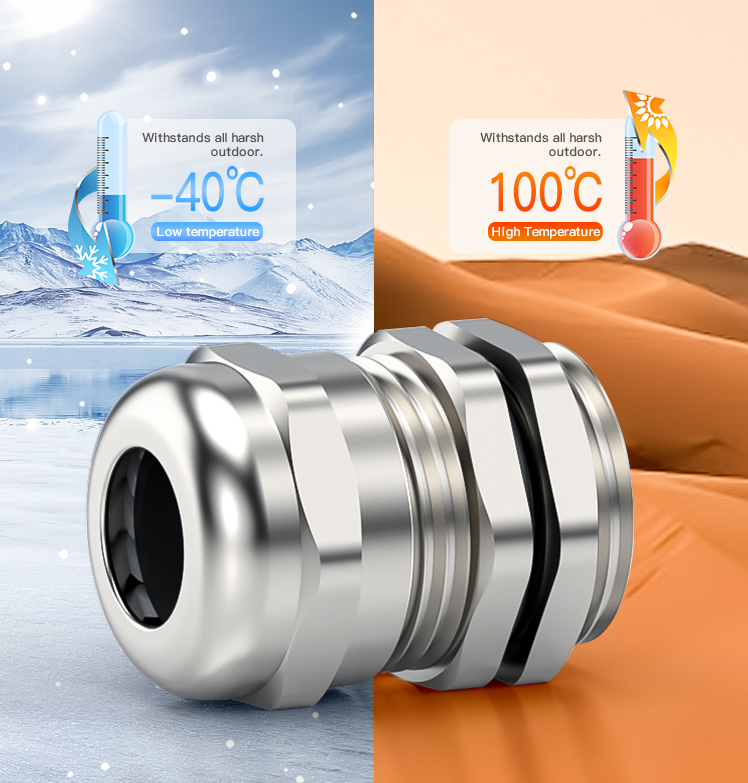

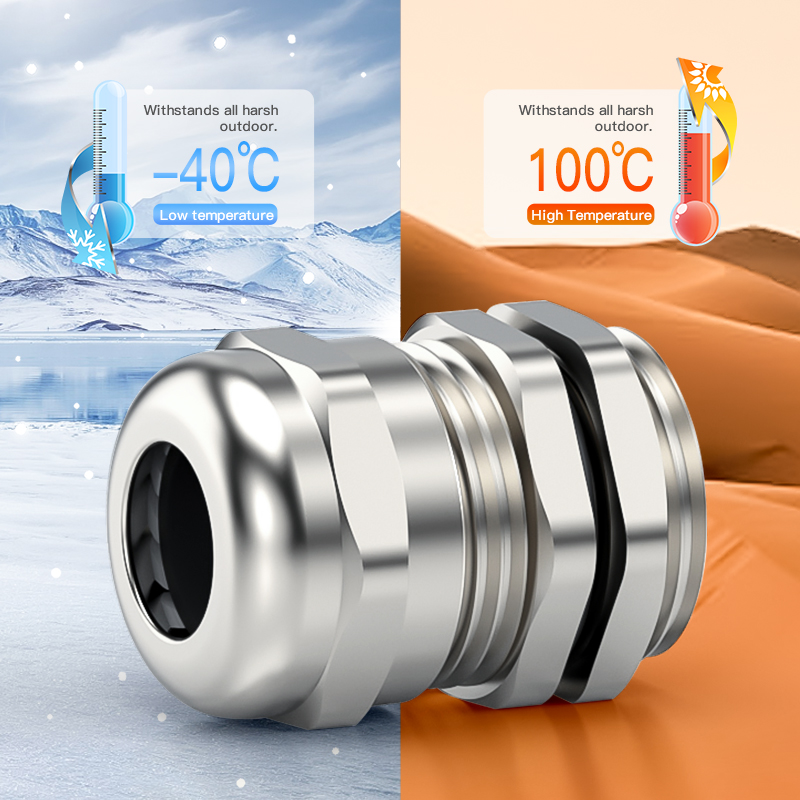

- Temperature Static state:-40 to 100℃,Short time to 120℃ Dynamic state:-20℃ to 80℃,Short time to 100℃
Product Highlights
◆Precision-engineered from nickel-plated brass or stainless steel for high durability, corrosion resistance, and stability in harsh environments.
◆Direct-through (straight-through) design ensures optimal cable alignment and minimizes stress.

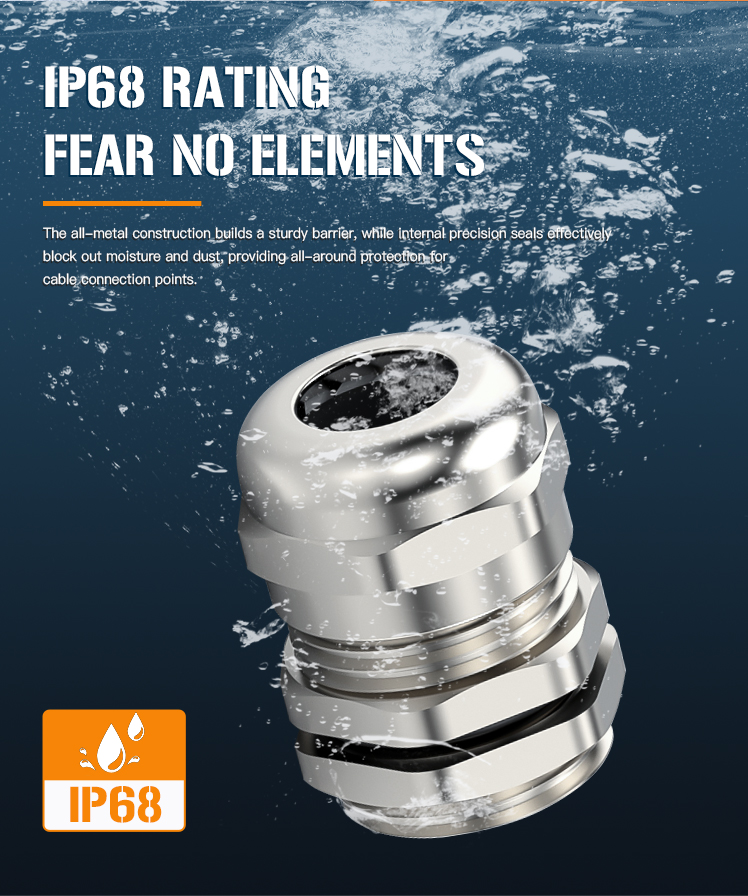

◆Provides IP68-rated waterproof and dustproof protection, effectively preventing the ingress of water, oil, and contaminants.
◆Offers excellent strain relief to protect cables from pull-out and bending fatigue.
◆Features a smooth internal structure to reduce cable wear during installation.
◆Compatible with Metric, PG, and NPT threading for seamless global integration.
◆Certified by CE, UL, and RoHS, ensuring industry-standard quality and safety.
Applications
◇Automation Equipment
◇Control Panels
◇Marine Systems
◇Renewable Energy Devices
◇Outdoor Lighting Installations
Key Benefits
◆Straight-through design for optimal cable alignment
◆IP68 waterproof and dustproof protection
◆Excellent strain relief and vibration resistance
◆Nickel-plated brass or stainless-steel body
◆Easy installation with Metric, PG, and NPT threads
◆CE / UL / RoHS certified for global compliance

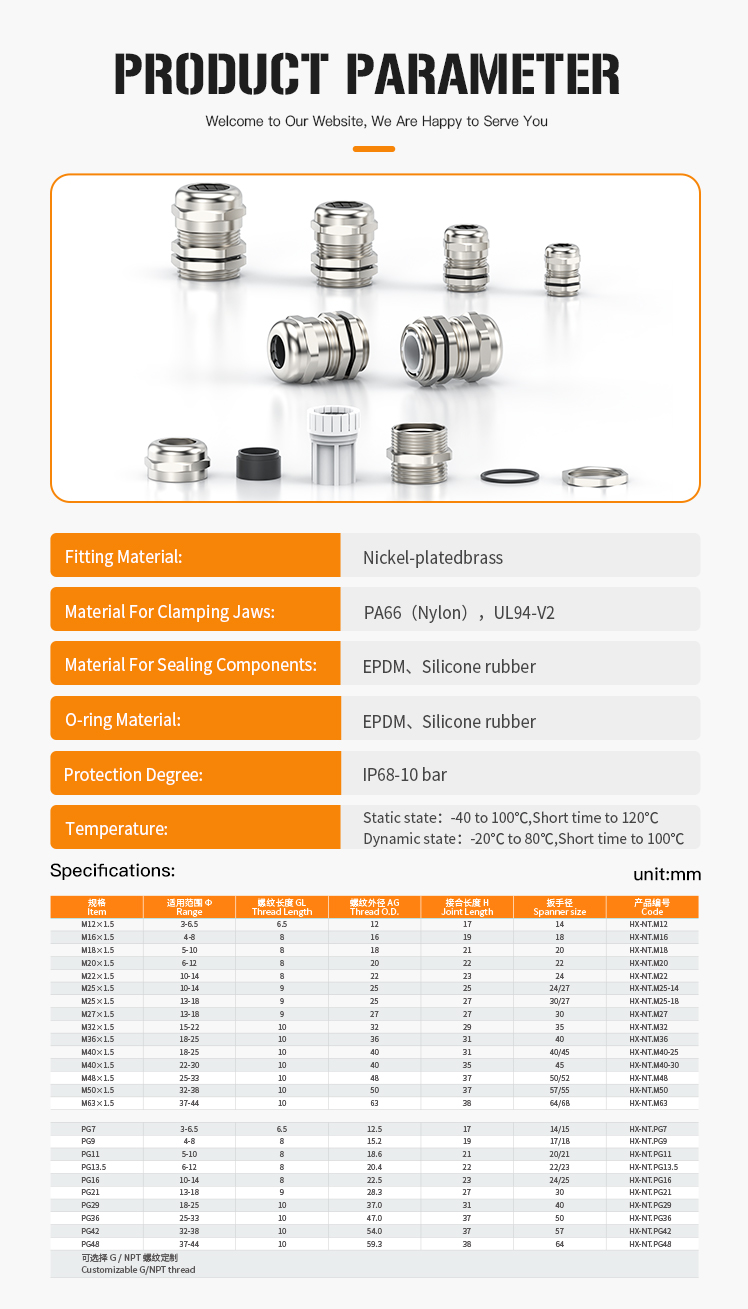

unit:mm
|
Item |
Range |
GL Thread Length |
AG Thread O.D. |
H Joint Length |
Spanner size |
Code |
|
M12×1.5 |
3-6.5 |
6.5 |
12 |
17 |
14 |
HX-NT.M12 |
|
M16×1.5 |
4-8 |
8 |
16 |
19 |
18 |
HX-NT.M16 |
|
M18×1.5 |
5-10 |
g |
18 |
21 |
20 |
HX-NT.M18 |
|
M20×1.5 |
6-12 |
8 |
20 |
22 |
22 |
HX-NT.M20 |
|
M22×1.5 |
10-14 |
8 |
22 |
23 |
24 |
HX-NT.M22 |
|
M25×1.5 |
10-14 |
9 |
25 |
25 |
24/27 |
HX-NT.M25-14 |
|
M25×1.5 |
13-18 |
9 |
25 |
27 |
30/27 |
HX-NT.M25-18 |
|
M27×1.5 |
13-18 |
9 |
27 |
27 |
30 |
HX-NT.M27 |
|
M32×1.5 |
15-22 |
10 |
32 |
29 |
35 |
HX-NT.M32 |
|
M36×1.5 |
18-25 |
10 |
36 |
31 |
40 |
HX-NT.M36 |
|
M40×1.5 |
18-25 |
10 |
40 |
31 |
40/45 |
HX-NT.M40-25 |
|
M40×1.5 |
22-30 |
10 |
40 |
35 |
45 |
HX-NT.M40-30 |
|
M48×1.5 |
25-33 |
10 |
48 |
37 |
50/52 |
HX-NT.M48 |
|
M50×1.5 |
32-38 |
10 |
50 |
37 |
57/55 |
HX-NT.M50 |
|
M63×1.5 |
37-44 |
10 |
63 |
38 |
64/68 |
HX-NT.M63 |
|
PG7 |
3-6.5 |
6.5 |
12.5 |
17 |
14/15 |
HX-NT.PG7 |
|
PG9 |
4-8 |
8 |
15.2 |
19 |
17/18 |
HX-NT.PG9 |
|
PG11 |
5-10 |
8 |
18.6 |
21 |
20/21 |
HX-NT.PG11 |
|
PG13.5 |
6-12 |
8 |
20.4 |
22 |
22/23 |
HX-NT.PG13.5 |
|
PG16 |
10-14 |
8 |
22.5 |
23 |
24/25 |
HX-NT.PG16 |
|
PG21 |
13-18 |
9 |
28.3 |
27 |
30 |
HX-NT.PG21 |
|
PG29 |
18-25 |
10 |
37.0 |
31 |
40 |
HX-NT.PG29 |
|
PG36 |
25-33 |
10 |
47.0 |
37 |
50 |
HX-NT.PG36 |
|
PG42 |
32-38 |
10 |
54.0 |
37 |
57 |
HX-NT.PG42 |
|
PG48 |
37-44 |
10 |
59.3 |
38 |
64 |
HX-NT.PG48 |
|
Customizable G/NPT thread |
||||||
