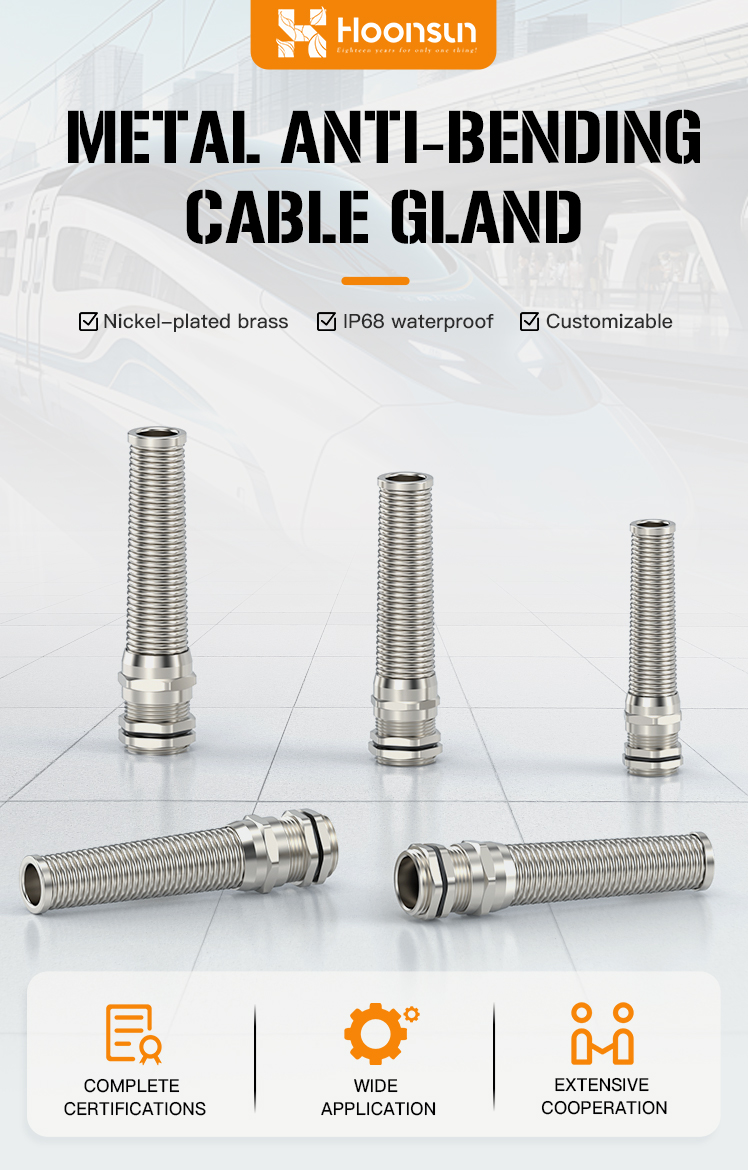

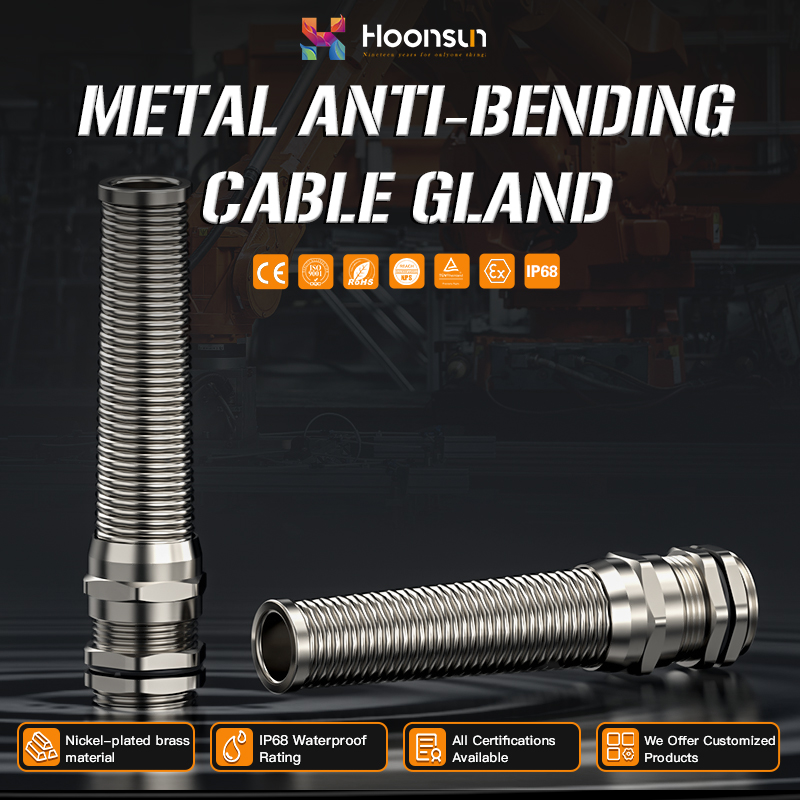

Metal Anti-Bending Cable Gland with IP68 and UL
This Metal Anti-Bending Cable Gland ensures superior cable protection against bending, pulling, and harsh conditions with its IP68 rating and UL certification.
Certified for Global Markets：

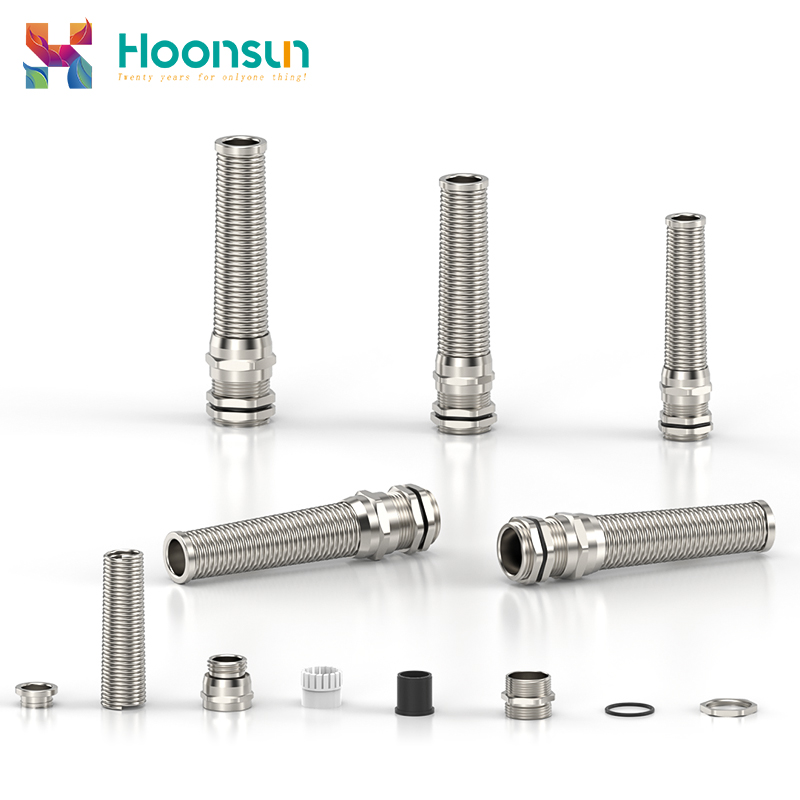

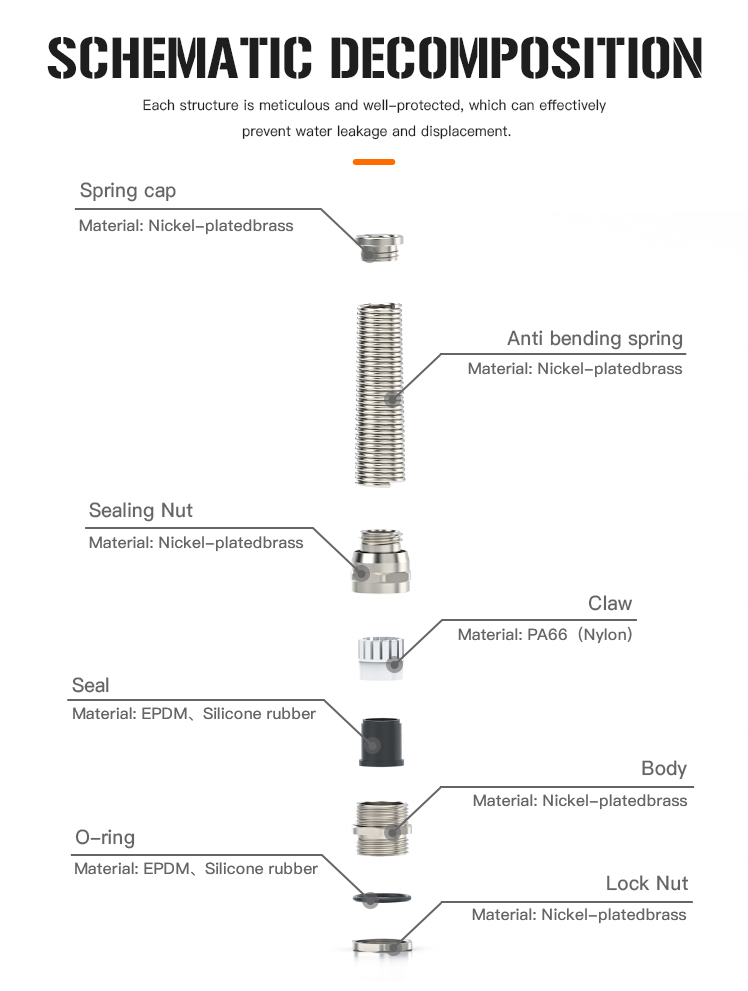

- Fitting Material Nickel-platedbrass
- Material For Clamping Jaws PA66(Nylon),UL94-V2
- Material For Sealing Components EPDM、Silicone rubber
- O-ring Material EPDM、Silicone rubber
- Protection Degree IP68-10 bar

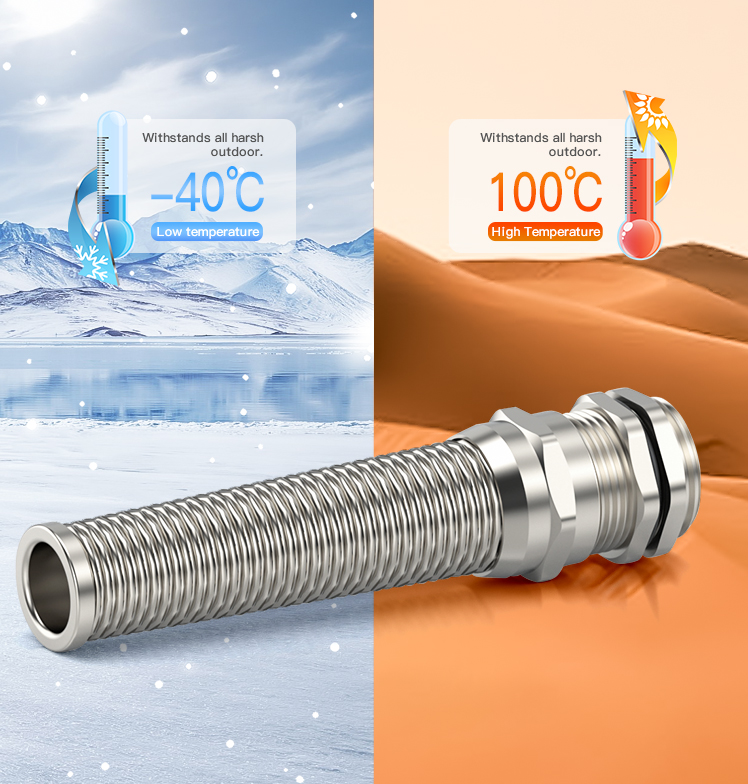

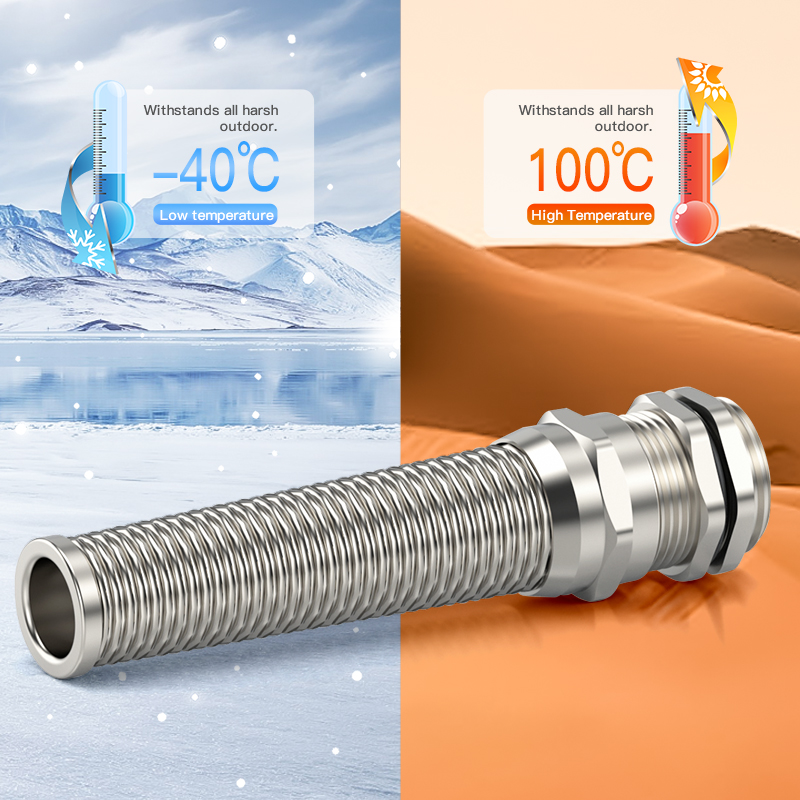

- Temperature Static state:-40 to 100℃,Short time to 120℃
Product Highlights
◆Metal cable gland with integrated anti-bending protection (spring or flexible sleeve)
◆High-quality brass or stainless steel construction
◆IP68-rated waterproof and dustproof sealing
◆UL certification
◆Strong strain relief and secure cable grip
◆Easy-to-install threaded design
Applications
This metal anti-bending cable gland is ideal for a wide range of applications where cables are exposed to movement, stress, or harsh conditions:
◇Industrial Machinery & Automation - CNC machines, robotic arms, assembly lines, and control panels.
◇Outdoor & Marine Equipment - Street lighting, traffic signals, maritime vessels, and dock-side equipment.
◇Public & Commercial Lighting - Stadium lights, billboard lighting, garden lights, and fountain systems.
◇Harsh Environment Applications - Wastewater treatment plants, chemical processing facilities, and agricultural machinery.
◇Transportation Infrastructure - Ideal for railway signaling and control systems, onboard train equipment, electric vehicle (EV) charging stations, tunnel and subway lighting, highway traffic management systems, airport runway lighting, and bridge monitoring equipment.
Key Benefits
◆Extends Cable Life
Prevents sharp bending and reduces cable breakage
◆Durable & Corrosion-Resistant
Withstands harsh industrial and outdoor conditions
◆Reliable Sealing
IP68 rating ensures protection against water and dust
◆Secure Connection
Maintains cable stability during movement and vibration
◆Easy Installation
Simplifies setup for efficient integration

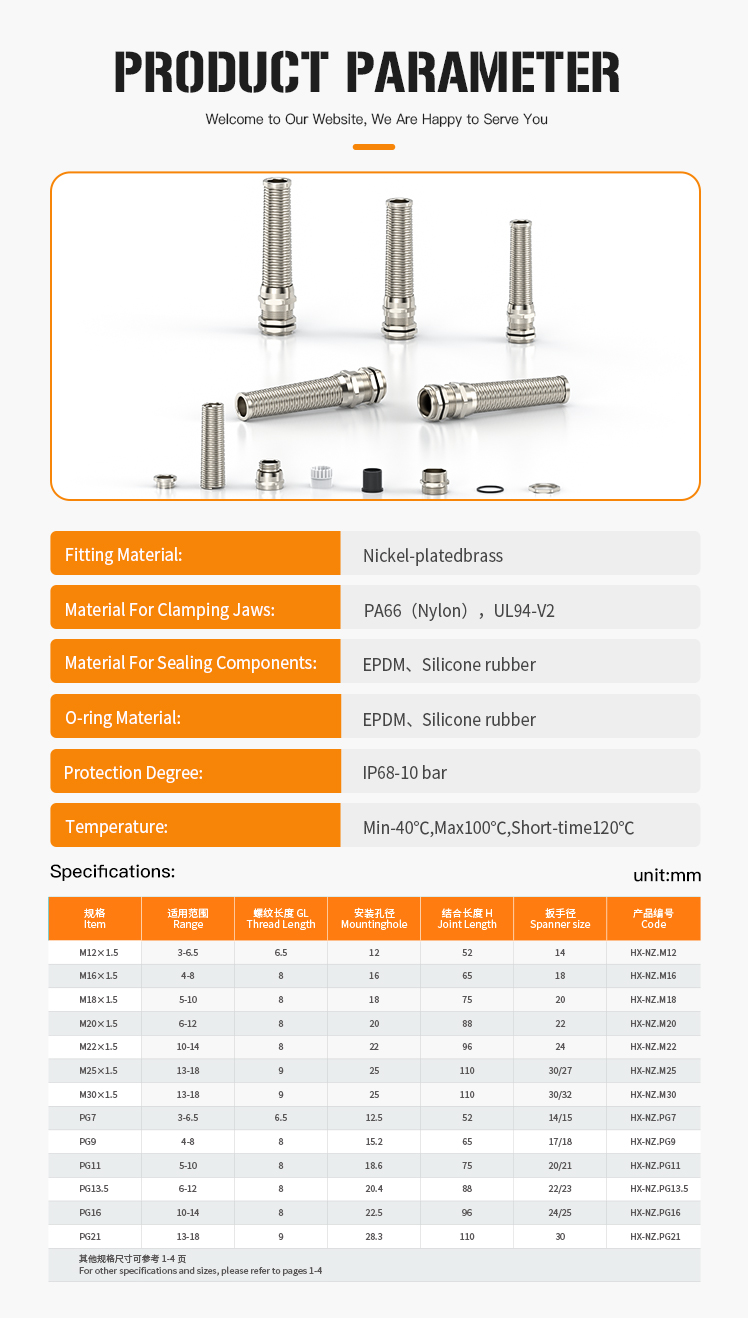

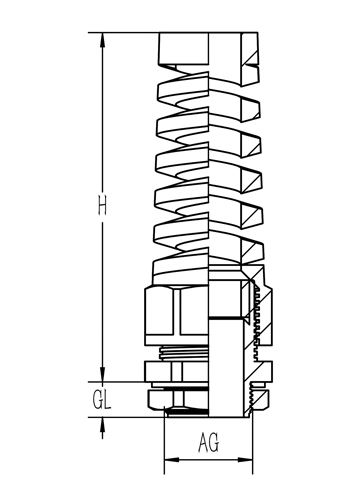

unit:mm
|
Item |
Range |
GL Thread Length |
Mountinghole |
H Joint Length |
Spanner size |
Code |
|
M12×1.5 |
3-6.5 |
6.5 |
12 |
52 |
14 |
HX-NZ.M12 |
|
M16×1.5 |
4-8 |
8 |
16 |
65 |
18 |
HX-NZ.M16 |
|
M18×1.5 |
5-10 |
8 |
18 |
75 |
20 |
HX-NZ.M18 |
|
M20×1.5 |
6-12 |
8 |
20 |
88 |
22 |
HX-NZ.M20 |
|
M22×1.5 |
10-14 |
8 |
22 |
96 |
24 |
HX-NZ.M22 |
|
M25×1.5 |
13-18 |
9 |
25 |
110 |
30/27 |
HX-NZ.M25 |
|
M30×1.5 |
13-18 |
9 |
25 |
110 |
30/32 |
HX-NZ.M30 |
|
PG7 |
3-6.5 |
6.5 |
12.5 |
52 |
14/15 |
HX-NZ.PG7 |
|
PG9 |
4-8 |
8 |
15.2 |
65 |
17/18 |
HX-NZ.PG9 |
|
PG11 |
5-10 |
8 |
18.6 |
75 |
20/21 |
HX-NZ.PG11 |
|
PG13.5 |
6-12 |
8 |
20.4 |
88 |
22/23 |
HX-NZ.PG13.5 |
|
PG16 |
10-14 |
8 |
22.5 |
96 |
24/25 |
HX-NZ.PG16 |
|
PG21 |
13-18 |
9 |
28.3 |
110 |
30 |
HX-NZ.PG21 |
