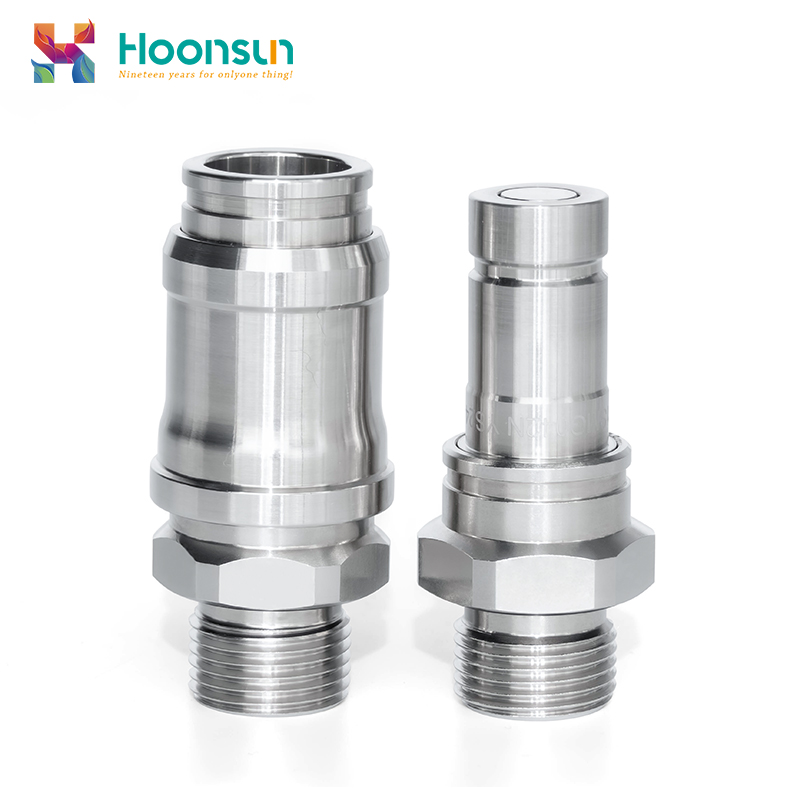

MDC06S-1SMG042N-MDC06P-1SMG042N

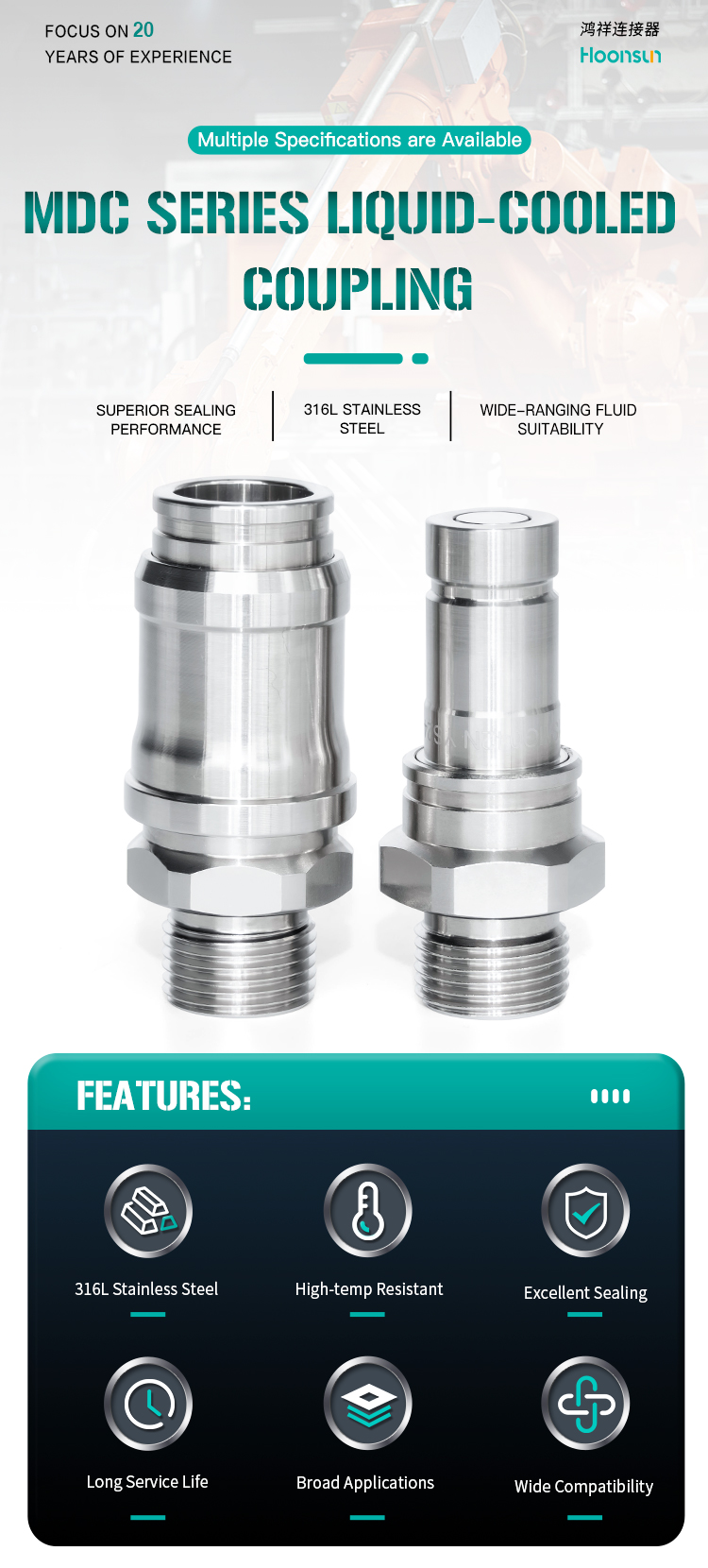

Key Features

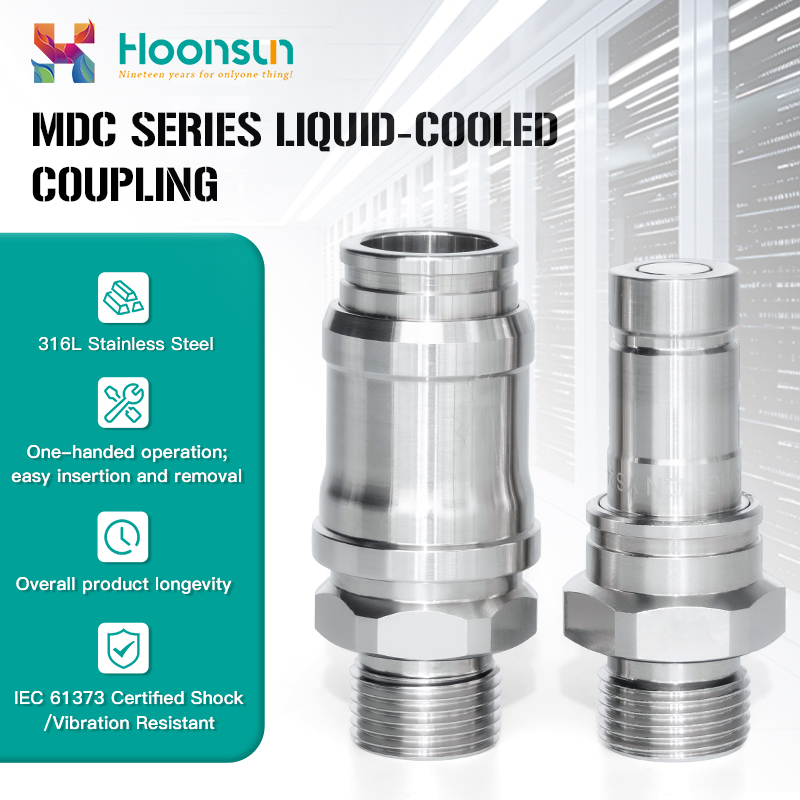

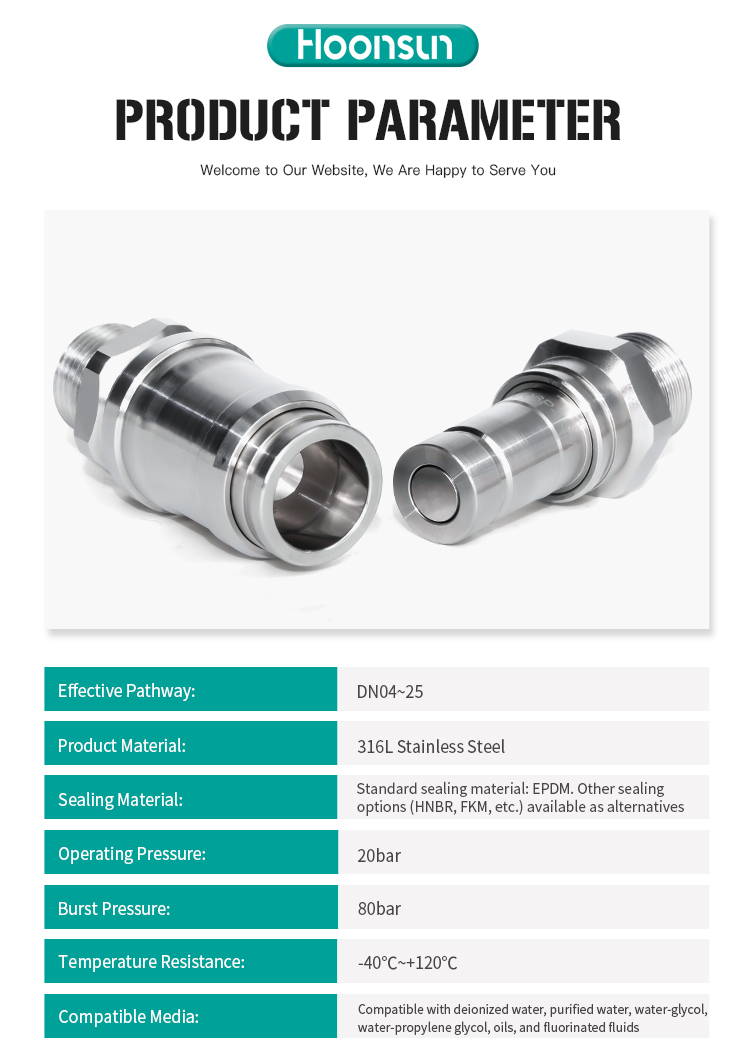

✅ 316L Stainless Steel Construction: Superior corrosion resistance for harsh industrial and outdoor environments
✅ Superior Sealing Performance: EPDM seals (HNBR/FKM optional) ensure zero leakage under rated pressure

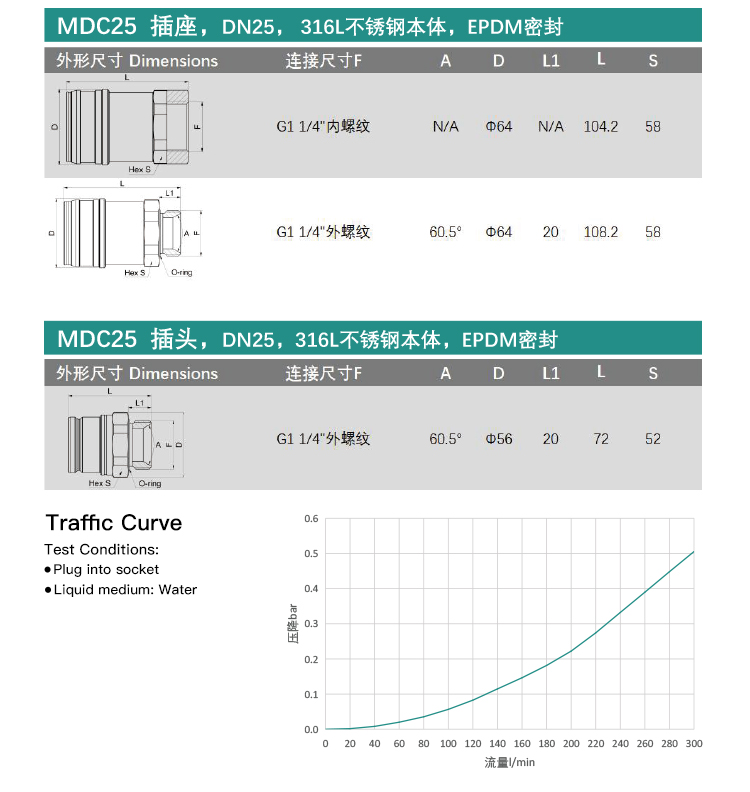

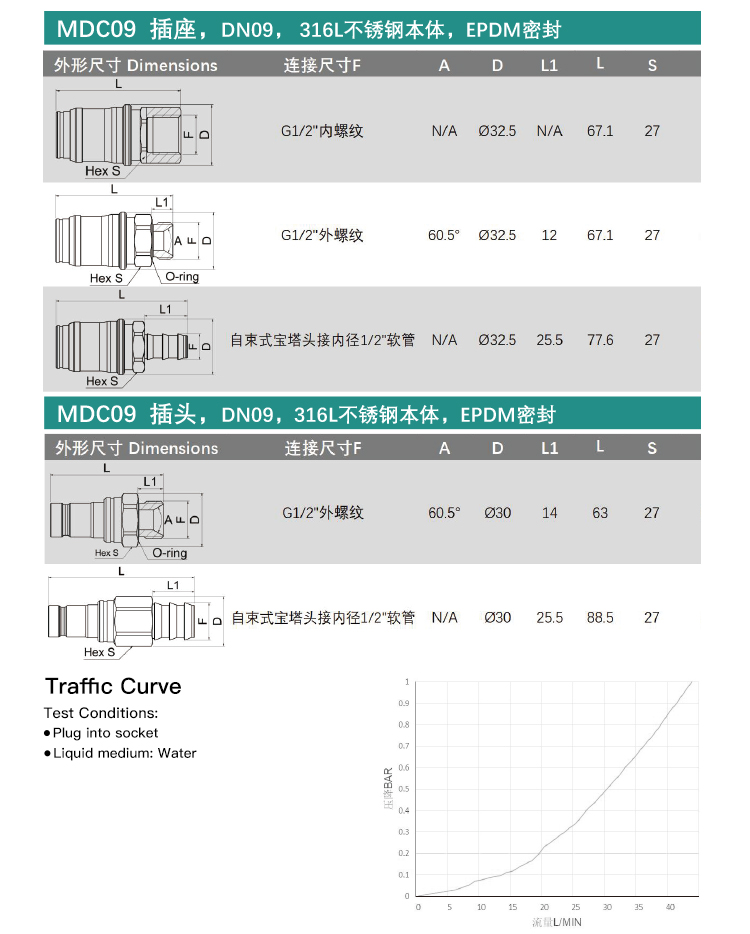

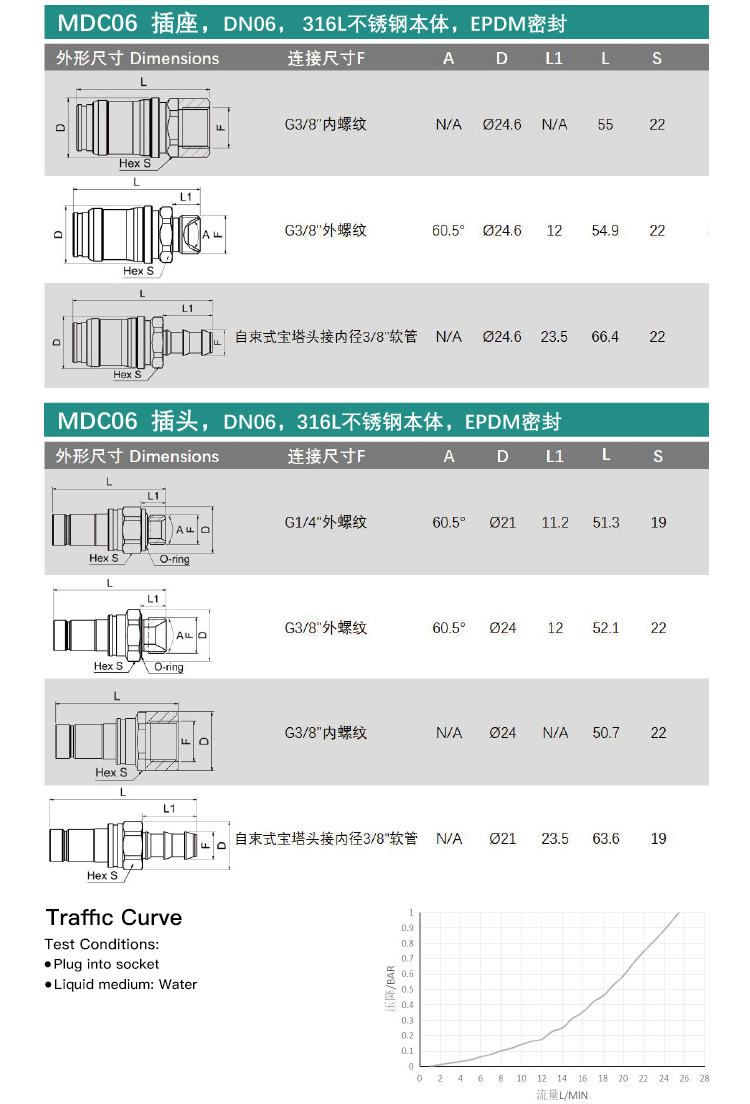

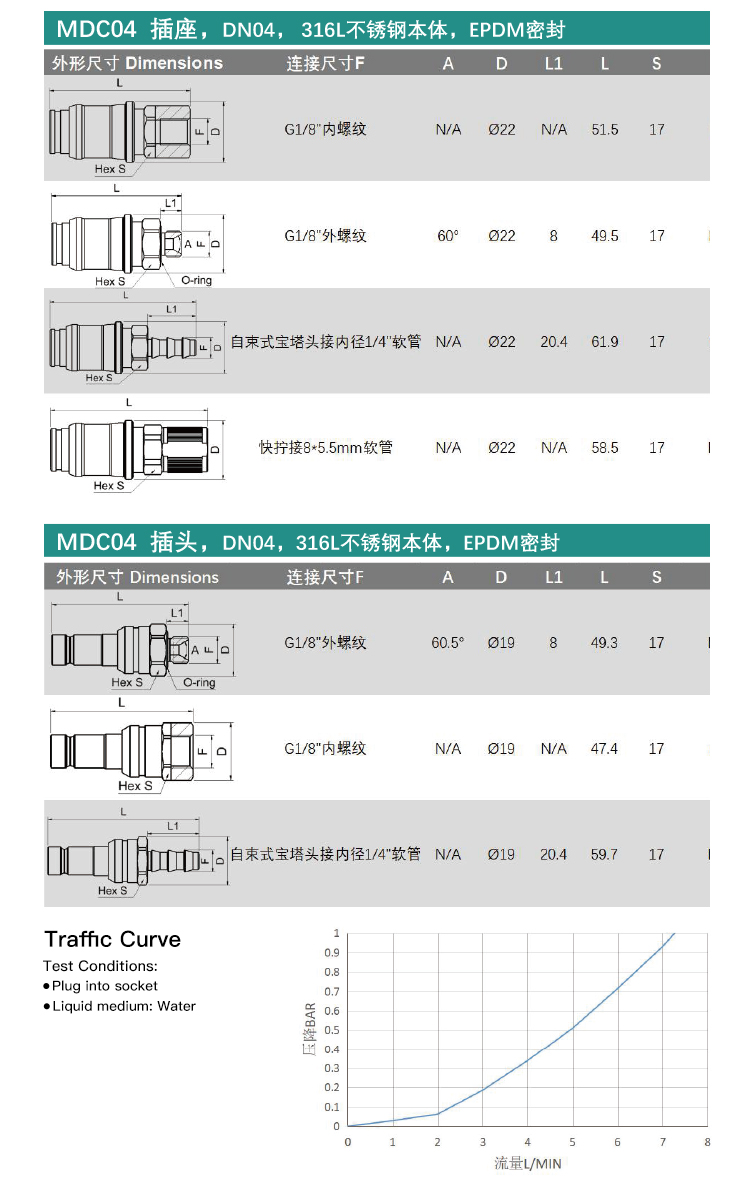

✅ Wide Flow Range: DN04 to DN25 sizes support diverse cooling requirements, from small lab equipment to large-scale data centers
✅ High Pressure & Temperature Resistance: 20bar working pressure, -40°C to 120°C operating range
✅ Multi-Connection Compatibility: Threaded (G1/8" to G1 1/4"), hose barb, and quick-fit options available
✅ Rugged & Durable: Dust-proof, salt-proof, and resistant to acids, alkalis, and common solvents
✅ Plug-and-Play Operation: Fast, tool-free connection and disconnection for quick maintenance
✅ High Flow Efficiency: Optimized internal structure minimizes pressure drop, supporting flow rates up to 300 L/min

Applications

● Data Center Servers & HPC: High-flow liquid cooling for high-density server racks and supercomputers

● Medical Equipment: Precision cooling for MRI machines, lasers, and diagnostic devices

● New Energy Systems: EV charging piles, three-electric systems, and battery energy storage

● Industrial Lasers & Automation: Reliable fluid connections for high-power industrial equipment

● Power Electronics & PV Inverters: Cooling for solar inverters, wind turbines, and power supplies

● Test Benches & Research Labs: Lab-grade liquid cooling solutions for precision experiments

● Outdoor Harsh Environments: Dust-proof and salt-proof performance for outdoor equipment

Installation Process

1.Preparation: Ensure the connector and mating surface are clean and free of debris. Depressurize the system before installation to avoid fluid spray.

2.Connection: Align the plug and socket, then push them together until you hear/feel a positive click, confirming full engagement.

3.Verification: Perform a pressure test to confirm zero leakage before full system operation.

4.Disconnection: Depressurize the system, then simply pull the plug out of the socket (no tools required) for maintenance or replacement.

⚠️ Note: Never disconnect the connector while the system is under pressure. Avoid damaging the sealing surface during installation or removal.

FAQ

1. What makes the MDC series different from other quick connectors?

The MDC series is constructed entirely from 316L stainless steel, offering superior corrosion resistance compared to aluminum or brass connectors. It also supports a wider range of sizes (DN04 to DN25) and connection options, making it highly versatile for diverse liquid cooling applications.

2. What sealing materials are available?

Standard sealing material is EPDM. Optional seals include HNBR and FKM, which are suitable for different fluid compatibility and temperature requirements.

3. What fluids can these connectors handle?

They are compatible with deionized water, purified water, ethylene glycol/water mixtures, propylene glycol/water mixtures, oils, and fluorinated fluids, covering most common liquid cooling media.

4. What is the maximum working pressure and temperature?

The working pressure is 20bar (burst pressure 80bar), with a temperature range of -40°C to 120°C, suitable for most industrial and commercial liquid cooling systems.

5. Are these connectors suitable for outdoor use?

Yes. The 316L stainless steel construction and dust-proof/salt-proof design make them ideal for outdoor environments, such as solar inverters and wind energy equipment.

6. Do I need tools to install or remove them?

No. The plug-and-play design allows tool-free connection and disconnection, simplifying maintenance and installation.

7. Can I customize the connection type or size?

Yes. We offer multiple connection options (threaded, hose barb, quick-fit) for each size. OEM/ODM customization for special thread sizes or materials is also available.

8. What is the typical service life of these connectors?

With proper installation and maintenance, the 316L stainless steel body and high-quality seals ensure a long service life, even in continuous operation.

About Us

Founded in 2006, Zhejiang Hongxiang Connector Co., Ltd. is a high-tech enterprise specializing in the R&D, production, and sales of industrial connectors and fluid solutions. With over 20 years of experience, we provide high-quality products to customers worldwide, backed by a professional sales team and strict quality control. Our MDC series liquid-cooled couplings are widely trusted by leading data centers, medical equipment manufacturers, and new energy companies for their reliable performance and durability.
