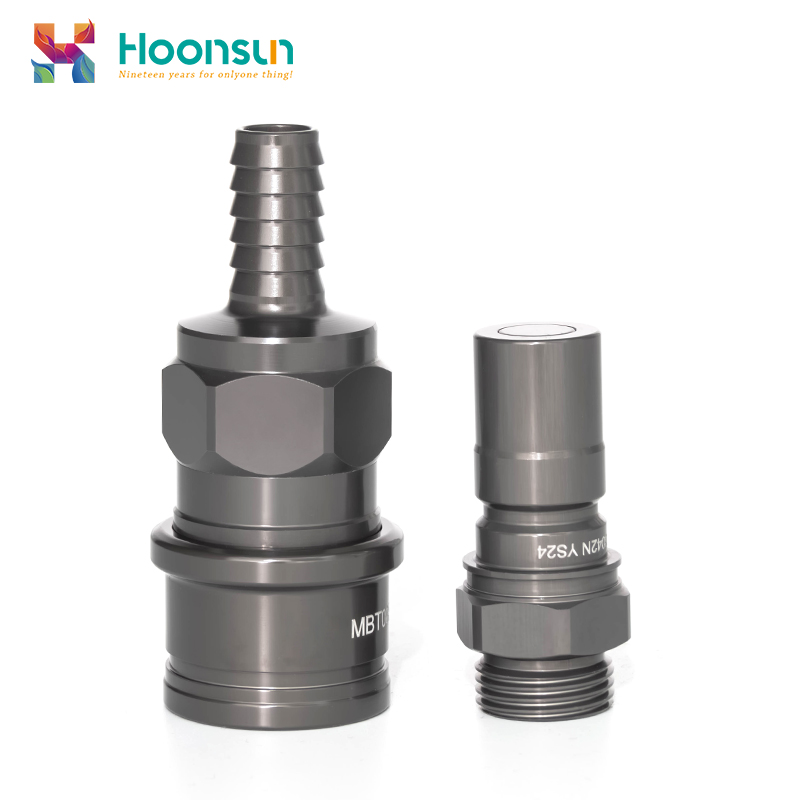

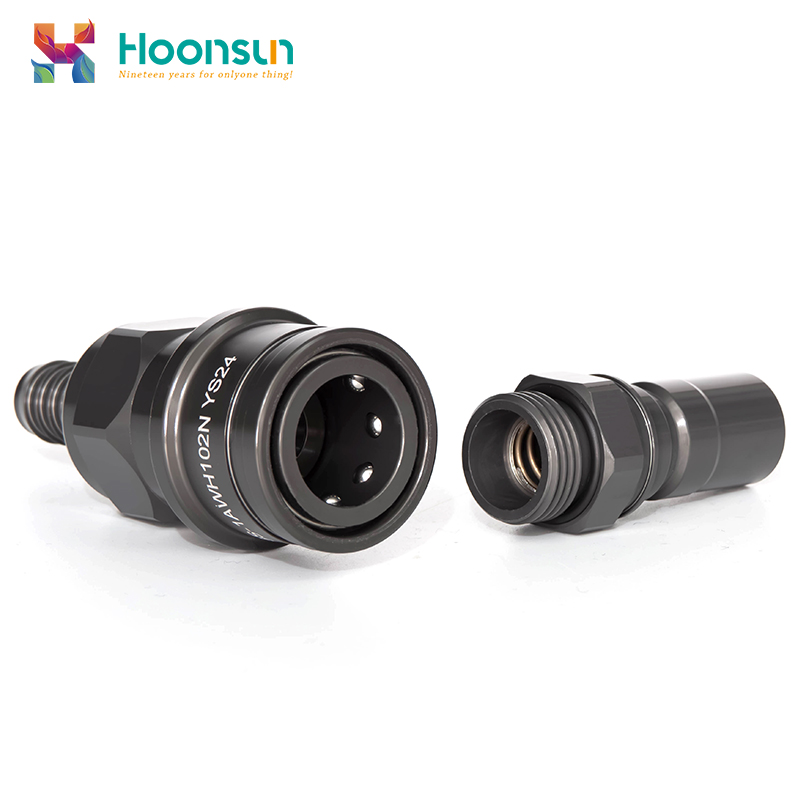

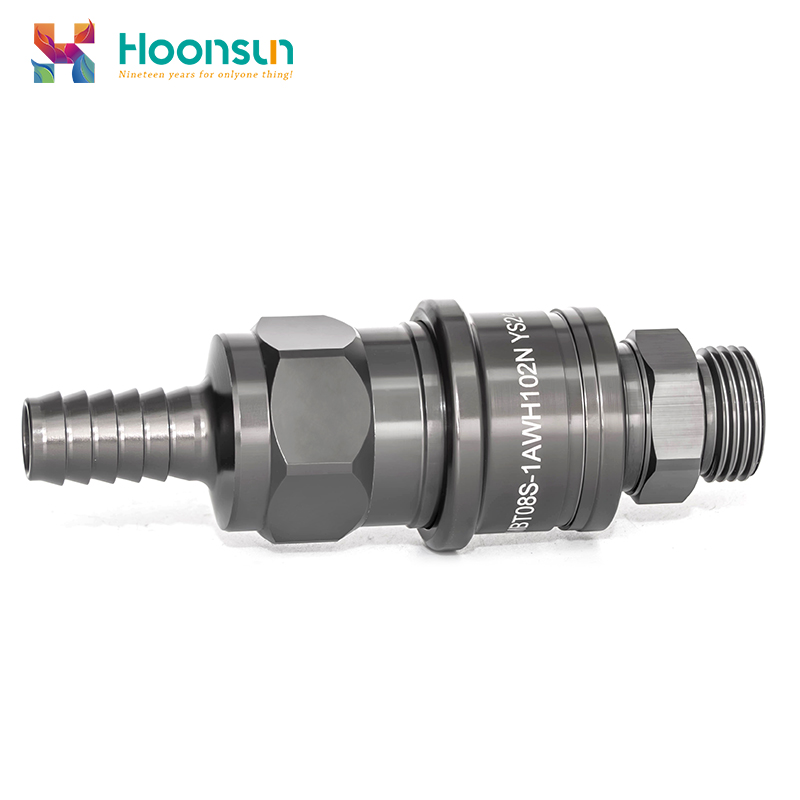

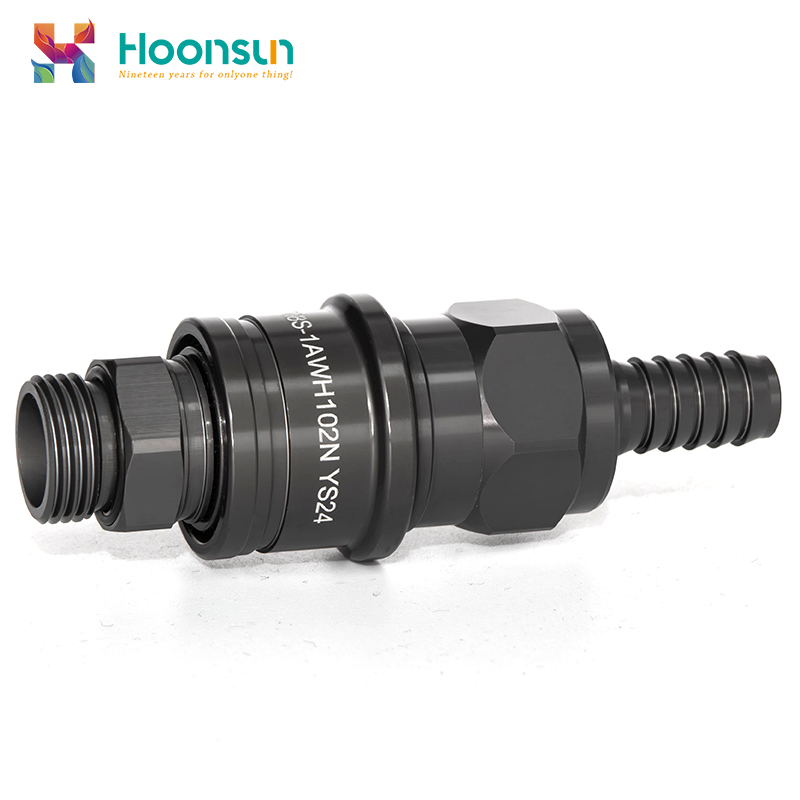

MBT08S-1AWH102N-MBT08P-1AMG042N

Key Feature

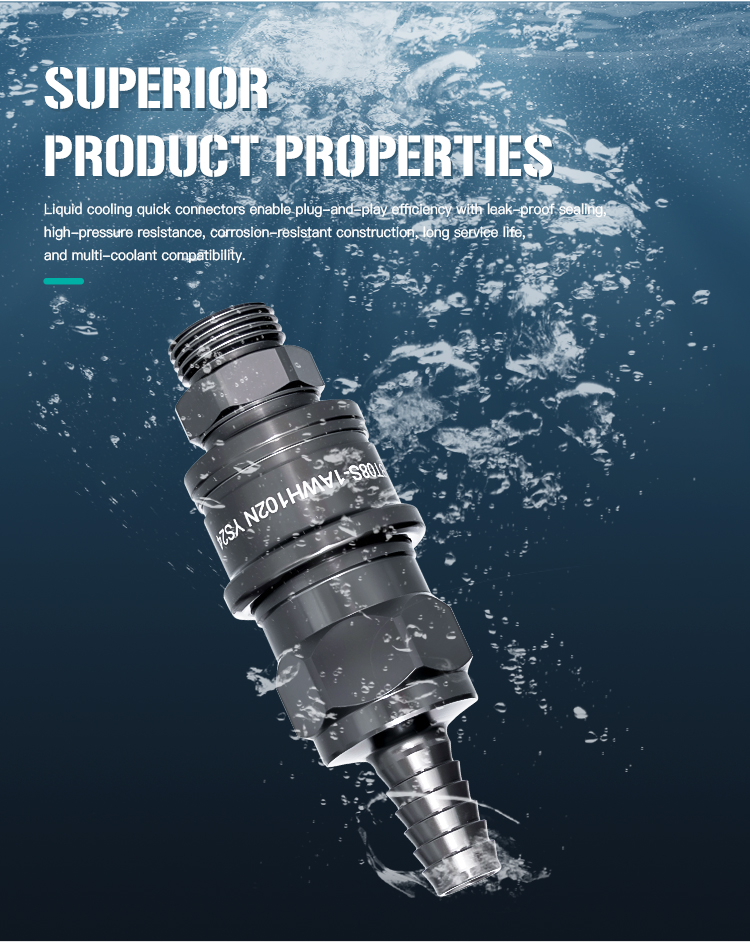

✅ Lightweight Aluminum Alloy: High strength-to-weight ratio for reduced system load
✅ Superior Sealing: EPDM/HNBR/FKM seals for zero-leakage performance

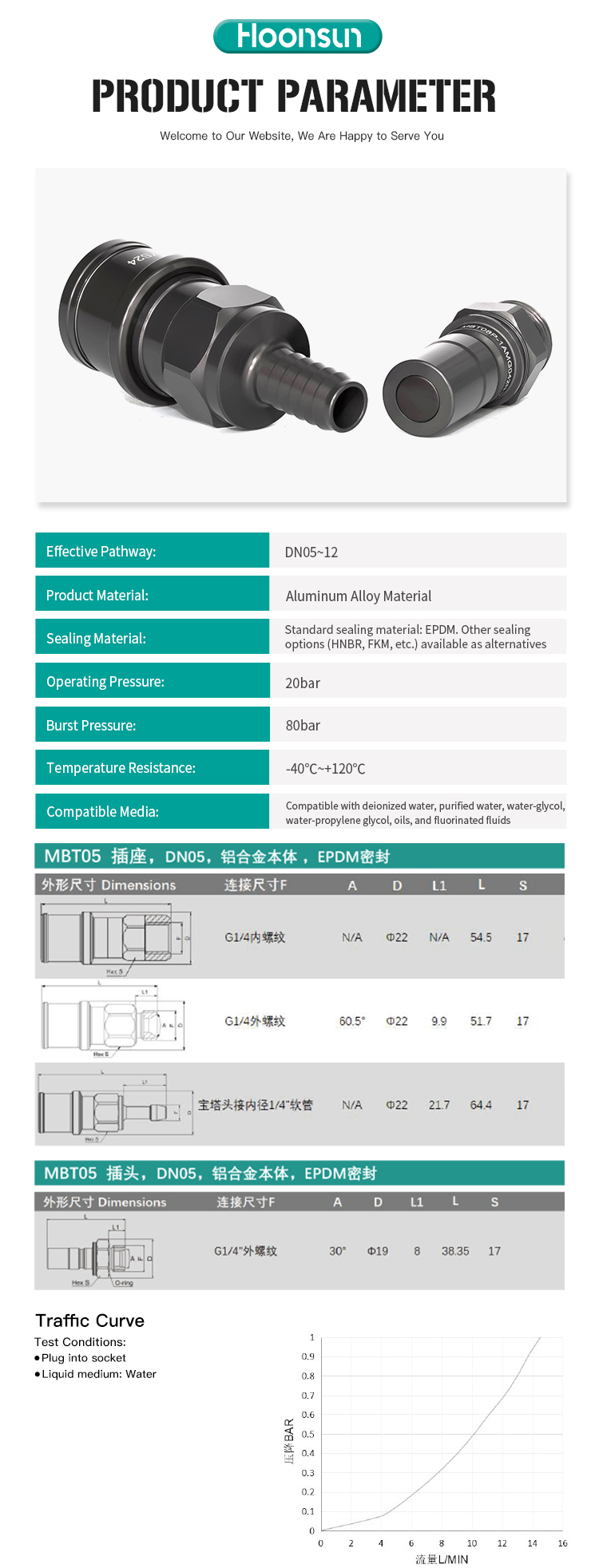

✅ High Flow Rates: DN05 to DN12 sizes available for various cooling needs
✅ Wide Temperature Range: -40°C to 120°C, suitable for diverse environments
✅ High Pressure Rating: 20bar working pressure, 80bar burst pressure
✅ Multi-Fluid Compatibility: Works with deionized water, glycol solutions, oils, and fluorinated fluids
✅ Rugged Construction: Dust-proof, salt-proof, and chemical-resistant for harsh conditions
✅ Plug-and-Play: Fast, tool-free connection and disconnection

Applications

● Data Center Servers: High-flow liquid cooling for server racks and HPC systems

● AI Servers & Computing: Thermal management for high-performance AI hardware

● Medical Equipment: Precision cooling for MRI machines, lasers, and diagnostic devices

● Power Electronics & EV Systems: Cooling for EV chargers, inverters, and power supplies

● Industrial Lasers & Automation: Reliable fluid connections for industrial equipment

● PV Inverters & Renewable Energy: Solar and wind energy equipment cooling

● Test Benches & Research Equipment: Lab-grade liquid cooling solutions

Installation Process

1.Preparation: Ensure the connector and mating part are clean and free of debris. Depressurize the system before installation.

2.Connection: Align the plug and socket, then push them together until you hear/feel a positive click, confirming full engagement.

3.Verification: Perform a pressure test to confirm zero leakage before full system operation.

4.Disconnection: Depressurize the system, then simply pull the plug out of the socket (no tools required) for maintenance or replacement.

⚠️ Note: Never disconnect the connector while the system is under pressure to prevent fluid spray and injury.

FAQ

1.What are the advantages of the MBT series?

The MBT series features lightweight aluminum construction, multiple connection options (threaded and hose barb), and a wide range of sizes (DN05-DN12), making it highly versatile for different liquid cooling applications.

2.What materials are used in these connectors?

The body is made of high-strength aluminum alloy for light weight and corrosion resistance, with EPDM seals (HNBR and FKM options available for low-temperature or special fluid compatibility).

3.What fluids are compatible with these connectors?

They work with deionized water, purified water, ethylene glycol/water mixtures, propylene glycol/water mixtures, oils, and fluorinated fluids.

4.What is the operating pressure and temperature range?

The working pressure is 20bar (80bar burst pressure), with a temperature range of -40°C to 120°C.

5.Are these connectors suitable for high-flow applications?

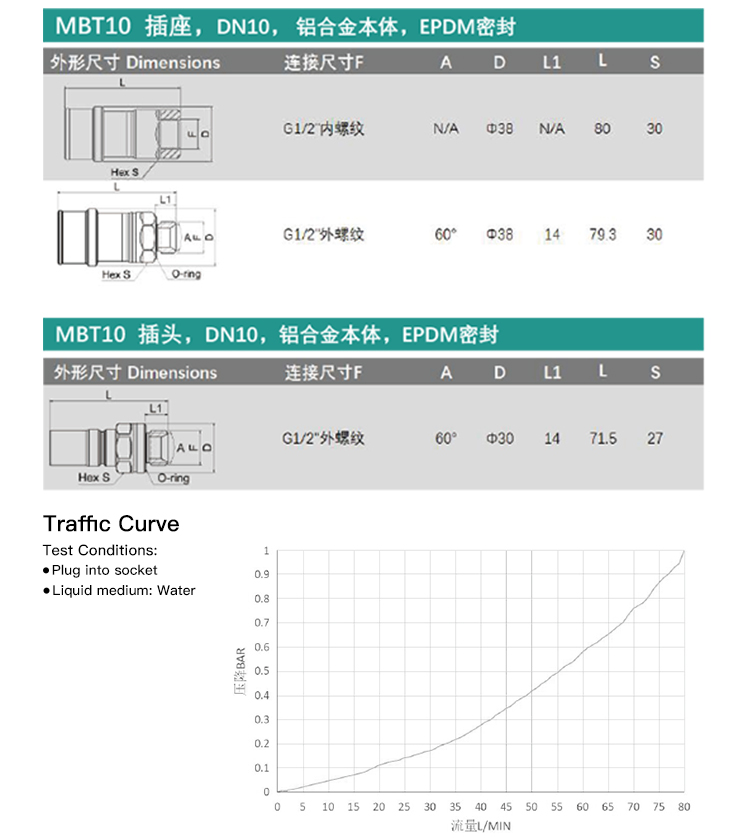

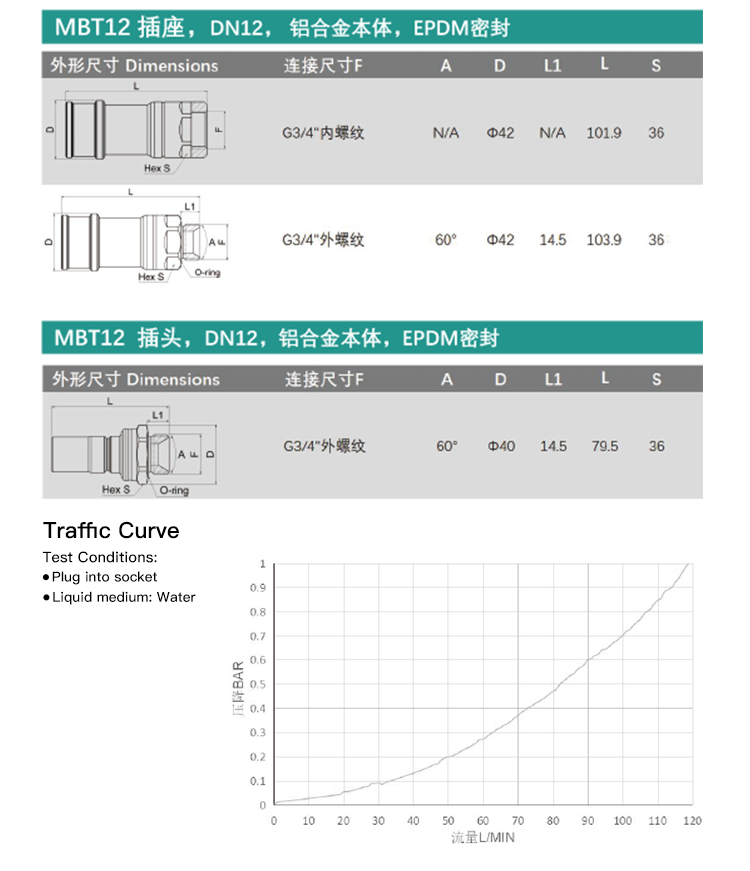

Yes. The MBT series is designed for high flow rates, with sizes up to DN12 supporting flow rates up to 120 L/min, making them ideal for large-scale cooling systems.

6.Do I need tools to install or disconnect them?

No. The plug-and-play design allows tool-free connection and disconnection, simplifying maintenance and installation.

7.Can these connectors be used outdoors?

Yes. They are dust-proof, salt-proof, and resistant to acid-alkaline and general solvents, making them suitable for harsh outdoor environments.

8.Do you offer customization options?

Yes. We support OEM/ODM customization for special thread sizes, sealing materials, or connection types to meet specific application requirements.

About Us

Founded in 2006, Hongxiang Connectors is a professional manufacturer of industrial connectors and fluid solutions. With over 20 years of experience, we provide high-quality products to customers worldwide, with a focus on innovation, quality, and customer service. Our MBT series liquid-cooled couplings are widely trusted by leading data centers, medical equipment manufacturers, and new energy companies.
