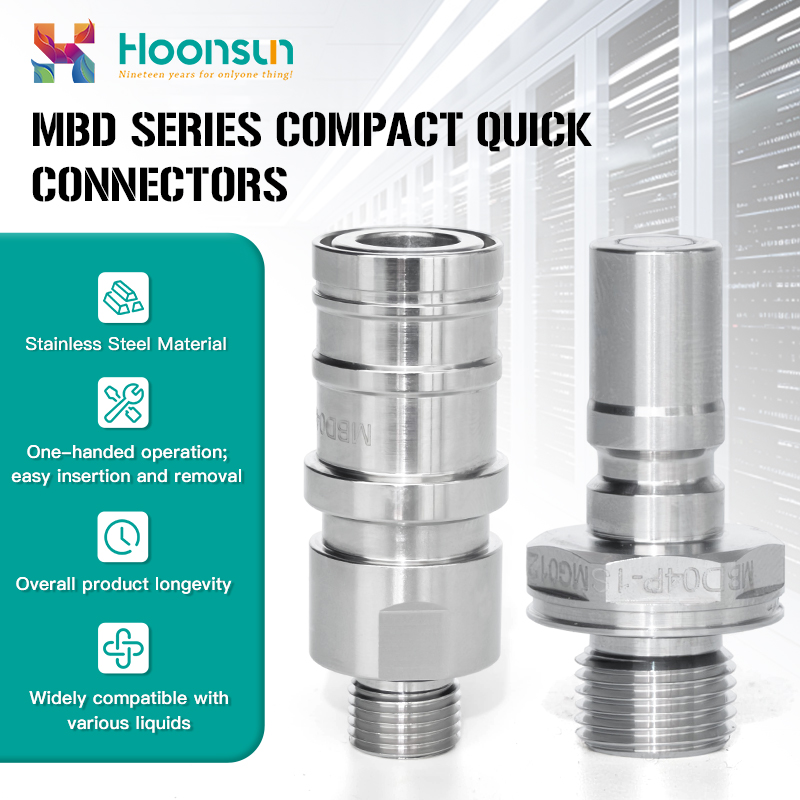

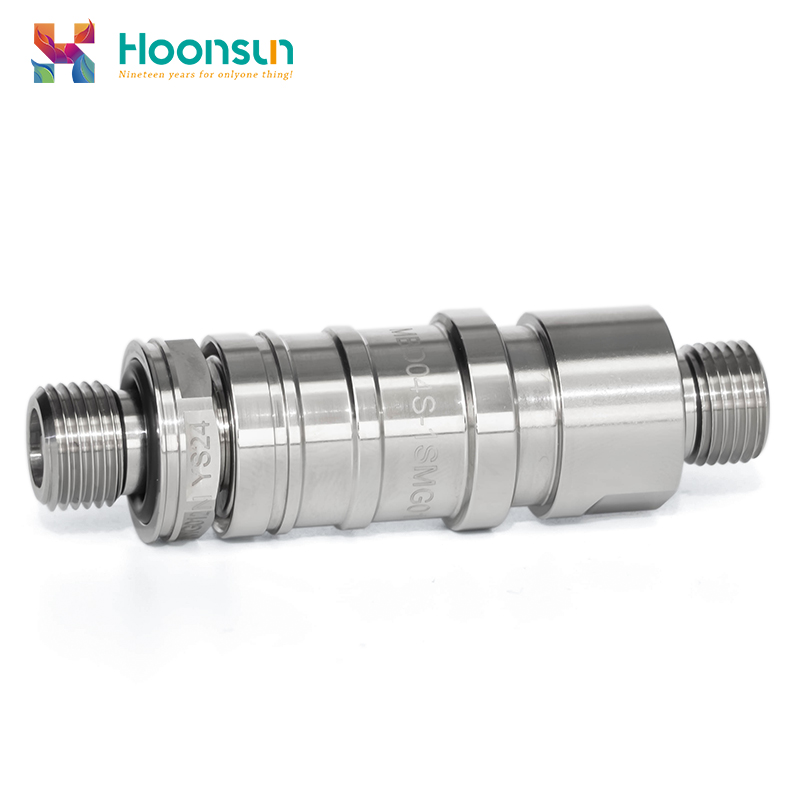

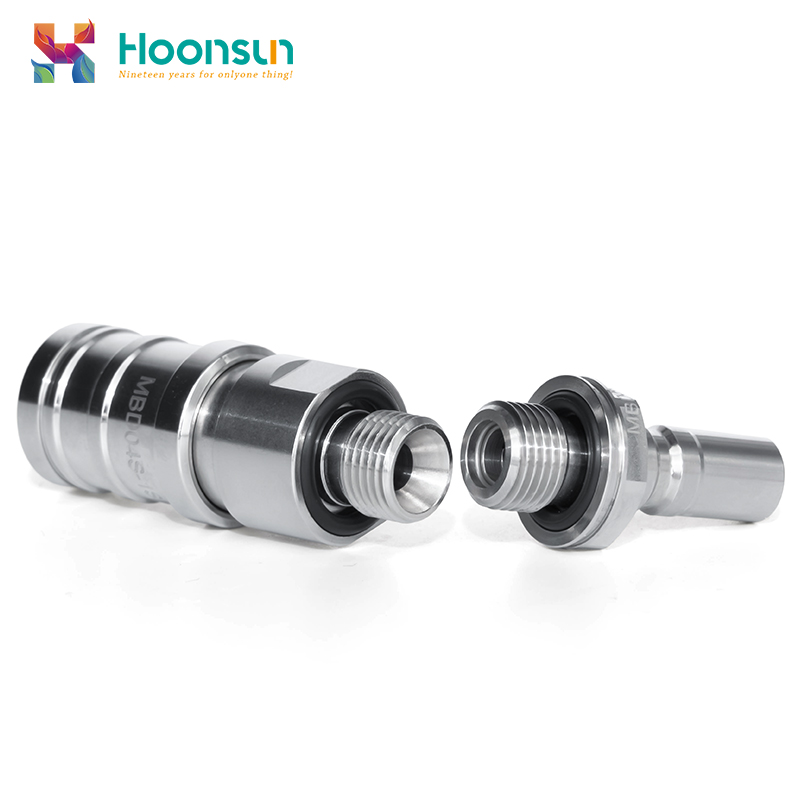

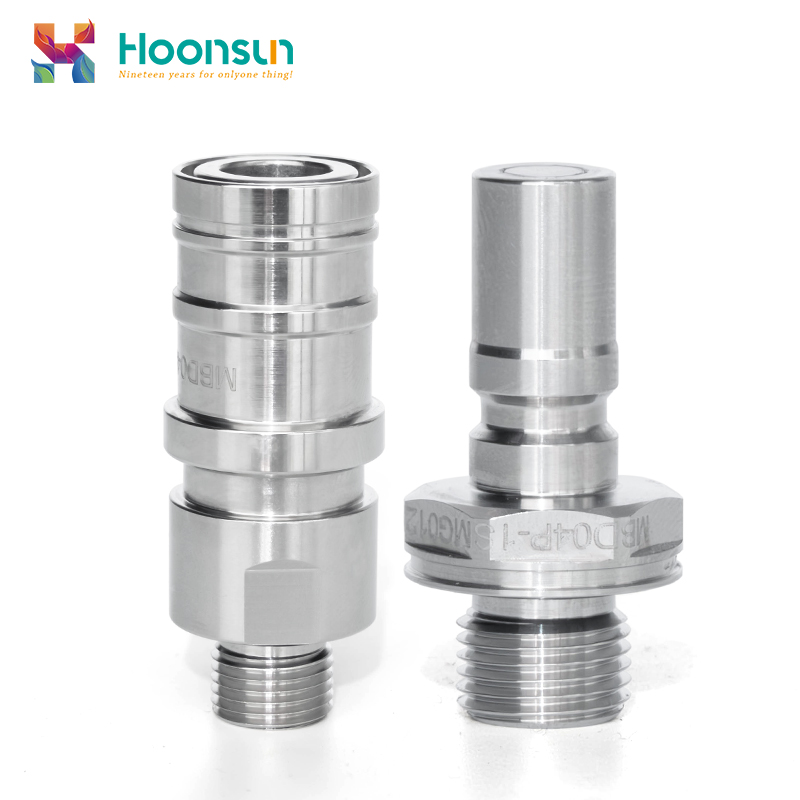

MBD04S-1SMG012N-MBD04P-1SMG012N

Key Features

✅ Compact Design: Small footprint for space-constrained installations
✅ 316L Stainless Steel Construction: Excellent corrosion and chemical resistance
✅ Superior Sealing: EPDM/NBR/FVMO sealing options for zero-leak performance
✅ Wide Temperature Range: -55°C to 125°C, suitable for extreme environments

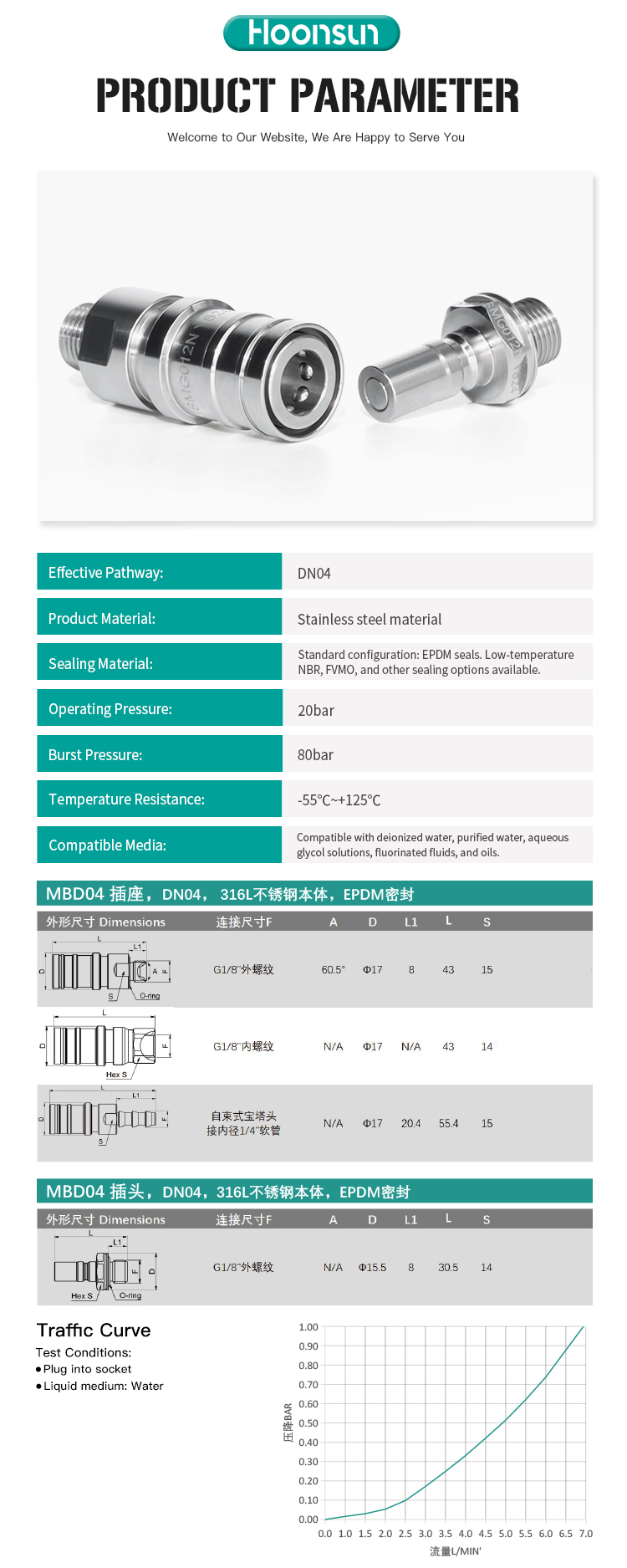

✅ High Pressure Rating: 20bar working pressure, 80bar burst pressure
✅ Multi-Fluid Compatibility: Works with deionized water, glycol solutions, oils, and fluorinated fluids
✅ Rugged & Durable: Dust-proof, salt-proof, acid-alkali resistant, ideal for harsh conditions
✅ Plug-and-Play: Fast, tool-free connection and disconnection

Applications

● Data Center Servers: Liquid cooling for high-density server racks

● AI Servers & HPC: Thermal management for high-performance computing

● Medical Equipment: Precision liquid cooling for MRI, lasers, and diagnostic devices

● Power Electronics & EV Systems: Cooling for EV chargers, inverters, and power supplies

● Industrial Lasers & Automation: Reliable fluid connections for industrial equipment

● PV Inverters & Renewable Energy: Solar and wind energy equipment cooling

● Test Benches & Research Equipment: Lab-grade liquid cooling solutions

Installation Process

1. Preparation: Ensure the connector and mating surface are clean and free of debris. Verify the system is depressurized before installation.

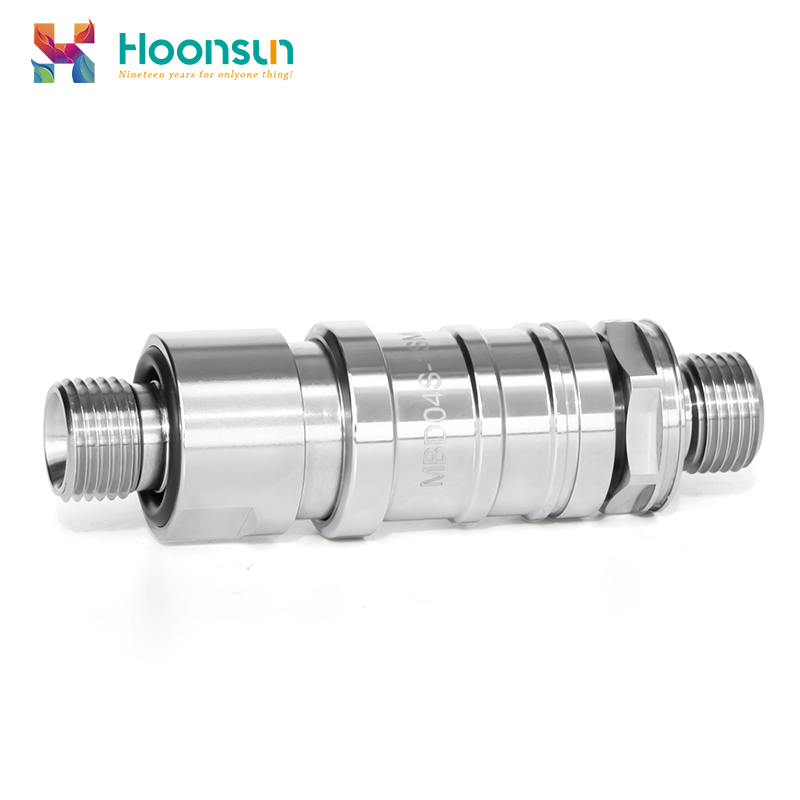

2. Connection: Align the plug and socket, then push them together until you hear/feel a positive click, confirming full engagement.

3.Verification: After connection, perform a pressure test to confirm zero leakage.

4. Disconnection: Depressurize the system, then simply pull the plug out of the socket (no tools required) for maintenance or replacement.

⚠️ Note: Never disconnect the connector while the system is under pressure to prevent fluid spray and injury.

FAQ

1.What is the main advantage of the MBD series over standard connectors?

The MBD series features a compact design, making it ideal for space-constrained installations like high-density servers and medical equipment, without sacrificing performance or reliability.

2.What materials are used in these connectors?

The connectors are made of 316L stainless steel for excellent corrosion resistance, with EPDM seals (NBR and FVMO options available for low-temperature or special fluid compatibility).

3.What fluids can these connectors handle?

They are compatible with deionized water, purified water, ethylene glycol/water mixtures, propylene glycol/water mixtures, fluorinated fluids, and various oils.

4.What is the operating pressure and temperature range?

The working pressure is 20bar (80bar burst pressure), with a temperature range of -55°C to 125°C.

5.Do these connectors leak during connection/disconnection?

The advanced sealing design minimizes spillage during disconnection, and provides zero leakage under rated pressure when fully connected.

6.Are tools required for installation or removal?

No. The plug-and-play design allows tool-free connection and disconnection, simplifying maintenance.

7.Can these connectors be used outdoors?

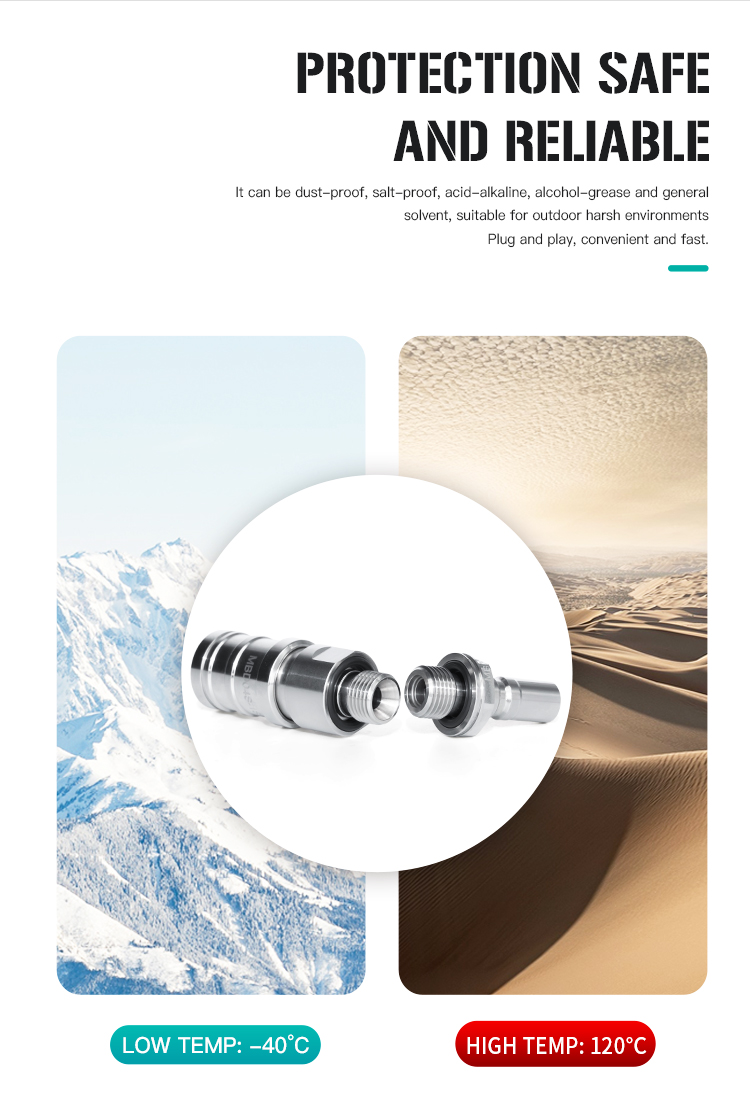

Yes. They are dust-proof, salt-proof, and resistant to acid-alkaline and general solvents, making them suitable for harsh outdoor environments.

8.Do you offer customization options?

Yes. We support OEM/ODM customization for special thread sizes, sealing materials, or connection types.
