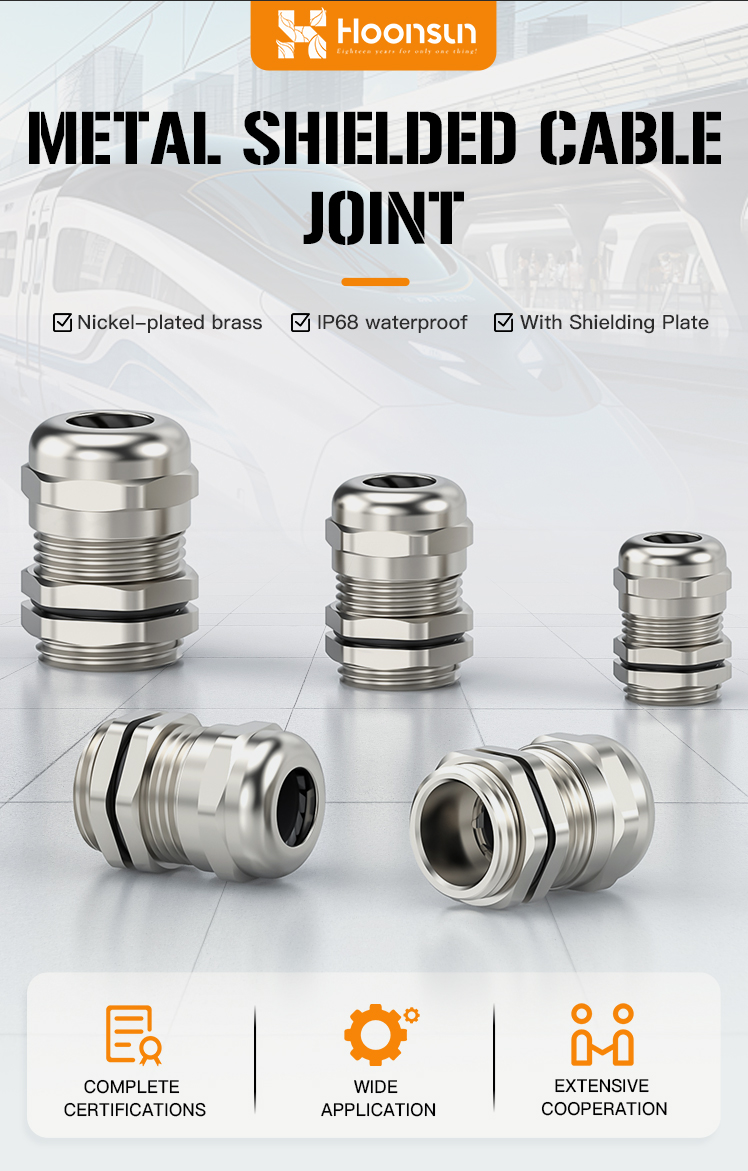

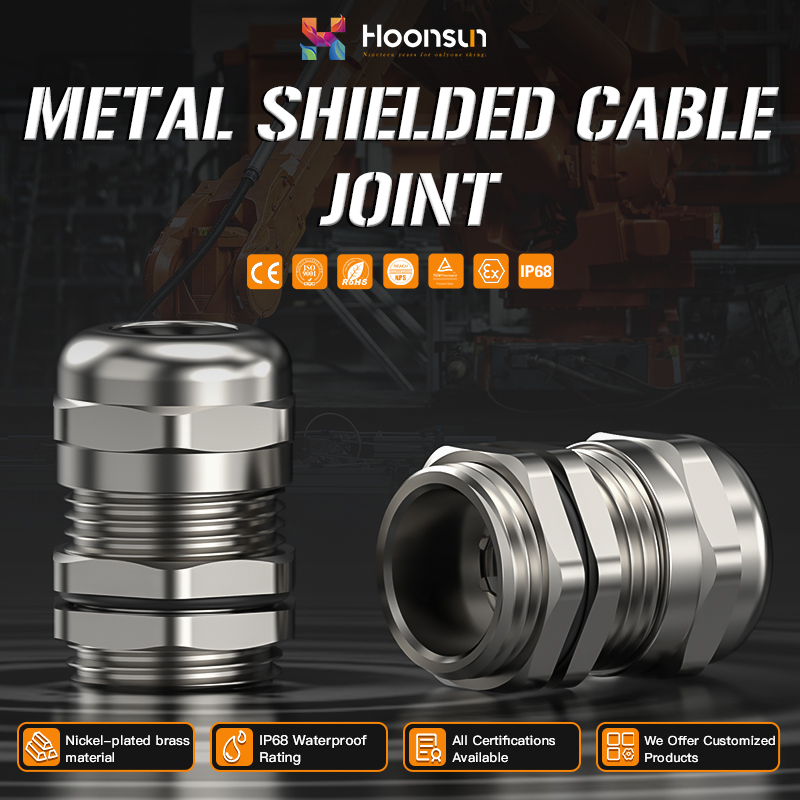

IP68 Waterproof UL Listed Metal Shielded Cable Joint
Professional-grade Metal Shielded Cable Joint ensures EMC protection, EMI/RFI shielding, and IP68 sealing for reliable performance in industrial environments.
Certified for Global Markets：

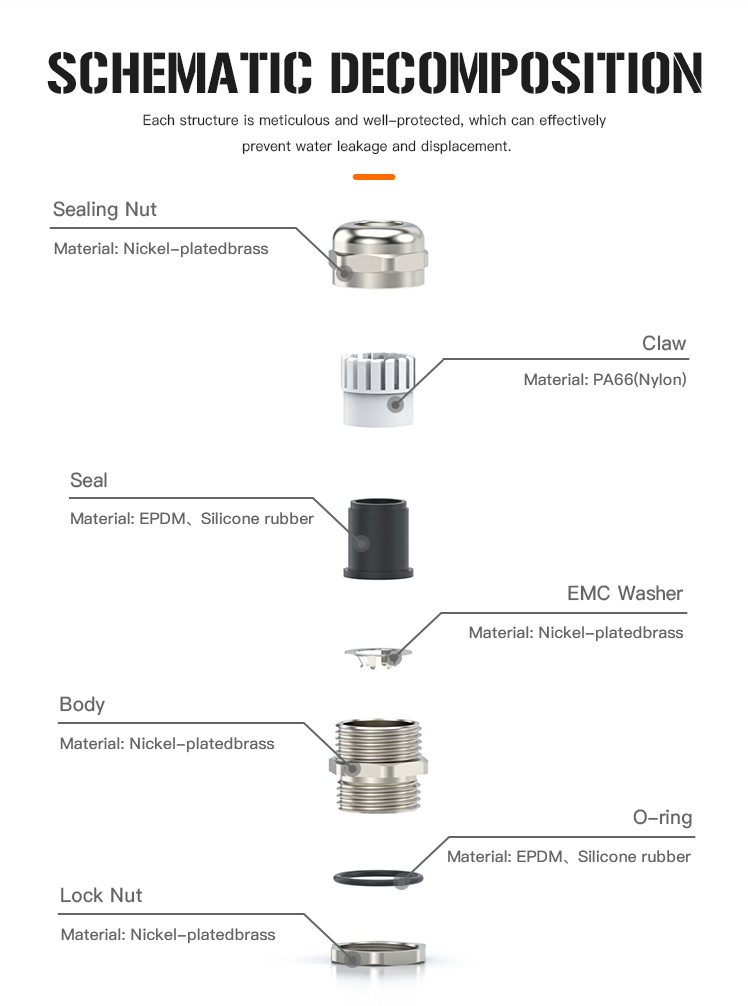

- Fitting Material Nickel-platedbrass
- Material For Clamping Jaws PA66(Nylon),UL94-V2
- Material For Sealing Components EPDM、Silicone rubber
- O-ring Material EPDM、Silicone rubber
- Protection Degree IP68-10 bar

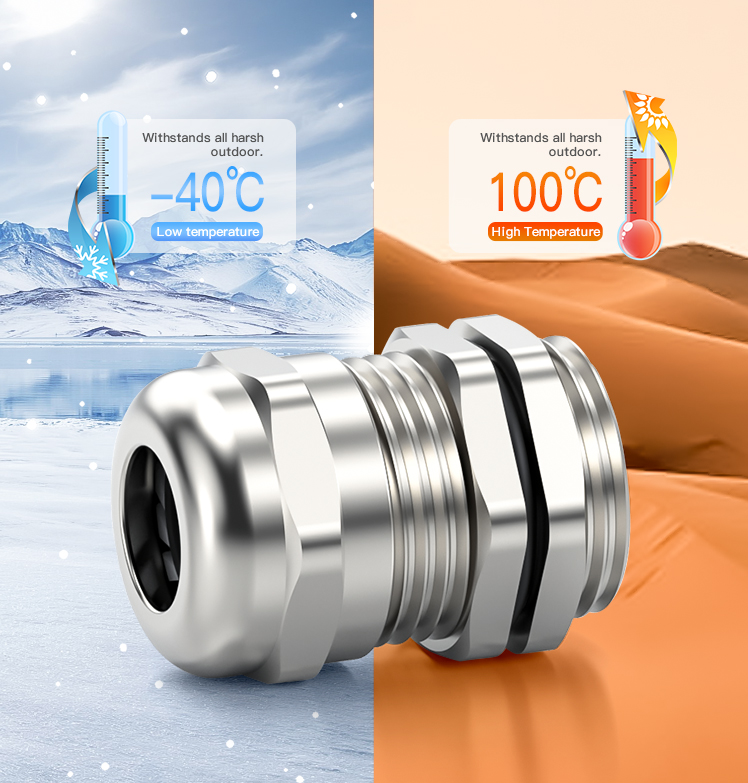

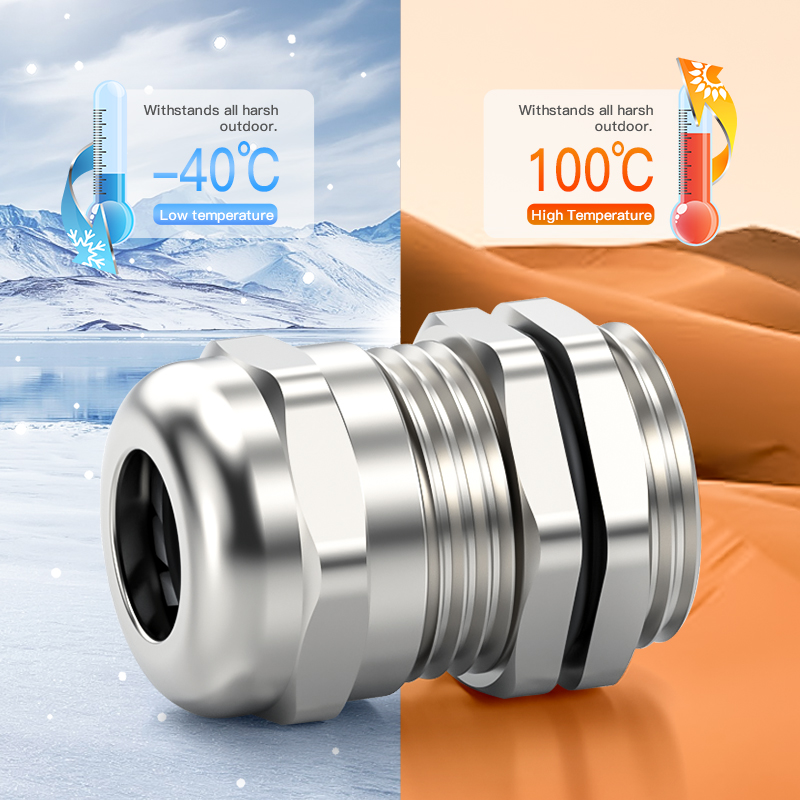

- Temperature Static state:-40 to 100℃,Short time to 120℃ Dynamic state:-20℃ to 80℃,Short time to 100℃
Product Highlights
◆Wide Temperature Tolerance
Reliably operates in extreme temperatures ranging from -60℃to +250℃, ensuring performance where standard glands fail.
◆Robust Material Construction
Made from corrosion-resistant 316 stainless steel with specialized heat-resistant seals (silicone or fluororubber) for superior durability.

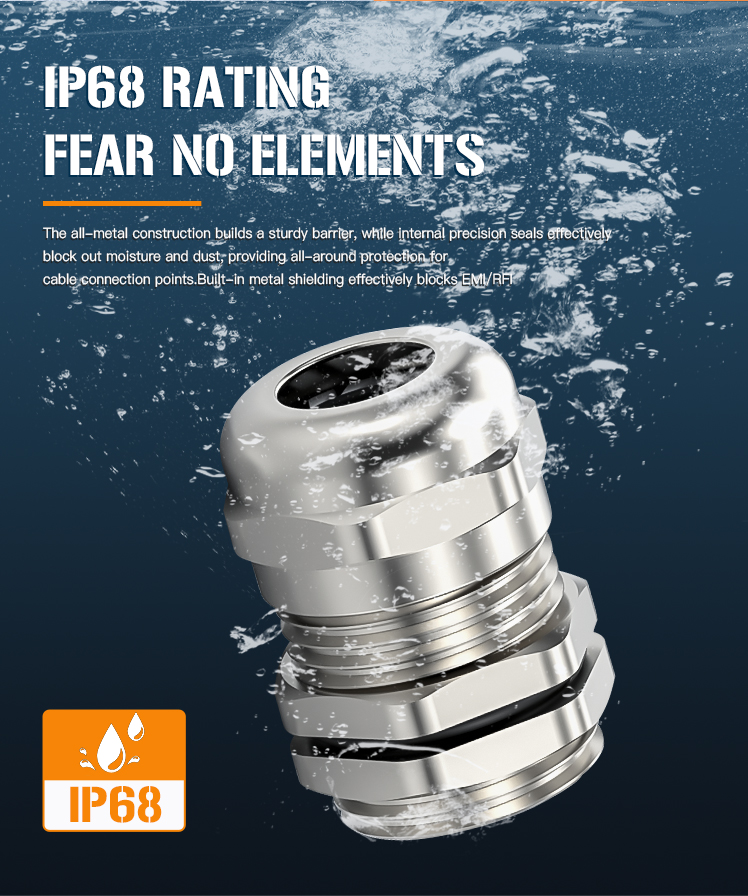

◆Superior Ingress Protection
Features IP68 rating to effectively prevent the ingress of dust, oil, or steam, maintaining electrical integrity.
◆Global Thread Compatibility
Supports PG, NPT, and Metric threads, facilitating easy and versatile installation across different regions and applications.
◆International Standards Compliance
Fully complies with IEC and CE standards, guaranteeing a professional-grade and certified sealing solution.

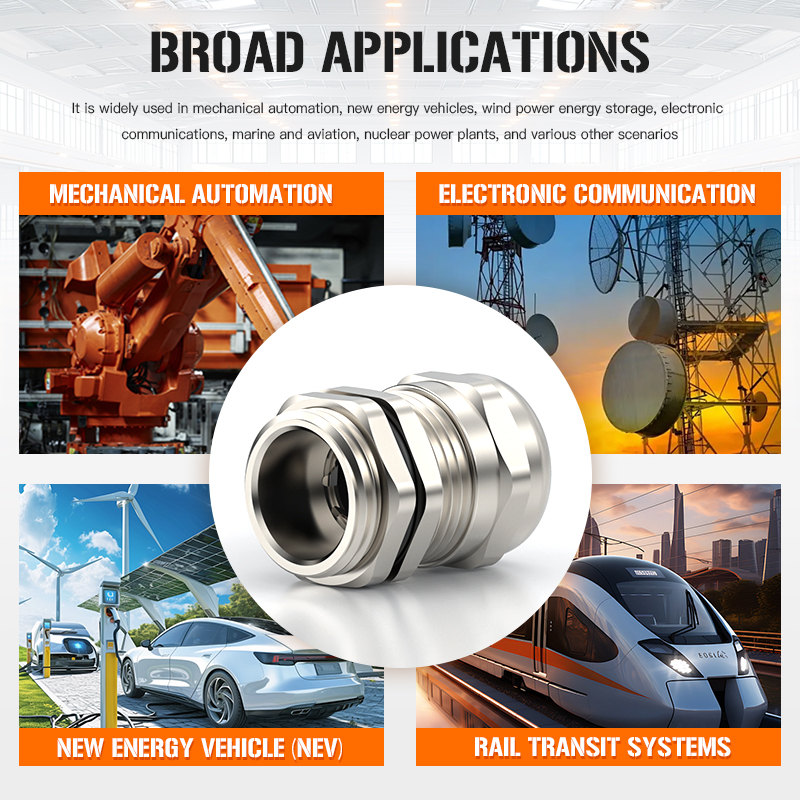

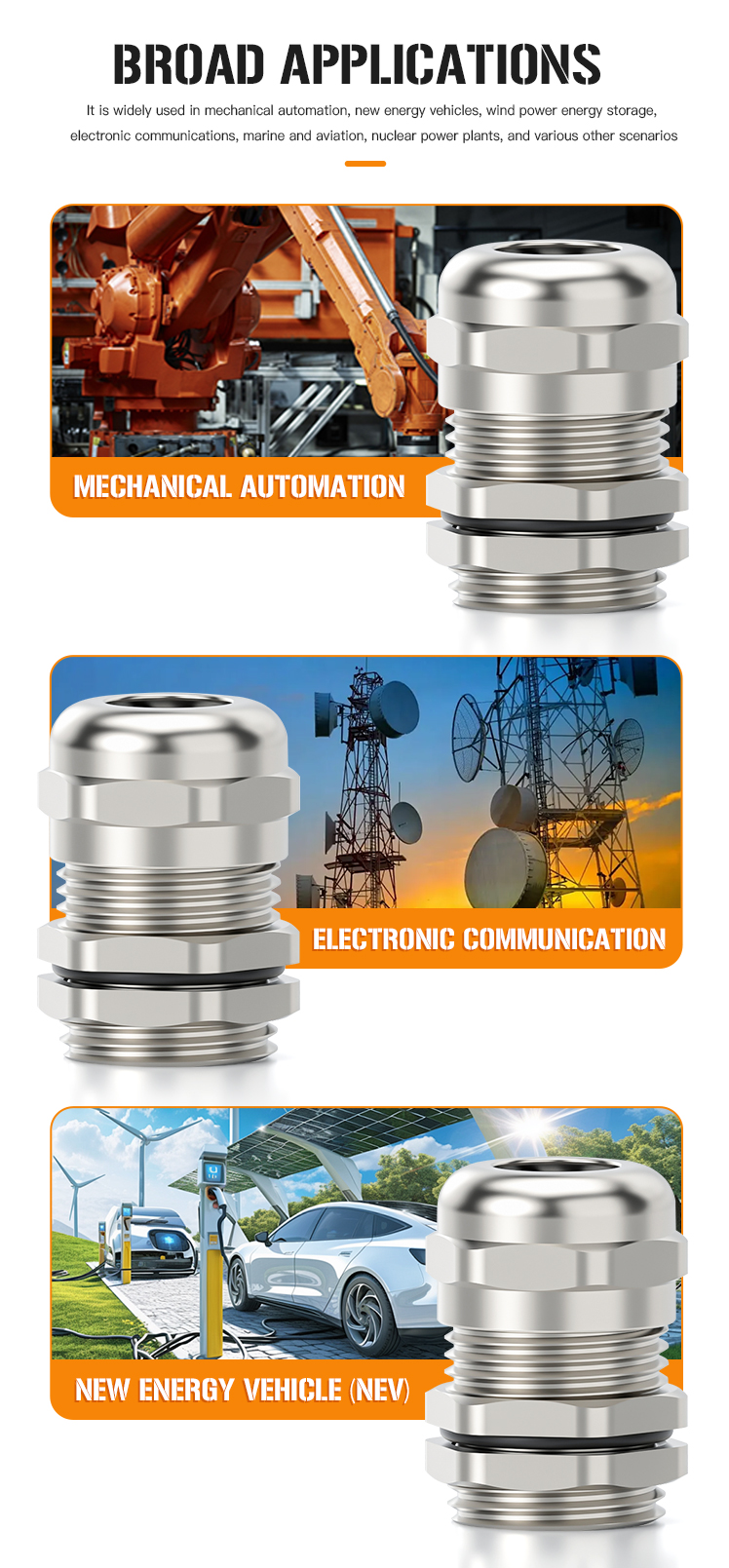

Applications
◇Automation systems
◇Communication devices
◇Power converters
◇Data transmission equipment
◇Ideal for use in high-frequency and high-noise environments
Key Benefits
◆Ensures stable signal transmission and enhanced system reliability by eliminating electromagnetic interference (EMI) and radio frequency interference (RFI)
◆Delivers outstanding electrical conductivity and continuous conductive path
◆Offers robust mechanical and environmental protection even in demanding industrial conditions
◆Maintains signal integrity in challenging applications
◆Provides secure, shielded, and interference-free cable connections for modern industrial systems

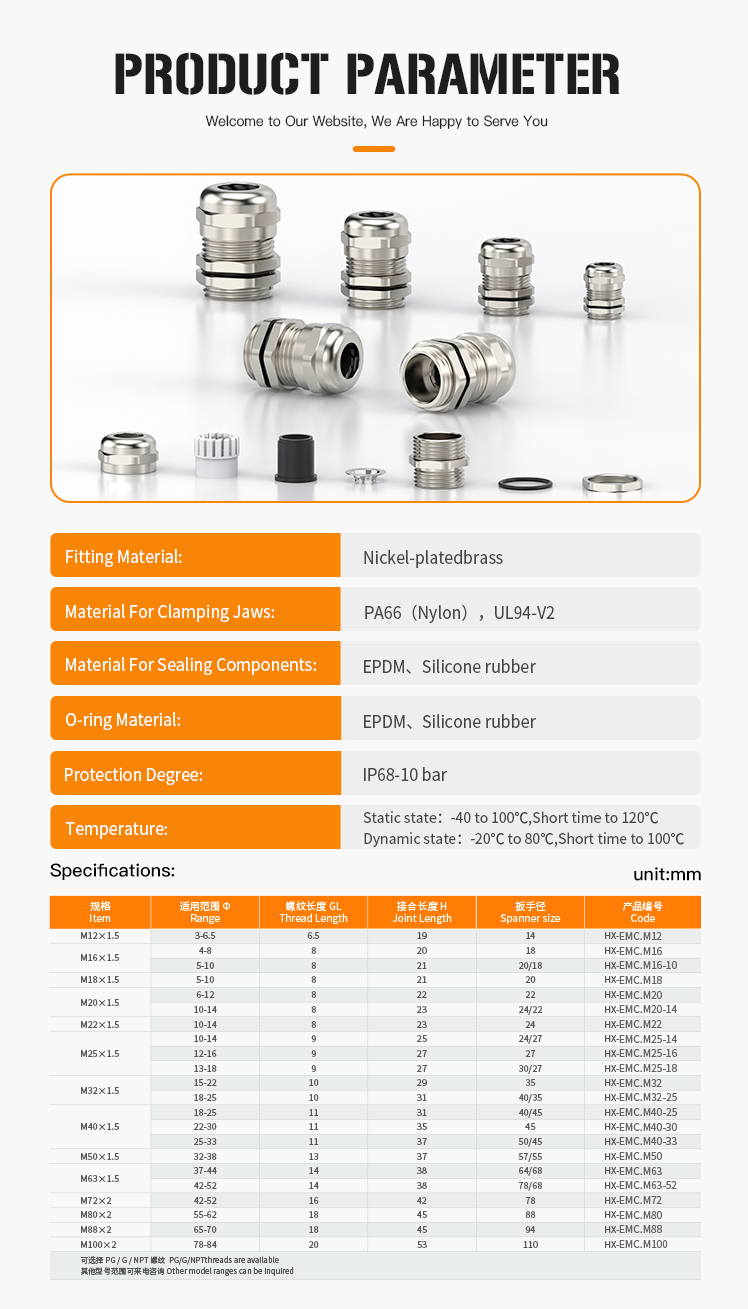

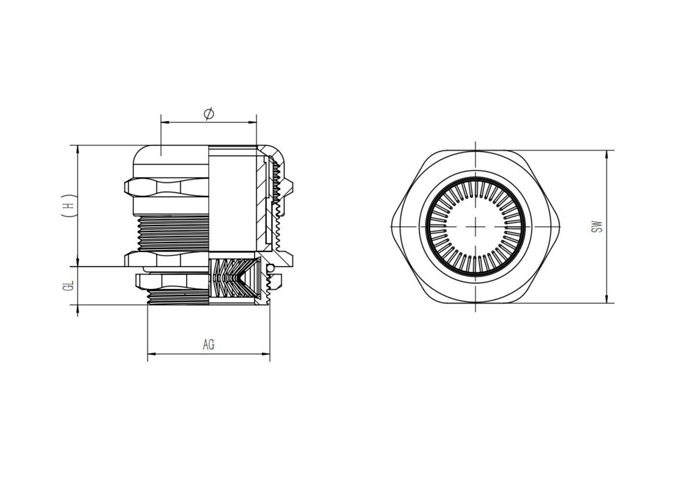

unit:mm
|
Code |
Scope of application |
AG External diameter of thread |
GL Length of thread |
H Join Length |
SW Torque wrench size |
|
HX-EMC.M12-8-T |
4-8 |
M12×1.5 |
8 |
(21) |
17/14 |
|
Item |
Range |
GL Thread Length |
H Joint Length |
Spanner size |
Code |
|
M12×1.5 |
3-6.5 |
6.5 |
19 |
14 |
HX-EMC.M12 |
|
M16×1.5 |
4-8 |
8 |
20 |
18 |
HX-EMC.M16 |
|
5-10 |
8 |
21 |
20/18 |
HX-EMC.M16-10 |
|
|
M18×1.5 |
5-10 |
8 |
21 |
20 |
HX-EMC.M18 |
|
M20×1.5 |
6-12 |
8 |
22 |
22 |
HX-EMC.M20 |
|
10-14 |
8 |
23 |
24/22 |
HX-EMC.M20-14 |
|
|
M22×1.5 |
10-14 |
8 |
23 |
24 |
HX-EMC.M22 |
|
M25×1.5 |
10-14 |
9 |
25 |
24/27 |
HX-EMC.M25-14 |
|
12-16 |
9 |
27 |
27 |
HX-EMC.M25-16 |
|
|
13-18 |
9 |
27 |
30/27 |
HX-EMC.M25-18 |
|
|
M32×1.5 |
15-22 |
10 |
29 |
35 |
HX-EMC.M32 |
|
18-25 |
10 |
31 |
40/35 |
HX-EMC.M32-25 |
|
|
M40×1.5 |
18-25 |
11 |
31 |
40/45 |
HX-EMC.M40-25 |
|
22-30 |
11 |
35 |
45 |
HX-EMC.M40-30 |
|
|
25-33 |
11 |
37 |
50/45 |
HX-EMC.M40-33 |
|
|
M50×1.5 |
32-38 |
13 |
37 |
57/55 |
HX-EMC.M50 |
|
M63×1.5 |
37-44 |
14 |
38 |
64/68 |
HX-EMC.M63 |
|
42-52 |
14 |
38 |
78/68 |
HX-EMC.M63-52 |
|
|
M72×2 |
42-52 |
16 |
42 |
78 |
HX-EMC.M72 |
|
M80×2 |
55-62 |
18 |
45 |
88 |
HX-EMC.M80 |
|
M88×2 |
65-70 |
18 |
45 |
94 |
HX-EMC.M88 |
|
M100×2 |
78-84 |
20 |
53 |
110 |
HX-EMC.M100 |
|
PG/G/NPT threads are avallabe |
|||||
