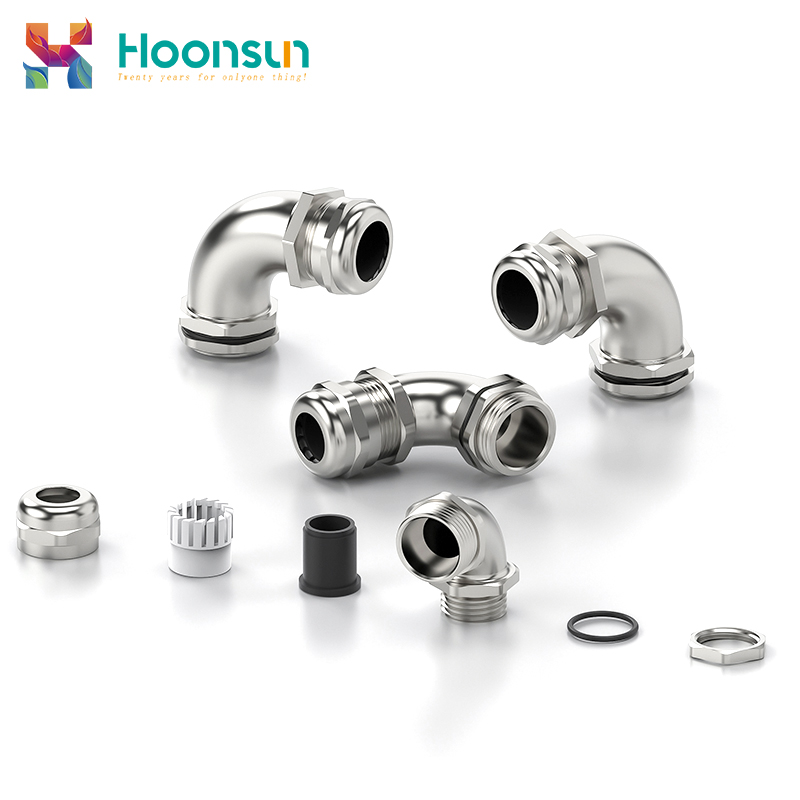

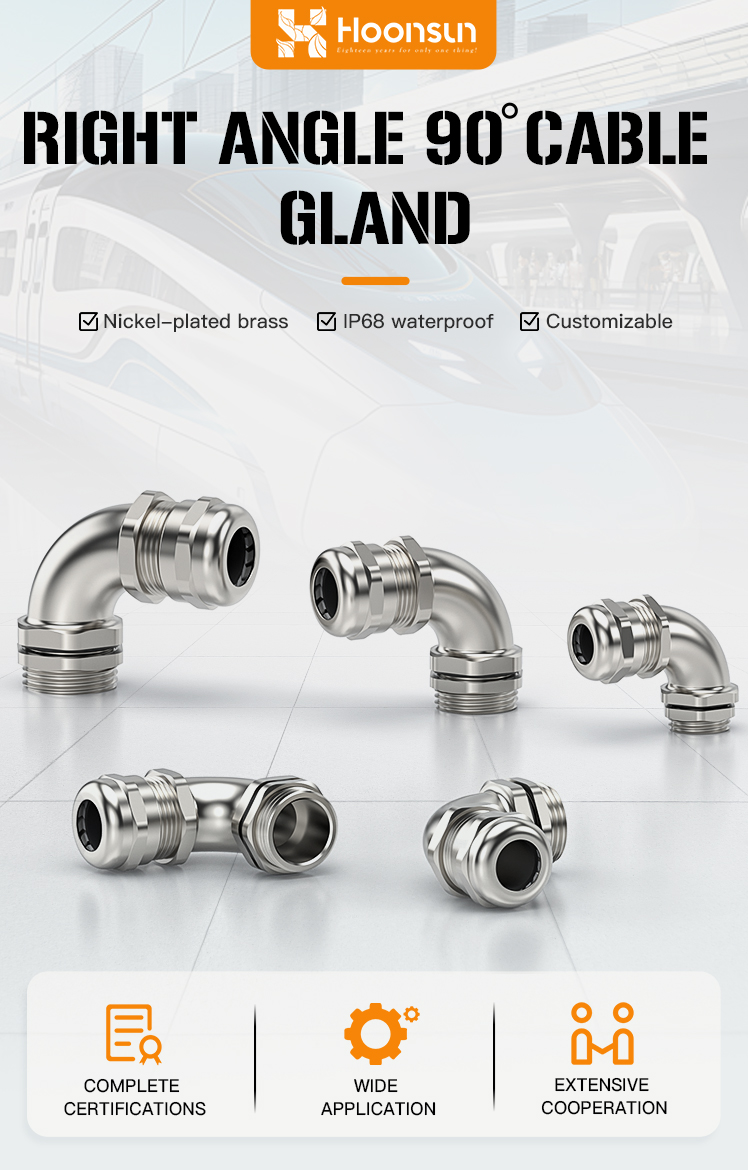

IP68 and UL Right Angle 90° Cable Gland
IP68 and UL Right Angle 90° Cable Gland for corrosion-resistant, space-saving cable management in demanding environments.

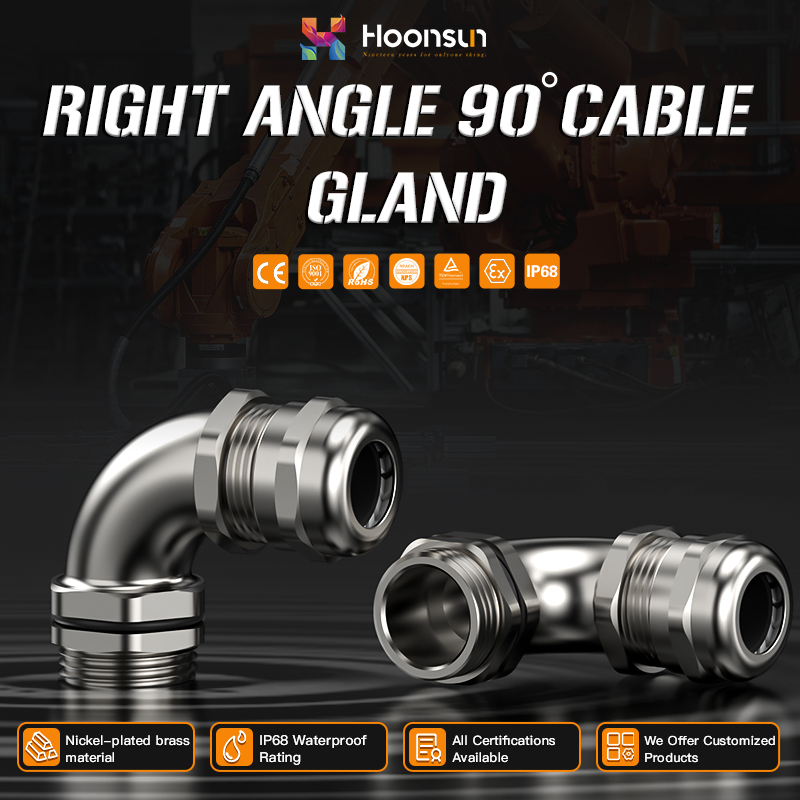

Certified for Global Markets：

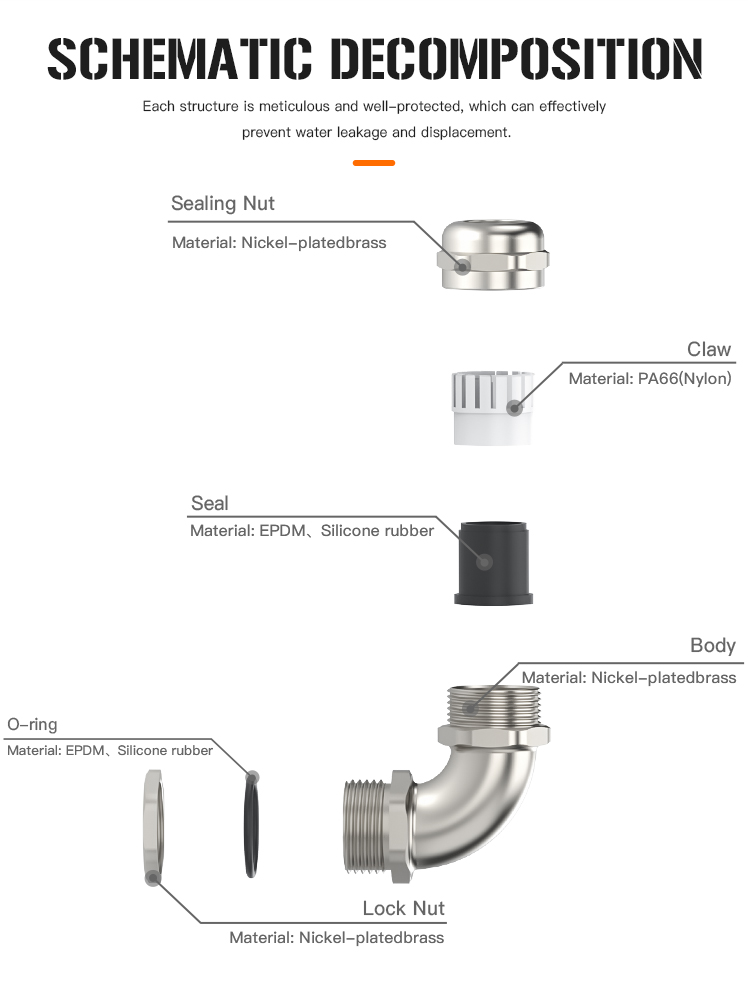

- Fitting Material Nickel-platedbrass
- Material For Clamping Jaws PA66(Nylon),UL94-V2
- Material For Sealing Components EPDM、Silicone rubber
- O-ring Material EPDM、Silicone rubber
- Protection Degree IP68-10 bar

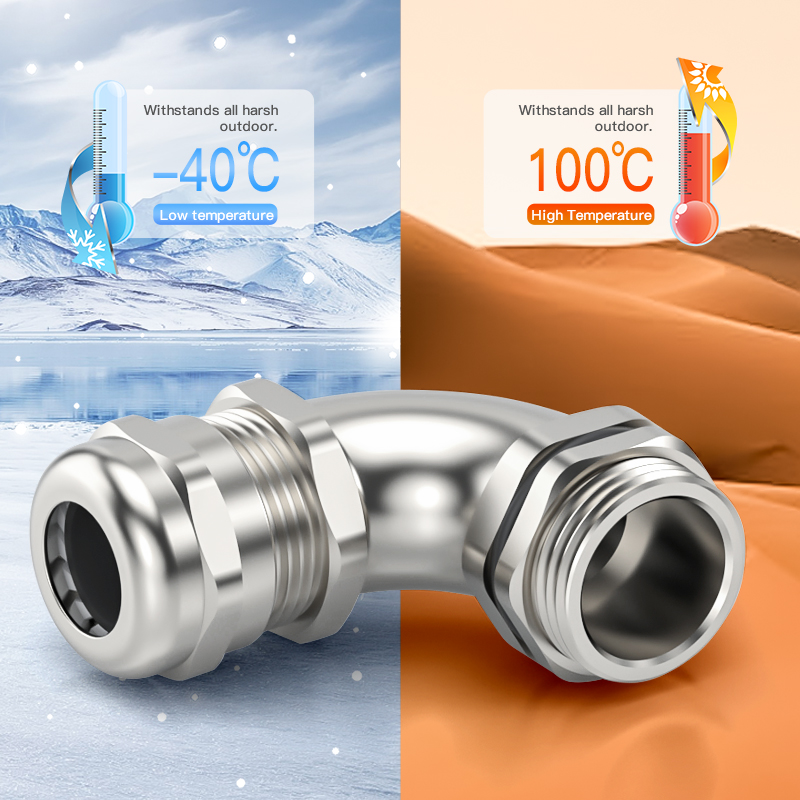

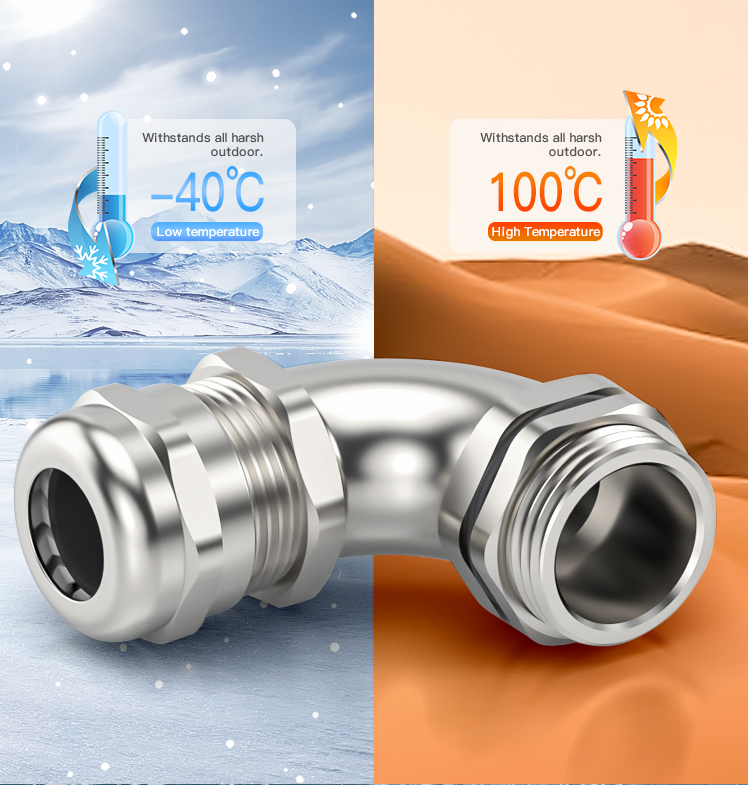

- Temperature Static state:-40 to 100℃,Short time to 120℃ Dynamic state:-20℃ to 80℃,Short time to 100℃
Product Highlights
◆Our precision-engineered 90° design optimizes enclosure layout, enabling smooth cable direction changes and a cleaner installation profile where space is at a premium.
◆Manufactured from robust nickel-plated brass or 316 stainless steel, the gland excels in harsh conditions, providing outstanding corrosion and impact resistance for maximum longevity.

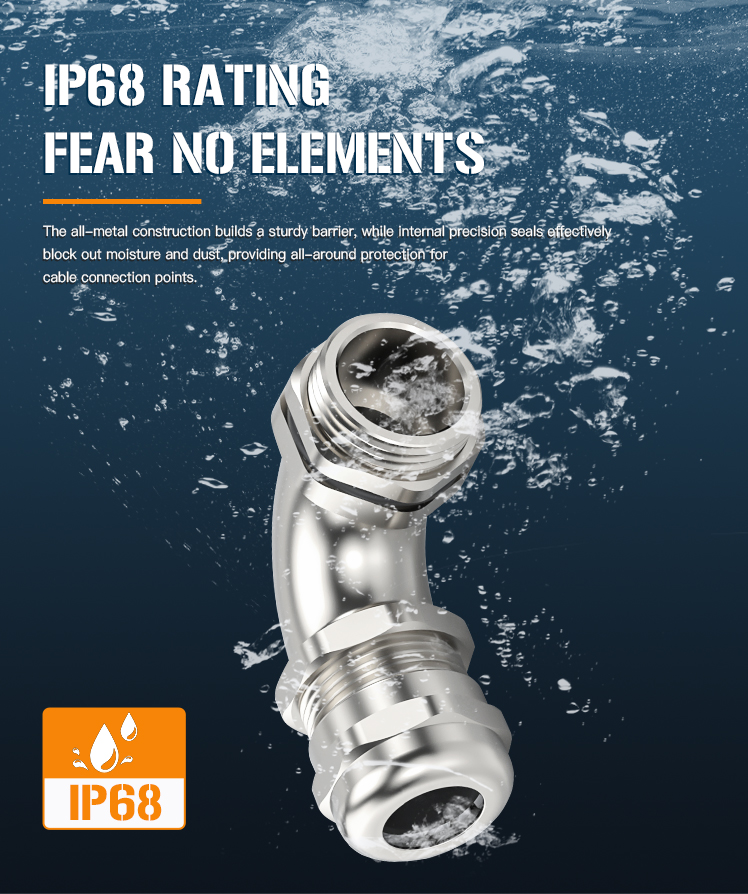

◆A superior multi-component sealing system, featuring a high-grade sealing ring and compression seal, guarantees a consistent IP68 rating, effectively blocking moisture, dust, and oils.
◆The integrated strain relief and vibration-dampening design lock cables securely in place, preventing pull-out and protecting connection integrity in dynamic settings.
◆Offering broad compatibility, the gland is supplied in PG, NPT, and Metric thread standards and is backed by recognized international certifications including UL, CE, and RoHS for guaranteed quality and safety.
Applications
◇Ideal for control panels and industrial automation systems.
◇Suitable for marine installations and heavy-duty machinery.
◇Perfect for robotics and applications requiring precise cable management.
Key Benefits
◆Maximizes space efficiency and improves system aesthetics.
◆Prevents mechanical strain, extending cable service life.
◆Maintains secure electrical connections under challenging conditions.
◆Offers robust protection against moisture, oil, and dust.
◆Ensures reliable performance with strong impact resistance.

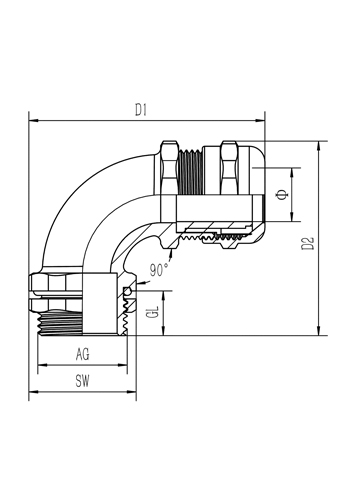

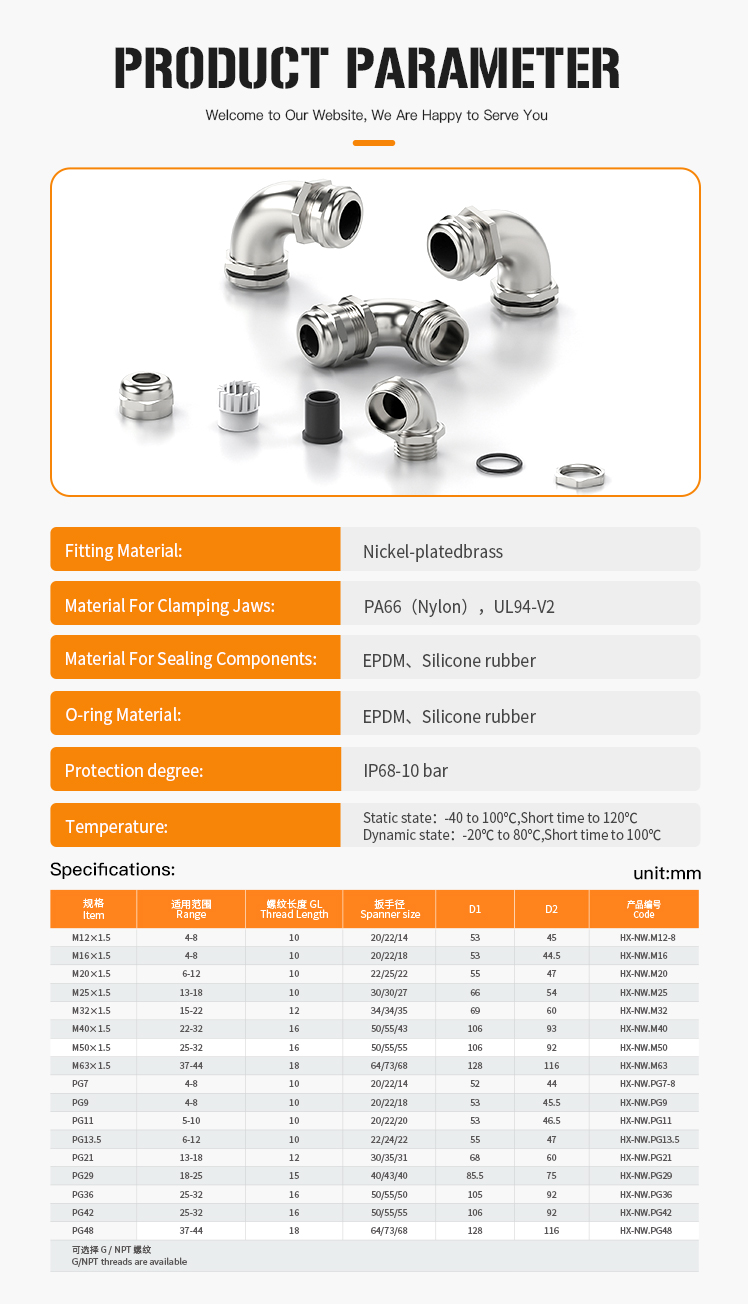

unit:mm
|
Item |
Range |
GL Thread Length |
Spanner size |
D1 |
D2 |
Code |
|
M12×1.5 |
4-8 |
10 |
20/22/14 |
53 |
45 |
HX-NW.M12-8 |
|
M16×1.5 |
4-8 |
10 |
20/22/18 |
53 |
44.5 |
HX-NW.M16 |
|
M20×1.5 |
6-12 |
10 |
22/25/22 |
55 |
47 |
HX-NW.M20 |
|
M25×1.5 |
13-18 |
10 |
30/30/27 |
66 |
54 |
HX-NW.M25 |
|
M32×1.5 |
15-22 |
12 |
34/34/35 |
69 |
60 |
HX-NW.M32 |
|
M40×1.5 |
22-32 |
16 |
50/55/43 |
106 |
93 |
HX-NW.M40 |
|
M50×1.5 |
25-32 |
16 |
50/55/55 |
106 |
92 |
HX-NW.M50 |
|
M63×1.5 |
37-44 |
18 |
64/73/68 |
128 |
116 |
HX-NW.M63 |
|
PG7 |
4-8 |
10 |
20/22/14 |
52 |
44 |
HX-NW.PG7-8 |
|
PG9 |
4-8 |
10 |
20/22/18 |
53 |
45.5 |
HX-NW.PG9 |
|
PG11 |
5-10 |
10 |
20/22/20 |
53 |
46.5 |
HX-NW.PG11 |
|
PG13.5 |
6-12 |
10 |
22/24/22 |
55 |
47 |
HX-NW.PG13.5 |
|
PG21 |
13-18 |
12 |
30/35/31 |
68 |
60 |
HX-NW.PG21 |
|
PG29 |
18-25 |
15 |
40/43/40 |
85.5 |
75 |
HX-NW.PG29 |
|
PG36 |
25-32 |
16 |
50/55/50 |
105 |
92 |
HX-NW.PG36 |
|
PG42 |
25-32 |
16 |
50/55/55 |
106 |
92 |
HX-NW.PG42 |
|
PG48 |
37-44 |
18 |
64/73/68 |
128 |
116 |
HX-NW.PG48 |
|
G/NPT threads are avllable |
||||||
