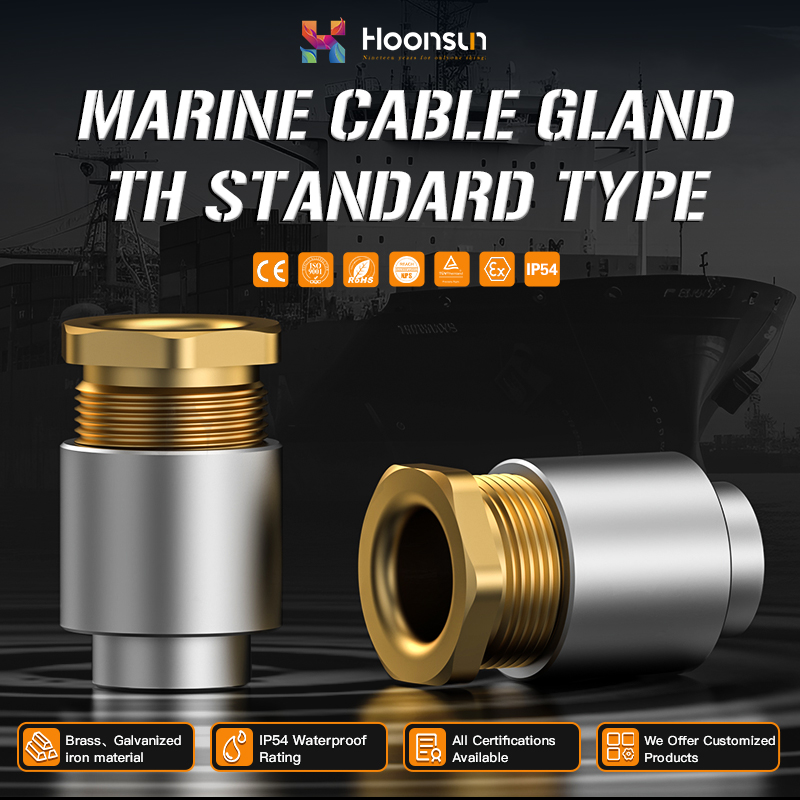

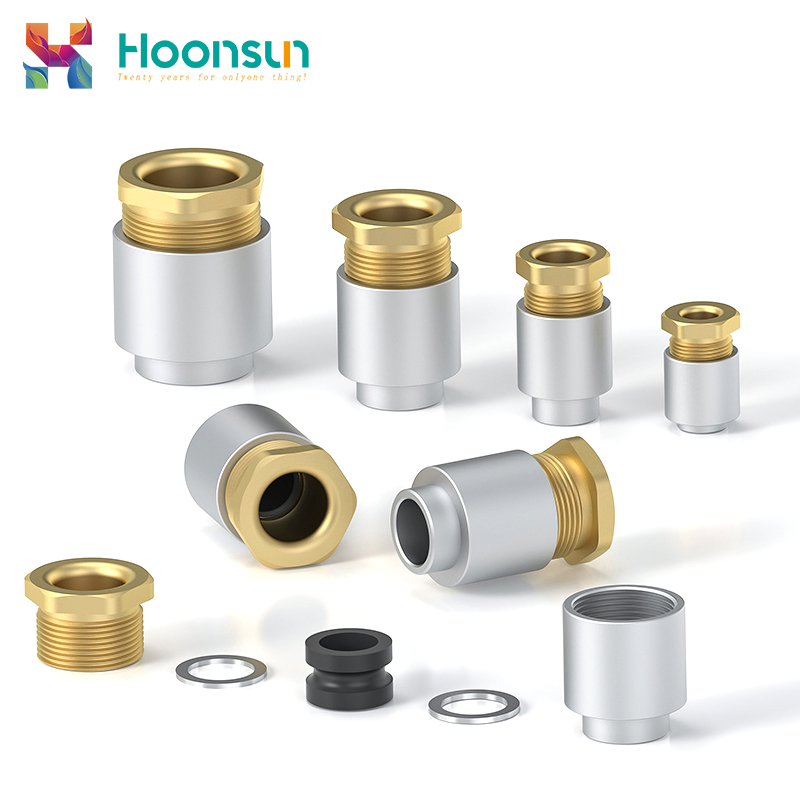

IP68 and UL Marine Cable Gland TH Standard Type
This Marine Cable Gland TH Standard Type is specially designed for harsh marine environments, featuring excellent waterproof sealing performance and long-lasting reliability.
Certified for Global Markets：

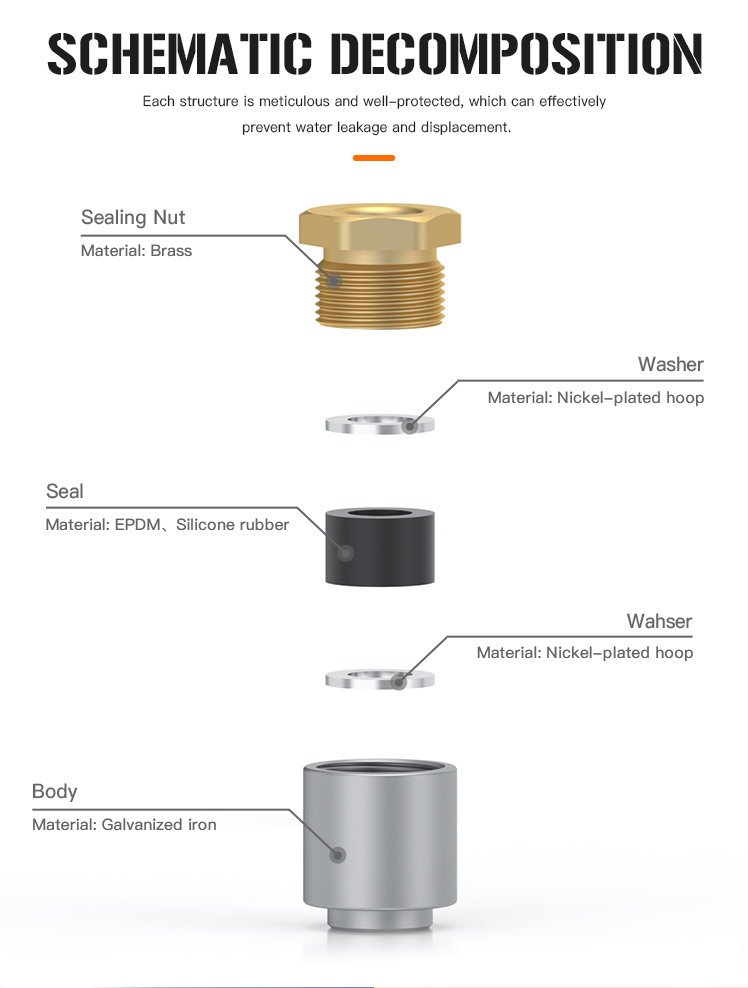

- Fitting Material Brass、Galvanized iron
- Material For Sealing Components EPDM、Silicone rubber
- Metal Washer Nickel-plated hoop
- Protection Degree IP54
- Temperature Static state:-40 to 100℃,Short time to 120℃ Dynamic state:-20℃ to 80℃,Short time to 100℃
Product Highlights
◆Constructed from nickel-plated brass or stainless steel for superior corrosion resistance in salt-laden environments.
◆Achieves up to IP68 protection level, ensuring a completely sealed connection against water, dust, and oil.
◆Stable performance across a wide thermal range from -40℃ to 120℃.
◆Offers multiple thread specifications (e.g., M12×1, M16×1.5) and accommodates cable diameters from 5mm to 50mm.

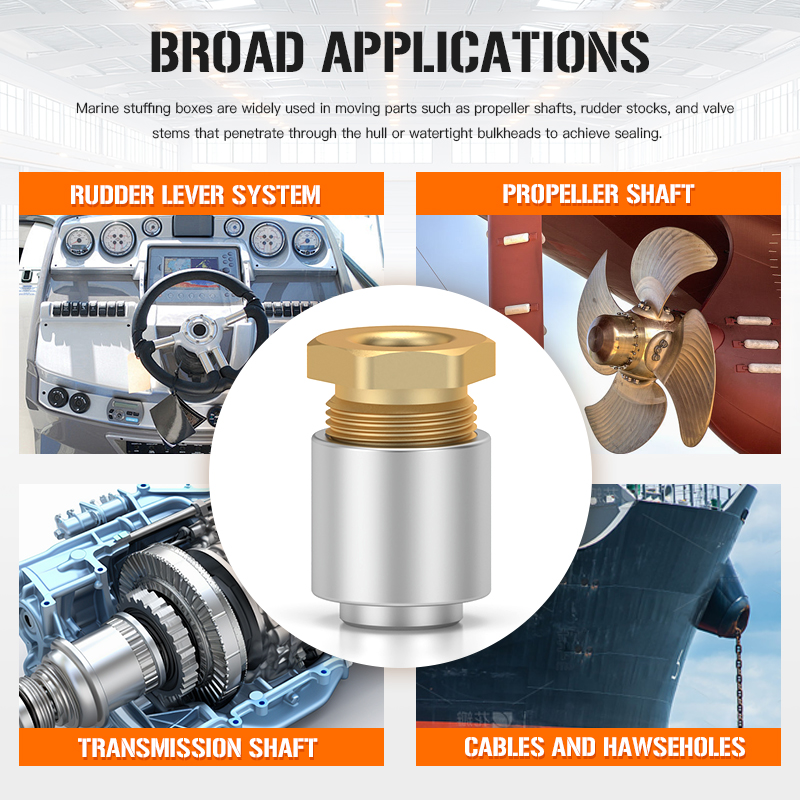

Applications
This cable gland is designed for demanding marine applications. It is suitable for securing and sealing cable holes in ship control panels, navigation and communication systems, deck lighting, and power distribution devices. Its robust design can protect connections in the engine room, open decks, and ballast water systems. It is suitable for use in marine environments, including buoys, dock equipment, and other coastal facilities, as in these areas, resistance to saltwater corrosion and weather resistance are crucial for operational safety and lifespan.
Key Benefits
◆Corrosion-Proof Construction
Ensures long-term durability and reliability, resisting the harsh effects of marine atmospheres.
◆Full Environmental Sealing
Provides peace of mind with robust ingress protection for safe operation in wet and dusty conditions.
◆Extreme Temperature Resilience
Maintains integrity and function despite fluctuating temperatures encountered at sea.
◆Versatile & Easy Installation
Simplified compatibility with a broad range of marine cables and standard thread types reduces installation time and effort.

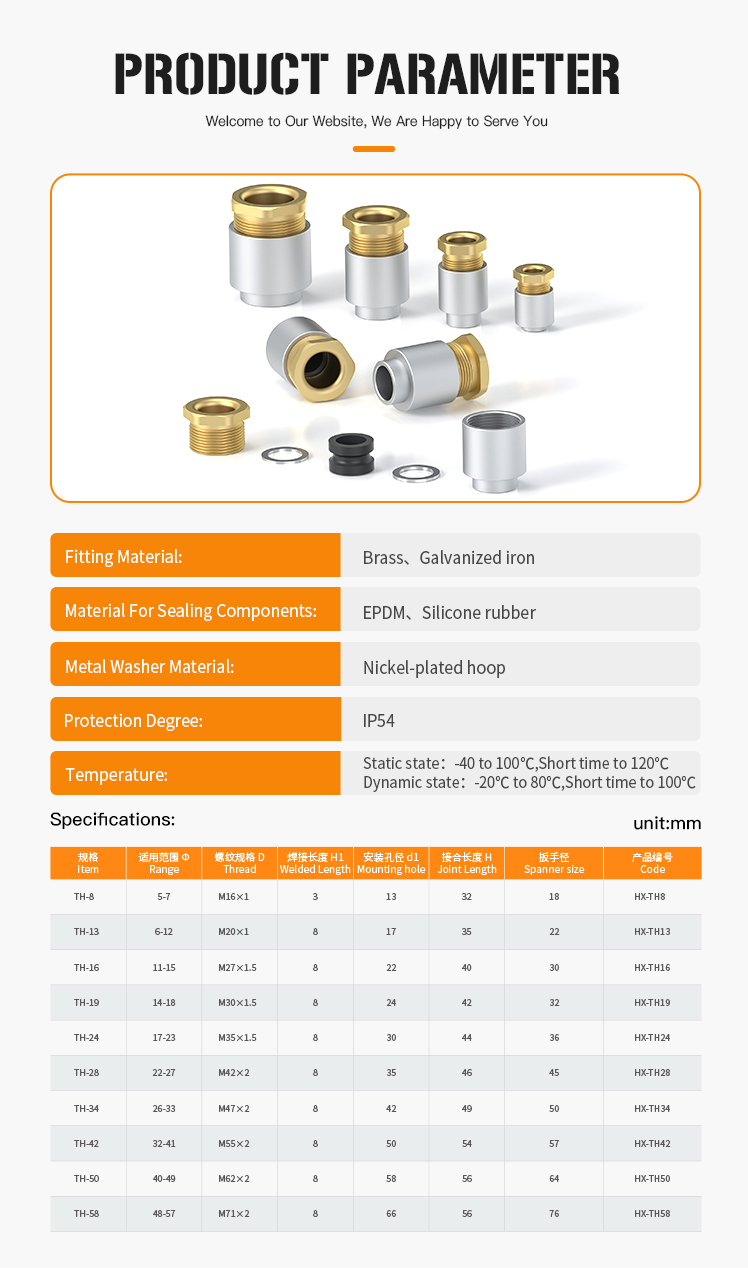

unit:mm
|
Item |
Range |
D Thread |
H1 Welded Length |
d1 Mounting hole |
H Joint Length |
Spanner size |
Code |
|
TH-8 |
5-7 |
M16×1 |
3 |
13 |
32 |
18 |
HX-TH8 |
|
TH-13 |
6-12 |
M20×1 |
8 |
17 |
35 |
22 |
HX-TH13 |
|
TH-16 |
11-15 |
M27×1.5 |
8 |
22 |
40 |
30 |
HX-TH16 |
|
TH-19 |
14-18 |
M30×1.5 |
8 |
24 |
42 |
32 |
HX-TH19 |
|
TH-24 |
17-23 |
M35×1.5 |
8 |
30 |
44 |
36 |
HX-TH24 |
|
TH-28 |
22-27 |
M42×2 |
8 |
35 |
46 |
45 |
HX-TH28 |
|
TH-34 |
26-33 |
M47×2 |
8 |
42 |
49 |
50 |
HX-TH34 |
|
TH-42 |
32-41 |
M55×2 |
8 |
50 |
54 |
57 |
HX-TH42 |
|
TH-50 |
40-49 |
M62×2 |
8 |
58 |
56 |
64 |
HX-TH50 |
|
TH-58 |
48-57 |
M71×2 |
8 |
66 |
56 |
76 |
HX-TH58 |
