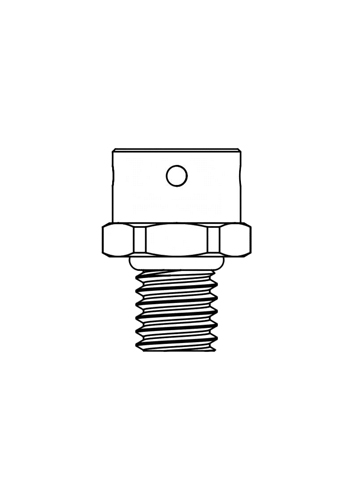

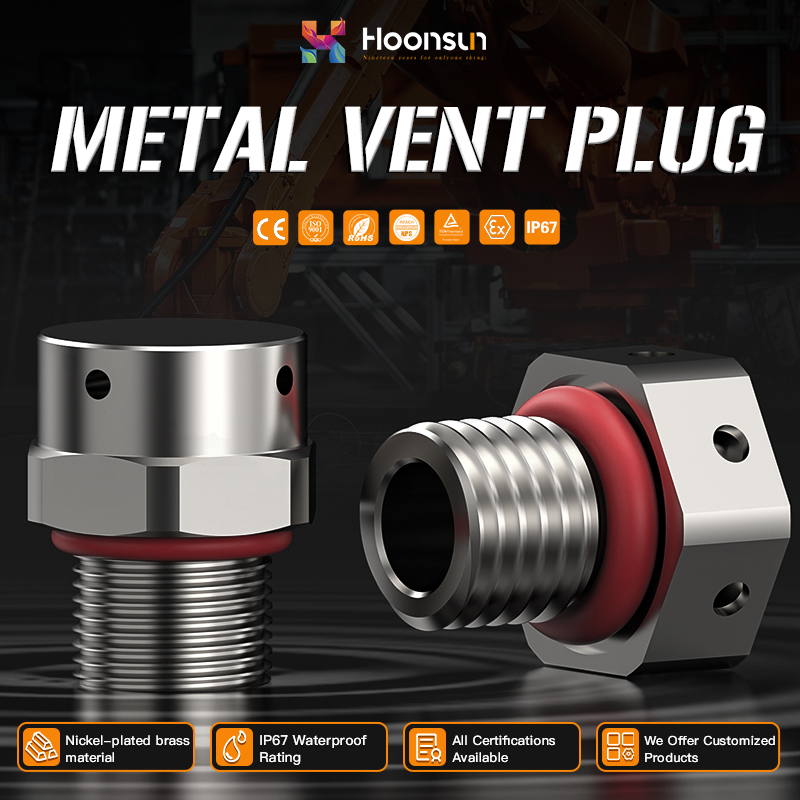

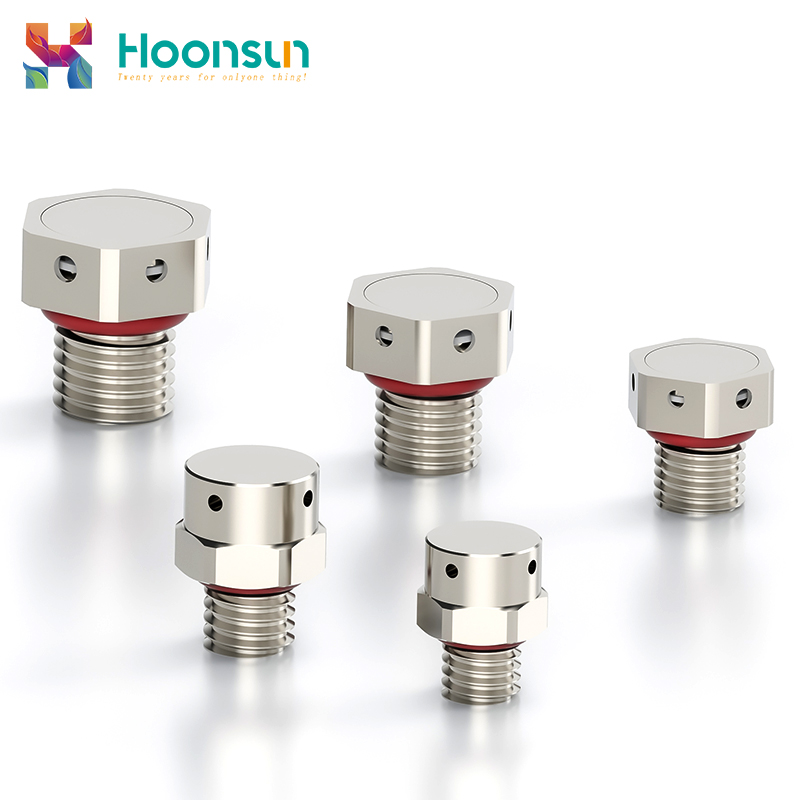

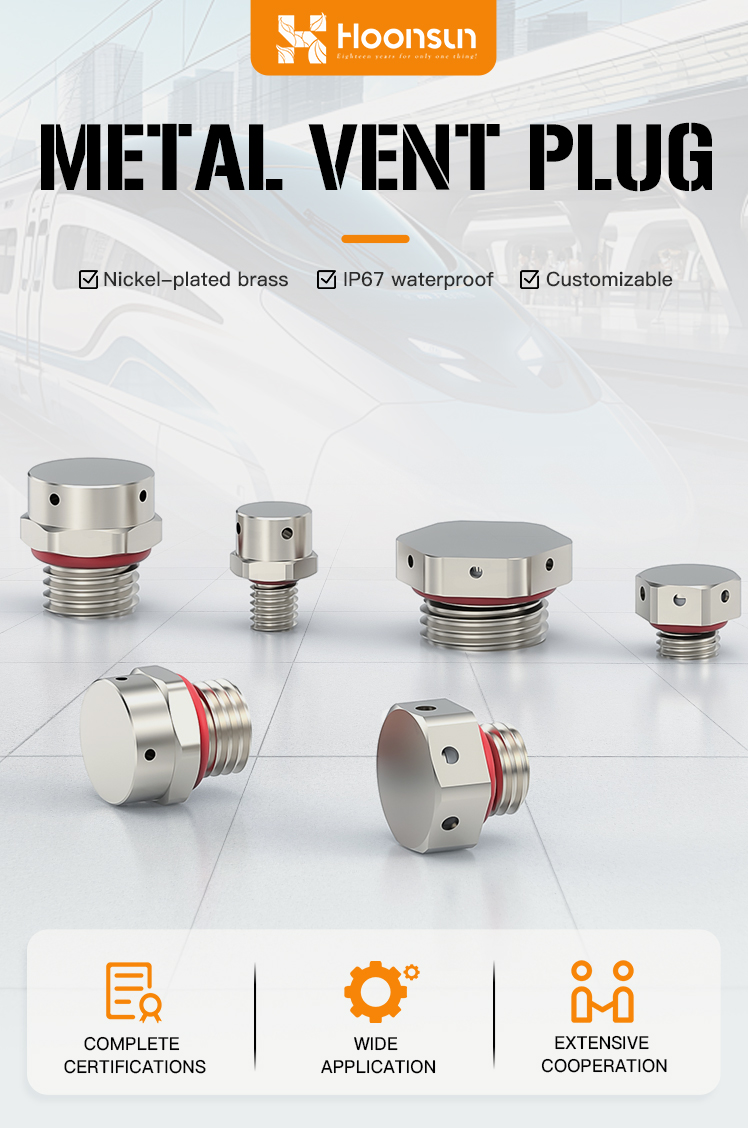

IP68 and UL Certified Metal Vent Plug
The Metal Vent Plug provides professional ventilation for electrical cabinets/automotive systems, maintaining IP68 level protection against moisture and particles.

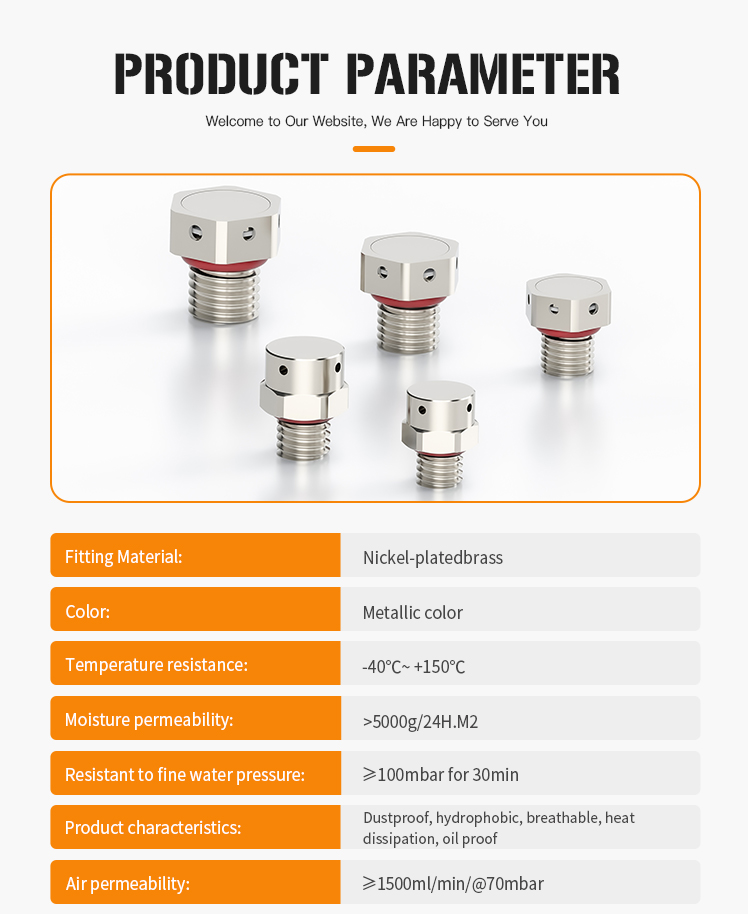

Certified for Global Markets：

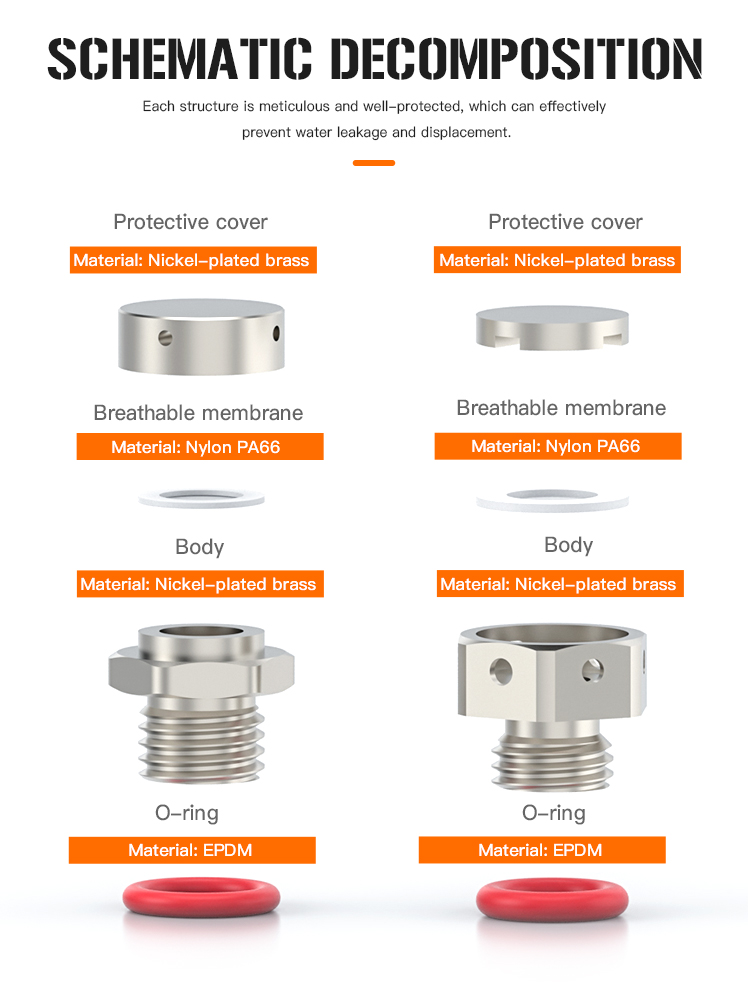

- Fitting Material Nickel-plated brass
- Color Metallic color

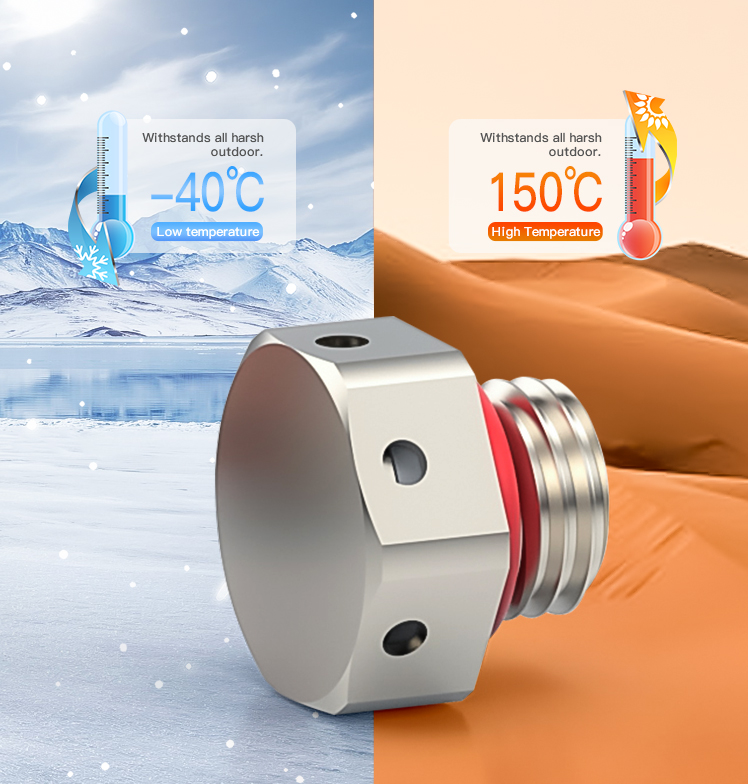

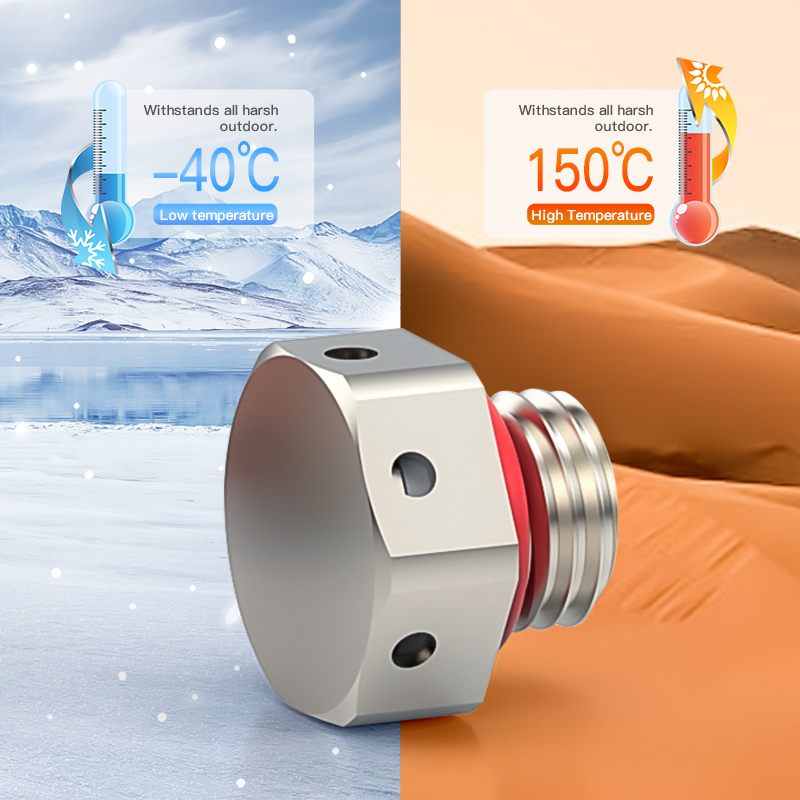

- Temperature resistance -40℃~+150℃
- Moisture permeability >5000g/24H.M2
- Resistant to fine water pressure ≥100mbar for 30min
- Product characteristics Dustproof, hydrophobic, breathable, heat dissipation, oil proof
- Air permeability ≥1500ml/min/@70mbar
Product Highlights

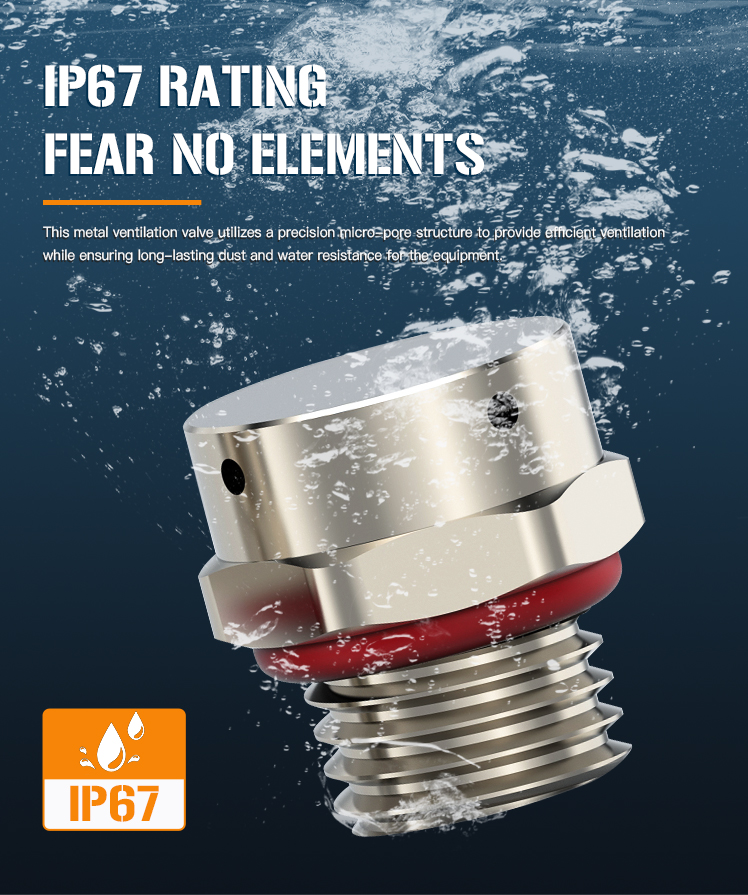

◆IP67-IP68 Certified for superior waterproof and dustproof performance.
◆UL, CE, and RoHS Certified, ensuring international safety and quality standards.
◆Constructed from durable nickel-plated brass or stainless steel for excellent corrosion resistance.
◆Features advanced microporous membrane technology for reliable air exchange.
◆Easy to install with compatibility for both Metric and PG threads.

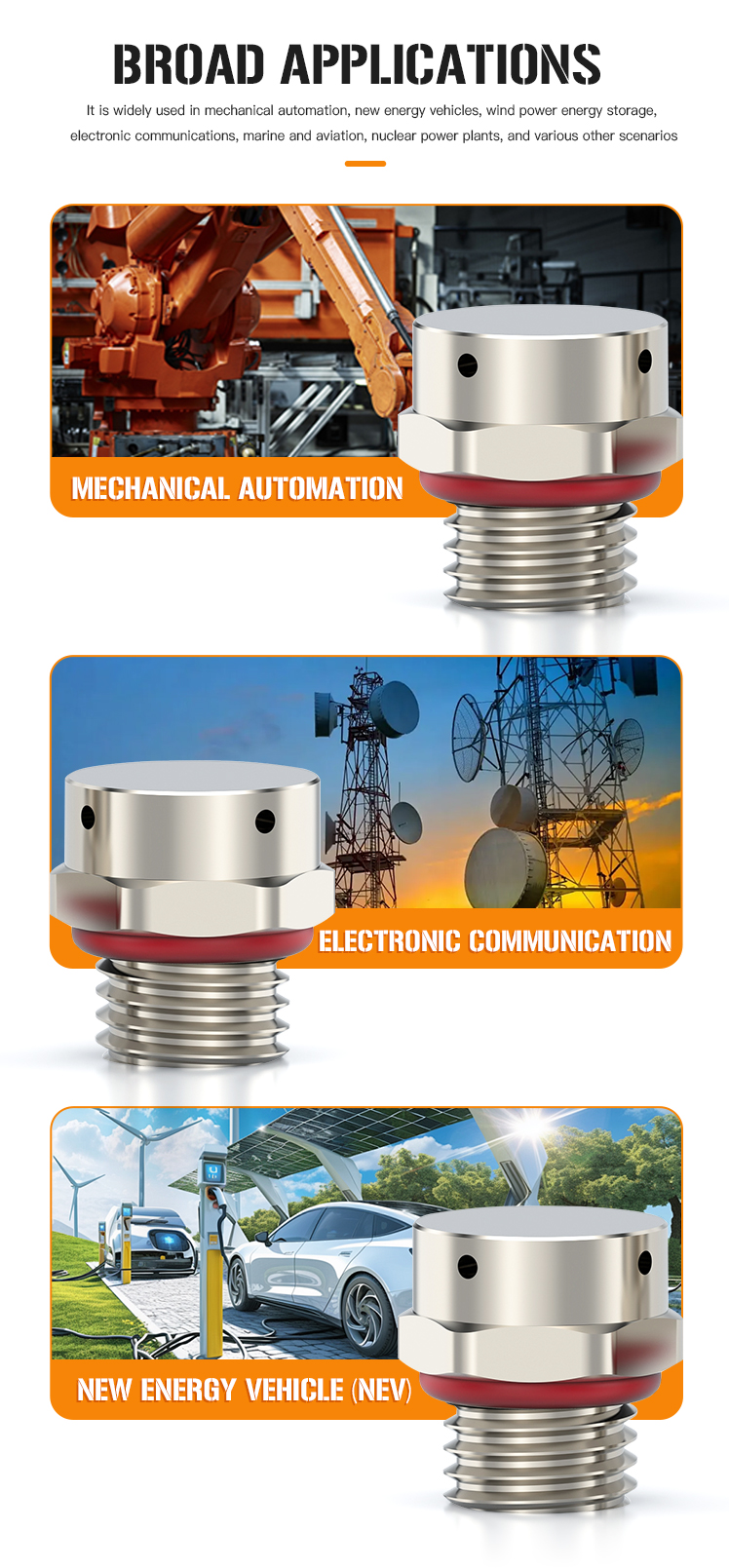

Applications
◇Electrical Control Cabinets
◇Outdoor Lighting Systems
◇Automotive Electronics
◇Renewable Energy Installations
Key Benefits
◆Pressure Balance
Maintains optimal air pressure inside sealed enclosures.
◆Superior Protection
Effectively blocks water, dust, and contaminants.
◆Prevents Condensation
Reduces moisture buildup to protect internal components.
◆Long-Term Durability
Resists corrosion, UV exposure, and extreme temperatures.
◆Extended Equipment Lifespan
Ensures stable performance and reliability.

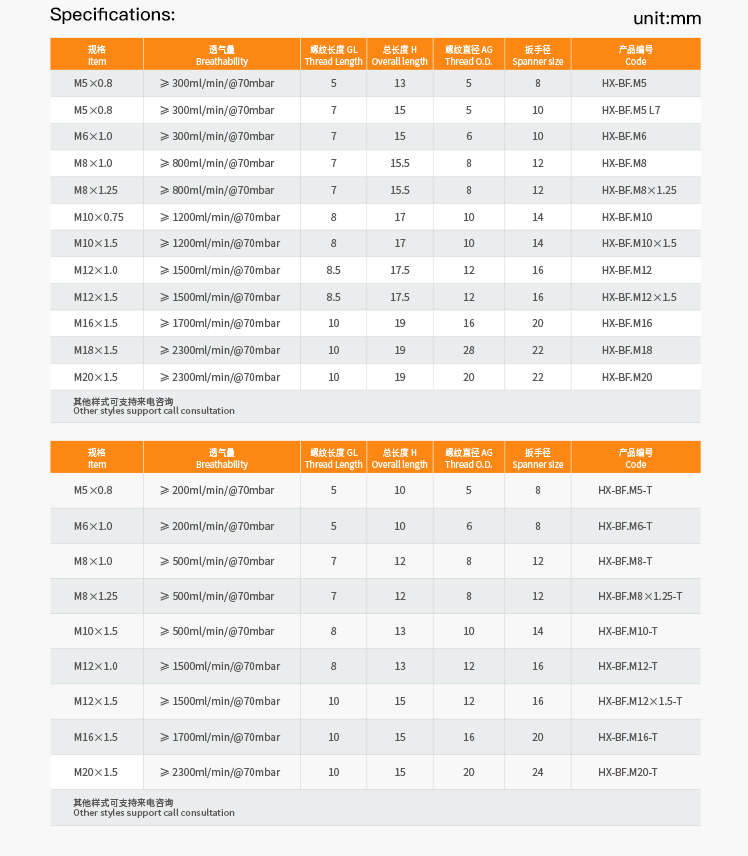

unit:mm
|
Item |
Breathablity |
GL Thread Length |
H Overall length |
AG ThreadO.D. |
Spanner size |
Code |
|
M5×0.8 |
≥300ml/min/@70mbar |
5 |
13 |
5 |
8 |
HX-BF.M5 |
|
M5×0.8 |
≥300ml/min/@70mbar |
7 |
15 |
5 |
10 |
HX-BF.M5 L7 |
|
M6×1.0 |
≥300ml/min/@70mbar |
7 |
15 |
6 |
10 |
HX-BF.M6 |
|
M8×1.0 |
≥800ml/min/@70mbar |
7 |
15.5 |
8 |
12 |
HX-BF.M8 |
|
M8×1.25 |
≥800ml/min/@70mbar |
7 |
15.5 |
8 |
12 |
HX-BF.M8×1.25 |
|
M10×0.75 |
≥1200ml/min/@70mbar |
8 |
17 |
10 |
14 |
HX-BF.M10 |
|
M10×1.5 |
≥1200ml/min/@70mbar |
8 |
17 |
10 |
14 |
HX-BF.M10×1.5 |
|
M12×1.0 |
≥1500ml/min/@70mbar |
8.5 |
17.5 |
12 |
16 |
HX-BF.M12 |
|
M12×1.5 |
≥1500ml/min/@70mbar |
8.5 |
17.5 |
12 |
16 |
HX-BF.M12×1.5 |
|
M16×1.5 |
≥1700ml/min/@70mbar |
10 |
19 |
16 |
20 |
HX-BF.M16 |
|
M18×1.5 |
≥2300ml/min/@70mbar |
10 |
19 |
28 |
22 |
HX-BF.M18 |
|
M20×1.5 |
≥2300ml/min/@70mbar |
10 |
19 |
20 |
22 |
HX-BF.M20 |
|
Other styles support cal consuitation |
||||||
|
Item |
Breathablity |
GL Thread Length |
H Overall length |
AG ThreadO.D. |
Spanner size |
Code |
|
M5×0.8 |
≥200ml/min/@70mbar |
5 |
10 |
5 |
8 |
HX-BF.M5-T |
|
M6×1.0 |
≥200ml/min/@70mbar |
5 |
10 |
6 |
8 |
HX-BF.M6-T |
|
M8×1.0 |
≥500ml/min/@70mbar |
7 |
12 |
8 |
12 |
HX-BF.M8-T |
|
M8×1.25 |
≥500ml/min/@70mbar |
7 |
12 |
8 |
12 |
HX-BF.M8×1.25-T |
|
M10×1.5 |
≥500ml/min/@70mbar |
8 |
13 |
10 |
14 |
HX-BF.M10-T |
|
M12×1.0 |
≥1500ml/min/@70mbar |
8 |
13 |
12 |
16 |
HX-BF.M12-T |
|
M12×1.5 |
≥1500ml/min/@70mbar |
10 |
15 |
12 |
16 |
HX-BF.M12×1.5-T |
|
M16×1.5 |
≥1700ml/min/@70mbar |
10 |
15 |
16 |
20 |
HX-BF.M16-T |
|
M20×1.5 |
≥2300ml/min/@70mbar |
10 |
15 |
20 |
24 |
HX-BF.M20-T |
|
Other styles support call consultation |
||||||
