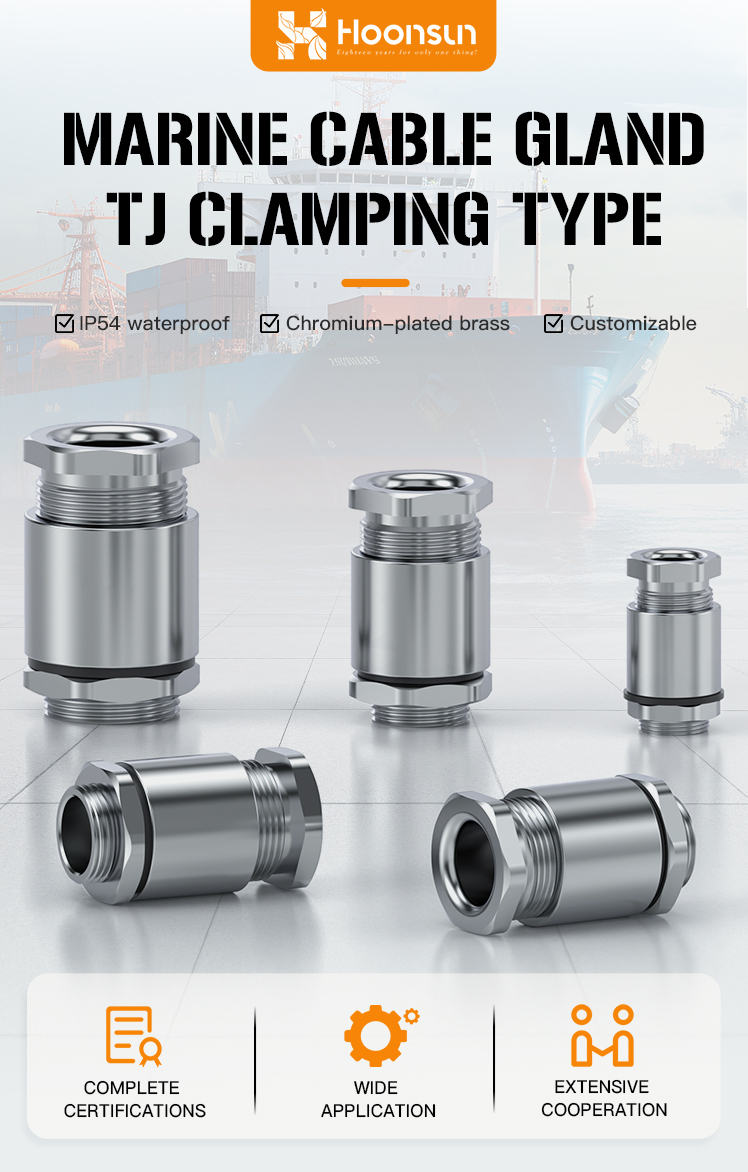

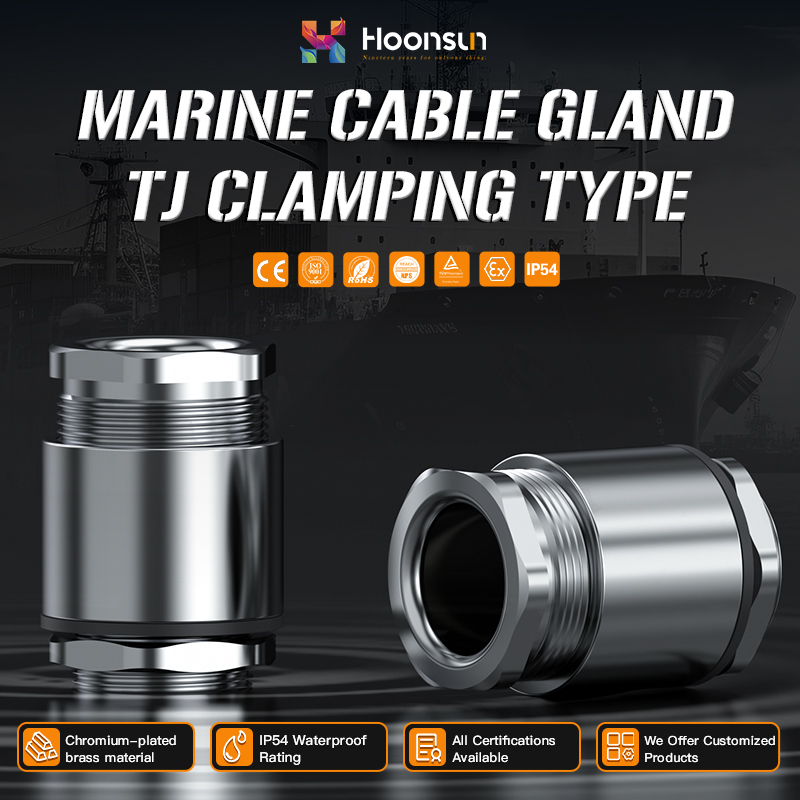

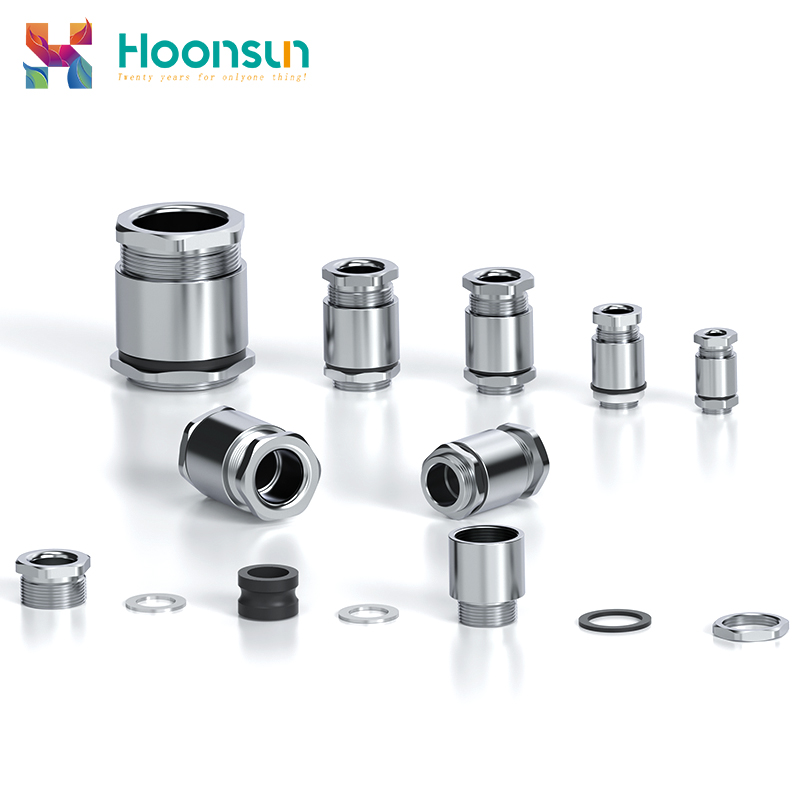

IP68 and UL Certified Marine Cable Gland TJ Clamping Type
The Marine Cable Gland TJ Clamping Type is designed for challenging offshore environments and features excellent corrosion resistance and watertight integrity.
Certified for Global Markets：

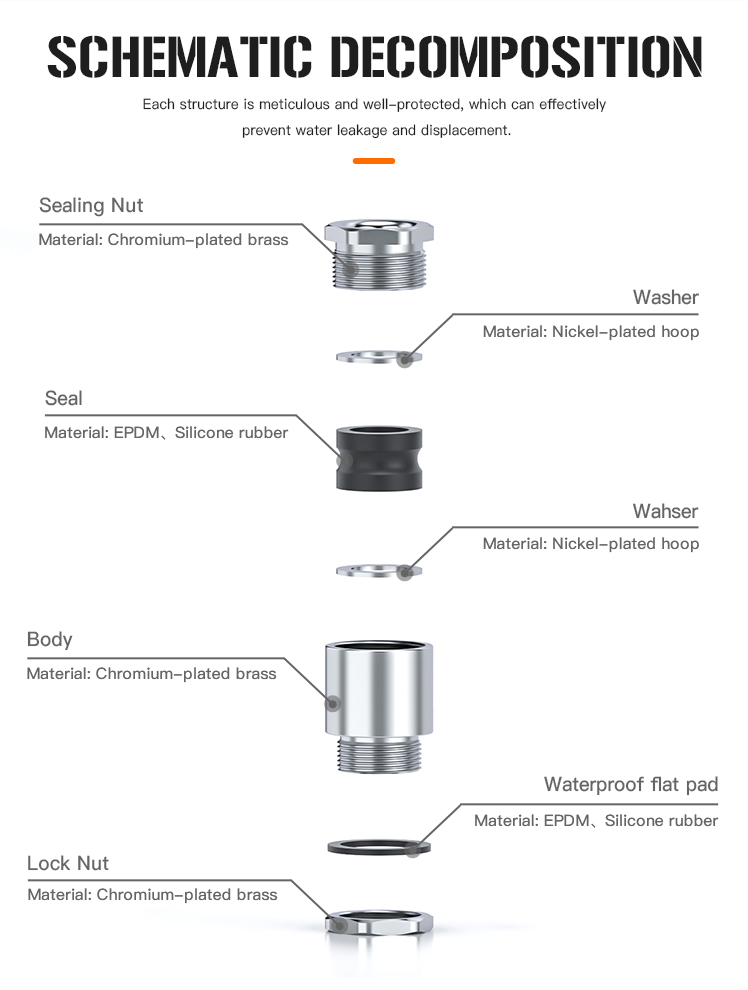

- Fitting Material Chromium-plated brass
- Material For Sealing Components EPDM、Silicone rubber
- O-ring Material EPDM、Silicone rubber
- Metal Washer Nickel-plated hoop

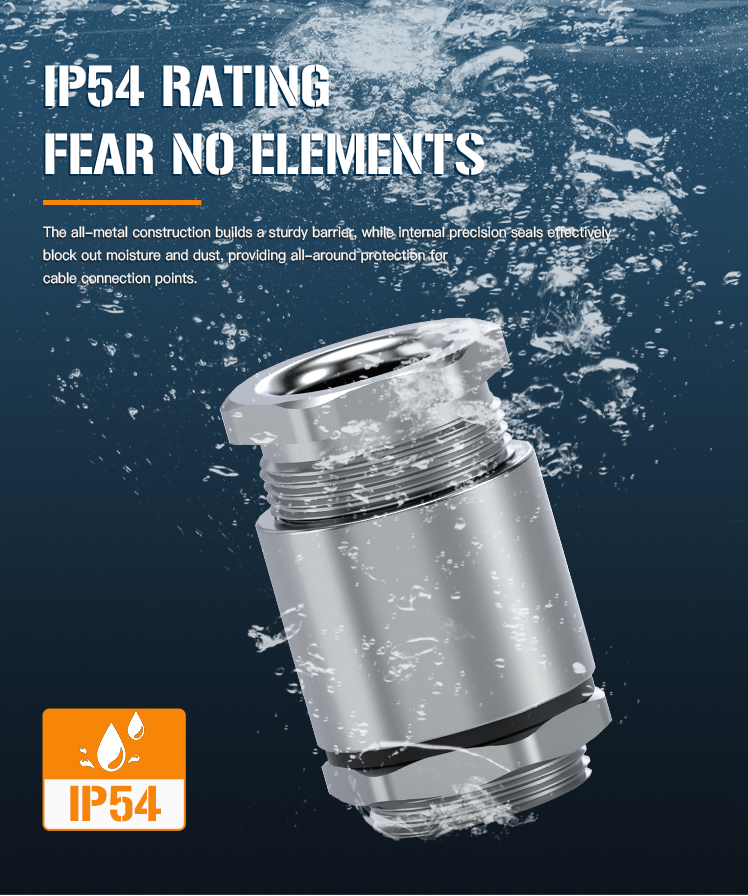

- Protection Degree IP54
- Temperature Static state:-40 to 100℃,Short time to 120℃ Dynamic state:-20℃ to 80℃,Short time to 100℃
Product Highlights
◆Crafted from premium brass with chrome or nickel plating for superior durability.
◆Achieves up to IP68 protection, ensuring complete dust and water resistance.

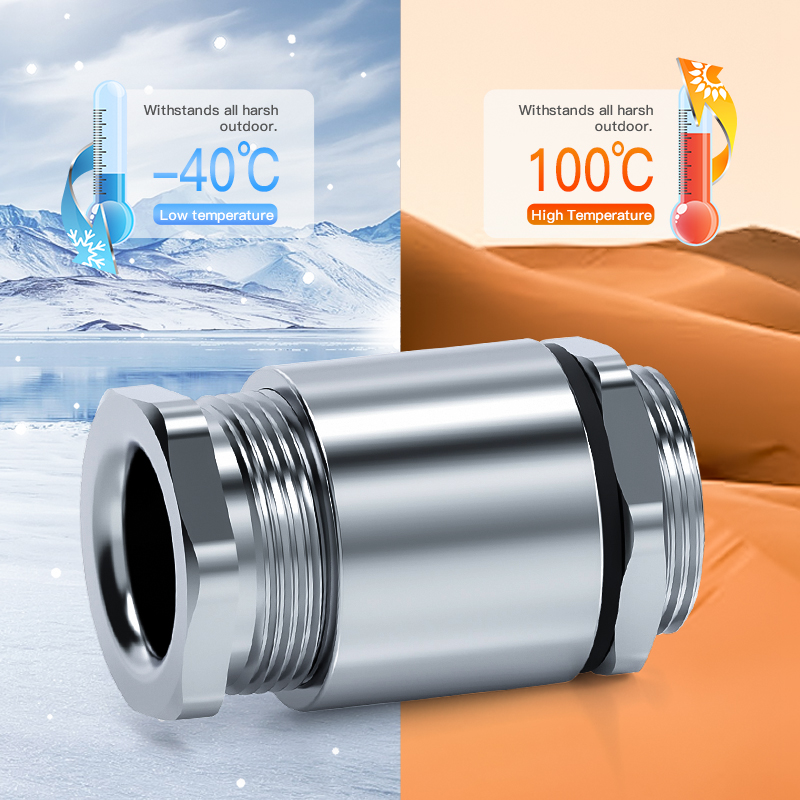

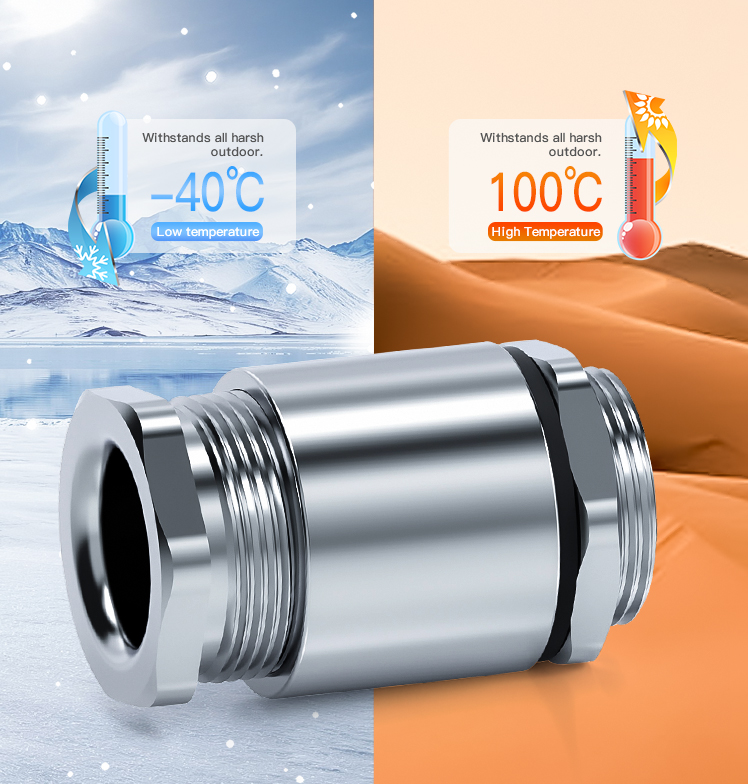

◆Wide operating temperature: static from -40℃ to 110℃, dynamic from -20℃ to 80℃.
◆Multiple thread options (e.g., M16×1.5, M20×1.5) and compatibility with cable diameters from 5mm to 57mm.
◆UL certified for safety and reliability in demanding conditions.
Applications
◇Marine and Offshore Applications - Essential for cable entry sealing on ship decks, engine rooms, offshore drilling platforms, and navigation systems.
◇Renewable Energy Systems - Provides reliable protection for electrical connections in offshore wind turbines and tidal energy equipment.
◇Industrial and Infrastructure Use - Ideal for water treatment plants, chemical processing facilities, and outdoor lighting in coastal areas with high salt spray.
◇Transportation Equipment - Suitable for cable management in railway signaling, port machinery, and other vehicles operating in harsh and corrosive conditions.
Key Benefits
◆Exceptional corrosion resistance for long-lasting performance in marine settings.
◆Robust sealing mechanism prevents ingress of water and dust, even under high pressure.
◆Flexible design accommodates various cable sizes, simplifying installation and inventory.
◆Maintains stable performance across a broad temperature range, ensuring reliability in diverse operational scenarios.

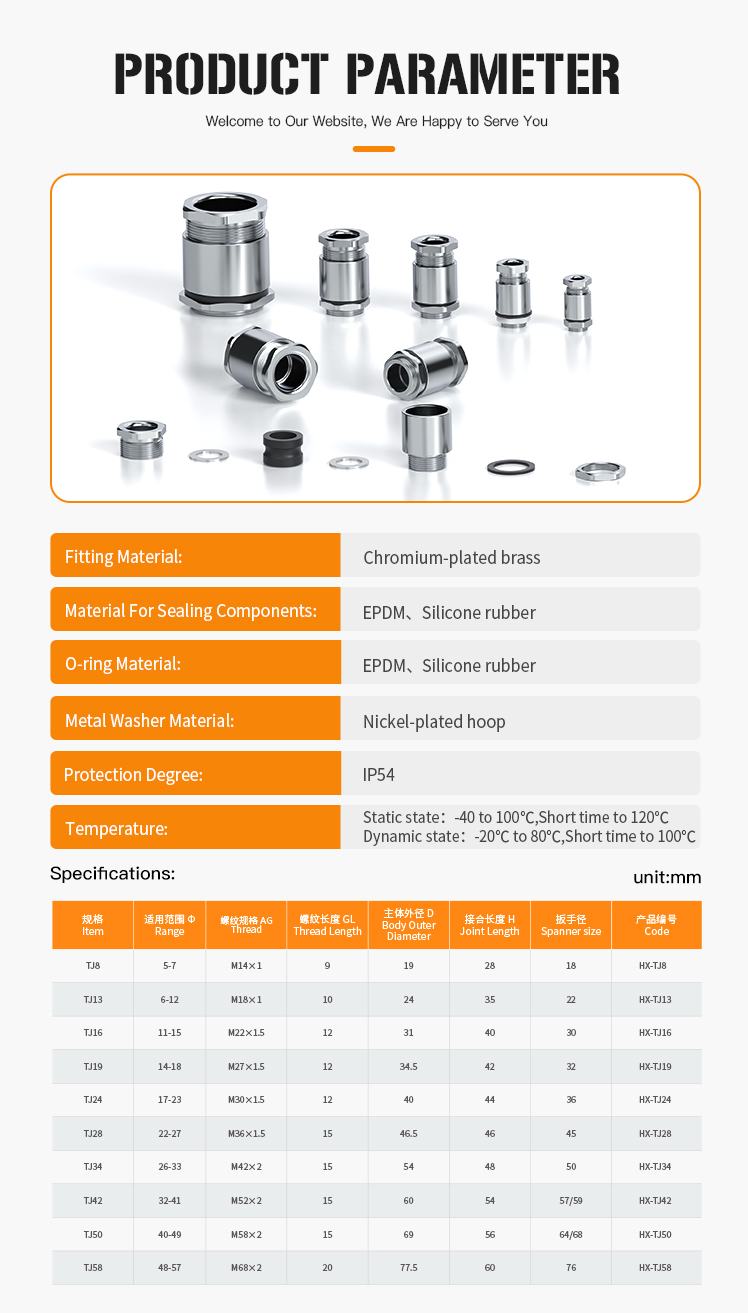

unit:mm
|
Item |
Range |
AG Thread |
GL Thread Length |
D Body Outer Diameter |
H Joint Length |
Spanner size |
Code |
|
TJ8 |
5-7 |
M14×1 |
9 |
19 |
28 |
18 |
HX-TJ8 |
|
TJ13 |
6-12 |
M18×1 |
10 |
24 |
35 |
22 |
HX-TJ13 |
|
TJ16 |
11-15 |
M22×1.5 |
12 |
31 |
40 |
30 |
HX-TJ16 |
|
TJ19 |
14-18 |
M27×1.5 |
12 |
34.5 |
42 |
32 |
HX-TJ19 |
|
TJ24 |
17-23 |
M30×1.5 |
12 |
40 |
44 |
36 |
HX-TJ24 |
|
TJ28 |
22-27 |
M36×1.5 |
15 |
46.5 |
46 |
45 |
HX-TJ28 |
|
TJ34 |
26-33 |
M42×2 |
15 |
54 |
48 |
50 |
HX-TJ34 |
|
TJ42 |
32-41 |
M52×2 |
15 |
60 |
54 |
57/59 |
HX-TJ42 |
|
TJ50 |
40-49 |
M58×2 |
15 |
69 |
56 |
64/68 |
HX-TJ50 |
|
TJ58 |
48-57 |
M68×2 |
20 |
77.5 |
60 |
76 |
HX-TJ58 |
