IP68 and UL Certified Explosion-Proof Cable Clamp Sealing Joint EX5
With UL and IP68 certifications, this Explosion-Proof Cable Clamp Sealing Joint EX5 delivers superior protection against explosions, dust, and water ingress.
Certified for Global Markets：

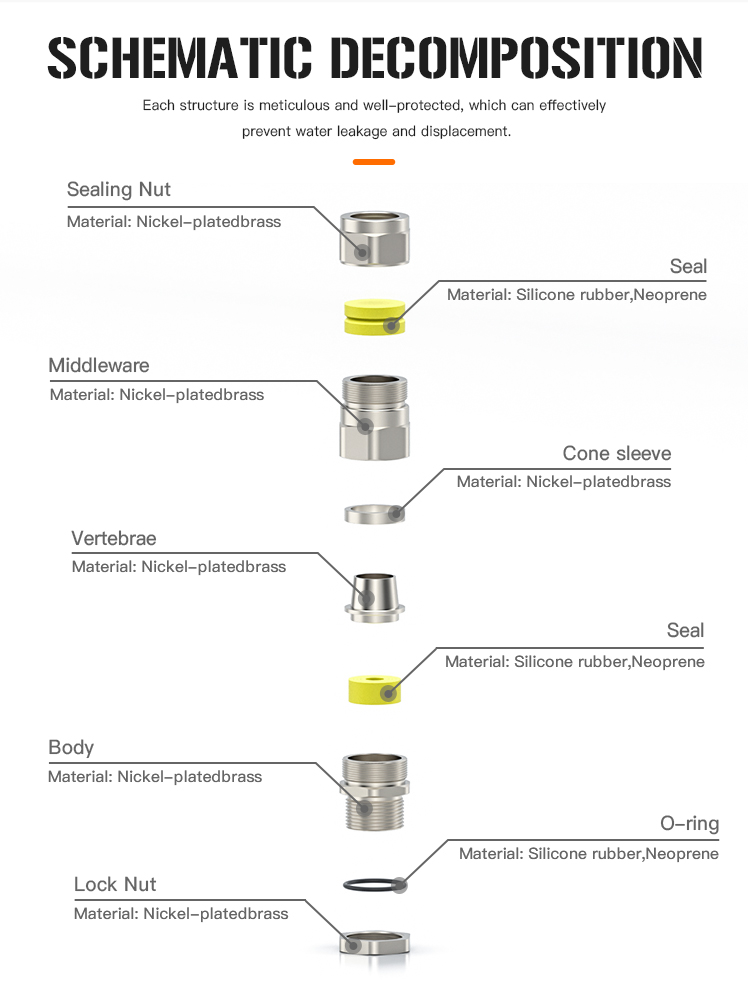

- Fitting Material Brass/SS304/SS316L
- Surface Treatment Nickel plated,Passivation
- Material For Sealing Components Silicone rubber,Neoprene
- Explosion-proof Exd IIC Gb
- Flame Retardant Degree UL94-V0

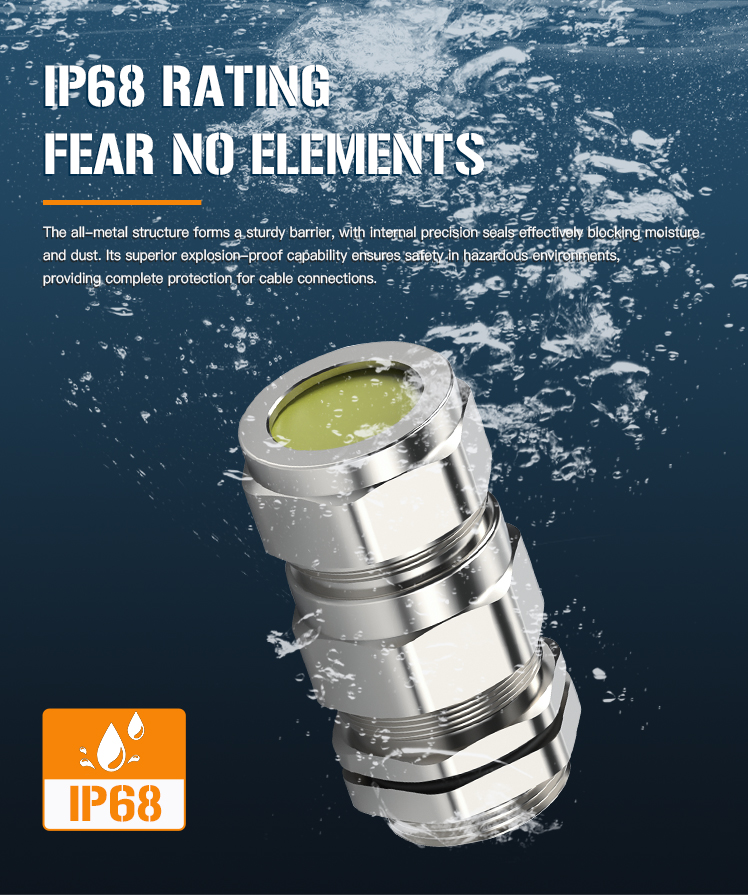

- Protection Degree IP68-10 bar

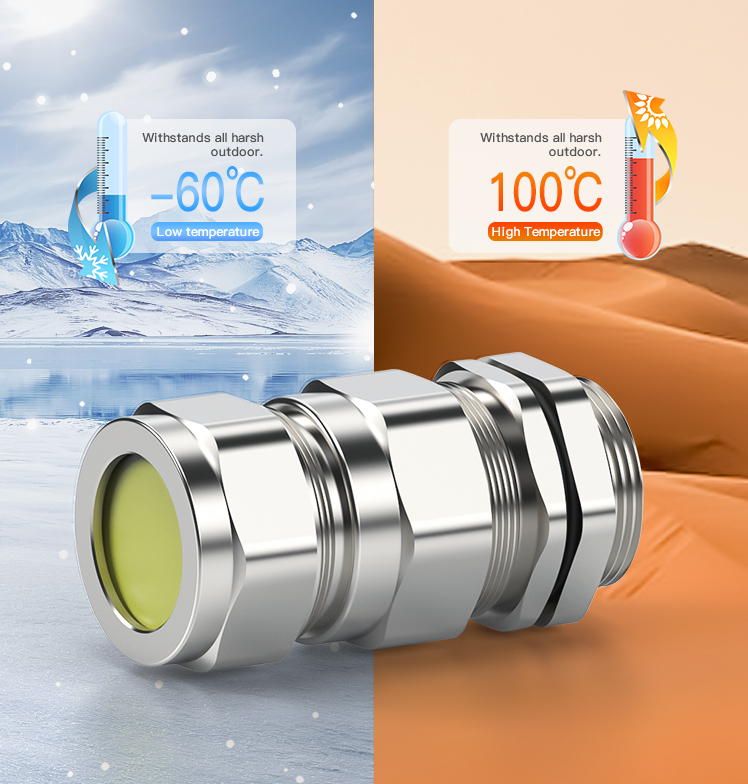

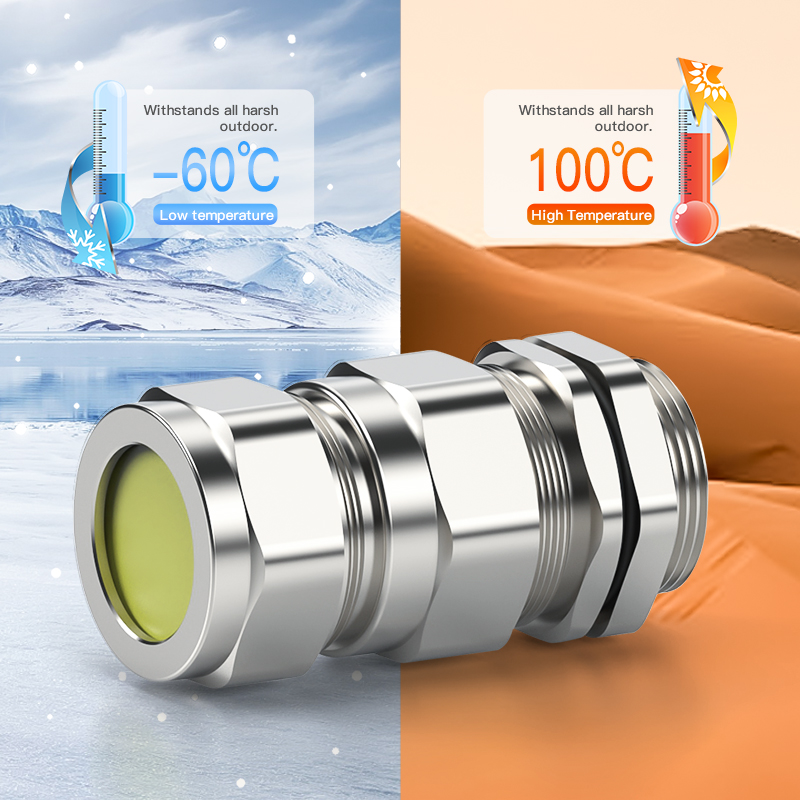

- Temperature Static state:-60 to 100℃,Short time to 120℃ Dynamic state:-20℃ to 80℃,Short time to 100℃
- Applicable cable type Armored cable
Product Highlights
◆Blocks Flammable Materials from Entering Enclosures
◆Vibration and Pull-Resistant Clamping Mechanism
◆Suited for Continuous Use in Tough Environments
Applications
◇Chemical & Gas Processing - Secures cable entries in control panels, junction boxes, and lighting fixtures within refineries, chemical plants, and gas handling facilities where volatile atmospheres are present.
◇Heavy Industry & Manufacturing - Provides reliable sealing for machinery, motor connections, and automation systems in metal processing, automotive plants, and other heavy-duty industrial settings.
◇Critical Infrastructure & Utilities - Ideal for water treatment plants, power generation facilities, and outdoor telecommunications cabinets that require robust protection against moisture, dust, and corrosion.
◇Harsh & Exterior Environments - Ensures long-term performance for equipment installed in marine applications, offshore platforms, tunnels, and other locations exposed to weather, washdowns, or corrosive elements.
Key Benefits
◆Improves Safety by Containing Potential Ignition
◆Extends Service Life with Durable Construction
◆Allows Effortless, Tool-Free Assembly and Adjustments

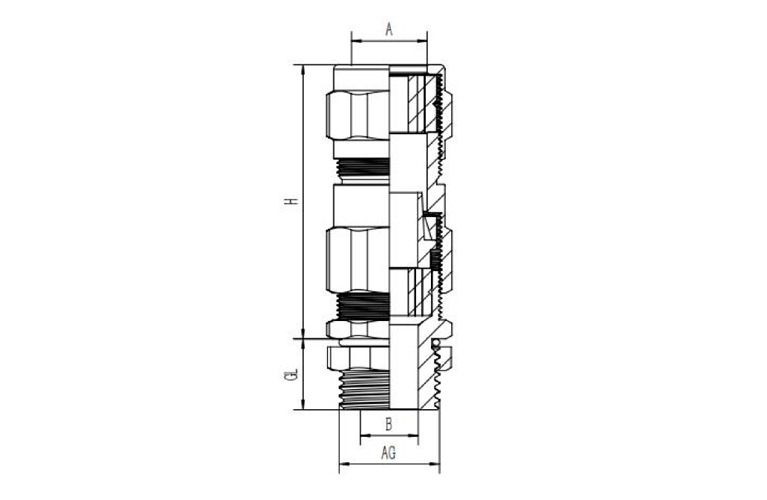

unit:mm
|

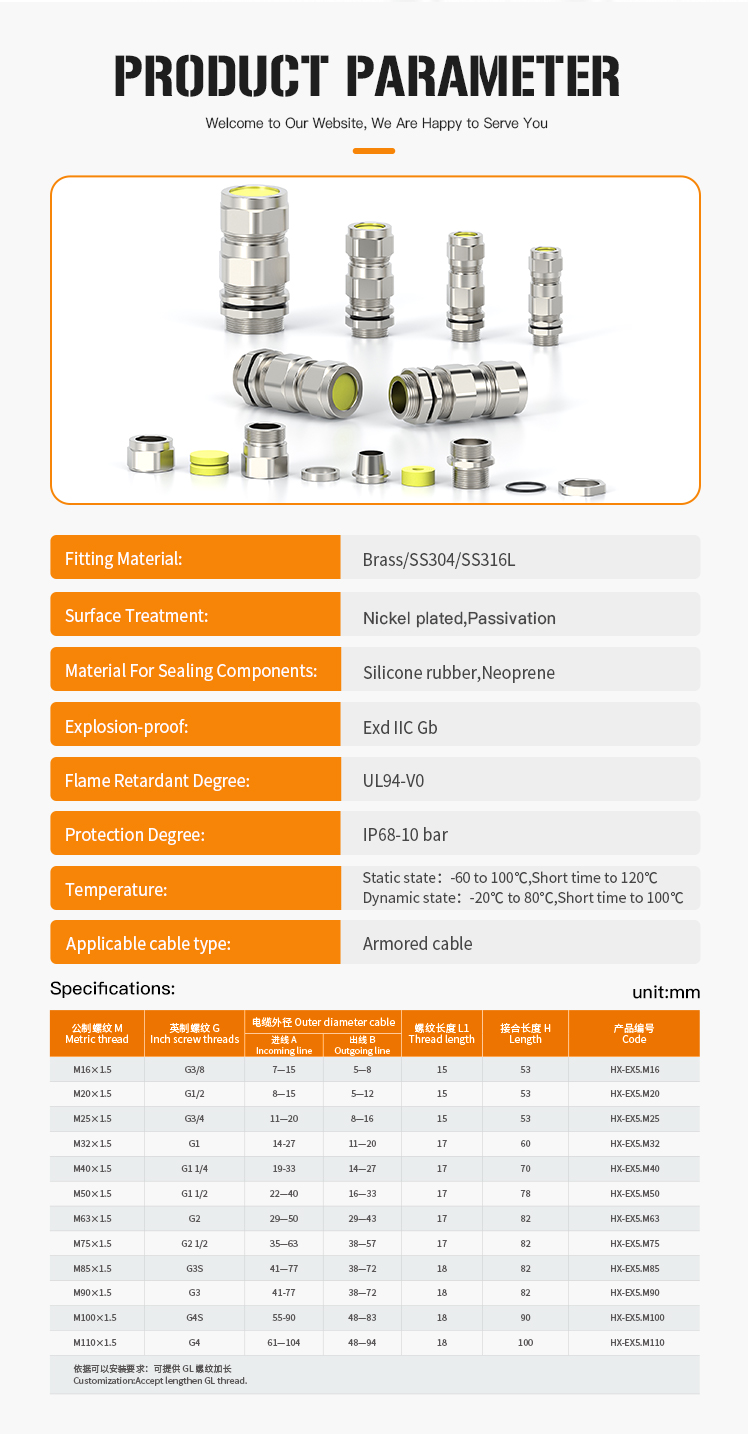

Code |
AG External diameter of thread |
GL Length of thread |
H Join Length |
B Outlet |
A Coil in |
|
HX-EX5.NPT1 |
33.2 |
17 |
(88) |
11-22 |
14-27 |
|
M Metric thread |
G Inch screw threads |
Outer diameter cable |
L1 Thread length |
H Length |
Code |
|
|
A Incoming line |
B outgolng line |
|||||
|
M16×1.5 |
G3/8 |
7-15 |
5-8 |
15 |
53 |
HX-EX5.M16 |
|
M20×1.5 |
G1/2 |
8-15 |
5-12 |
15 |
53 |
HX-EX5.M20 |
|
M25×1.5 |
G3/4 |
11-20 |
8-16 |
15 |
53 |
HX-EX5.M25 |
|
M32×1.5 |
G1 |
14-27 |
11-20 |
17 |
60 |
HX-EX5.M32 |
|
M40×1.5 |
G1 1/4 |
19-33 |
14-27 |
17 |
70 |
HX-EX5.M40 |
|
M50×1.5 |
G1 1/2 |
22-40 |
16-33 |
17 |
78 |
HX-EX5.M50 |
|
M63×1.5 |
G2 |
29-50 |
29-43 |
17 |
82 |
HX-EX5.M63 |
|
M75×1.5 |
G2 1/2 |
35-63 |
38-57 |
17 |
82 |
HX-EX5.M75 |
|
M85×1.5 |
G3S |
41-77 |
38-72 |
18 |
82 |
HX-EX5.M85 |
|
M90×1.5 |
G3 |
41-77 |
38-72 |
18 |
82 |
HX-EX5.M90 |
|
M100×1.5 |
G4S |
55-90 |
48-83 |
18 |
90 |
HX-EX5.M100 |
|
M110×1.5 |
G4 |
61-104 |
48-94 |
18 |
100 |
HX-EX5.M110 |
|
Customization:Accep lengthen GL thread. |
||||||
