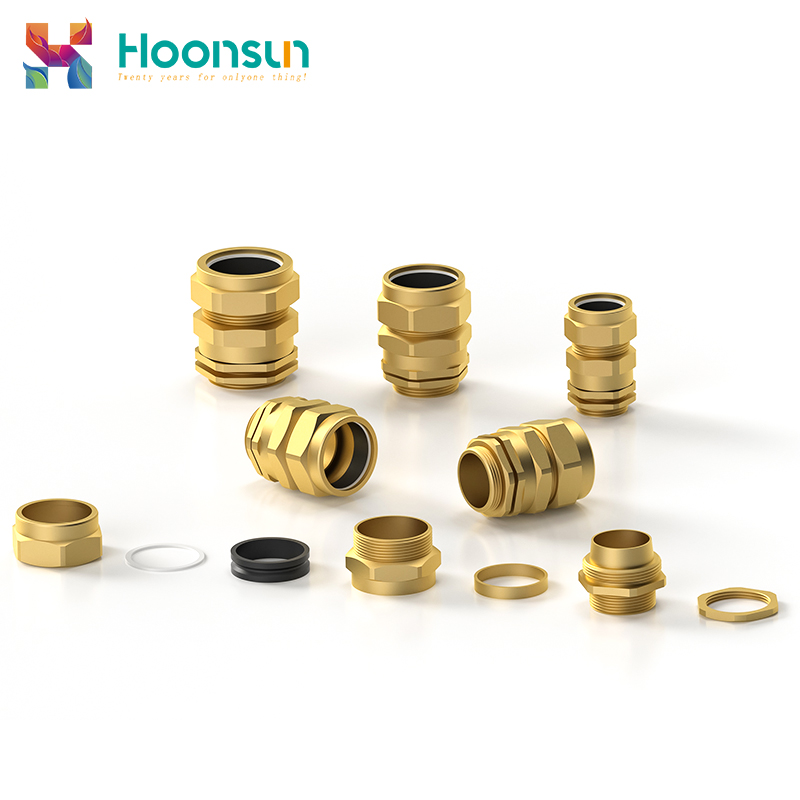

IP68 and UL Certified Explosion-Proof Cable Clamp Sealing Joint CW
Engineered for hazardous locations, this Explosion-Proof Cable Clamp Sealing Joint CW offers reliable sealing and secure cable holding under extreme conditions.
Certified for Global Markets：

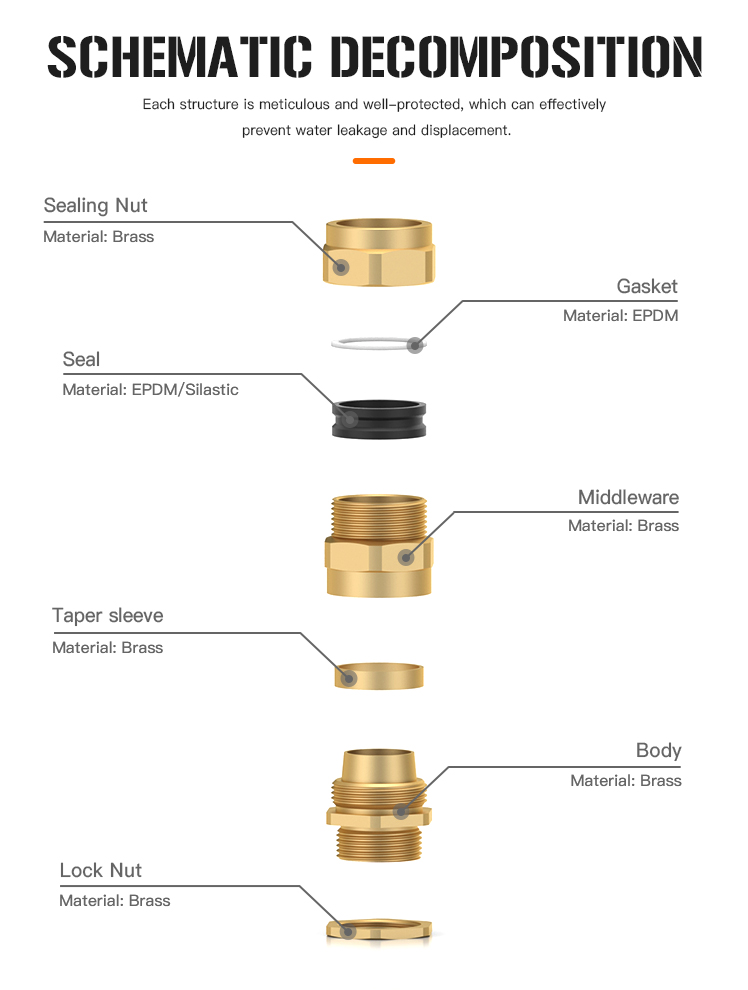

- Fitting Material Brass
- Material For Sealing Components EPDM/Silastic
- Protection Degree IP54

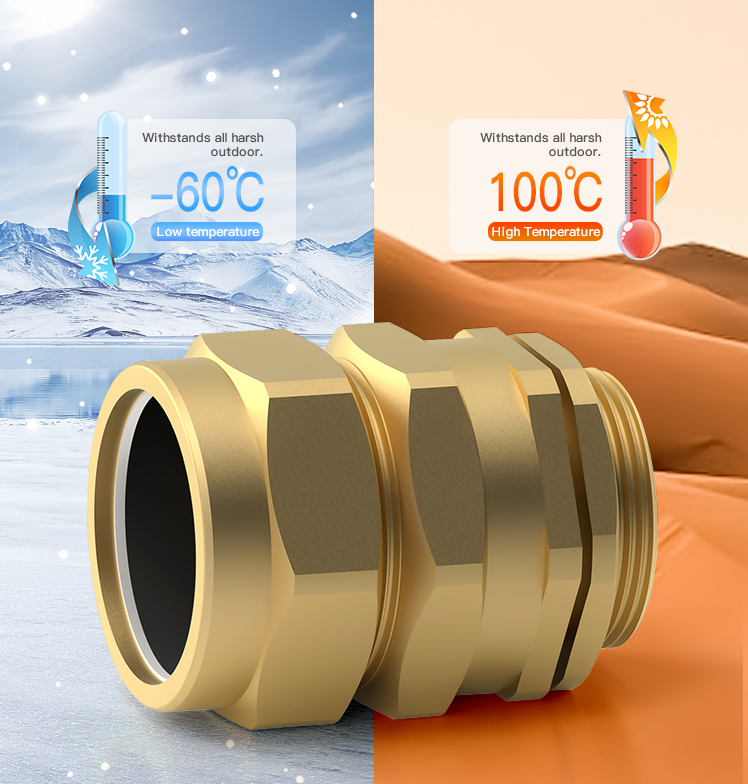

- Temperature Static state:-60 to 100℃,Short time to 120℃ Dynamic state:-20℃ to 80℃,Short time to 100℃
Product Highlights
◆Resists Ignition Spread with Airtight Sealing
◆Maintains Grip Under Mechanical Stress and Movement
◆Built to Endure Moisture, Dust, and Corrosive Elements
Applications
◇Petrochemical and Refining Facilities - Ideal for cable entry points on equipment in classified hazardous zones where explosive atmospheres may be present.
◇Mining and Tunneling Machinery - Protects electrical connections on heavy machinery subjected to intense vibration, dust, and moisture.
◇Outdoor Industrial Infrastructure - Suitable for control panels, lighting systems, and sensors exposed to harsh weather, salt spray, or pervasive industrial dust.
◇Streamlined Installation - Designed for tool-free assembly, allowing for rapid and straightforward installation that reduces deployment time and requires no specialist skills.
Key Benefits
◆Mitigates Explosion Risk
Directly enhances site safety by containing potential ignition sources within enclosures, protecting personnel and critical assets.
◆Ensures System Integrity
Maintains consistent cable connectivity and seal integrity over time, even in demanding applications, preventing costly downtime.
◆Reduces Lifetime Costs
The combination of durable construction and minimal maintenance requirements delivers long-term operational savings and reliability.
◆Accelerates Project Timelines
The tool-free, quick-connect design significantly speeds up installation and any subsequent modifications, lowering labor costs.

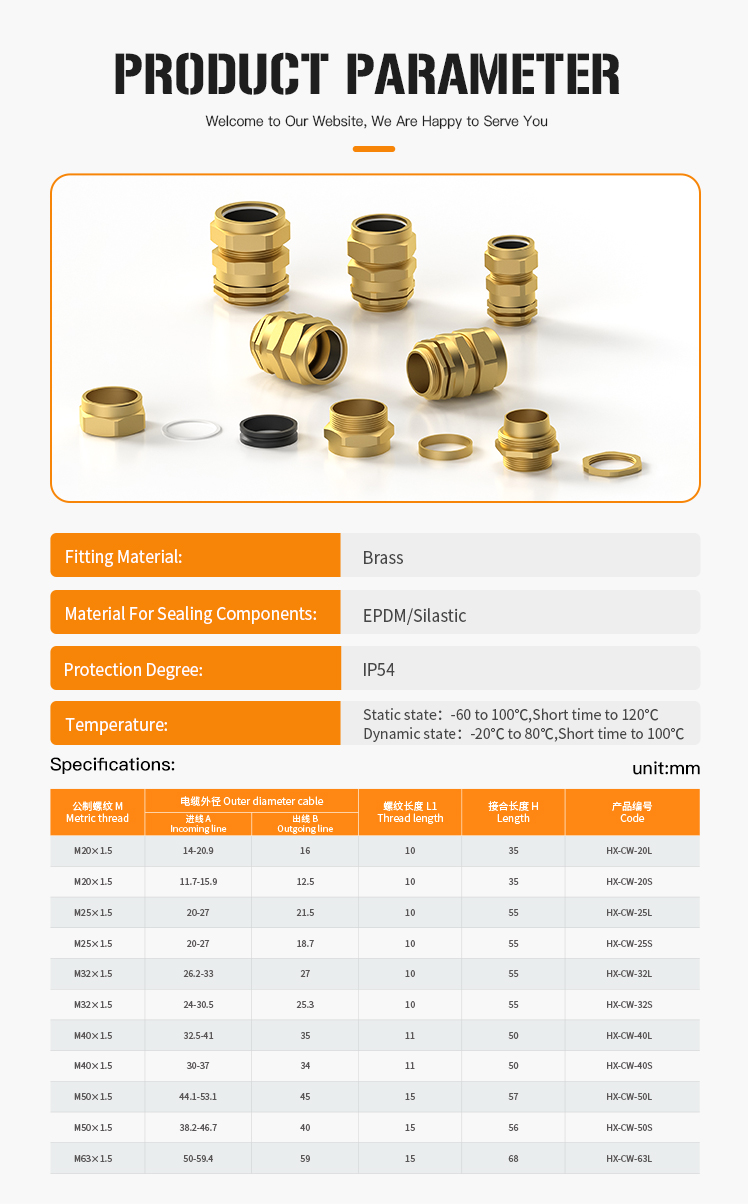

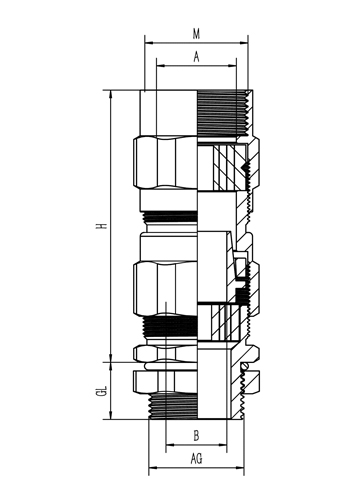

unit:mm
|
M Metric thread |
Outer diameter cable |
L1 Thread length |
H Length |
Code |
|
|
A Incoming line |
B outgolng line |
||||
|
M20×1.5 |
14-20.9 |
16 |
10 |
35 |
HX-CW-20L |
|
M20×1.5 |
11.7-15.9 |
12.5 |
10 |
35 |
HX-CW-20S |
|
M25×1.5 |
20-27 |
21.5 |
10 |
55 |
HX-CW-25L |
|
M25×1.5 |
20-27 |
18.7 |
10 |
55 |
HX-CW-25S |
|
M32×1.5 |
26.2-33 |
27 |
10 |
55 |
HX-CW-32L |
|
M32×1.5 |
24-30.5 |
25.3 |
10 |
55 |
HX-CW-32S |
|
M40×1.5 |
32.5-41 |
35 |
11 |
50 |
HX-CW-40L |
|
M40×1.5 |
30-37 |
34 |
11 |
50 |
HX-CW-40S |
|
M50×1.5 |
44.1-53.1 |
45 |
15 |
57 |
HX-CW-50L |
|
M50×1.5 |
38.2-46.7 |
40 |
15 |
56 |
HX-CW-50S |
|
M63×1.5 |
50-59.4 |
59 |
15 |
68 |
HX-CW-63L |
