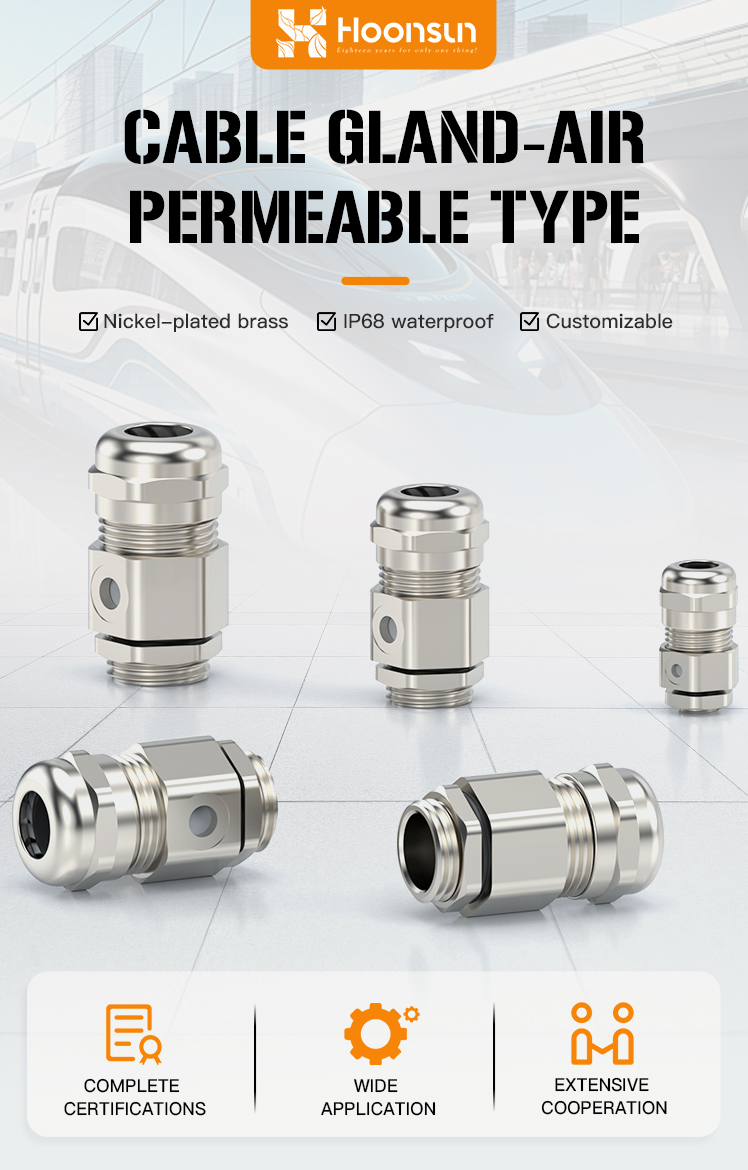

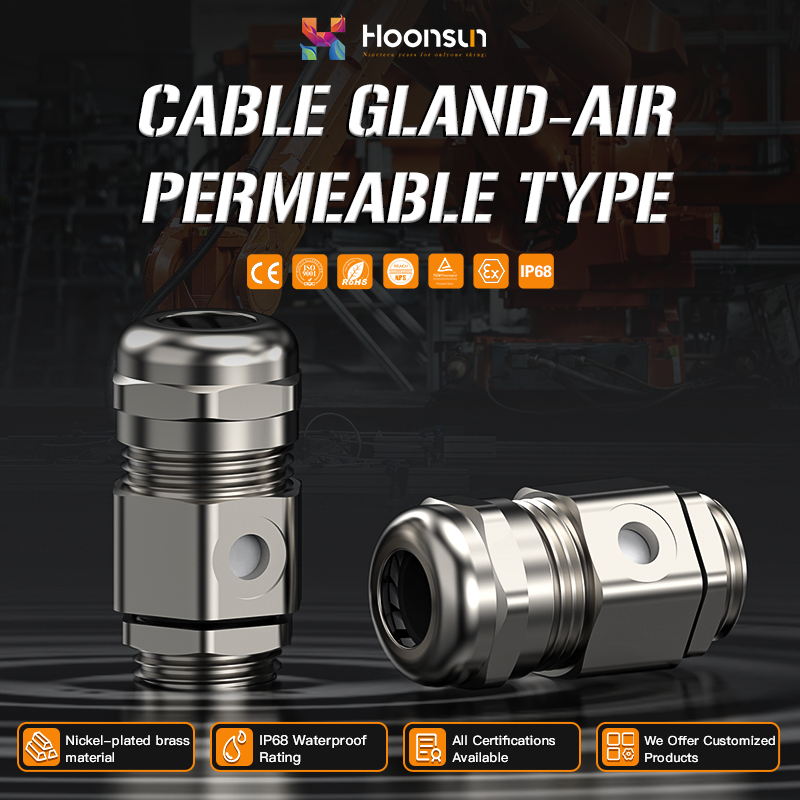

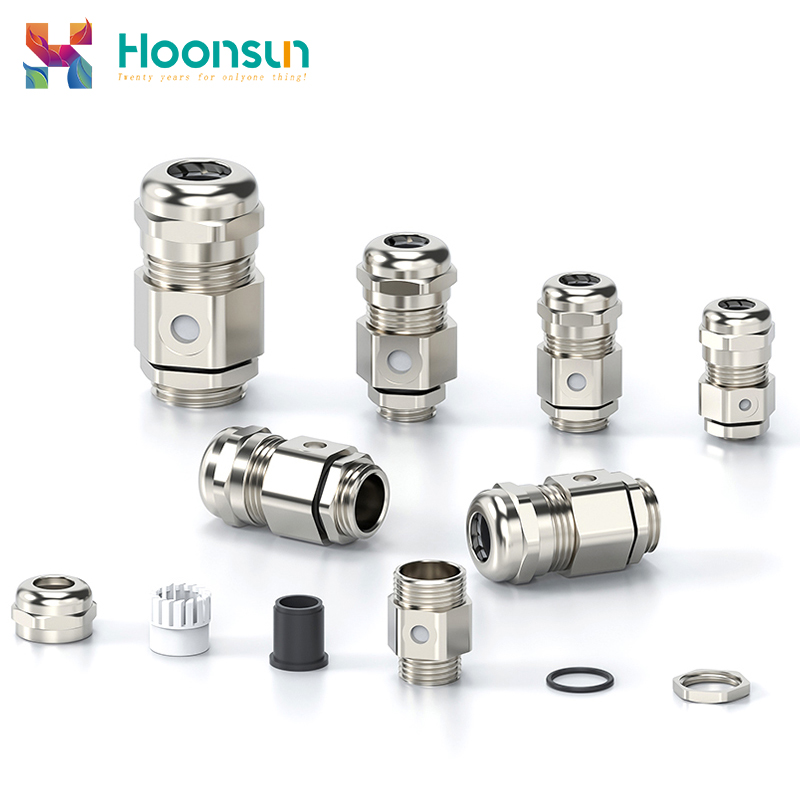

IP68 and REACH Certified breathable Cable Gland Type
IP68 and REACH Certified breathable Cable Gland Type can ensure pressure balance and effectively prevent condensation.
Certified for Global Markets：

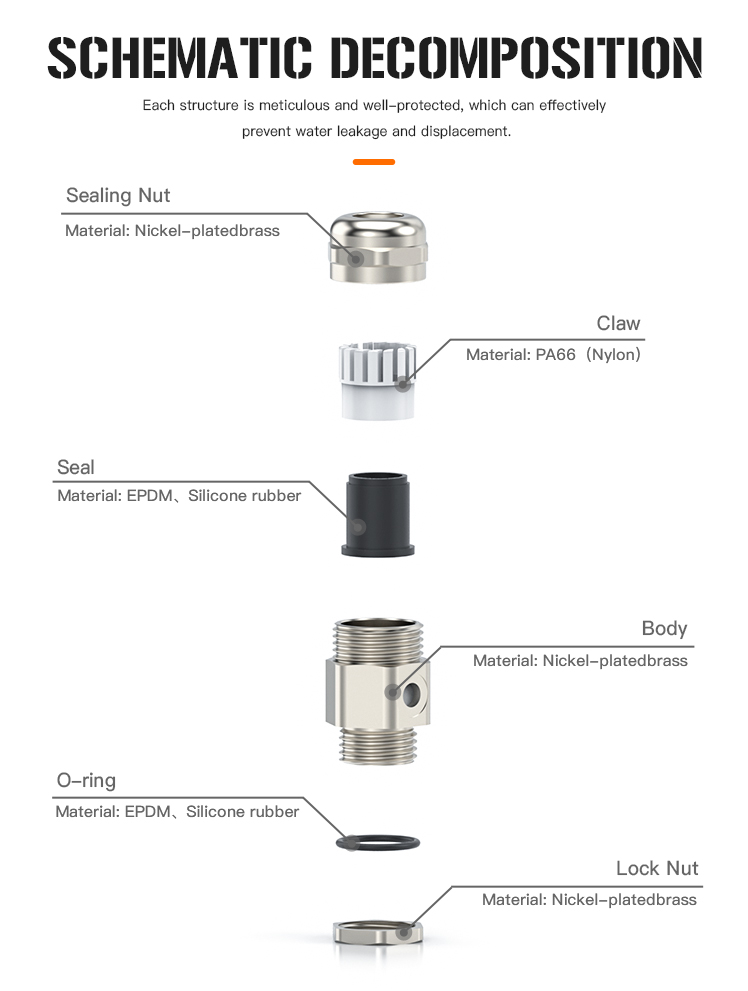

- Fitting Material Nickel-platedbrass
- Material For Clamping Jaws PA66(Nylon),UL94-V2
- Material For Sealing Components EPDM、Silicone rubber

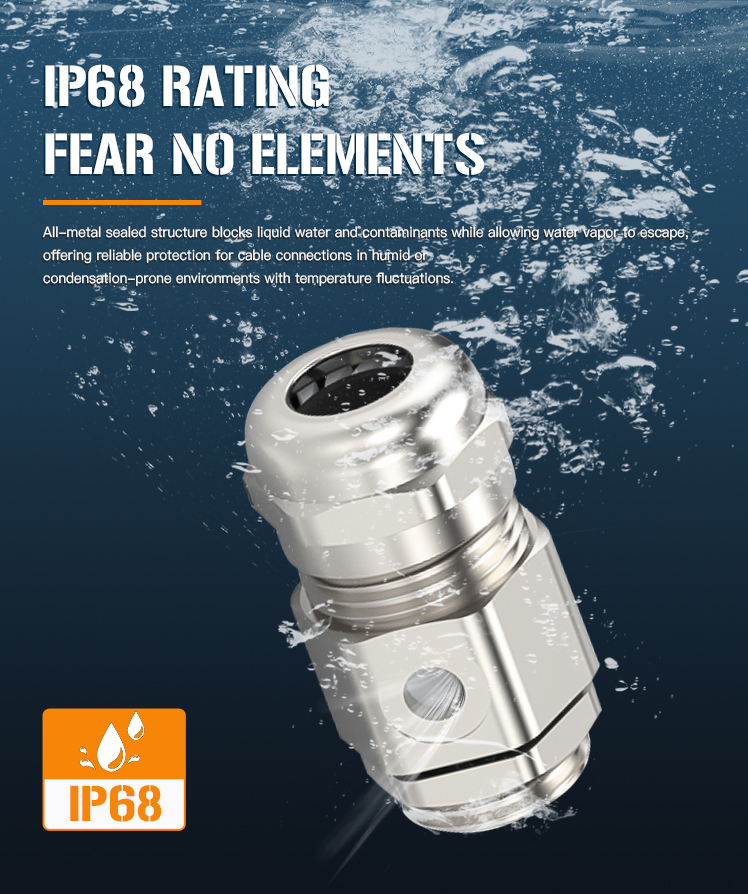

- Protection degree In the specified cable outer diameter and the appropriate o-ring Protection degree can reach IP68,the waterproof depth reaches 3m-5m

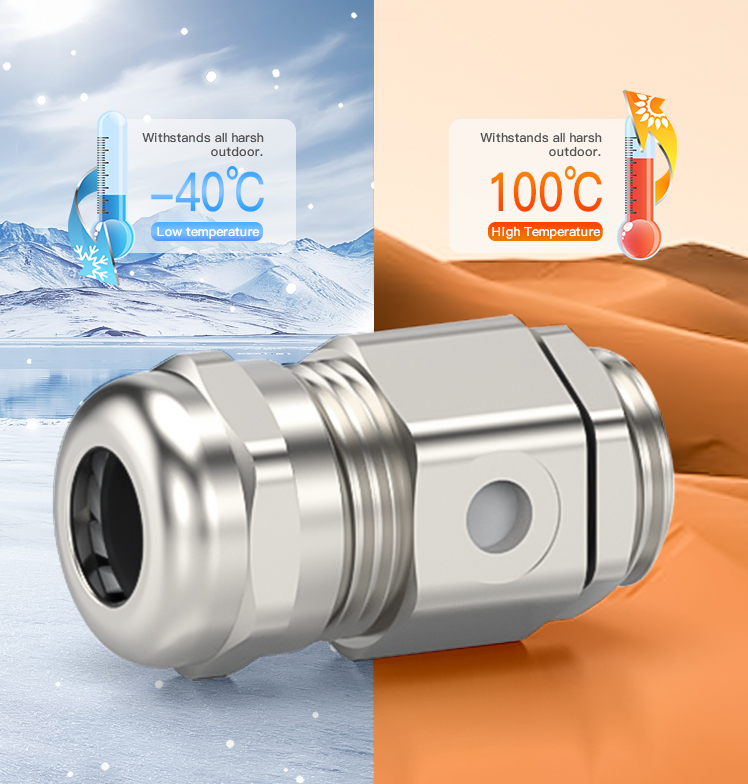

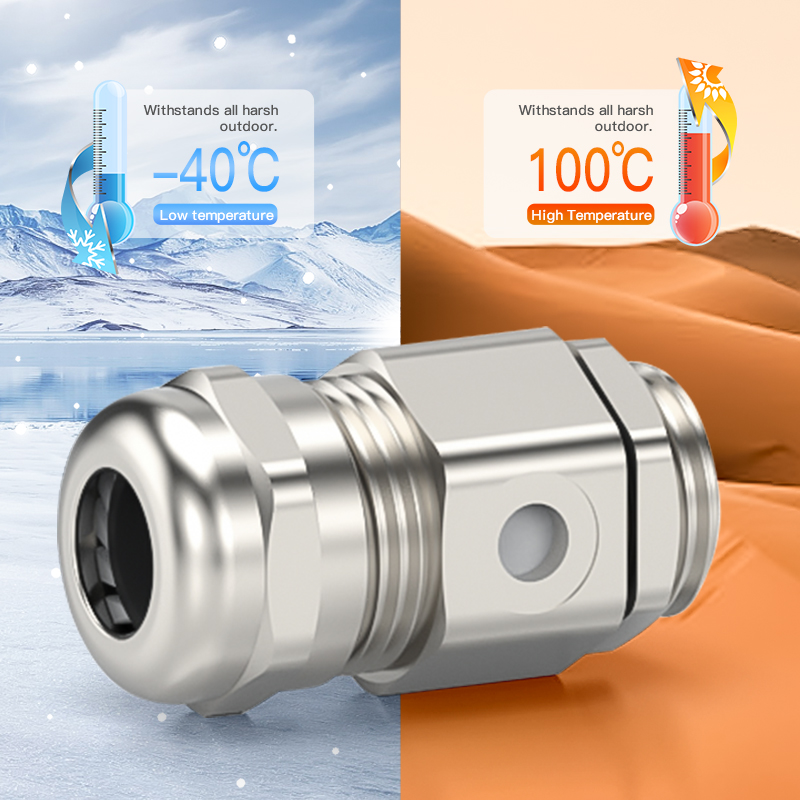

- Temperature 40℃~100℃,can reach 120℃ in a short time
- Heat dissipation permeability 2400ml/s/m²@0.02bar
- Water inlet pressure >5bar
Product Highlights
◆Crafted from premium nickel-plated brass or stainless steel for superior mechanical strength and corrosion resistance.
◆Integrated microporous membrane enables smooth airflow and vapor release, effectively blocking liquids, oils, and dust.
◆Maintains consistent pressure equilibrium to eliminate condensation risks in sealed enclosures.
◆Delivers IP67–IP68 rated waterproof and dustproof performance under varying temperatures and pressures.
◆Precision clamping mechanism ensures secure cable grip and vibration-resistant strain relief.
◆Compliant with CE, UL, and RoHS standards; available in Metric, PG, and NPT thread types.
Applications
◇Ideal for LED lighting fixtures, outdoor control cabinets, and communication equipment.
◇Suited for renewable energy systems, sensor housings, and industrial automation enclosures.
◇Enhances protection and service life of electronic systems in challenging environmental conditions.
Key Benefits
◆Built-in breathable waterproof membrane
◆IP67–IP68 waterproof and dustproof rating
◆Balances internal and external air pressure
◆Prevents condensation and moisture damage
◆Nickel-plated brass or stainless-steel body
◆CE / UL / RoHS certified

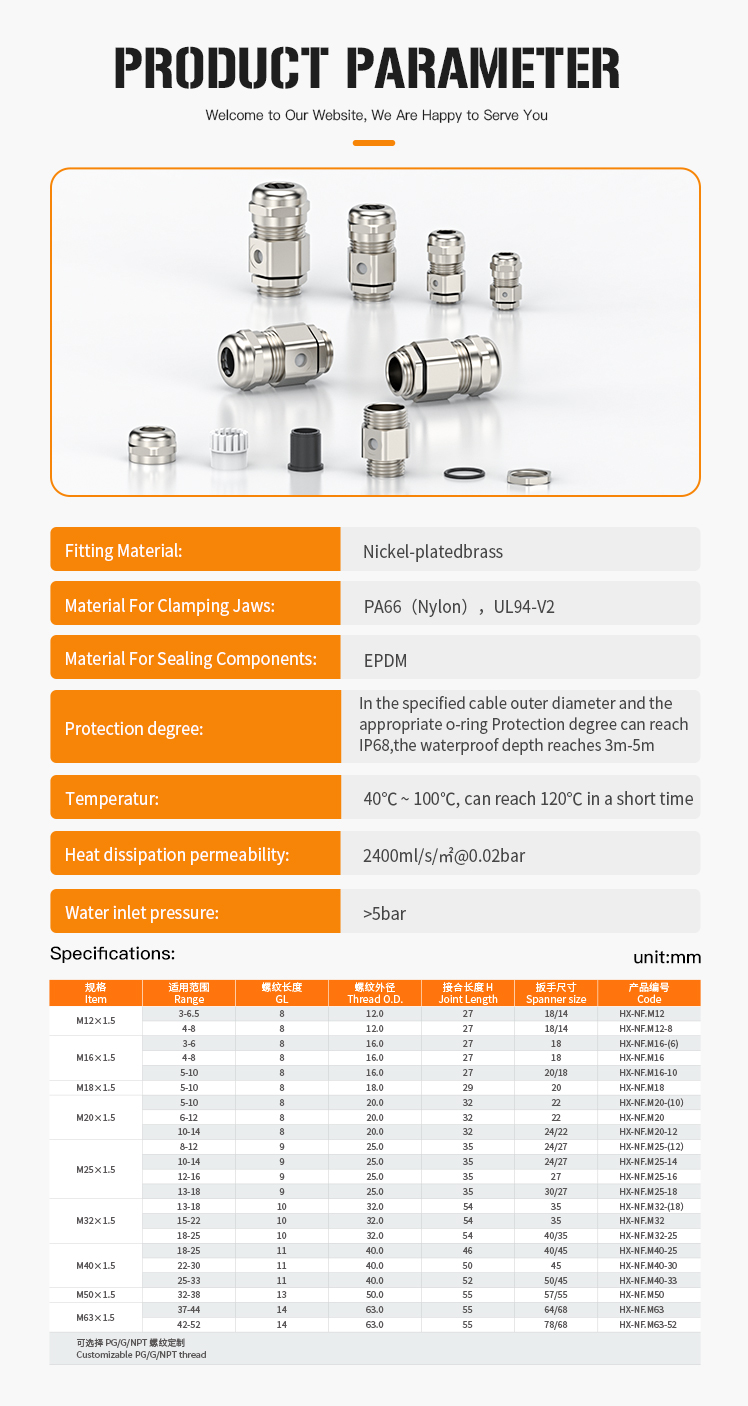

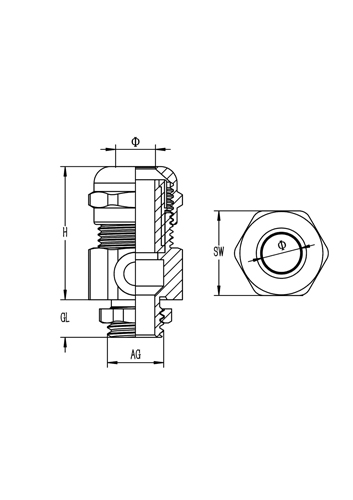

unit:mm
|
Item |
Range |
GL |
Thread O.D. |
H Joint Length |
Spanner size |
Code |
|
M12×1.5 |
3-6.5 |
8 |
12.0 |
27 |
18/14 |
HX-NF.M12 |
|
4-8 |
8 |
12.0 |
27 |
18/14 |
HX-NF.M12-8 |
|
|
M16×1.5 |
3-6 |
8 |
16.0 |
27 |
18 |
HX-NF.M16-(6) |
|
4-8 |
8 |
16.0 |
27 |
18 |
HX-NF.M16 |
|
|
5-10 |
8 |
16.0 |
27 |
20/18 |
HX-NF.M16-10 |
|
|
M18×1.5 |
5-10 |
8 |
18.0 |
29 |
20 |
HX-NF.M18 |
|
M20×1.5 |
5-10 |
8 |
20.0 |
32 |
22 |
HX-NF.M20-(10) |
|
6-12 |
8 |
20.0 |
32 |
22 |
HX-NF.M20 |
|
|
10-14 |
8 |
20.0 |
32 |
24/22 |
HX-NF.M20-12 |
|
|
M25×1.5 |
8-12 |
9 |
25.0 |
35 |
24/27 |
HX-NF.M25-(12) |
|
10-14 |
9 |
25.0 |
35 |
24/27 |
HX-NF.M25-14 |
|
|
12-16 |
9 |
25.0 |
35 |
27 |
HX-NF.M25-16 |
|
|
13-18 |
9 |
25.0 |
35 |
30/27 |
HX-NF.M25-18 |
|
|
M32×1.5 |
13-18 |
10 |
32.0 |
54 |
35 |
HX-NF.M32-(18) |
|
15-22 |
10 |
32.0 |
54 |
35 |
HX-NF.M32 |
|
|
18-25 |
10 |
32.0 |
54 |
40/35 |
HX-NF.M32-25 |
|
|
M40×1.5 |
18-25 |
11 |
40.0 |
46 |
40/45 |
HX-NF.M40-25 |
|
22-30 |
11 |
40.0 |
50 |
45 |
HX-NF.M40-30 |
|
|
25-33 |
11 |
40.0 |
52 |
50/45 |
HX-NF.M40-33 |
|
|
M50×1.5 |
32-38 |
13 |
50.0 |
55 |
57/55 |
HX-NF.M50 |
|
M63×1.5 |
37-44 |
14 |
63.0 |
55 |
64/68 |
HX-NF.M63 |
|
42-52 |
14 |
63.0 |
55 |
78/68 |
HX-NF.M63-52 |
|
|
Customizable PG/G/NPT thread |
||||||
