Flange Clamp-on Seal Joints with UL and IP68
Ensure leak-proof connections in harsh environments with Flange Clamp-on Seal Joints, featuring UL certification and IP68 protection for superior durability.
Certified for Global Markets：
- Fitting Material Aluminum Alloy
- Surface Treatment Hard Anodizing
- Temperature -40℃~+150℃
- Flammability Rating VO
- Ingress Protection IP68
- Tensile Strength value ≥200N(Static)
- When to use it High-voltage DC Charging Pile; It needs to be disassembled and assembled several times; No custom wrenches are required; Customized colors are available
Product Highlights
◆Professional-grade mechanical fitting for robust, leak-proof connections
◆Materials: Nickel-plated brass or stainless steel for corrosion resistance
◆Flanged compression design for superior clamping force and vibration resistance
◆Integrated sealing ring provides IP68 waterproof and dustproof protection
◆Available in PG, NPT, and Metric threads
◆Complies with CE, UL, and RoHS standards
Applications
◇Automation systems
◇Marine installations
◇Heavy machinery
◇Energy distribution equipment
Key Benefits
◆Ensure Maximum System Uptime
Delivers excellent mechanical stability and leak-proof performance in harsh conditions, including high vibration and pressure, minimizing connection failures and maintenance needs.
◆Provide Superior Environmental Protection
The IP68-rated seal effectively blocks moisture, dust, oil, and other contaminants, safeguarding sensitive equipment internals and extending service life.
◆Enhance Durability & Safety
Constructed from high-quality materials for outstanding corrosion resistance, ensuring long-term reliability and secure grounding continuity in demanding applications.
◆Simplify Installation & Save Cost
The flanged design allows for quick and easy installation without specialized tools, reducing labor time and total cost of ownership.
◆Guarantee Compliance & Peace of Mind
Meets CE, UL, and RoHS standards, ensuring product safety, quality, and environmental compliance for global market acceptance.

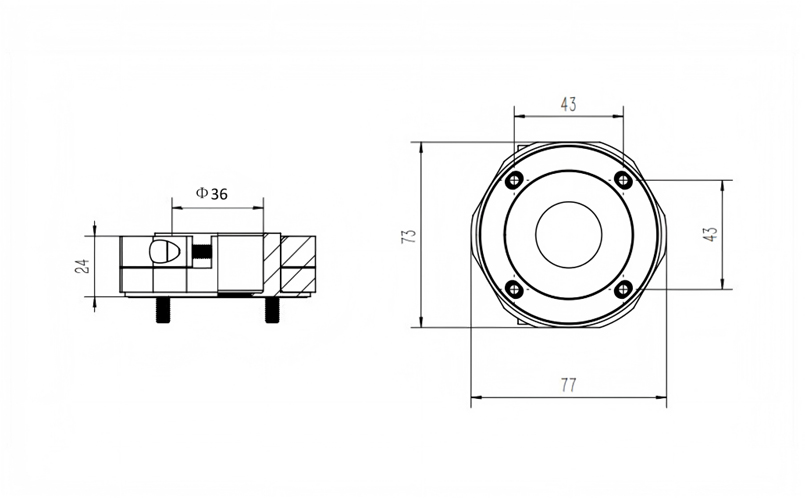

unit:mm
|
Code |
Scope Range |
Installation hole size a / b |
H Joint height |
Product size Ф |
|
|
HX-FL.S-Ф49.5(28-36)-H |
28-36 |
43 |
43 |
24 |
Ф77 |
|
Item |
Outer diameter of the cable(mm) |
Mounting Hole a/b(mm) |
Opposite side SW / Diagonal ₵ A（mm） |
H |
Screw specification（M*L） |
Number of bolts（L=30/16) |
Code |
|
φ49.5(34-42)-H |
34-42 |
21.5/21.5 |
73/₵77 |
24 |
M5*30/M5*16 |
2/4 |
HX-FL.φ49.5(34-42)-H |
|
φ49.5(34-42)-H |
34-42 |
21.5/21.5 |
73/₵77 |
24 |
M5*30/M5*16 |
2/4 |
HX-FL.φ49.5(34-42)-H(black) |
|
φ49.5(28-36)-H |
28-36 |
21.5/21.5 |
73/₵77 |
24 |
M5*30/M5*16 |
2/4 |
HX-FL.φ49.5(28-36)-H |
|
φ49.5(28-36)-H |
28-36 |
21.5/21.5 |
73/₵77 |
24 |
M5*30/M5*16 |
2/4 |
HX-FL.φ49.5(28-36)-H(black) |
|
φ49.5(23-31)-H |
23-31 |
21.5/21.5 |
73/₵77 |
24 |
M5*30/M5*16 |
2/4 |
HX-FL.φ49.5(23-31)-H |
|
φ49.5(23-31)-H |
23-31 |
21.5/21.5 |
73/₵77 |
24 |
M5*30/M5*16 |
2/4 |
HX-FL.φ49.5(23-31)-H(black) |
|
Thread standard: GB/T192-2003 GB/T196-2003 |
|||||||
