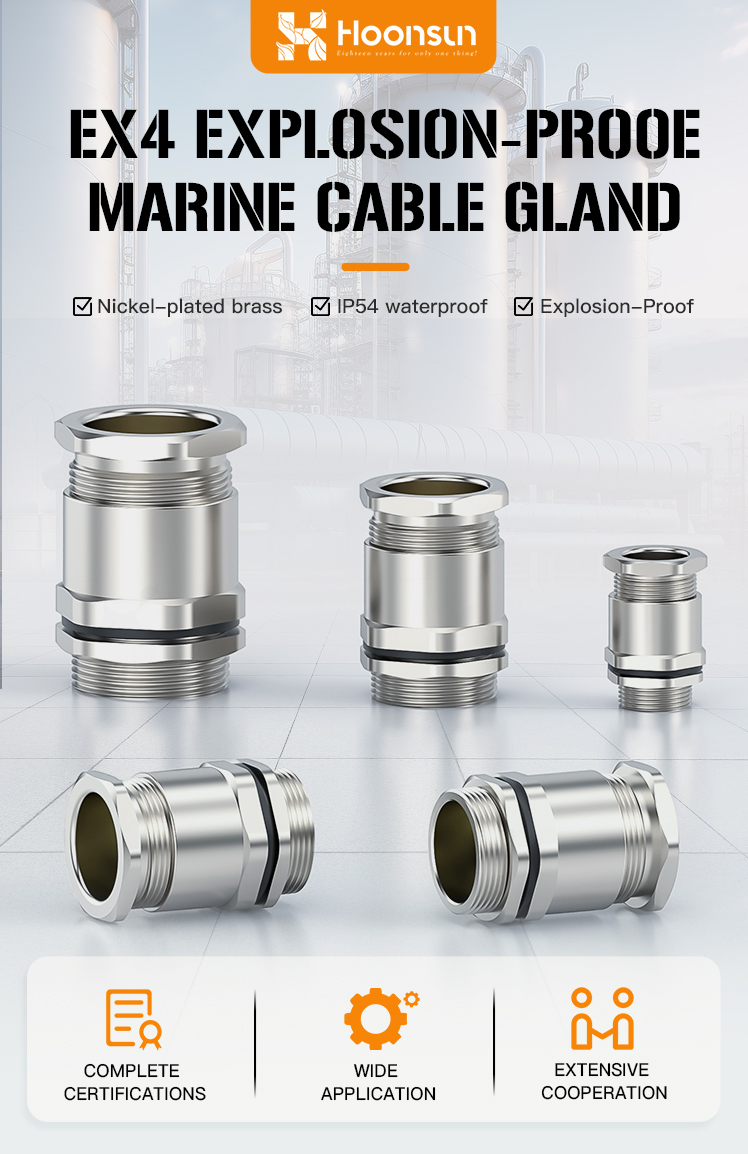

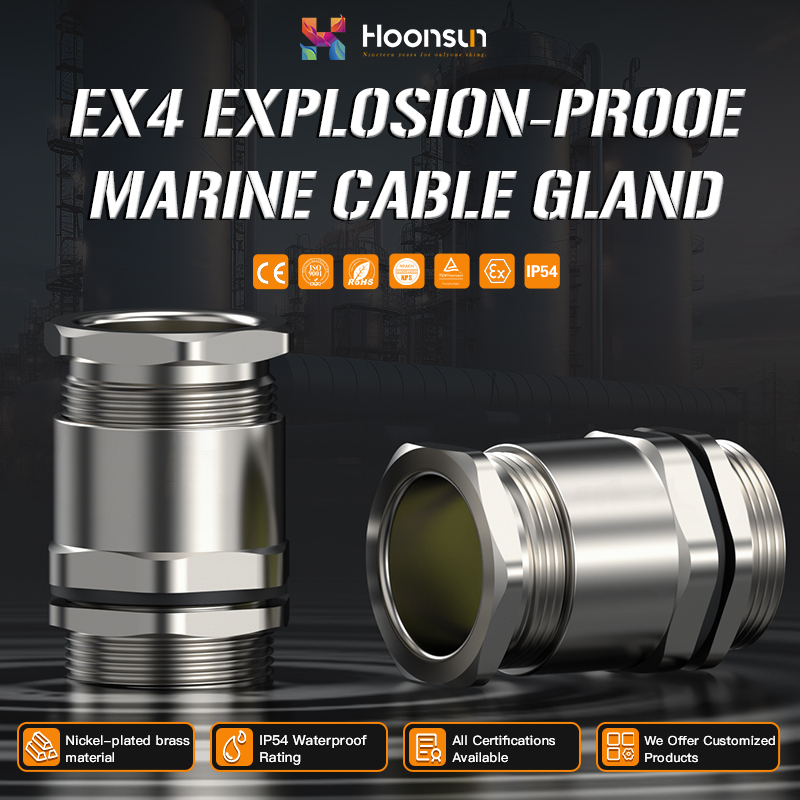

EX4 Explosion-Proof Marine Cable Gland Rated IP68 and UL Listed
The EX4 Explosion-Proof Marine Cable Gland is a UL Listed, IP68 certified component designed to ensure safety and reliability by blocking flammable gases and resisting harsh conditions.
Certified for Global Markets：

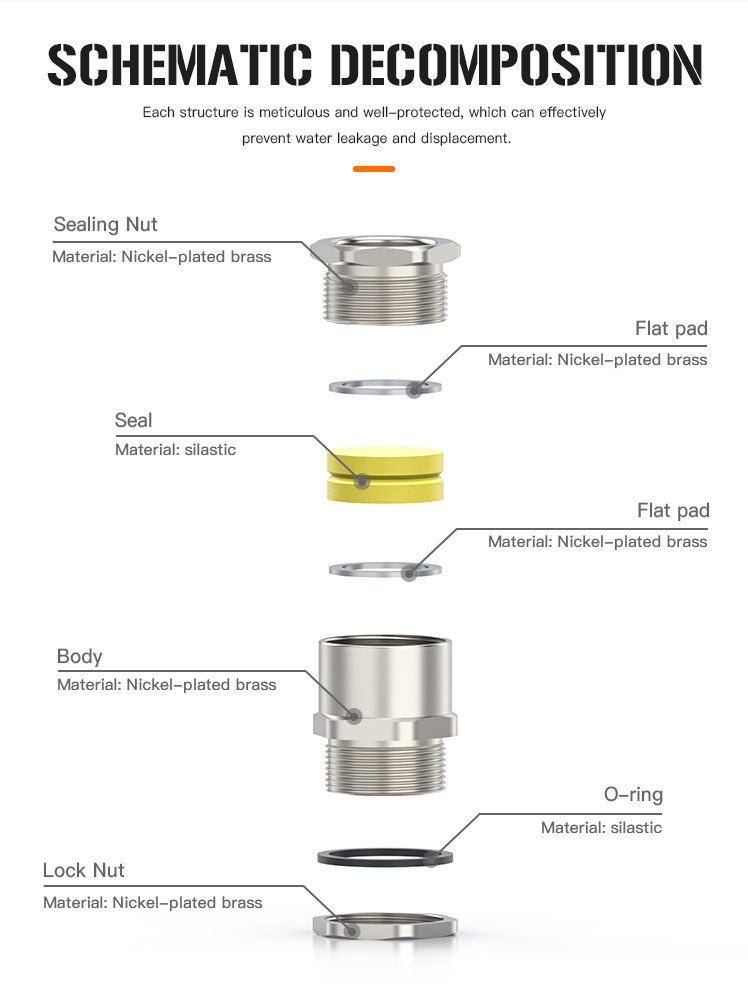

- Fitting Material Nickel-plated brass
- Material For Sealing Components Silastic
- O-ring Material Silastic
- Gasket Material Nickel-plated brass

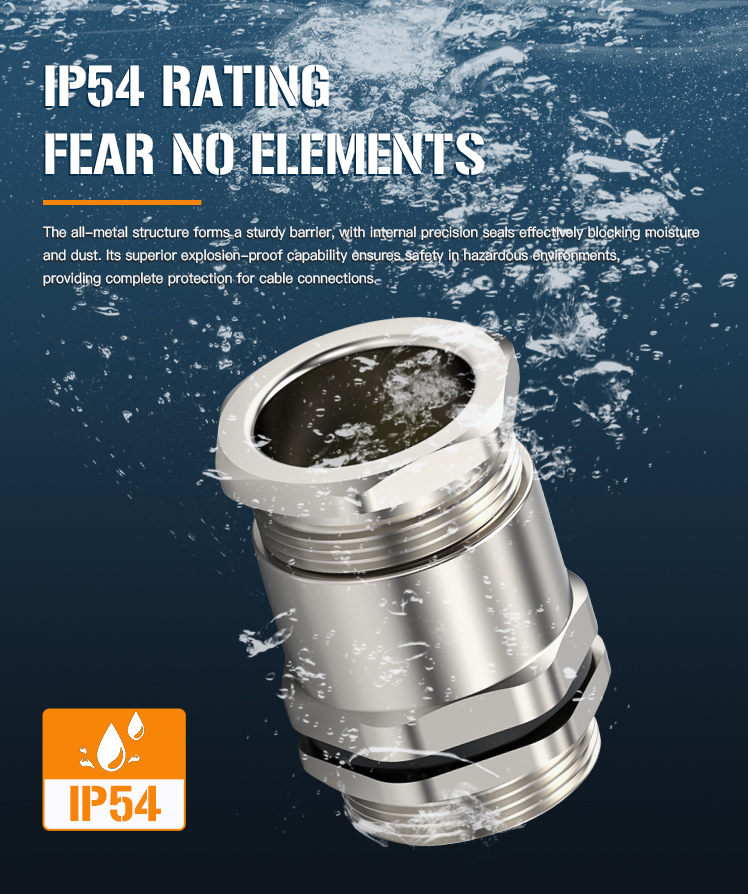

- Protection Degree IP54

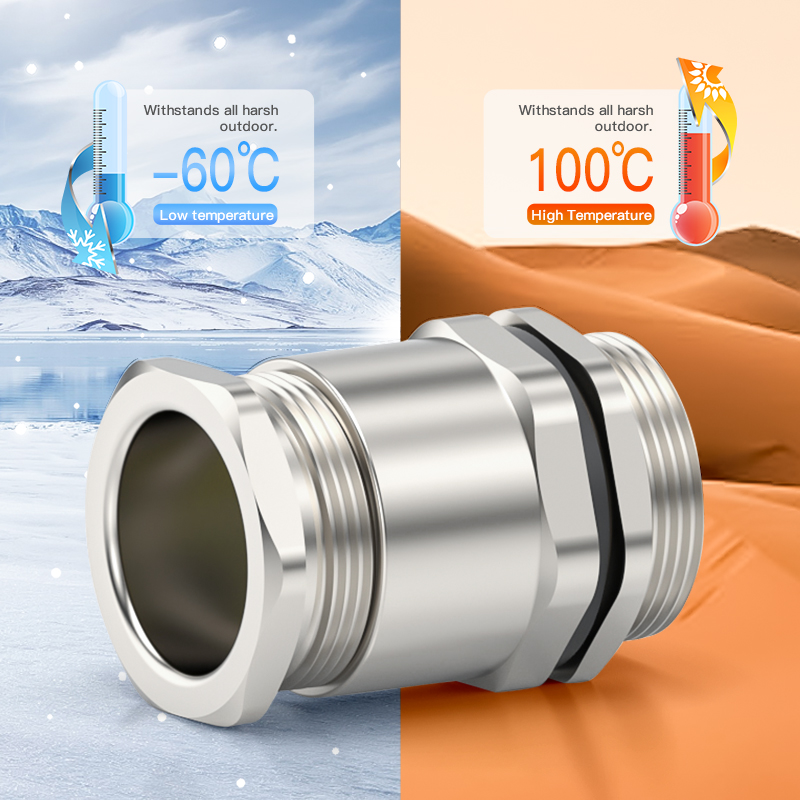

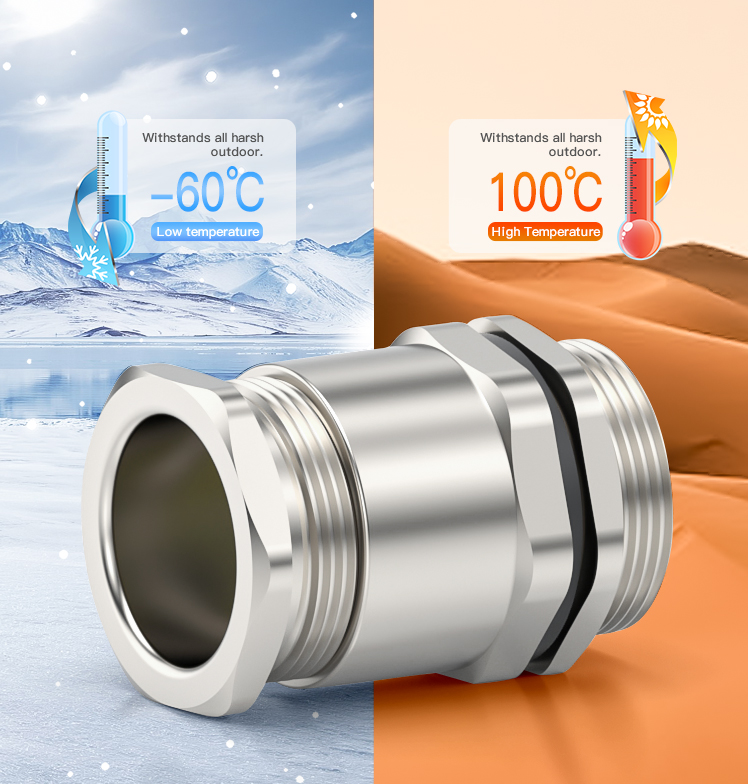

- Temperature Static state:-60 to 100℃,Short time to 120℃ Dynamic state:-20℃ to 80℃,Short time to 100℃
Product Highlights
◆Robust Sealing Design
Effectively contains internal explosions and prevents the ingress of flammable gases or dusts.
◆Secure Cable Locking Mechanism
Provides exceptional pull and vibration resistance for reliable cable holding.
◆Corrosion-Resistant Construction
Built with high-quality materials to withstand harsh marine and industrial conditions.
◆Quick-Connect System
Enables simple, tool-less installation for significant time savings.
Applications
◇Marine and Offshore - Hazardous area lighting, control systems, and navigation equipment on ships, oil rigs, and floating production platforms.
◇Oil, Gas and Chemical Plants - Installation in refineries, processing units, and storage facilities where flammable vapors are present.
◇Mining and Industrial Facilities - Use in conveyor systems, pump controls, and equipment within dusty or potentially explosive atmospheres.
◇Outdoor and Heavy-Duty Environments - Infrastructure projects, tunnel lighting, and water treatment plants requiring robust IP68 protection against weather and corrosion.
Key Benefits
◆Enhanced Operational Safety
Mitigates ignition risks, ensuring compliance with stringent safety standards.
◆Reduced Maintenance Needs
Offers long-term reliability with minimal downtime in demanding settings.
◆Installation Efficiency
Streamlines the setup process, lowering overall labor costs.

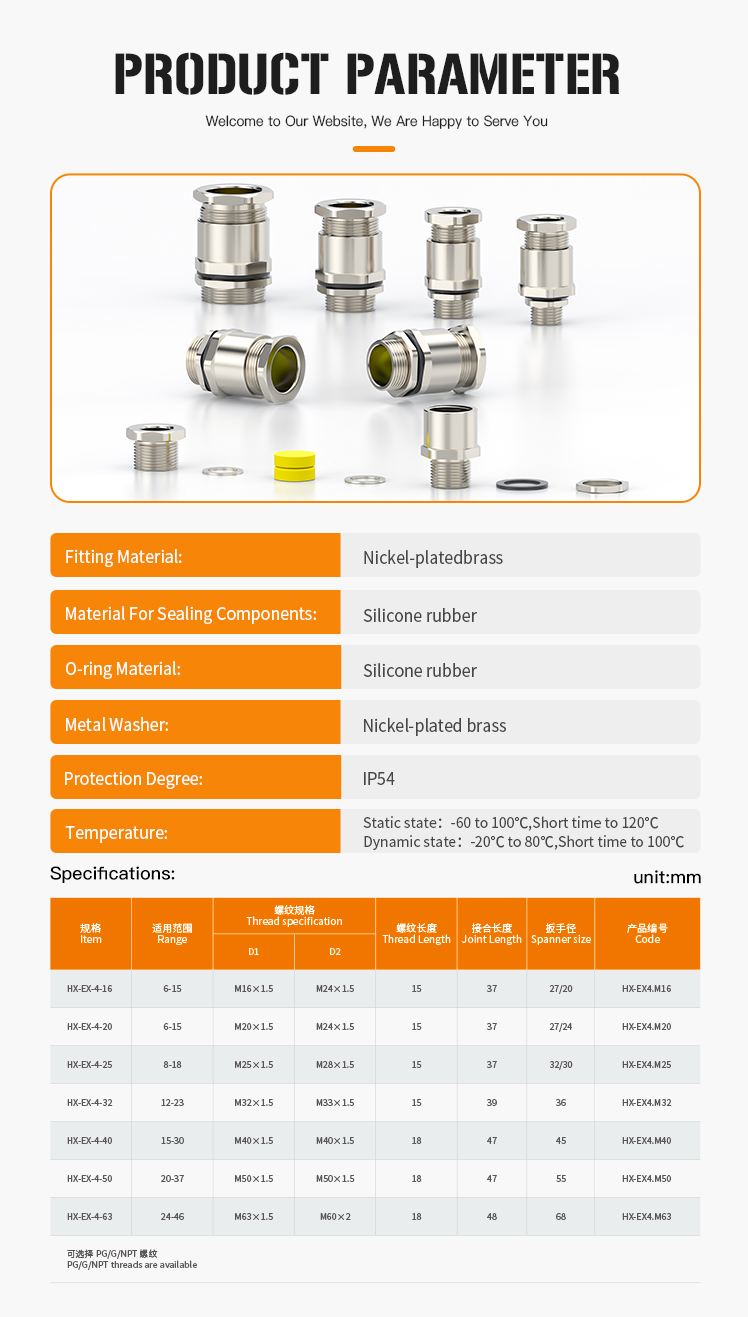

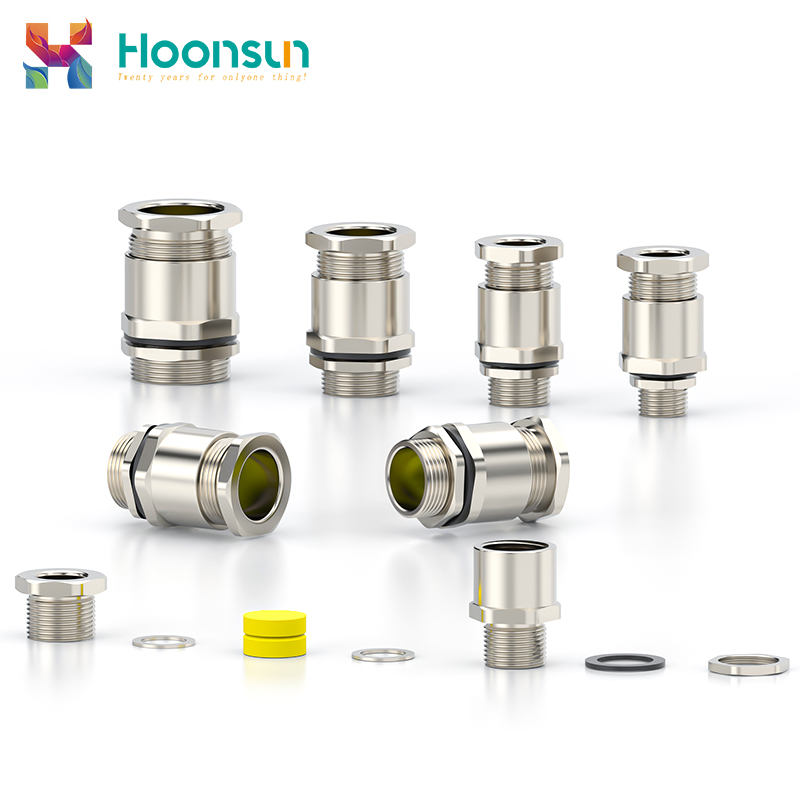

unit:mm
|
Item |
Range |
Thread specification |
Thread Length |
Joint Length |
Spanner size |
Code |
|
|
D1 |
D2 |
||||||
|
HX-EX-4-16 |
6-15 |
M16×1.5 |
M24×1.5 |
15 |
37 |
27/20 |
HX-EX4.M16 |
|
HX-EX-4-20 |
6-15 |
M20×1.5 |
M24×1.5 |
15 |
37 |
27/24 |
HX-EX4.M20 |
|
HX-EX-4-25 |
8-18 |
M25×1.5 |
M28×1.5 |
15 |
37 |
32/30 |
HX-EX4.M25 |
|
HX-EX-4-32 |
12-23 |
M32×1.5 |
M33×1.5 |
15 |
39 |
36 |
HX-EX4.M32 |
|
HX-EX-4-40 |
15-30 |
M40×1.5 |
M40×1.5 |
18 |
47 |
45 |
HX-EX4.M40 |
|
HX-EX-4-50 |
20-37 |
M50×1.5 |
M50×1.5 |
18 |
47 |
55 |
HX-EX4.M50 |
|
HX-EX-4-63 |
24-46 |
M63×1.5 |
M60×2 |
18 |
48 |
68 |
HX-EX4.M63 |
|
PG/G/NPT threads are available |
|||||||
