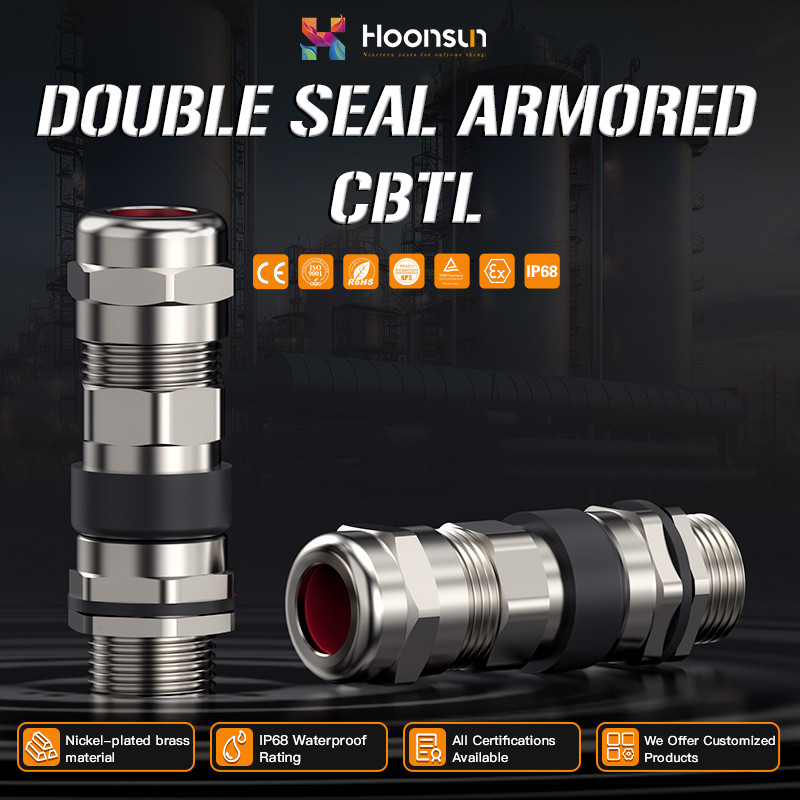

Double-sealed Armored Explosion-proof Cable Gland with IP68 and UL Protection
The Double-sealed Armored Explosion-proof Cable Gland has an IP68 level of protection and is UL-certified. It is suitable for hazardous environments and provides protection.

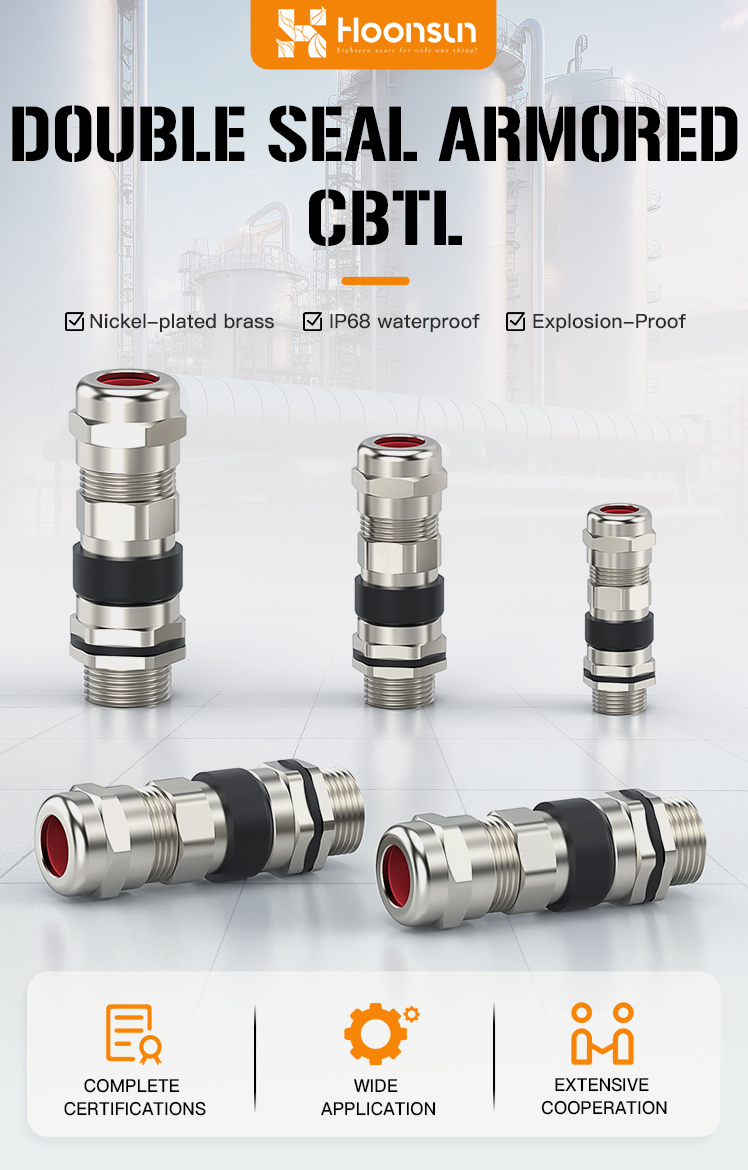

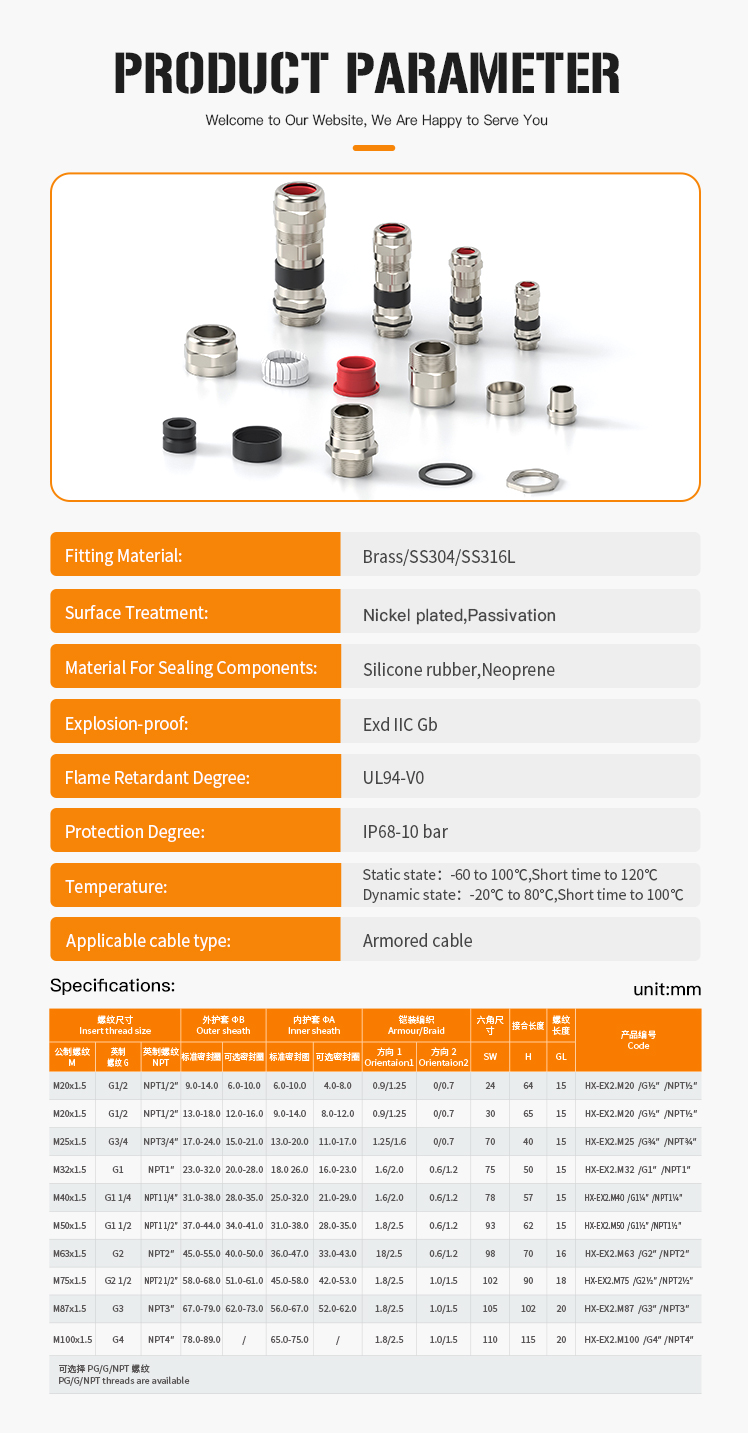

Certified for Global Markets：

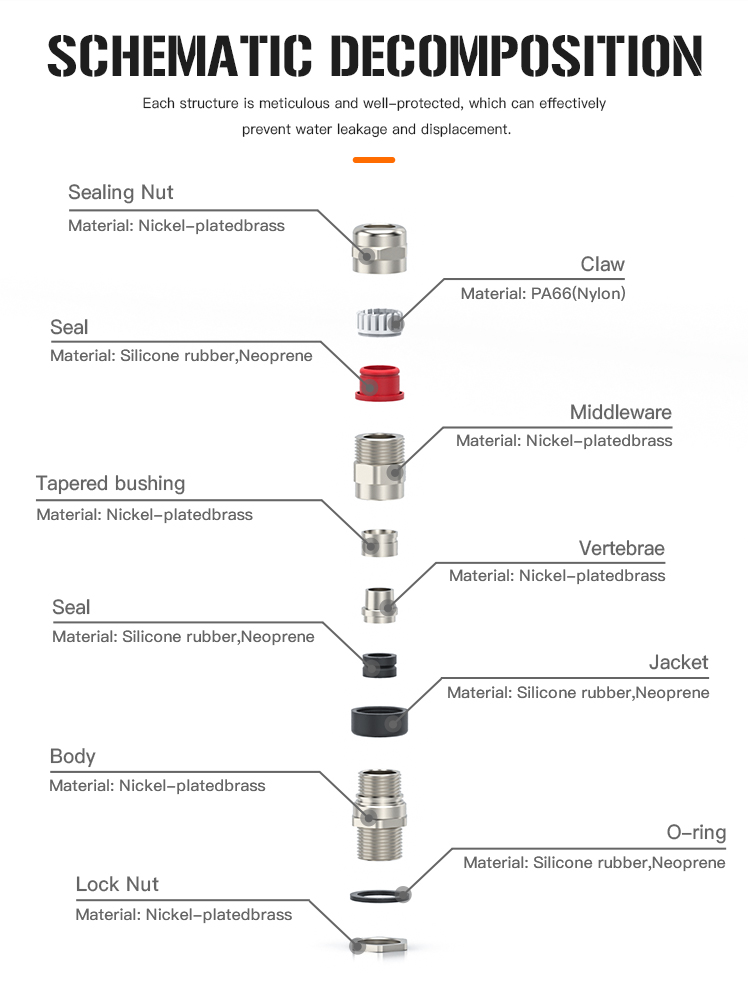

- Fitting Material Brass/SS304/SS316L
- Surface Treatment Nickel plated,Passivation
- Material For Sealing Components Silicone rubber,Neoprene
- Explosion-proof Exd IIC Gb
- Flame Retardant Degree UL94-V0

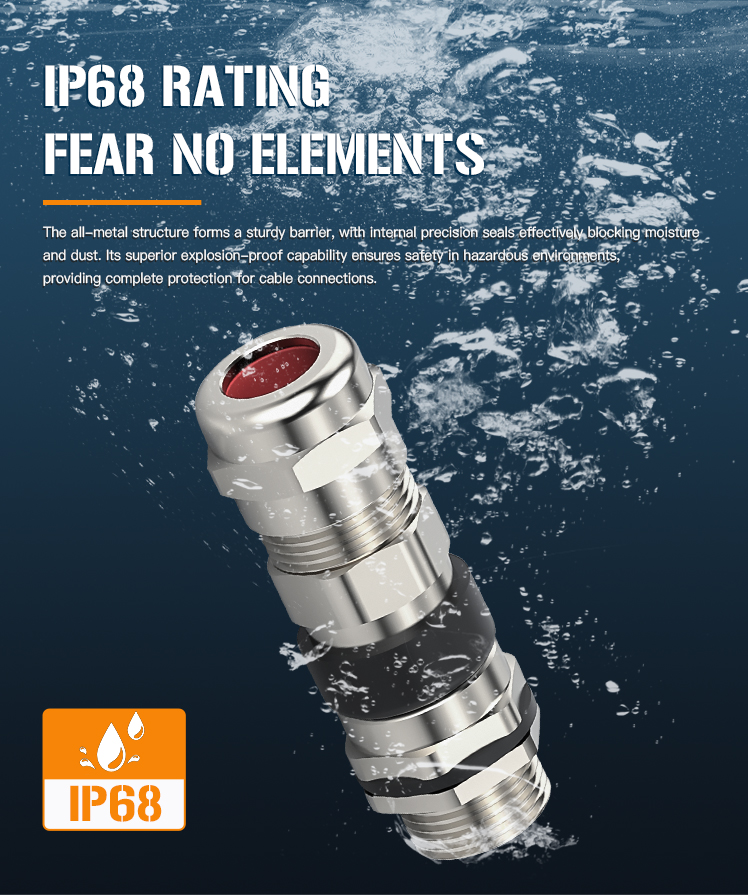

- Protection Degree IP68-10 bar

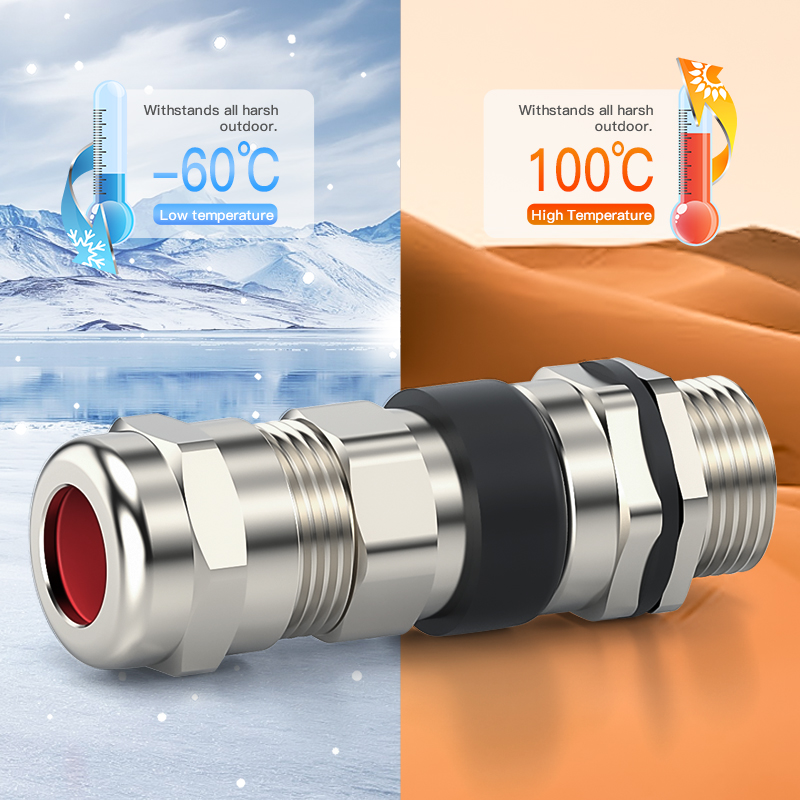

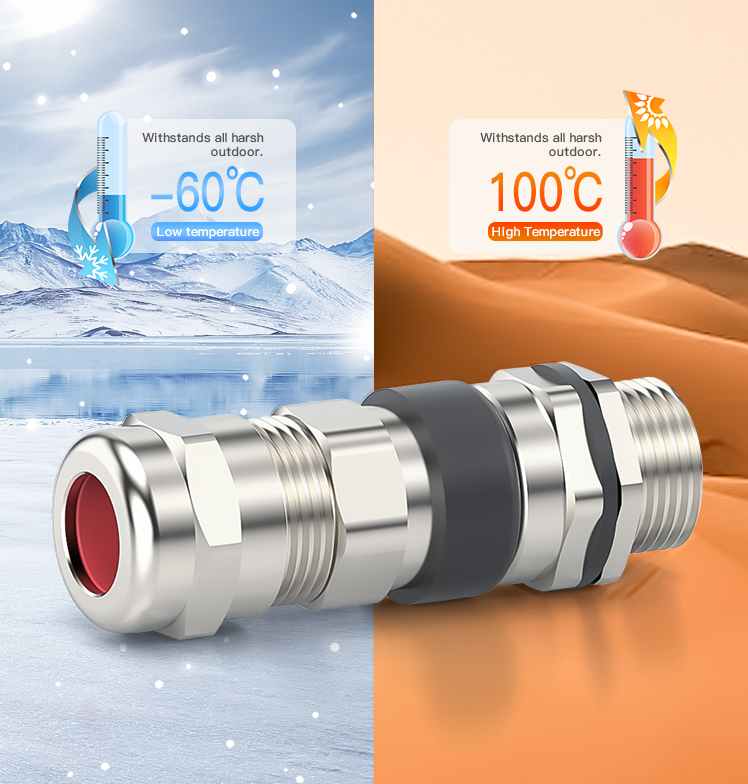

- Temperature Static state:-60 to 100℃,Short time to 120℃ Dynamic state:-20℃ to 80℃,Short time to 100℃
- Applicable cable type Armored cable

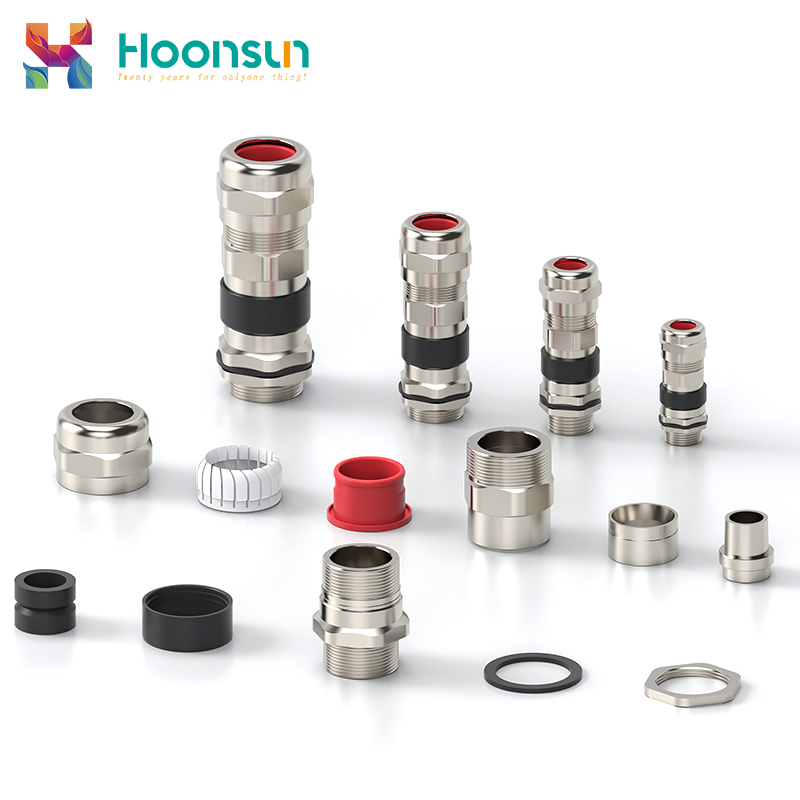

Product Highlights
◆Robust double-seal construction effectively blocks flammable gases and dust.
◆High-strength, corrosion-resistant shell withstands severe impact and crushing forces.
◆Certified explosion-proof design eliminates potential ignition sources.
Applications
◇Power and Energy Distribution Systems
◇Petrochemical and Refining Facilities
◇Industrial Automation and Control Panels
◇Construction and Marine Installations
Key Benefits
◆Ensures long-term operational safety in hazardous locations.
◆Maintains performance under extreme temperatures and corrosive conditions.
◆Provides superior cable grip and strain relief for vibration-heavy machinery.
◆Simplifies installation and maintenance with a user-friendly modular design.

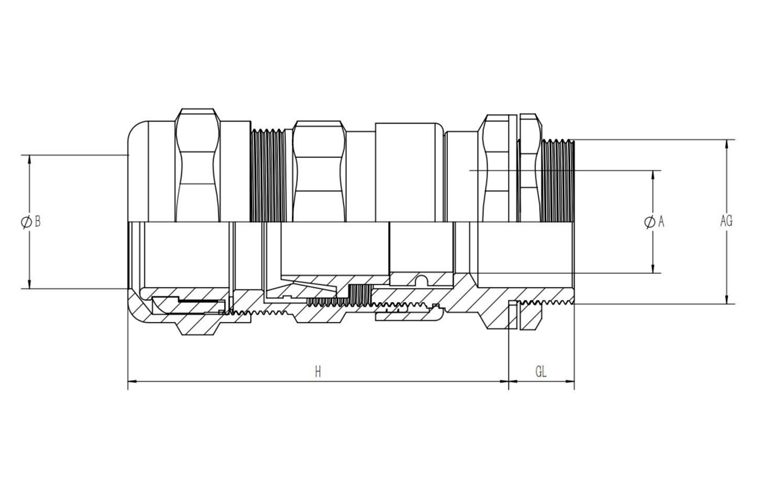

unit:mm
|
Code |
AG External diameter of thread |
GL Length of thread |
H Join Length |
B Oversheath |
A Inner sheath |
|
HX-EX2.M20 SS |
M20×1.5 |
15 |
(65) |
9-18 |
9-14 |
| Insert thread size | B Outer sheath | A Inner sheath | code | ||||
| M | G | NPT | Standard sealing diagram | Optional sealing diagram | Standard sealing diagram | Optional sealing diagram | |
| M20x1.5 | G1/2 | NPT1/2" | 9.0-14.0 | 6.0-10.0 | 6.0-10.0 | 4.0-8.0 | HX-EX2.M20 /G½" /NPT½" |
| M20x1.5 | G1/2 | NPT1/2" | 13.0-18.0 | 12.0-16.0 | 9.0-14.0 | 8.0-12.0 | HX-EX2.M20 /G½" /NPT½" |
| M25x1.5 | G3/4 | NPT3/4” | 17.0-24.0 | 15.0-21.0 | 13.0-20.0 | 11.0-17.0 | HX-EX2.M25 /G¾" /NPT¾" |
| M32X1.5 | G1 | NPT1” | 23.0-32.0 | 20.0-28.0 | 18.0-26.0 | 16.0-23.0 | HX-EX2.M32 /G1" /NPT1" |
| M40x1.5 | G1 1/4 | NPT1 1/4" | 31.0-38.0 | 28.0-35.0 | 25.0-32.0 | 21.0-29.0 | HX-EX2.M40 /G1¼" /NPT1¼" |
| M50x1.5 | G1 1/2 | NPT1 1/2" | 37.0-44.0 | 34.0-41.0 | 31.0-38.0 | 28.0-35.0 | HX-EX2.M50 /G½" /NPT1½" |
| M63x1.5 | G2 | NPT2" | 45,0-55,0 | 40.0-50.0 | 36.0-47.0 | 33.0-43.0 | HX-EX2.M63 /G2" /NPT2" |
| M75x1.5 | G2 1/2 | NPT2 1/2" | 58.0-68.0 | 51.0-61.0 | 45.0-58.0 | 42.0-53.0 | HX-EX2.M75 /G2½" /NPT2½" |
| M87x1.5 | G3 | NPT3" | 67.0-79.0 | 62.0-73.0 | 56.0-670 | 52.0-62.0 | HX-EX2.M87 /G3" /NPT3" |
| M100x1.5 | G4 | NPT4" | 78.0-89.0 | / | 65.0-75.0 | / | HX-EX2.M100 /G4" /NPT4" |
| Amour/Brald | Hexagonal dimension | Bonding length | Thread Length | code | |
| orlentalon1 | orlentalon2 | SW | H | GL | |
| 0.9/1.25 | 0/0.7 | 24 | 64 | 15 | HX-EX2.M20 /G½" /NPT½" |
| 0.9/1.25 | 0/0.7 | 30 | 65 | 15 | HX-EX2.M20 /G½" /NPT½" |
| 1.25/1.6 | 0/0.7 | 70 | 40 | 15 | HX-EX2.M25 /G¾" /NPT¾" |
| 1.6/2.0 | 0.6/1.2 | 75 | 50 | 15 | HX-EX2.M32 /G1" /NPT1" |
| 1.6/2.0 | 0.6/1.2 | 78 | 57 | 15 | HX-EX2.M40 /G1¼" /NPT1¼" |
| 1.8/2.5 | 0.6/1.2 | 93 | 62 | 15 | HX-EX2.M50 /G½" /NPT1½" |
| 1.8/2.5 | 0.6/1.2 | 98 | 70 | 16 | HX-EX2.M63 /G2" /NPT2" |
| 1.8/2.5 | 1.0/1.5 | 102 | 90 | 18 | HX-EX2.M75 /G2½" /NPT2½" |
| 1.8/2.5 | 1.0/1.5 | 105 | 102 | 20 | HX-EX2.M87 /G3" /NPT3" |
| 1.8/2.5 | 1.0/1.5 | 110 | 115 | 20 | HX-EX2.M100 /G4" /NPT4" |
