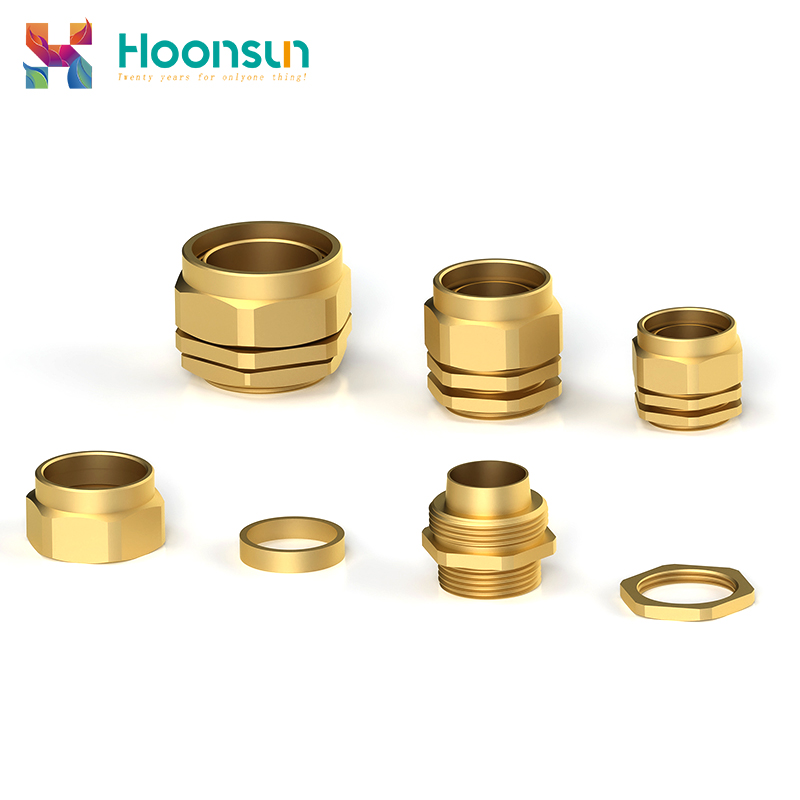

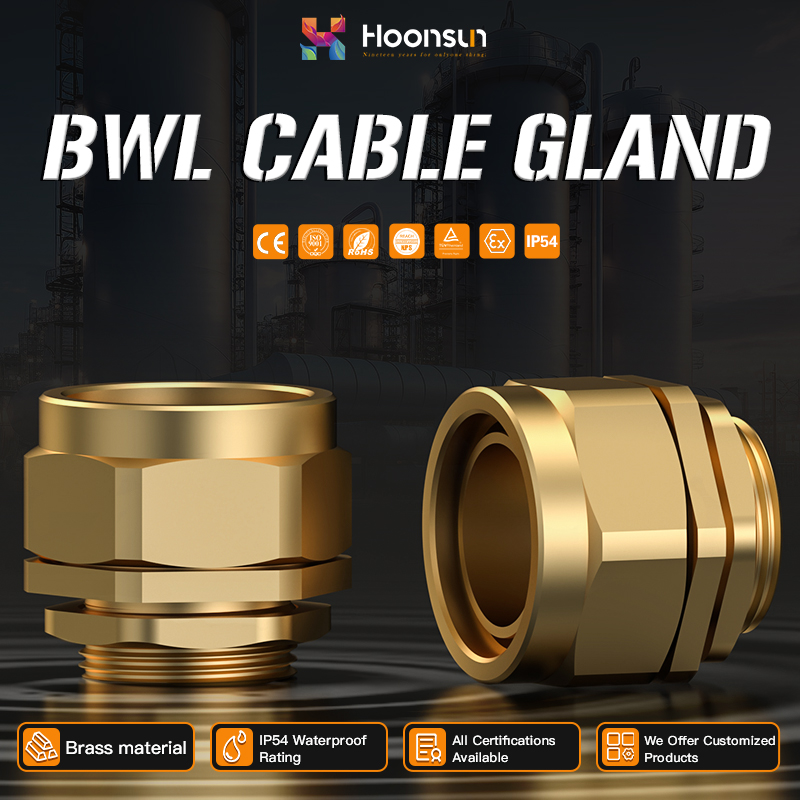

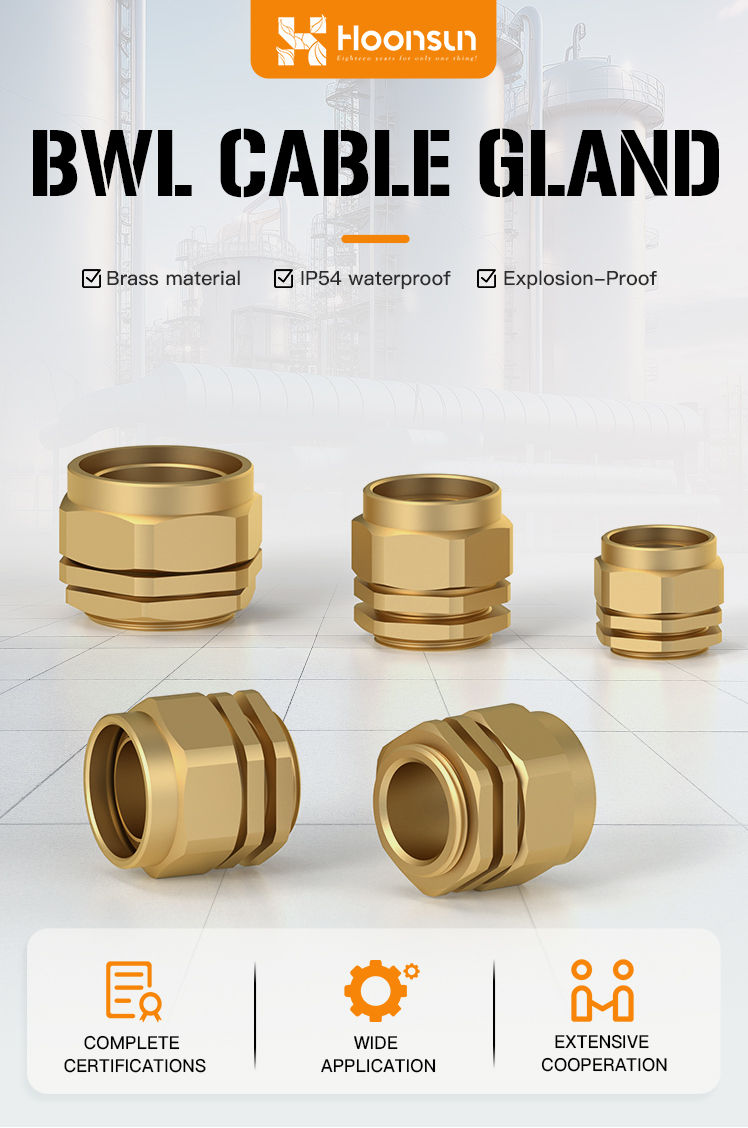

BWL Cable Gland Designed to Meet IP68 and UL
BWL Cable Gland Is Designed to Meet IP68 and UL Standards, Aimed at Achieving Outstanding Explosion-proof Sealing Performance and Stable Cable Fixation Function in Harsh Environments.
Certified for Global Markets：
- Fitting Material Brass

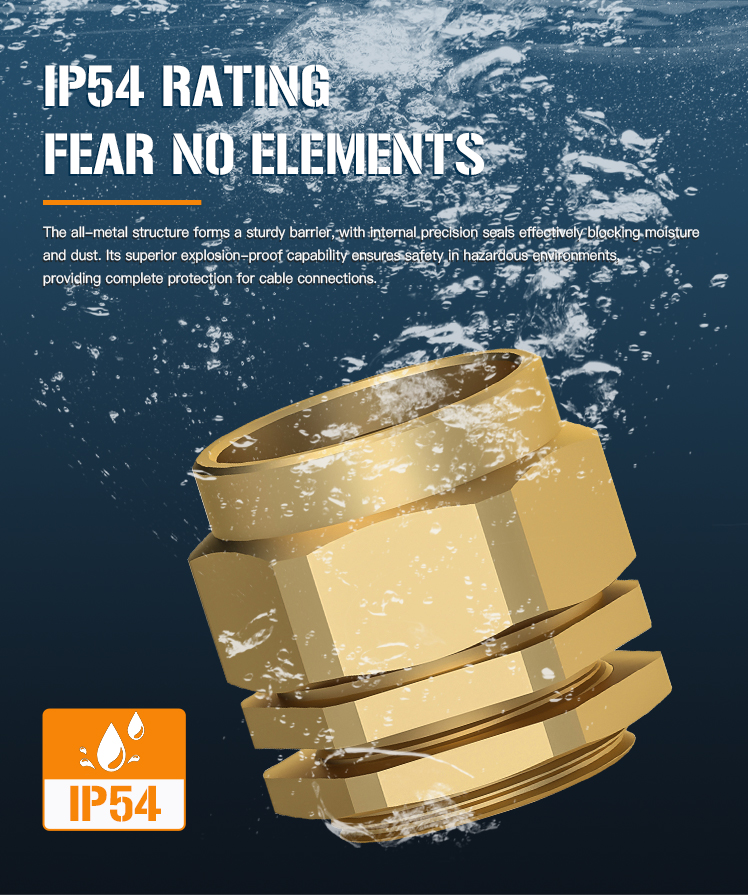

- Protection Degree IP54

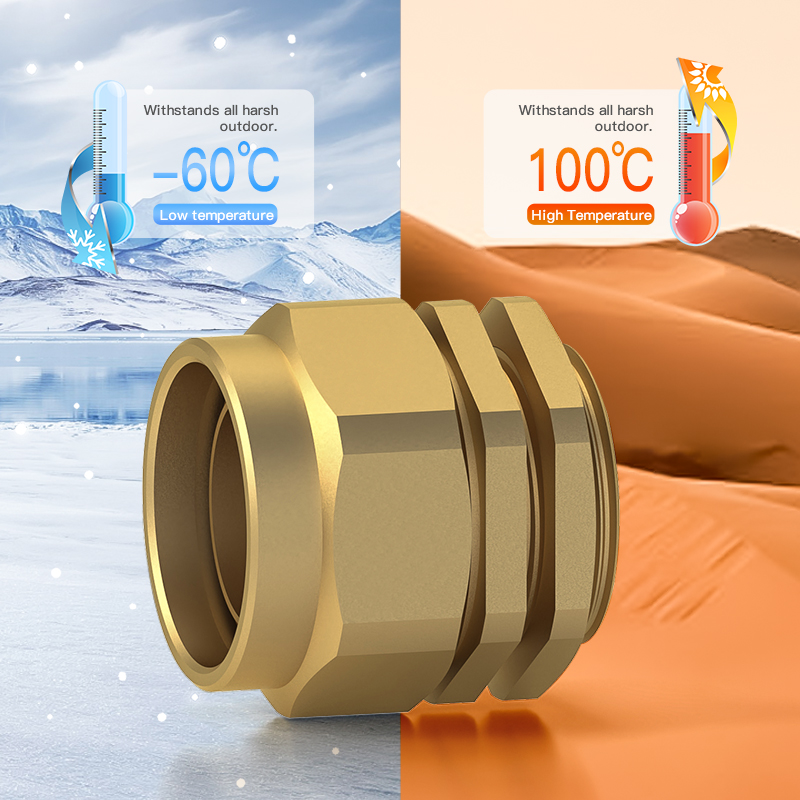

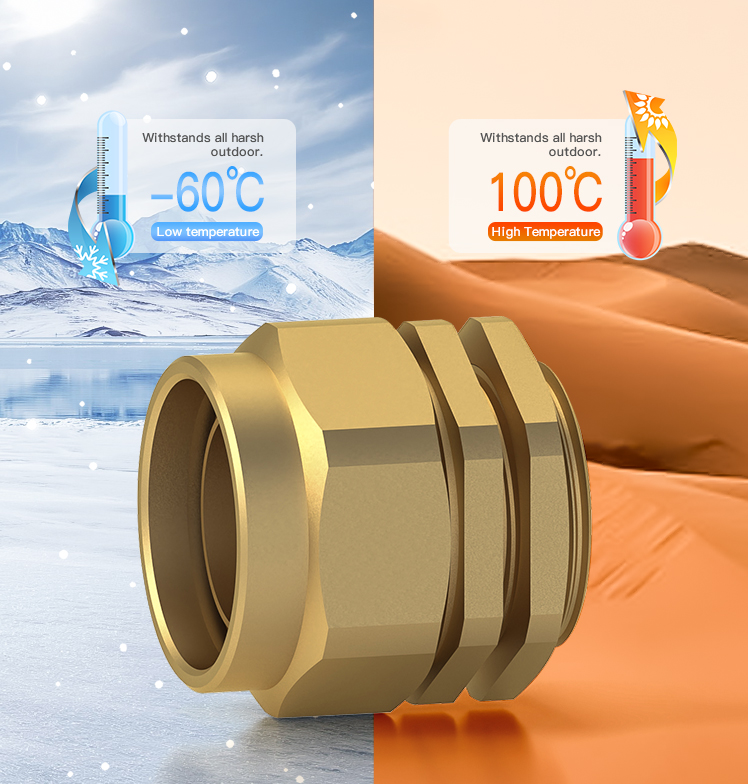

- Temperature Static state:-60 to 100℃,Short time to 120℃ Dynamic state:-20℃ to 80℃,Short time to 100℃
Product Highlights
◆Dual-certified to IP68 and UL standards for airtight and waterproof integrity
◆Robust clamping mechanism ensures cable stability against mechanical stress
◆Resists dust, moisture, chemicals, and corrosive elements
◆Tool-free assembly simplifies the installation process

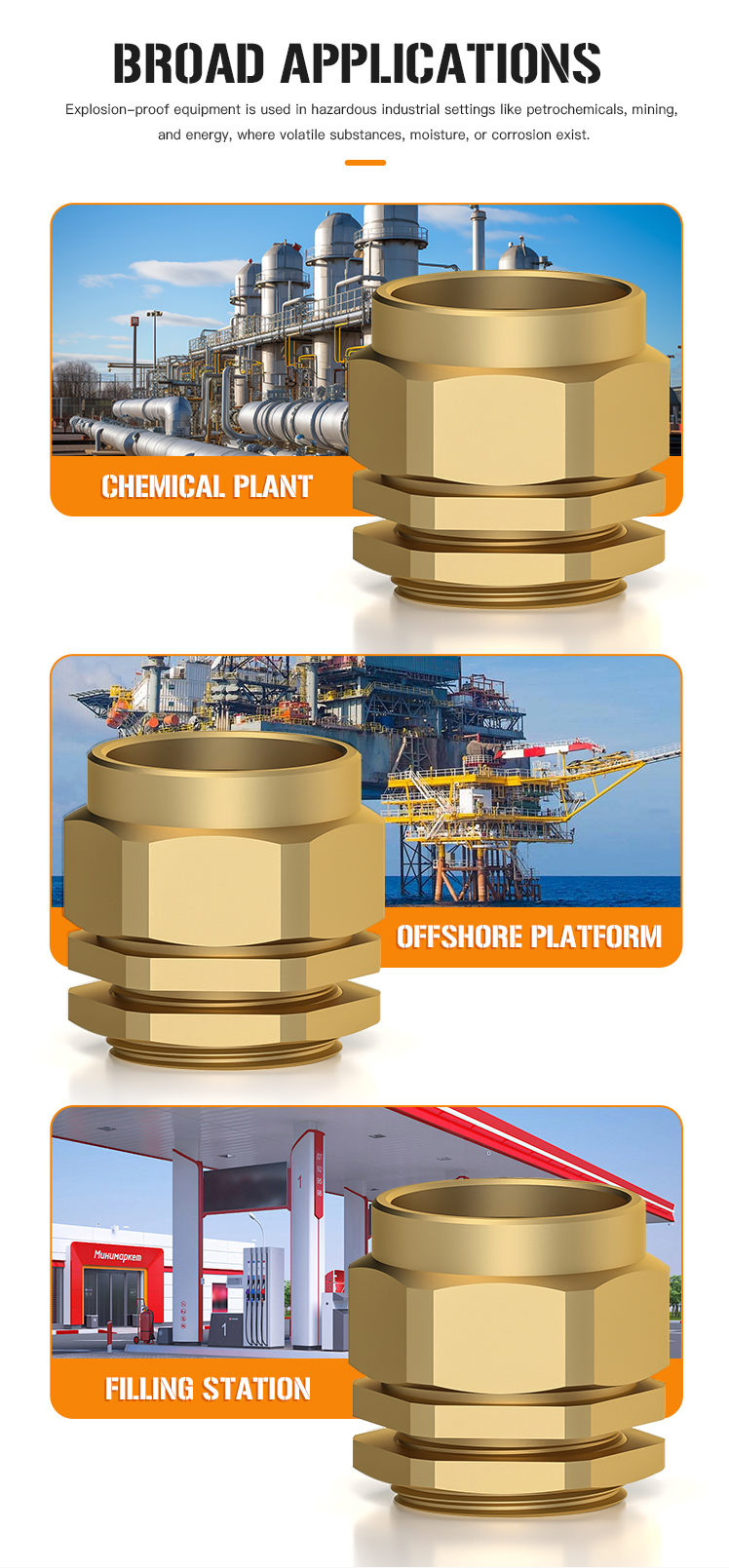

Applications
◇Hazardous industrial zones requiring explosion safety, such as oil platforms, mining sites, and chemical processing plants
◇Outdoor and underground electrical installations, including traffic control systems, marine docks, and solar power setups
◇Industrial machinery and automation equipment where vibration resistance and cable stability are critical
◇Infrastructure in harsh climates or wet locations, such as water treatment facilities and outdoor lighting systems
Key Benefits
◆Enhanced Explosion Protection
The gland’s robust sealing effectively isolates internal sparks and blocks flammable gases, significantly reducing ignition risks in volatile settings.
◆Long-Term Reliability & Cost Savings
Its design is capable of resisting the erosion of moisture, dust and chemical substances, thereby effectively reducing wear and tear, lowering maintenance frequency, and extending service life in harsh environments.
◆Quick, Error-Resistant Installation
It adopts a tool-free and user-friendly design, which can accelerate the deployment speed and also prevent loose connections or sealing failures caused by improper assembly.

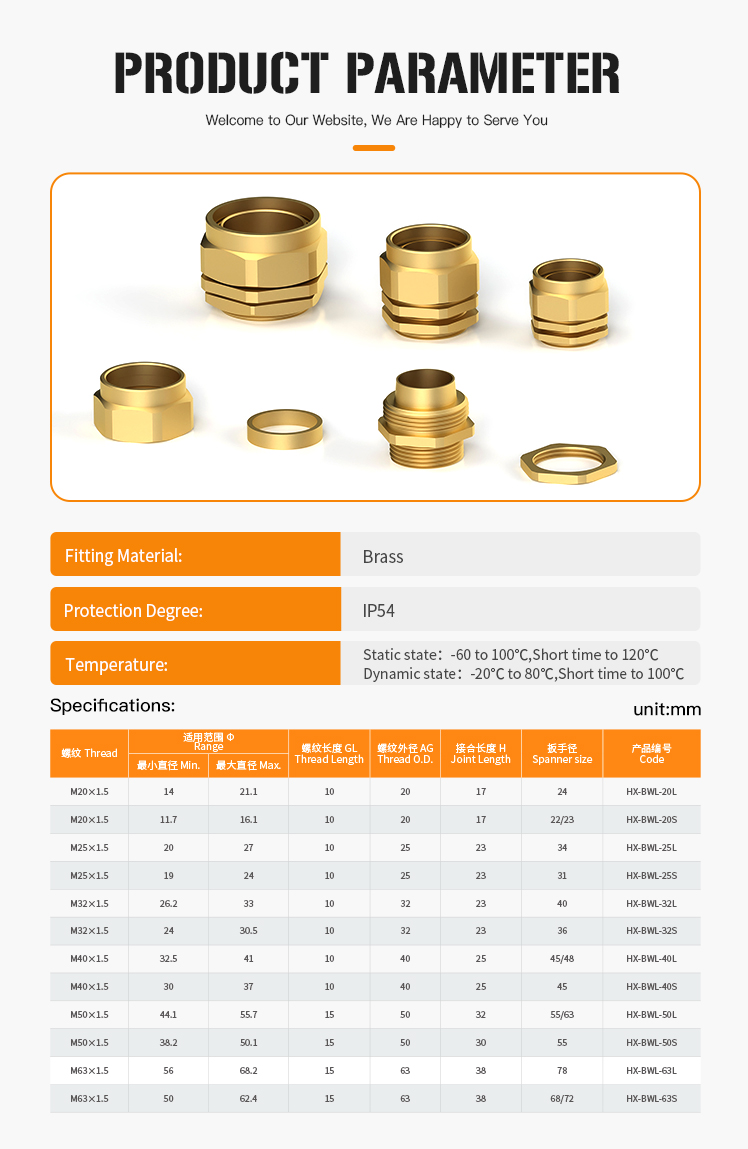

unit:mm
|
Thread |
Range |
GL Thread Length |
AG Thread O.D. |
H Joint Length |
Spanner size |
Code |
|
|
Diameter Min. |
Diameter Max. |
||||||
|
M20×1.5 |
14 |
21.1 |
10 |
20 |
17 |
24 |
HX-BWL-20L |
|
M20×1.5 |
11.7 |
16.1 |
10 |
20 |
17 |
22/23 |
HX-BWL-20S |
|
M25×1.5 |
20 |
27 |
10 |
25 |
23 |
34 |
HX-BWL-25L |
|
M25×1.5 |
19 |
24 |
10 |
25 |
23 |
31 |
HX-BWL-25S |
|
M32×1.5 |
26.2 |
33 |
10 |
32 |
23 |
40 |
HX-BWL-32L |
|
M32×1.5 |
24 |
30.5 |
10 |
32 |
23 |
36 |
HX-BWL-32S |
|
M40×1.5 |
32.5 |
41 |
10 |
40 |
25 |
45/48 |
HX-BWL-40L |
|
M40×1.5 |
30 |
37 |
10 |
40 |
25 |
45 |
HX-BWL-40S |
|
M50×1.5 |
44.1 |
55.7 |
15 |
50 |
32 |
55/63 |
HX-BWL-50L |
|
M50×1.5 |
38.2 |
50.1 |
15 |
50 |
30 |
55 |
HX-BWL-50S |
|
M63×1.5 |
56 |
68.2 |
15 |
63 |
38 |
78 |
HX-BWL-63L |
|
M63×1.5 |
50 |
62.4 |
15 |
63 |
38 |
68/72 |
HX-BWL-63S |
