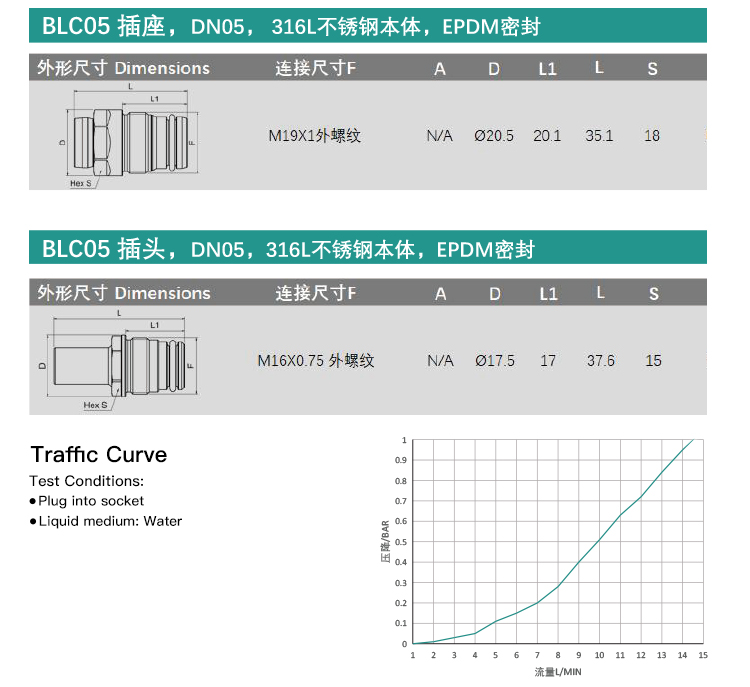

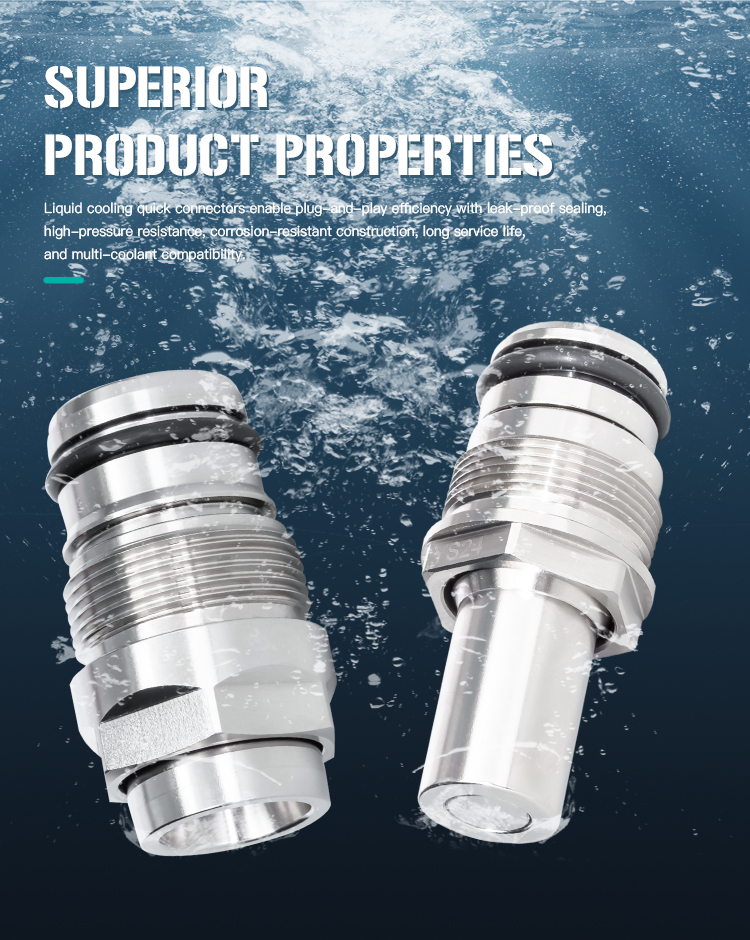

BLC05S-1SMM192N-BLC05P-1SMM162N

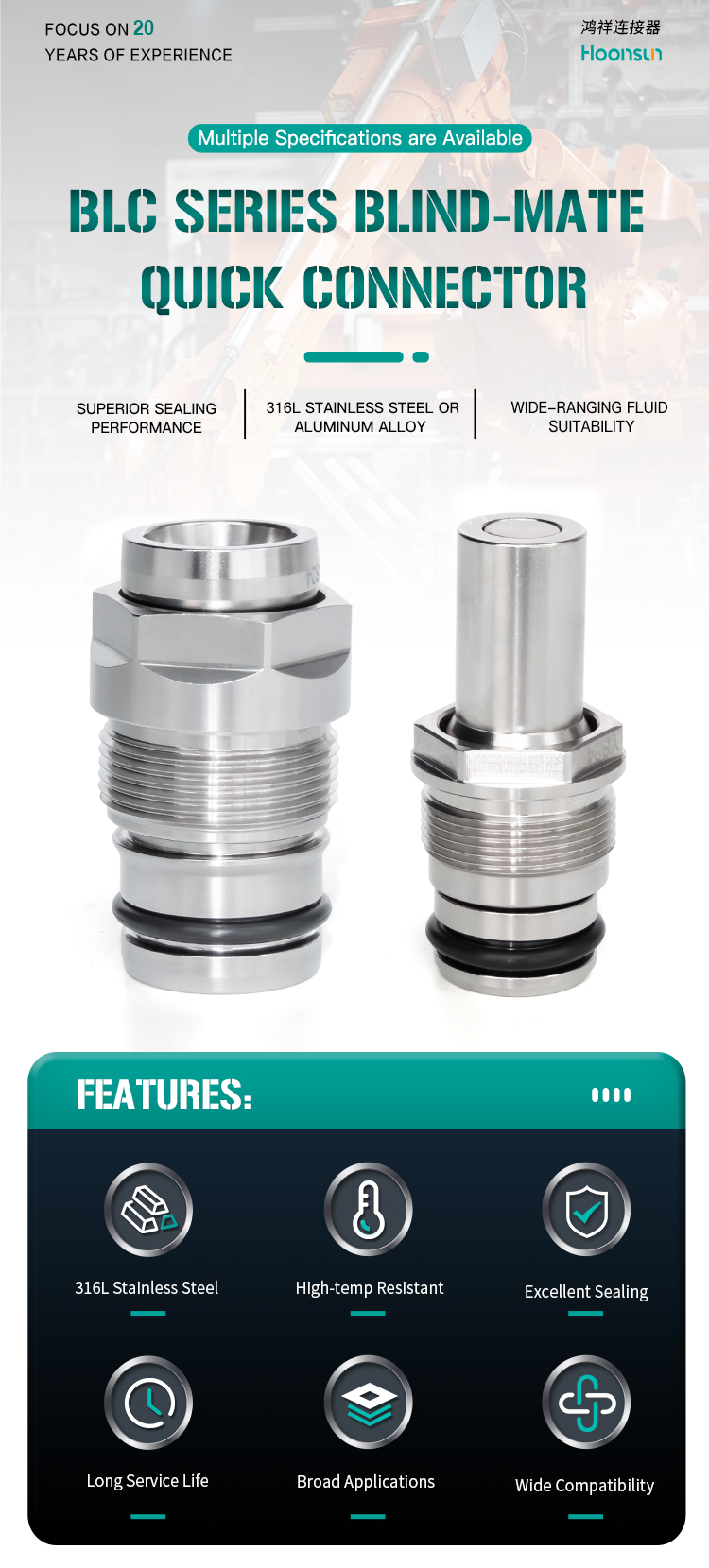

Key Features

✅ Superior Sealing Performance: Zero-leakage design for liquid cooling circuits
✅ High-Grade Materials: 316L stainless steel or aluminum alloy options
✅ Wide Fluid Compatibility: Works with deionized water, ethylene glycol, propylene glycol, and fluorinated fluids
✅ Durable & Long-Lasting: High-temp resistant, corrosion-proof, dust-proof, and salt-proof
✅ Plug-and-Play Operation: Fast blind-mate connection without tools

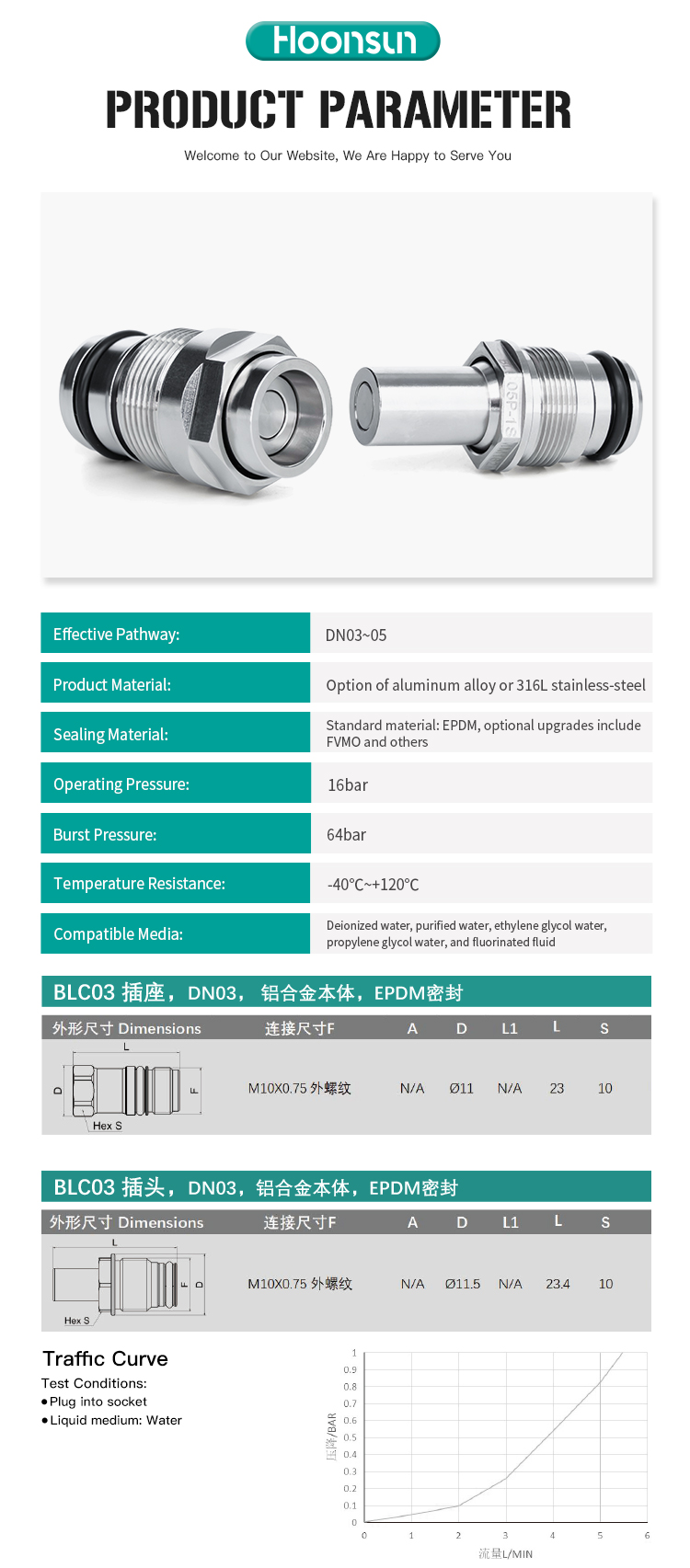

✅ Reliable Performance: 16bar working pressure, 64bar burst pressure

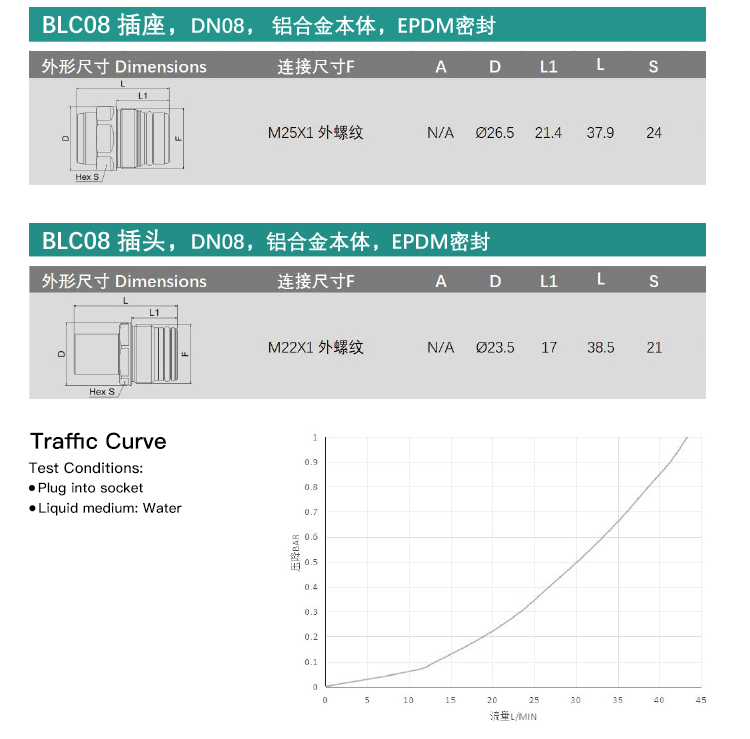

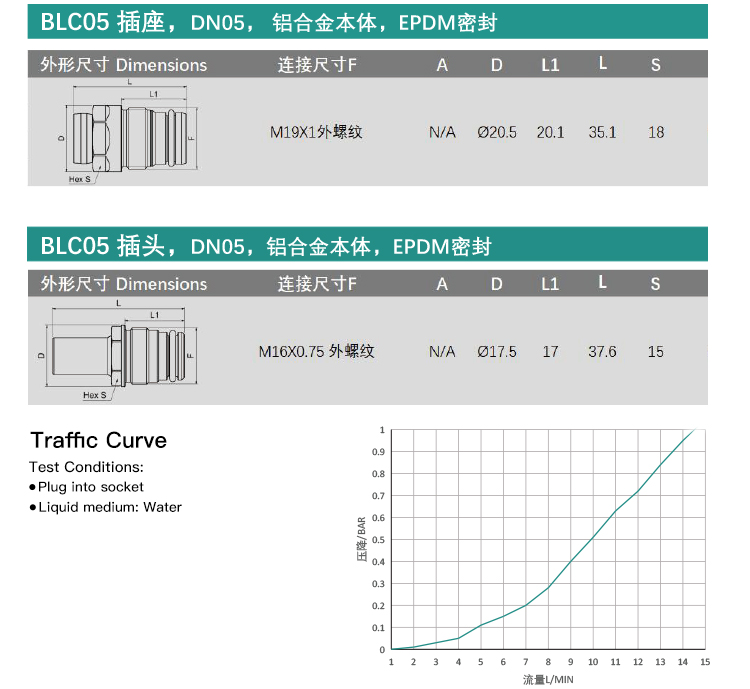

✅ Multiple Sizes: DN03/DN05/DN08 specifications available
✅ Certified Quality: ISO9001 compliant, factory-tested

Applications

● Data Center Servers: Liquid cooling for high-density server racks

● AI Servers & HPC: Thermal management for high-performance computing

● Energy Storage Systems: Cooling solutions for battery packs

● Power Electronics & EV Systems: EV three-electric system cooling

● Industrial Lasers & Medical Equipment: Precision liquid cooling

● PV Inverters & Power Stations: Solar and wind energy equipment cooling

● Test Benches & Industrial Automation: Reliable fluid connections

Installation Process

1. Preparation: Ensure the connector and mating part are clean and free of debris.

2. Alignment: Align the plug and socket along the axis.

3. Blind-Mate Connection: Push the plug into the socket until you hear/feel a click, confirming full engagement.

4. Leak Test: After connection, perform a pressure test to verify zero leakage.

5. Disconnection: Simply pull the plug out of the socket (no tools required) for maintenance or replacement.

⚠️ Note: Ensure the system is depressurized before disconnection to prevent fluid spray.

FAQ

1. What is a blind-mate quick connector?

It is a fluid coupling designed for "blind" connections (without visual alignment) in liquid cooling systems, enabling fast, reliable plug-and-play installation.

2. What materials are available?

We offer two main options:

● 316L Stainless Steel: Excellent corrosion resistance, ideal for harsh environments

● Aluminum Alloy: Lightweight, high strength-to-weight ratio, cost-effective

3. What fluids are compatible with these connectors?

They work with deionized water, purified water, ethylene glycol/water mixtures, propylene glycol/water mixtures, and fluorinated fluids.

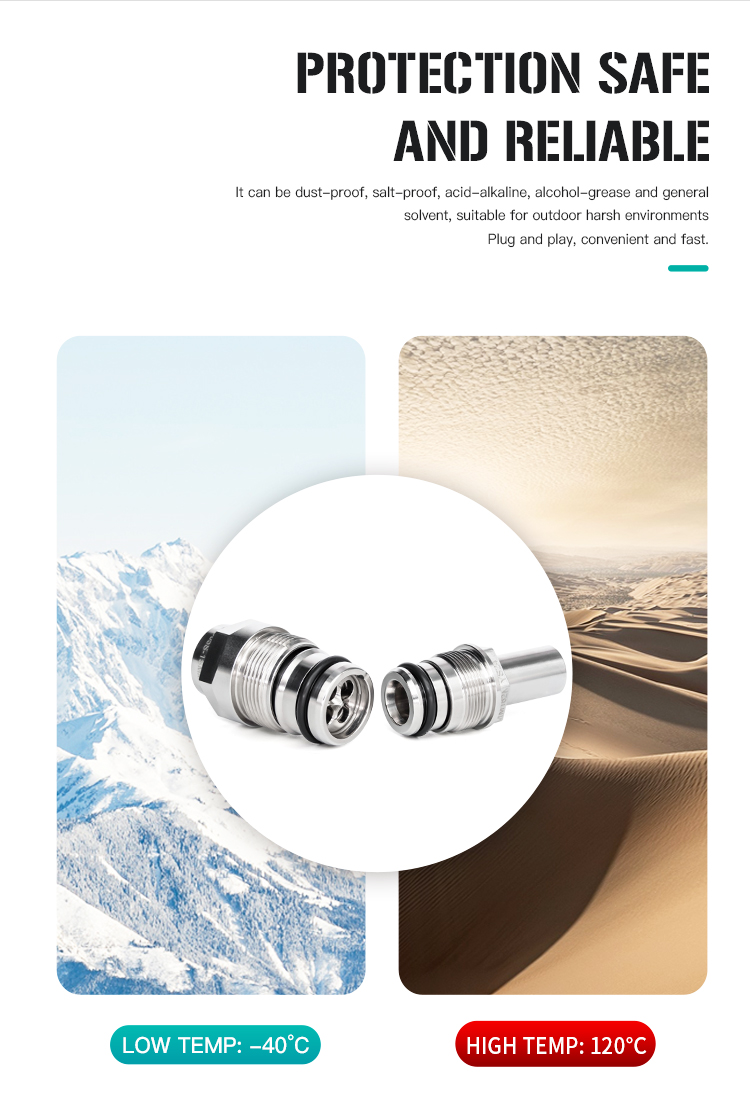

4. What is the operating temperature range?

Standard range is -40°C to 120°C, suitable for most liquid cooling applications.

5. Are these connectors leak-proof?

Yes. The EPDM/FVMO sealing system provides zero-leakage performance under rated pressure, ensuring system reliability.

6. Do I need tools to install or disconnect them?

No. The plug-and-play design allows tool-free connection and disconnection, even in blind-mate scenarios.

7. What certifications do you have?

Our products comply with ISO9001 quality standards and are factory-tested for pressure and sealing performance.

8. Can you customize sizes or materials?

Yes. We support OEM/ODM customization for special thread sizes, materials, or sealing requirements.

About Us

Founded in 2006, Hongxiang Connectors is a professional manufacturer of industrial connectors and fluid solutions. With over 20 years of experience, we provide high-quality products to customers worldwide, with a focus on innovation, quality, and customer service. Our BLC series blind-mate connectors are widely trusted by data centers, AI equipment manufacturers, and new energy companies.
