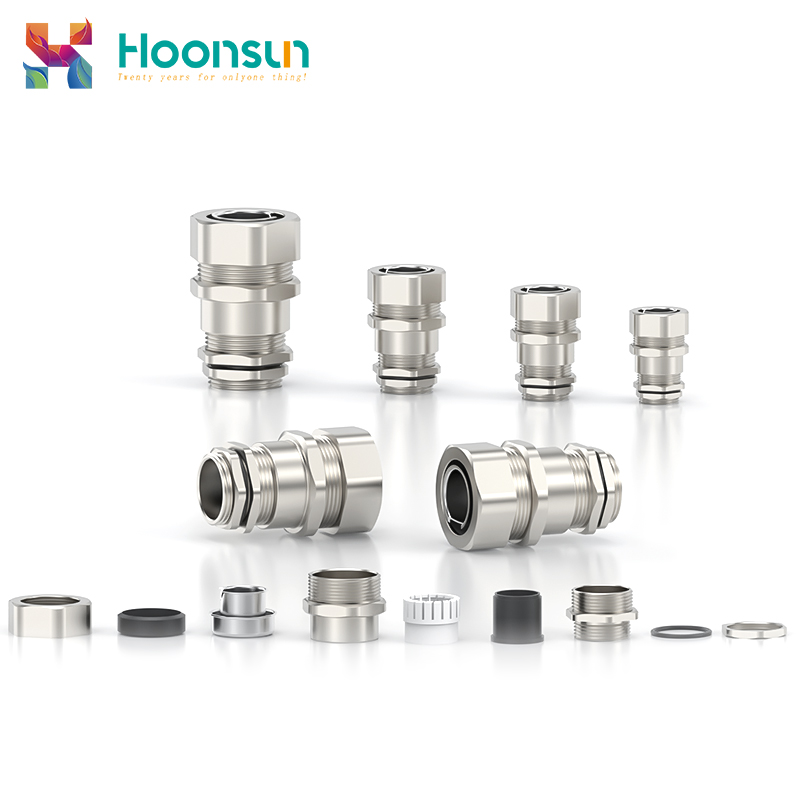

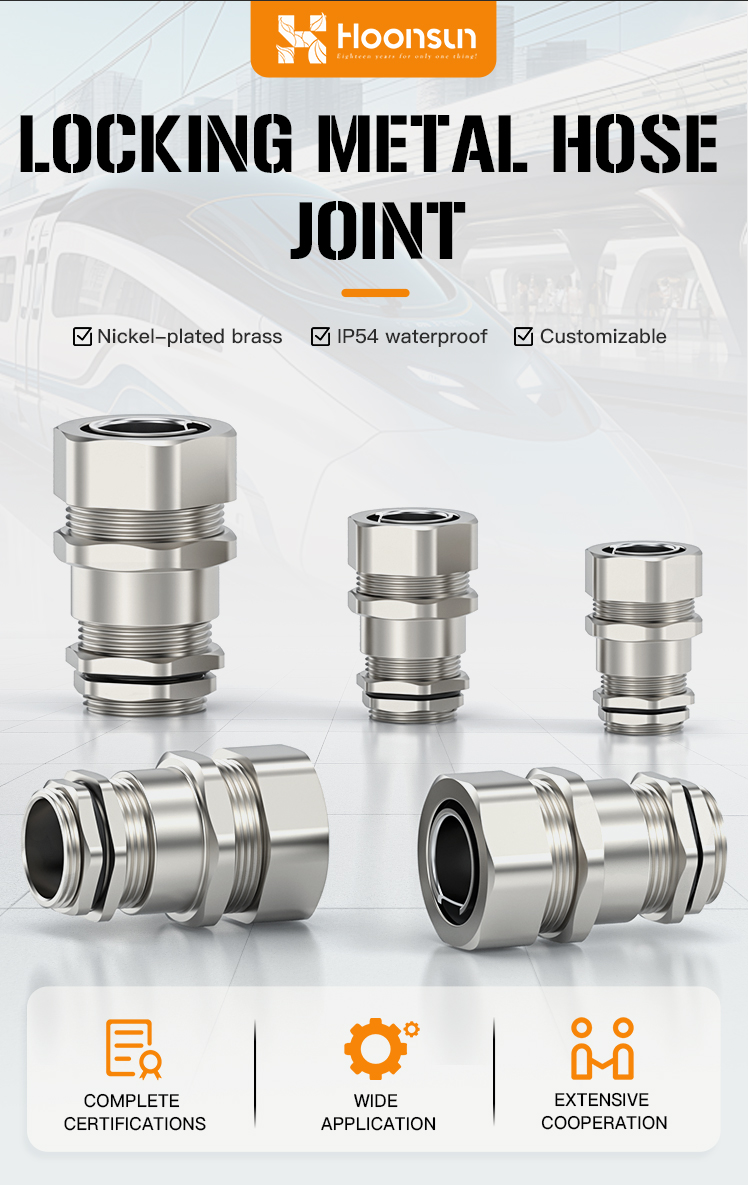

304/316L Stainless Steel Hose cable gland
304/316L Stainless Steel Hose cable gland ensures secure, waterproof, and vibration-resistant connections for industrial electrical systems.
Certified for Global Markets：

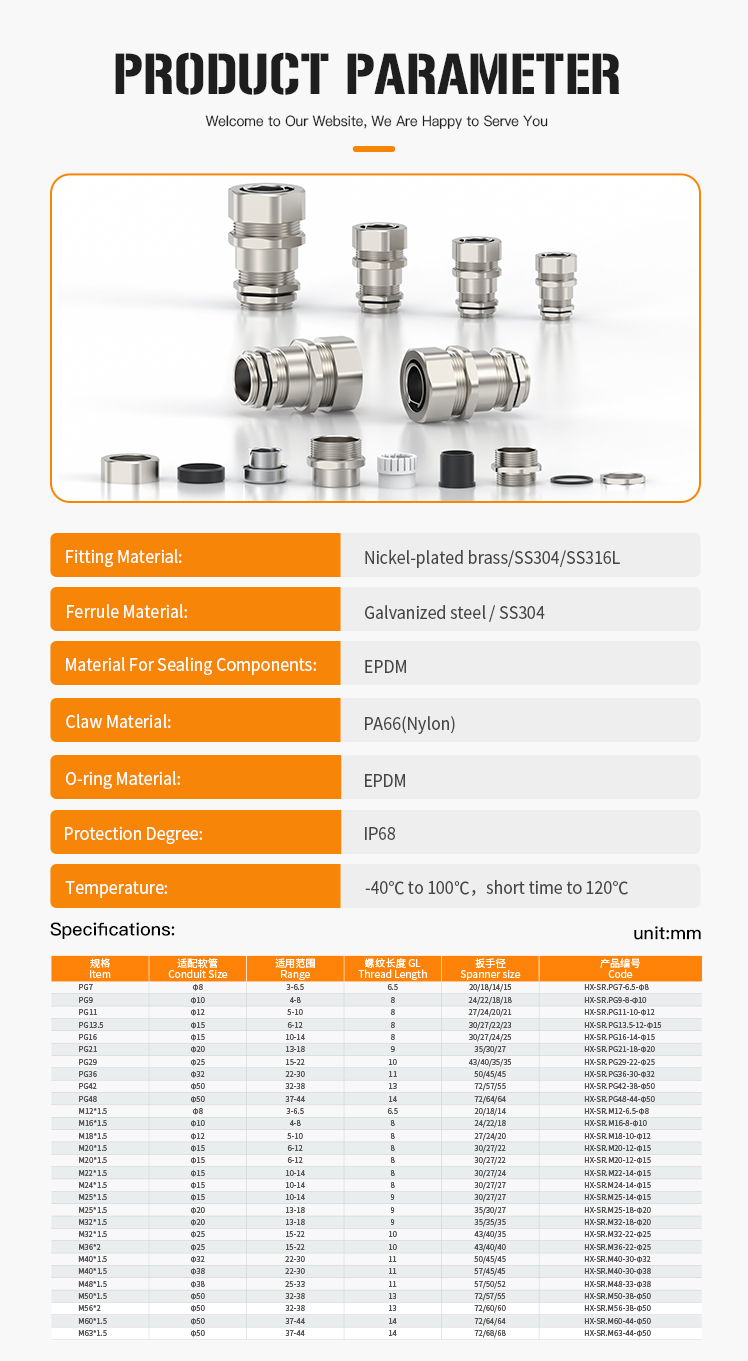

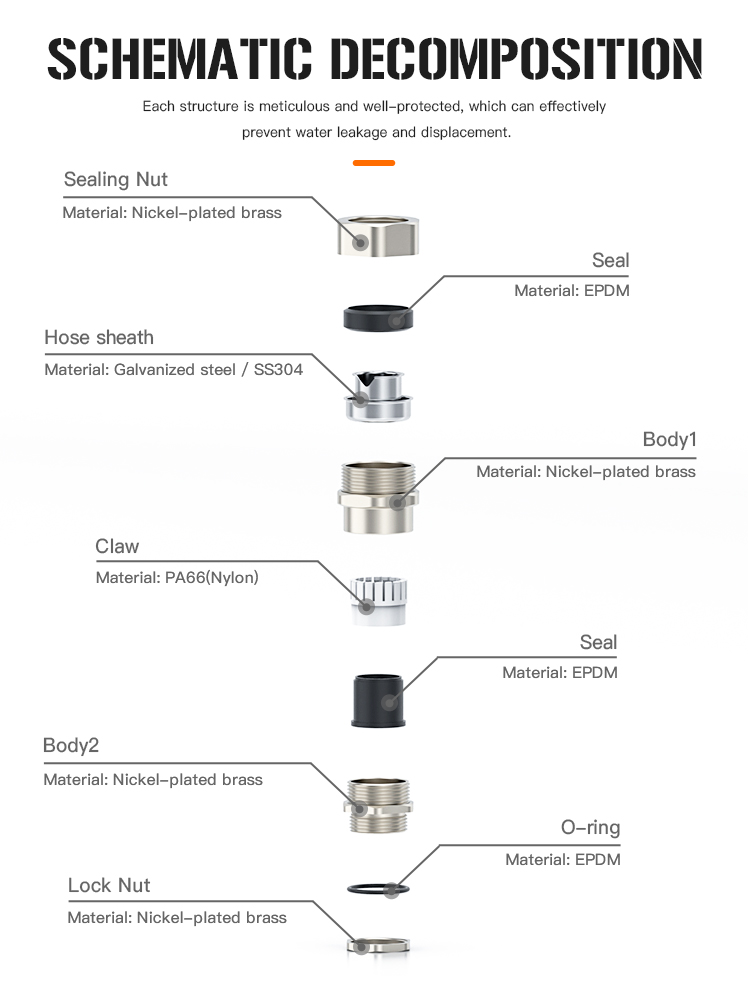

- Fitting Material Nickel-plated brass/SS304/SS316L
- Material For Sealing Components EPDM
- Claw Material PA66(Nylon)
- O-ring Material EPDM
- Ferrule Material Galvanized steel/SS304
- Protection Degree IP68

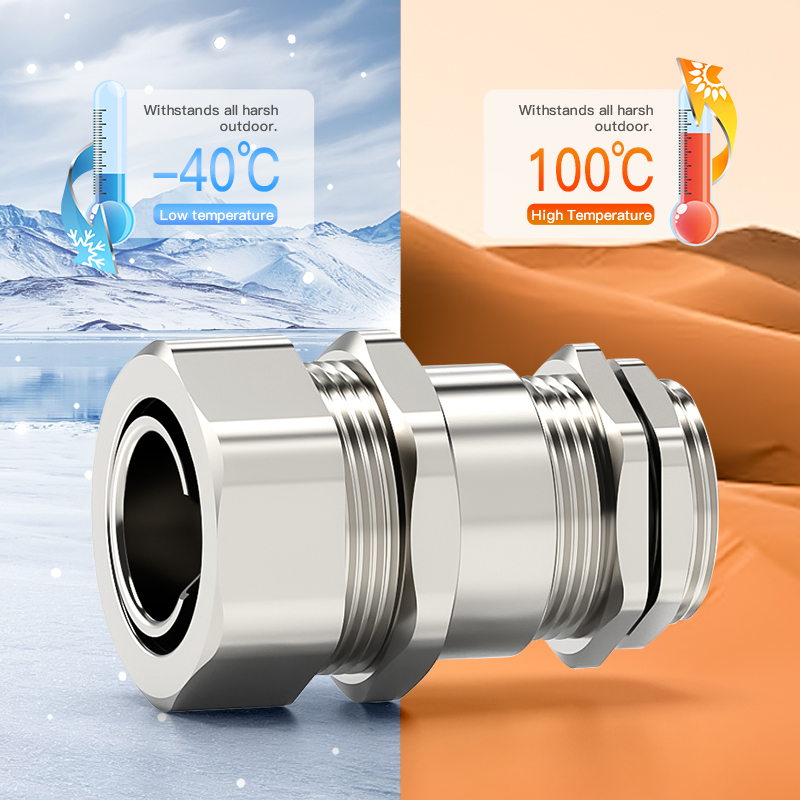

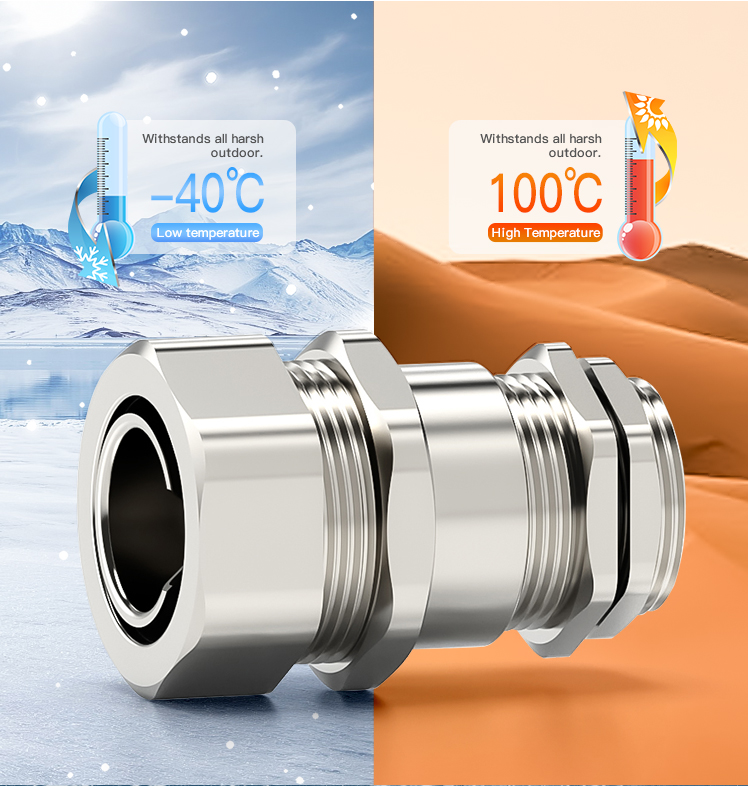

- Temperature -40℃ to 100℃,short time to 120℃
Product Highlights
◆Precision-engineered fitting for reliable mechanical protection and electrical continuity.
◆Constructed from nickel-plated brass or stainless steel for excellent corrosion resistance and durability in harsh environments.
◆Integrated locknut design ensures a firm, vibration-resistant installation and prevents loosening.

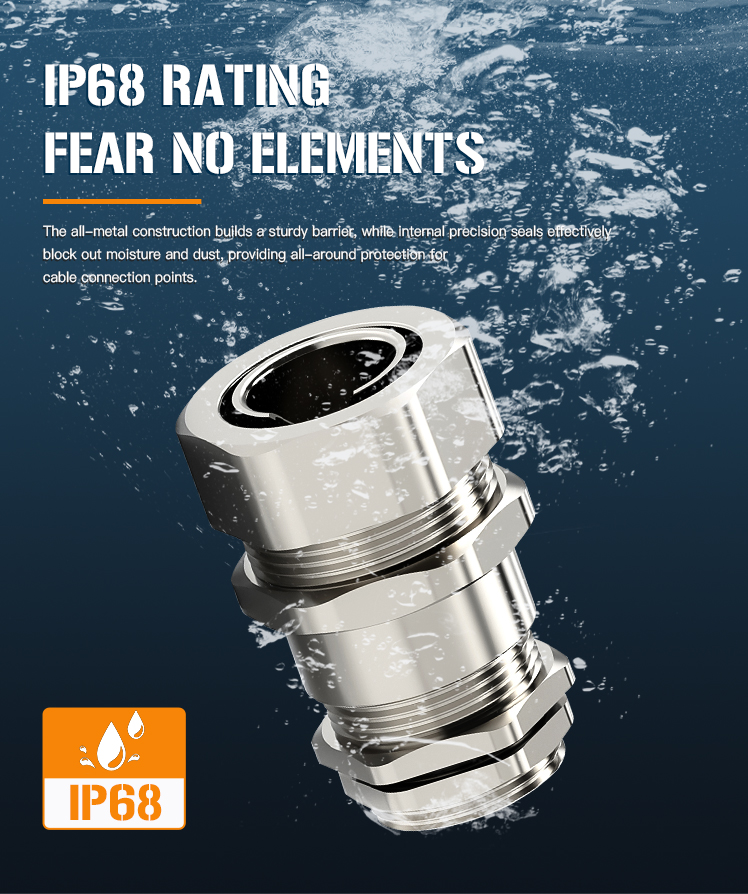

◆Features a tight sealing structure achieving IP67–IP68 waterproof protection, guarding against dust, oil, and moisture.
◆Provides excellent strain relief to prevent conduit pull-out and ensure stable cable positioning.
◆Allows for quick, tool-free installation while maintaining grounding continuity.
◆Available in multiple thread types (PG, NPT, Metric).
◆Complies with CE, UL, and RoHS certifications, meeting international quality and safety standards.
Applications
◇Electrical Control Cabinets
◇Automation Equipment
◇Marine Installations
◇Construction Machinery
◇Rail Systems
◇Power Equipment
◇Industrial Machinery
Key Benefits
◆Durable nickel-plated brass or stainless steel construction
◆Integrated locknut for secure anti-vibration installation
◆IP67–IP68 waterproof and dustproof protection
◆Excellent strain relief and grounding performance
◆Compatible with PG, NPT, and Metric threads
◆Suitable for power, automation, marine, and mechanical systems

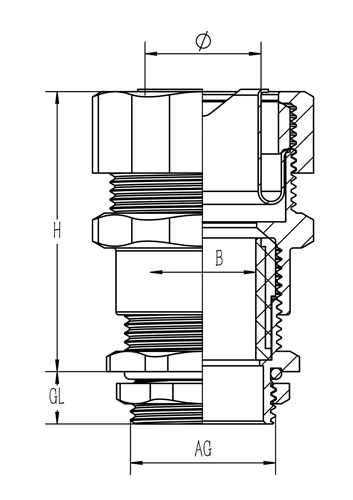

unit:mm
|
Item |
Conduit Size |
Range |
GL Thread Length |
Spanner size |
Code |
|
PG7 |
φ8 |
3-6.5 |
6.5 |
20/18/14/15 |
HX-SR.PG7-6.5-φ8 |
|
PG9 |
φ10 |
4-8 |
8 |
24/22/18/18 |
HX-SR.PG9-8-φ10 |
|
PG11 |
φ12 |
5-10 |
8 |
27/24/20/21 |
HX-SR.PG11-10-φ12 |
|
PG13.5 |
φ15 |
6-12 |
8 |
30/27/22/23 |
HX-SR.PG13.5-12-φ15 |
|
PG16 |
φ15 |
10-14 |
8 |
30/27/24/25 |
HX-SR.PG16-14-φ15 |
|
PG21 |
φ20 |
13-18 |
9 |
35/30/27 |
HX-SR.PG21-18-φ20 |
|
PG29 |
φ25 |
15-22 |
10 |
43/40/35/35 |
HX-SR.PG29-22-φ25 |
|
PG36 |
φ32 |
22-30 |
11 |
50/45/45 |
HX-SR.PG36-30-φ32 |
|
PG42 |
φ50 |
32-38 |
13 |
72/57/55 |
HX-5R.PG42-38-φ50 |
|
PG48 |
φ50 |
37-44 |
14 |
72/64/64 |
HX-SR.PG48-44-φ50 |
|
M12*1.5 |
φ8 |
3-6.5 |
6.5 |
20/18/14 |
HX-SR.M12-6.5-φ8 |
|
M16*1.5 |
φ10 |
4-8 |
8 |
24/22/18 |
HX-SR.M16-8-φ10 |
|
M18*1.5 |
φ12 |
5-10 |
8 |
27/24/20 |
HX-SR.M18-10-φ12 |
|
M20*1.5 |
φ15 |
6-12 |
8 |
30/27/22 |
HX-SR.M20-12-φ15 |
|
M20*1.5 |
φ15 |
6-12 |
8 |
30/27/22 |
HX-SR.M20-12-φ15 |
|
M22*1.5 |
φ15 |
10-14 |
8 |
30/27/24 |
HX-SR.M22-14-φ15 |
|
M24*1.5 |
φ15 |
10-14 |
8 |
30/27/27 |
HX-SR.M24-14-φ15 |
|
M25*1.5 |
φ15 |
10-14 |
9 |
30/27/27 |
HX-SR.M25-14-φ15 |
|
M25*1.5 |
φ20 |
13-18 |
9 |
35/30/27 |
HX-SR.M25-18-φ20 |
|
M32*1.5 |
φ20 |
13-18 |
9 |
35/35/35 |
HX-SR.M32-18-φ20 |
|
M32*1.5 |
φ25 |
15-22 |
10 |
43/40/35 |
HX-SR.M32-22-φ25 |
|
M36*2 |
φ25 |
15-22 |
10 |
43/40/40 |
HX-SR.M36-22-φ25 |
|
M40*1.5 |
φ32 |
22-30 |
11 |
50/45/45 |
HX-SR.M40-30-φ32 |
|
M40*1.5 |
φ38 |
22-30 |
11 |
57/45/45 |
HX-SR.M40-30-φ38 |
|
M48*1.5 |
φ38 |
25-33 |
11 |
57/50/52 |
HX-SR.M48-33-φ38 |
|
M50*1.5 |
φ50 |
32-38 |
13 |
72/57/55 |
HX-SR.M50-38-φ50 |
|
M56*2 |
φ50 |
32-38 |
13 |
72/60/60 |
HX-SR.M56-38-φ50 |
|
M60*1.5 |
φ50 |
37-44 |
14 |
72/64/64 |
HX-SR.M60-44-φ50 |
|
M63*1.5 |
φ50 |
37-44 |
14 |
72/68/68 |
HX-SR.M63-44-φ50 |
